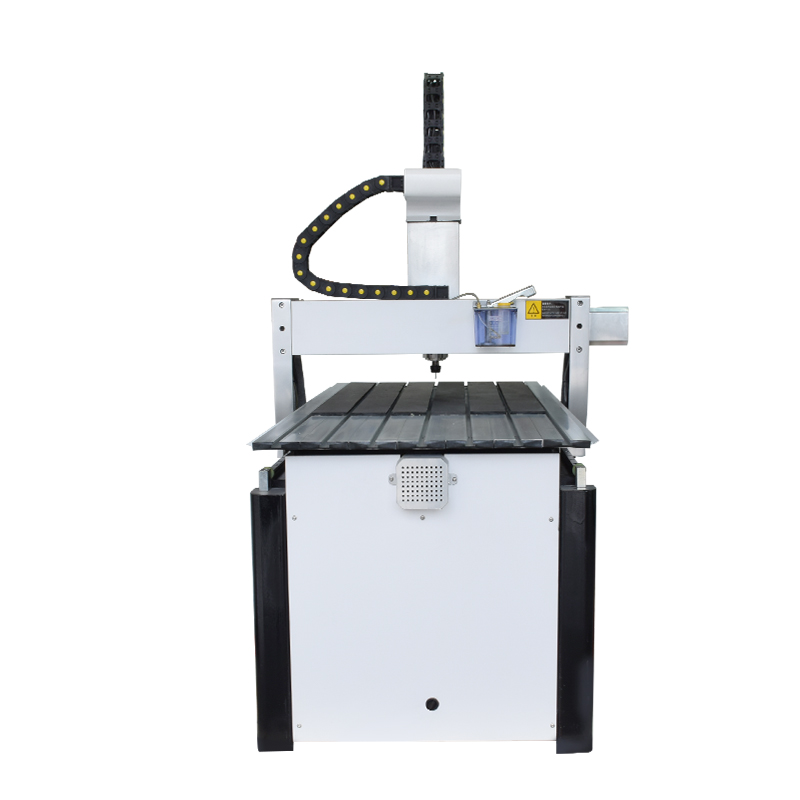

CNC Wood Engraving Machine

T Slot Mini Desktop 3d Acrylic Engraving 4 Axis cnc woodworking machine for craft

600*900mm T-Slot CNC Machine For Brass And Jade Material.
  • Item NO.:

    Lz-6090A
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

T Slot Mini Desktop 3d Acrylic Engraving 4 Axis cnc woodworking machine for craft

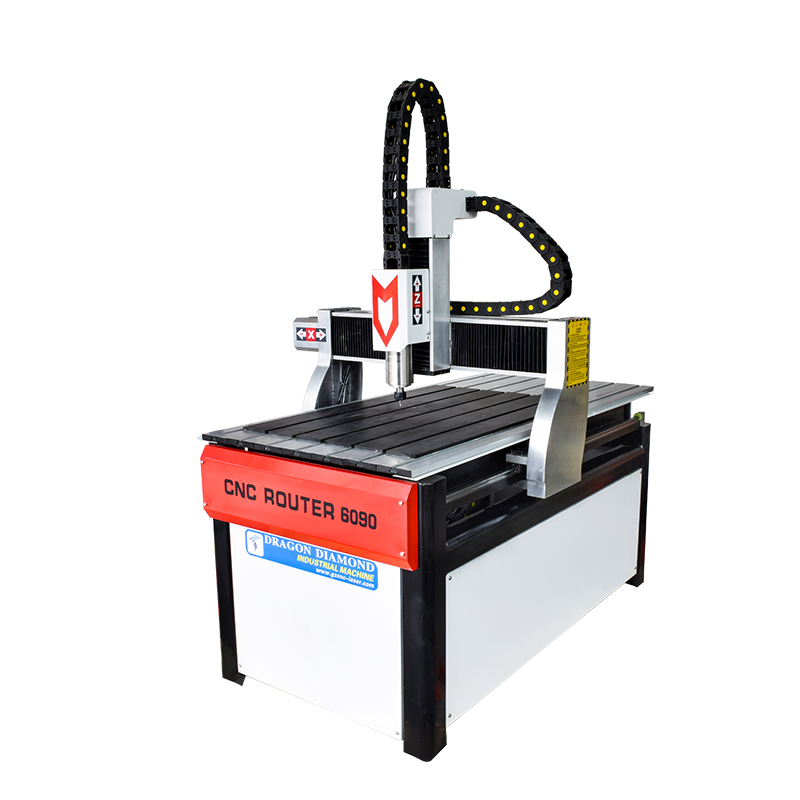

Desktop 6090 CNC Wood Cutting Machine



PRODUCT PARAMETER

NO.

Model

Lz-6090A

1

Working Area

600x900x150mm

2

Machine Diamension

800x1250x300mm

3

Working Table

T slot with Cast Iron

4

Spindle

1.5KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Control System

NC Studio Controller

7

Inverter

Sunfar

8

XYZ Transmission

Ball Screws Transmission

9

XYZ Guider

Taiwan Hiwin Square Rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Stepper motor

12

Machine Structure

Cast iron structure

13

Spindle Speed

24000RPM

14

Suitable Software

Artcam, Type3, Ucancam V9, etc

15

Traveling Speed

5000mm/min

16

Engraving speed

3500mm/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC 220V±10%, 50/60Hz, Single Phase,

AC 380V±10%, 50/60Hz, Single Phase

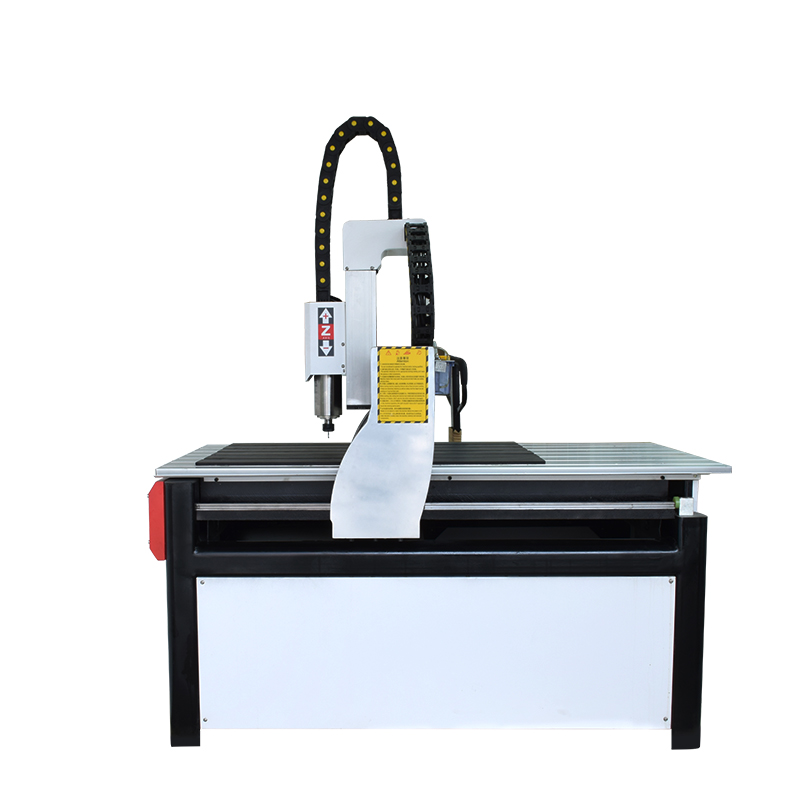

T Slot Mini Desktop 3d Acrylic Engraving 4 Axis cnc woodworking machine for craft

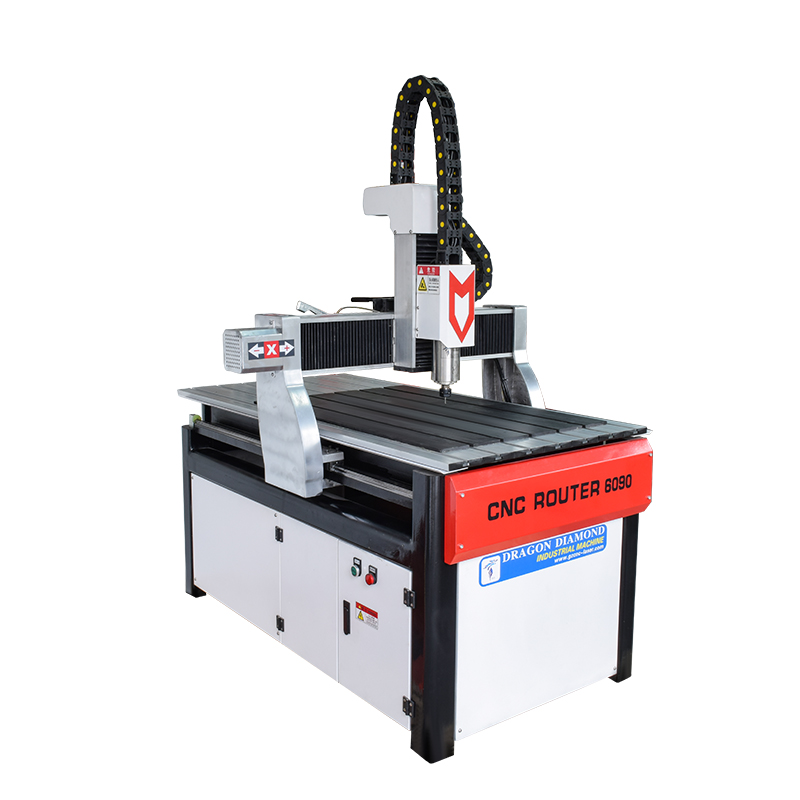

T Slot Mini Desktop 3d Acrylic Engraving 4 Axis cnc woodworking machine for craft



PRODUCT FEATURES

1.Durable Structure
Cast iron lathe bed.Aluminum with PVC working table stable running with less vibration.

2.Strong Gantry Design
With Gantry moving type,stable and durable for long time using.Ensure high positioning accuracy.


3.Good Quality Water Cooling Spindle
Large power 2.2kw water cooling spindle which is applicable not only for cooper plate,aluminum plate,iron plate engraving but also for wood working.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothy and cleat by large power spindle.

4.Guide Rail And Transmission
XYZ three axis are with linear square guide rail.Hiwin,Taiwan Ball screws transmission for all axis.Durable running with higher accuracy.

5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.


6.Motor And Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000mm per min.

7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.


8.High End Toolbox
Rationalzed placement of the electronic parts.Optimized heat disspation effect.Adopt high quality electronic parts,minimizing fault rate.Adopt high flexible cable and imported electronic parts,electrical design of whole machine is complied with the CE standard.


9.Favorable Compatibility Software
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

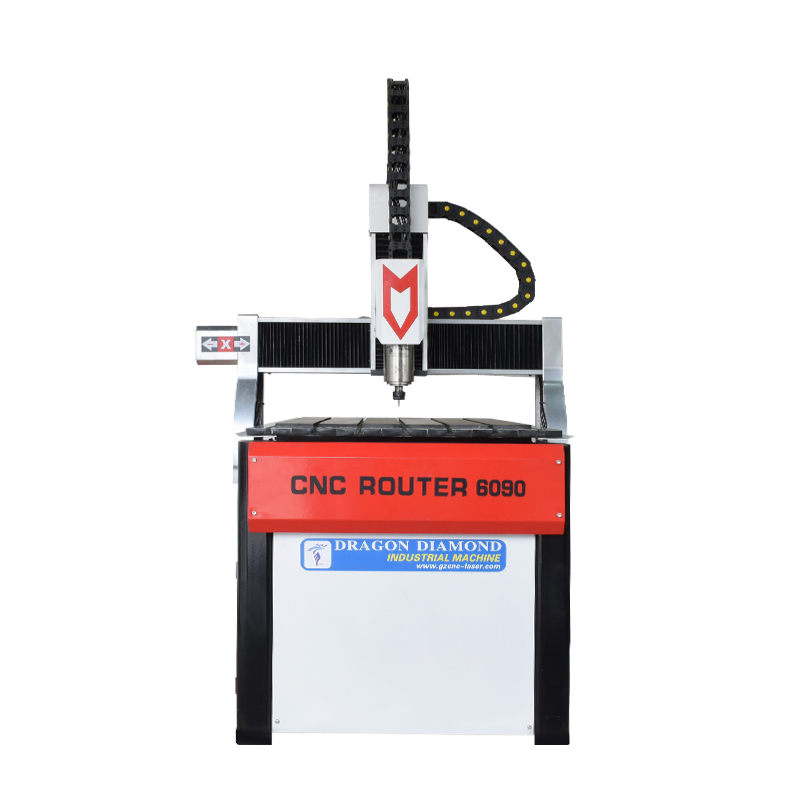

T Slot Mini Desktop 3d Acrylic Engraving 4 Axis cnc woodworking machine for craft
