Working Area

1000*800*180mm

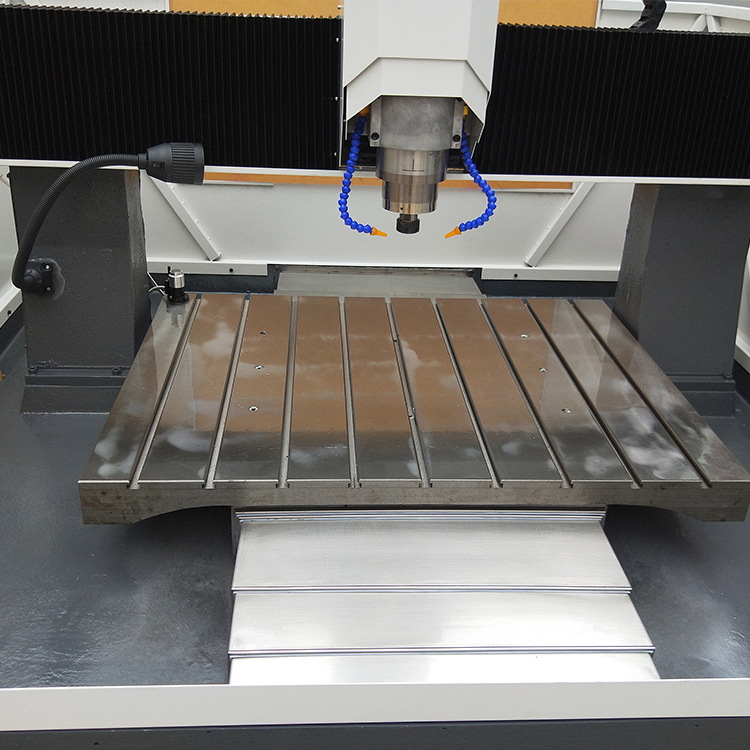

Table Type

Steel Table & Water cooling

X,Y,Z Repositioning Accuracy

±0.01mm

Guider

Taiwan HIWIN linear guider

Control System

Ncstudio Controller 95A (Original)

Motor

Delta Servo Motor & Driver

Max Speed

20000mm/min

Working speed

0-8000mm/min

Spindle

5.5KW Water cooled spindle

Spindle speed

0-24000rpm

Inverter

5.5kw VFD

Software

Ucancam

Power source

AC 380V/50HZ

Collets

3.175mm/4mm/6mm

File Format

G-code

Machine Size

1780*1700*1650mm

Net Weight

4000KG

Warranty

2 years

Working material

Plexiglass, Acryl, Polycarbonate, Wood, soft metals
