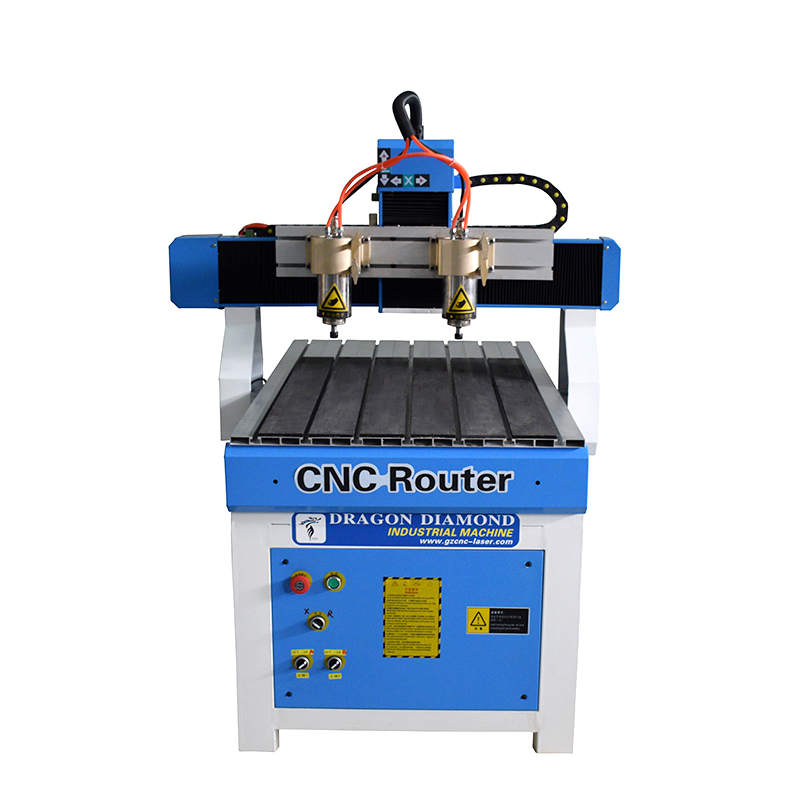

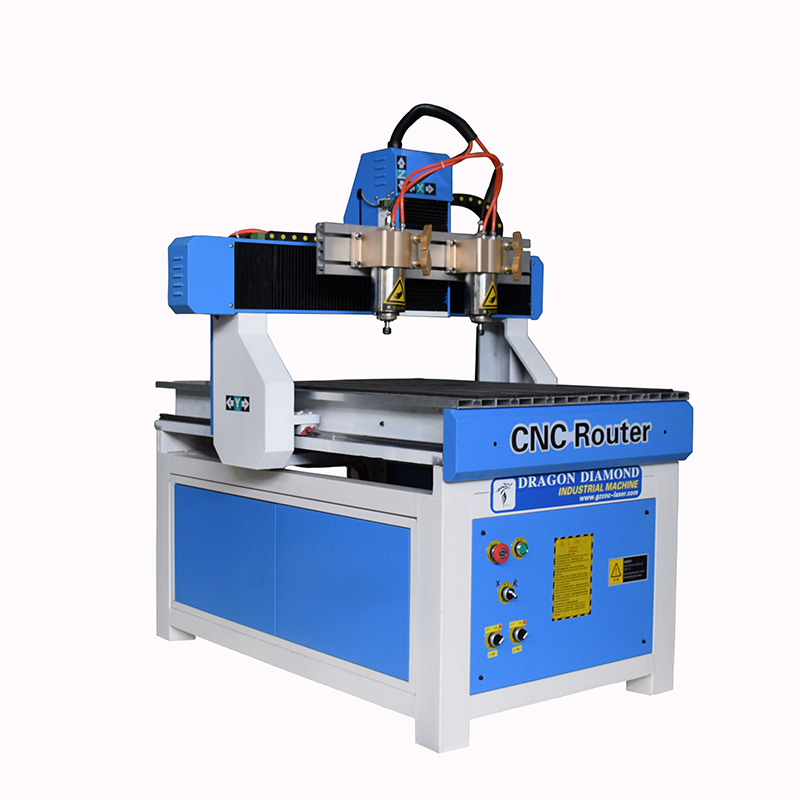

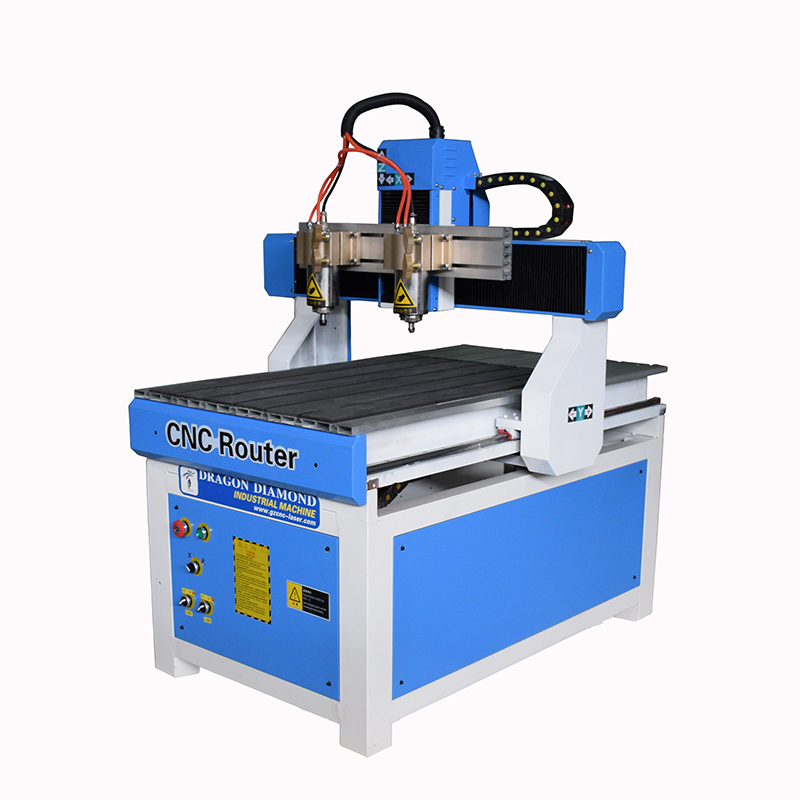

CNC Wood Engraving Machine

Double Head 3 Axis Cnc Engraver Woodworking Cutter

600*900mm Double Head Small CNC Engraving Machine.
  • Item NO.:

    Lz-6090-Double Head
  • Order(MOQ):

    1
  • Market Price:

    $2500-3383/Set
  • Product Origin:

    China
  • Color:

    Blue
  • Shipping Port:

    Guangzhou
  • Product Detail

Double Head 3 Axis Cnc Engraver Woodworking Cutter

Double Head CNC Machine



PRODUCT PARAMETER

NO.

Model

Lz-6090 Double Head

1

Working Area

600x900x200mm

2

Packing Size

1300x1600x1400mm

3

Working Table

Aluminum alloy T Slot with PVC protection layer

4

Spindle

0.8KW/1.5KW/2.2KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Control System

NC Studio Controller

7

Inverter

Sunfar

8

Transmission

Lead ball screw for XYZ-axis

9

Guide Rail

Linear square guide rail, Hiwin, Taiwan, diameter 20mm

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Stepper motor

12

Machine Structure

Cast iron structure

13

Spindle Speed

24000RPM

14

Suitable Software

Artcam, Type3, Ucancam V9, etc

15

Traveling Speed

>8000mm/min

16

Engraving speed

>6000mm/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC 220V±10%, 50/60Hz, Single Phase,

AC 380V±10%, 50/60Hz, Single Phase



cnc-router_10


PRODUCT FEATURES

1.Durable Structure
Cast iron lathe bed.Aluminum with PVC working table stable running with less vibration.

2.All In One Control Box
Control box is included inside the machine boday.Save space and easy to examine and repair.


3.Good Quality Water Cooling Spindle
Double spindle can be improved working efficiency.Machine supports two options.One is single head with two spindle,another is double heads with two spindles.

4.Guide Rail And Transmission
XYZ three axis are with linear square guide rail.Hiwin,Taiwan Ball screws transmission for all axis.Durable running with higher accuracy.

5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.


6.Motor And Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000mm per min.

7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.


8.Favorable Compatibility Software
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

metal cnc router
