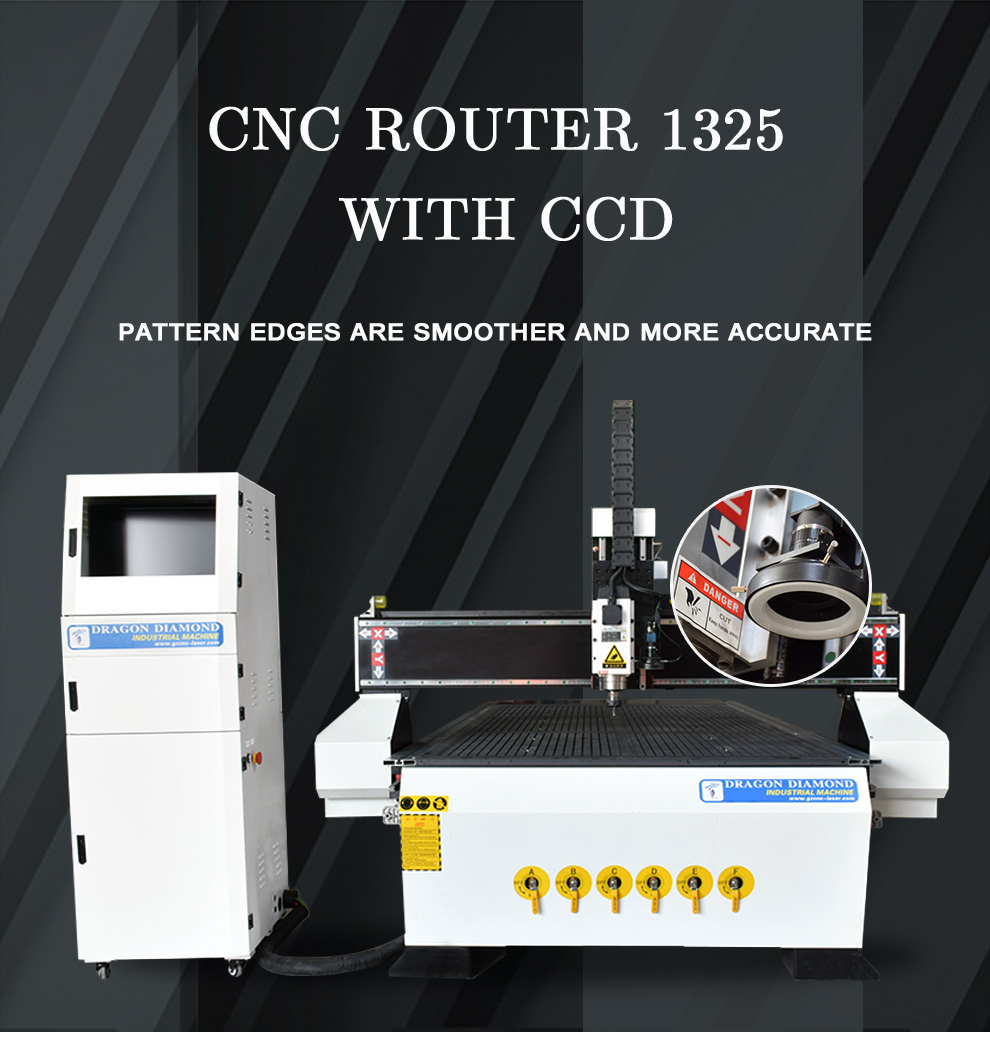

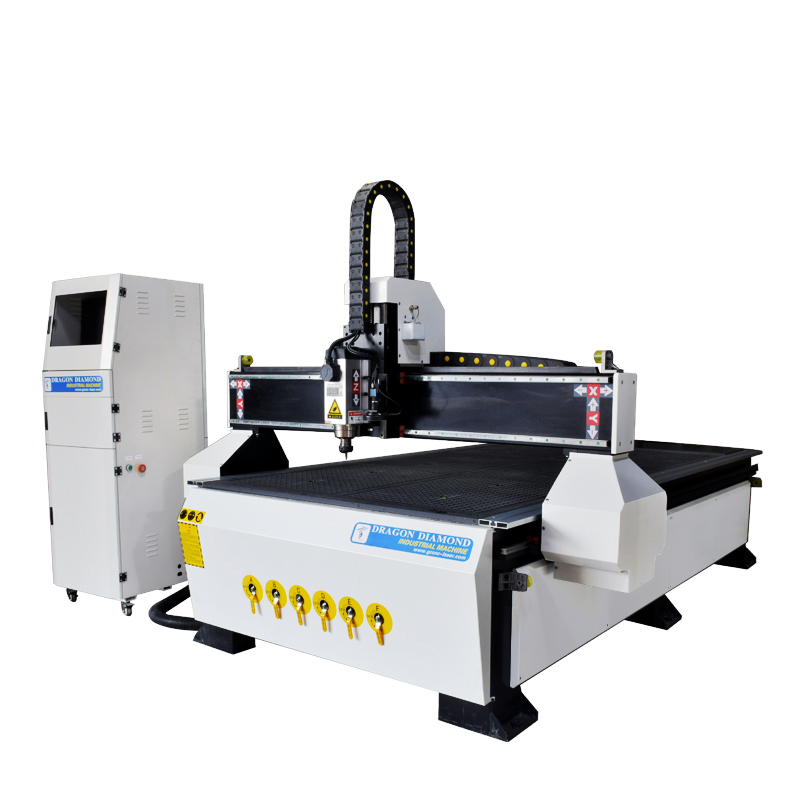

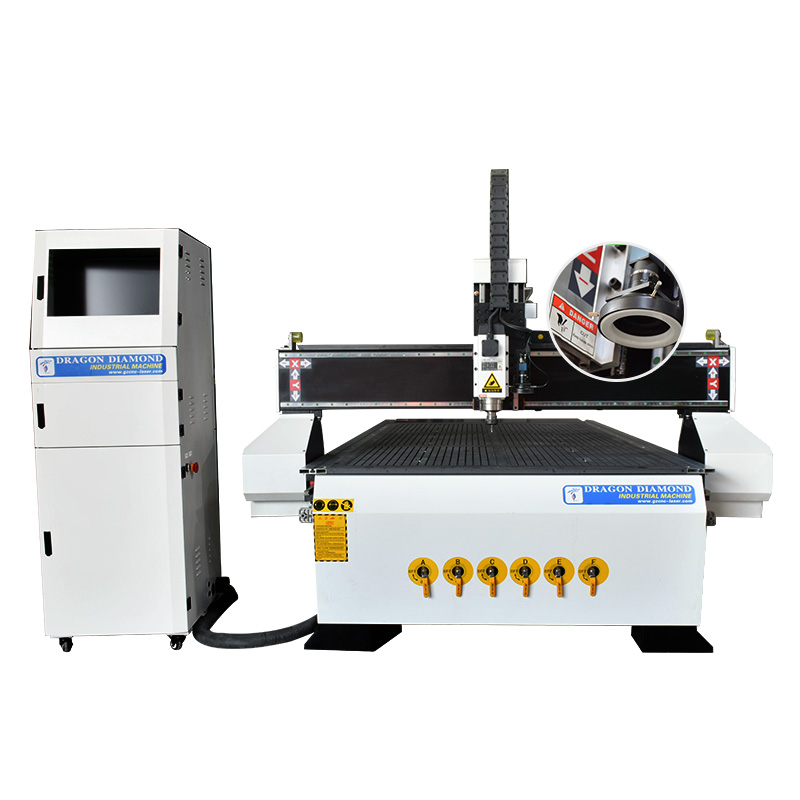

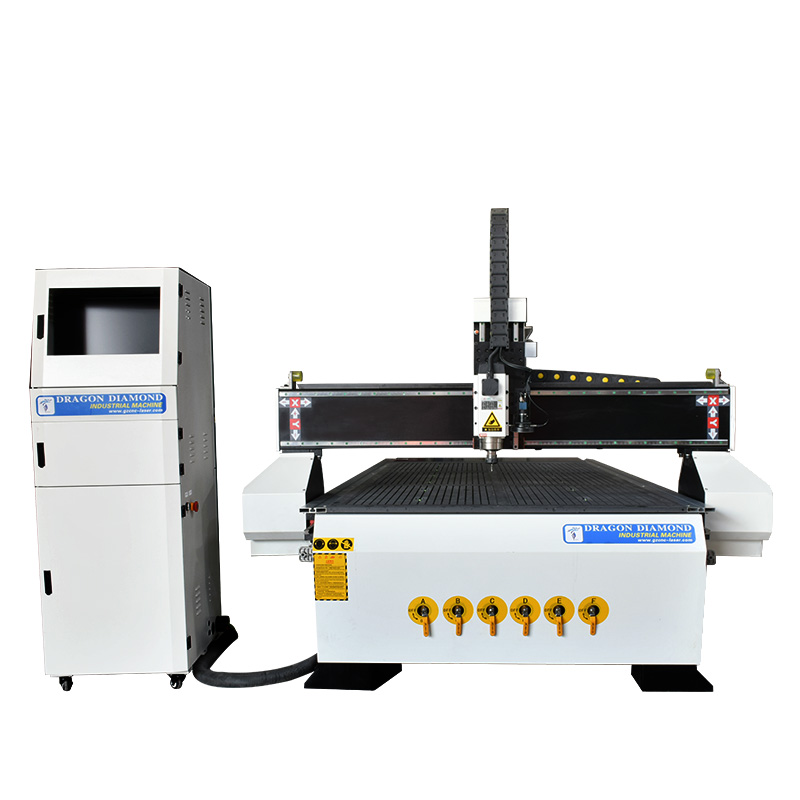

CNC Wood Engraving Machine

CCD Cnc Router Cutting Machine With Stepper Motor Driver

1300*2500mm CNC Engraving Machine With Vacuum absorb Working Table Automatic Curve Cutting Function.
  • Item NO.:

    Lz-1325CCD
  • Order(MOQ):

    1
  • Market Price:

    $5800-6800/Set
  • Product Origin:

    China
  • Color:

    Blue
  • Shipping Port:

    Guangzhou
  • Product Detail

CCD Cnc Router Cutting Machine With Stepper Motor Driver


CCD Cnc Router Cutting Machine With Stepper Motor Driver

PRODUCT PARAMETER


NO.

Model

Lz-1325-CCD

1

Working Area

1300x2500x200mm

2

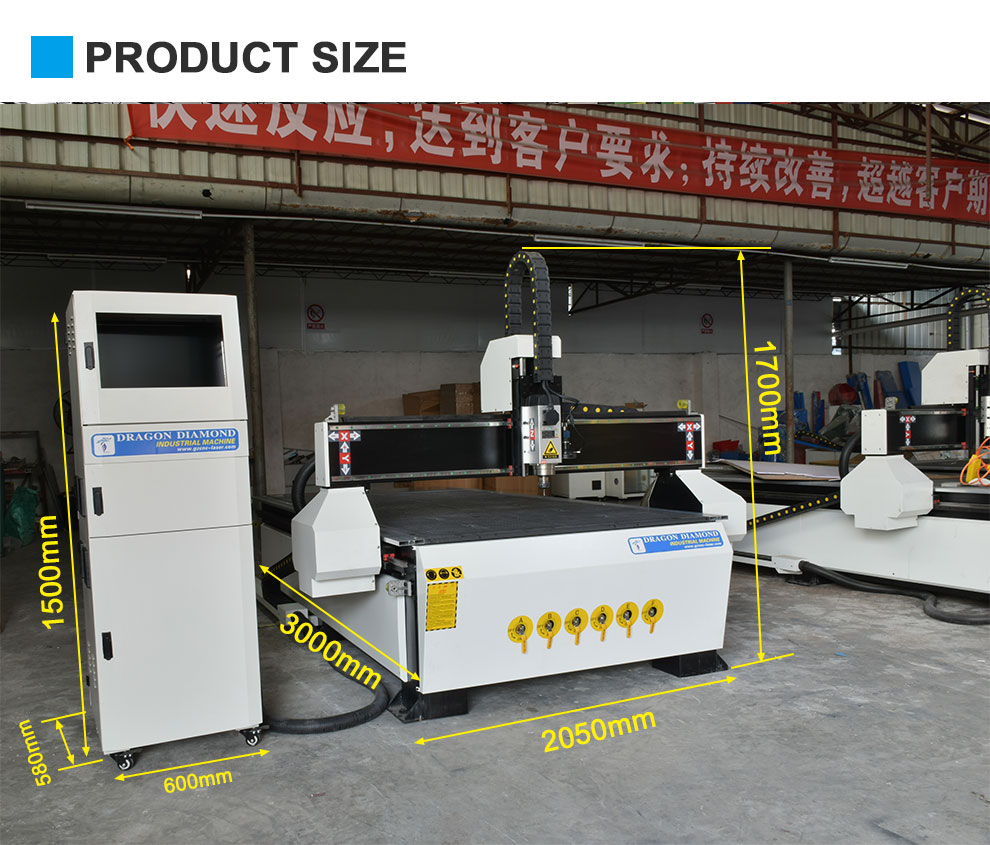

Packing Size

3180x2130x1880mm

3

Working Table

T-Slot Aluminum Table/Vacuum Table

4

Control System

CCD professional system

5

CCD Function

Automatic edge inspection, contour cutting

6

CCD Pixels

130W

7

Spindle

3.5KW Air Cooling Spindle/3KW Water cooling Spindle

8

Cooling System

Air Cooling/Water Cooling

9

Inverter

Sunfar

10

Transmission Type

X,Y axis gears pinion, Z axis with ø20mm ball screws

11

Guide Rail

Taiwan HIWIN Square rail

12

Ball Screw

Taiwan TBI ball screw

13

Drive System

Leadshine stepper motor

14

Body

Welded steel T type structure as a whole

15

Spindle Speed

0-18000RPM/0-24000RPM

16

Editing Software

Artcam/Type3,other CAD/CAM

17

Traveling Speed

10m/min

18

Working Speed

8m/min

19

Reposition Accuracy

0.03mm

20

Command Code

G Code*.u00*.mmg*.plt

21

Voltage

AC220V/380V,50Hz/60Hz

22

Warranty

24 months

23

Optional parts



1.Dust Collects

2.Water Chiller CW3000

3.rotary axis

4.Servo Motor

5.different working area

6..semi-auto lubrication system

7.different power spindle


CCD Cnc Router Cutting Machine With Stepper Motor Driver

CCD Cnc Router Cutting Machine With Stepper Motor DriverCCD Cnc Router Cutting Machine With Stepper Motor Driver

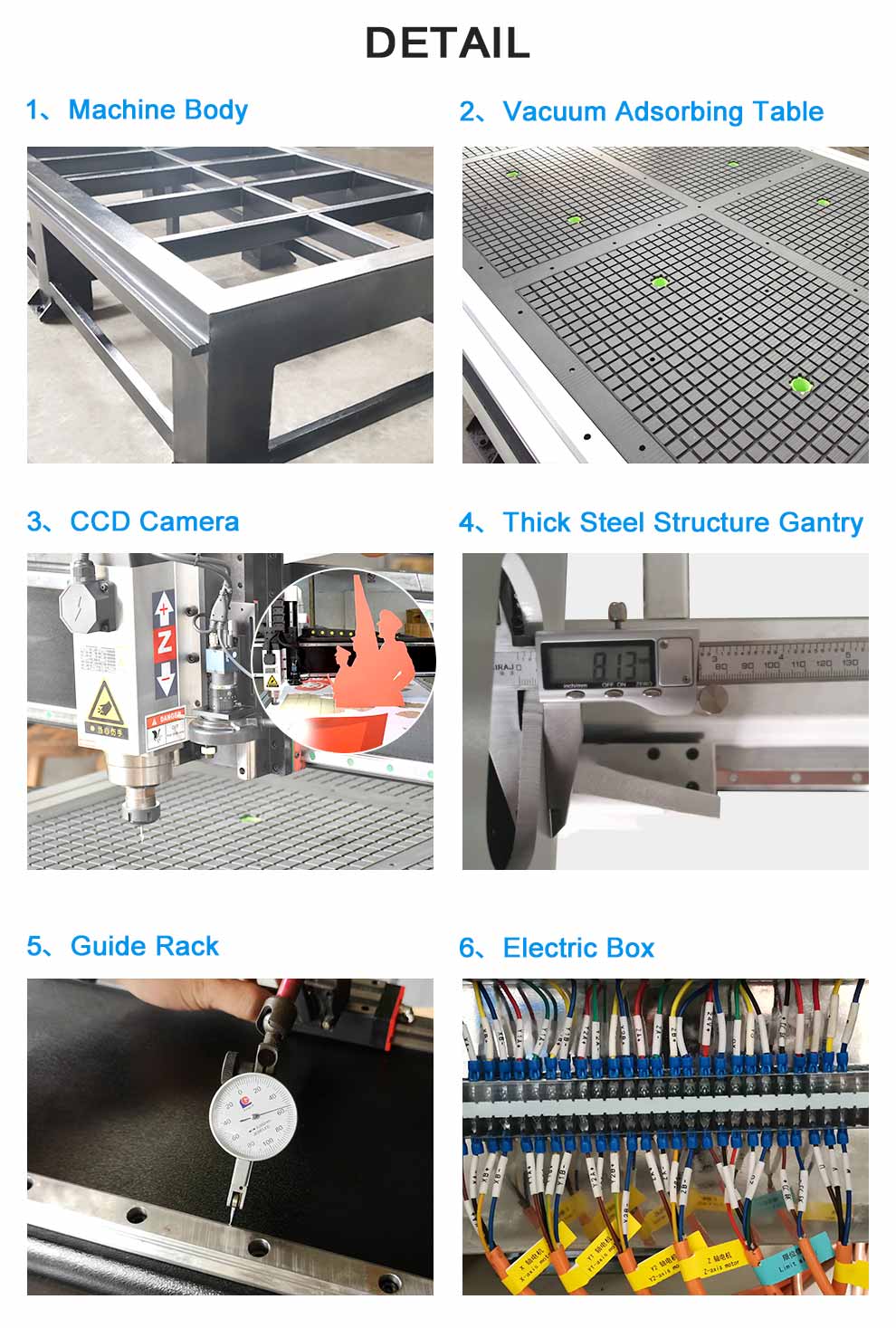

PRODUCT DESCRIPTION

1.The gantry is welded with 8mm thickened square tube.

Accuracy is within 0.02mm.

More than 90% higher than the manufacturing level of peers

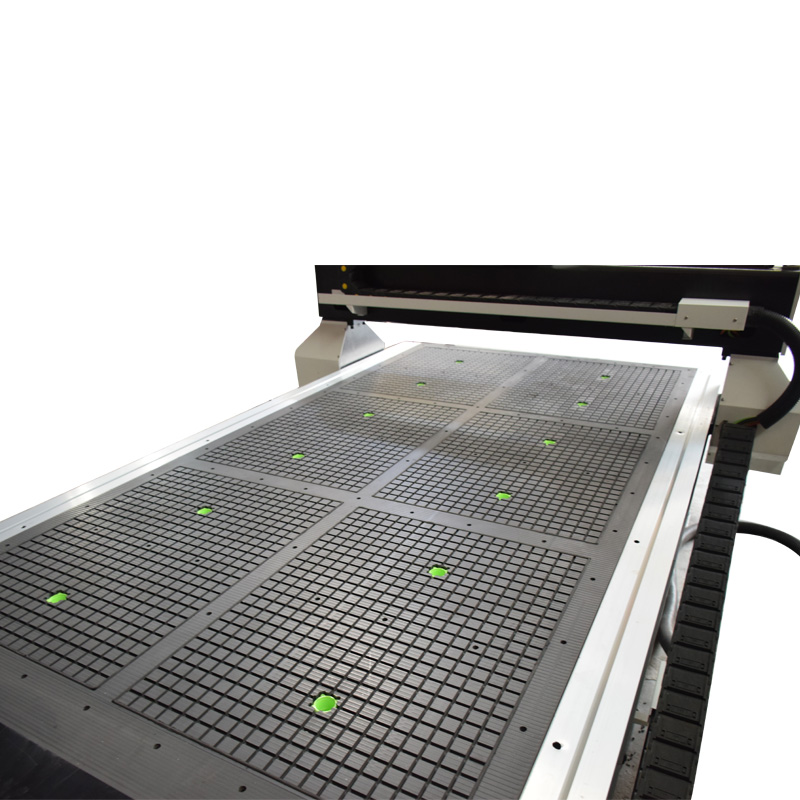

2.Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps,convenient and save fixing time.

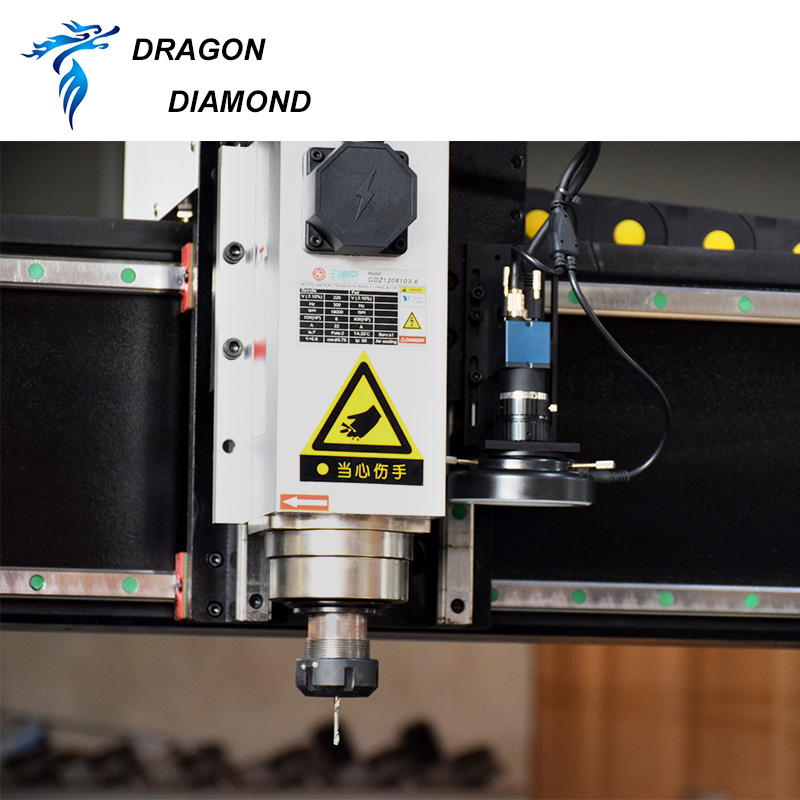

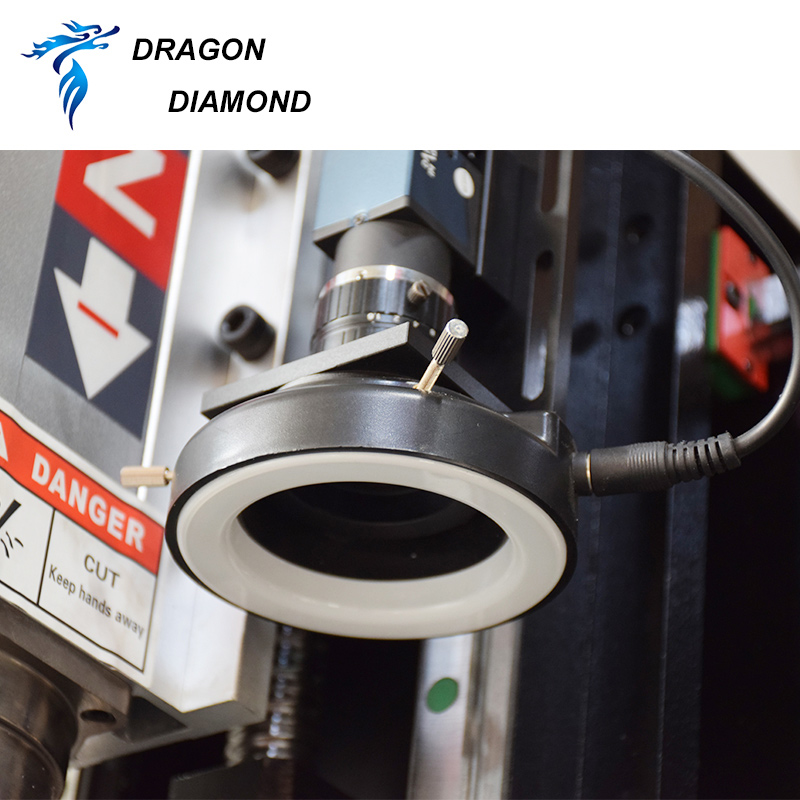

3.The professinal CCD camera can scan the patterns on the advertising sheet and cut along the edge automatically.



4.Gantry thickness 8mm.

Using heavy-duty columns.

Ensure that the machine body is stable during high speed and heavy cutting without jitter.



5.Imported Rack and Pinion Drive and Hiwin linear guide rail ensure accuracy and high precision.



6.AII the connecting cables have been placed neatly with the label of cable information.It is very convenient to help customer to check.

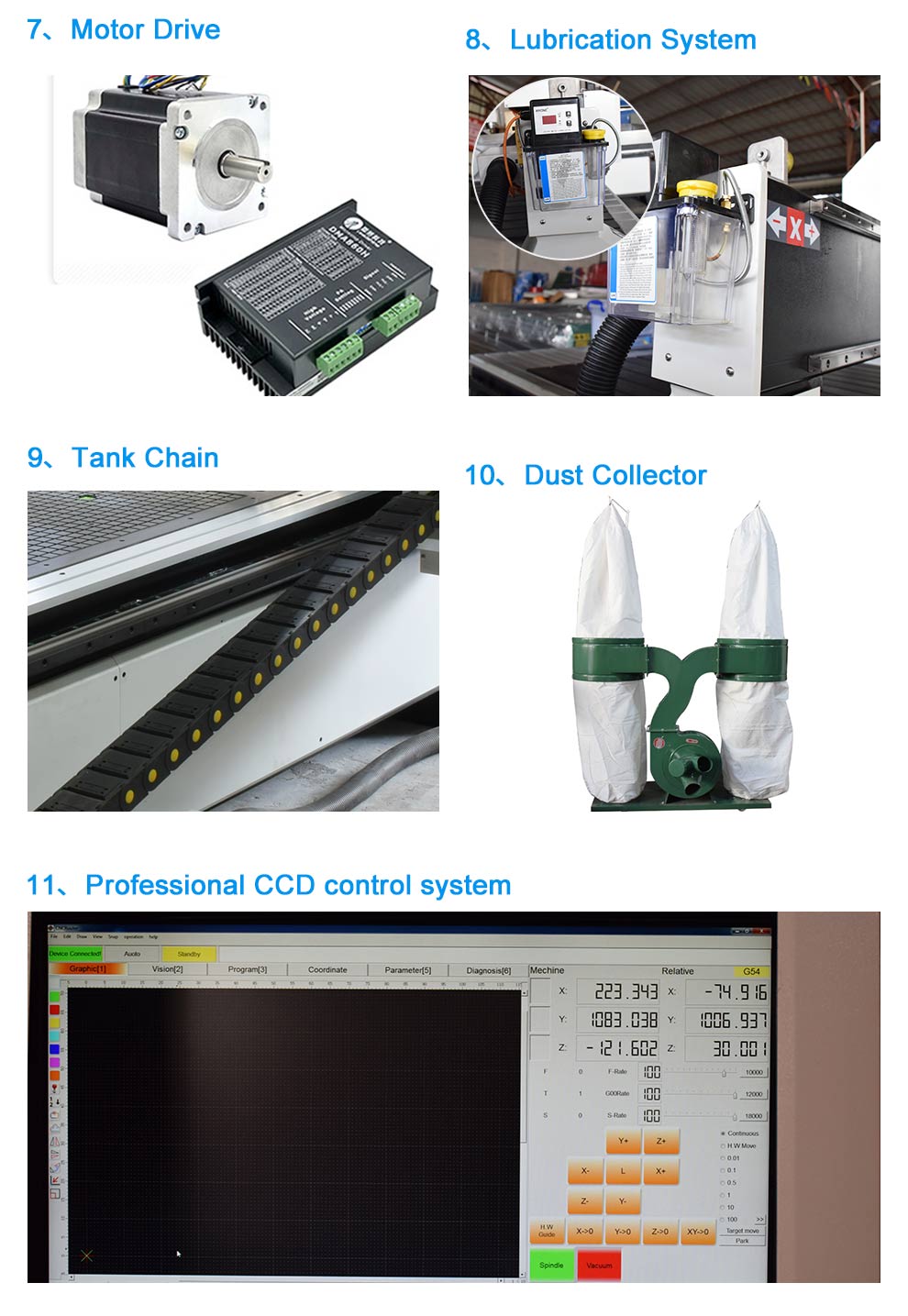

7.Leadshine Stepper motor runs smoothly, which creates a none vibration phenomenon even in low speed and heavy load conditions. Hybrid Servo motor and Servo Motor are optional.



8.Manual/Automatic Oil-injection system provides an easy maintenance working environment.



9.Tank Chain is designed for fireproof and avoided wear of wires and other components, protecting wires.

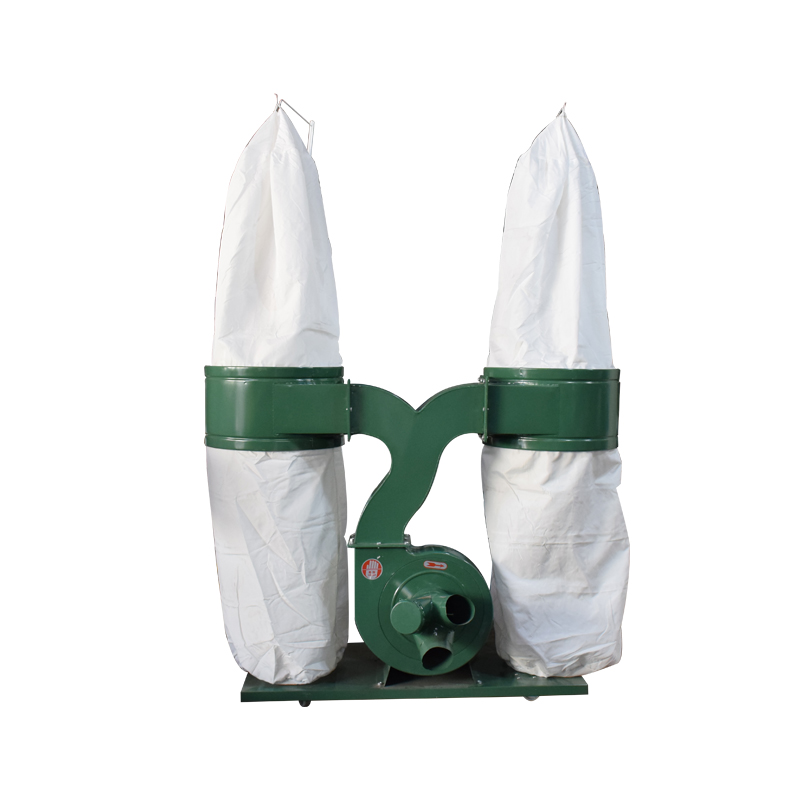

10.Dust collector will clean up the carving residuum and make the operations tidier and more convenient.



11.Control System:Basic function of CNC Router + CCD Camera Contour cutting function, CAD/CAM designing software, such as type3/ ucancam/ artcam are part of the machine package.

CCD Cnc Router Cutting Machine With Stepper Motor Driver
