DRAGON DIAMOND CNC
Item NO.:
LZ-4040 -Water SinkProduct Origin:
ChinaShipping Port:
Guangzhou
Model NO.

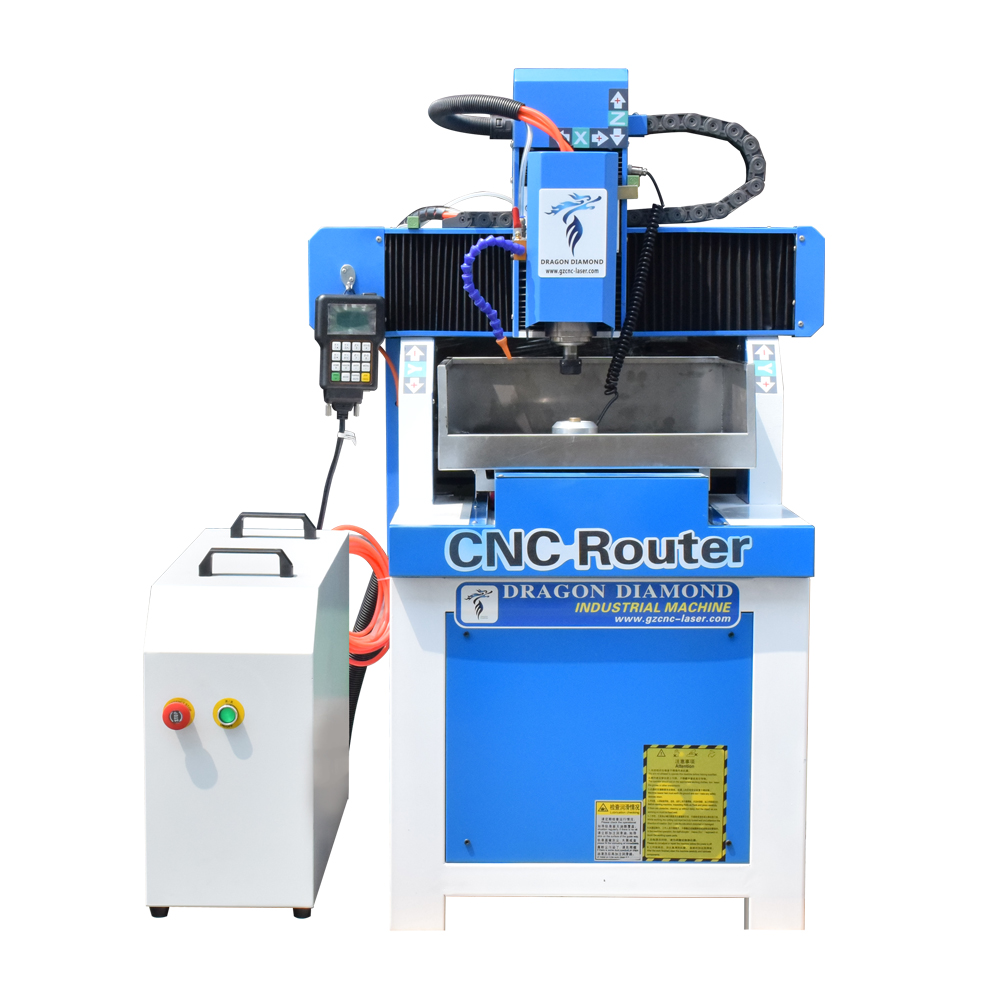

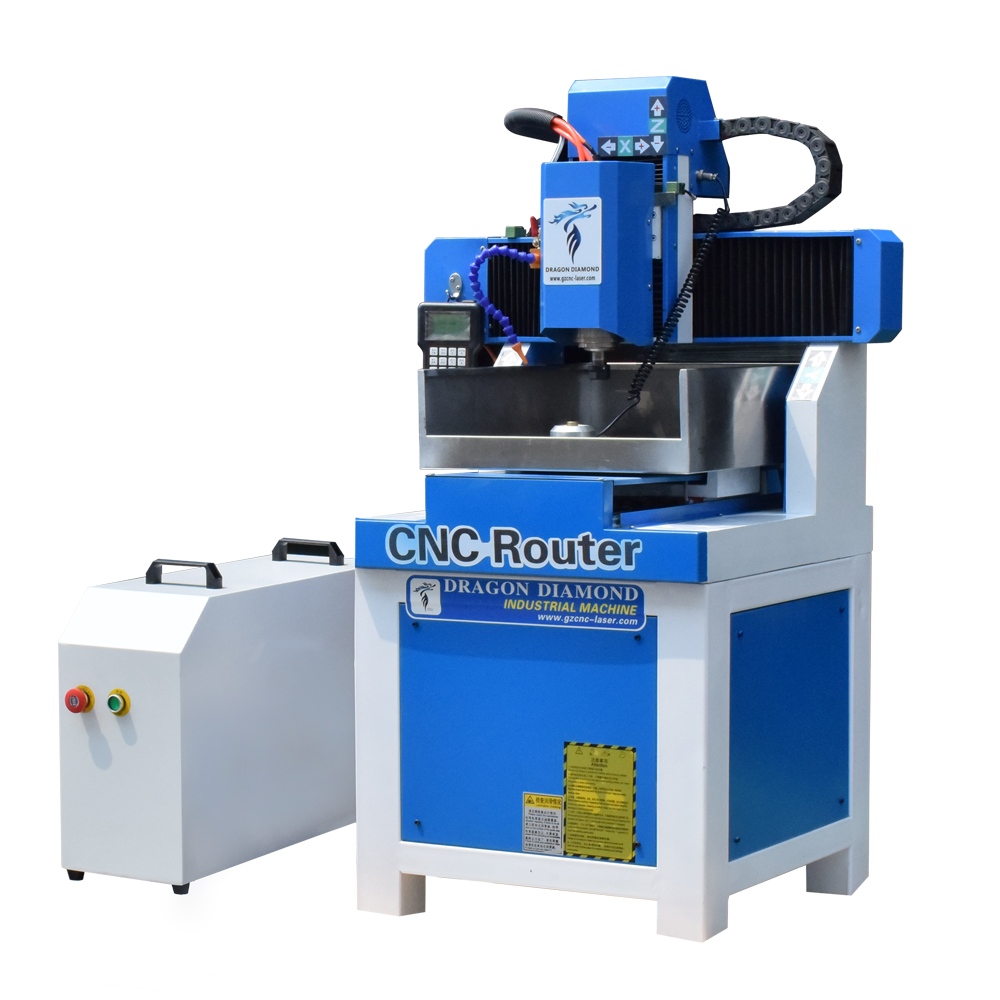

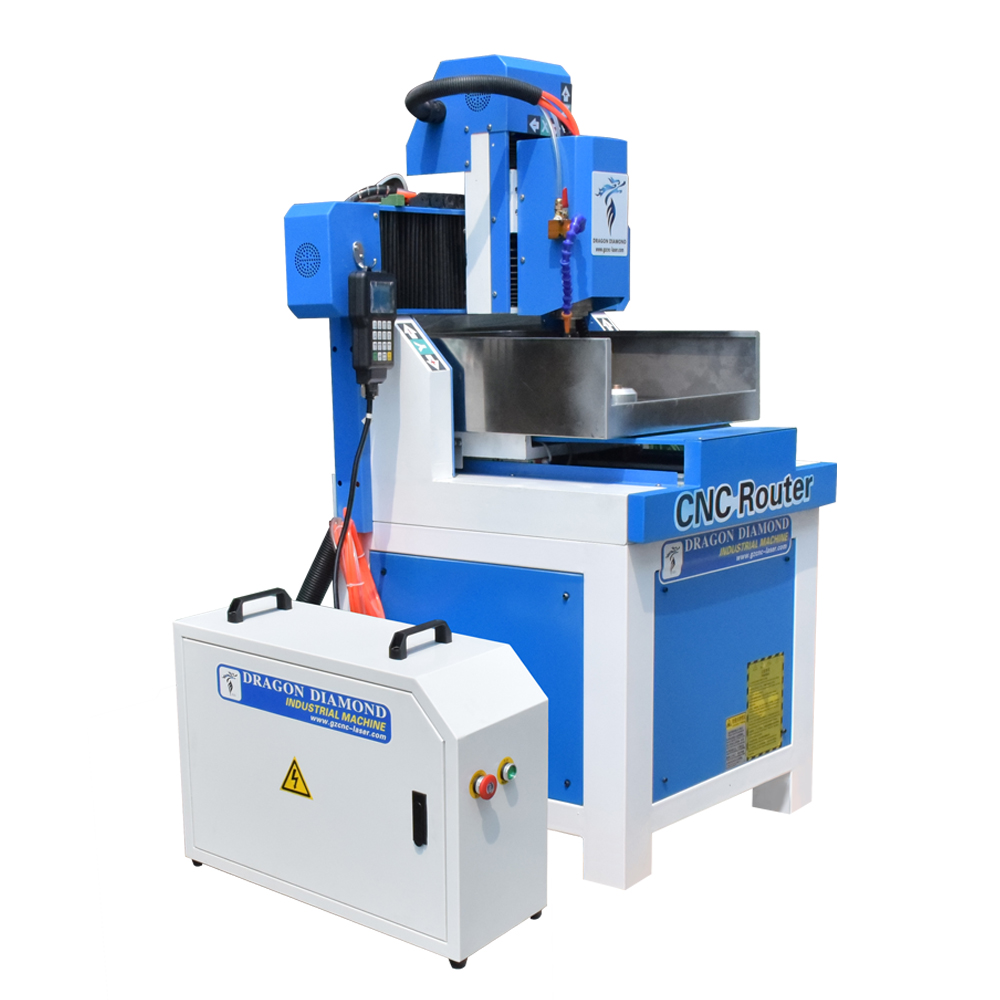

LZ-4040 Mini CNC Router
Machine Table Area
400mm*400mm*150mm
X Y Z Traveling Area
360mm*360mm*120mm
Table Structure
Wholly Iron Cast

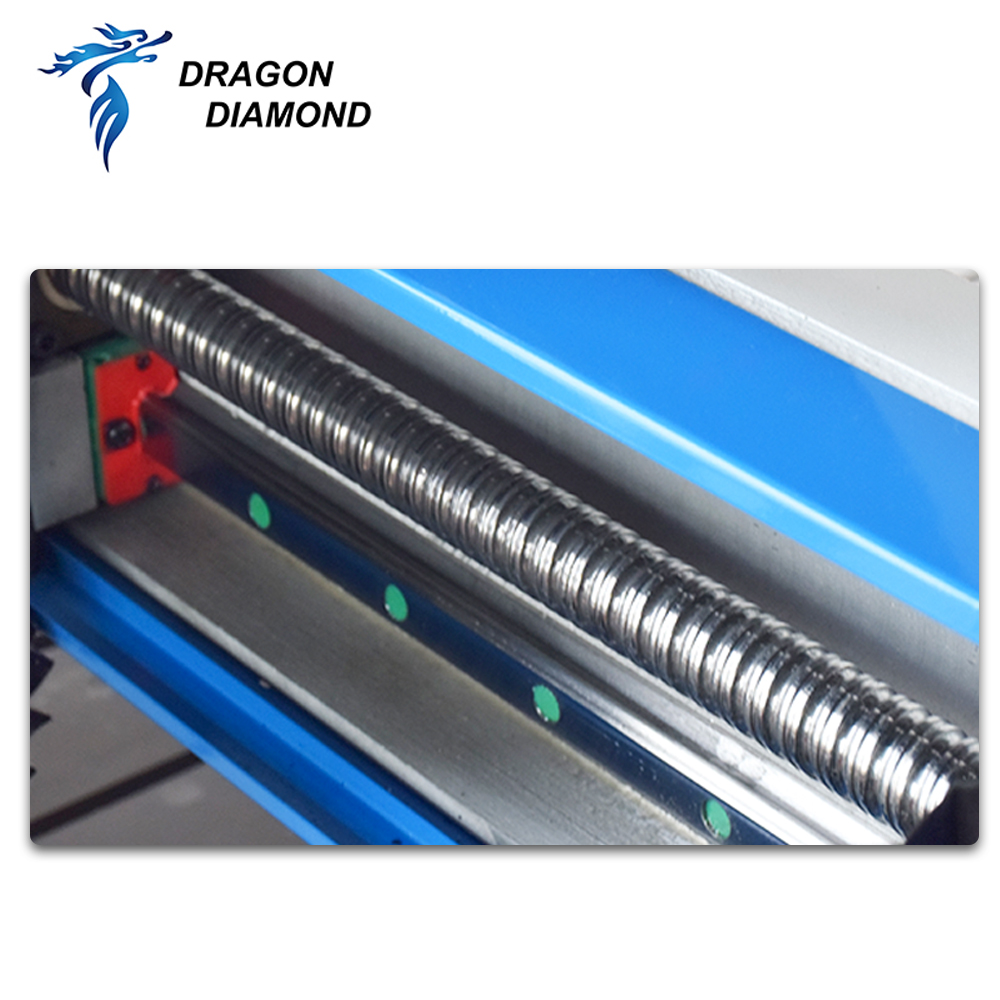

X Y Z Transmission
Germany NEFF Ball Screws
X Y Z Guide Rail
HIWIN Square Rail
Spindle Power
1.5KW/2.2KW
Max. Spindle Speed
24000r/mm
Max. Traveling Speed
7200mm/min
Max. Working Speed
5000mm/min
Processing Accuracy
±0.025mm

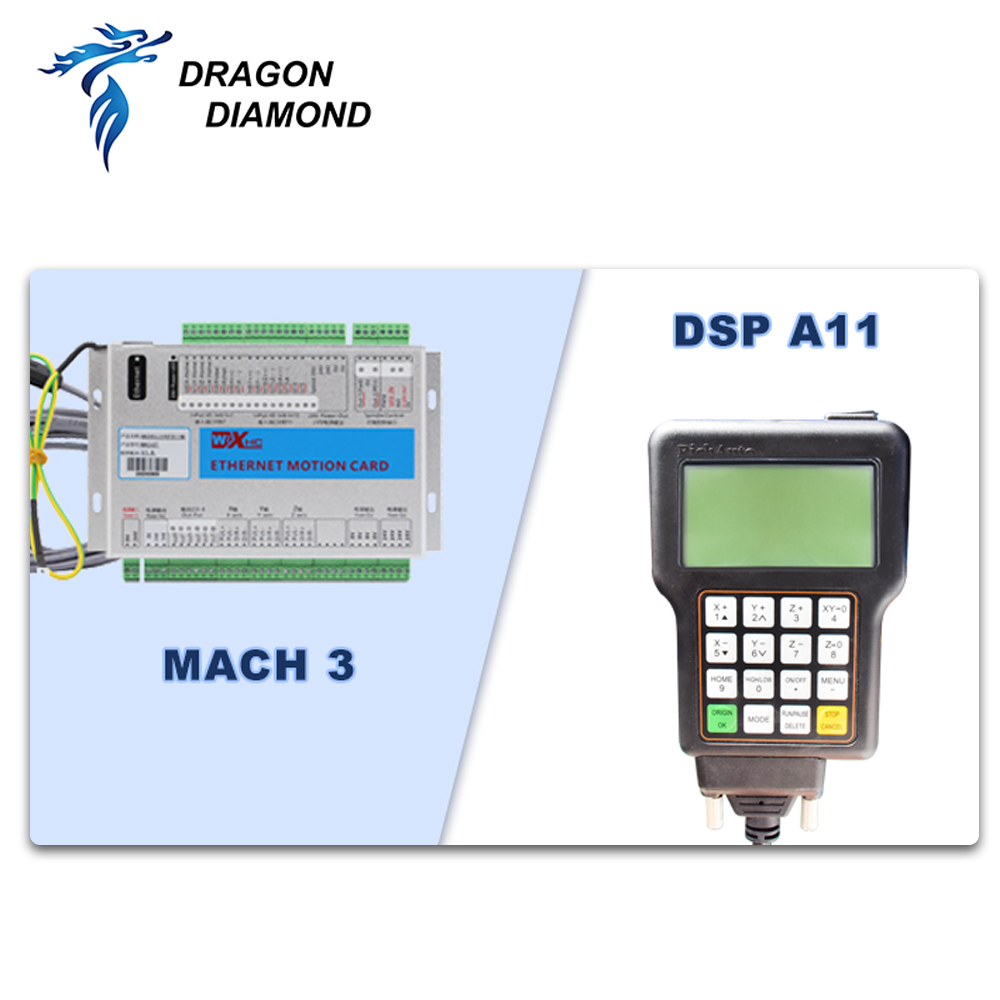

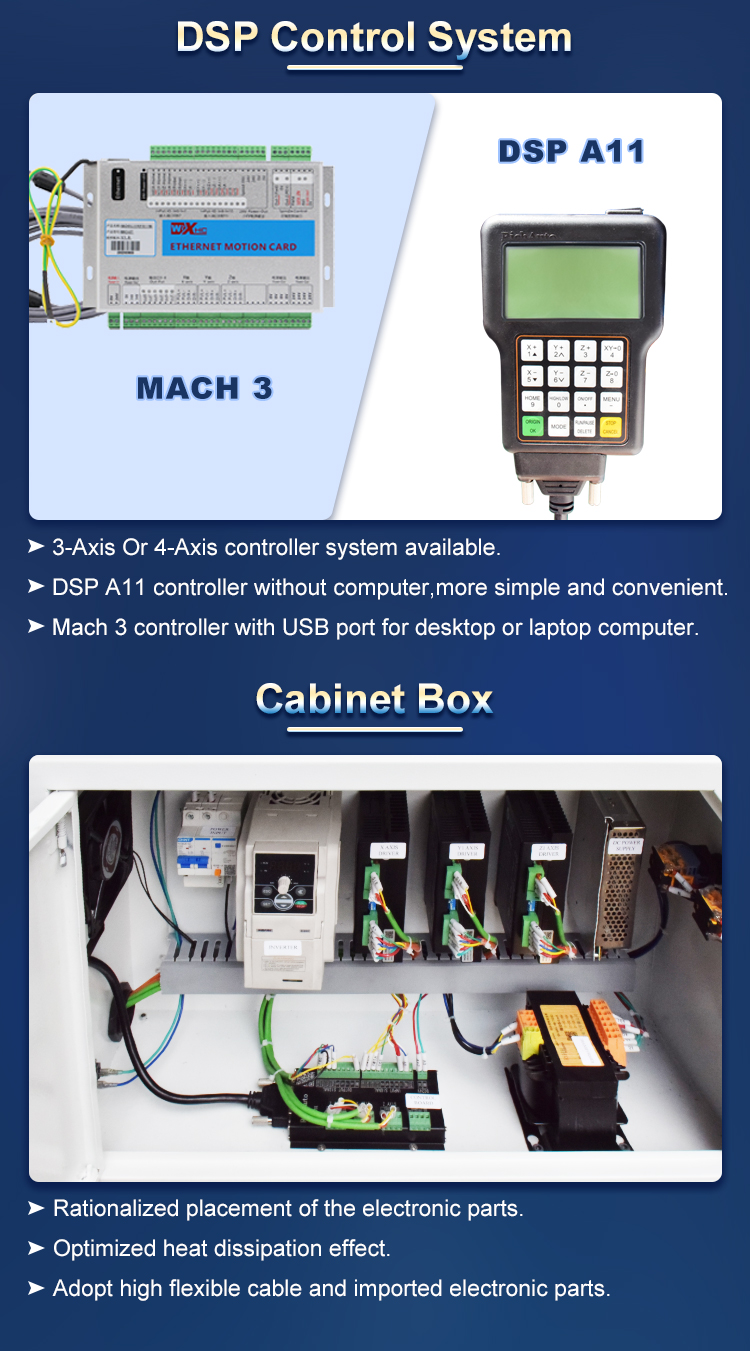

Driving System
Stepper Motor
Command Language
HPGL, G Code
Working Voltage
AC220V /50Hz
Net Weight/Gross Weight
220KGS / 260KGS
Package Dimension
1000mm*900mm*1600mm
