DRAGON DIAMOND CNC
Item NO.:
LZ-1610L(withCCD)Order(MOQ):
1Product Origin:
ChinaShipping Port:

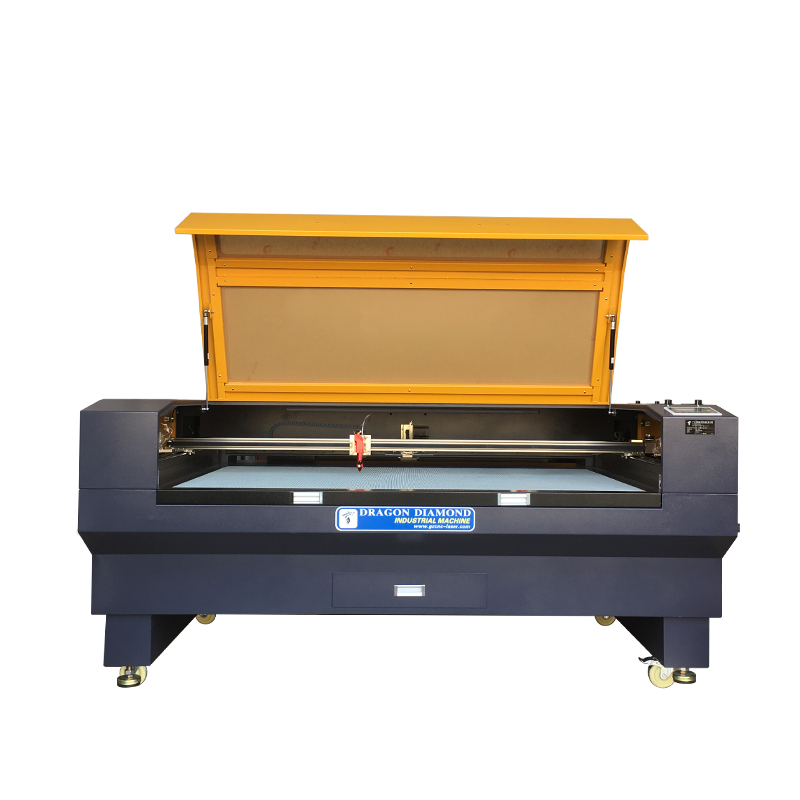

Guangzhou1610CCD Camera Laser Cutting Engraving Machine Crafts Products
|
NO. |
Model |
Lz-1610CCD |
|
1 |
Working Area |
1460x980mm |
|
2 |
Packing Size |
2300x1650x1300mm |
|
3 |
Working Table |
HoneyComb Table |
|
4 |
Laser tube type |
CO2 sealed laser tube |
|
5 |
Cooling System |
Water Chiller CW5200 |
|
6 |
Control System |
RUIDA6442G |
|
7 |
Software |
RD Work |
|
8 |
Software supported |
CorelDraw,Photoshop,AutoCAD,TAJIMA |
|
9 |
File output mode |
2.0 USB interface |
|
10 |
Laser power |
60~150W for option |
|
11 |
Motor |
Leadshine Stepper motor |
|
12 |
Resolution |
1,000--10,000 dpi |
|
13 |
Machine Power |
<3,000W |
|
14 |
Minimum Character Size |
English1.0×1.0mm |
|
15 |
Engraving speed |
0-40000mm/min |
|
16 |
Cutting speed |
0-10000mm/min |
|
17 |
Reposition Accuracy |
0.01mm |
|
18 |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
19 |
Voltage |
AC220V/110V,50HZ/60HZ |
APPLICABLE MATERIALS
Rubber, plastic, cloth, leather, woollens, crystal, organic glass, tile, jade, bamboo, wood, etc.
APPLICABLE INDUSTRYS
Rubber, plastic, cloth toys, leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products.
TYPICAL APPLICATION
Acrylic crystal words, acrylic fish tank, ceramic crafts, rubber board printing, applique, special-shaped trademark, engraving and hollowing out patterns or designs on garment and leather.
PRODUCT FEATURES

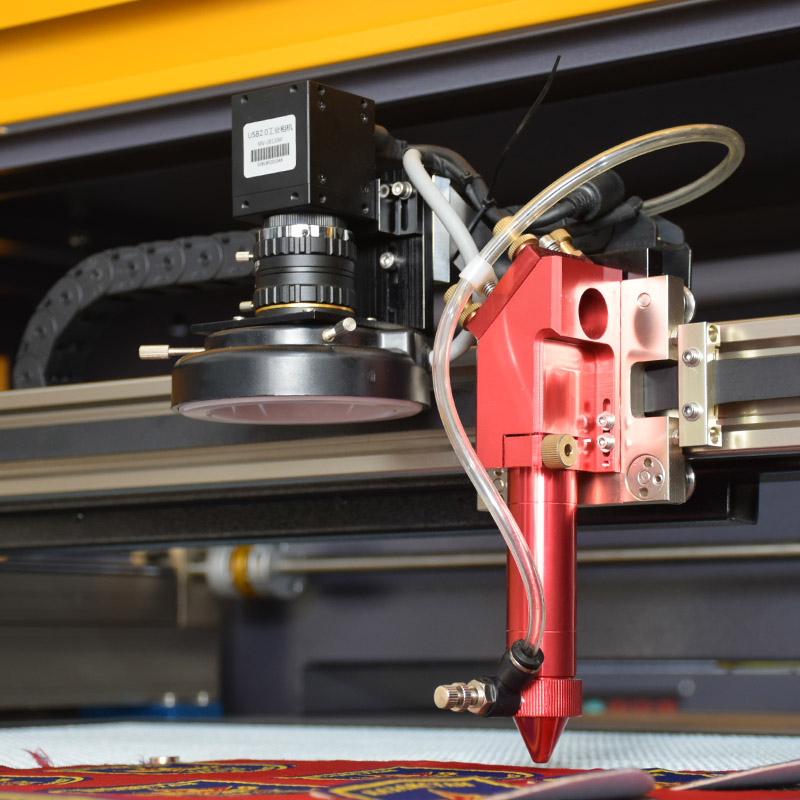

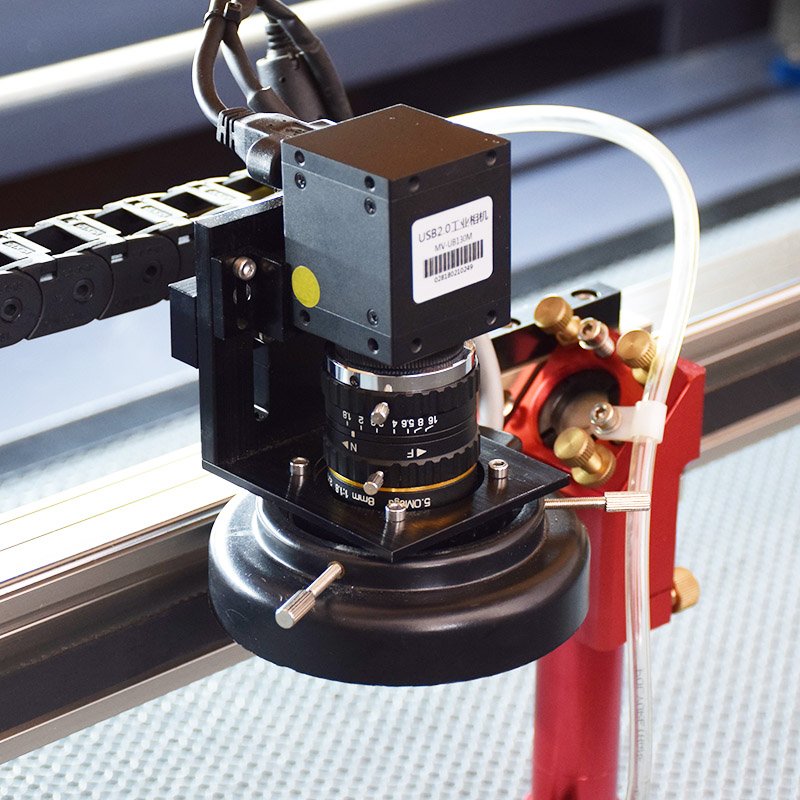

1.The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.
2.Has professional visual light source .During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and position accurately to cut.
6090 Laser Cutter 80W 100W Cnc Co2 Laser Engraving Cutting Machine 6090 CDD Camera for Contour Cutting Available 9060 CO2 Laser cutting Machine with CCD Camera Model NO. LZ-6090L+CCD Camera Working Area 900*600mm Table Type Honeycomb Table / Blade Sheet Table Laser Power 60W / 80W / 100W Laser Type CO2 Sealed Laser Tube Small CCD Camera System Contour Cutting Function Resolution 1,000--10,000 DPI Cooling Type Water Chiller CW3000 / CW5000 / CW5200 Focus Lens lmported Znse Control System RUIDA RDV6445G Software RD Work Graphic Format Supported PLT, DXF, BMP, AI, DST Machine size 1520x1250x1150mm Net Weight / Gross Weight 260KGS / 340KGS Packing Size 1600x1350x1300mm Power Supply 220V/50Hz, 110V/60Hz
