Support table: 4060 CO2 laser engraving cutting machine add a support table. Moderate height, suitable for operation and easy to observe work conditions.
Item NO.:
LZ-M46BOrder(MOQ):

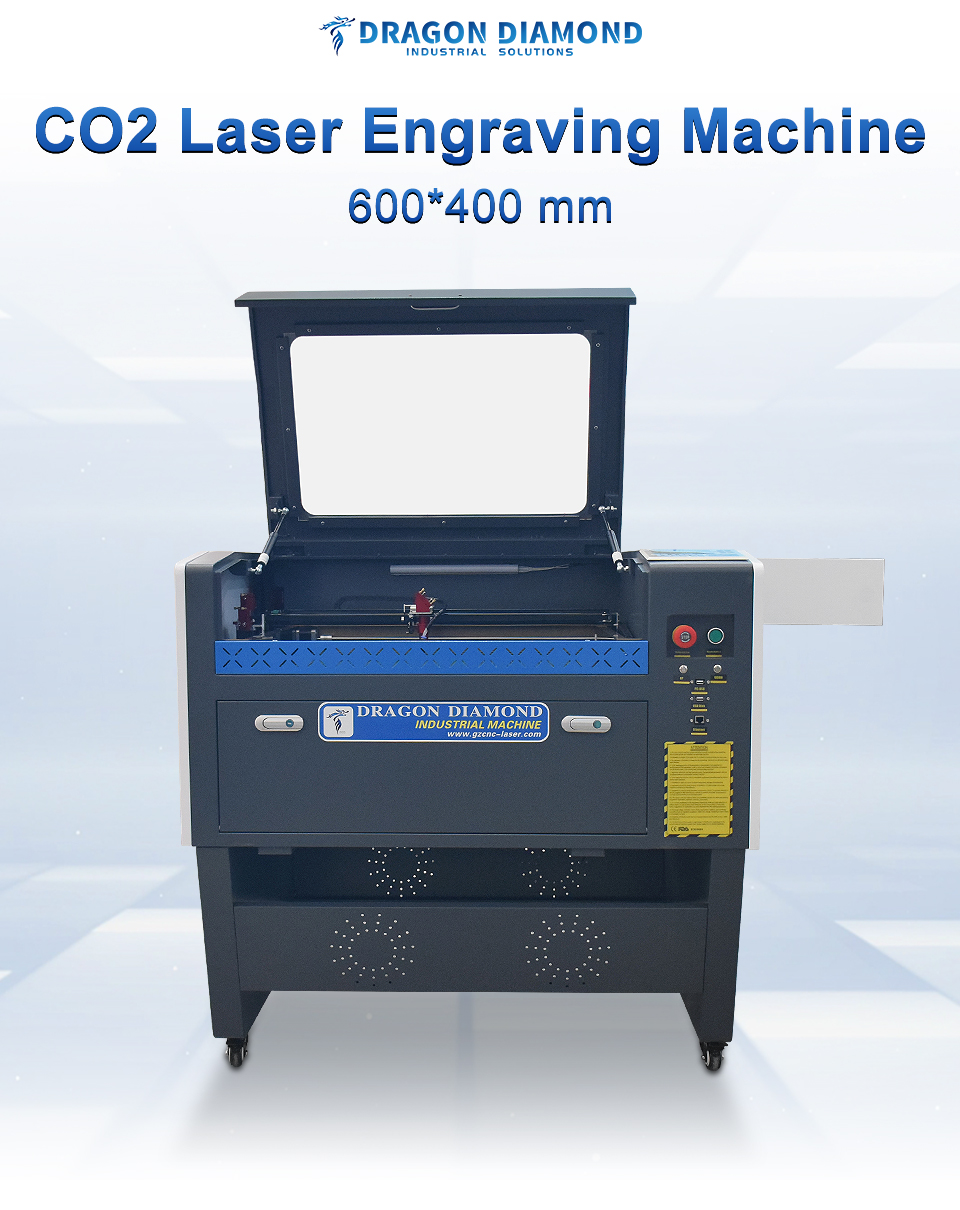

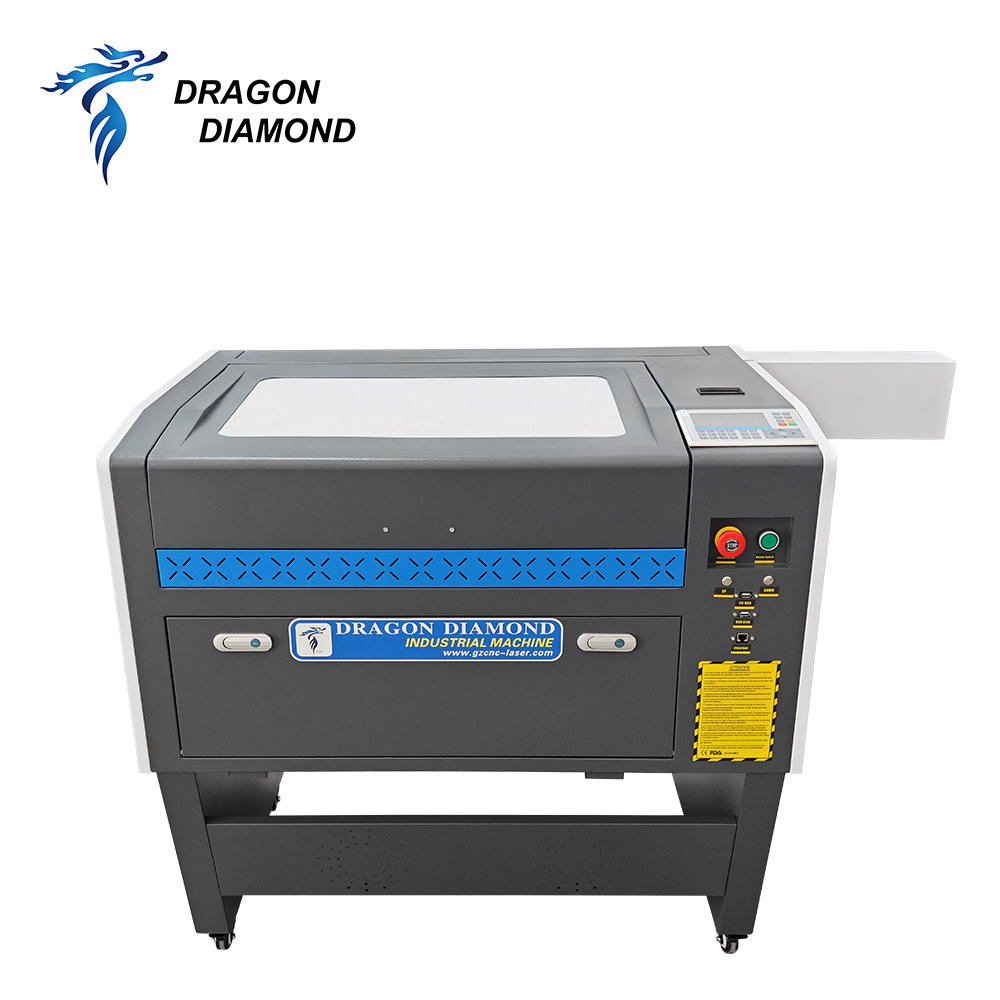

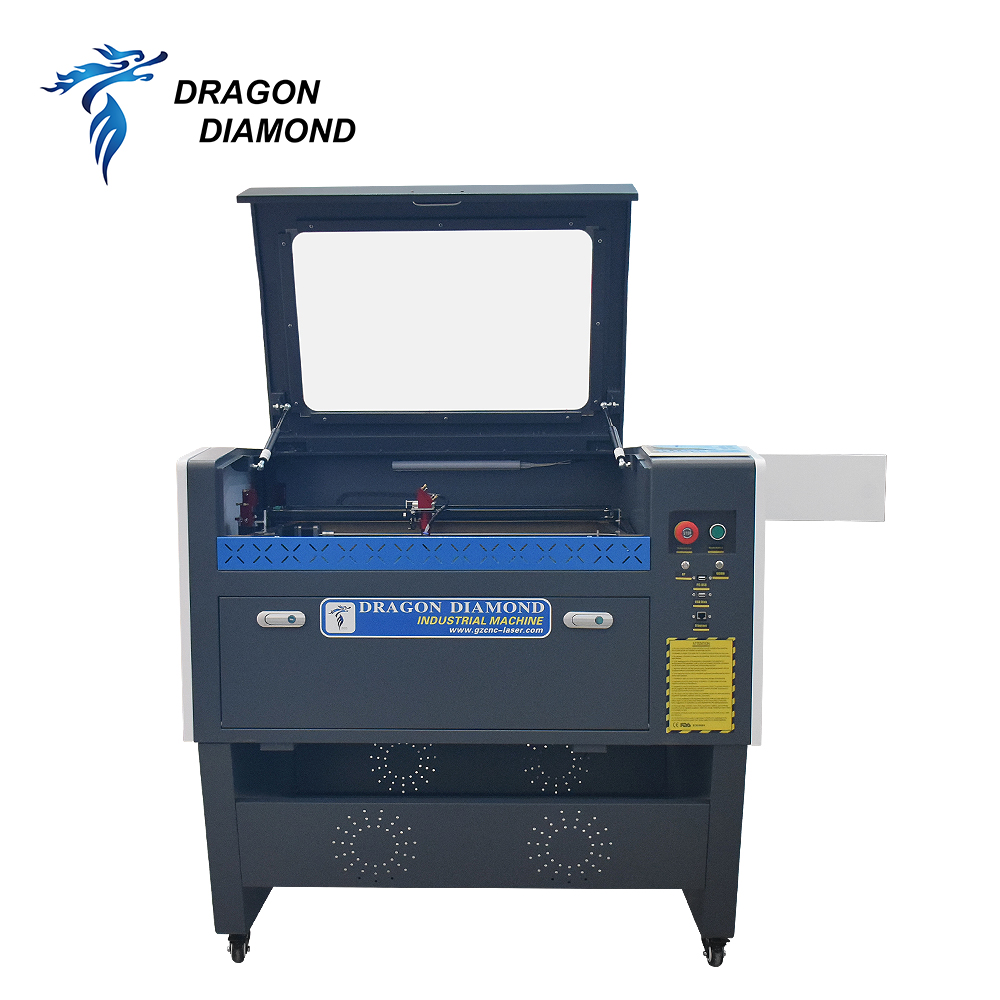

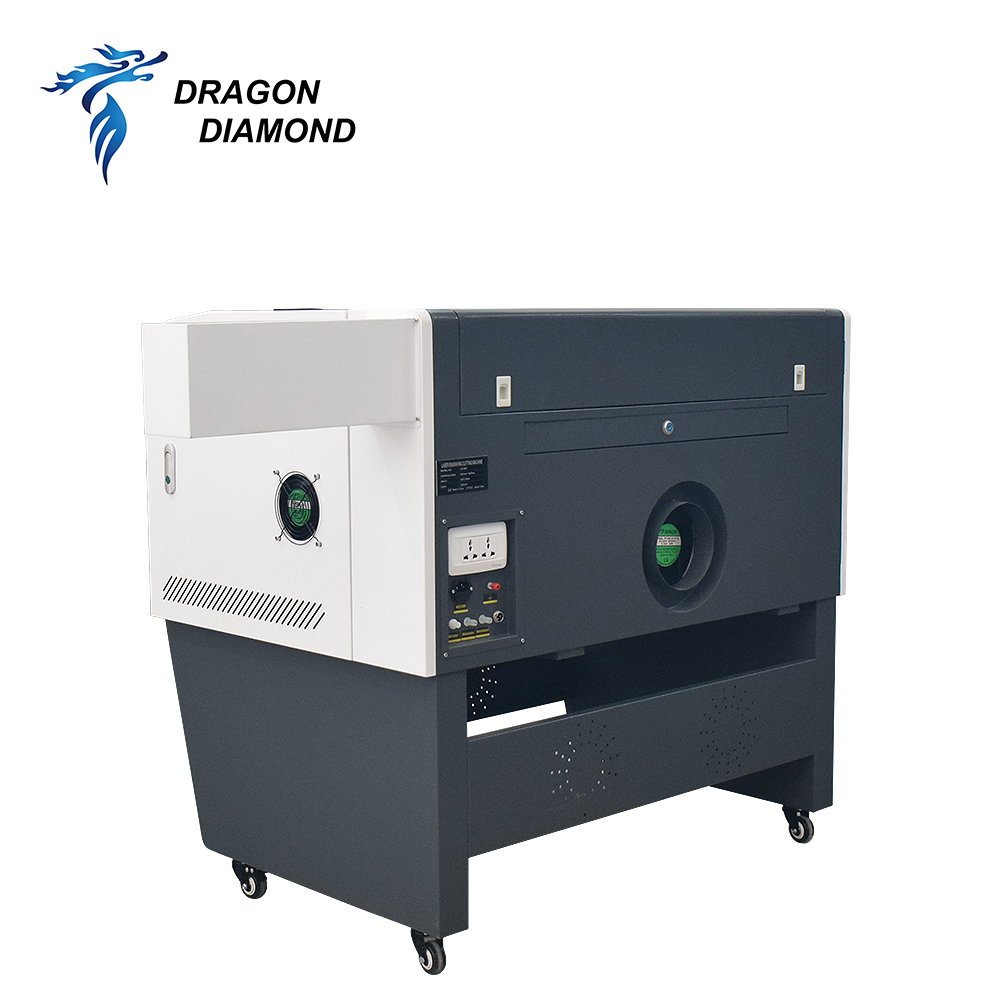

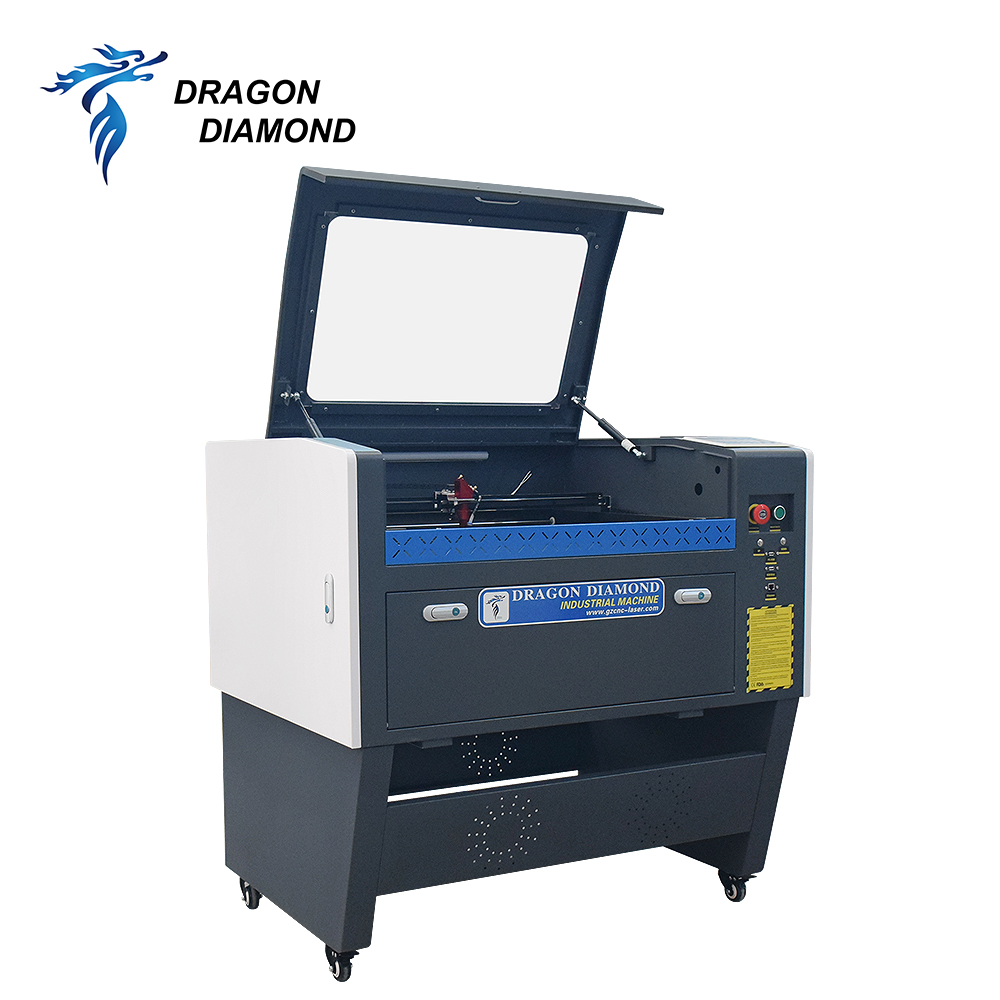

1Dragon Diamond 4060 co2 laser engraving machine.
The 4060 CO2 laser machine has been upgraded, it added a support table. Moderate height, suitable for operation and easy to observe work conditions.
| Working Area: | 600*400mm |
| Table Type: | Honeycomb table With Up and down & Support |
| Laser tube type: | C02 sealed laser tube |
| Laser power: | 60W |
| Motor & Driver: | Stepper Motor |
| Controller: | RUIDA 6445 |
| Cooling Function: | Water Chiller S&A CW3000 |

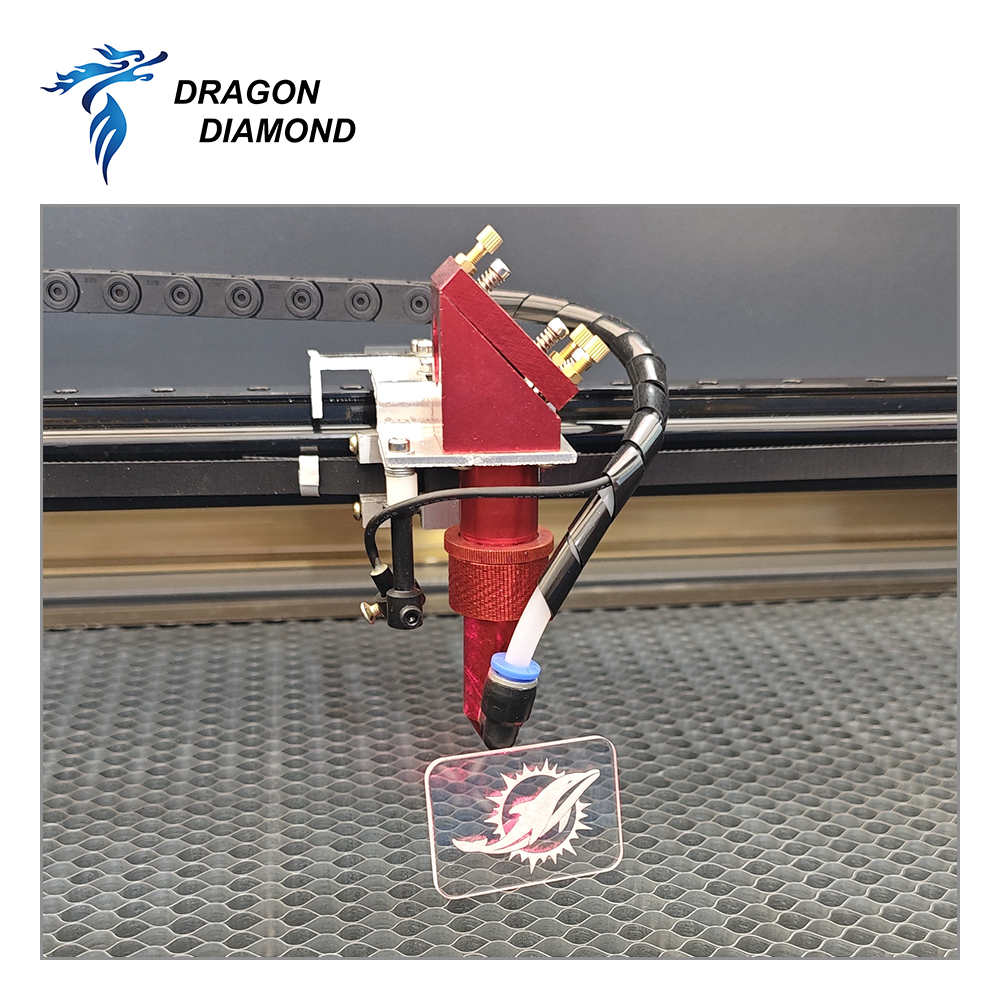

| Laser Head: | 18*50.8mm |
| Mirror: | 20mm |
| Engraving speed: | 0-350mm/s |
| Minimum Shaping Character: | Chinese 2mm/ Letter 0.8mm |
| Interface to Computer: | USB Port (For desktop and Laptop computer) |
| Current: | 0~22mA |
| Power consumption: | ≤250W |
| Power supply: | AC 110V/220V 50/60Hz, single phase |
| Graphic format supported: | BMP/JPG/JPEG/WMF/EMF/PLT |
| Air Compressor: | ACQ-003 |
| Warranty: | 1 year (Laser tube 3-10 months) |
