DRAGON DIAMOND CNC
Item NO.:
LZ-UV 3W/5W/10WOrder(MOQ):
1Product Origin:
ChinaShipping Port:

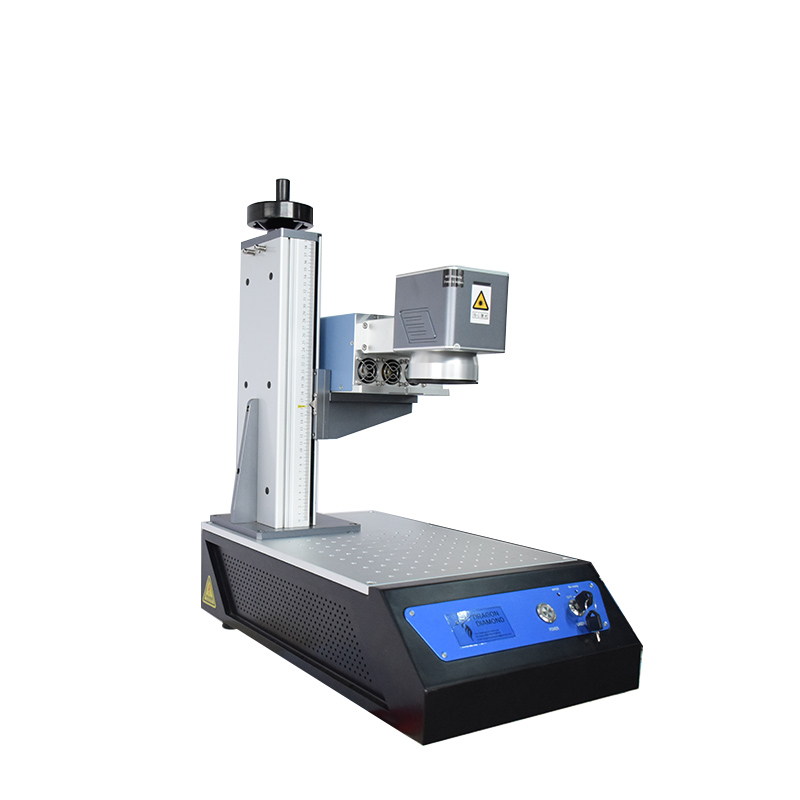

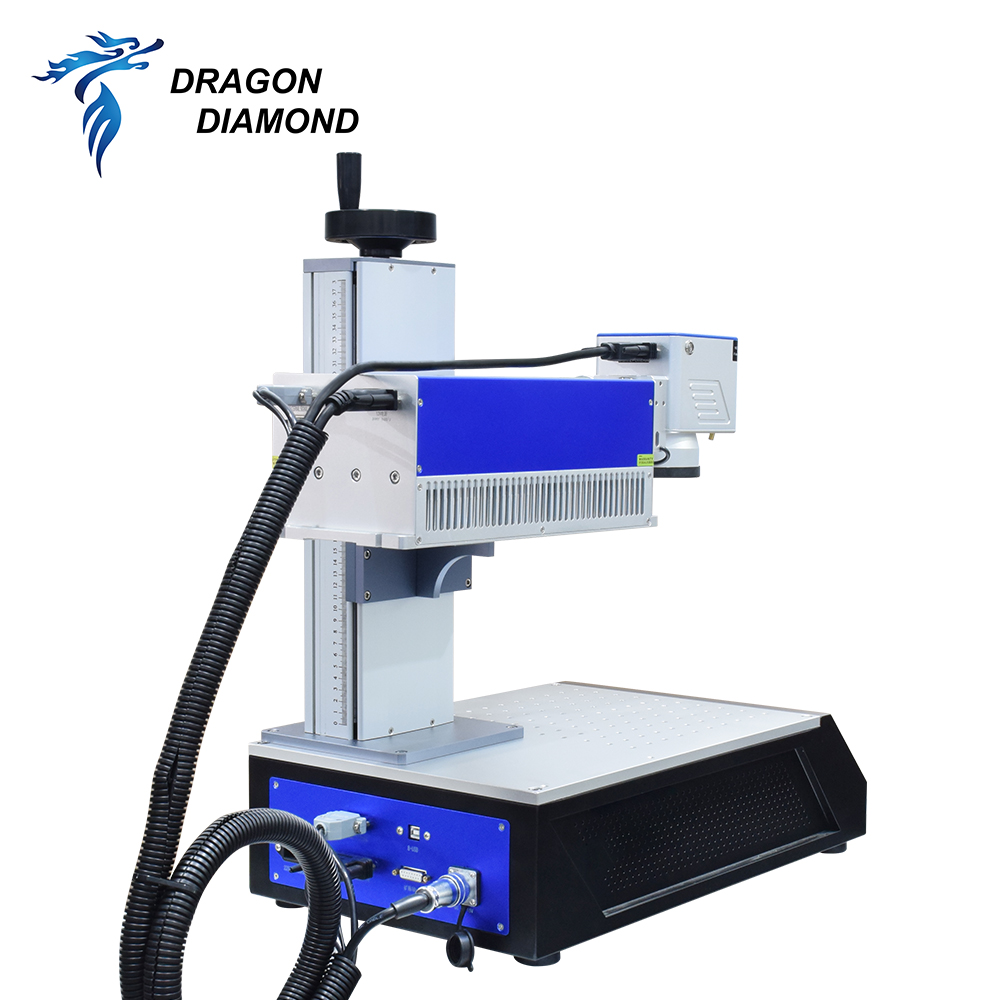

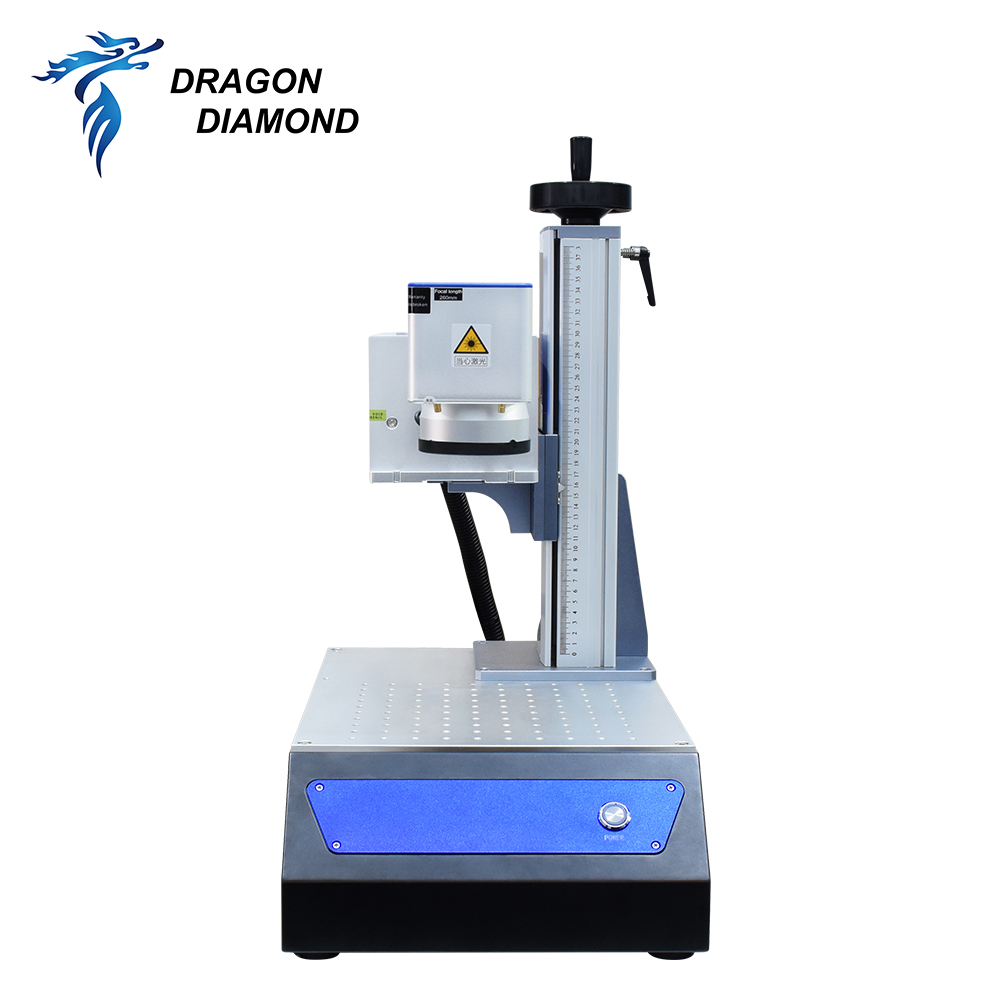

Guangzhou3W 5W 10W UV Laser Marking Machine for PP Plastic Cloth Wood
UV Laser Marking Machine Application
1. It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
2. Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3. Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic engraving,clocks and watches and glasses.
4.It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.

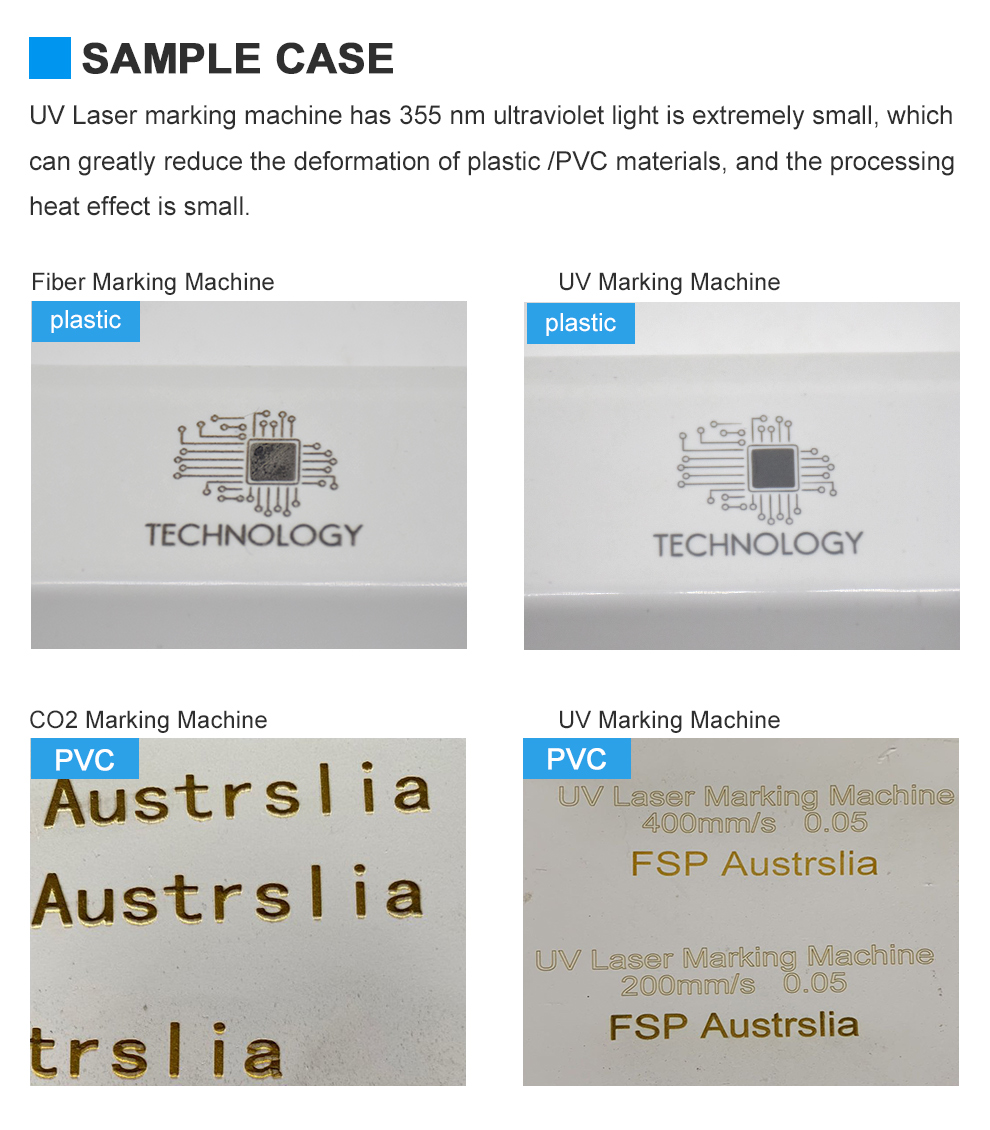

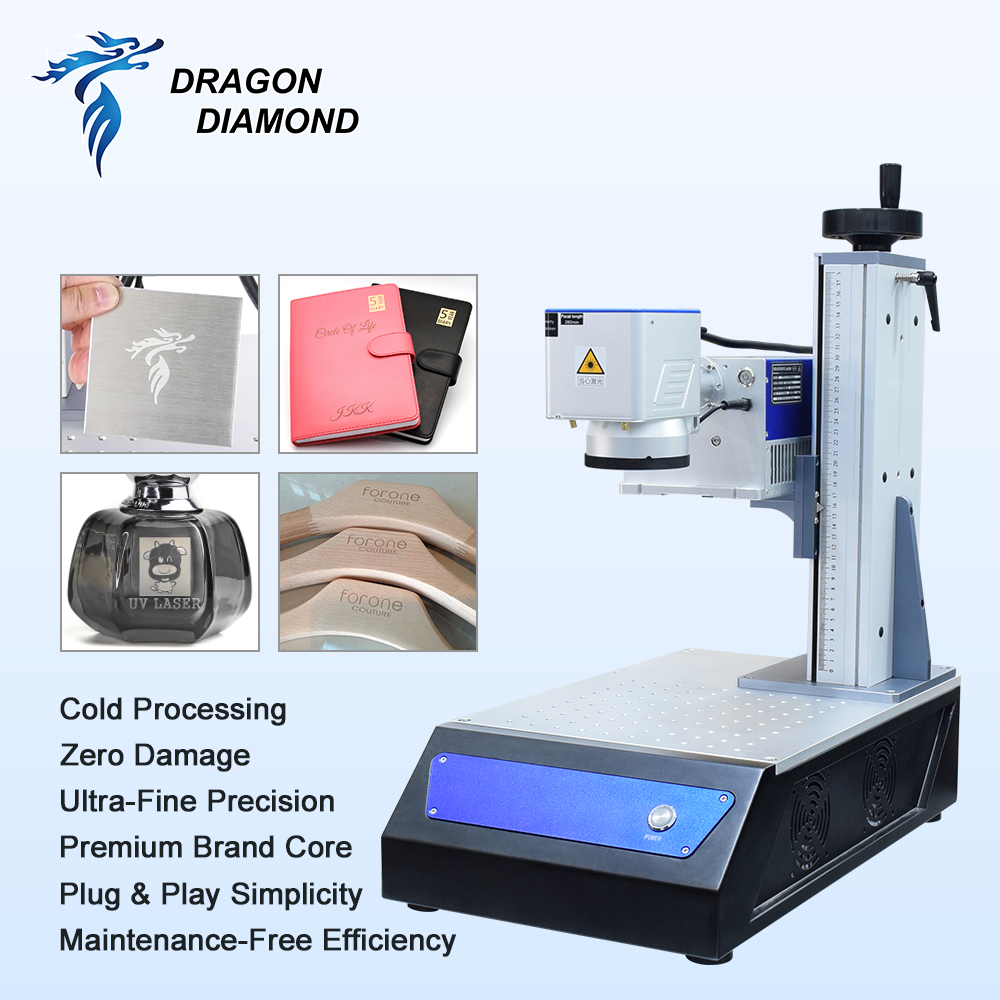

Sample Case:
UV Laser marking machine has 355 nm ultraviolet light is extremely small, which can greatly reduce the deformation of plastic /PVC materials, and the processing heat effect is small.

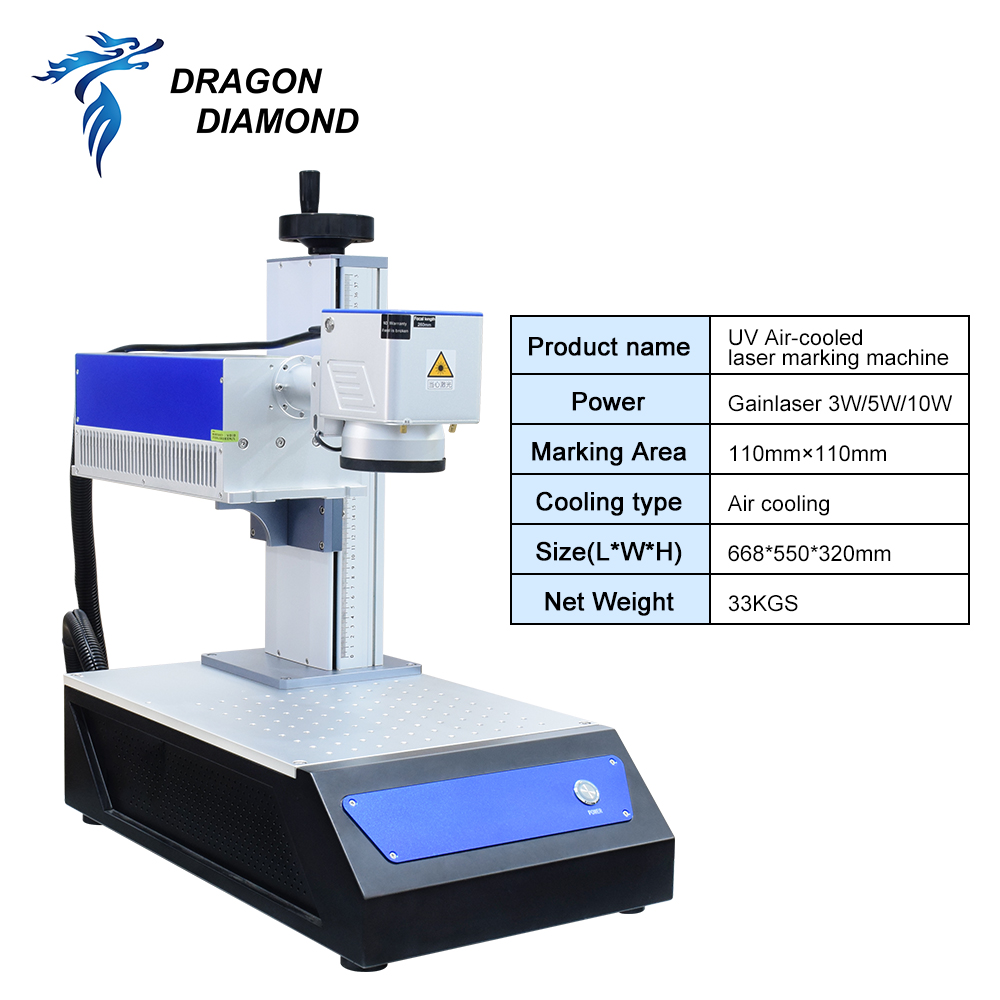

PRODUCT PARAMETER
|
NO. |
Product name |
UV laser marking machine |
|
1 |
Power |
Gainlaser 3W/5W/10W |
|
2 |
Laser wavelength |
355nm |
|
3 |
Marking depth |
≤0.1mm |
|
4 |
Power consumption |
700W |
|
5 |
Repeat accuracy |
±0.003mm |
|
6 |
Laser beam quality |
M2<1.1 |
|
7 |
Min. line width |
≤0.005mm |
|
8 |
Min.character |
0.15mm |
|
9 |
Marking speed |
≤2000mm/s |
|
10 |
Repetition Frequency |
0~40KHz |
|
11 |
Marking Area |
110mm×110mm(optional) |
|
12 |
Cooling type |
Air cooling/Water cooling |
|
13 |
Controller |
computer with marking software |
|
14 |
Controller software |
EZCAD |
|
15 |
Computer and marking software |
Industrial design computer, 18.5 large screen LCD |
|
16 |

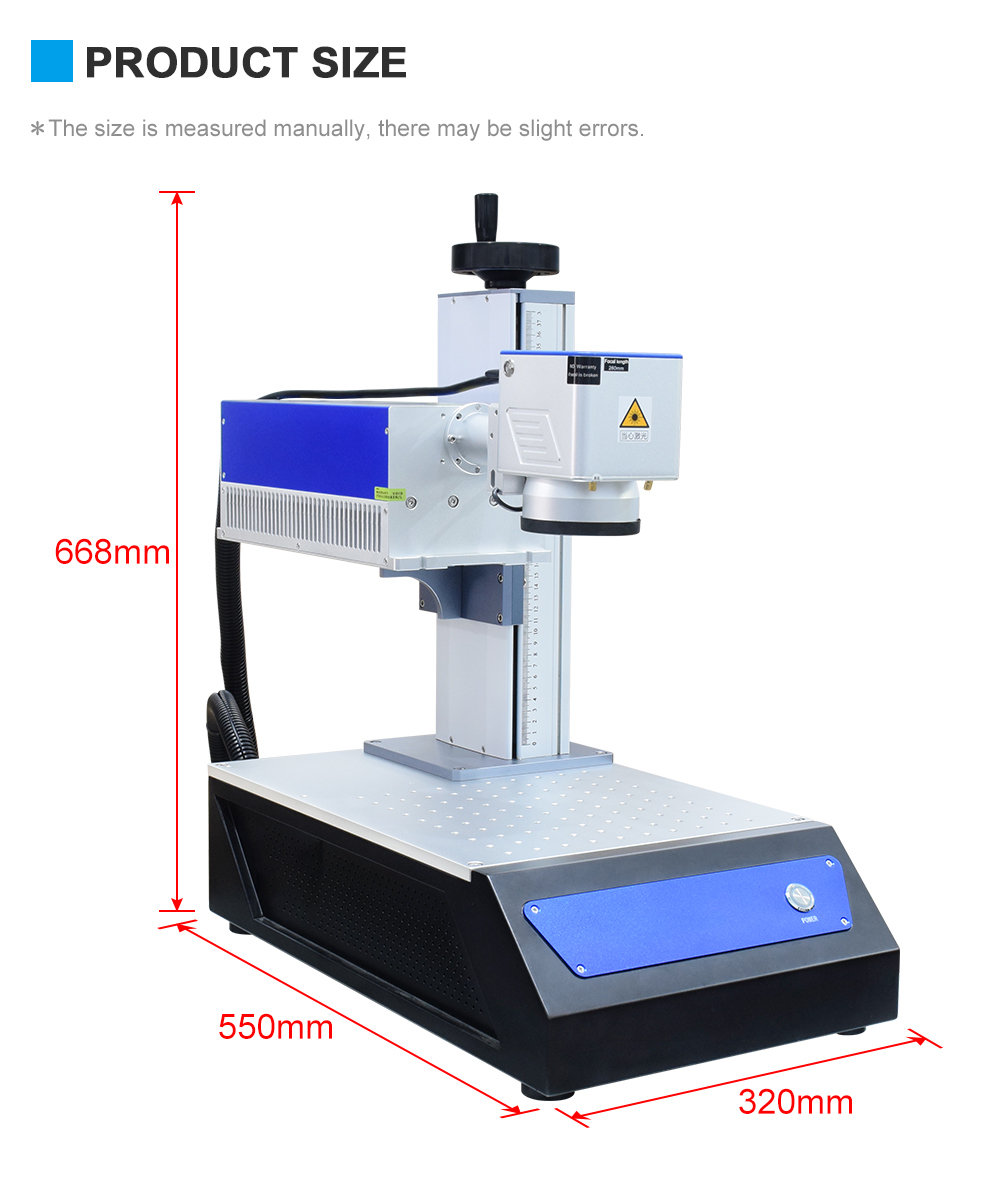

Machine Size(L*W*H) |
668*550*320mm |
|
17 |
Net Weight |
40KGS (81*42*50cm wooden case) |
|
18 |
Warranty |
1 Year |

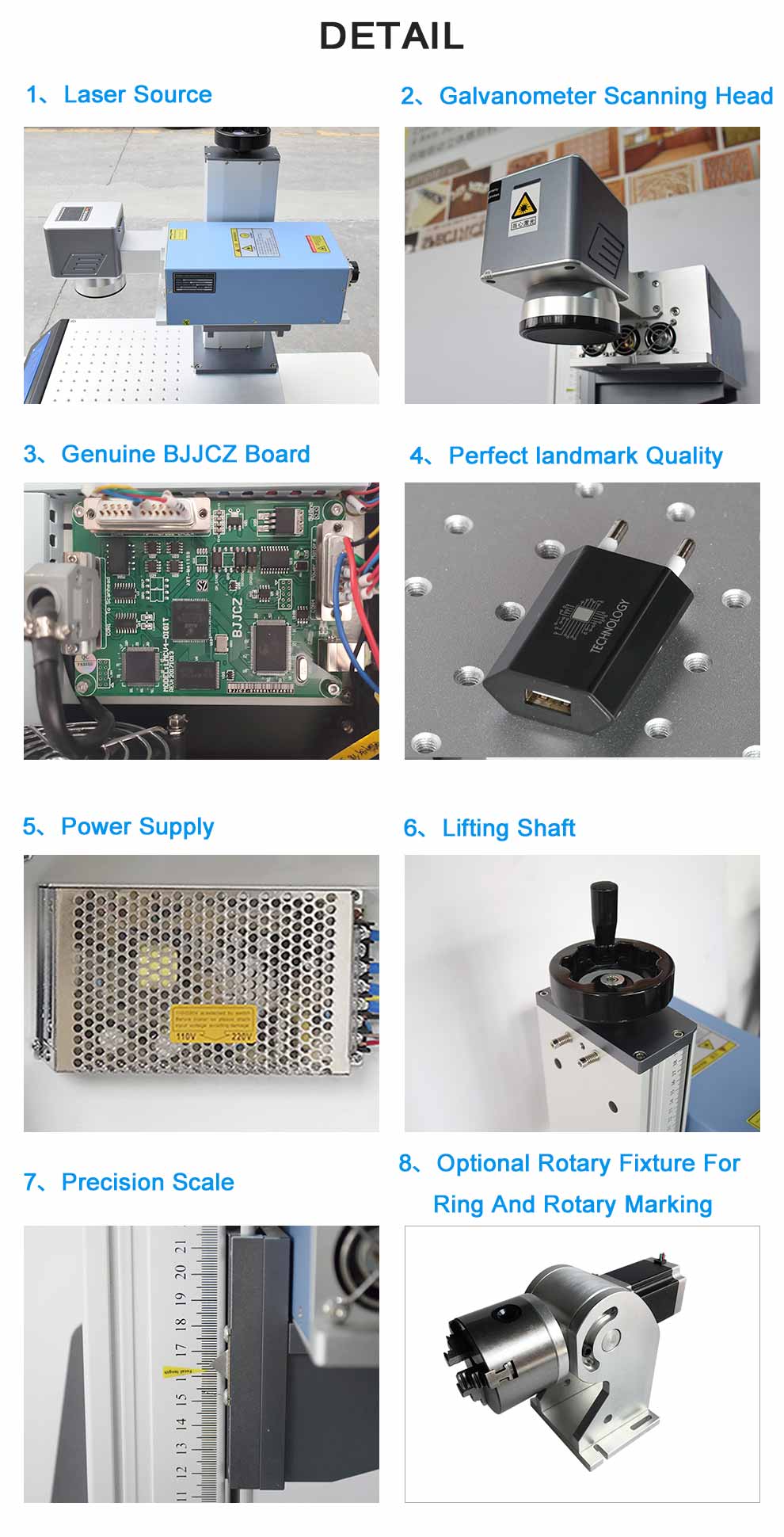

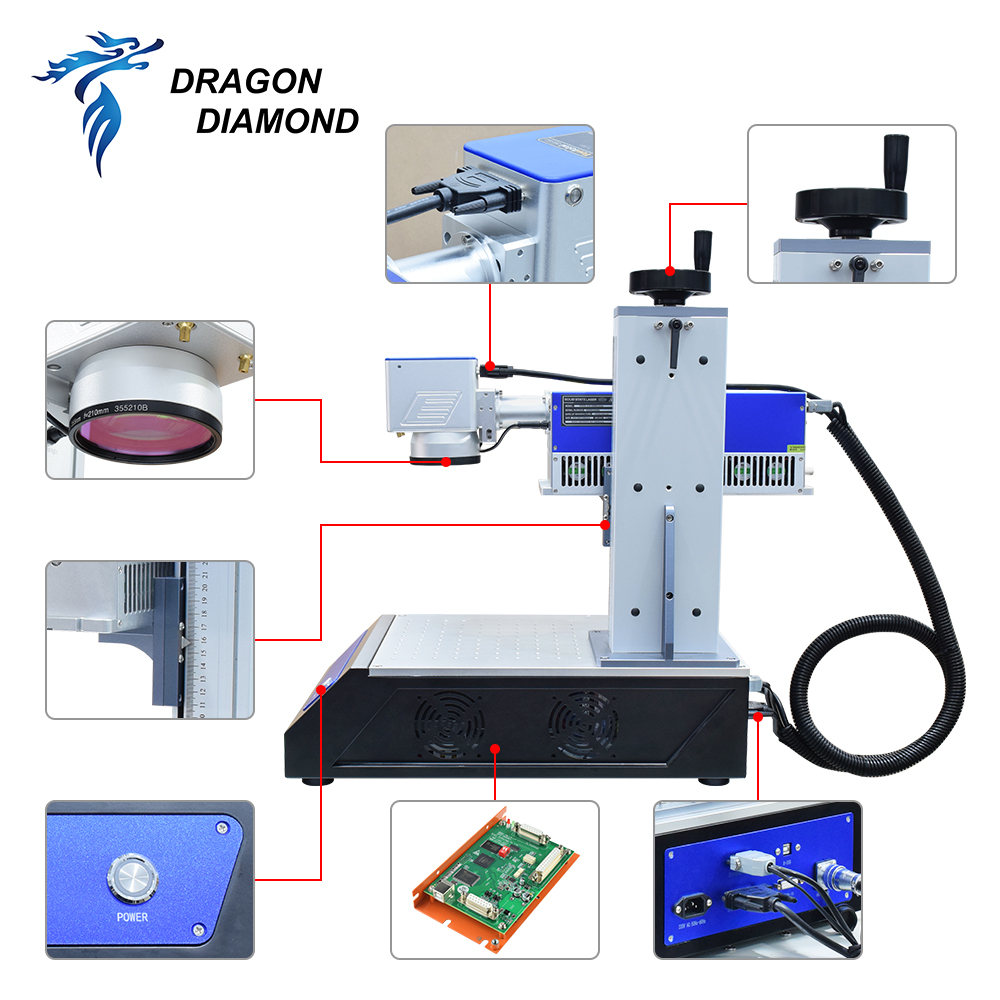

PRODUCT DETAILS

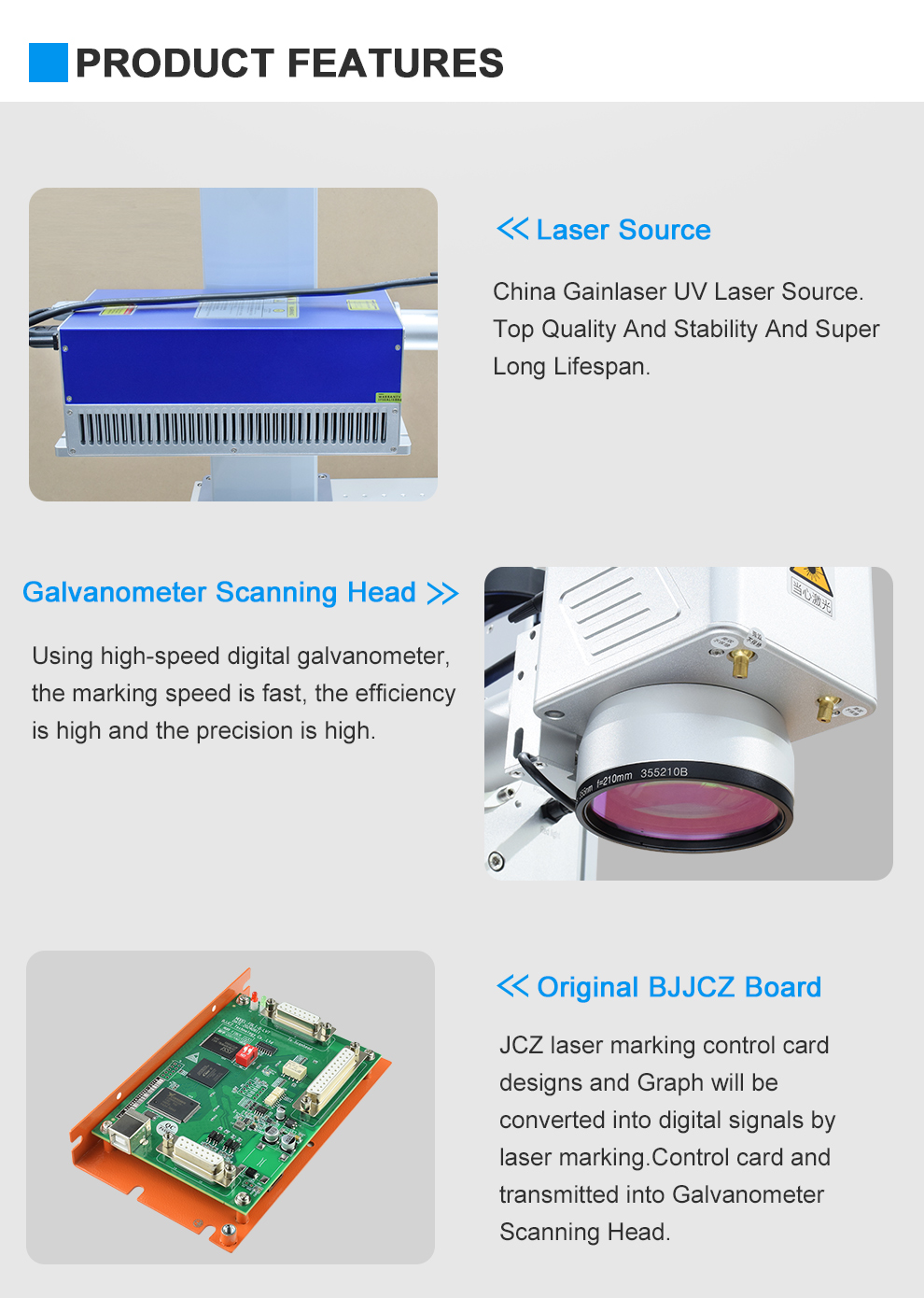

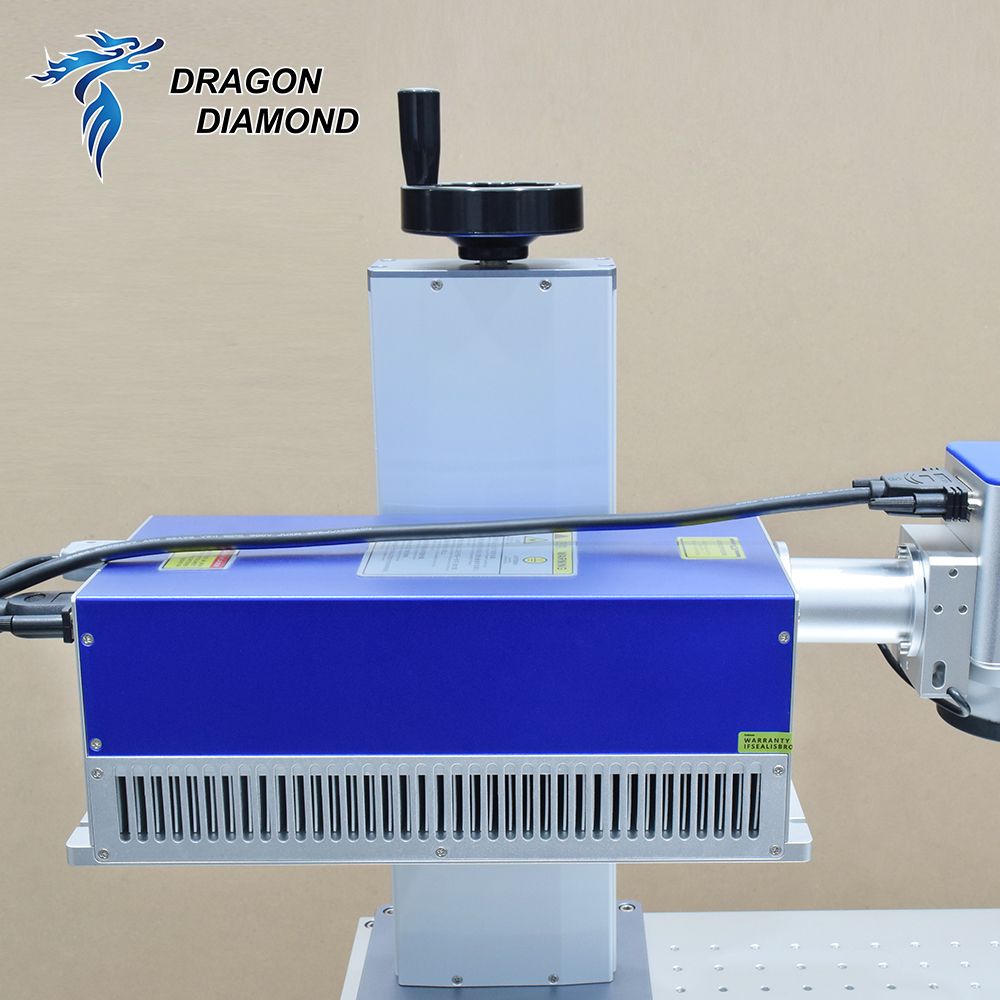

1.Laser Source
China Gainlaser UV Laser Source.
Top Quality And Stability And Super Long Lifespan.

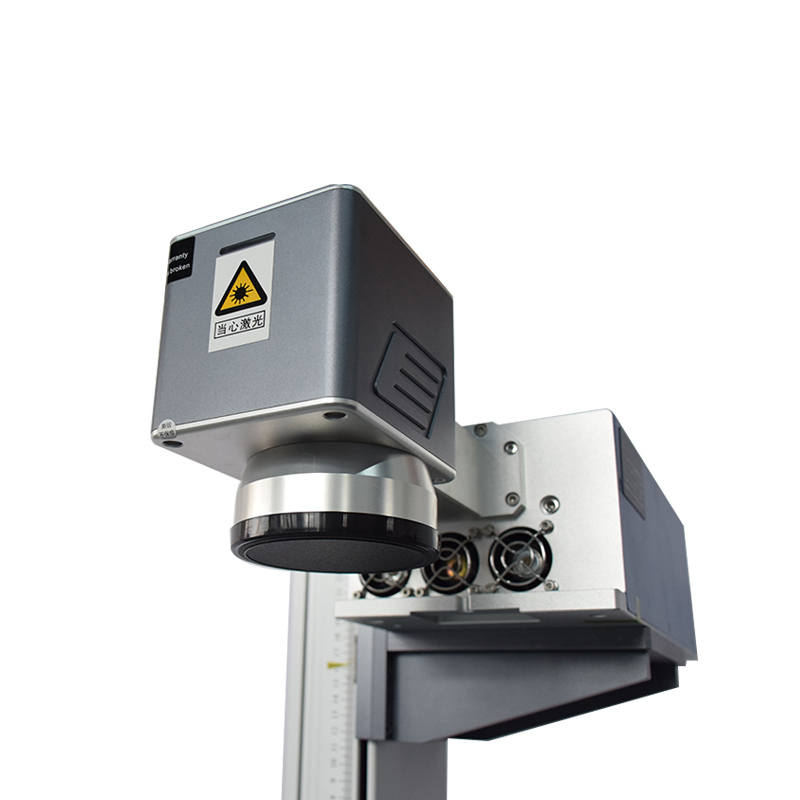

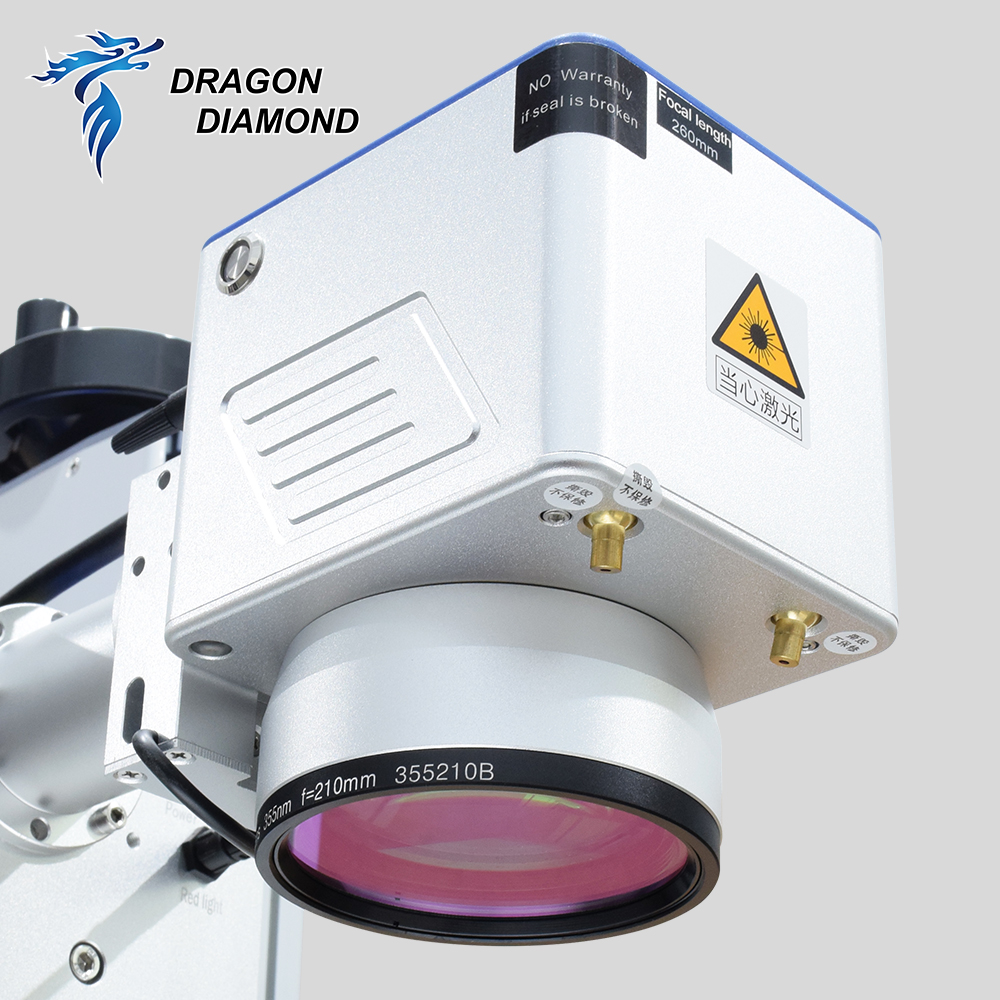

2.Galvanometer Scanning Head
Using high-speed digital galvanometer, the marking speed is fast, the efficiency is high and the precision is high.
3.Genuine BJJCZ Board
JCZ Laser Marking Control Card
Designs And Graph Will Be Converted Into Digital Signals by Laser Marking.Control Card And Transmitted Into Galvanometer Scanning Head.

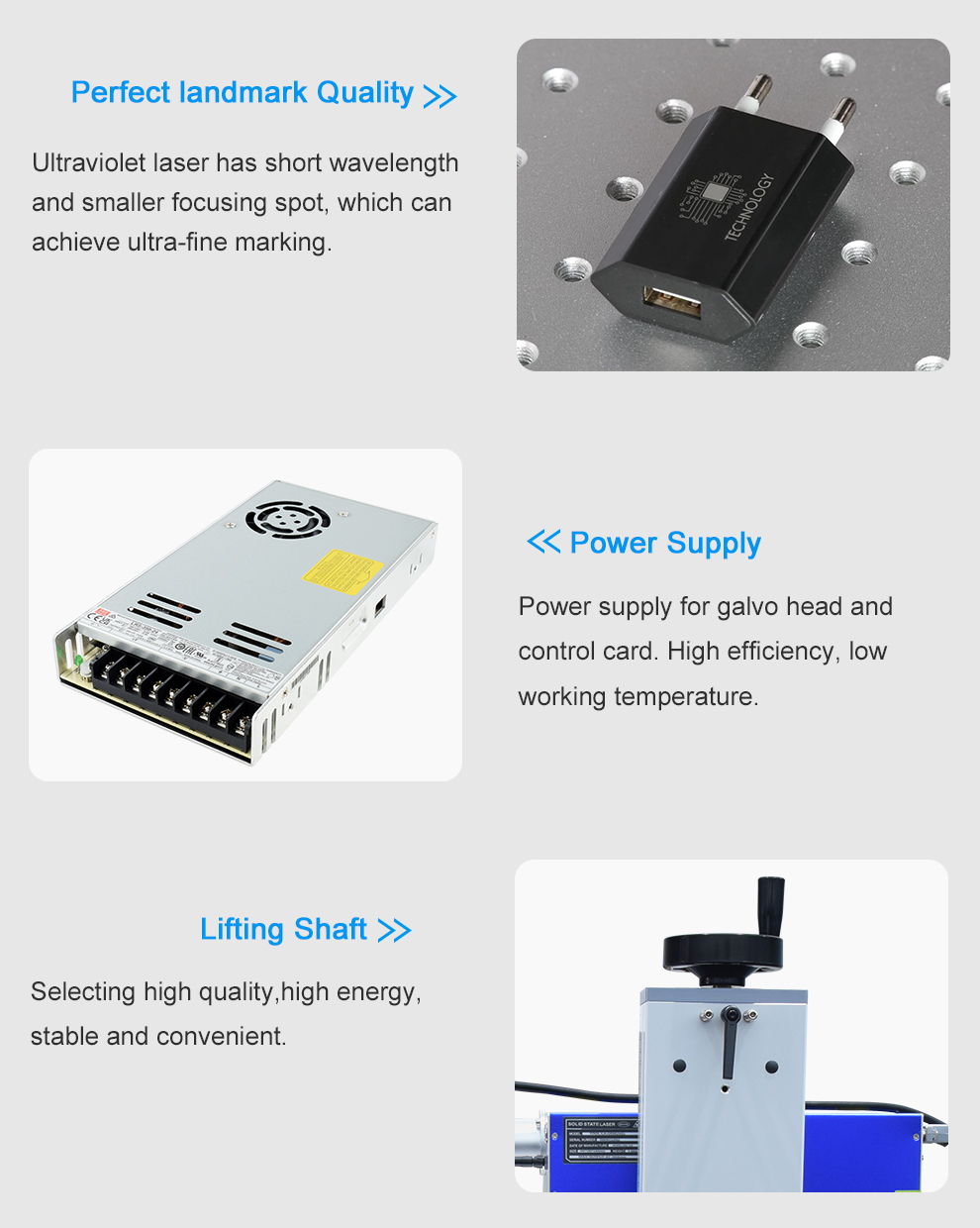

4.Perfect Landmark Quality
Ultraviolet laser has 355 nm short output wavelength and smaller focusing spot, which can achieve ultra-fine marking.
5.Power Supply
Power supply for galvo head and control card. High efficiency, low working temperature.
6.Lifting Shaft
Selecting high quality,high energy,stable and convenient.

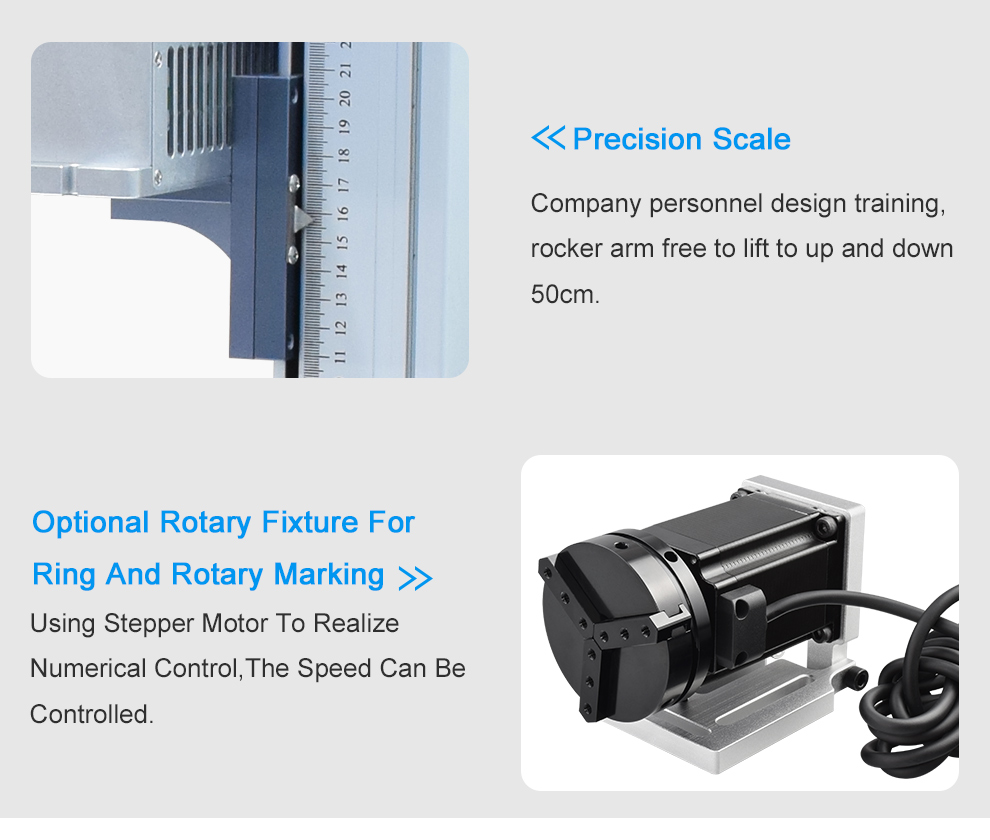

7.Precision Scale
Company personnel design training, rocker arm free to lift to up and down 50cm.
8.Optional Rotary Fixture For Ring And Rotary Marking
Using Stepper Motor To Realize Numerical Control,
The Speed Can Be Controlled .
