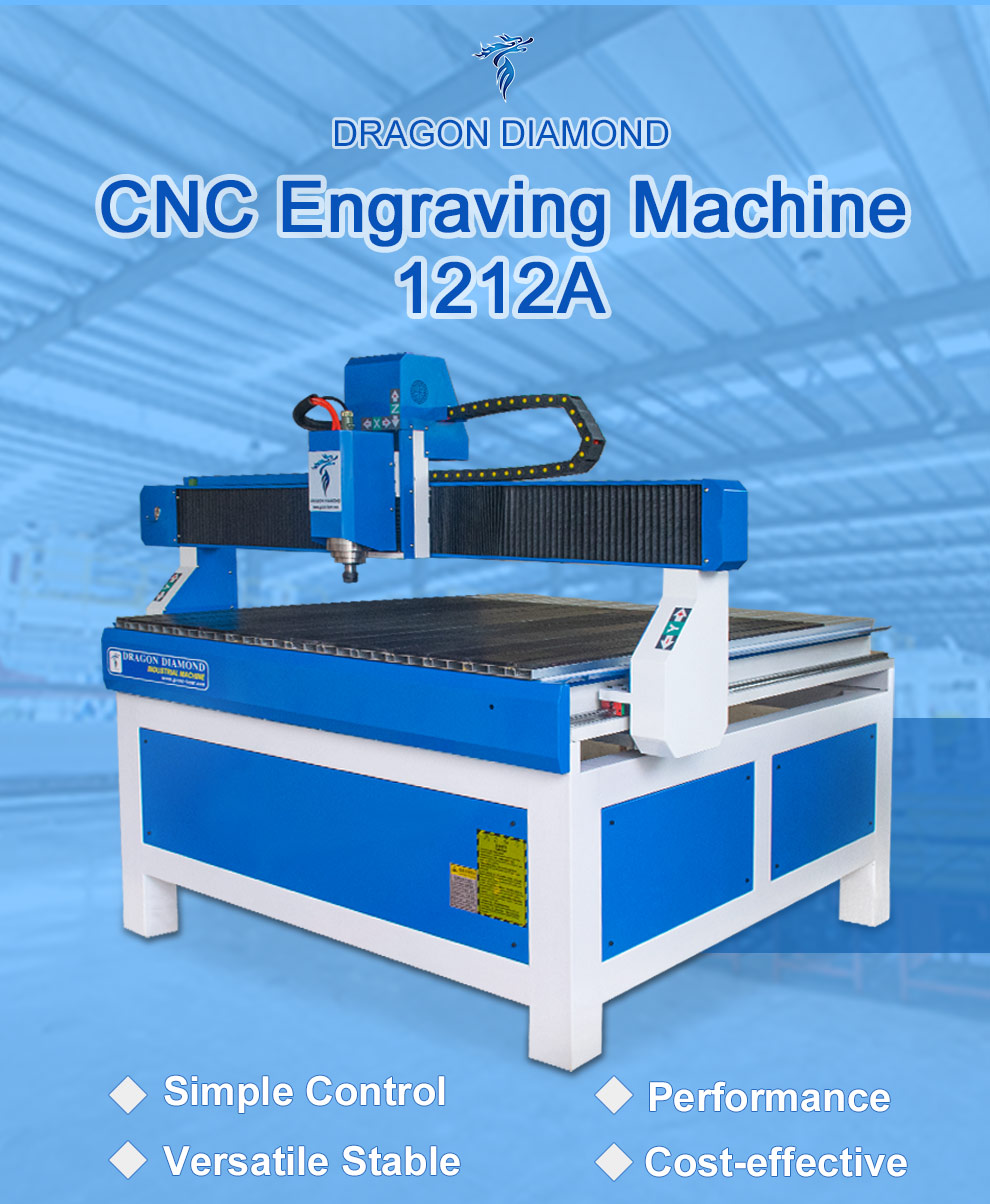

CNC Wood Engraving Machine

Small CNC MDF PVC Acrylic Cutting Machine

1200*1200mm Aluminum T-Slot Working Table CNC Router.
  • Item NO.:

    Lz-1212A
  • Market Price:

    $3200-4500/Set
  • Product Origin:

    China
  • Color:

    RED
  • Product Detail

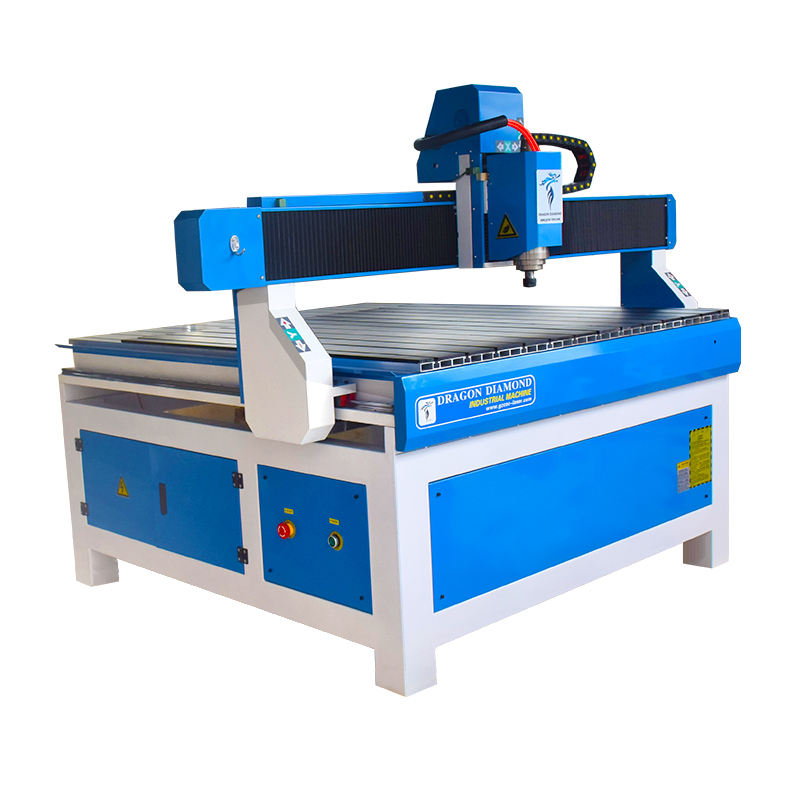

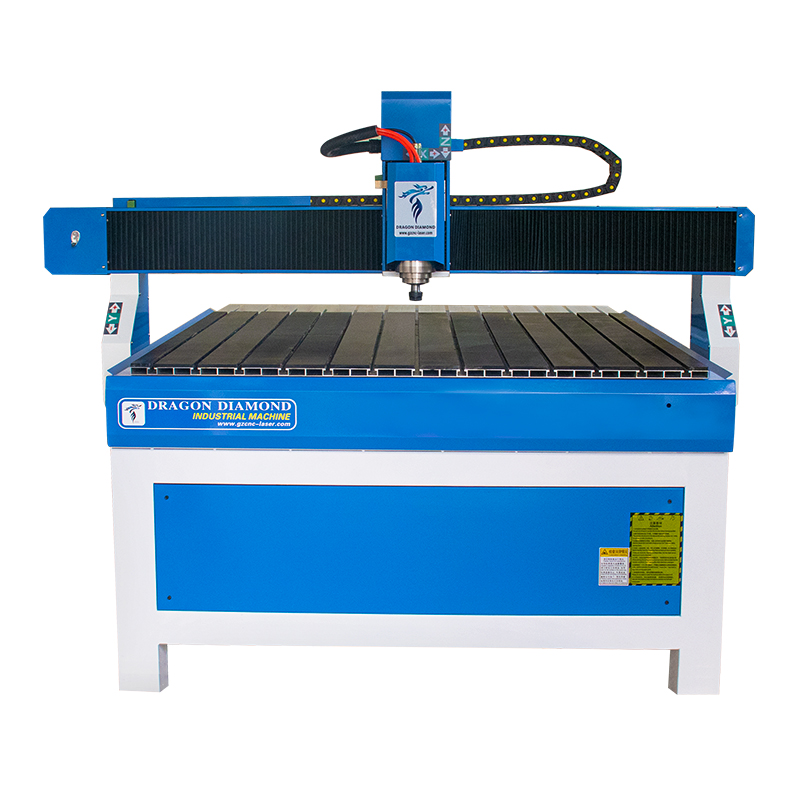

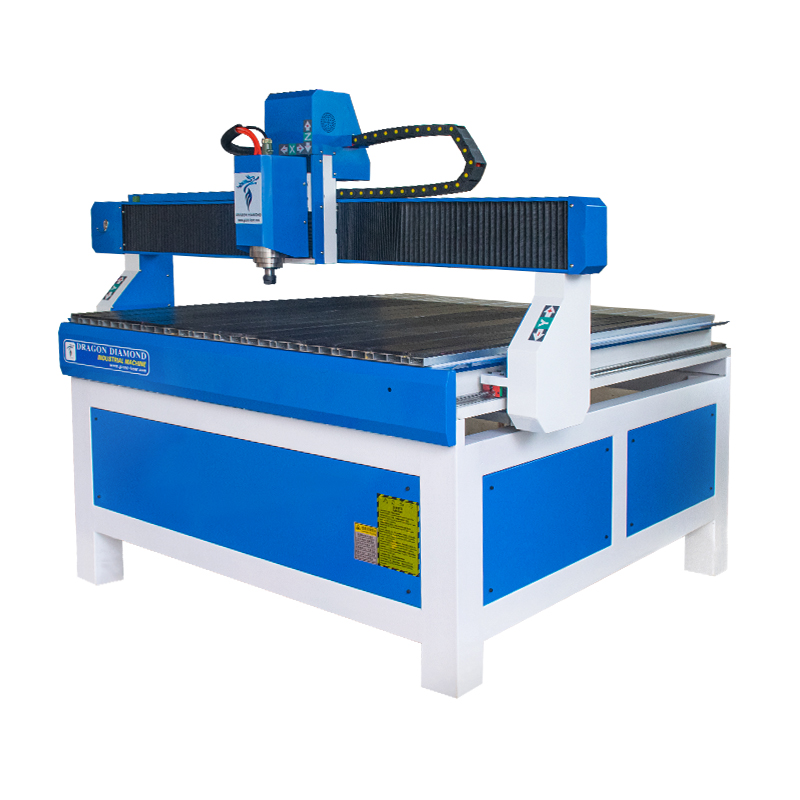

Small CNC MDF PVC Acrylic Cutting Machine


CNC Router Cutting Engraving MDF Acrylic Wood

CNC Router Cutting Engraving MDF Acrylic Wood

PRODUCT PARAMETER

NO.

Model

Lz-1212A

1

Working Area

1200x1200x200mm

2

Packing Size

2000*1800*1700mm

3

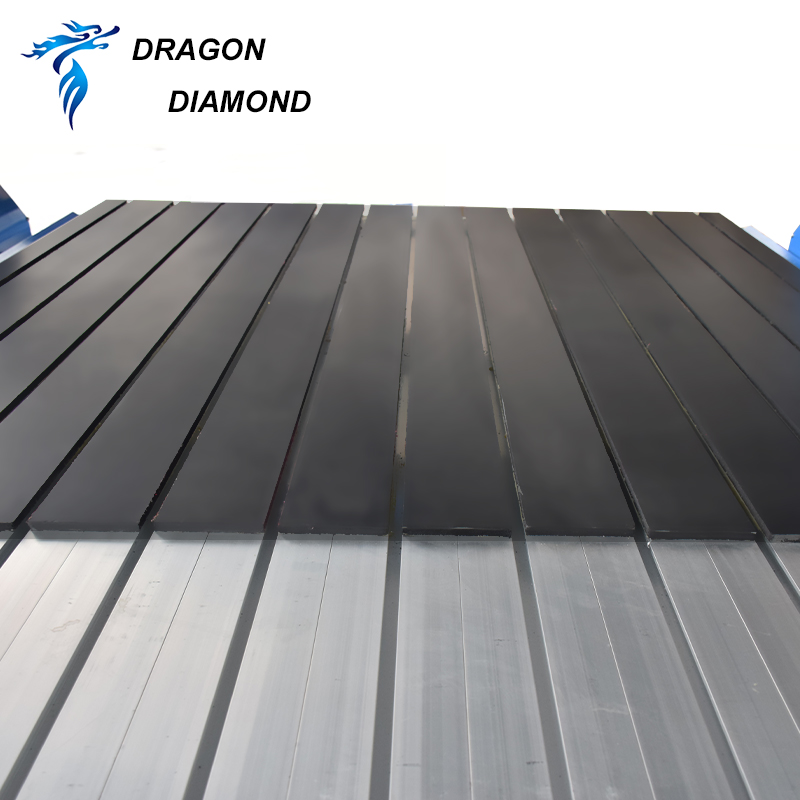

Working Table

T-Slot Aluminum Table

4

Spindle

1.5KW - 3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

DSP / NC Studio

7

Inverter

Best / Sunfar

8

Transmission

X,Y,Z axis screw drive

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driver system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

0 - 24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

8m/min

16

Working Speed

5m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ

20

warranty

2 Year


Advertising industry acrylic PVC CNC Engraving Machine


APPLICATION INDUSTRY



1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,

cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.


4. Artwork and Decoration

wood crafts; gift box; jewelry box


5. Others

Relief sculpture and 3D engraving and Cylindrical object.




PVC Acrylic ABS CNC Engraving Machine With DSP

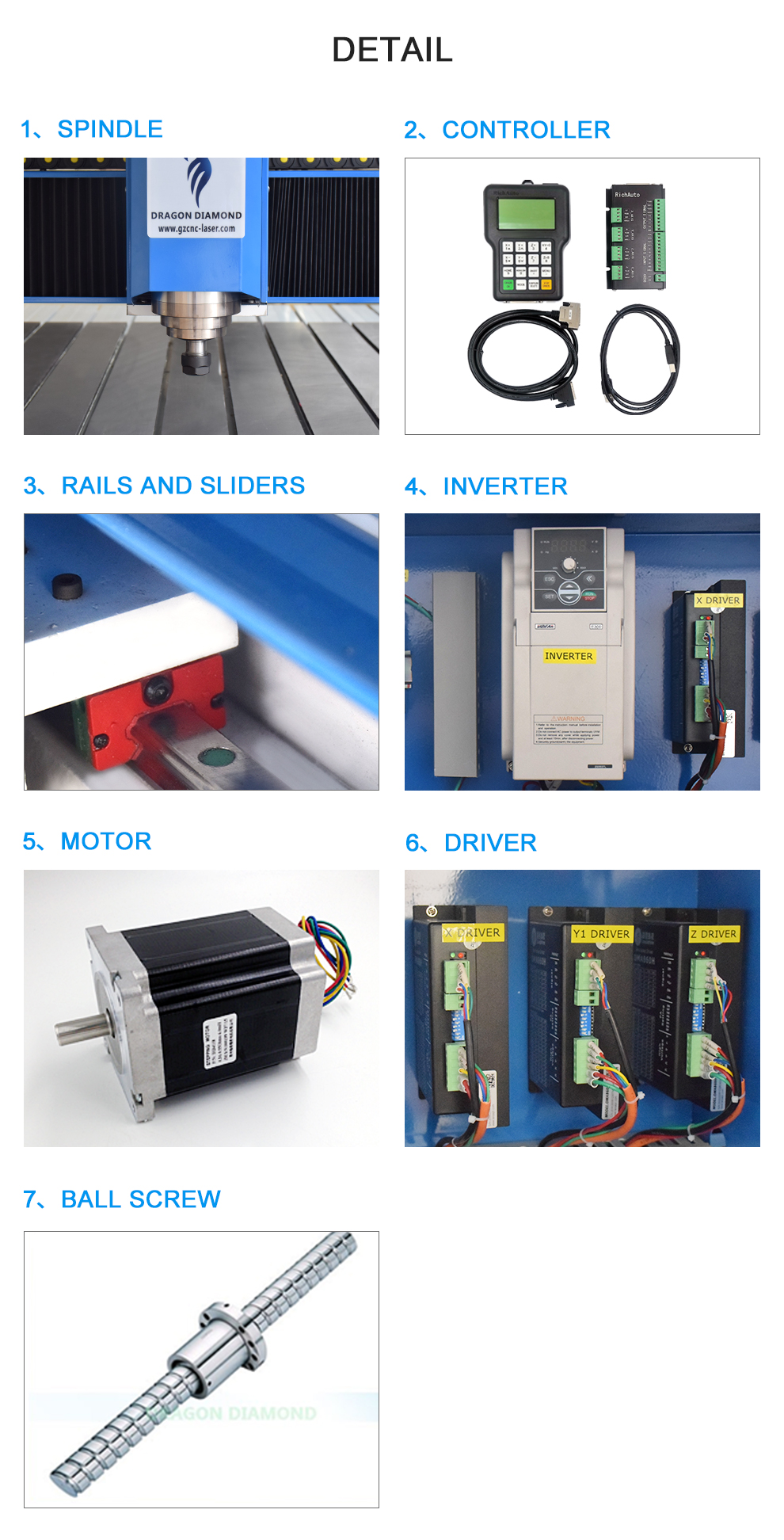

PRODUCT FEATURES

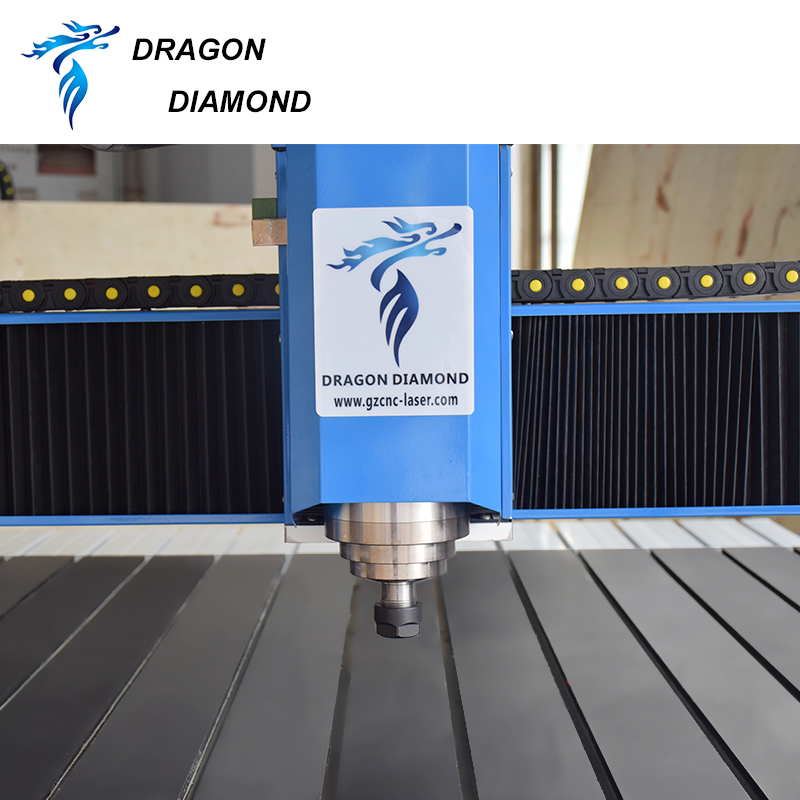

1.Spindle
Good quality, exquisite surface treatment, capable of processing and engraving most wood and advertising materials.


2.Controller
DSP control system, with USB interface, easy to use, no need to connect to a computer when working, easy to control, Safe and reliable data processing.

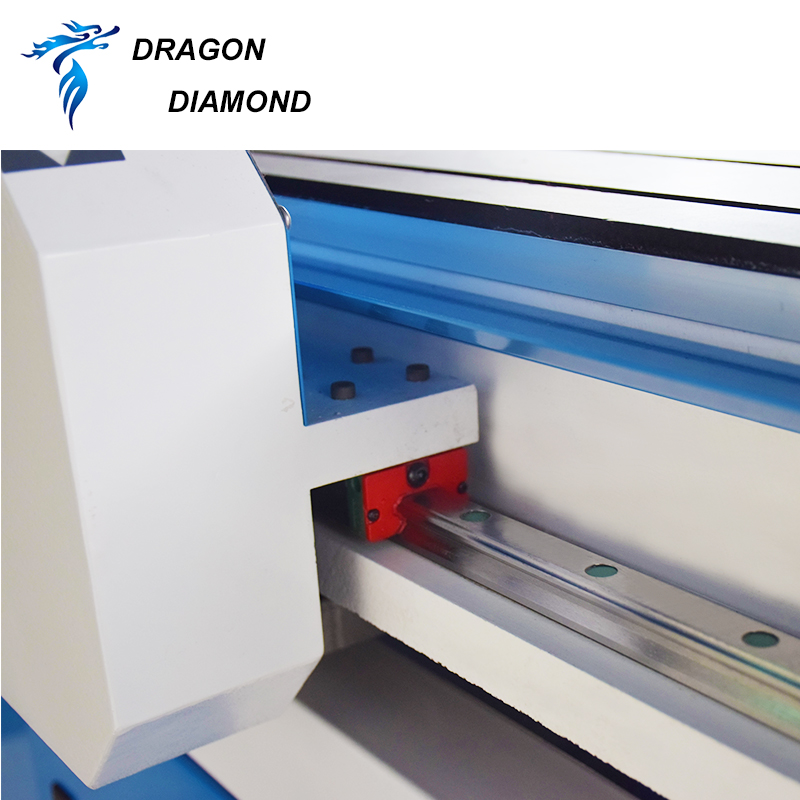

3.Rails and sliders

Imported HIWIN H20 Linear guide rail and slider block, with high capacity, high precision and stable operation.


4.Inverter

Control and adjust the voltage, when the input voltage fluctuates, the output voltage is automatically maintained with its stable performance to ensure the normal operation of the machine.


5.Motor

High precision, good stability, low noise, high speed.


6.Driver
Good performance, with self-adjusting technology, greatly increasing the stability of machine operation.


7.Ball Screw

X,Y,Z axis is with HIWIN ball screw to ensure the machine with higher precision and longer service life.
