DRAGON DIAMOND CNC
Item NO.:
LZ-1390LOrder(MOQ):
1Product Origin:
ChinaShipping Port:

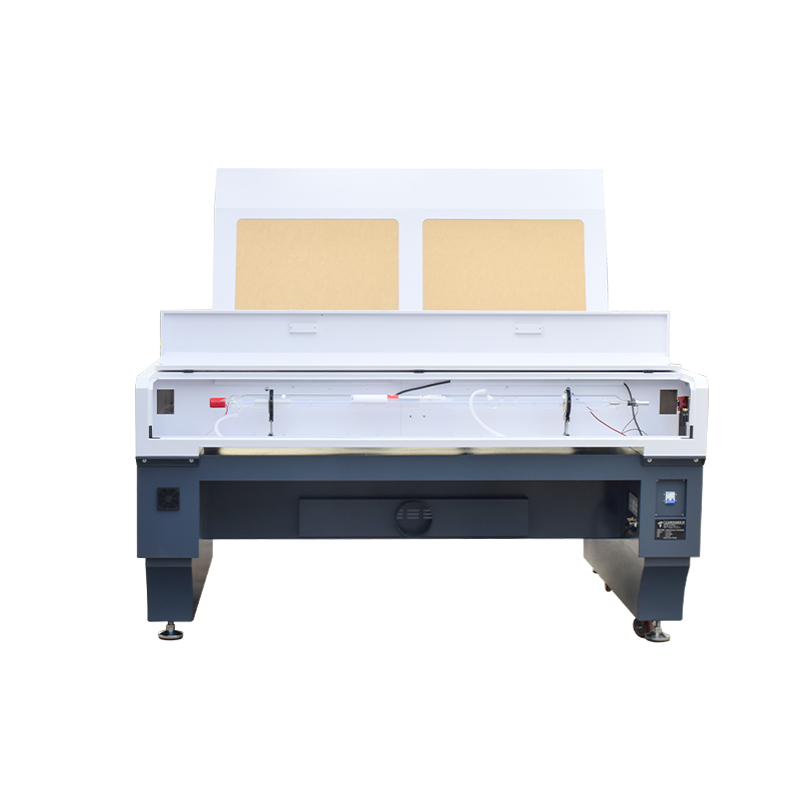

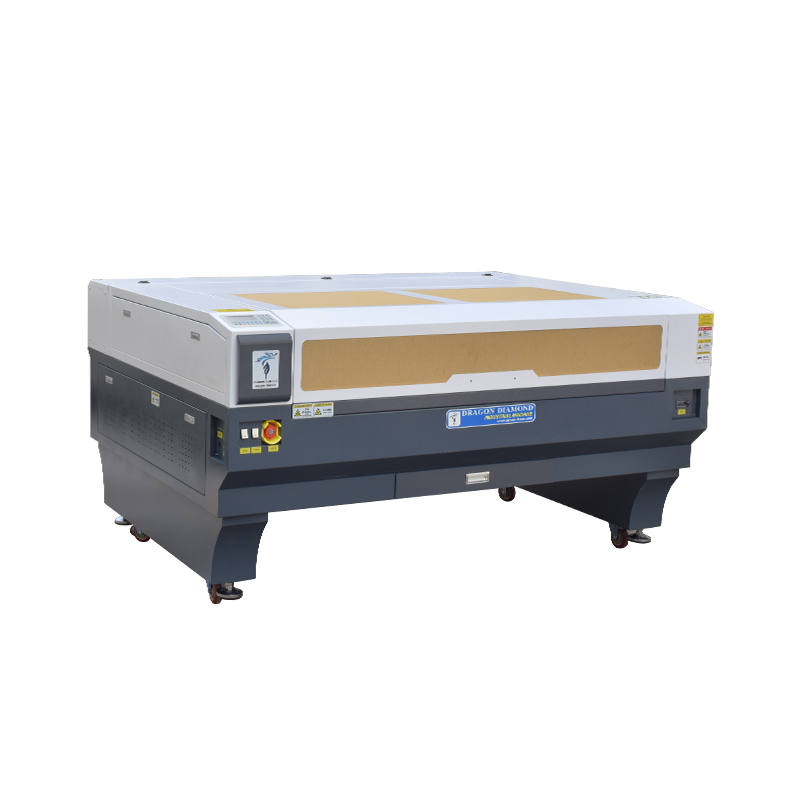

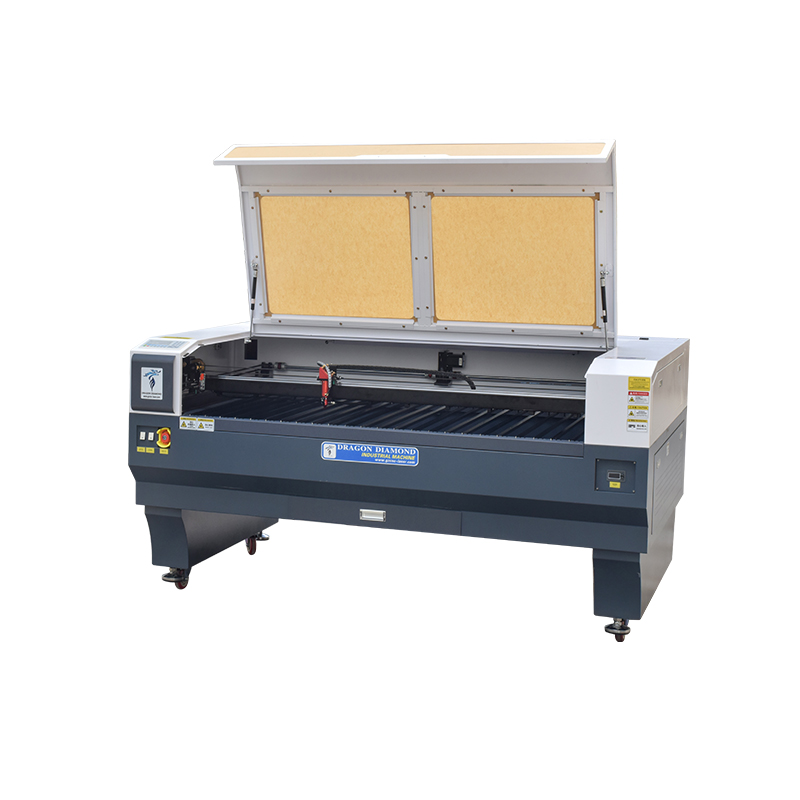

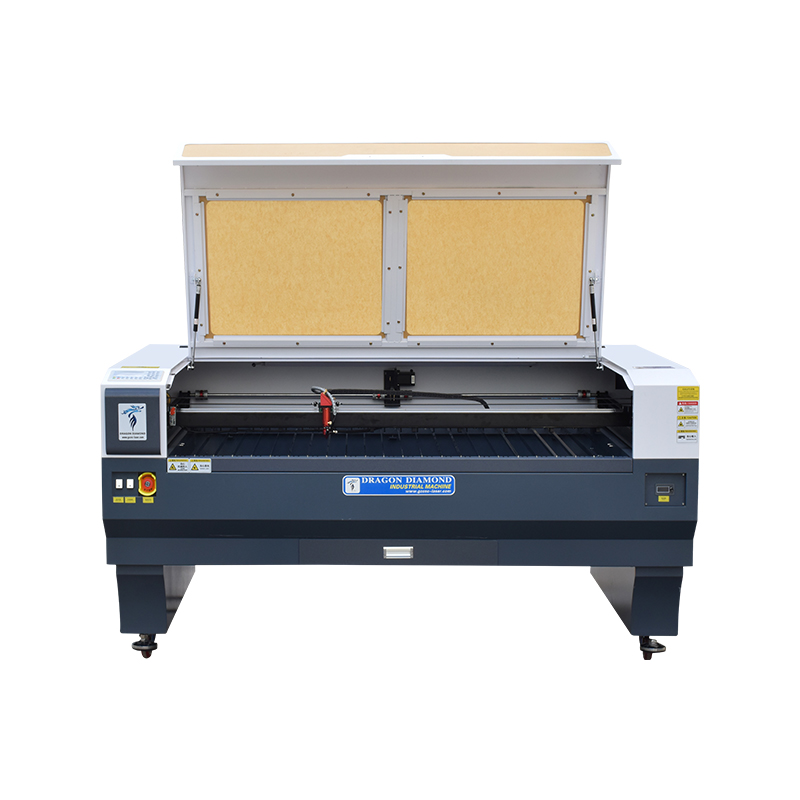

GuangzhouCO2 laser engraving cutting machine 130 watt for non-metal
Technical Parameters
No.
Model
LZ-1390L
1
Working Area (X*Y)
1300*900mm
2
Packing Size
2000*1650*1300mm
3
Working Table
Honey Comb Table or Blade Sheet Table
4

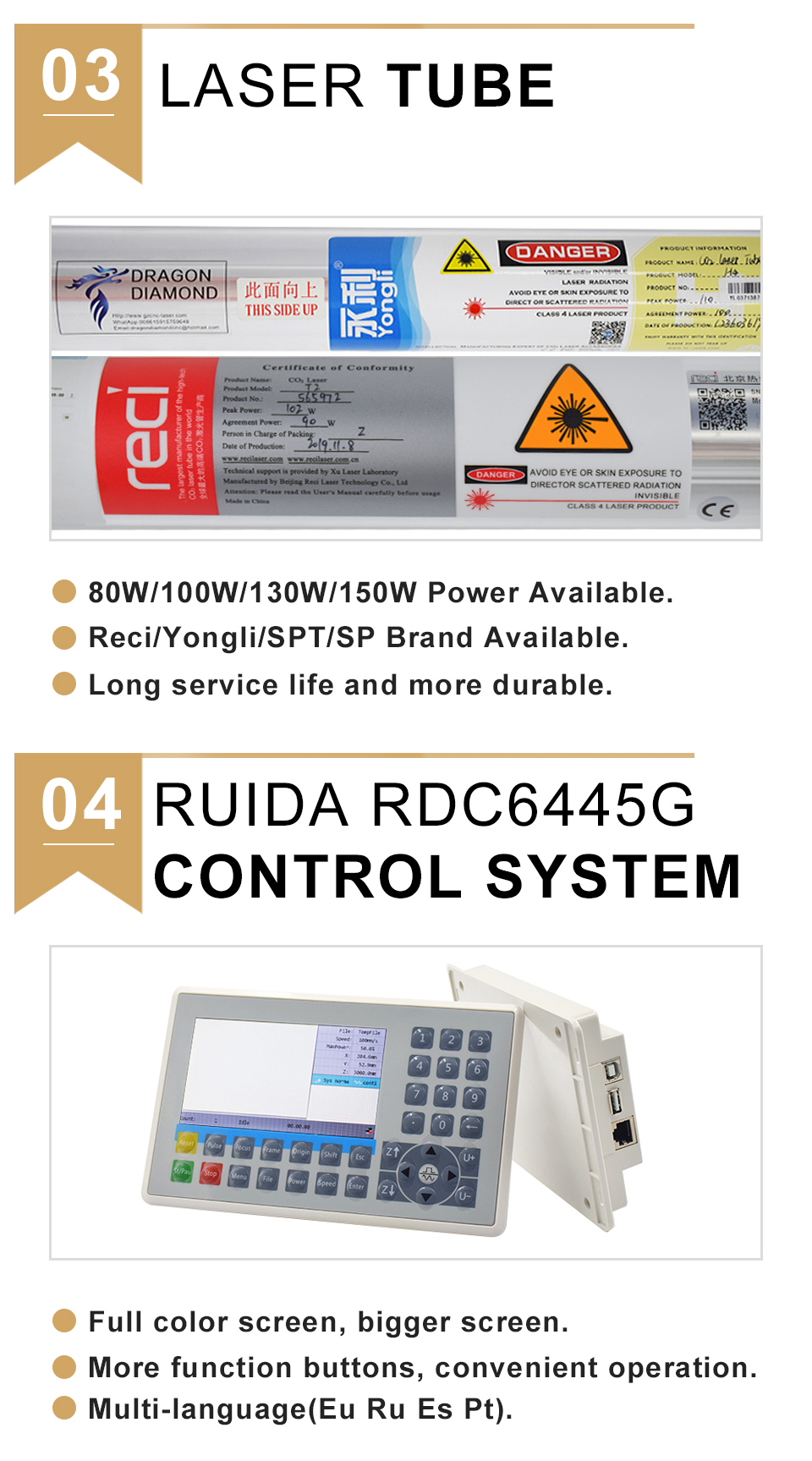

Laser Tube Type
CO2 Sealed Laser Tube
5
Cooling System
Water Chiller CW3000~CW5200 for option
6
Control System
RUIDA 6445
7
Software
RD Work
8
Software Supported
CorelDraw, Photoshop, AutoCAD, TAJIMA
9
File Output Mode
2.0 USB Interface
10
Laser Power
80~150W for option
11
Motor
Leadshine Stepper Motor
12
Machine Power
<3,000W
13
Minimum Character Size
English1.0×1.0mm
14
Engraving Speed
0-40000mm/min
15
Cutting Speed
0-10000mm/min
16
Reposition Accuracy
0.01mm
17
Graphic Format Supported
BMP, PLT, DST, DXF, AI
18
Voltage
AC220V/110V, 50HZ/60HZ
6090 Laser Cutter 80W 100W Cnc Co2 Laser Engraving Cutting Machine 6090 CDD Camera for Contour Cutting Available 9060 CO2 Laser cutting Machine with CCD Camera Model NO. LZ-6090L+CCD Camera Working Area 900*600mm Table Type Honeycomb Table / Blade Sheet Table Laser Power 60W / 80W / 100W Laser Type CO2 Sealed Laser Tube Small CCD Camera System Contour Cutting Function Resolution 1,000--10,000 DPI Cooling Type Water Chiller CW3000 / CW5000 / CW5200 Focus Lens lmported Znse Control System RUIDA RDV6445G Software RD Work Graphic Format Supported PLT, DXF, BMP, AI, DST Machine size 1520x1250x1150mm Net Weight / Gross Weight 260KGS / 340KGS Packing Size 1600x1350x1300mm Power Supply 220V/50Hz, 110V/60Hz
