DRAGON DIAMOND CNC
Item NO.:
Lz-6060AOrder(MOQ):
1Product Origin:
ChinaColor:
BlueShipping Port:

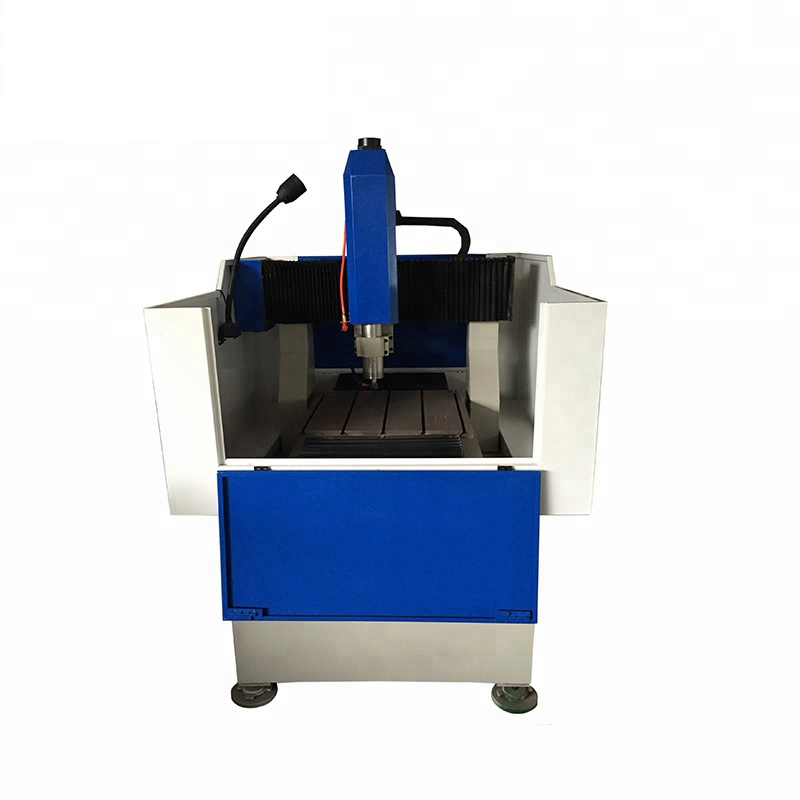

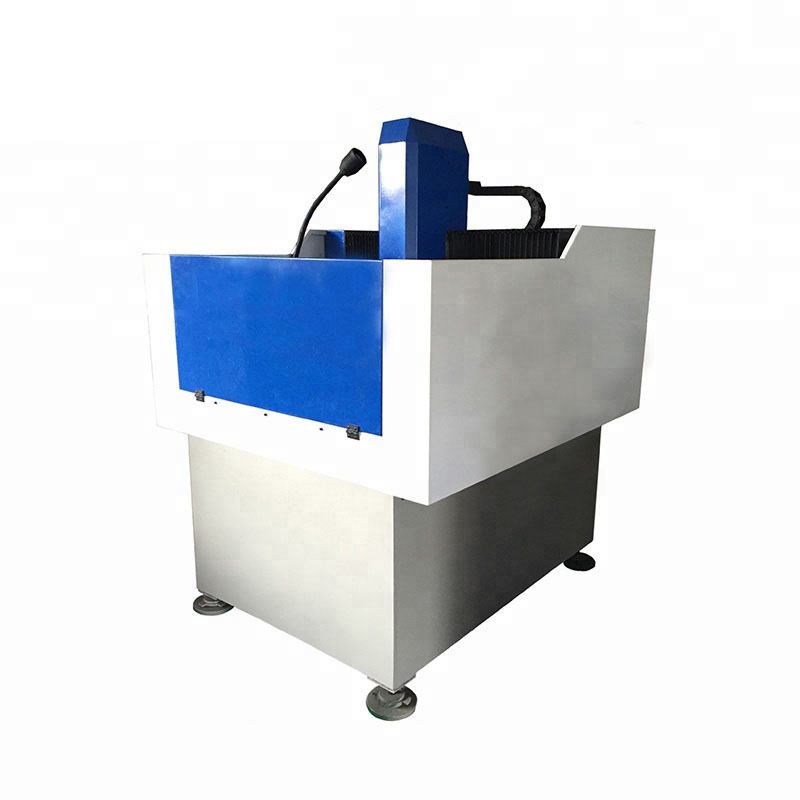

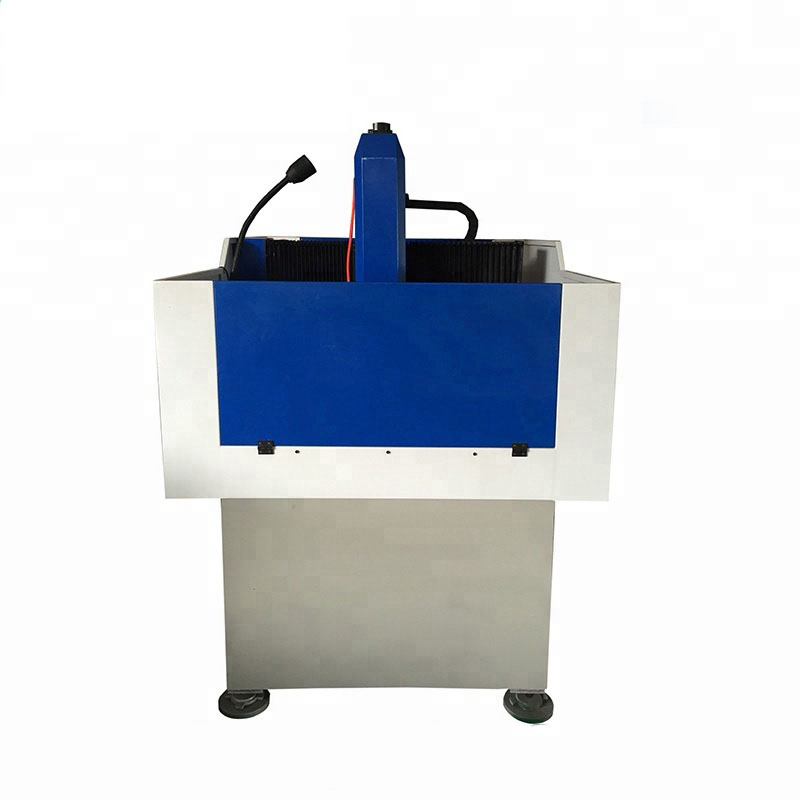

GuangzhouMini Stone Cnc Engraver Cutting Machine 3 Axis Woodworking Cutter
PRODUCT PARAMETER
|
NO. |
Model NO. |
LZ-6060 Metal Engraving Machine |
|
1 |
Table Size(mm) |
600*600mm |
|
2 |
X Y Z Traveling Area |
600mm*600mm*300mm |
|
3 |
Table Structure |
Aluminum T-Slot |
|
4 |
X Y Z Transmission |
Germany NEFF Ball Screws |
|
5 |
X Y Z Guide Rail |
Square Rail |
|
6 |
Software |
Type 3 /Artcam/Casmate/pore/UG/Artgrave ect. |
|
7 |
Spindle Power |
0.8/1.5/2.2/3.0KW |
|
8 |
Max. Spindle Speed |
24000r/mm |
|
9 |
Max. Traveling Speed |
7200mm/min |
|
10 |
Max. Working Speed |
5000mm/min |
|
11 |
Processing Accuracy |
±0.025mm |
|
12 |
Reposition Accuracy |
≤0.025mm |
|
13 |
Driving System |
Stepper Motor |
|
14 |
Command Language |
HPGL, G Code |
|
15 |
Operation System |
NC STUDIO |
|
16 |
Working Voltage |
AC220V 50Hz |
APPLICATION INDUSTRY
Furniture industry: cabinet doors, wooden doors, solid wood, panel, door and window furniture.
Decoration industry: screen, wave board, large wall hanging, advertising board, marking making.
Arts and crafts industry: it can engrave exquisite words and patterns on the artificial stone, wood, bamboo, marble, organic board, double color plates and other materials.
OPTIONAL PARTS
1. DSP operation system(can make machine work without connecting computer).
2. Other spindle power: 2.2KW available.
3. Server motor.
