DRAGON DIAMOND CNC
Item NO.:

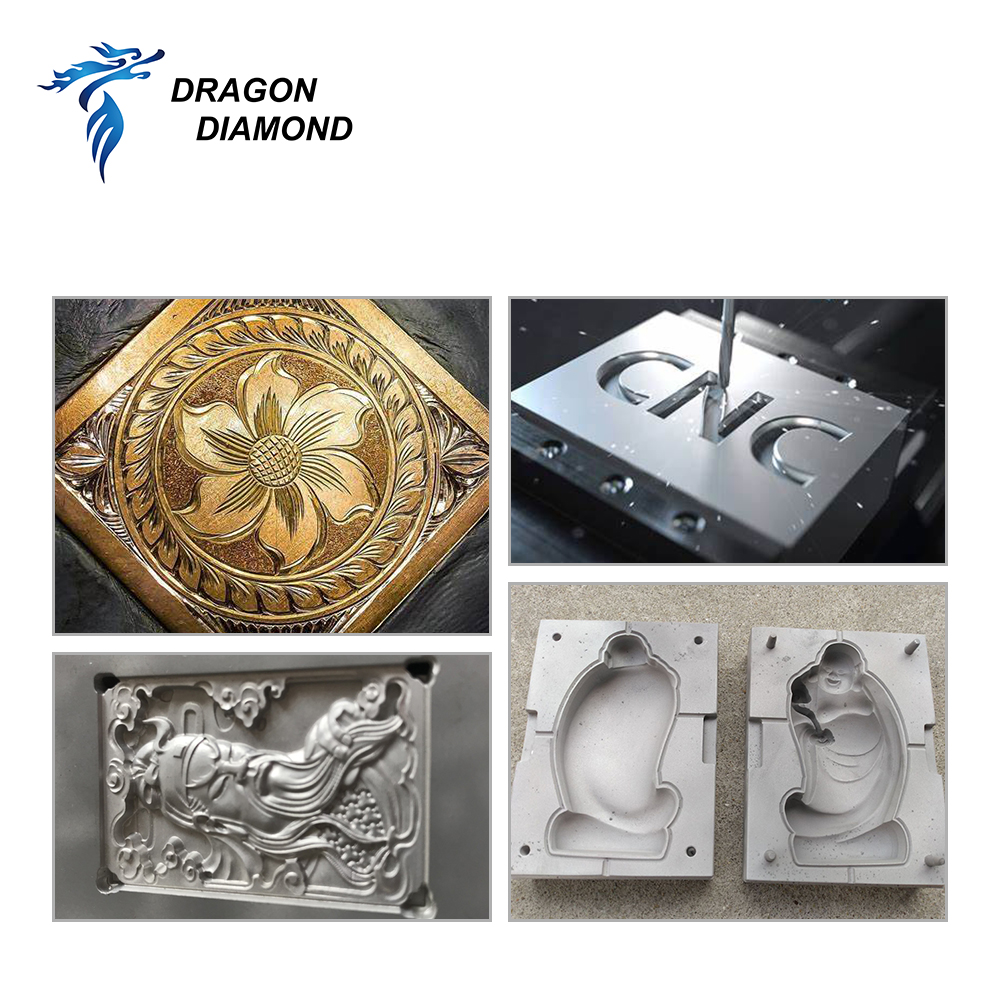

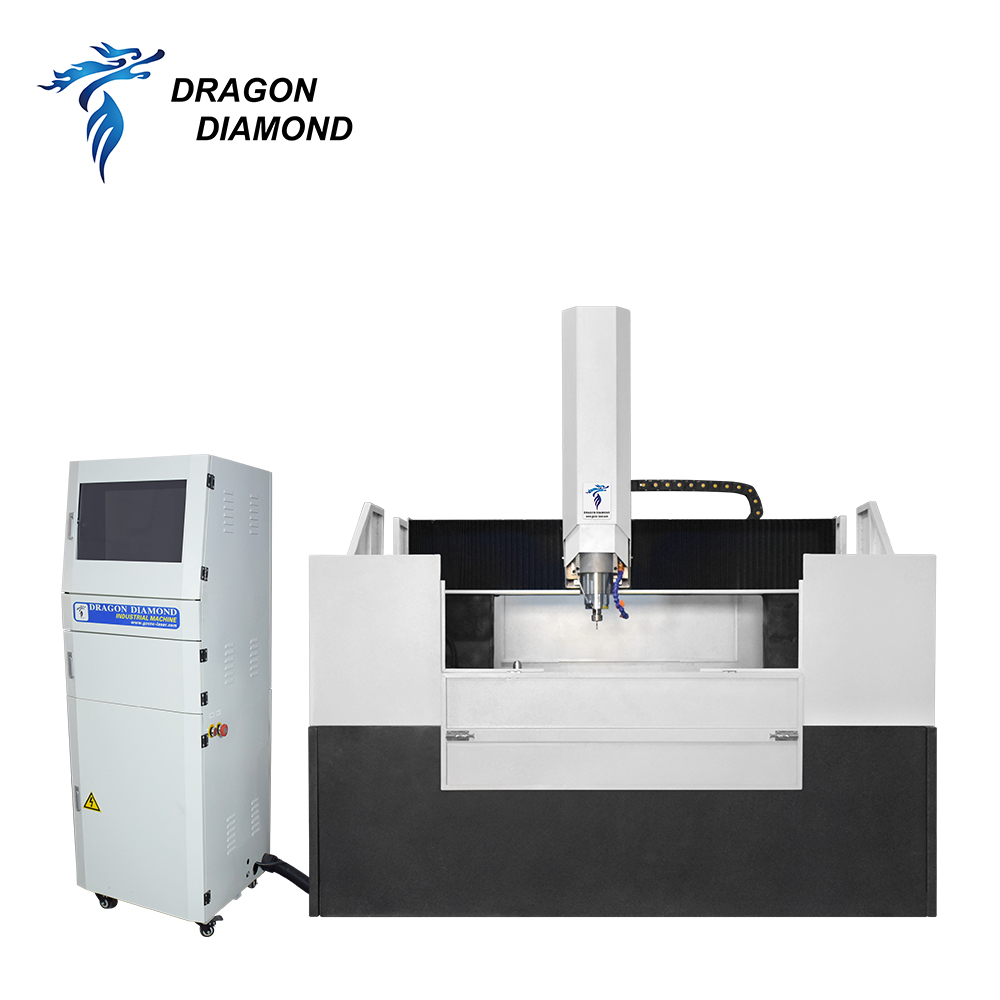

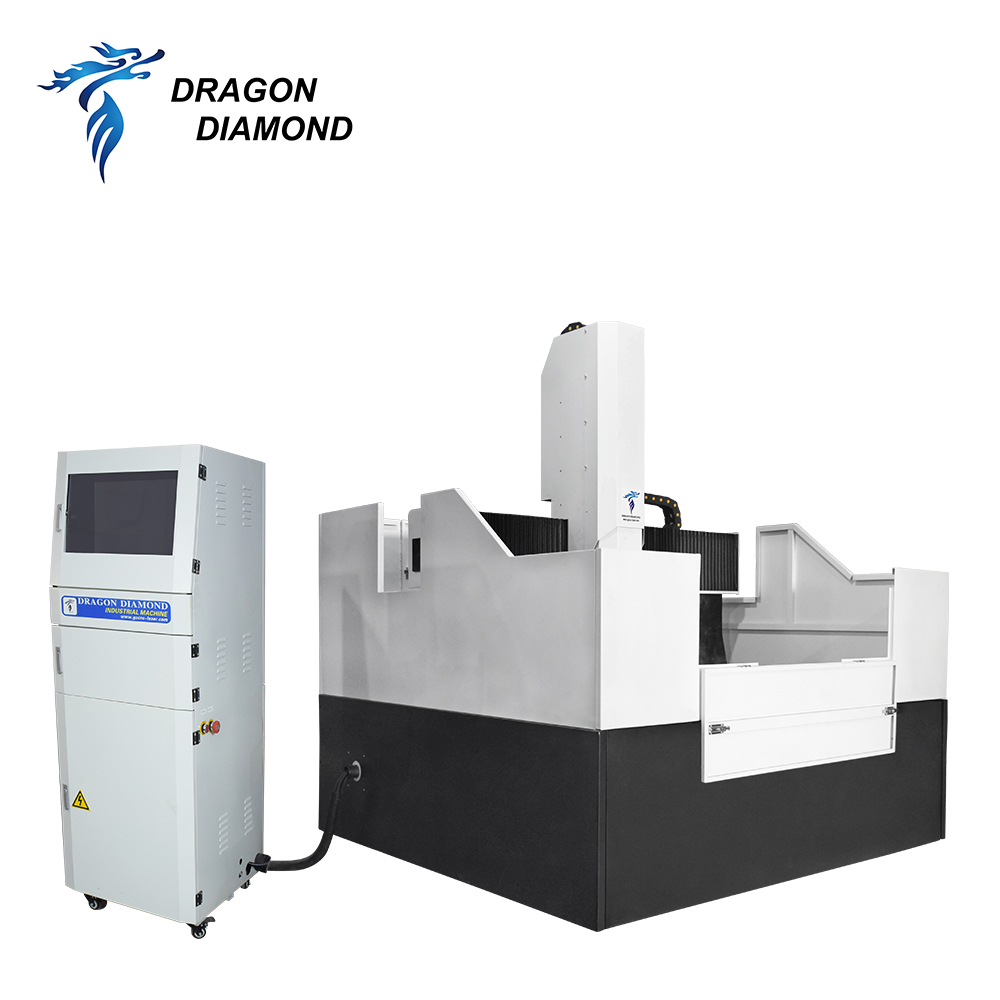

LZ-10801080 CNC Router Machine for Stone Marble Granite Metal Advertising Engraving Cutting
Item

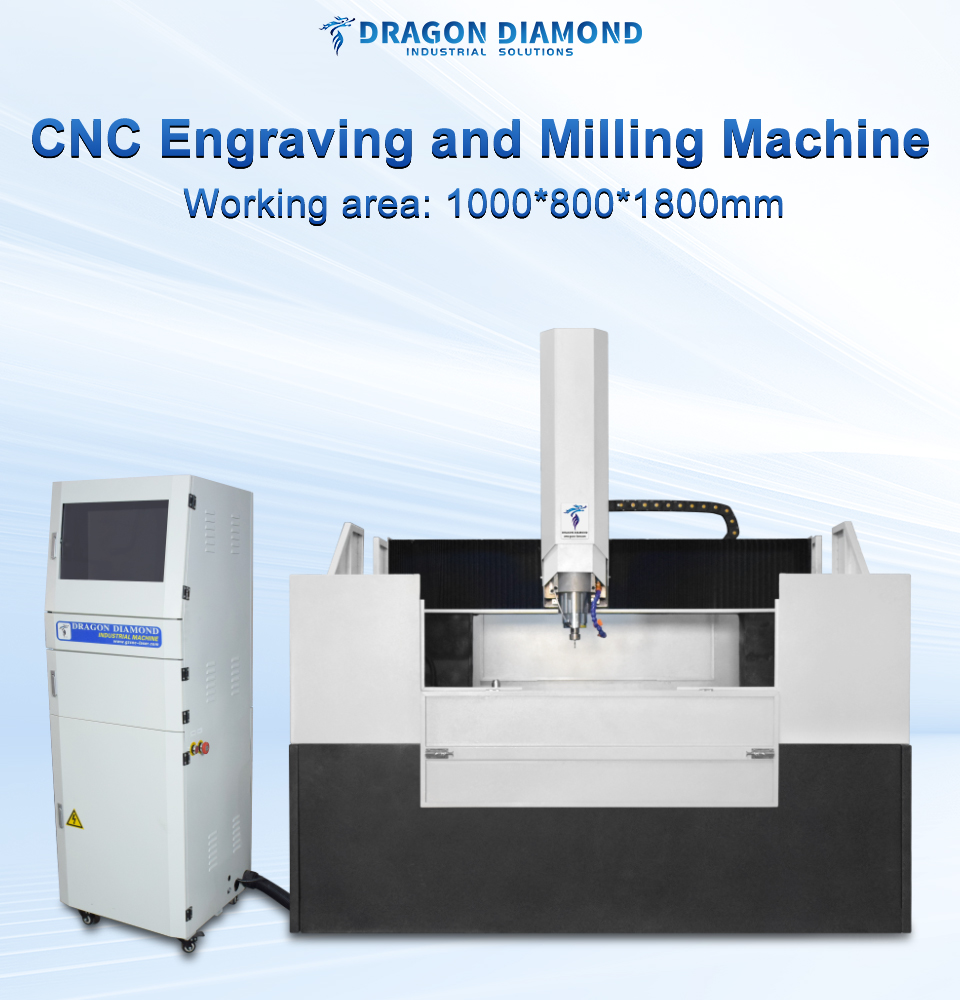

1080 CNC Engraving and Milling Machine
Model
LZ-1080
X/Y/Z Working Area
1000*800*180mm

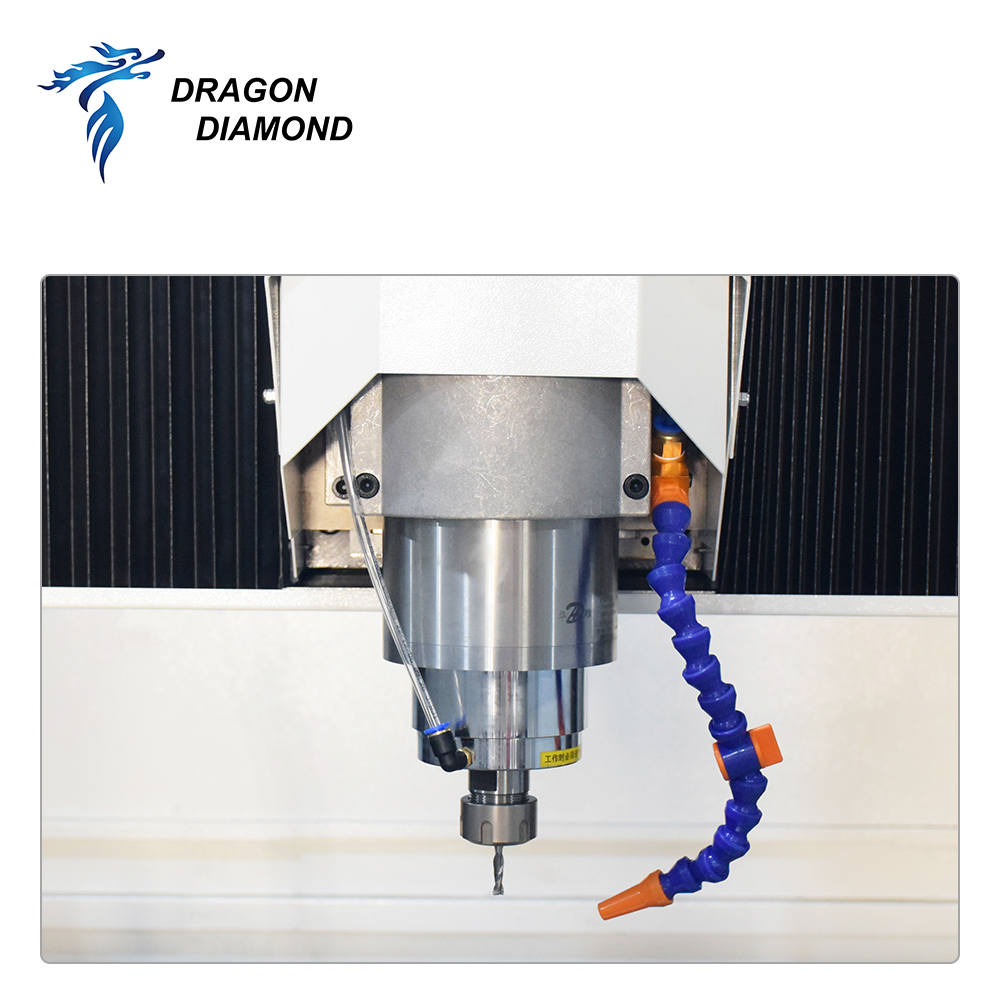

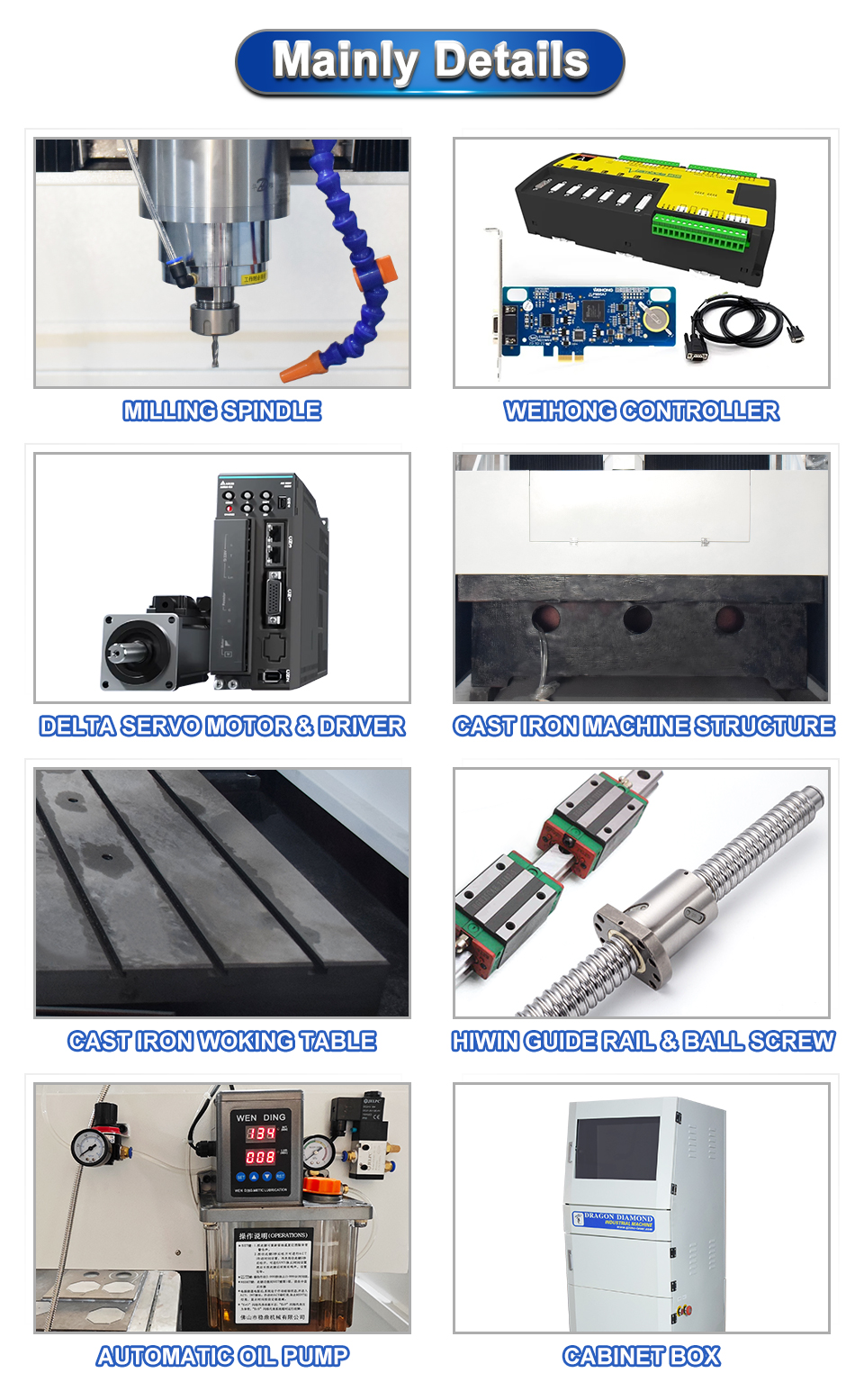

Spindle Power
5.5KW Milling Spindle
Inverter
Sunfar
Spindle Rate
24000r/min
Voltage
380V, 50Hz
Tool
3.175/4/6/8/12/12.7mm
Instruction Format
HPLG3D G-code
Reposition Accuracy
±0.03mm
Max Speed
8000mm/min
Engraving Speed
4000mm/min
Guide Rail
Taiwan HIWIN Square Guide Rail
Ball Screw
Taiwan HIWIN ball Screw
Control System
Weihong 95A
Motor & Driver
Delta Servo
Working Environment
Temperature -10℃ to 40℃,Humidity 35%-75%
Working Table Size
1020*820mm
Machine Size
1780*1700*1650mm
Machine Weight
4000KG
