DRAGON DIAMOND CNC
Item NO.:
Plasma-1325Order(MOQ):
1Product Origin:
ChinaShipping Port:

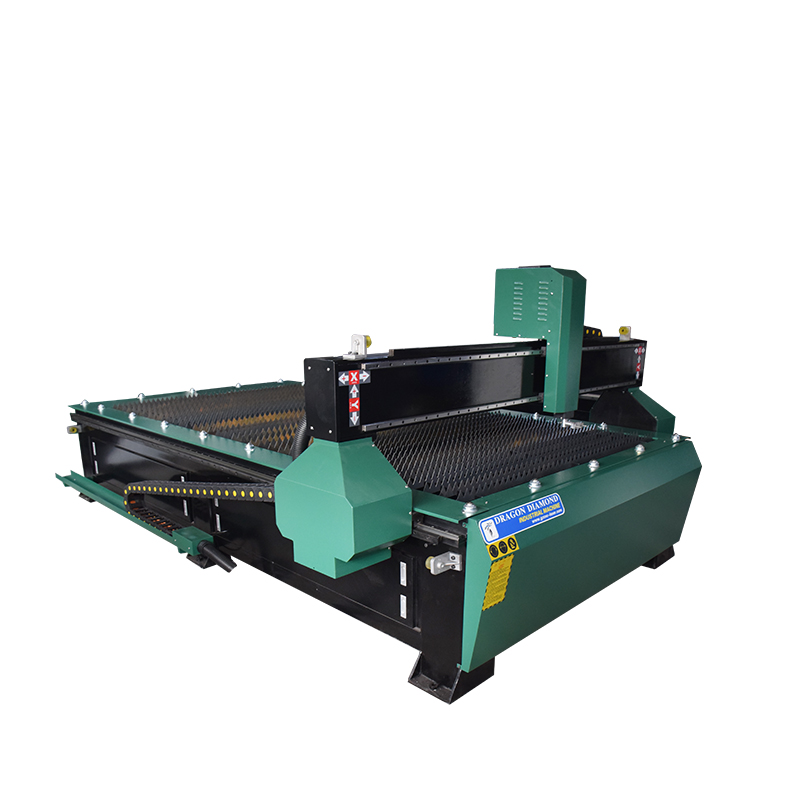

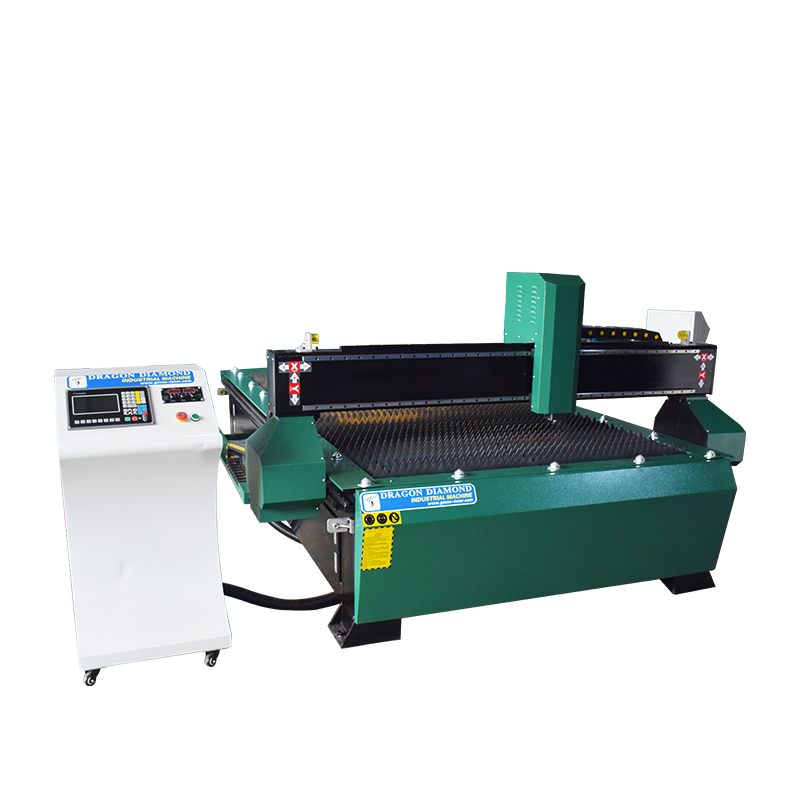

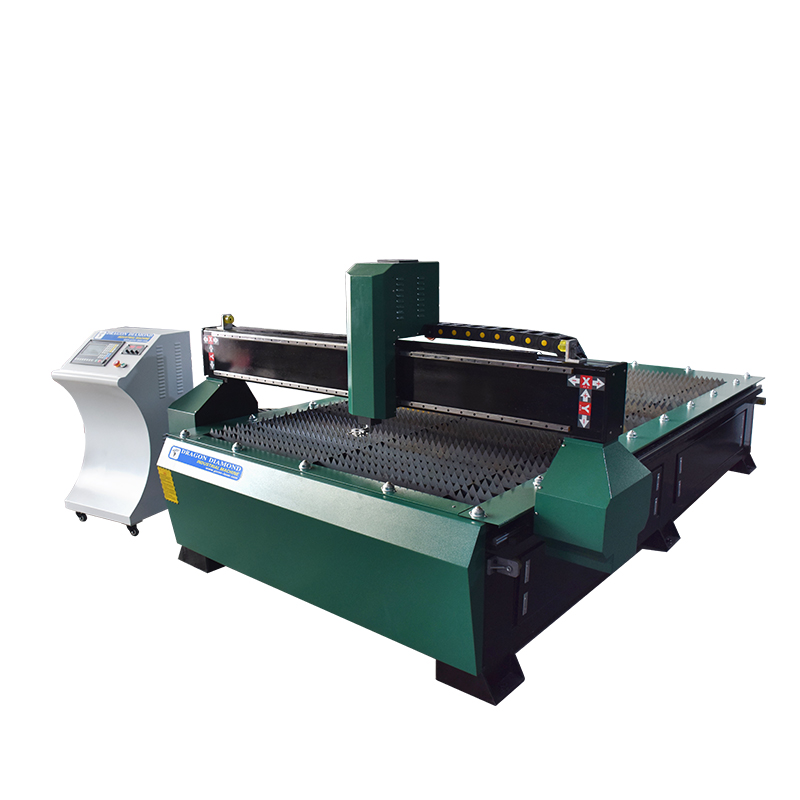

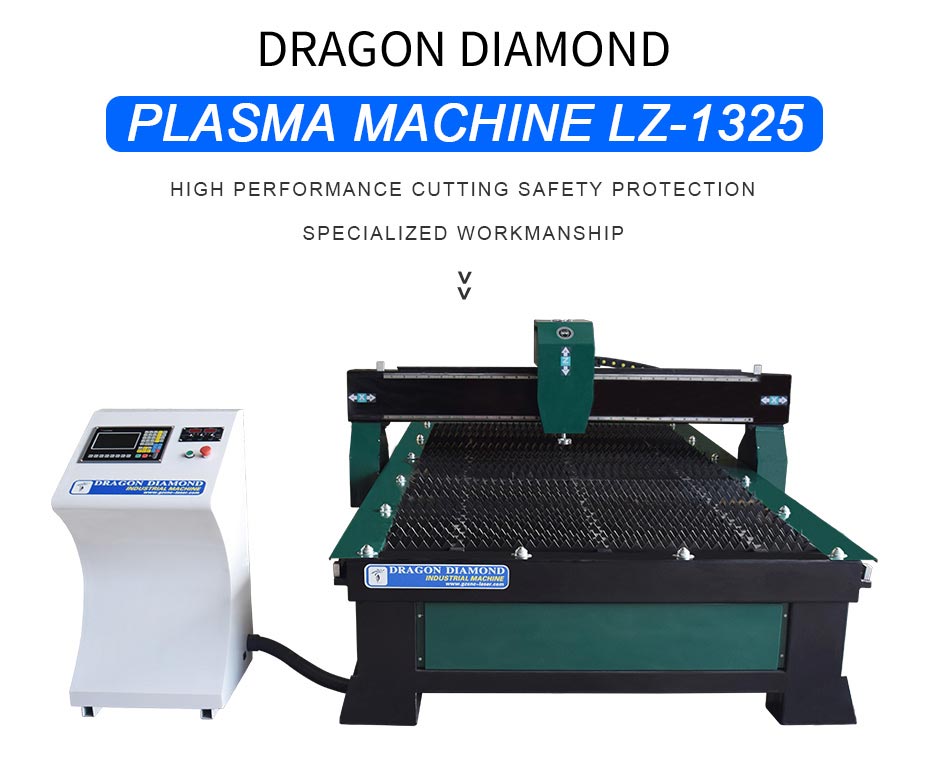

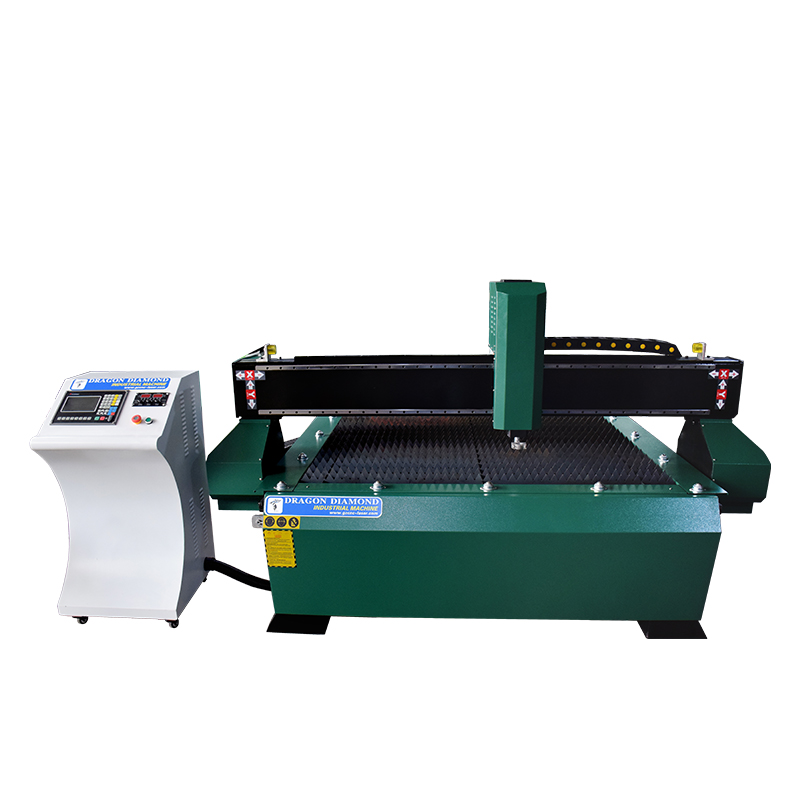

GuangzhouCNC Plasma Metal Stainless Steel Cutting Machine
PRODUCT DESCRIPTION

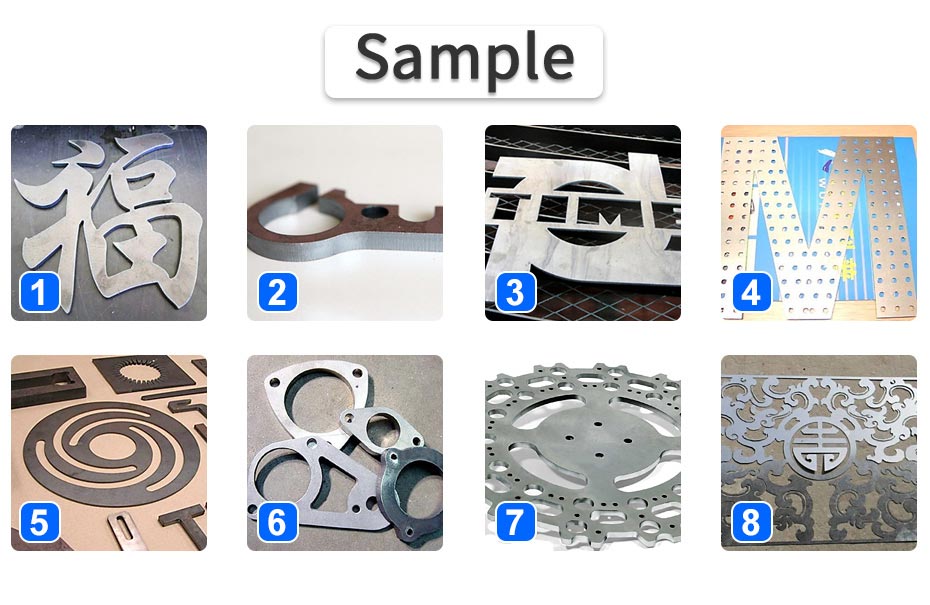

●Professional design for cutting metal materials, such as Stainless Steel, Aluminum, Brass, etc.
●High configuration, high cutting speed and precision.
●Control system: DSP control, with USB interface.
●Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
●File format: G-code.
●Editing Software: Fastcam
PRODUCT PARAMETER
|
NO. |
Model |
Plasma-1325 |
|
1 |
Working Area |
1300x2500x200mm |
|
2 |
Packing Size |
2150x3250x1500mm |
|
3 |
Working Table |
Water Surface Cutting Table |
|
4 |
Plasma Sorce |
60A-200A (Optional) |
|
5 |
Application Maximum cutting |
0.5-30mm(Depends on the material) |
|
6 |
Guider |
Taiwan HIWIN linear guider, 20mm thickness |
|
7 |
Transimission type |
X, Y: Taiwan HIWIN square linear guide , Rack driving Z: ball screw and Hiwin square linear rail 20mm |
|
8 |
Gas Pressure |
Acetylene Gas or Propane Gas Max 0.1Mpa |
|
9 |
Control System |
FLCNC- F2100B |
|
10 |
Torch Height Control Style |
Plasma THC |
|
11 |
Motor |
Leadshine Stepper motor |
|
12 |
Software |
StarCAM |
|
13 |
Machine Power |
<3000w |
|
14 |
Arc Mode |
Arc Pressure Adjuster |
|
15 |
Max. Rapid Travel Rate |
15m/min |
|
16 |
Max. Working Speed |
10mm/min |
|
17 |
Reposition Accuracy |
0.1mm |
|
18 |
Command code |
G code, DXF, *.mmg,*.plt, HPGL,BMP |
|
19 |
Voltage |
AC220V/110V,50HZ/60HZ |
PRODUCT DETAILS
C.Multi-color LCD CNC System
The control system is independently designed and developed with optimized programming, easy to learn and operate.

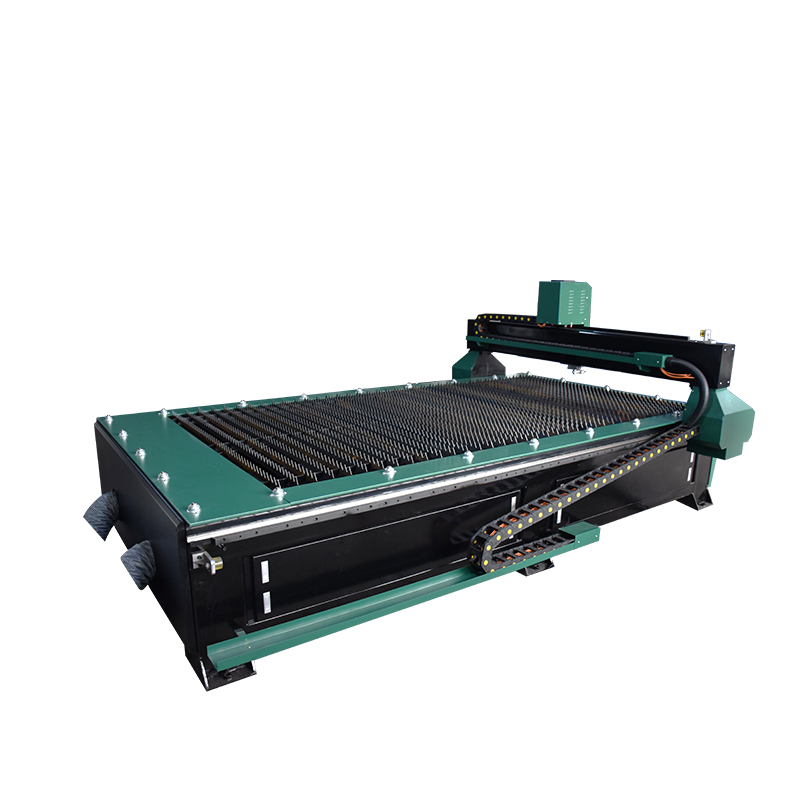

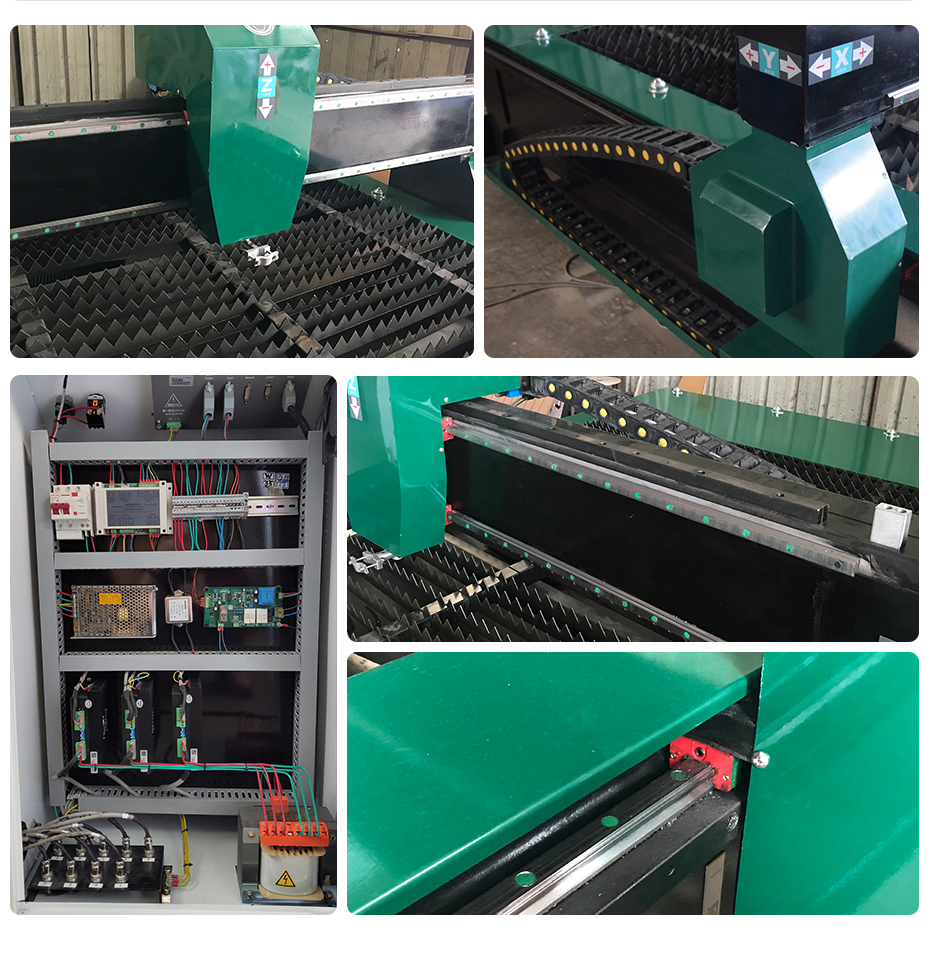

D.Plasma table structure
The whole machine bed adopts welded steel structureand then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Gantry and end beam adopts cast aluminum and then precision-machined, moving performance is good.
NO. Model LZ-1325L 1 Working Area 1300mm*2500mm (98*51 in) 2 Table Type Blade Sheet Table 3 Laser tube type CO2 sealed laser tube 4 Laser power 90W-300W 5 Focus Lens Imported Lens 6 Motor & Driver Stepper Motor / Servo Motor 7 Position System Red Light Pointer 8 Controller RUIDA 6445 9 Cooling Function Water Chiller CW3000/CW5000/CW5200 10 Machine power <3000W 11 Software RD works 12 Power supply AC 110/220V 50/60Hz, single phase 13 Graphic format supported BMP/JPG/DXF/WMF/EMF/PLT 14 Package 2150*3250*1500mm 15 G.W. 900KG 16 Package Wooden Box 17 Warranty 1 year (Laser tube 10 months) 18 Optional Parts UP&DOWN table, Rotation axis, Auto focus
1200*2400mm Large Work Area High Performance CNC Machine.
