CNC Wood Engraving Machine

Mini Metal Stone Cnc Engraver Cutting Machine

400*400mm Small CNC Machine For Arts And Crafts Industry.
  • Item NO.:

    Lz-4040A
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Color:

    Blue
  • Shipping Port:

    Guangzhou
  • Product Detail

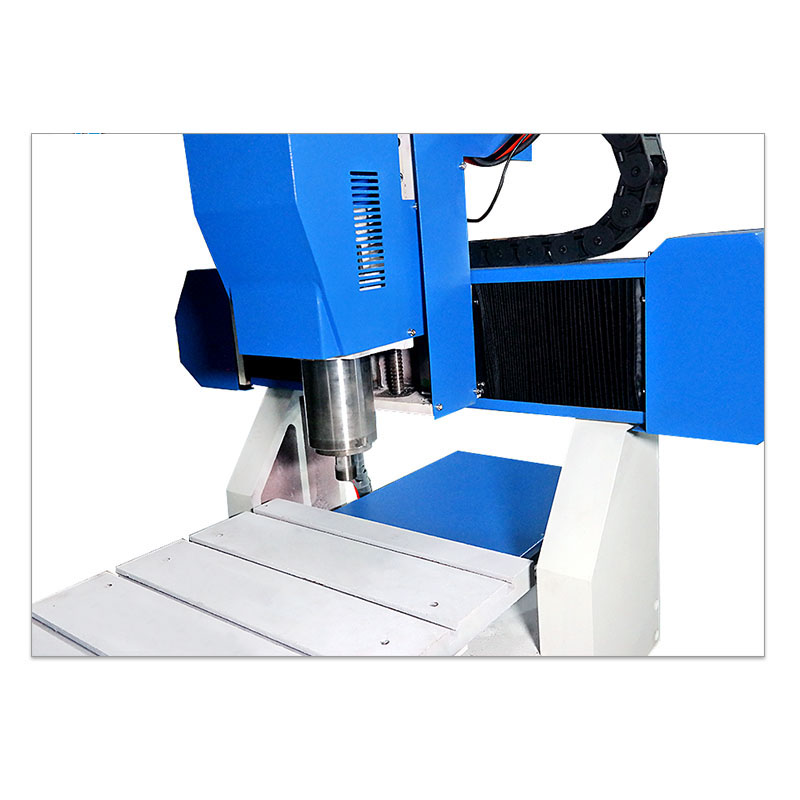

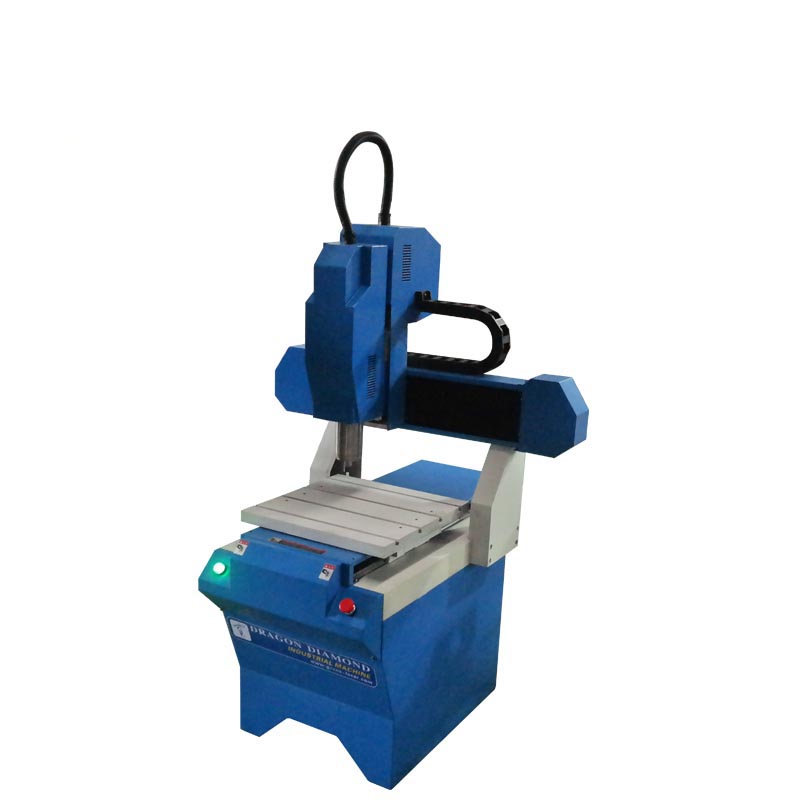

Mini Metal Stone Cnc Engraver Cutting Machine

400*400mm CNC Router for Stone



PRODUCT PARAMETER


NO.

Model

Lz-4040 Mini CNC Router

1

Working Area

400x400x80mm

2

Packing Size

780x700x1300mm

3

Table Size

540x540mm

4

Spindle

1.5KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Control System

NC Studio Controller

7

Inverter

Sunfar

8

X Y Z Transmission

Germany NEFF Ball Screws

9

X Y Z Guide Rail

Sqare Rail

10

Working Table
Wholly Iron Cast

11

Drive System

Stepper motor

12

Machine Structure

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Suitable Software

Artcam, Type3, Ucancam V9, etc

15

Traveling Speed

7200 mm/min

16

Engraving speed

5000 mm/min

17

Reposition Accuracy

0.025mm

18

Command Code

G Code*.HPGL

19

Voltage

AC 220V±10%, 50Hz.



PRODUCT FEATURES

1.High quality Wholly cast steel Lathe bed, stronger and more stable.

2.Powerful stepper motor driver, Taiwan Hiwin guide rails, running smoothly, high accuracy

3.Taiwan TBI ballscrew or Gear wheel/ rack transmission, high precision.

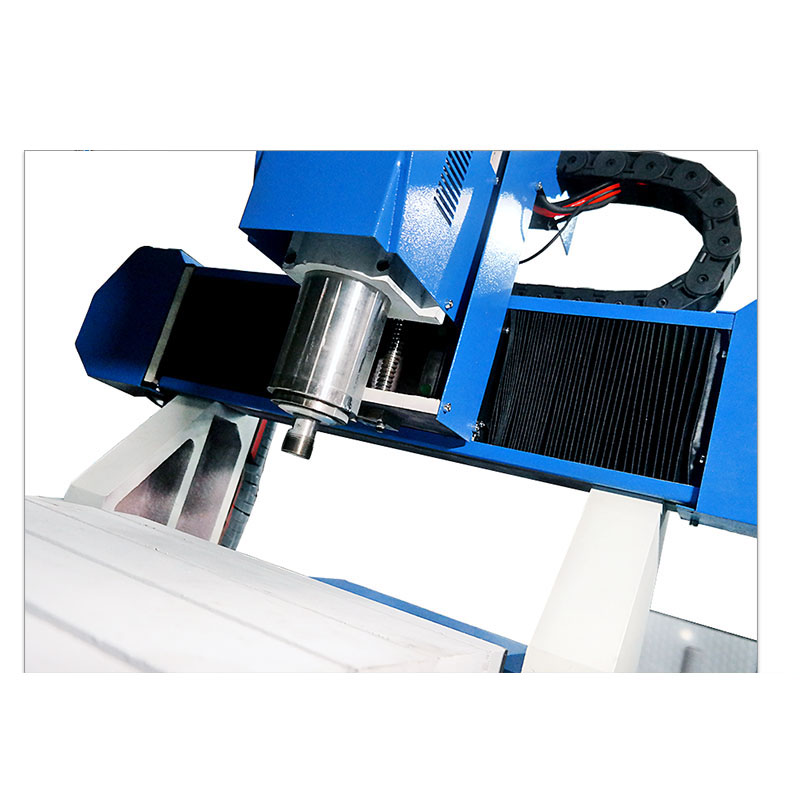

4.Water cooling spindle (24000rpm), apply to long time processing of wood products.

5.Well compatibility software Type 3/Artcam/ UcanCAM etc.




OPTIONAL PARTS


1. DSP operation system(can make machine work without connecting computer).


2. Other spindle power: 2.2KW available.


3. Server motor.


Router CNC Cutting Stone

Aluminum, Iron CNC Cutting
