DRAGON DIAMOND CNC
Item NO.:
Lz-1325ATCOrder(MOQ):
1Product Origin:
ChinaShipping Port:

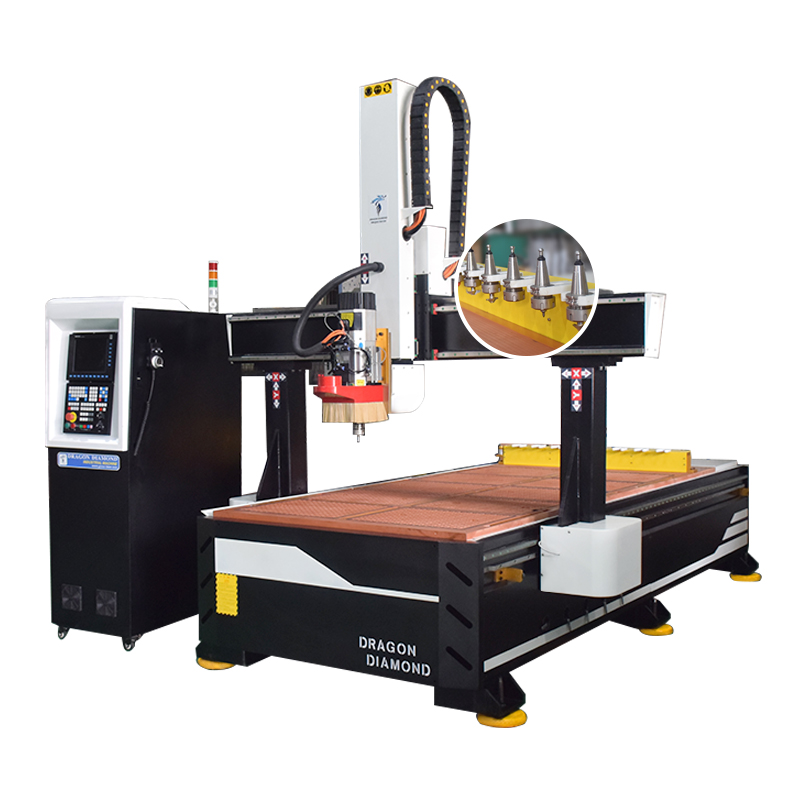

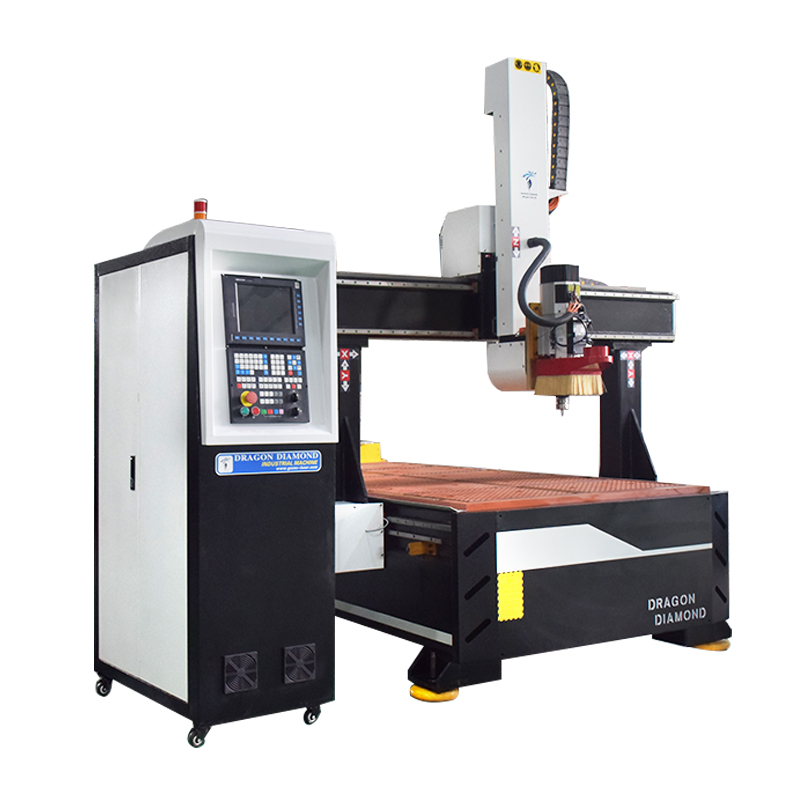

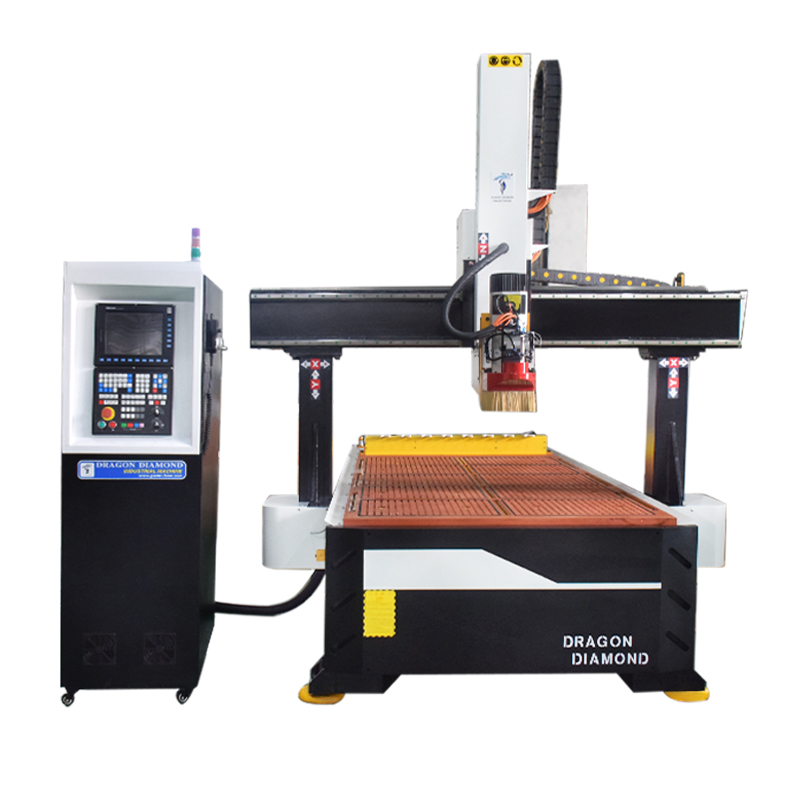

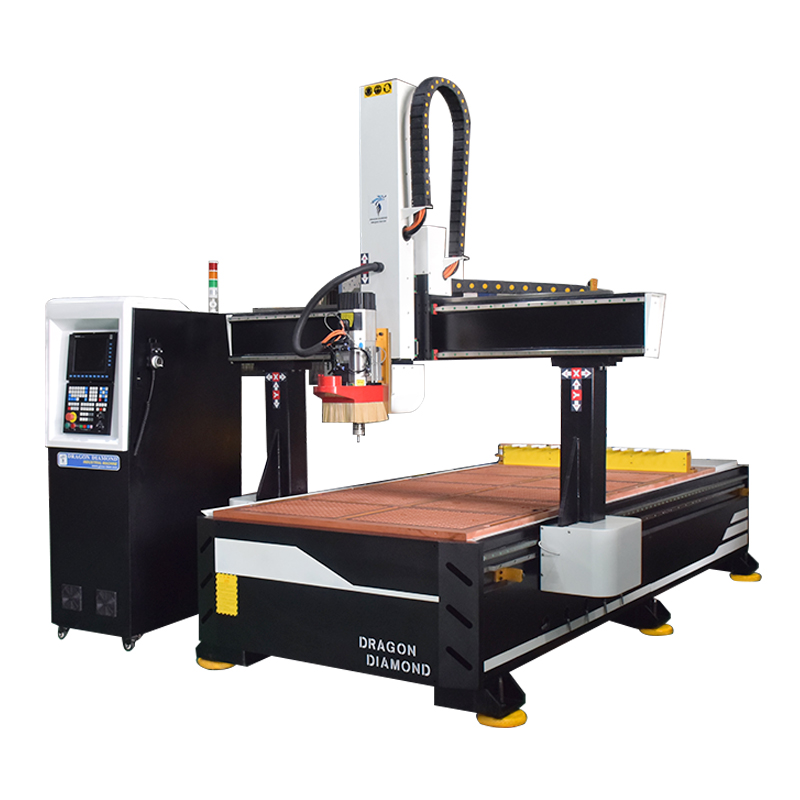

GuangzhouFurniture Industry 1325 ATC CNC Router Wood Carving Machine Woodworking Router For Sale
Application
Woodworking industry: home decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
Advertising industry: it is mainly used in the production of models, advertising signs and text signs. These businesses are relatively simple in carving technology, cutting all kinds of signs, seat signs, chest plates, font patterns, and various kinds of signs, trademarks and other materials
Wood products industry: sewing machine table, electrical cabinet table, sports equipment. Musical instrument industry: it can carve three-dimensional curved surface of musical instrument and cut its shape
Stone industry: marble, granite, tombstone and other materials---This kind of applicable industry has higher requirements for machines and needs to increase the weight of machines. It is generally used in the working range of 1500 * 3000mm
PRODUCT PARAMETER
|
Parameters |
Standard Specifications LZ-1325ATC |
|

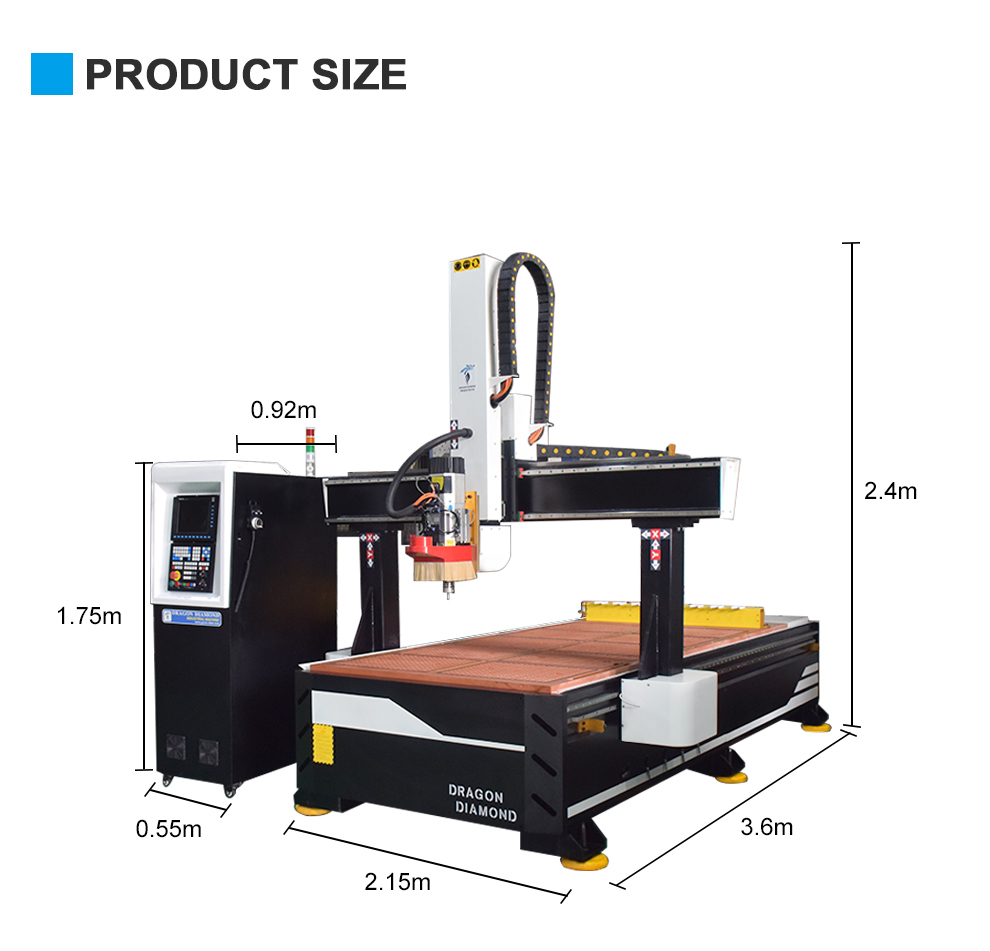

X,Y,Z Working Area |
1300*2500*300mm|4´*8´ |
|
Optional Working Area |
1300*1300*300mm|4´*4´ |
|
|
1500*3000*300mm|5´*10´ |
|
|
2000*3000*300mm|6´*10´ |
|
|
2000*4000*300mm|6´*13´ |
|
|
2000*6000*300mm|6´*20´ |
|
Spindle Power |
9kw China Made Air cooled ATC Spindle |
|
X,Y,Z Traveling Positioning Accuracy |
±0.3 / 300mm |
|
Table Surface |
Vacuum table |
|
X,Y,Z Rail and Trasmission |
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
|
Max. Rapid Travel Rate |
80m/min |
|
Max. Working Speed |
60m/min |
|
Cutting thickness |
According materials |
|
Spindle Speed |
6000-24000RPM |
|
Guider |
Taiwan HIWIN linear guider, 25mm thickness |
|
Drive Motors |
Taiwan Delta 750w Servo Motor Sets |
|
Working Voltage |
AC220V or 380V/50HZ |
|
Command Language |
G code |
|
Operating System |
WEIHONG NK300 control system |
|
Interface |
USB |
|
Software Compatibility |
Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
|
Running Environment |
Temperature: -20℃~45℃ Relative Humidity: 5%~75% |

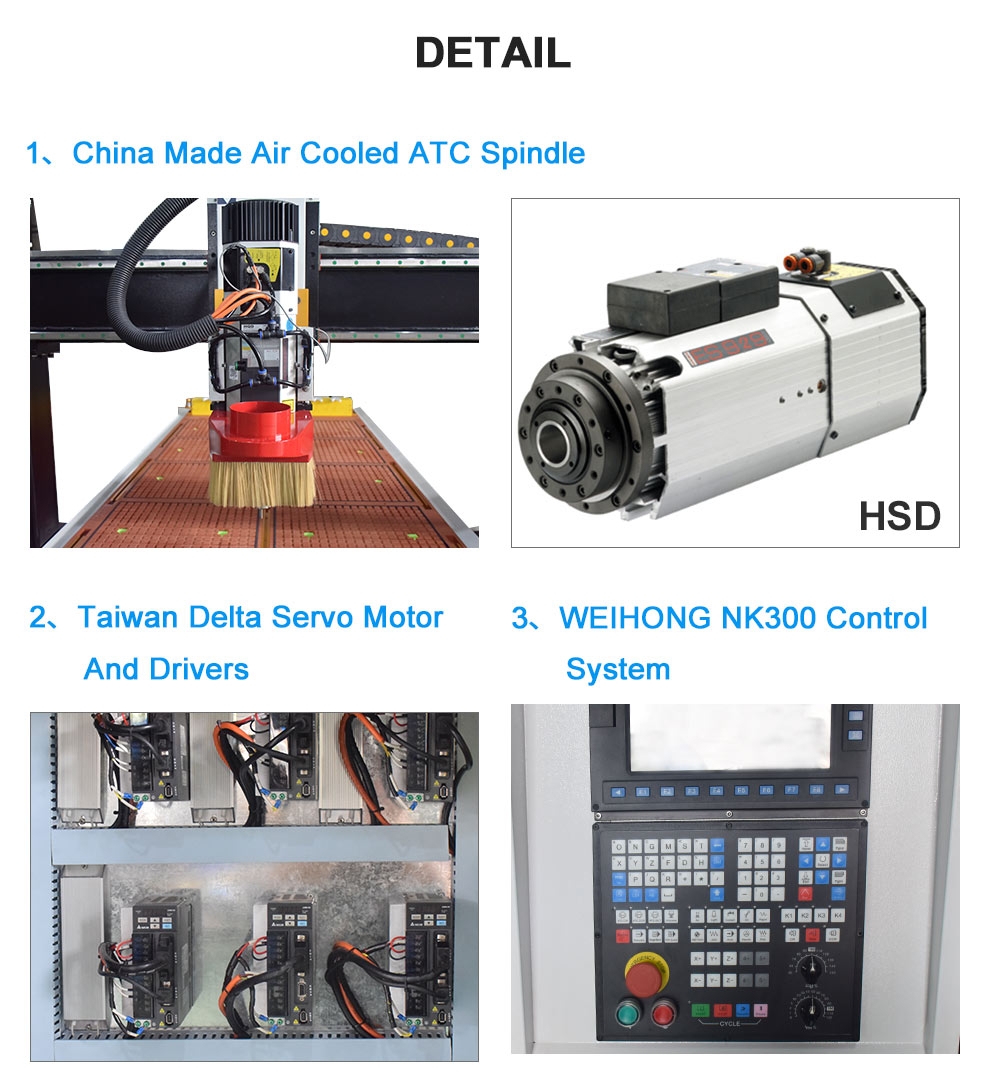

PRODUCT DETAIL
PRODUCT DETAIL

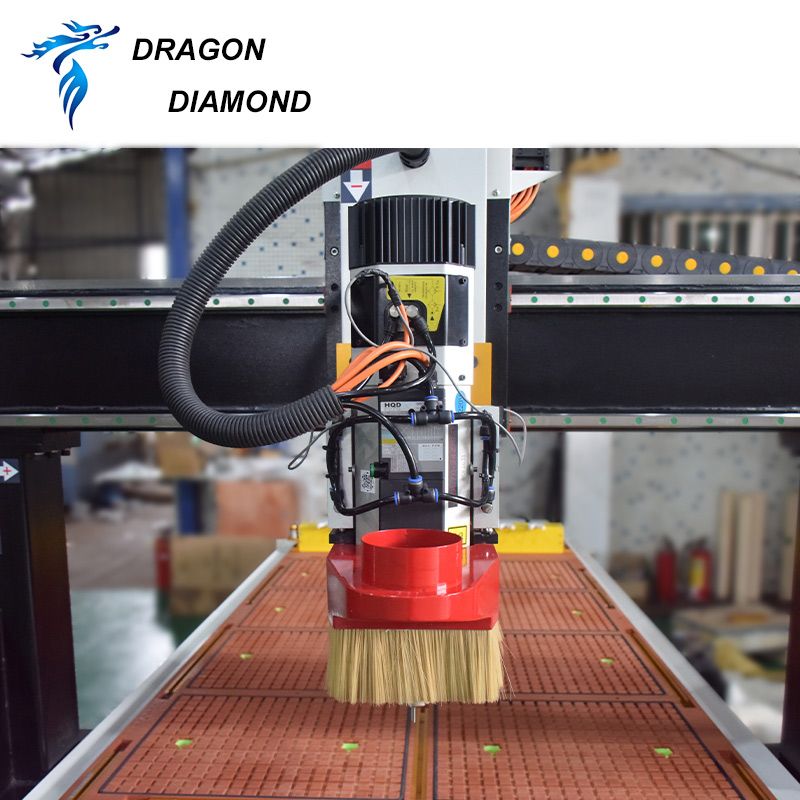

1.China Made Air cooled ATC Spindle
Affordable, low noise, easy to install,high accuracy.You can also upgrade Italy HSD Air-cooling spindle for higher demand

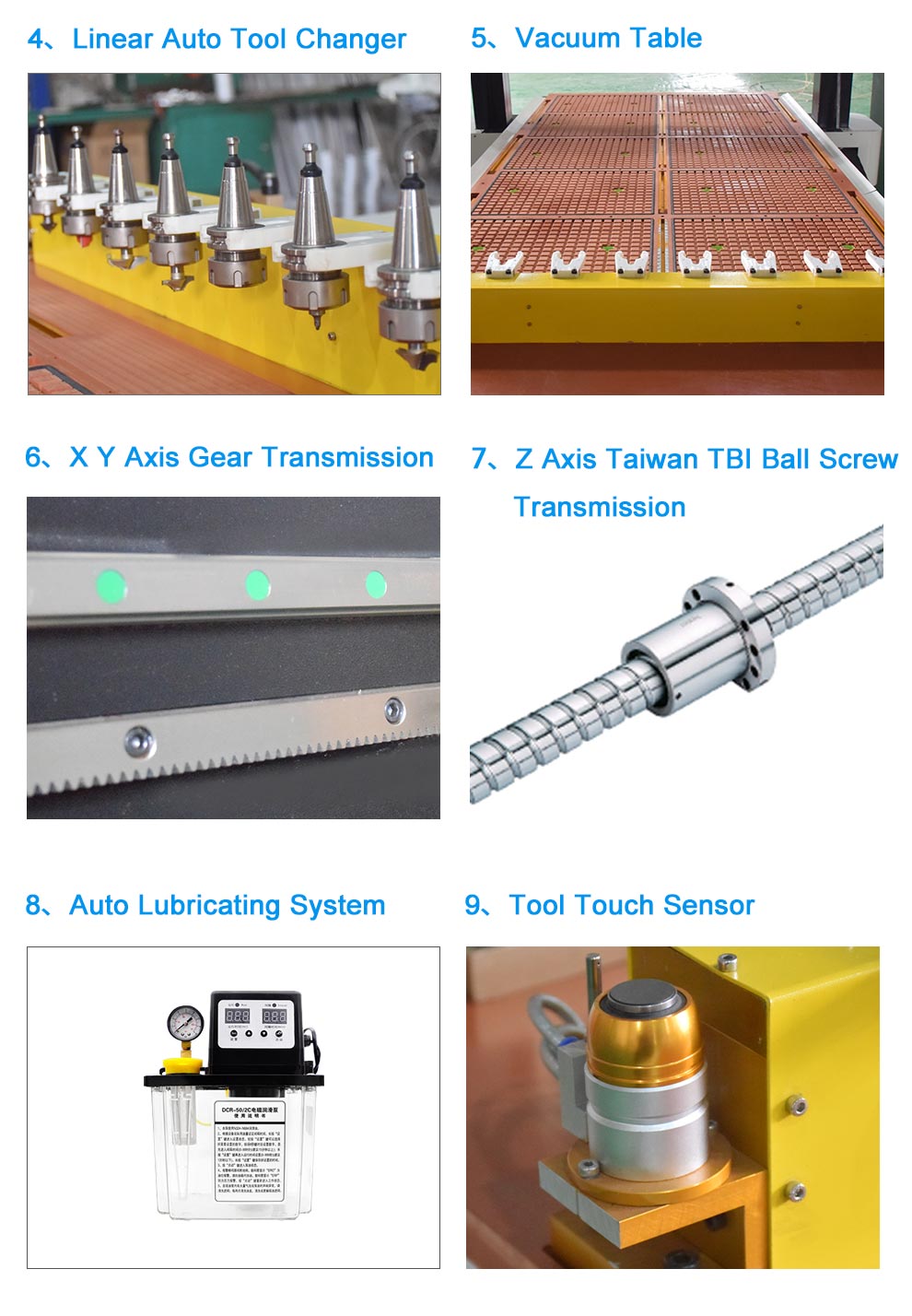

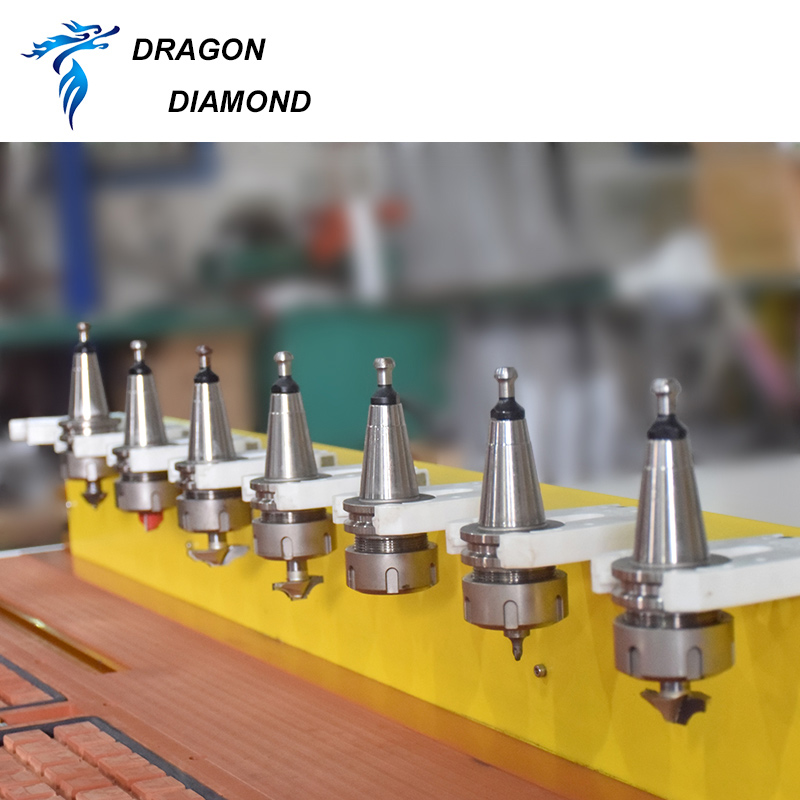

With 8-10pc linear tool changer (or disc tool changer for optional),it can improve working efficiency, fast change balde tools, save time, and reduce errors.

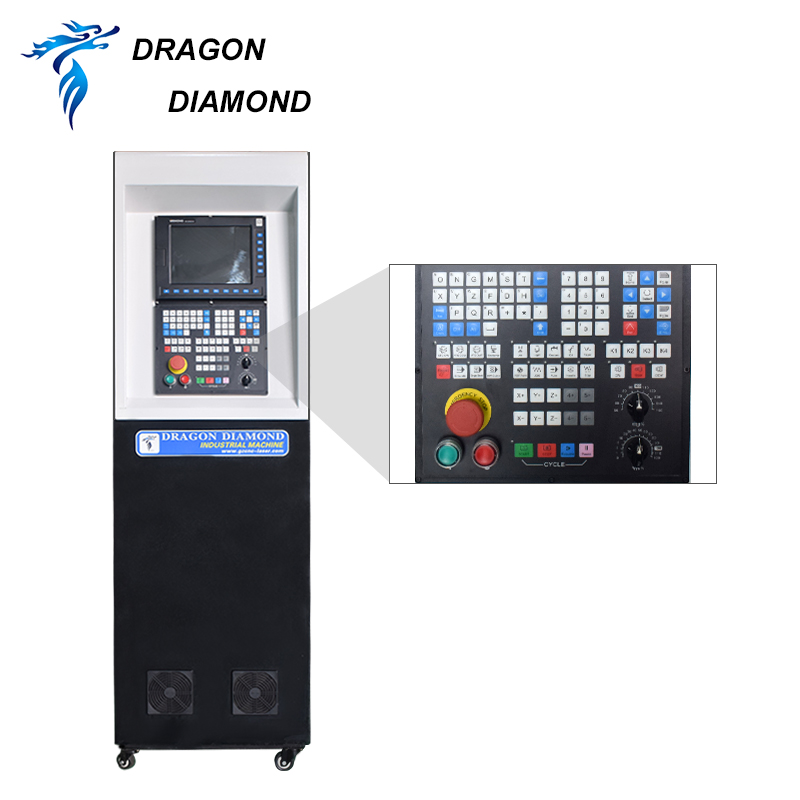

3.WEIHONG NK300 control System
Support screw error compensation
Support Mechatrolink 4 axes linkage
Faster Response & Stronger Functions
We adopt Taiwan Delta servo motor and driver to our machine, which is the famous brand of the world.servo motor has greater power and higher overload capacity than step motor

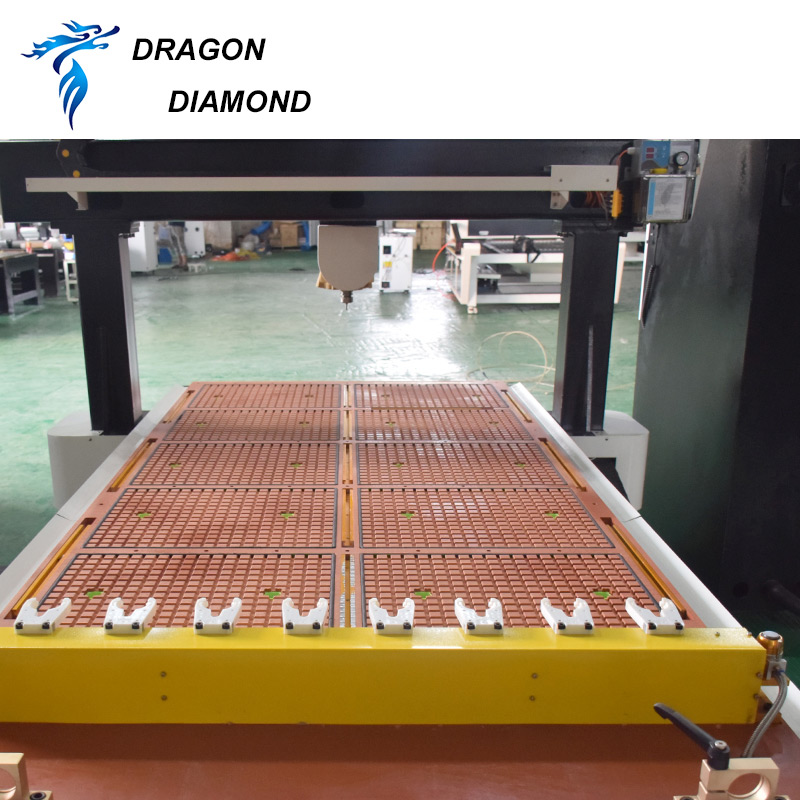

5.Vacuum table
Vacuum table using high-density (1.31-45g/cm) material with great suction strength, comfortably accommodating all sizes of work.
6.X Y axis gear transmission
High precisi on Rack and Pinion Drive for X, Y axis
7.Z axis Taiwan TBI ball screw transmission
TBI Ball Screw for Z axis High Transmission efficiency.Steady moving.
8.Auto lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
9.Tool Touch Sensor
Tool touch sensor can save the labor time to determine the origin of the workpiece and improve the efficiency
