DRAGON DIAMOND CNC
Item NO.:
M46B+RuidaOrder(MOQ):
1Product Origin:
ChinaShipping Port:

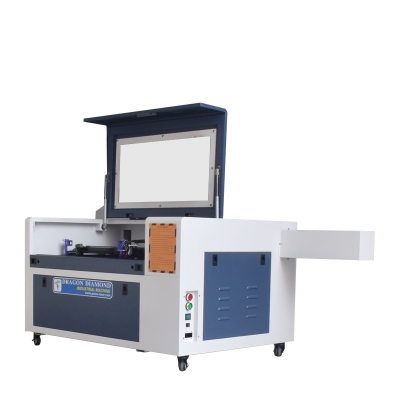

GuangzhouRuida Co2 Laser Engraving Etching for Wooden Phone Case Glass Bottle
PRODUCT PARAMETER
|
NO. |
Model |
Lz-M46B |
|
1 |
Working Area： |
600*400mm |
|
2 |
Table Type： |
Honeycomb table With Up and down |
|
3 |
Laser tube type： |
C02 sealed laser tube |
|
4 |
Laser power： |
60W - 80W |
|
5 |
Motor & Driver： |
Stepper Motor |
|
6 |
Controller： |
LIHUIYU M2 Nano |
|
7 |
Cooling Function： |
Water pump/Water Chiller |
|
8 |
Laser Head： |
18*50.8mm |
|
9 |
Mirror： |
20mm |
|
10 |
Engraving speed： |
0-350mm/s |
|
11 |
Minimum Shaping Character： |
Chinese 2mm/ Letter 0.8mm Interface to Computer: USB Port (For desktop and Laptop computer) |
|
12 |
Current： |
0~22mA |
|
13 |
Power consumption： |
≤250W |
|
14 |
Power supply： |
AC 110V/220V 50/60Hz, single phase |
|
15 |
Graphic format supported： |
BMP/JPG/JPEG/WMF/EMF/PLT Air Compressor: ACQ-003 |
|
16 |
Warranty： |
1 year (Laser tube 6 months) |
APPLICATION
Applicable Materials
This machine is mainly suitable for packaging and printing, wet wax paper, electronic products, blister fixing, carrying bags, boxes, die-cutting of artistic gifts, crystal, rubber, wood, paper, bamboo and other non-metallic materials. It is also suitable for cutting plexiglass in the advertising industry, acrylic products, as well as cutting balsa wood, paulownia wood and products in the field of aircraft models.
Applicable Industry:
Mainly used for the engraving and cutting of samll arts crafts works such as engraved portraits,badges, breast cards and various engraved packages. it is also applied in leather processing, garment, packaging, printing, advertising, etc.
1.Reasonable industrial design
The working window can be opened at 80+ degrees for easy observation.
The machine has a working wheel, Easy to move
2.Up and down system
The height travel distance of the lifting platform is 20cm, which is suitable for more complex sample sizes and working environments, and is more convenient for the operation and work of the machine
3. Laser head
The inner diameter of the laser head is upgraded to 18mm,which can support a
4.60W laser tube (standard)
co2 laser tube, high power, stable laser beam, good engraving effect, fast cutting speed
5.80W laser tube (optional)
Greater power, greater laser beam intensity, higher work efficiency, and faster cutting speed
6. Machine body
The body is thicker, more sturdy and durable, and has a long service life.
7.Lens and mirror
USA ZnSe lens（18mm * 50.8mm）and Mo mirror （20mm） for long working lifetime
8.Tool box
Equipped with a tool box, the necessary tools about this machine are presented to facilitate the use of the machine.
9.U disk
Equipped with U disk, it is more convenient to store and transfer working documents..
10.Independent electrical control button
Independent control of electrical system, can avoid mutual interference, daily maintenance is more convenient.
11.Ruida control system(optional)
This control system has better stable hardware with antistatic, resistance to high pressure.
12.M2 control system (standard)
Humanized operating system, simple interface, easy to learn, easy to operate, intelligent and convenient, support multiple formats, stable system.
Support table: 4060 CO2 laser engraving cutting machine add a support table. Moderate height, suitable for operation and easy to observe work conditions.
