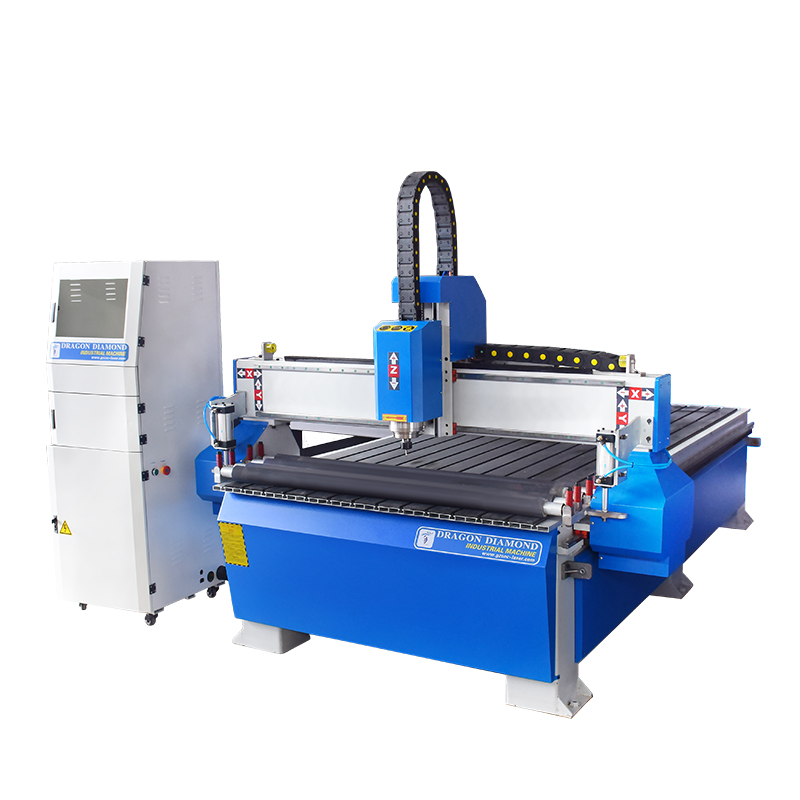

CNC Wood Engraving Machine

Woodworking Decoration Cutting Engraving Wood CNC Router with Rolling


  • Item NO.:

    LZ-1325+Rolling
  • Order(MOQ):

    1
  • Product Origin:

    Guangdong,China
  • Shipping Port:

    Guangzhou
  • Product Detail

Woodworking Decoration Cutting  Engraving Wood CNC Router with Rolling

PVC MDF CNC Cutting Router with Rolling


PRODUCT PARAMETER

NO.

Model

Lz-1325+Rolling Cylinder

1

Working Area

1300x2500x200mm

2

Packing Size

2180x2130x1880mm

3

Working Table

T slot Aluminum Table

4

Spindle

3KW Water Cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

Transmission

X,Y Rack,Z-ball screw

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

Working Speed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ

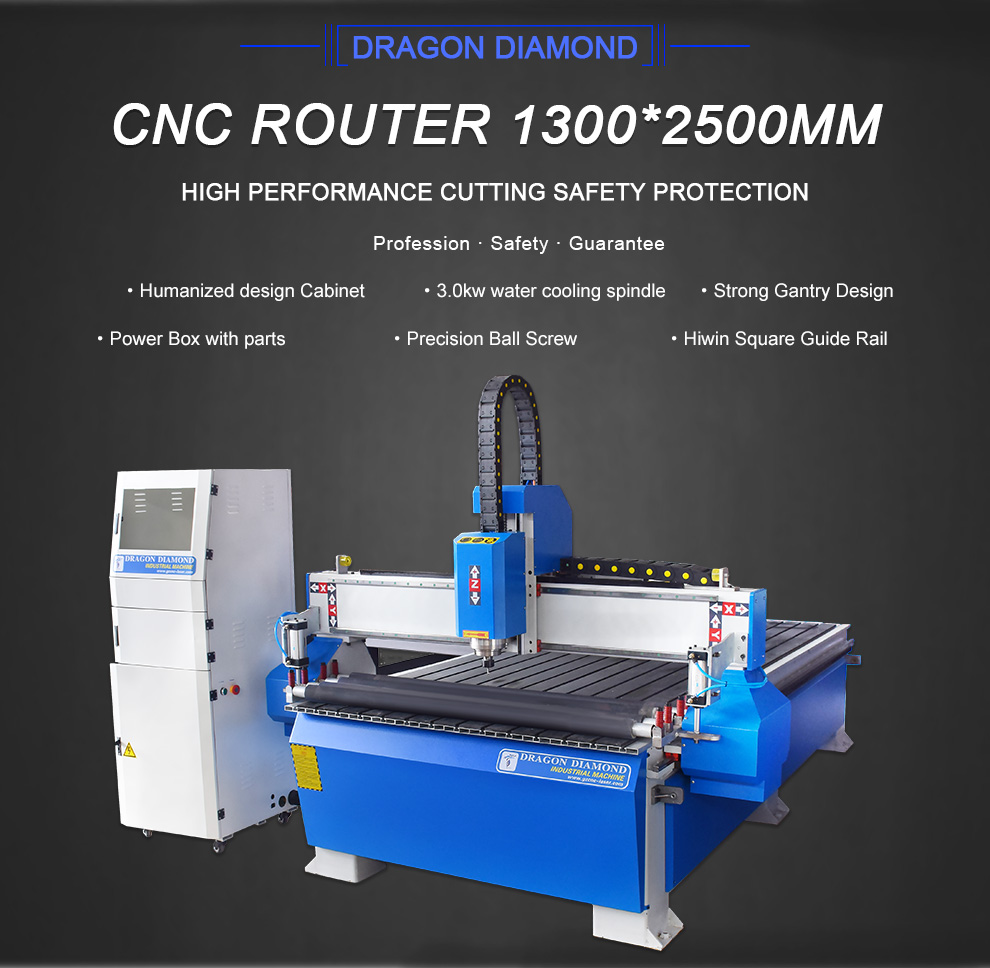

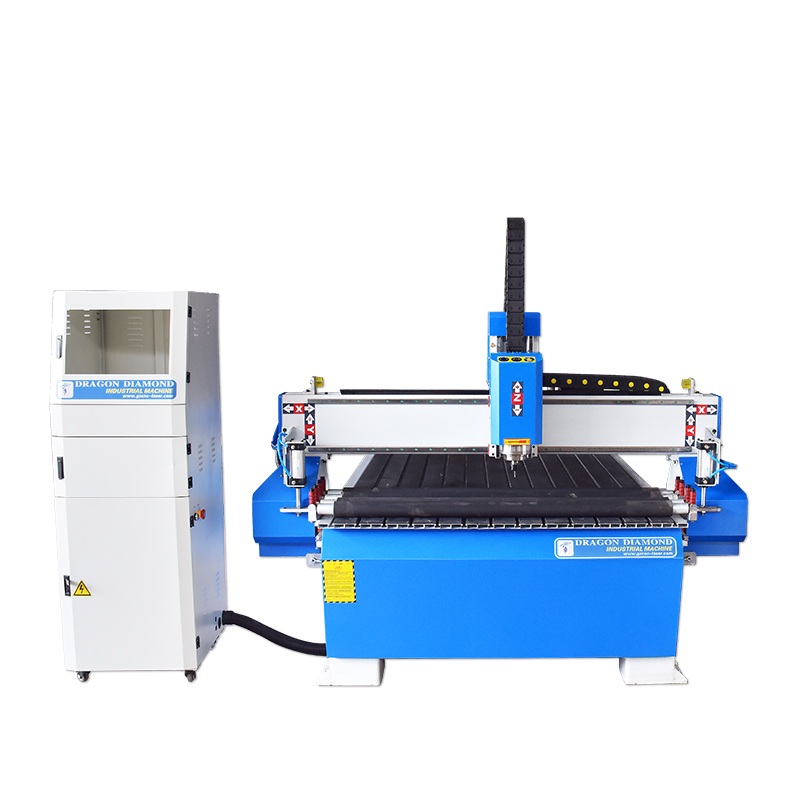

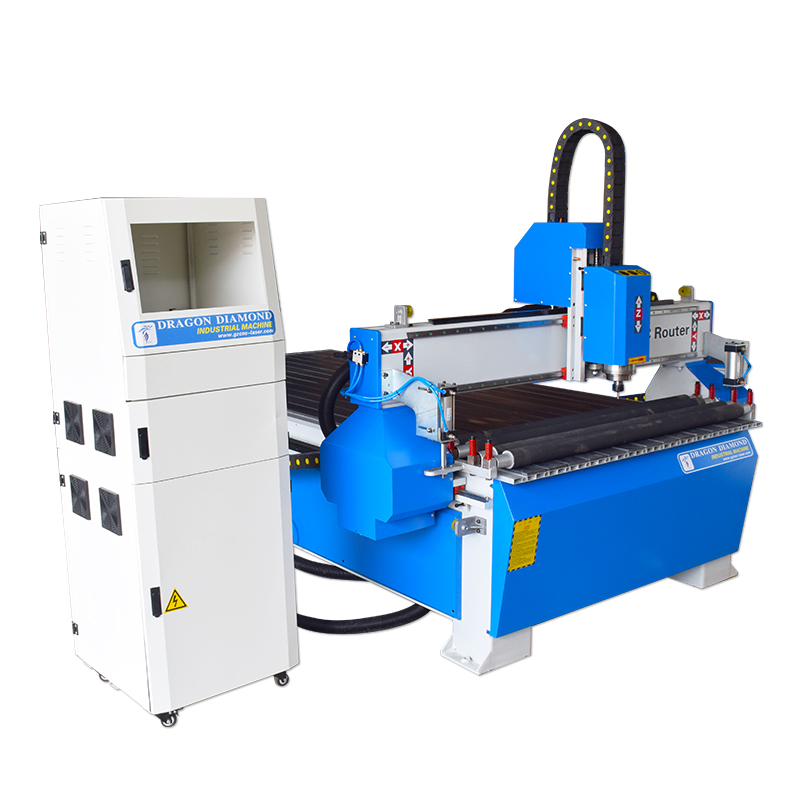

CNC Router With Rolling Cylinder

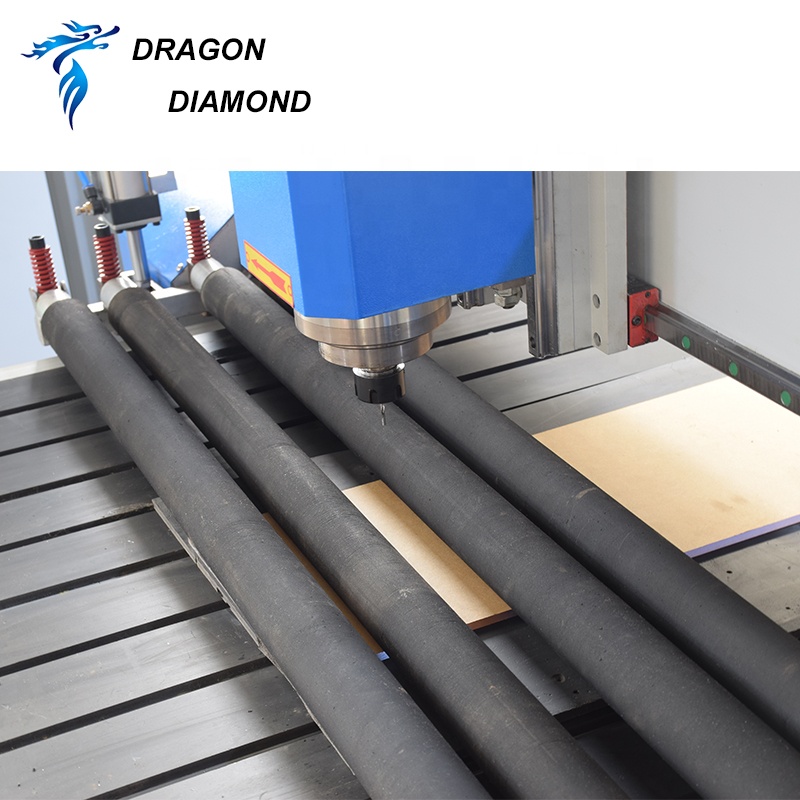

Cnc Engraving Machine With Pressure Roller Shaft


CNC Router Application & Sample
