DRAGON DIAMOND CNC
Item NO.:
Lz-6040LSOrder(MOQ):
1Product Origin:
ChinaShipping Port:

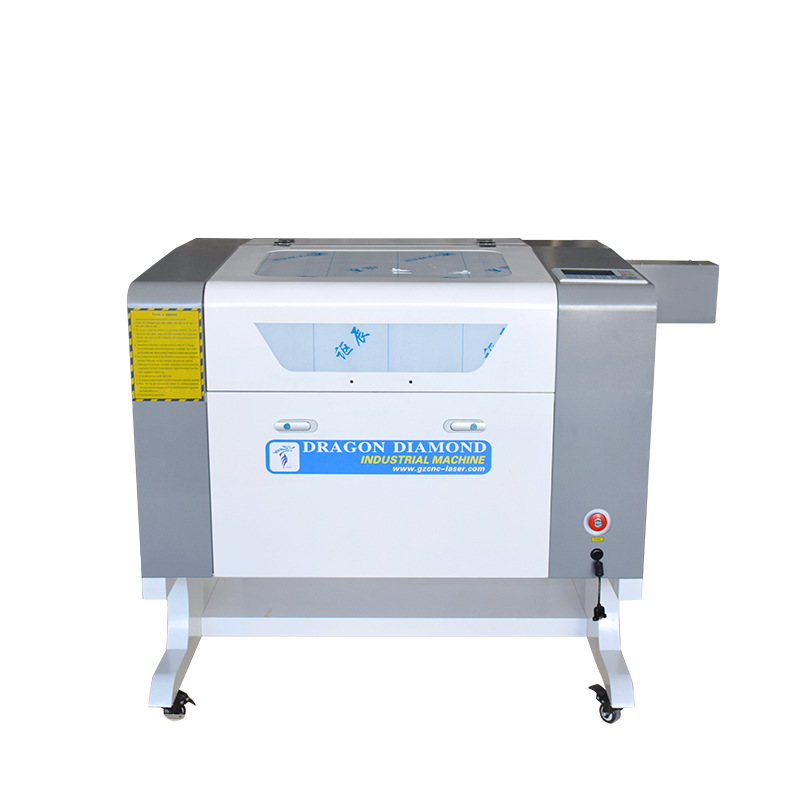

GuangzhouCo2 Laser Wood Glass Acrylic Engraving Machine
PRODUCT PARAMETER
|
NO. |
Model |
LZ-6040LS |
|
1 |
Working Area |
600x400mm |
|
2 |
Packing Size |
1470x900x1200mm |
|
3 |
Working Table |
HoneyComb With Lifting Table |
|
4 |
Laser tube type |
CO2 sealed laser tube |
|
5 |
Cooling System |
Water Pump / Water Chiller |
|
6 |
Laser Head |
1 pc Lens 20*50.8mm & 3 pcs Mirror 25mm |
|
7 |
Software |
RD works |
|
8 |
Compatible Software |
CorelDraw, AutoCAD, etc |
|
9 |
File output mode |
USB Interface |
|
10 |
Laser power |
60W / 80W |
|
11 |
Motor |
Stepper Motor |
|
12 |
Cutting Thickness |
0-20mm(depends on different material) |
|
13 |
System Supported |
Win 7 / 8 / 10 , 32 / 64bit |
|
14 |
Guide Rail |
Square Guide Rail |
|
15 |
Resolution ratio |
≤1000dpi |
|
16 |
Engraving Speed |
0-500mm/s |
|
17 |
Range of Electric Up-down (Z) |
0-250mm |
|
18 |
Graphic Format Supported |
BMP/JPG/JPEG/WMF/EMF/PLT/DXF |
|
19 |
Voltage |
AC220V / 380V,50Hz / 60Hz |

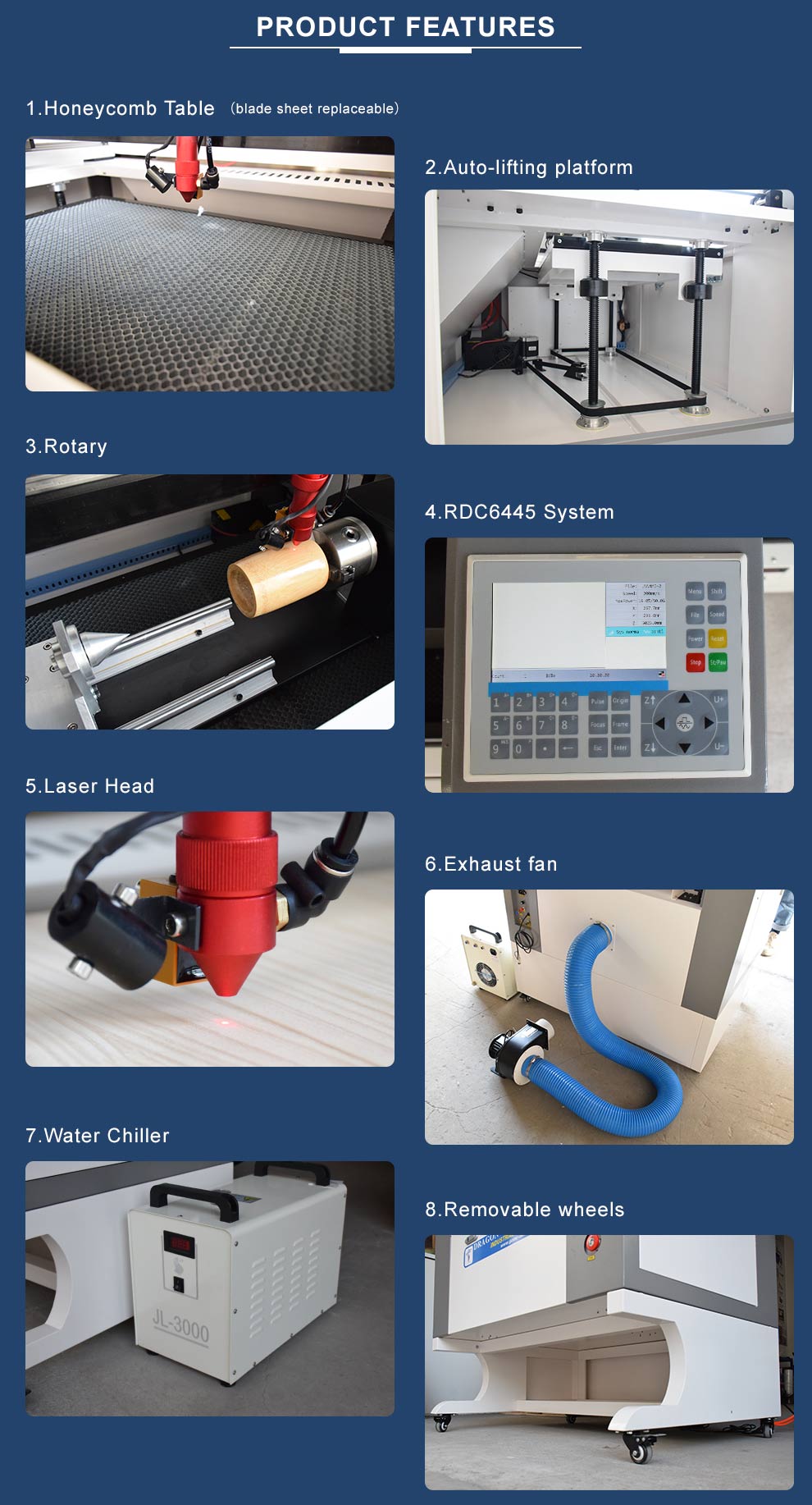

PRODUCT DETAILS
1.Iron Structure & Aluminum Structure
Other cheaper machines are use the iron structure,which is easyily rusting while using,and easyily out of shape by the working temperature.
Our machine's structure is made by aluminum,won't have above problems.
2.Machine Table
Our machine will equip honeycomb table and up down function.Cheaper machine won't equip these two fuction table.
3.Laser Head
Laser head is upgraded to use 18mm which can be supported more bigger laser power:80~100w.
4.Machine Body
Our machine body is more thicker than other cheaper machine.which ensure the high working performance.
5.The Lens
Our machine use the import lens,the quality and lifetime is better.Other cheaper machines used the native lens which has lower performance while working.
6.Tool Box
We will equip a whole tool box,include all the tools for machine using.
7.Storage Card
Our machine has storage card with 16G,some cheaper machine only has CD.
8.Power Supply
Our machine will equip one independent swithching power supply for the power.The cheaper machine might use the laser power supply to supply the power directly,which will affects the stability of machine.
Applicable materials:
Wood work, paper, leather, cloth, organic, glass, resin, acrylic, wool, plastic, rubber, ceramics, crystal, jade,stone, bamboo and other non-metallic materials.
Applicable industry:
Carving and cutting of paper, fabrics, plastics, non-woven fabrics in the apparel and toy industry, also includes precise cutting of non-metallic materials, such as handbags, glove molds, advertising, acrylic and MDF boards in the electrical and plastic industries.
Support table: 4060 CO2 laser engraving cutting machine add a support table. Moderate height, suitable for operation and easy to observe work conditions.
4x4 CNC Router Wood Craft and Advertising Industry PRODUCT PARAMETER NO. Model Lz-1530A 1 Working Area 1500x3000x200mm 2 Packing Size 3680x2330x1880mm 3 Working Table T-Slot Aluminum Table 4 Spindle 3KW Water cooling Spindle 5 Cooling System Water cooling 6 Control System NC Studio 7 Inverter Sunfar 8 Transmission X,Y axis rack drive,Z axis screw drive 9 Guide Rail Taiwan Square rail 10 Ball Screw TBI ball screw from Taiwan 11 Drive System Leadshine driving system and stepper motor 12 Body Welded steel T type structure as a whole 13 Spindle Speed 24000r/min 14 Control Software Artcam/Type3,other CAD/CAM 15 Traveling Speed 10m/min 16 Working Speed 8m/min 17 Reposition Accuracy 0.03mm 18 Command Code G Code*.u00*.mmg*.plt 19 Voltage AC220V/380V,50HZ/60HZ PRODUCT DESCRIPTION 1.Stronger Machine Frame Design Welded steel T type structure as a whole, six-legged heavy-duty body,large bearing capacity with vibration temper aging treatment ensures no deformation for long time, avoid broken knife, more stable, durable. 2.Guide Rail Imported Hiwin, Taiwan linear squareguide rail with ball bearing slide block-which ensure high weight capacity,high.precision, smooth and steady running. Adopt iported precision ball screws, tools feeded with more accuracy. 3.XYZ Transmission Way Rack gear transmission for X and Y axis,higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable. 4.Spindle Motor and Inverter Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque，matched with high-performance frequency inverter. 5.Y axis Transmission Mode The Y axis transmission mode for stepping two-way drive, more efficient, simplified carpentry and maintenance of the processing of the maintenance work. 6.Semi-auto Lubrication System Reduce machine parts loss Encrypted oil cap, no oil leakage, use assured 7.NC Studio More functions, more efficient operating system 8.Motor and Driver China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min. 9.Humanized Design Power Box More humanized design, dustproof, integrated power box.
