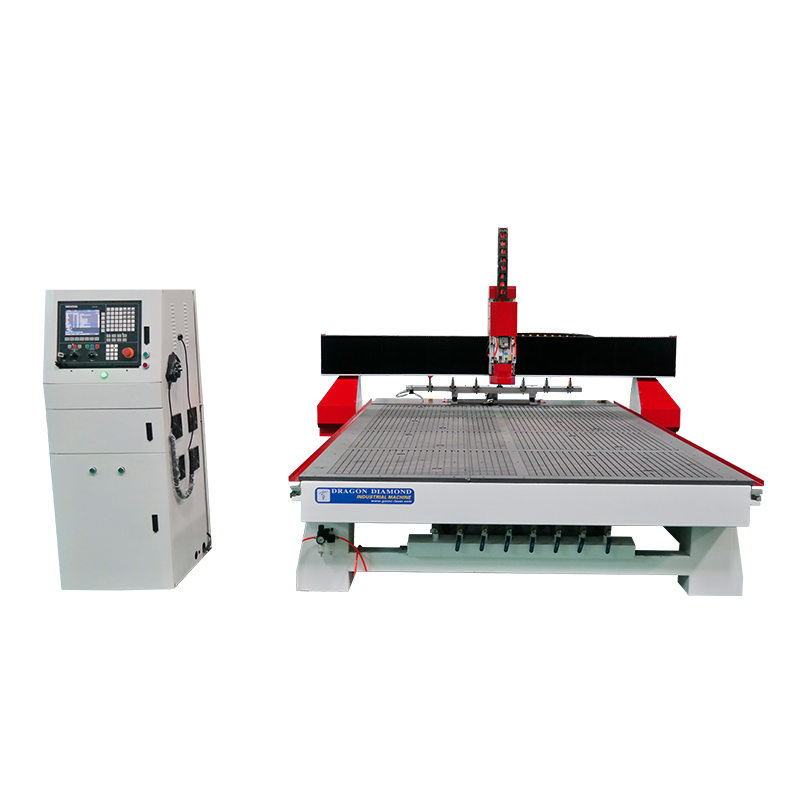

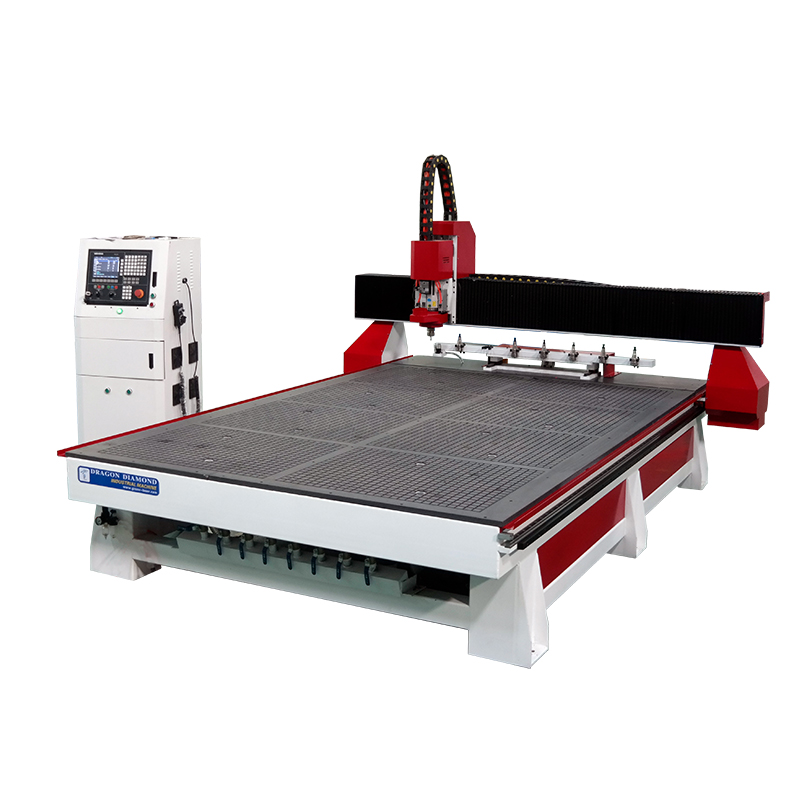

CNC Wood Engraving Machine

Automatic Tool Change Atc CNC Wood Engraving Machinery

200*300cm CNC Woodworking Machine Automatic Tool Change For Advertising, Woodwork Processing Line
  • Item NO.:

    Lz-2030ATC
  • Market Price:

    $15000-35000/Set
  • Product Origin:

    China
  • Color:

    RED
  • Product Detail

Automatic Tool Change Atc CNC Wood Engraving Machinery

Automatic Tool Change CNC Cutting Machine


PRODUCT PARAMETER

X,Y,Z Working Area

2000x3000x200mm

Table Size

 2050X3050mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm/300mm

Table Surface

Vacuum and T-slot Combined

Frame

Heavy Steel Tube Structure

X,Y Structure

Rack and Pinion Drive,Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max-Power Consumption

(Without Spindle) 4.5Kw

Max.Rapid Travel Rate

15m/min

Max.Working Speed

10m/min

Spindle Power

9.0KW

Spindle Speed

0-24000RPM

Drive Motors

Yaskawa Servo Motor

Working Voltage

AC380V/50/60Hz,3PH(Option220V))

Command Language

GCode

Operating System

Shanghai Wei hong NK 260 Controller

Computer Interface

USB/Ethernet

Collet

ER32

Flash Memory

512M

X,Y Resolution

<0.03mm

Software Compatibility

Type3/UcancameV9software(Option:Artcamsoftware)

Running Environment Temperature

0-45 Centigrade

Relative Humidity

30%-75%

Packing Size

3750*2280*1950mm

N.W

1500KG

G.W

1700KG

Optional Parts

Simens Control system

Dust Collector System

Rotary System

Mist-cooling System


PRODUCT DETAIL

ATC CNC Cutting Machine For Dragon Diamond

2000*3000 CNC Cutting Machine for Furniture


PRODUCT ACCESSORIES

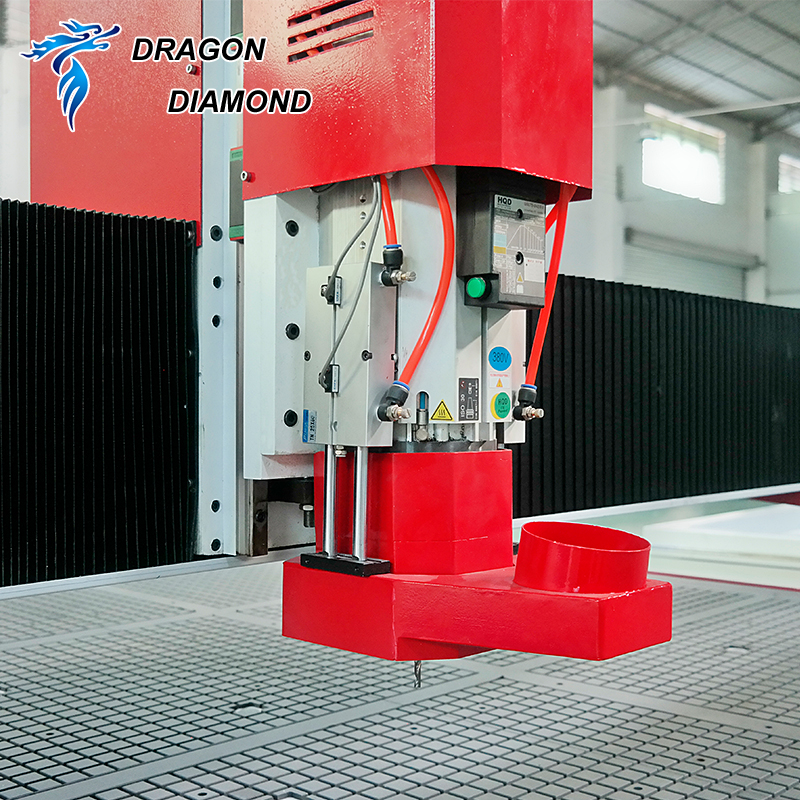

1.High Quality Spindle

Imported Italian HSD cooling spindle,stable in quality and long working life.


2.Control System

Shanghai Weihong NK260 Controller.


3.Guide Rail and Linear

High precision Taiwan HIWIN HGH25 linear guide rail and slider block.

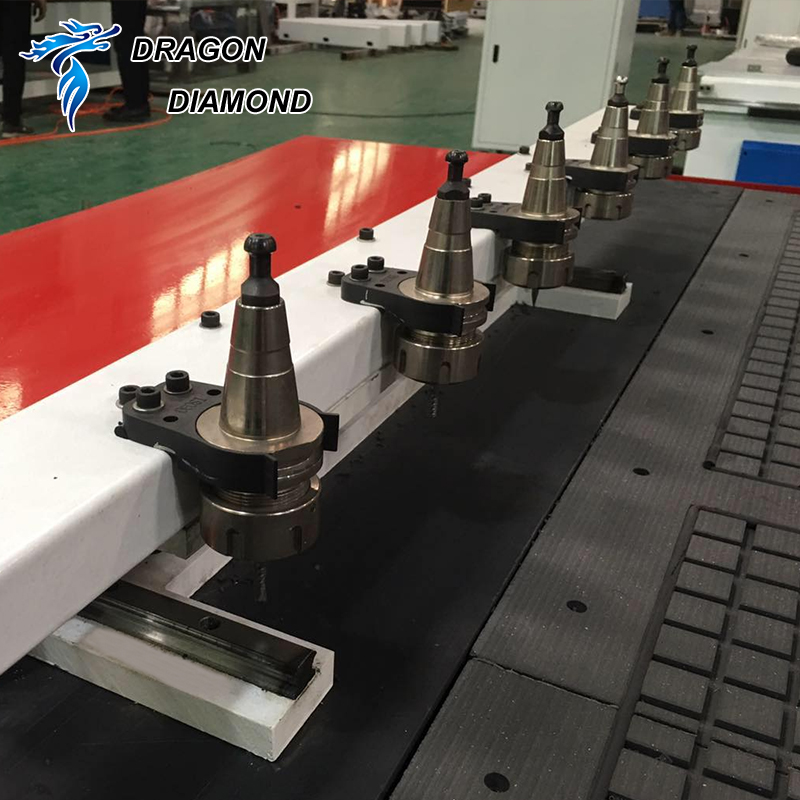

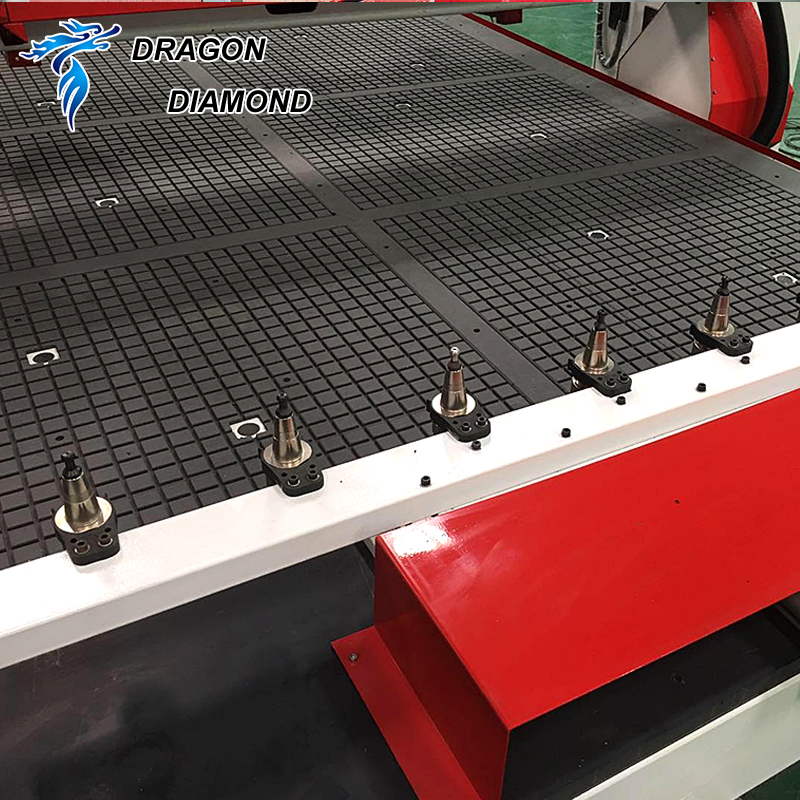

Linear type auto changing system,save more time than manual tool changing.

4.Servo Motor

Yaskawa servo motor,it's an AC drive with higher performing and smooth running.


5.Oil Pump

Auto oilling system,easy to operate by pressing one key.


6.Vacuum Table
Vacuum table can absorb the materials,save the plate loading and unloading time.
