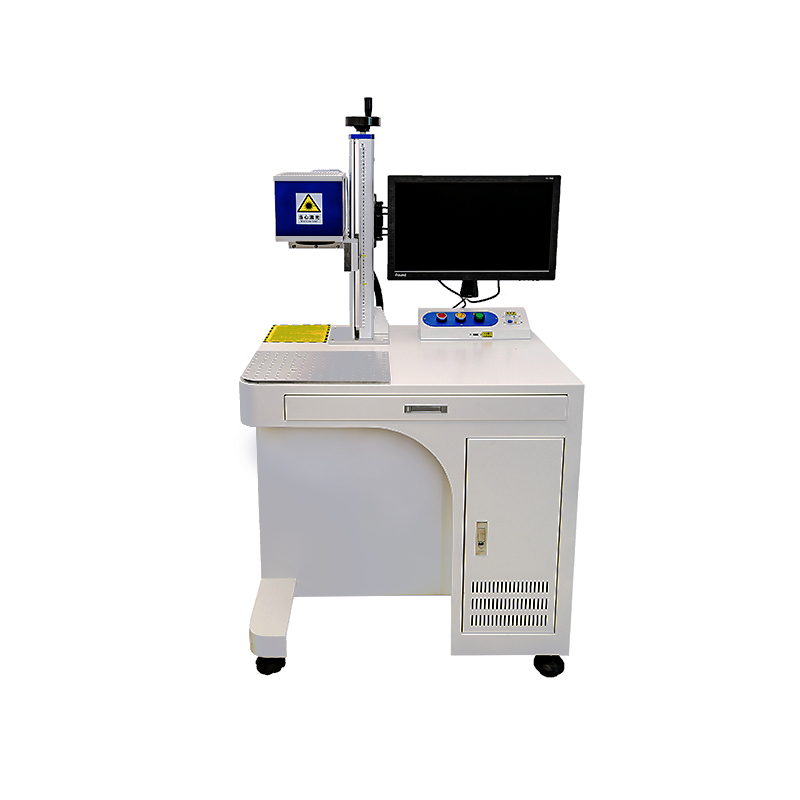

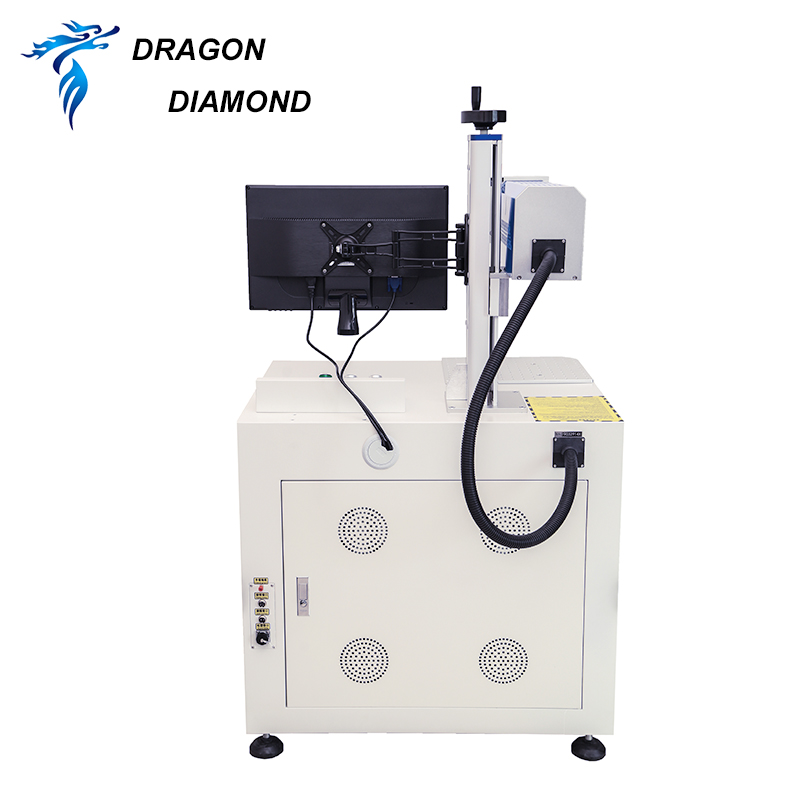

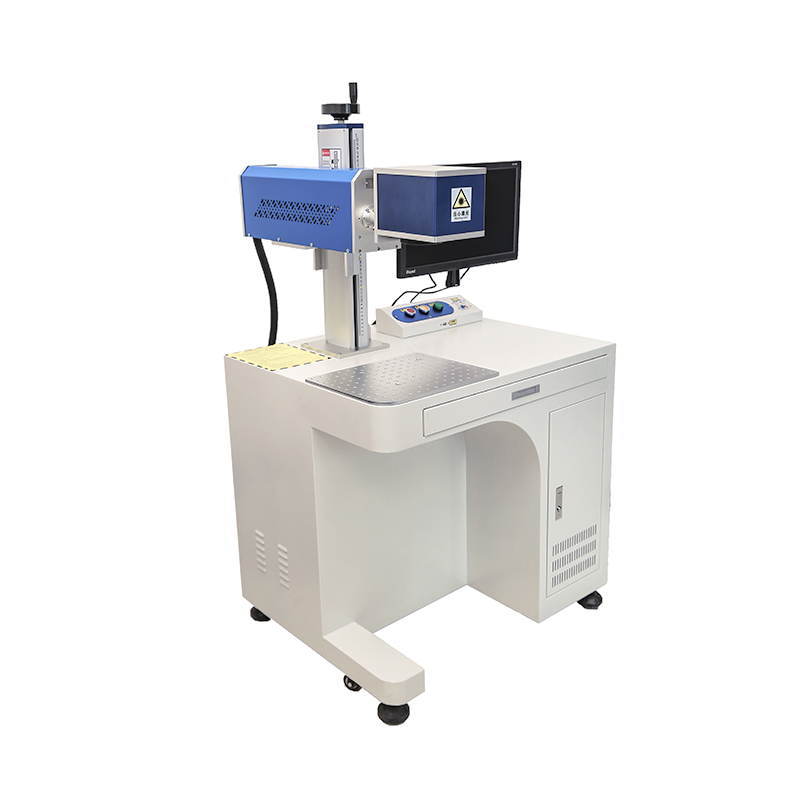

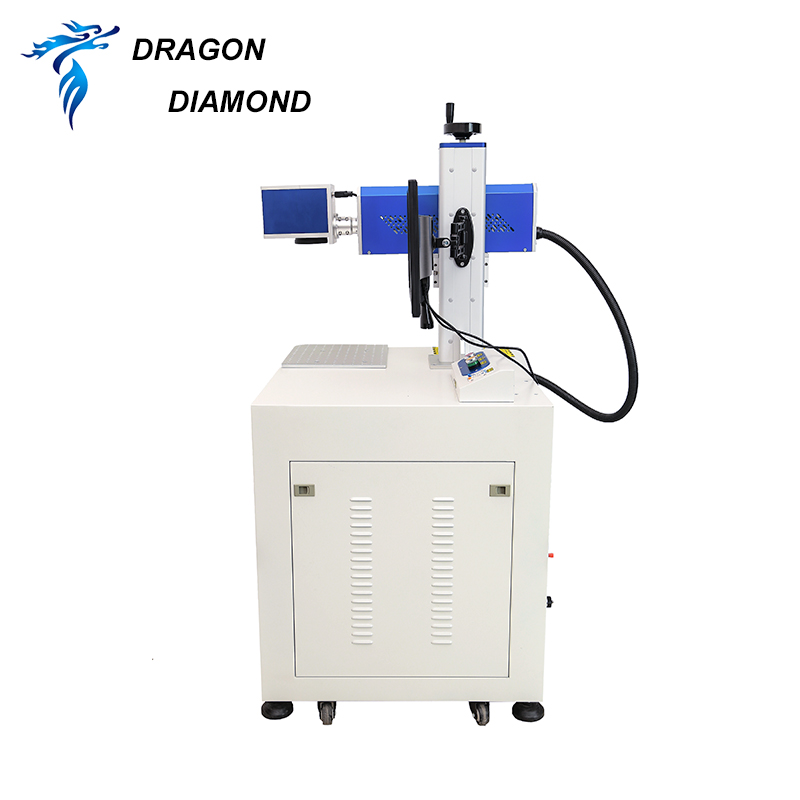

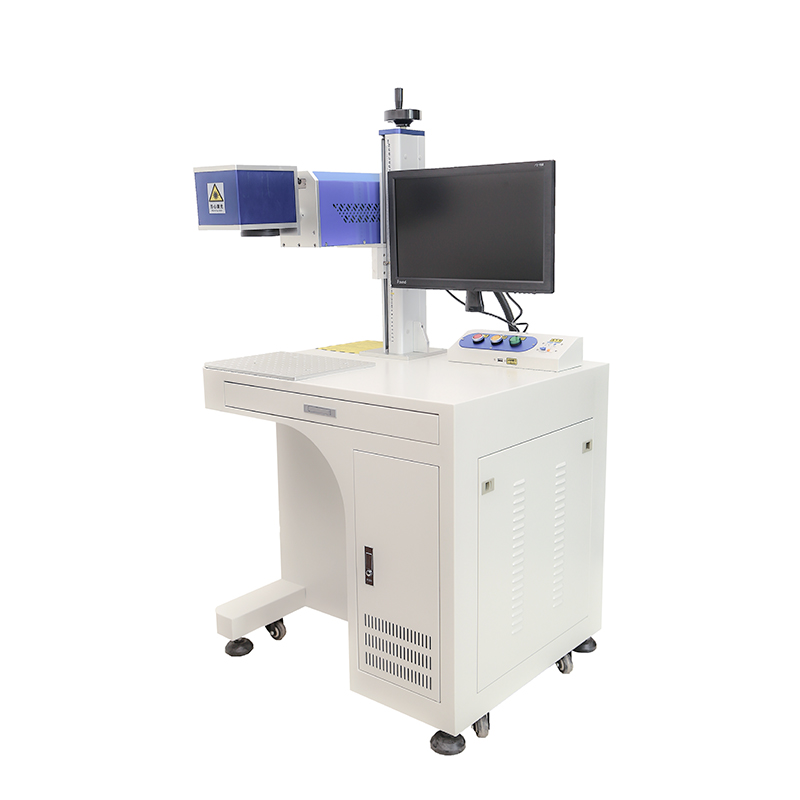

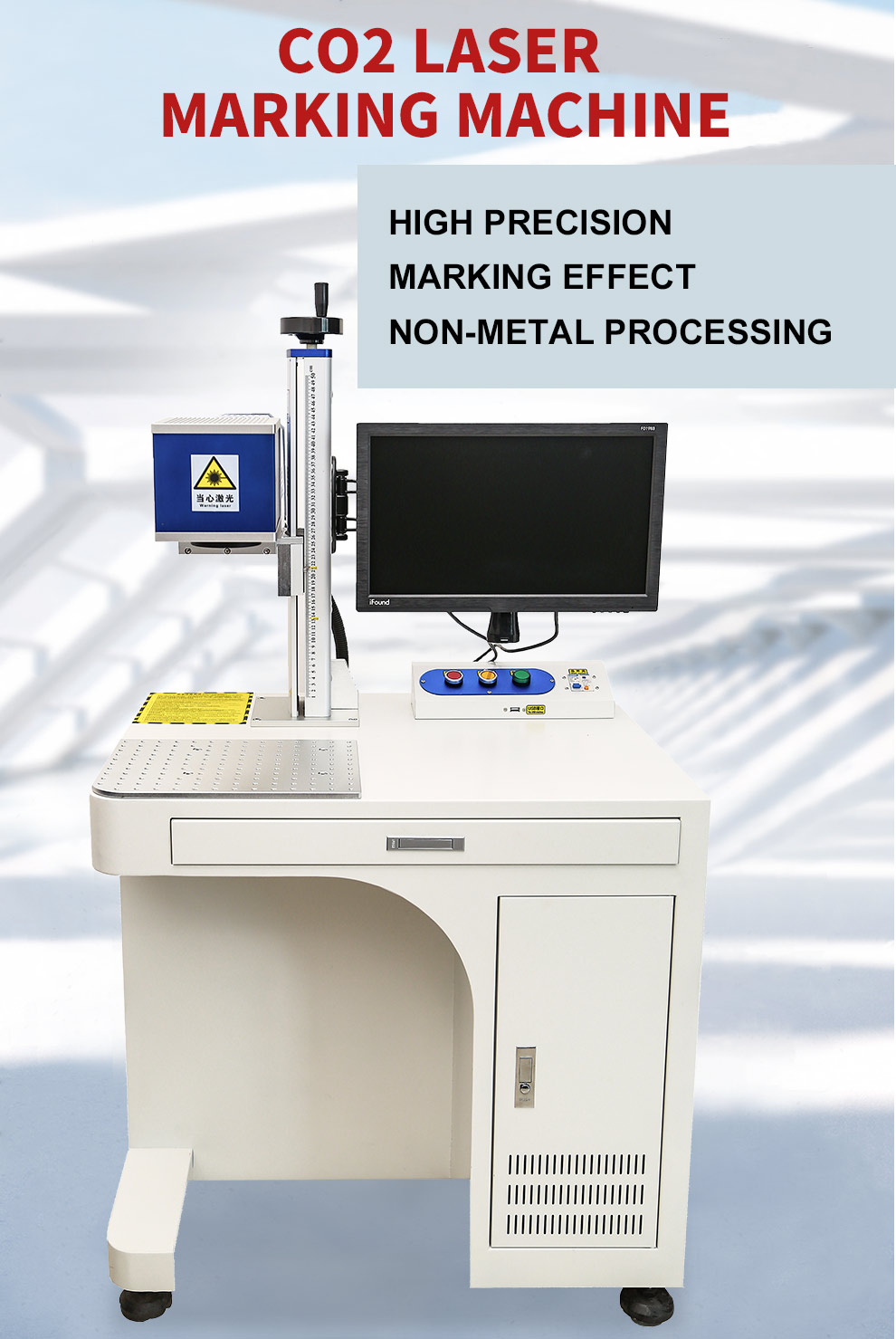

Desktop 20W 30W 50W CO2 RF Laser Marking Machine for Leather Acrylic


CO2 RF Laser Marking Machine Application



1.Applicable Industries

Craft gifts, furniture, leather clothing, advertising signs, model making, food packaging, electronic components, fixtures, glasses, buttons, label paper, ceramics, bamboo products, product identification, serial number, pharmaceutical packaging, printing plate making, shell nameplate, etc.



2.Applicable Materials:

Carving materials mainly include bamboo and wood products, paper, cloth leather, plexiglass, epoxy resin, acrylic, polyester resin and other non-metallic materials.

It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.






PRODUCT PARAMETER

Generator Power DAVI 20w/30w/50w
Laser Working Medium CO2
Beam Expander Multiple 4
Exit Beam Diameter 1.8mm±0.2mm
F-theta Scan Lens Size 140mm*140mm
Carving Speed ≤2m/S
Carving Depth ≤0.4mm
Minimum Character 2mm
Minimum Line Width 0.01mm
Laser Wavelength 10.6um
Repeatability ±0.01mm
Operating Temperature 10-45℃
Transfer Method Galvanometer vibration
Marking Area 110mm×110mm(optional)
Cooling type air cooled
Controller computer with marking software
Controller software  EZCAD
Rated Power < 500w
Power Supply AC 220V/50Hz
Machine Weight 100kg
Dimensions (mm) 800*650*1400
Warranty  1 Year

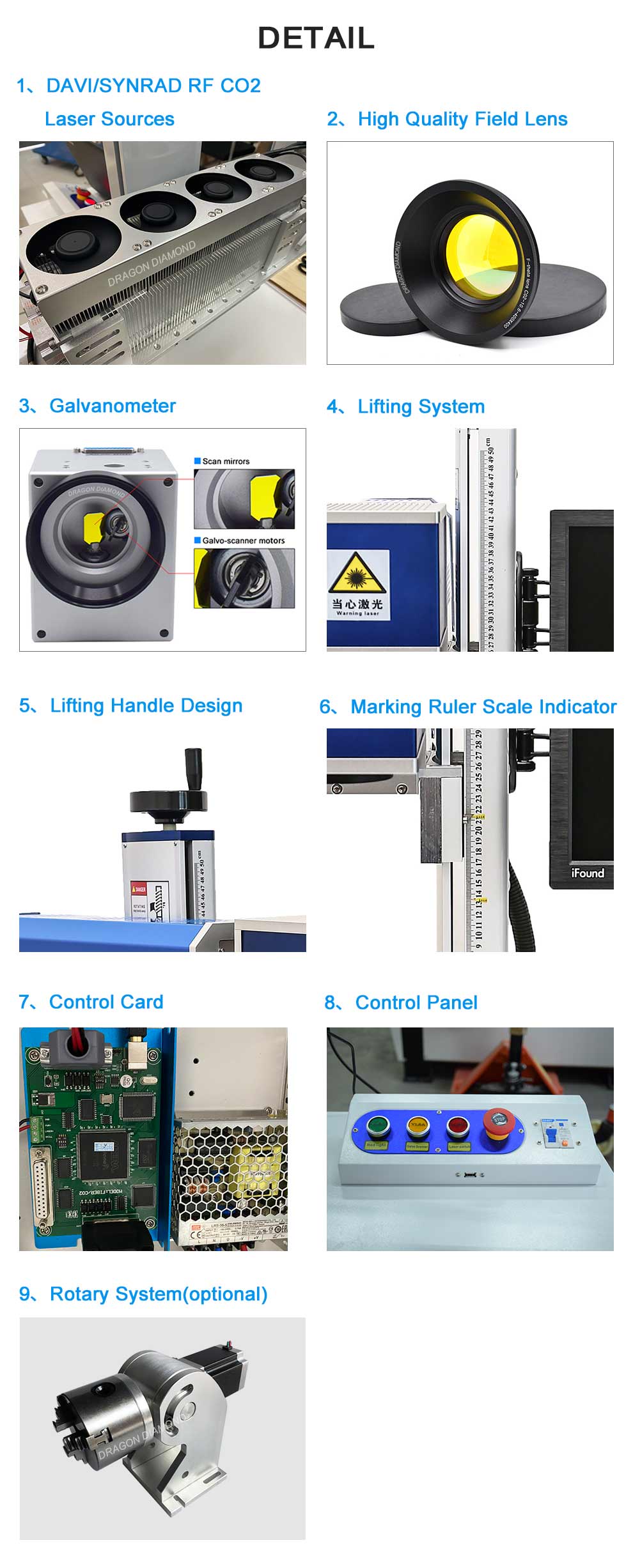

PRODUCT DETAILS

1.DAVI/SYNRAD RF CO2 Laser Sources

Cooling system ensure the stability of laser working,high precision. Suitable for marking any kinds of non-metal materials.


2.High Quality Field Lens

Good photosensitivity improves the ability of the edge light speed to enter the detector, so that the non-uniform light on the photosensitive surface of the detector can be uniformized.


3.Galvanometer

Fast marking speed, high efficiency, stable marking performance, compact structure, good sealing performance, ultra-high precision.



4.Lifting System

The machine can be lifting up to 400 mm from work table.

Easy for marking different height of work-pieces.



5.Lifting Handle Design

Shake hand wheel.

Laser focus distance can be adjusted easily.

Operation is simple and convenient.



6.Marking Ruler Scale Indicator

Precisely adjust the height of the laser.

Realize high precision marking.

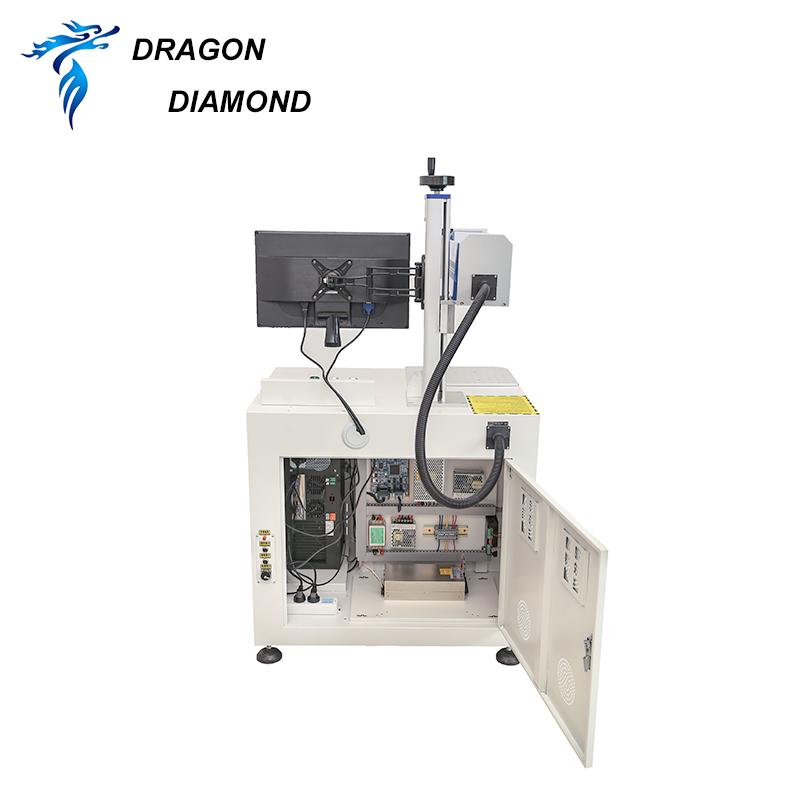

7.Control Card

Mainly used in galvanometer laser marking machine, hardware processing data fast, high precision, support high-speed and high-precision marking function.


8.Control Panel

The humanized control system is simple and easy to learn, at a glance.


9.Rotary System(optional)

Marking on round surface.

Stand rotary system is for object with diameter 80mm.

We can customize the bigger diameter according to customer’s requirement.
