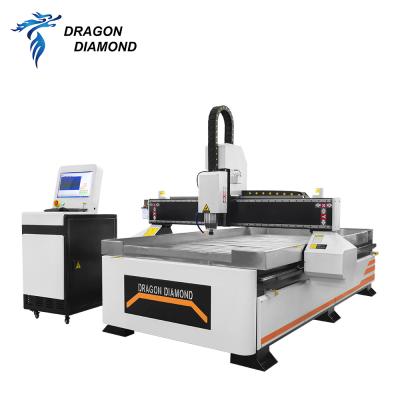

DRAGON DIAMOND CNC
Item NO.:
LZ-1325 with SinkOrder(MOQ):
1Product Origin:
China
Adapt to industry:
This machine is suitable for the processing of diversified and complex products or various processing. It is widely used and can be carved and drilled. It is mainly used for cutting and routing.
Wide Material Compatibility
Jade, marble, granite, artificial stone, ceramic tile, glass, aluminium, coffin, longevity, wooden door, relief carving, three-dimensional wave board, screen, art window, computer desk, panel household products, etc.

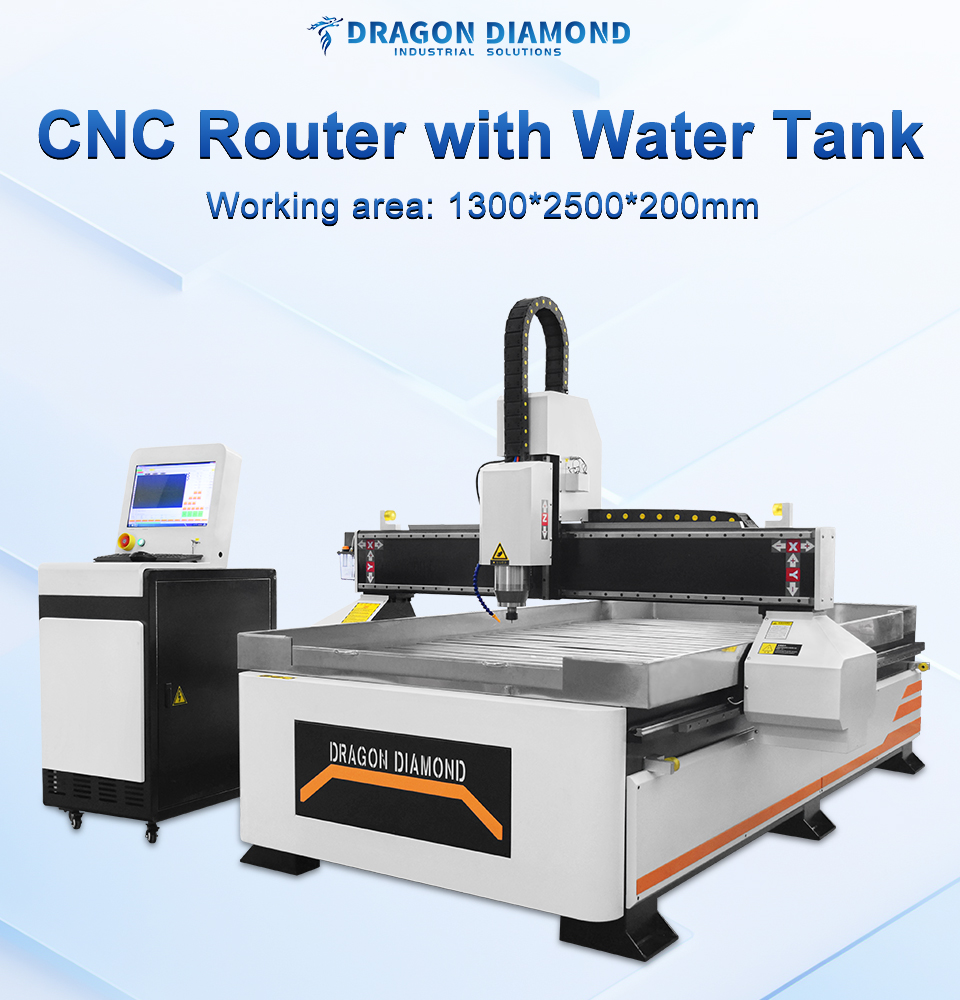

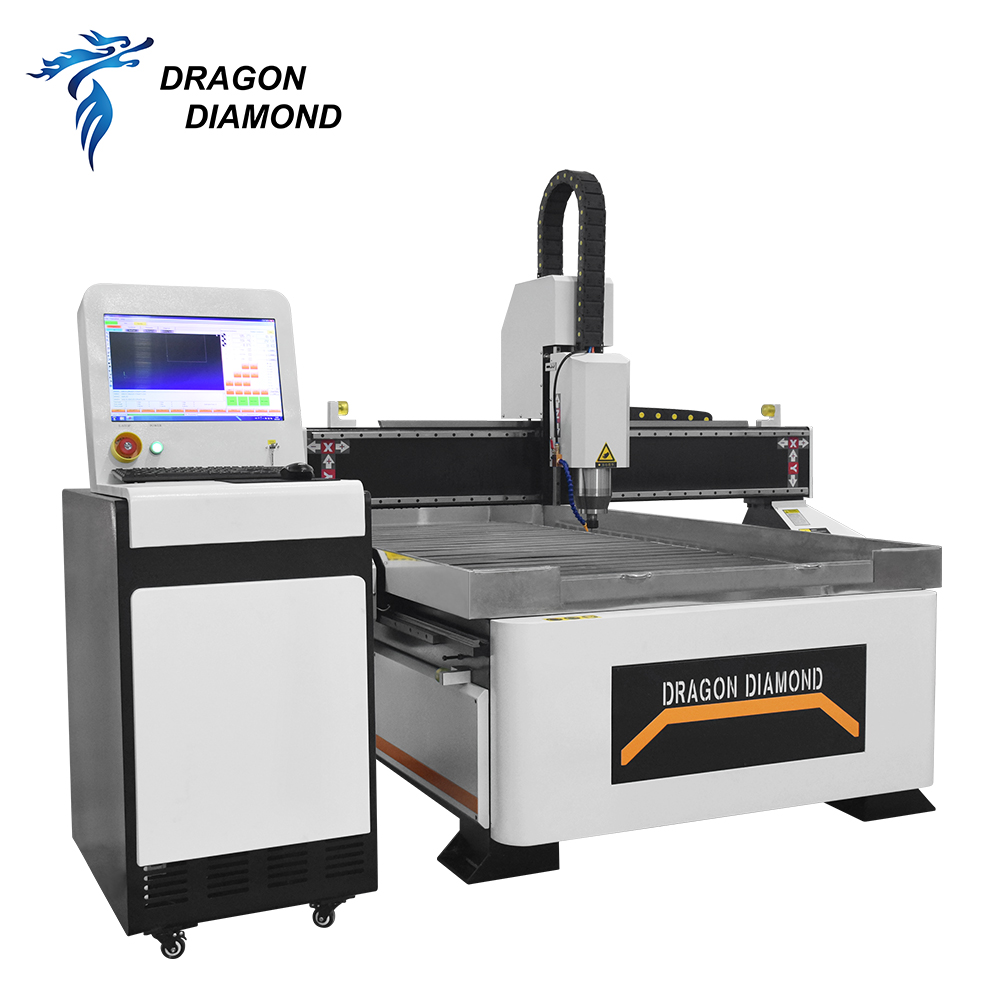

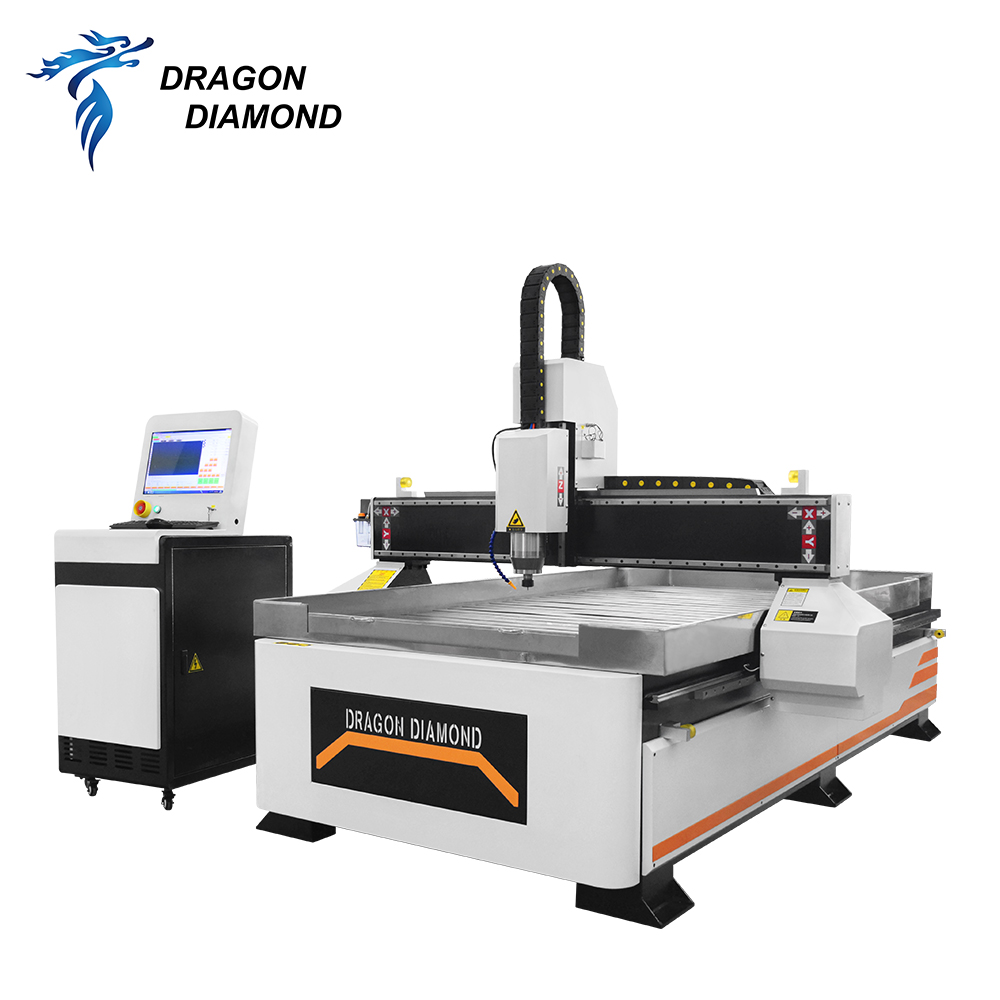

| Model NO. | LZ-1325 with Water Tank |
| Machine Table Area | 1300x2500x200mm |

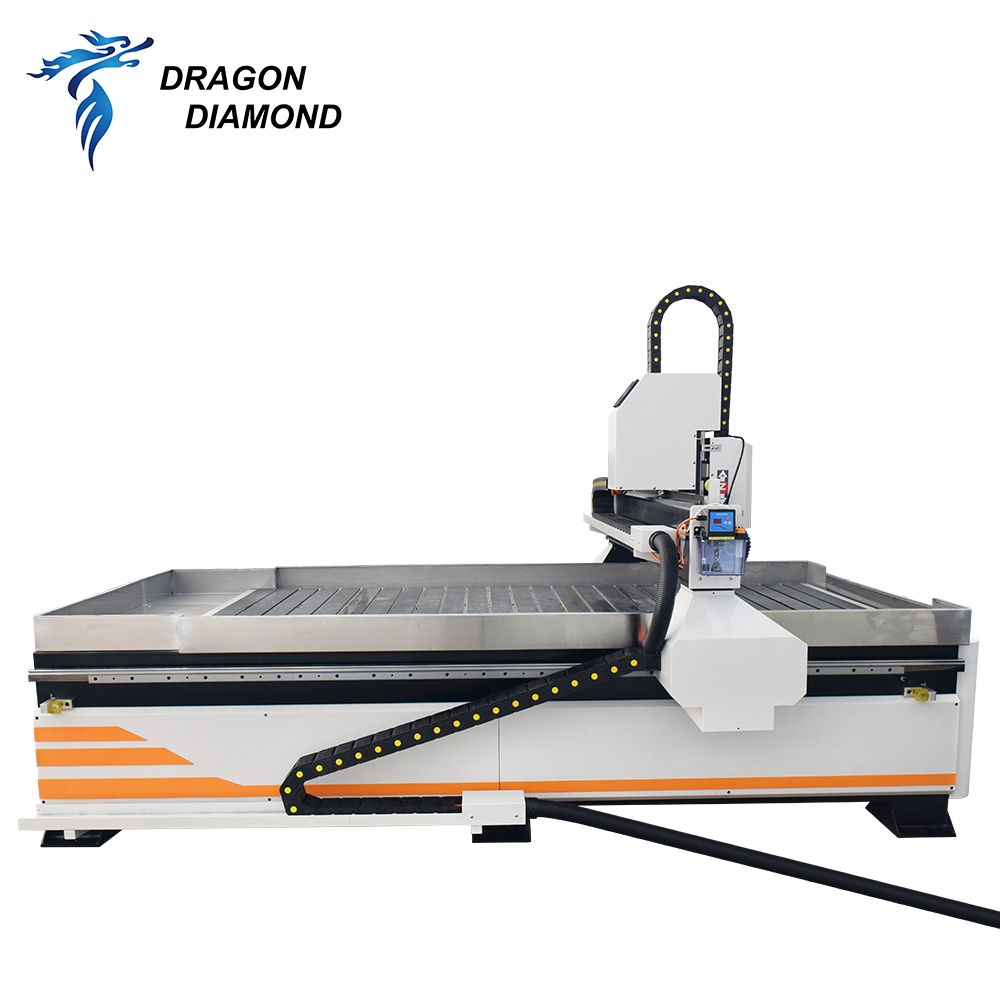

| Table Type | T-slot Stainless Water Tank |
| X,Y,Z Repositioning Accuracy | ±0.1/300mm |

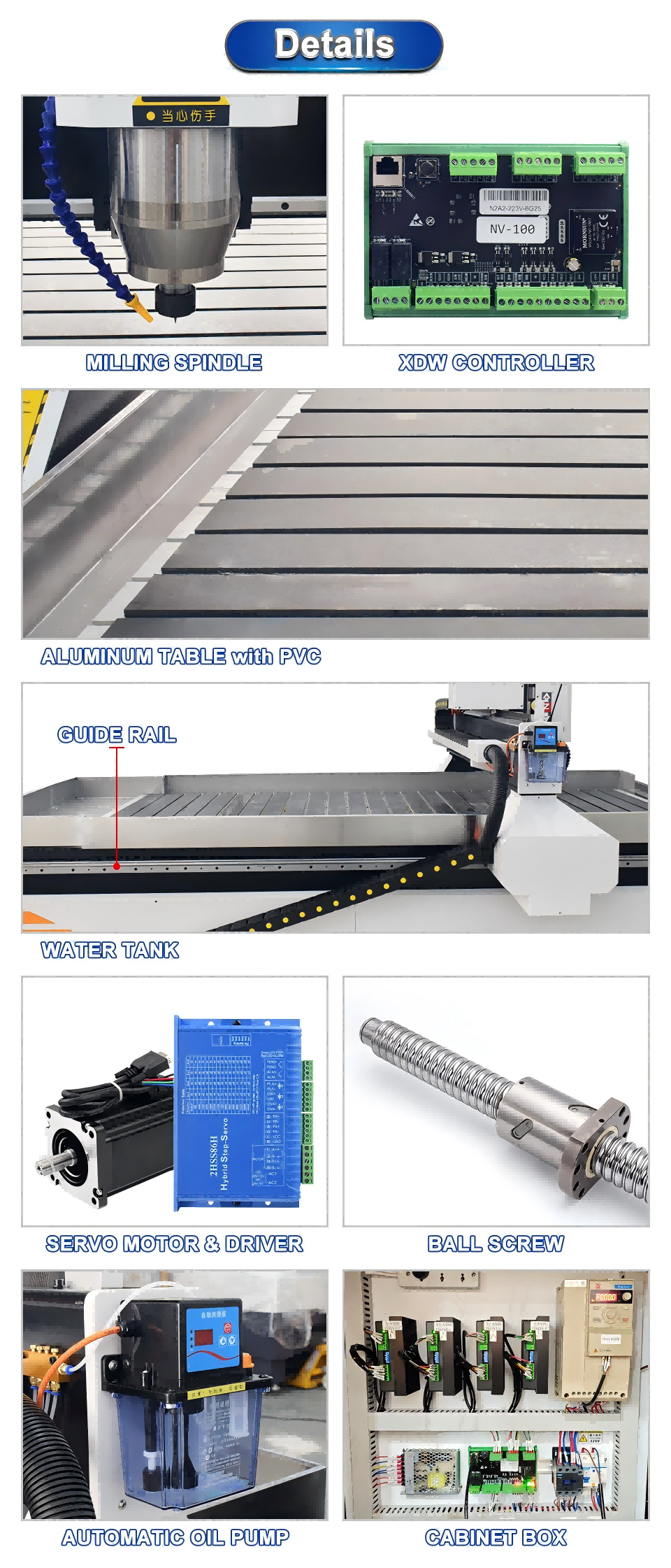

| X Y Z Transmission | X,Y gears pinion, Z axis with ø20mm ball screws |
| X Y Z Guide Rail | HIWIN linear guider, 20mm thickness |

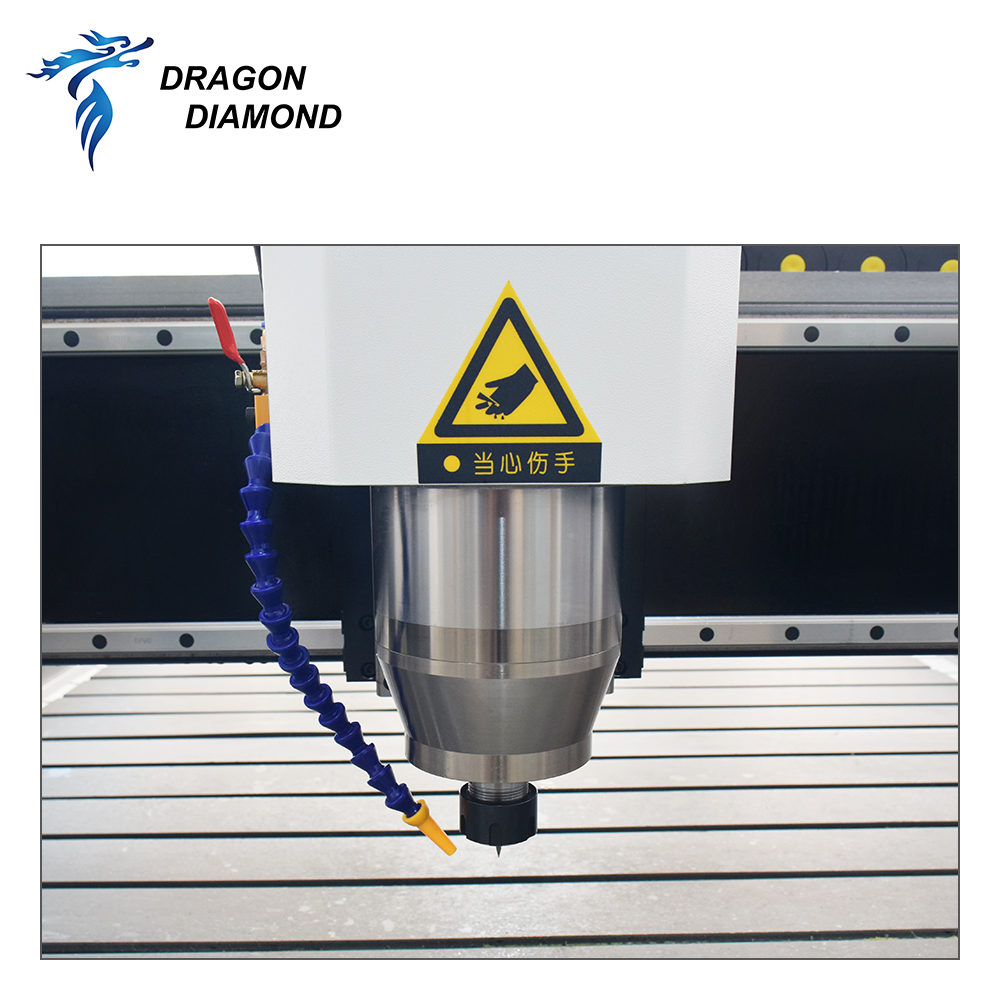

| Spindle Power | 5.5 / 6.0 / 7.5 KW Water-cooled spindle |
| Max. Spindle Speed | 0-24000rmp |
| Motor & Driver | LeadShine Step motor and Driver |
| The operating system | Xing Duo Wei Control system |
| Software | MDRCNCRouter |
| Water Tank Function | Stone, aluminum engraving&carving |
| File Format | G Code |
| Working Voltage | AC220V or 380V/50HZ |
| Machine Dimension | 3100*2050*1700mm |
| Package Dimension | 3320*2190*1804mm |
| Weight | 1100 KGS |
| Warranty | 2 Years |

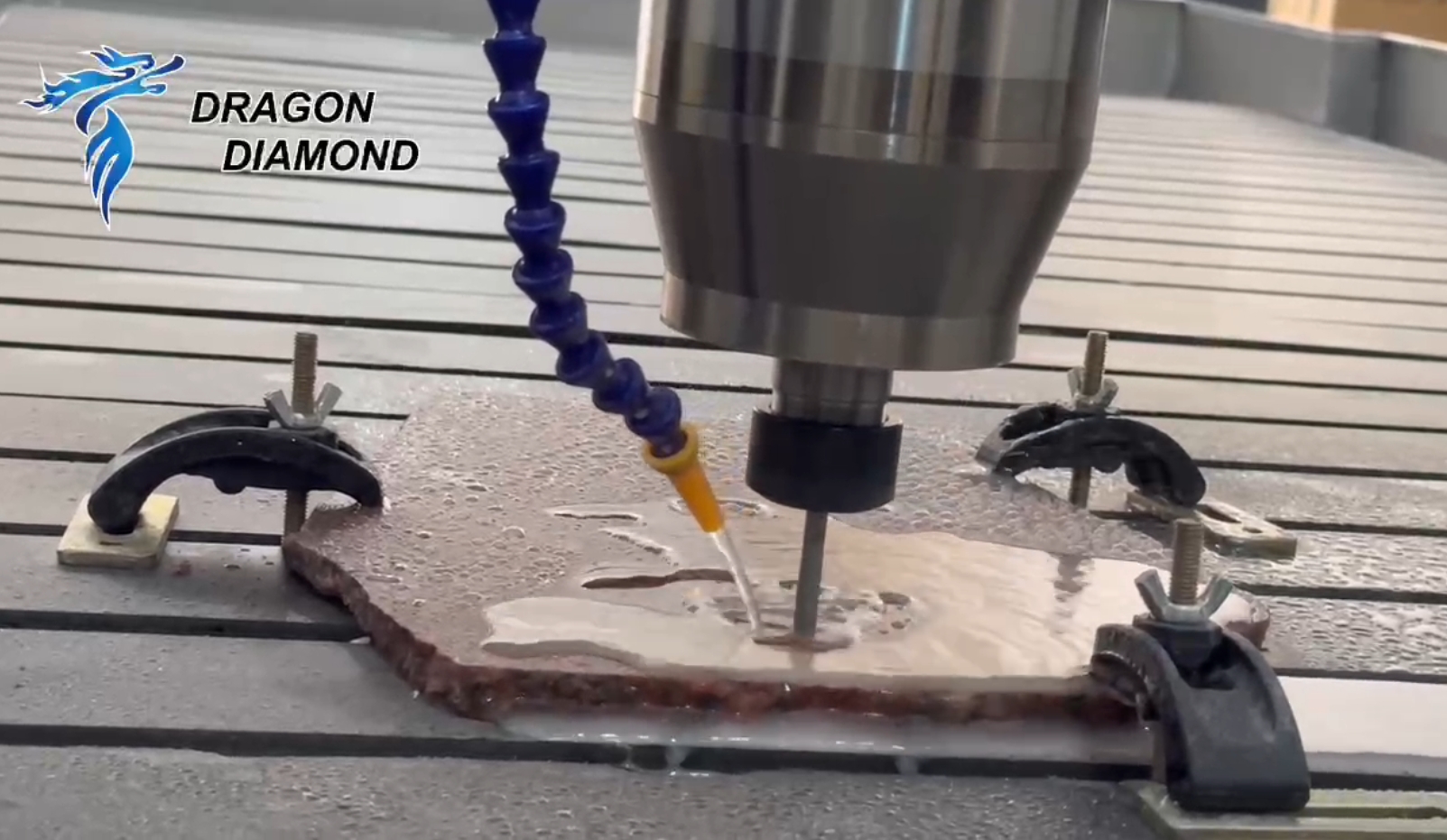

130*250cm stone CNC Router can drilling, cutting, edge grinding, shaping, polishing work for stone and metal.
130*250cm CNC Router With Water Sink Could Apply For Stone And Metal Processing.
1080 CNC Router Machine for Stone Marble Granite Metal Advertising Engraving Cutting Item 1080 CNC Engraving and Milling Machine Model LZ-1080 X/Y/Z Working Area 1000*800*180mm Spindle Power 5.5KW Milling Spindle Inverter Sunfar Spindle Rate 24000r/min Voltage 380V, 50Hz Tool 3.175/4/6/8/12/12.7mm Instruction Format HPLG3D G-code Reposition Accuracy ±0.03mm Max Speed 8000mm/min Engraving Speed 4000mm/min Guide Rail Taiwan HIWIN Square Guide Rail Ball Screw Taiwan HIWIN ball Screw Control System Weihong 95A Motor & Driver Delta Servo Working Environment Temperature -10℃ to 40℃,Humidity 35%-75% Working Table Size 1020*820mm Machine Size 1780*1700*1650mm Machine Weight 4000KG
1200*2400mm Large Work Area High Performance CNC Machine.
