CNC Wood Engraving Machine

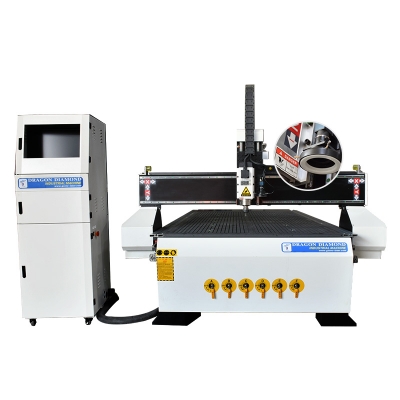

CCD Camera CNC Router Furniture Cutting Engraving Machine

1300*2500mm CNC Engraving Machine With Vacuum absorb Working Table Automatic Curve Cutting Function.
  • Item NO.:

    Lz-1325CCD
  • Order(MOQ):

    1
  • Market Price:

    $5800-6800/Set
  • Product Origin:

    China
  • Color:

    Blue
  • Shipping Port:

    Guangzhou
  • Product Detail

CCD Camera CNC Router Furniture Cutting Engraving Machine


CCD Camera CNC Router Furniture Cutting Engraving Machine

PRODUCT PARAMETER

NO.

Model

Lz-1325CCD

1

Working Area

1300x2500x200mm

2

Packing Size

3200x2200x1800mm

3

Working Table

Vacuum Table

4

Spindle Power

3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

Transmission Type

X,Y axis rack drive,Z axis screw drive

9

Guide Rail

Taiwan Hiwin Square Rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

WorkinSpeed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ

CCD Camera CNC Router Furniture Cutting Engraving Machine

CCD Camera CNC Router Furniture Cutting Engraving MachineCCD Camera CNC Router Furniture Cutting Engraving Machine


PRODUCT DESCRIPTION

1.The gantry is welded with 8mm thickened square tube.

Accuracy is within 0.02mm.

More than 90% higher than the manufacturing level of peers



2.Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps,convenient and save fixing time.

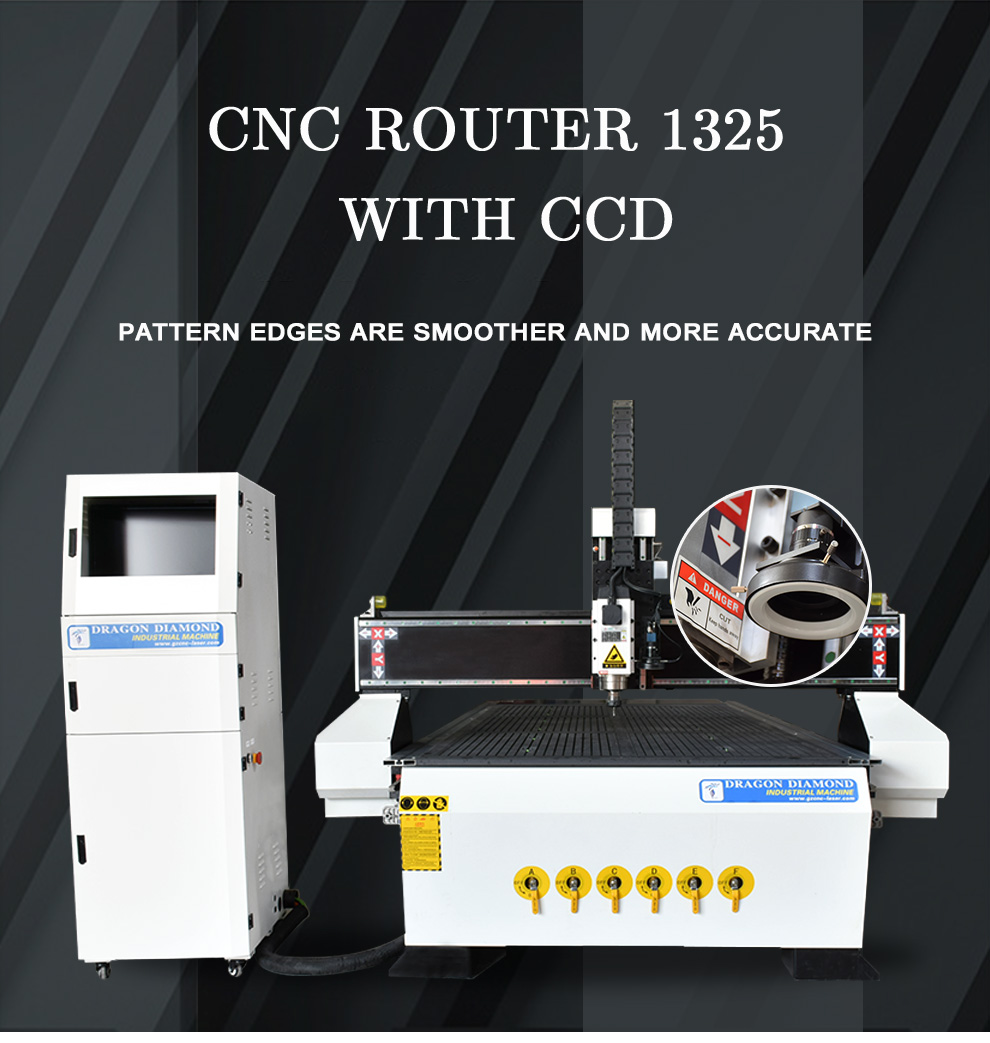

3.The professinal CCD camera can scan the patterns on the advertising sheet and cut along the edge automatically.



4.Gantry thickness 8mm.

Using heavy-duty columns.

Ensure that the machine body is stable during high speed and heavy cutting without jitter.



5.Imported Rack and Pinion Drive and Hiwin linear guide rail ensure accuracy and high precision.



6.AII the connecting cables have been placed neatly with the label of cable information.It is very convenient to help customer to check.



7.Leadshine Stepper motor runs smoothly, which creates a none vibration phenomenon even in low speed and heavy load conditions. Hybrid Servo motor and Servo Motor are optional.



8.Manual/Automatic Oil-injection system provides an easy maintenance working environment.



9.Tank Chain is designed for fireproof and avoided wear of wires and other components, protecting wires.



10.Dust collector will clean up the carving residuum and make the operations tidier and more convenient.



11.Control System:Basic function of CNC Router + CCD Camera Contour cutting function, CAD/CAM designing software, such as type3/ ucancam/ artcam are part of the machine package.

CCD Camera CNC Router Furniture Cutting Engraving Machine
