CNC Wood Engraving Machine

20w Mini Desktop Marking Machine Portable Fiber Laser Marking Machines Light Weight Fiber Laser Marker for Engraving

  • Item NO.:

    LZ-20FM
  • Order(MOQ):

    1
  • Payment:

    TBD
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Lead Time:

    15 working days
  • Product Detail

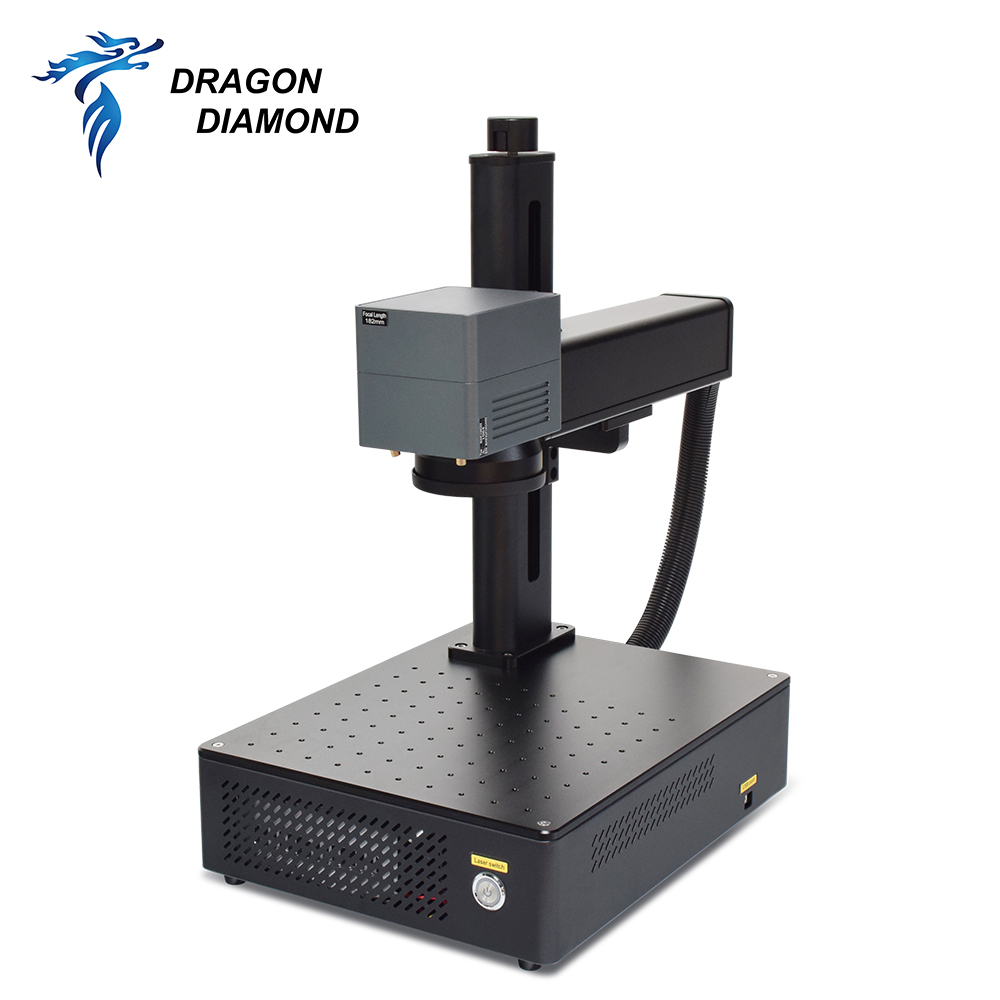

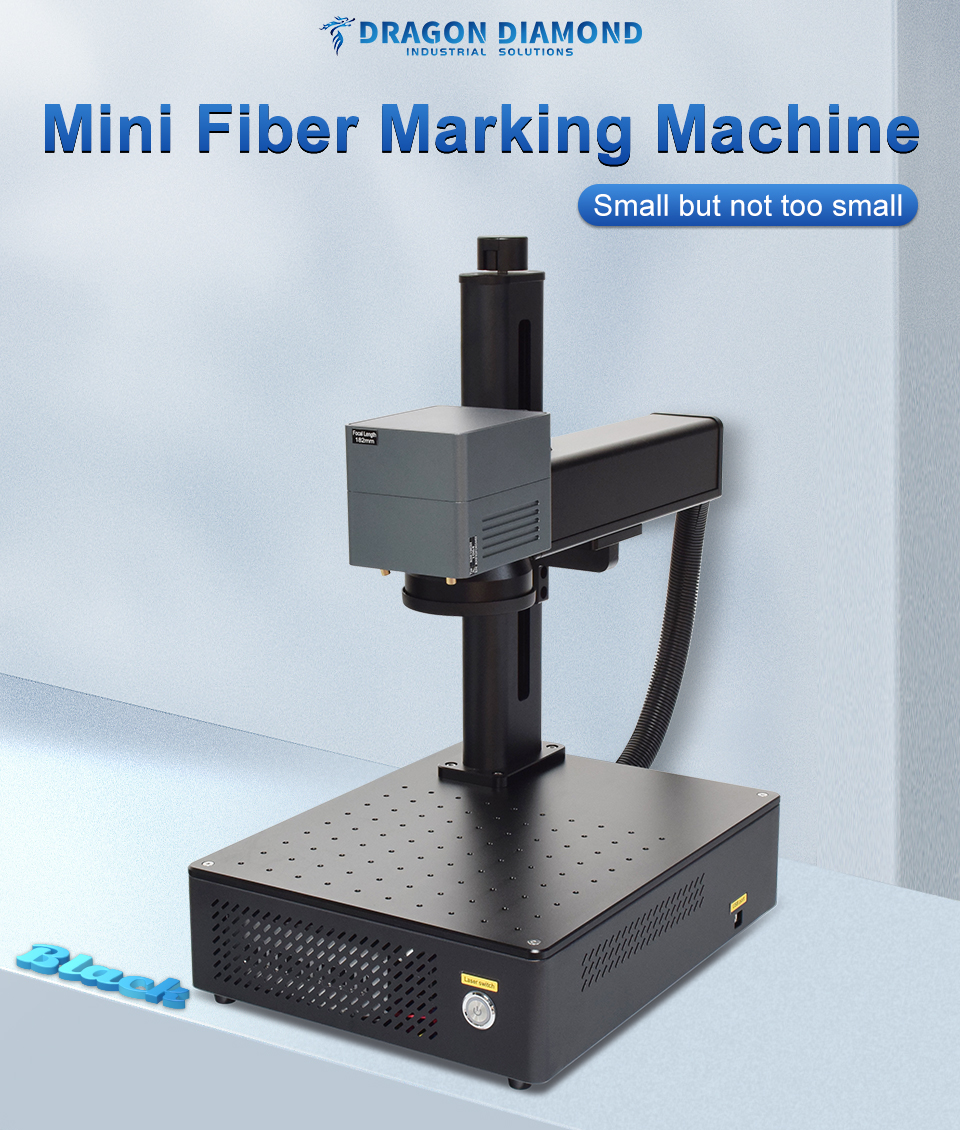

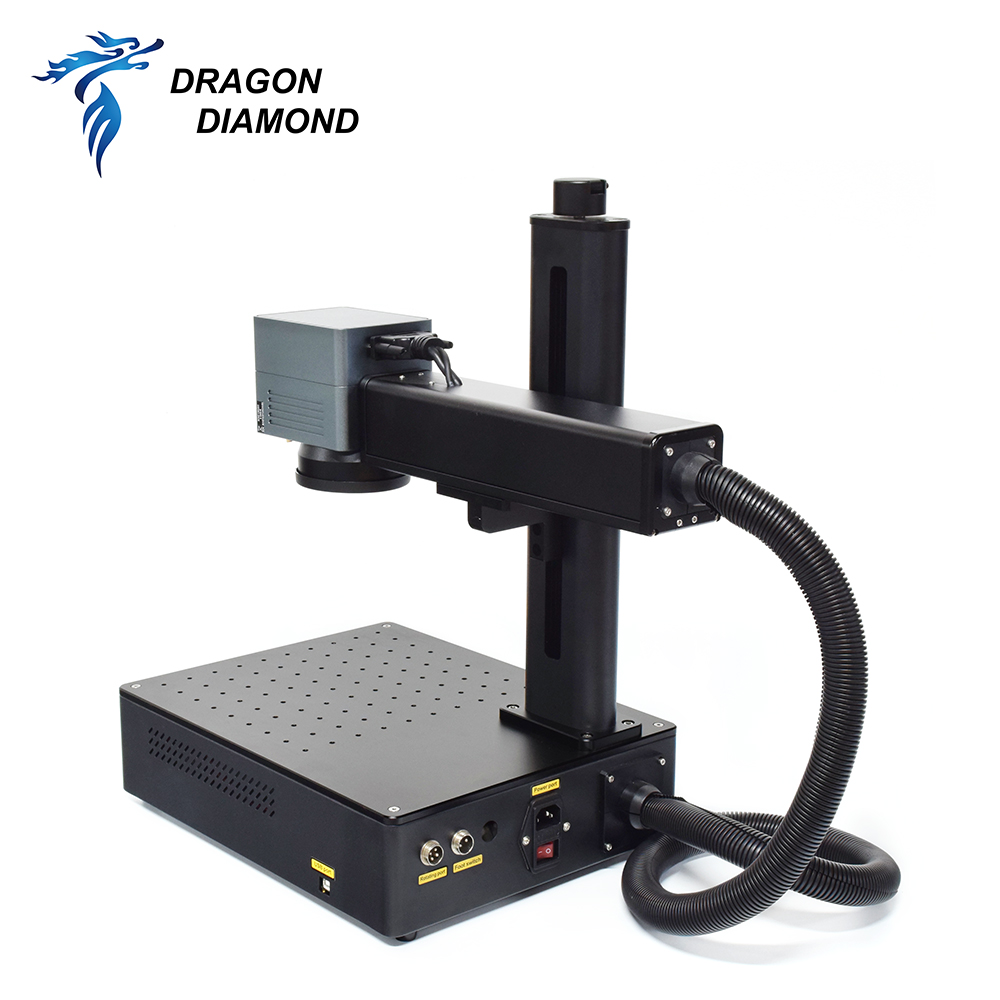

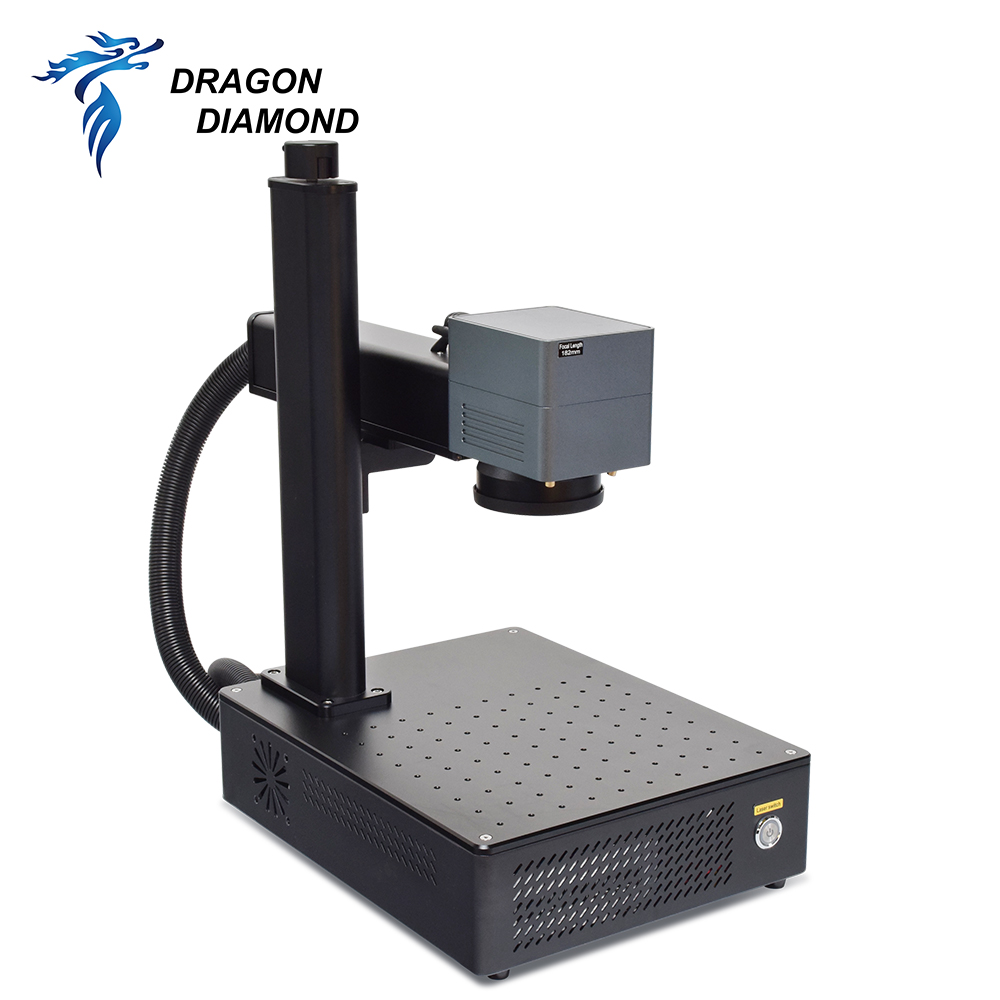

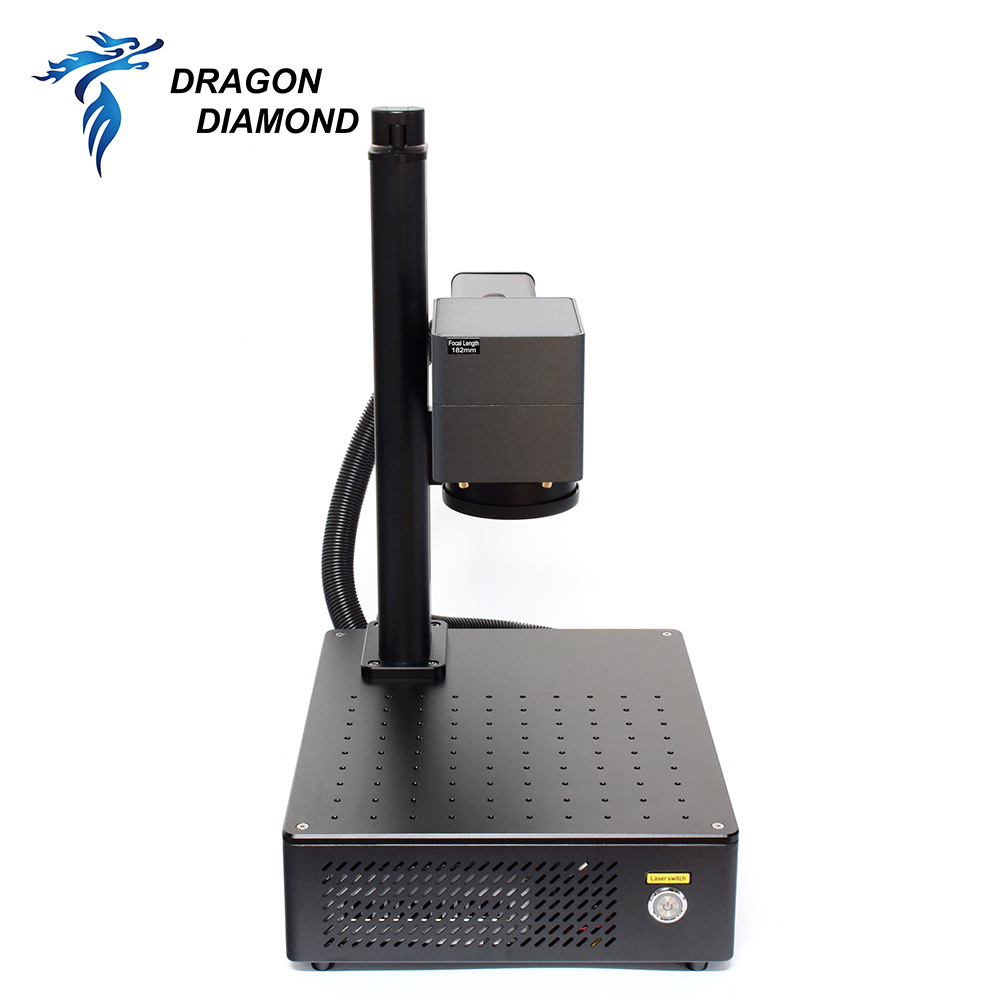

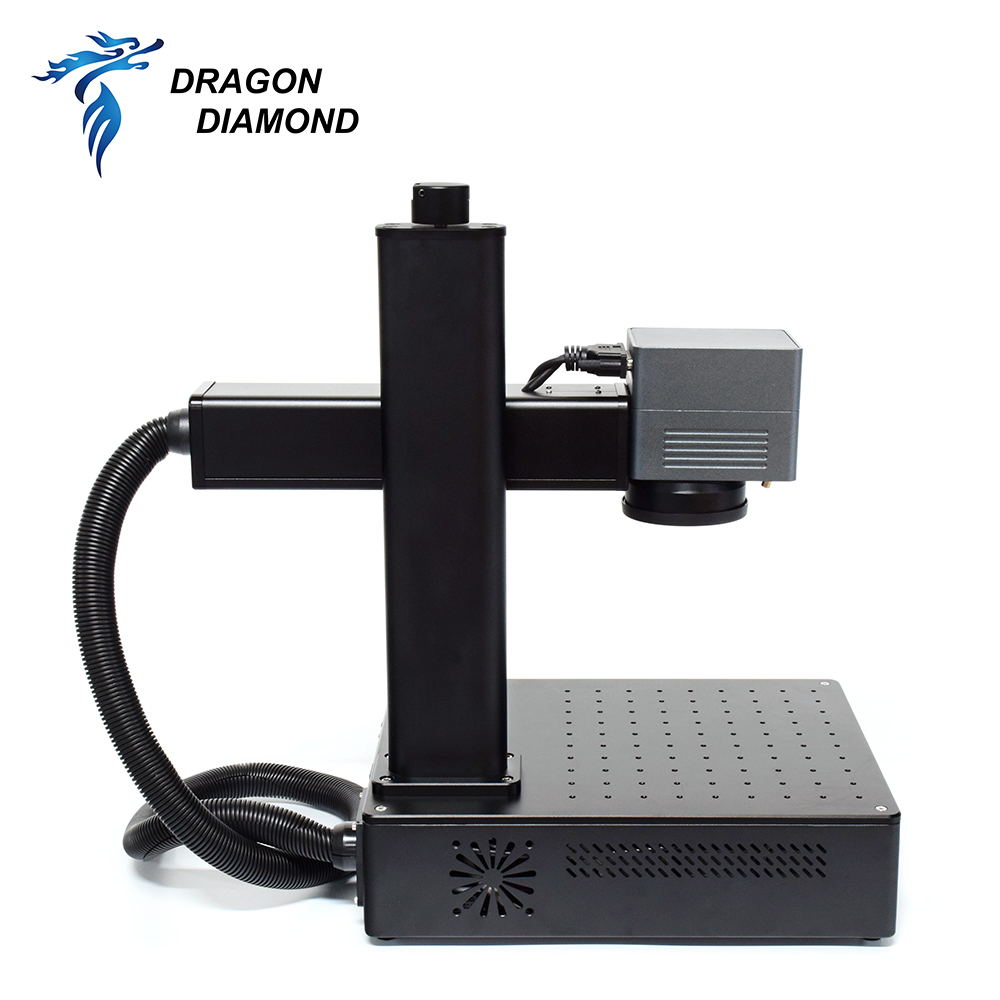

20w Mini Desktop Marking Machine Portable Fiber Laser Marking Machines Light Weight Fiber Laser Marker for Engraving


Fiber marking machine is a very convenient device that has been on the market for many years andis widely used in industrial and customized fields. It is suitable for a variety of materials because ofits extremely low maintenance cost, fast marking speed, high precision, strong permanencenon-contact processing, environmental protection and safety.

With its thoughtful design and exquisite appearance, it is the most cost-effective and economical device in the entire network.

Power source
MAX/RAYCUS
Graphic Format Support
PLT\DXF\BMP\JPG\AI.etc
Laser Power
20W
Control System
BJJCZ
Cooling system
Air Cooling
Controller software
EZCAD
Marking Area (mm)
110*110
Laser Type
Fiber laser

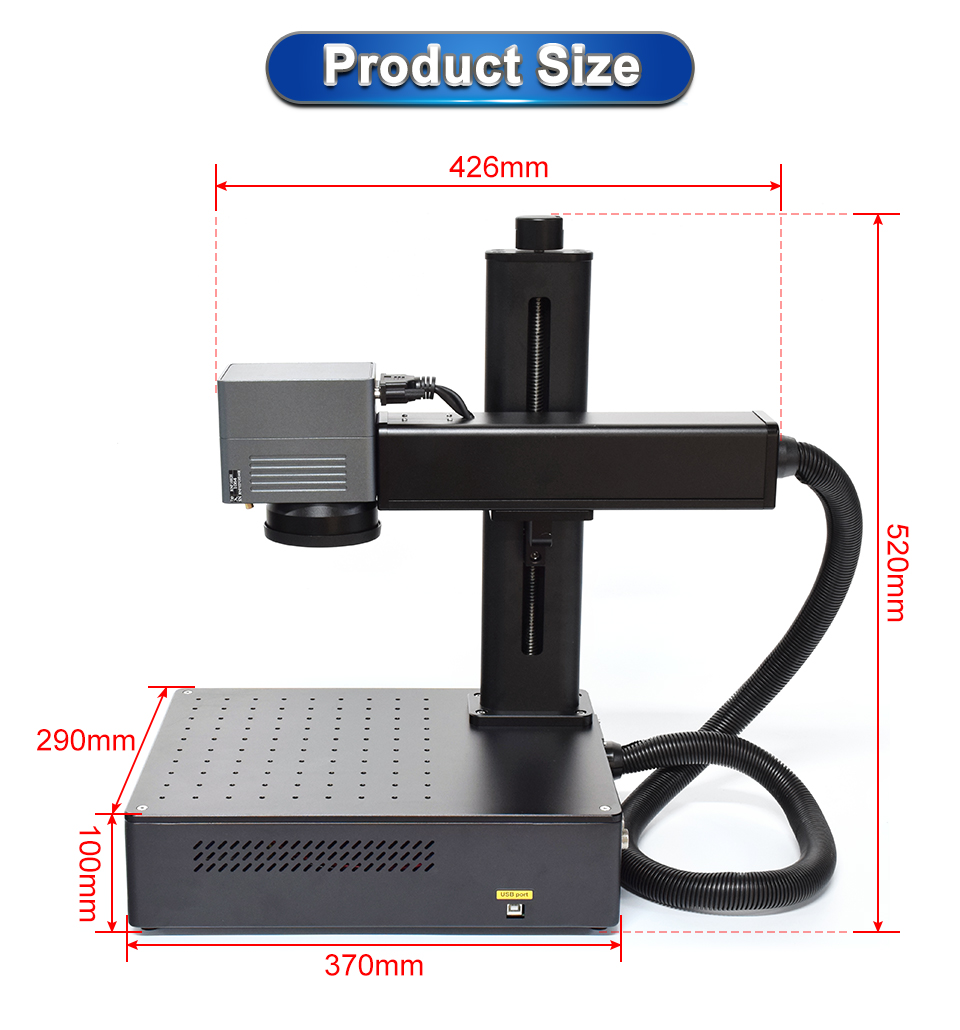

Machine Size (mm)
460*290*520
Laser wavelength
1060-1080nm
Net Weight(kg)
12.5kg
Marking speed
≤10000mm/s
Packing size(mm)
790*420*720
Minimum line width
≥0.01mm
Gross Weight(KG)
22kg
Minimum character
≥0.15mm

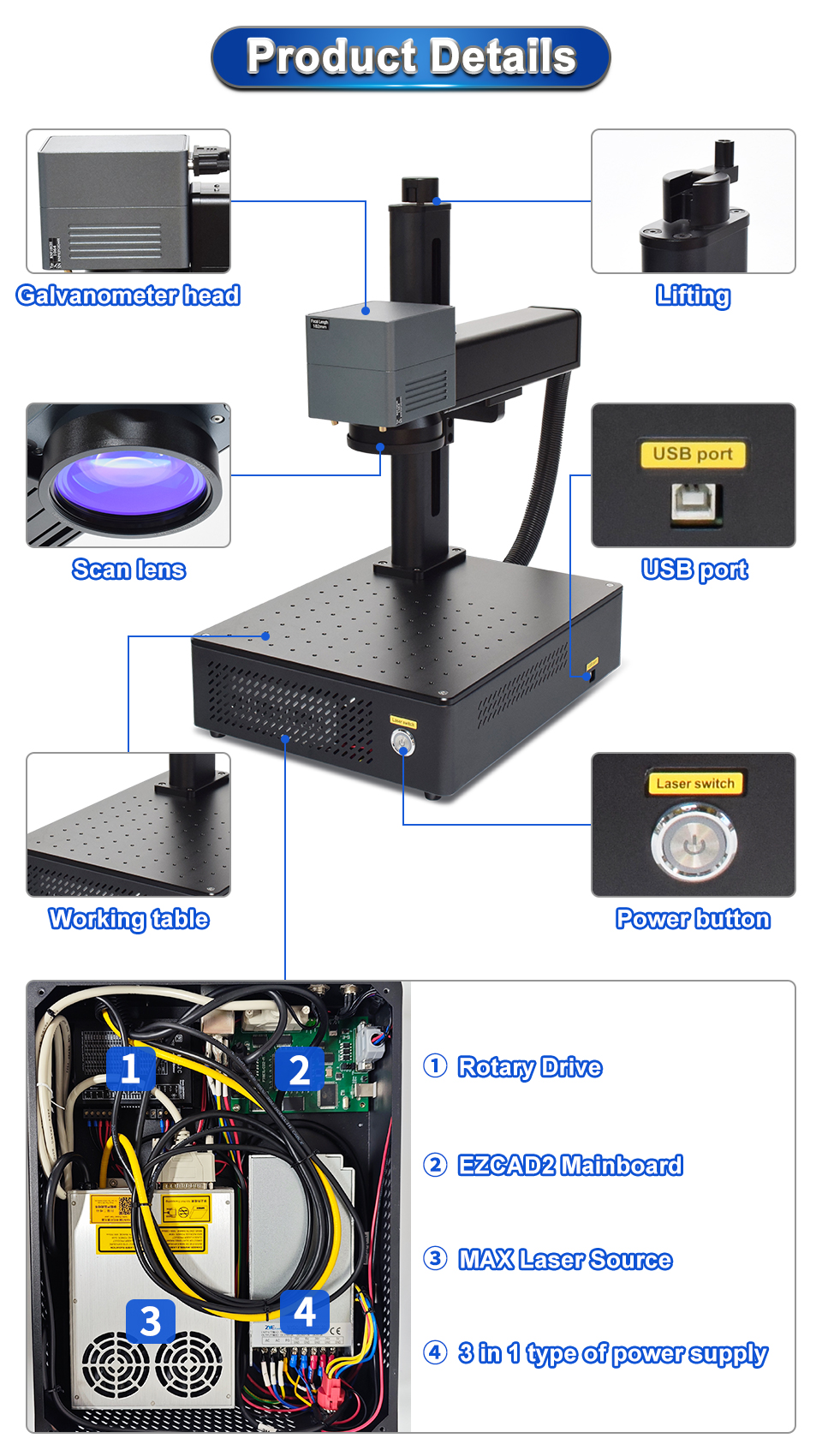

Galvanometer/Scanner
RNF1002H
Repeat accuracy
 ±0.002/ ±0.003mm

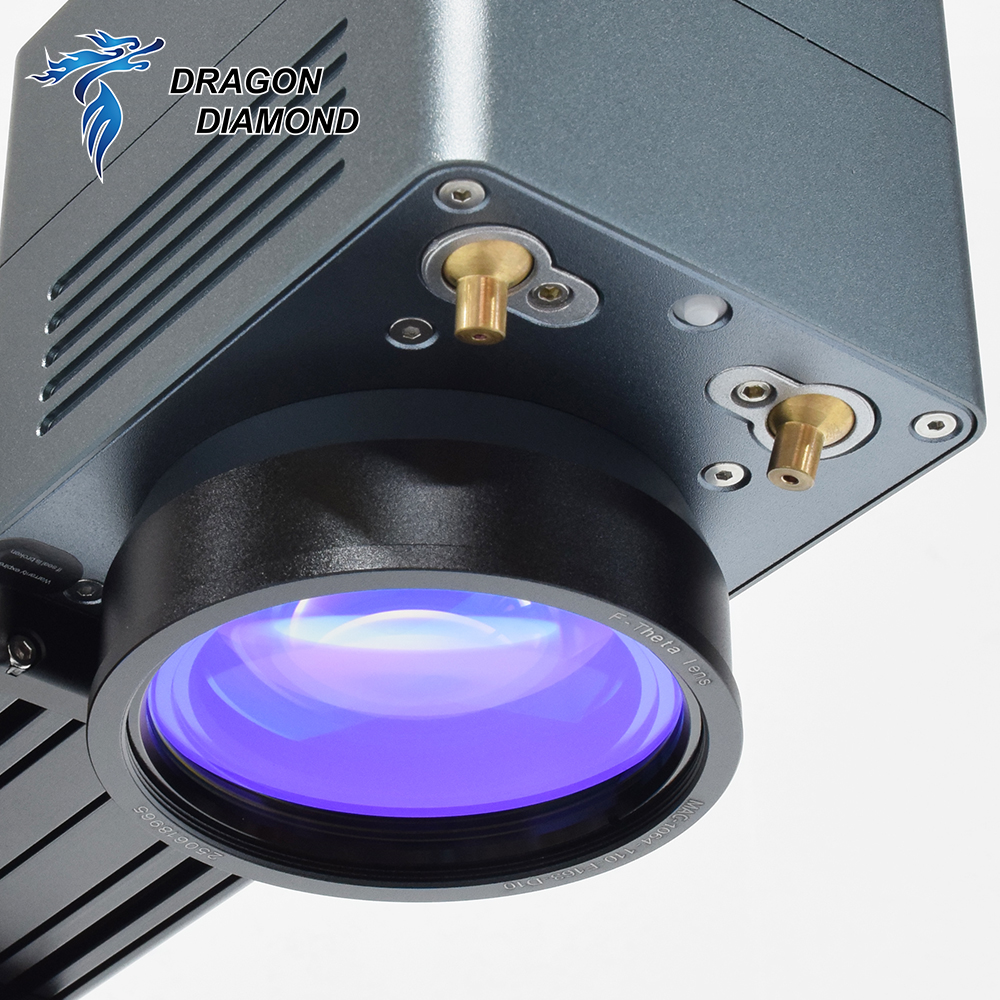

Focusing system
Red light dot focusing
Marking Interface
USB connection
Electric Lifting platform
No
Warranty
1 YEAR
Voltage
110V-220V/50HZ-60HZ
Tool bag
Yes

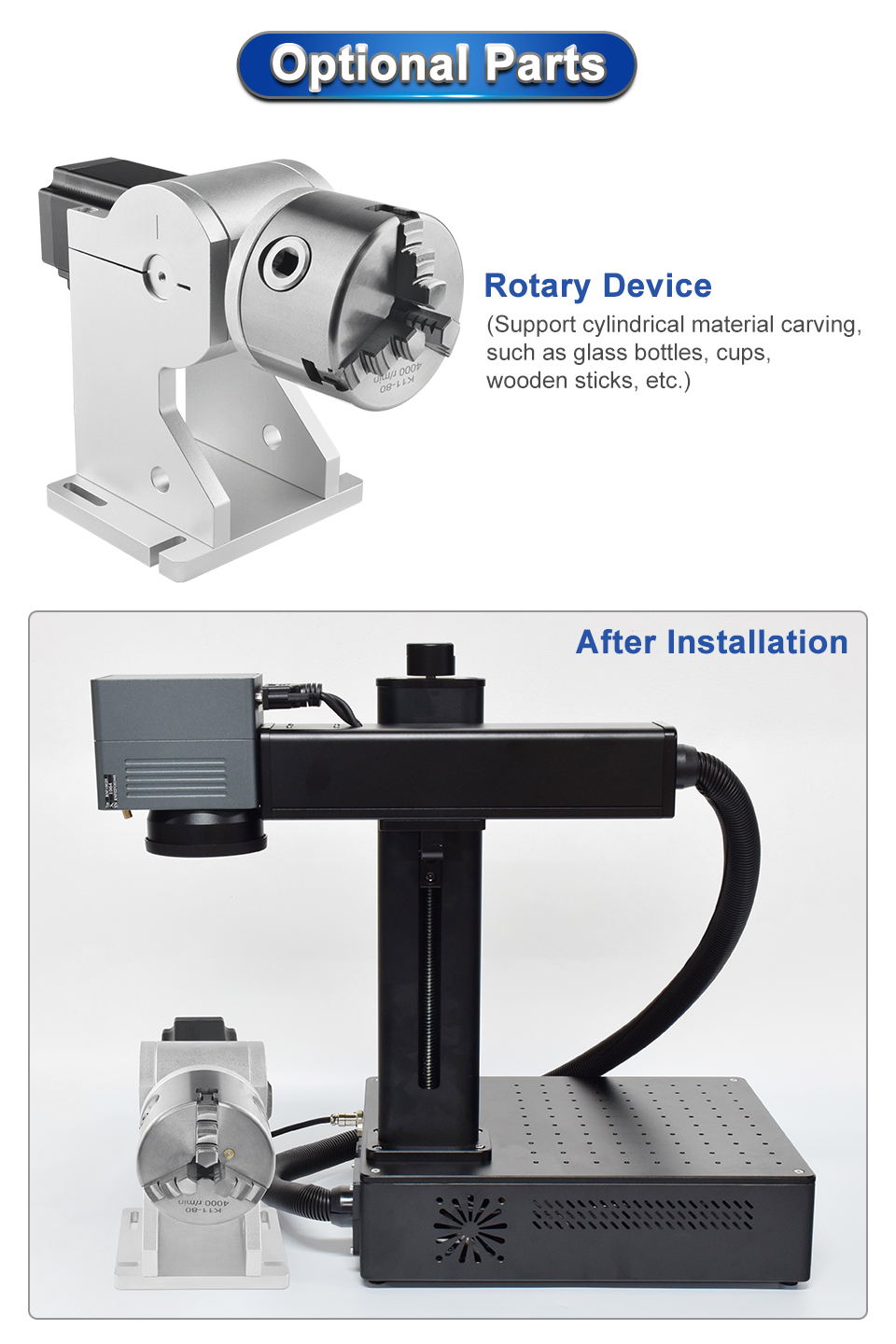

Rotary device
Optional
Computer
Optional
