CNC Wood Engraving Machine

High-end Metal CNC Fiber Laser Cutting Machine 1530 1000W 1500W 2000W for Carbon steel aluminum iron metal steel sheet pipe tube

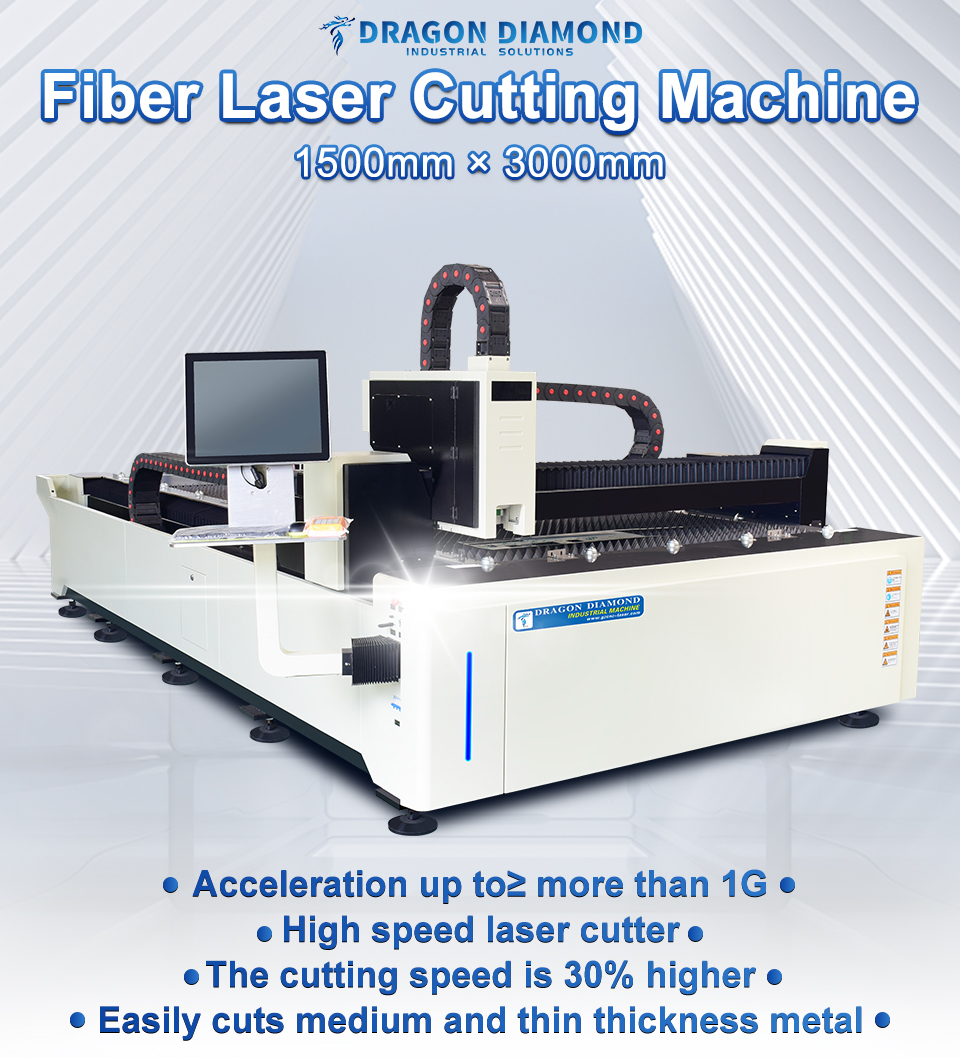

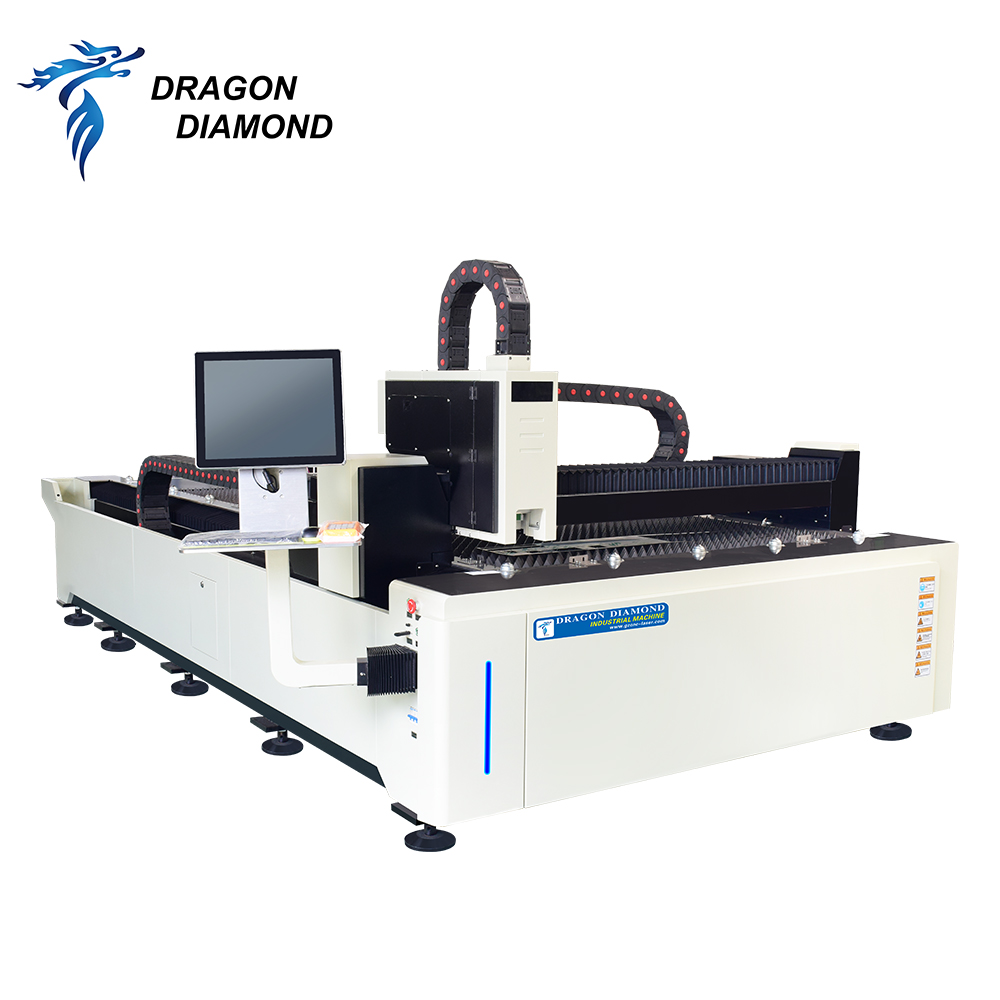

1500*3000 mm  Fiber Laser Cutting Machine
  • Item NO.:

    LZ-1530
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Color:

    Black & White
  • Shipping Port:

    Guangzhou
  • Product Detail

High-end Metal CNC Fiber Laser Cutting Machine 1530 1000W 1500W 2000W for Carbon steel aluminum iron metal steel sheet pipe tube

Mode
Fiber Laser Cutting Machine
Laser power  1000W/1500W/2000W

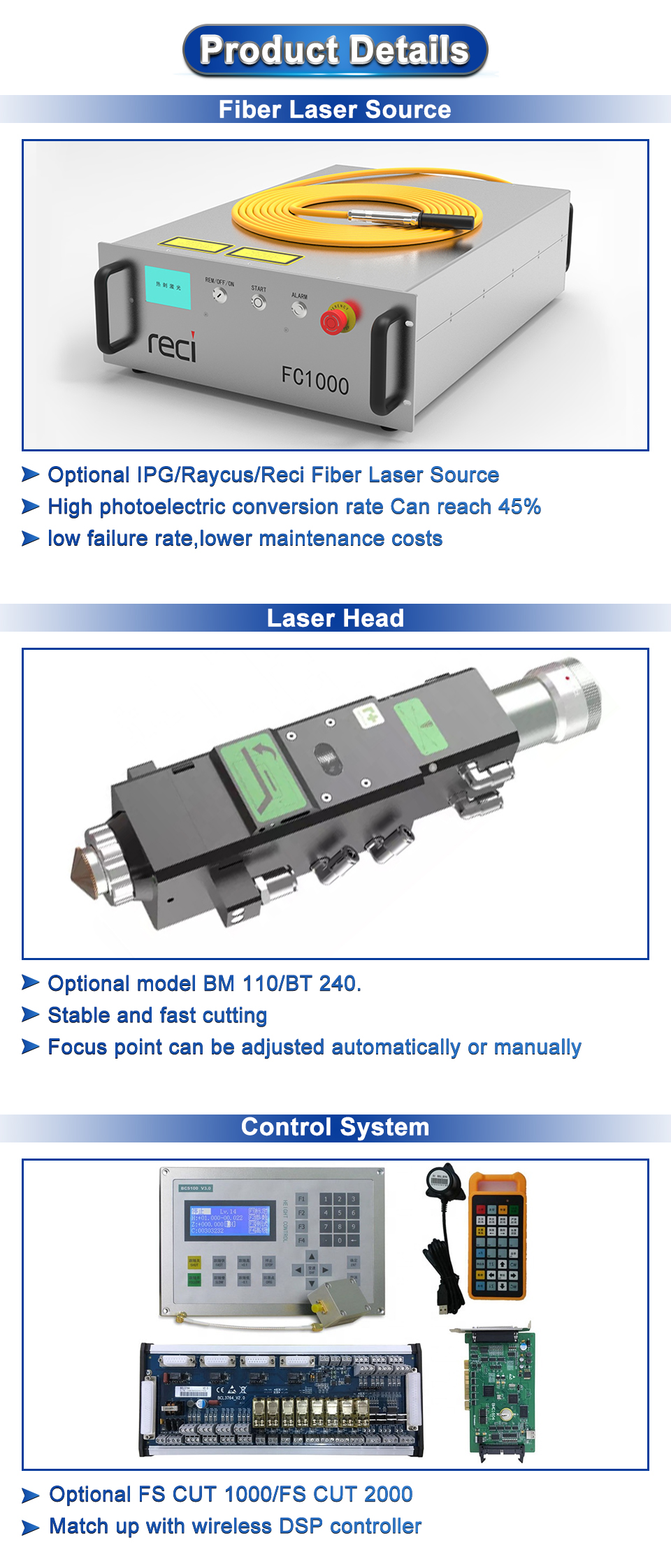

Laser Source Reci Fiber Laser Source
XYZ Working Area  1500*3000mm

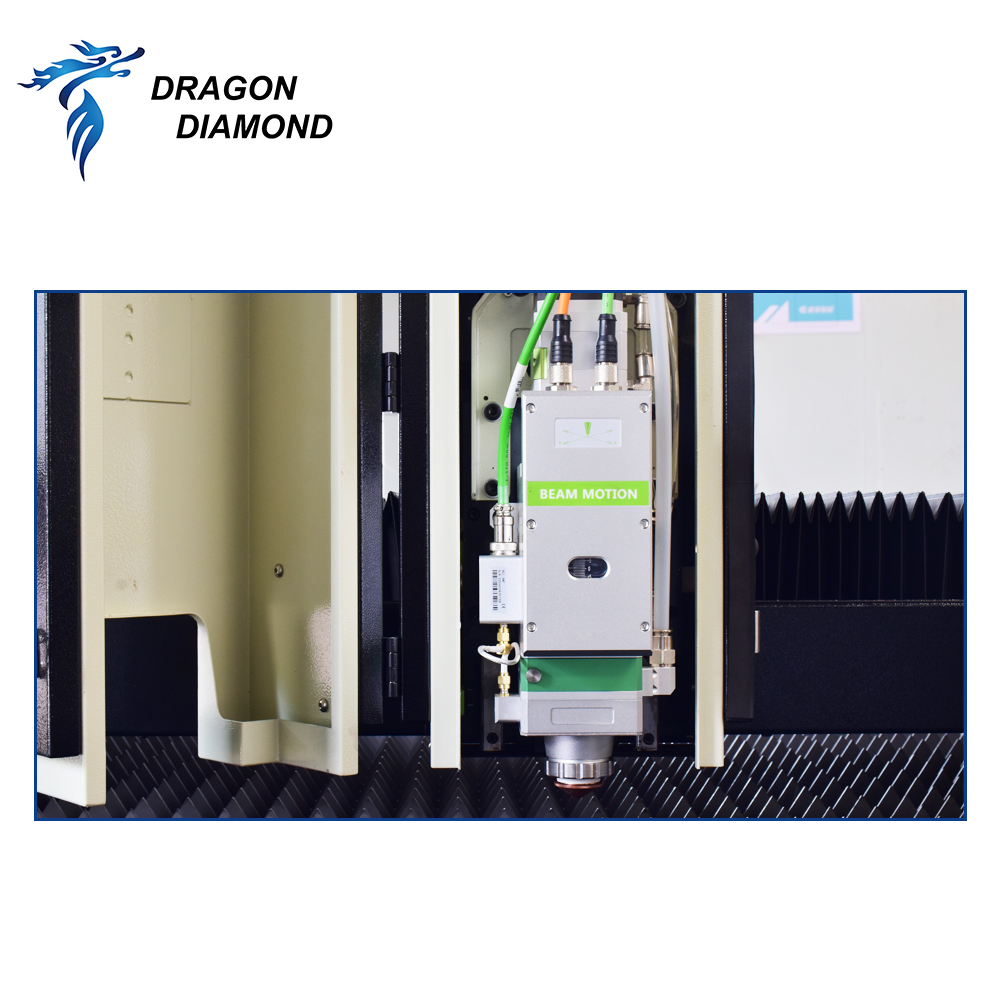

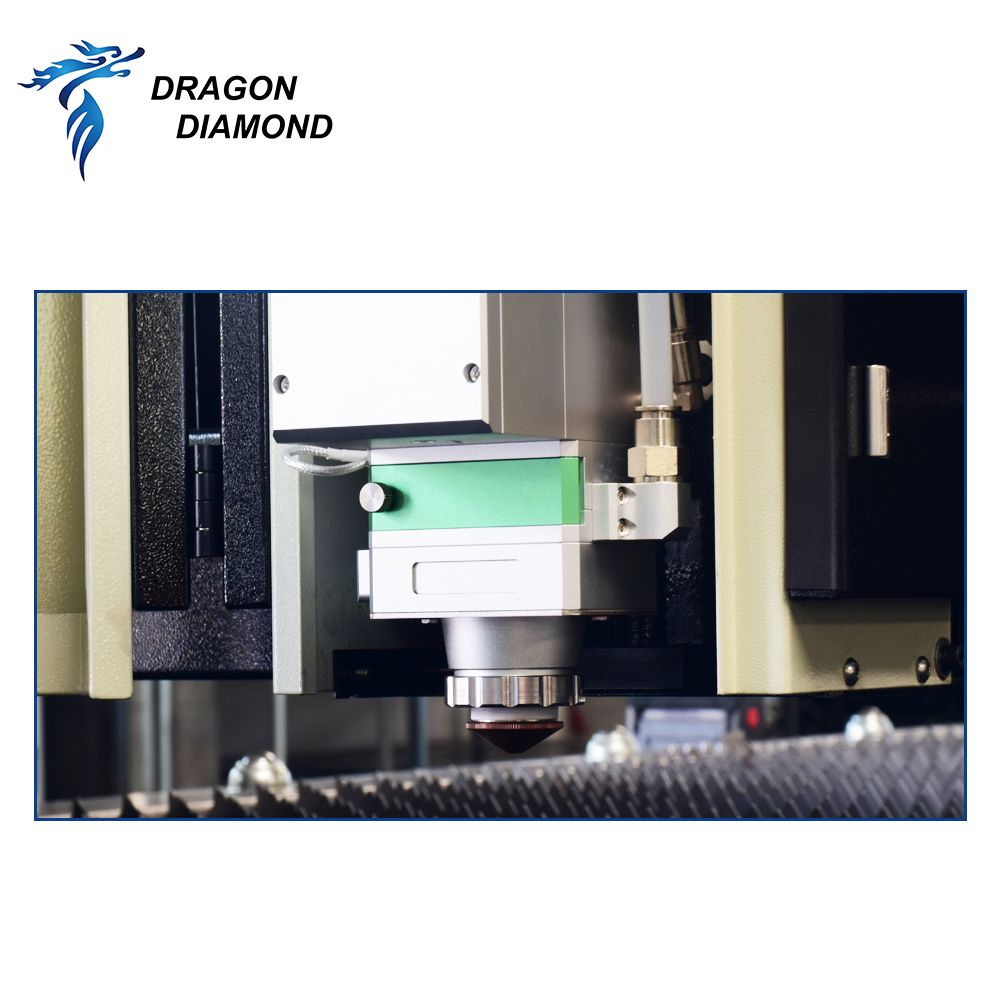

Cutting Head

Raytools BT240(Manual Adjust)

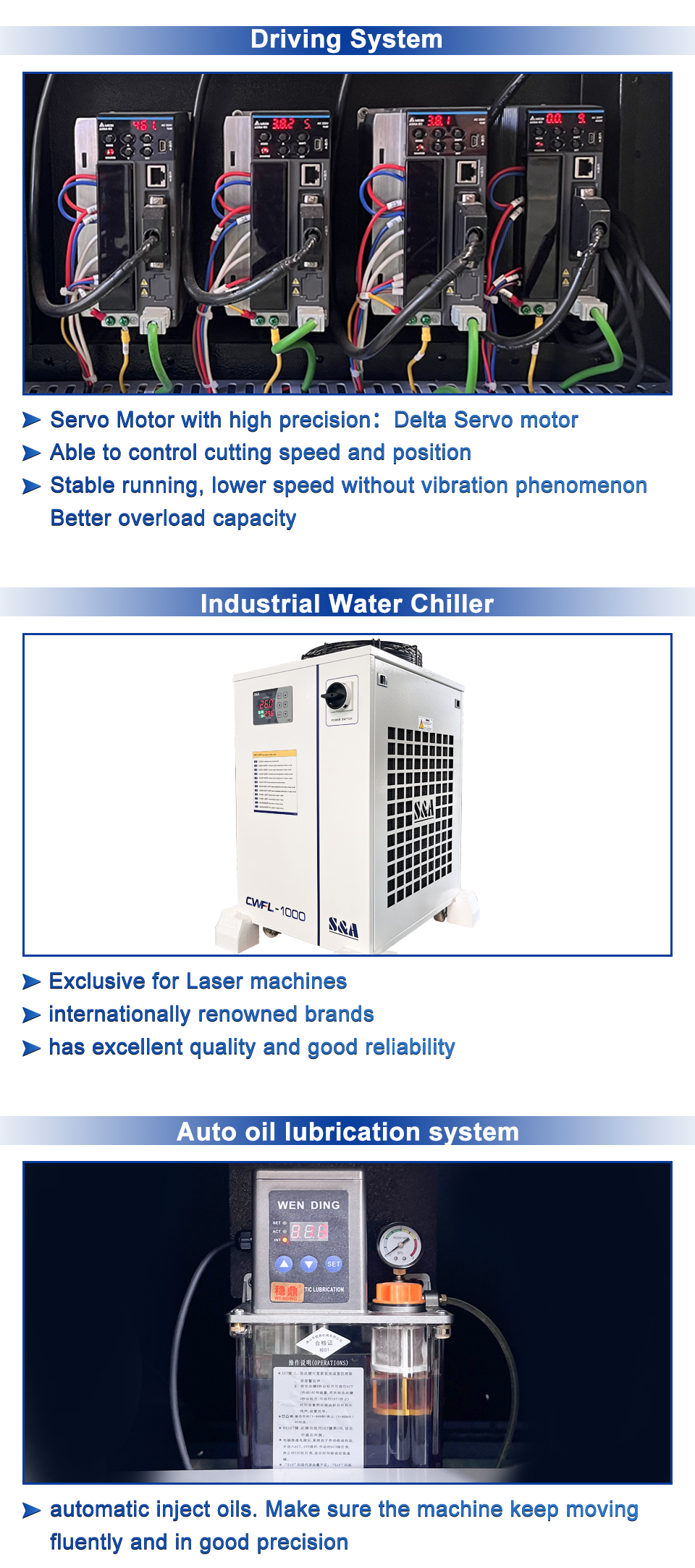

Motor

Delta Servo&Reducer
Focus Method

Manual/ Optional: Automatic Adjust Focus

Controller

FSCUT1000/(optional:FSCUT2000)

Max. Cutting Speed

Max 35000mm/min(Up To Materials)

Laser Wavelength

1064nm

Minimum Line Width

0.02-0.08mm

Location Precision

≤±0.03mm

Re-Location Precision

±0.02mm

Max. Moving Speed

80000m/min

Supporting Format

PLT, DXF, BMP, AI

Power Demand

220V/50Hz,60Hz

Cooling Way

Water Cooling S&A Chiller

Machine Weight

3000 kg
