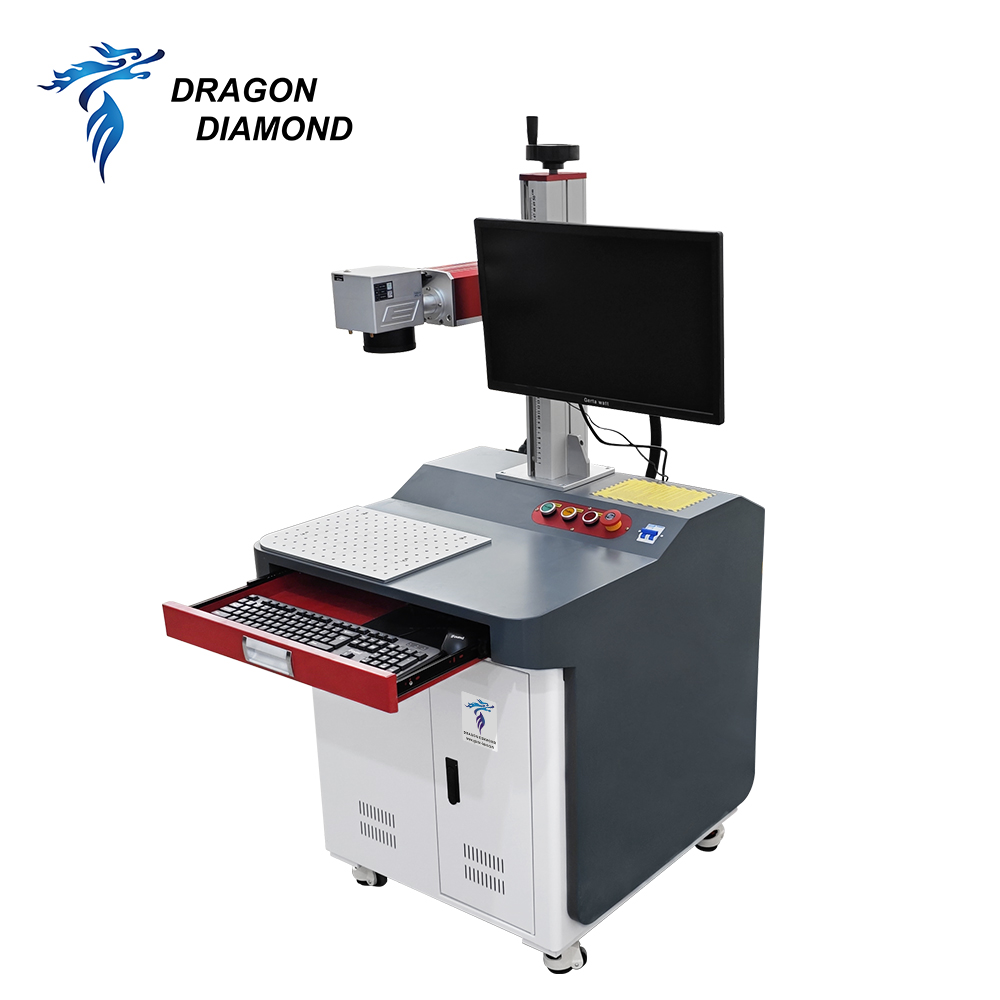

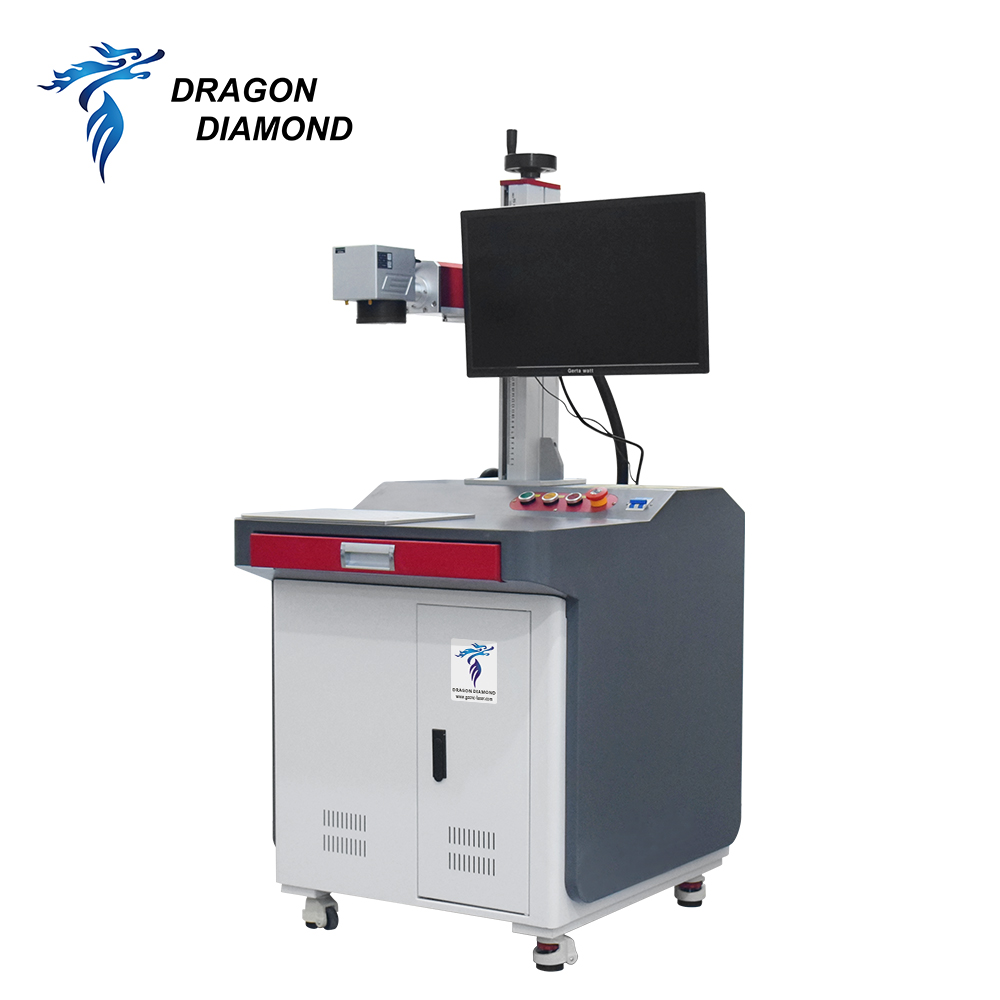

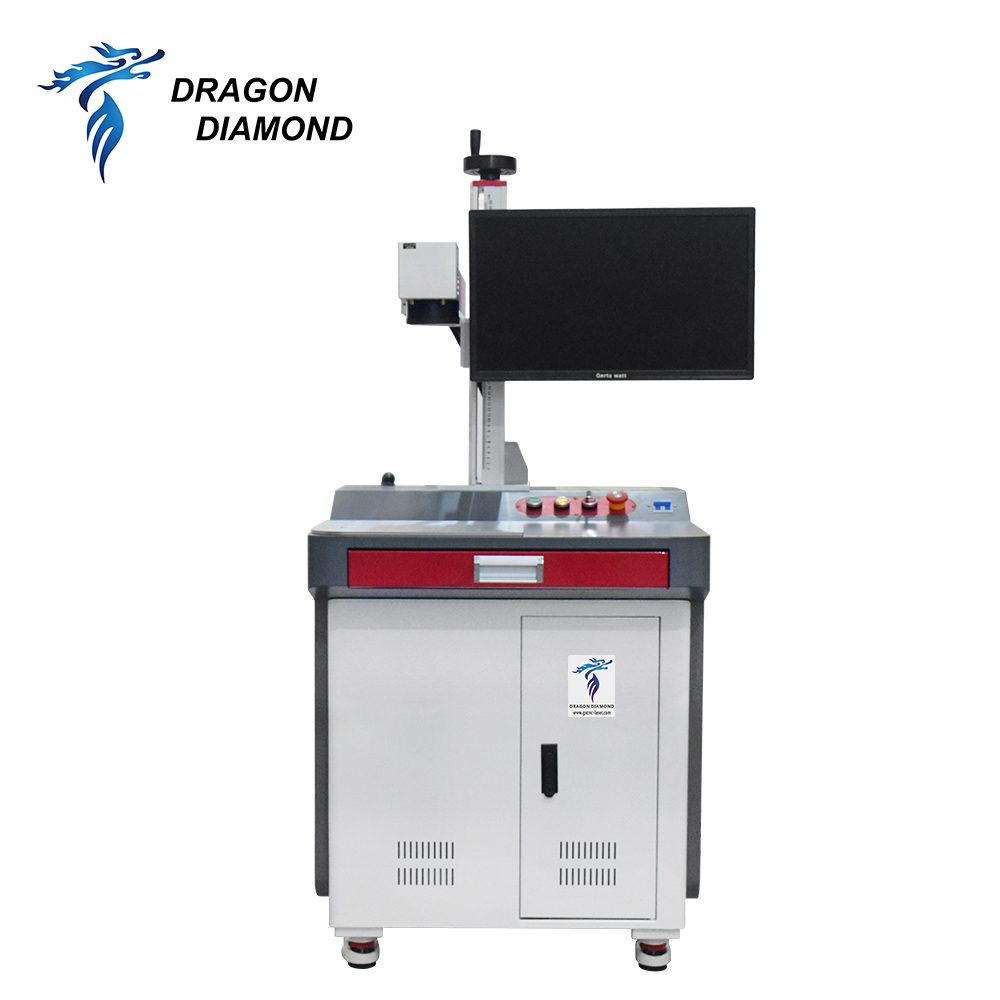

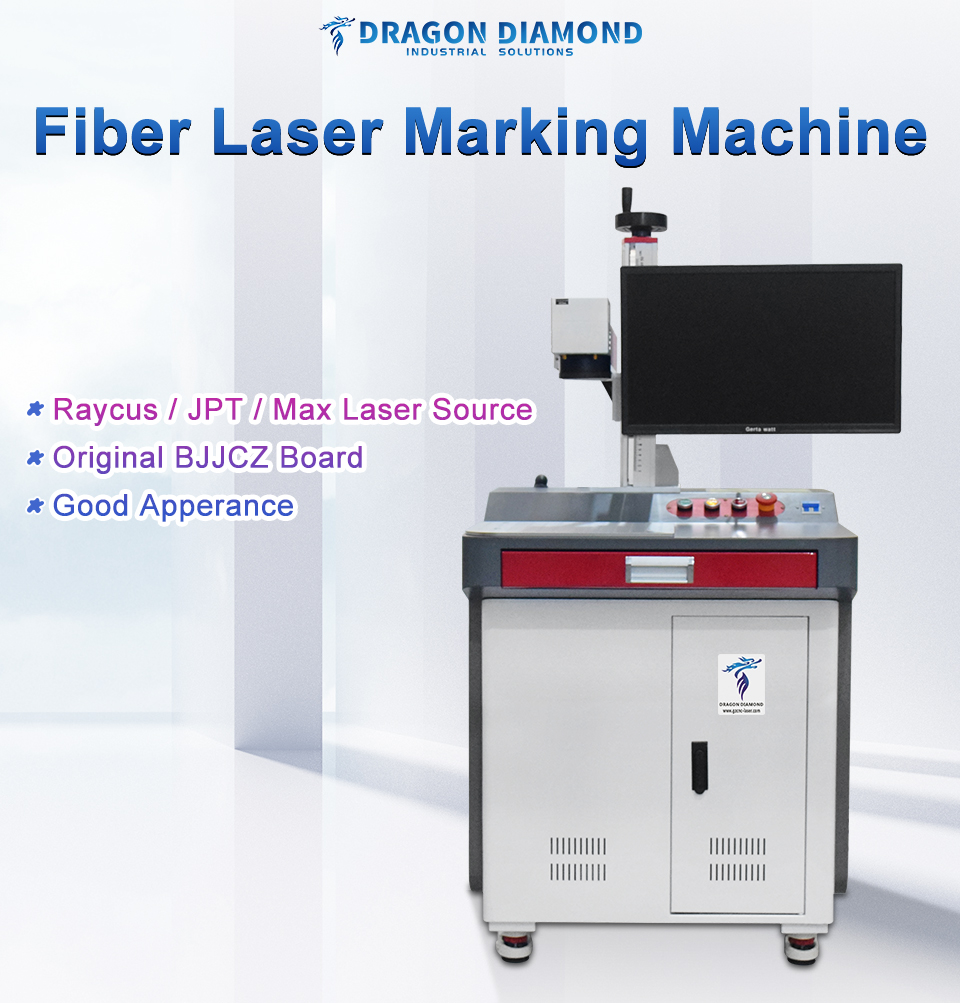

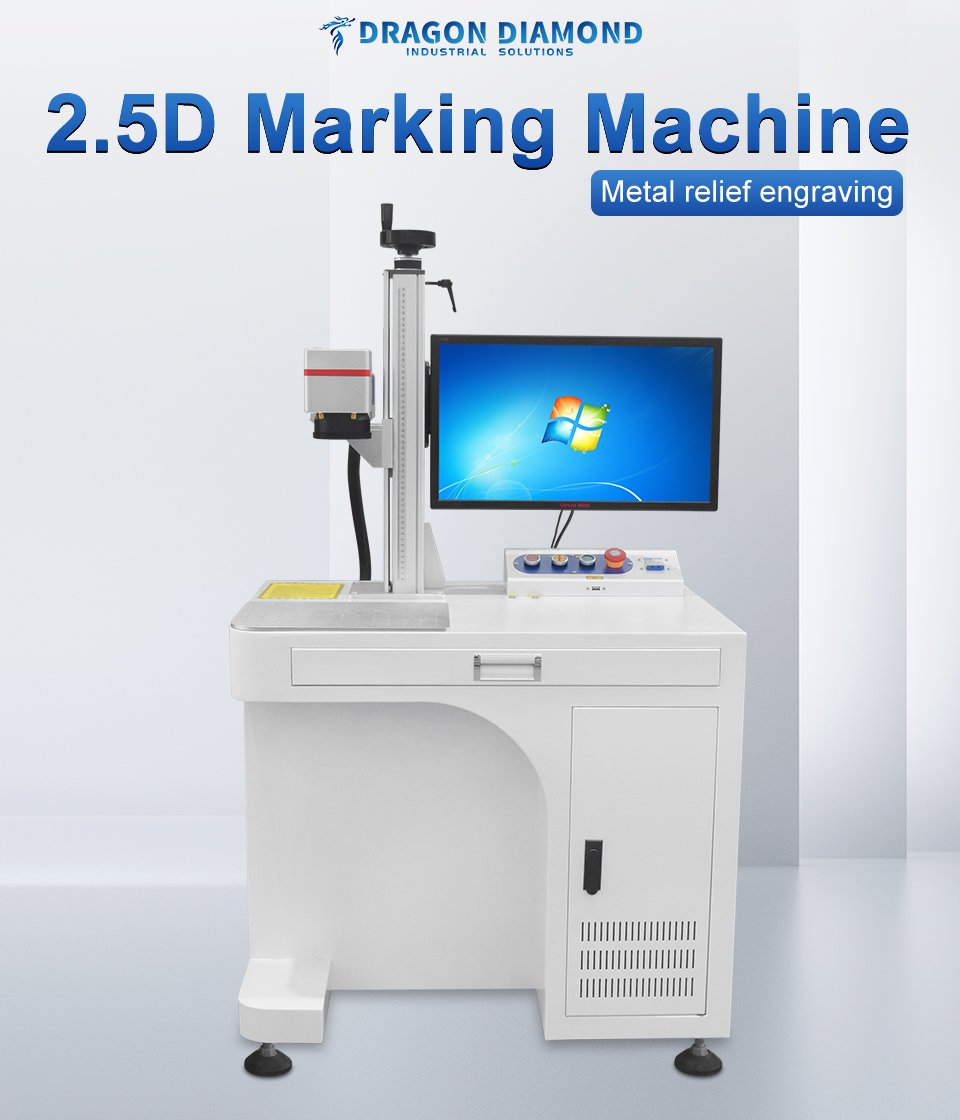

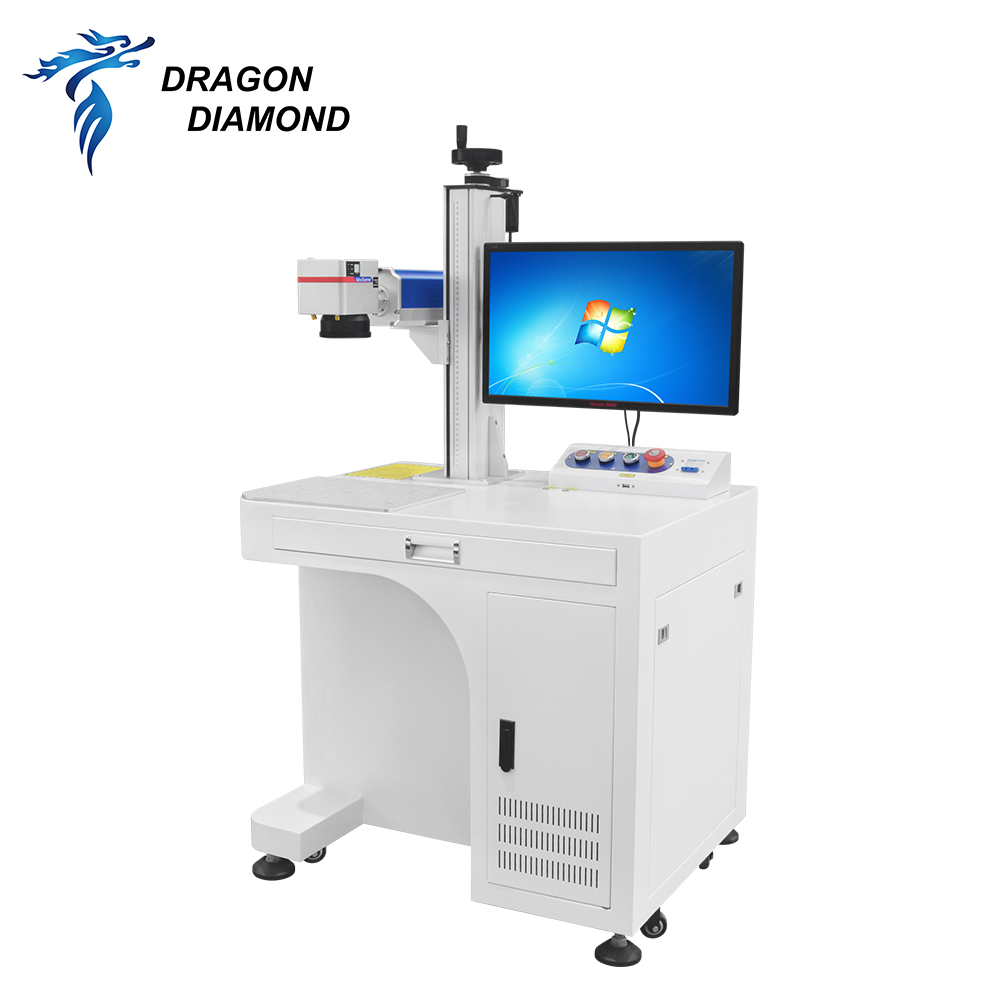

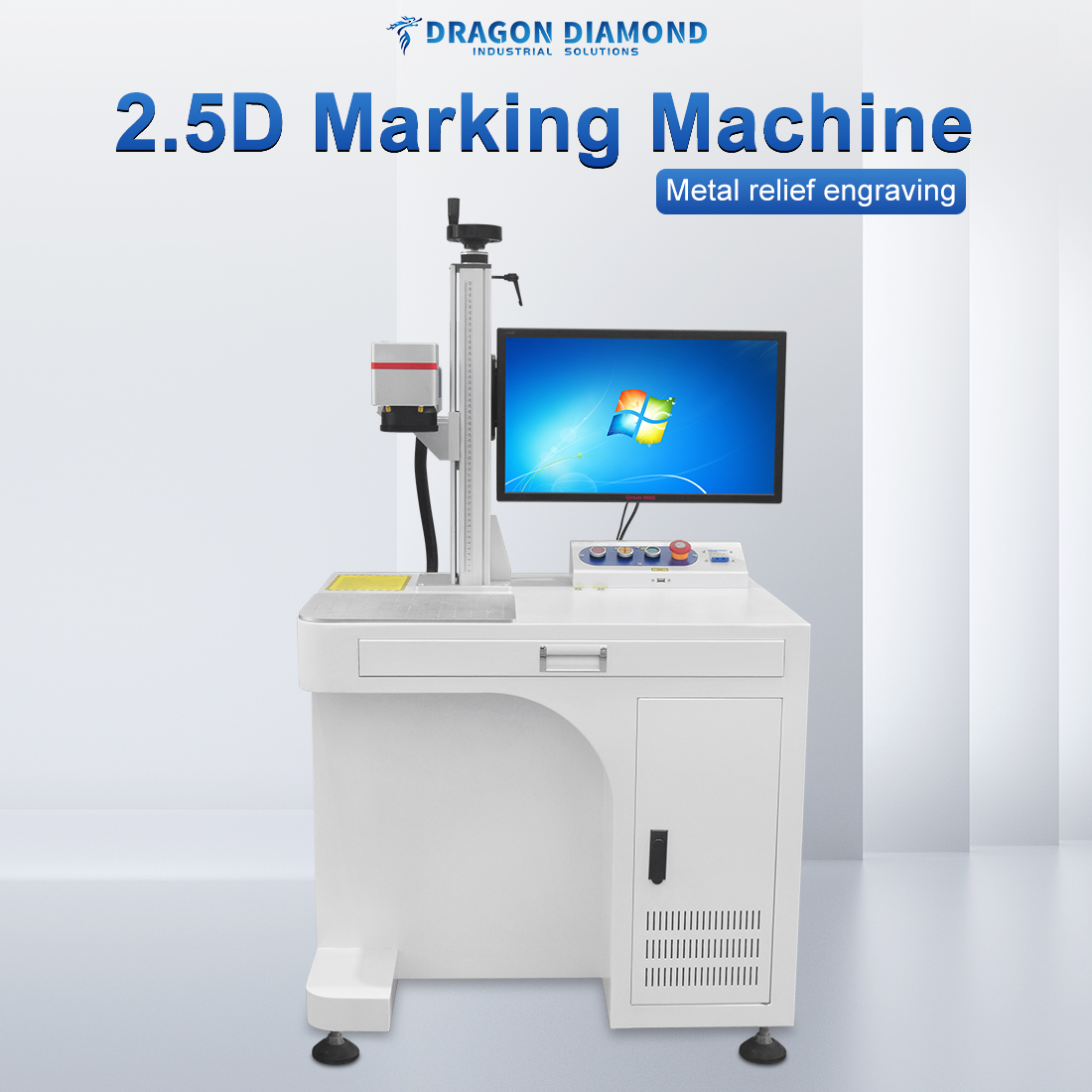

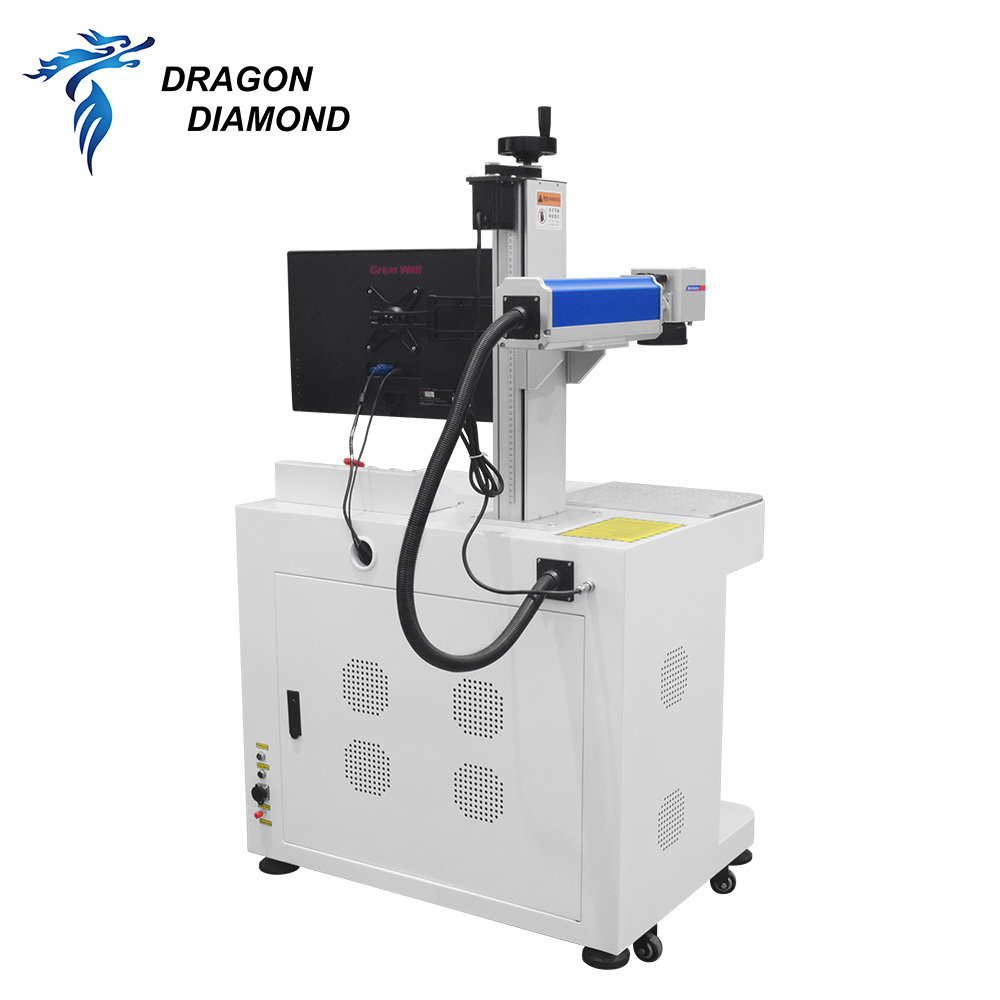

2.5D Laser Marking Machine MAX Raycus JPT Fiber Laser Engraving Machine with Electric Lifting Platform 2.5D Marker

Item NO.:
LZ-FM2.5D
Product Origin:
China
Shipping Port:
Guangzhou

INQUIRE now

Product Detail

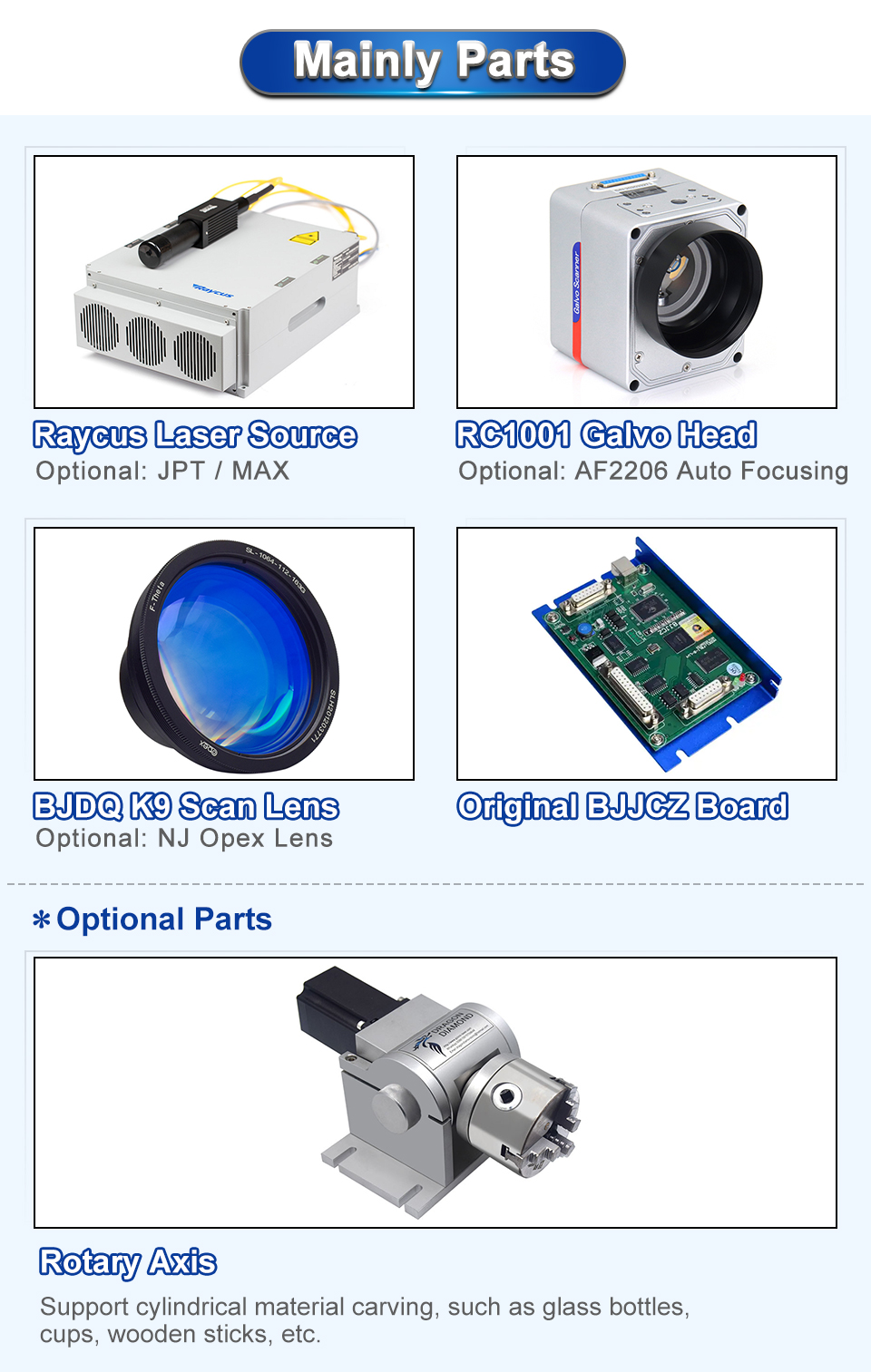

Power source	Raycus/MAX/JPT	Graphic Format Support	PLT\DXF\BMP\JPG\AI.etc
Laser Power	20W/30W/50W/60W/702/100W	Control System	BJJCZ
Cooling system	Air Cooling	Controller software	EZCAD
Marking Area (mm)	110110/150150/200200/300300	Laser Type	Fiber laser
Machine Size （mm）	8307201000	Laser wavelength	1060-1080nm
Net Weight（kg）	100	Marking speed	≤10000mm/s
Packing size(mm)	9208201160	Minimum line width	≥0.01mm
Gross Weight(KG)	120	Minimum character	≥0.15mm

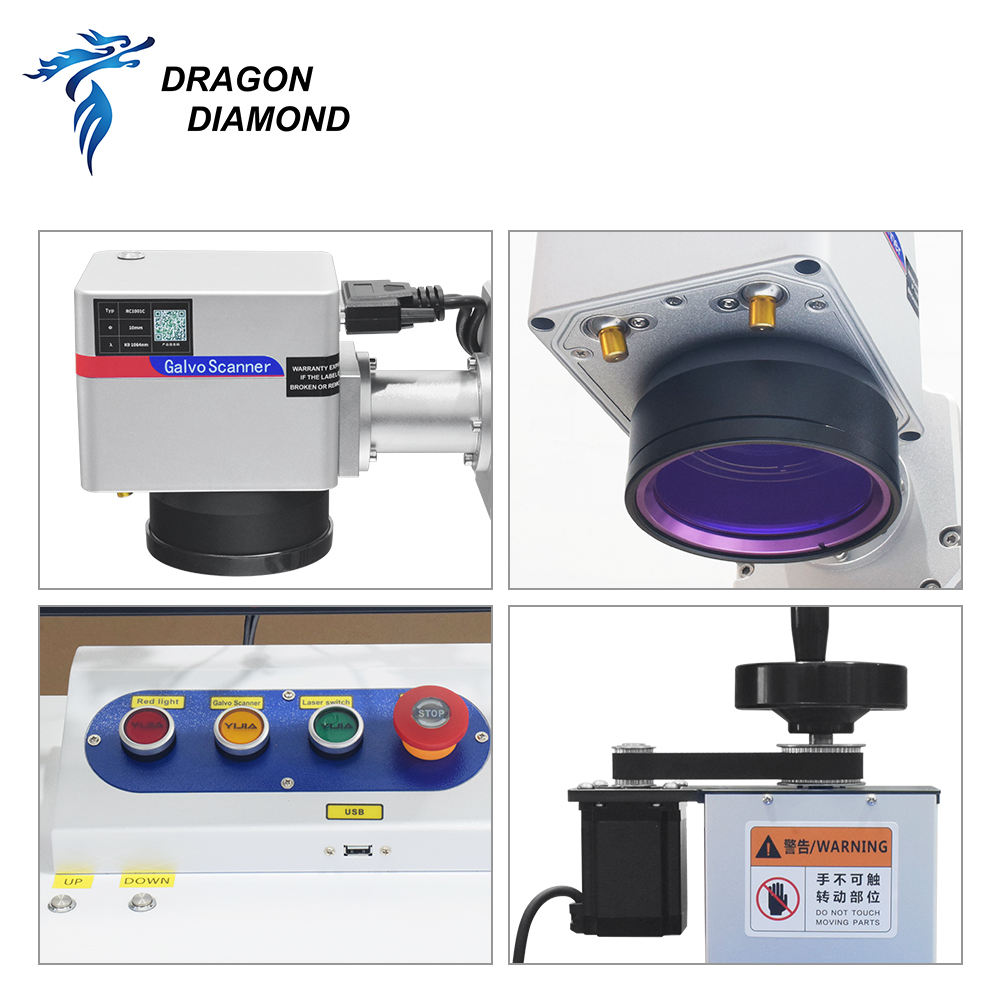

Galvanometer/Scanner	Sino-RC1001	Repeat accuracy	±0.002/ ±0.003mm
Double red dot	Yes	Marking Interface	USB connection

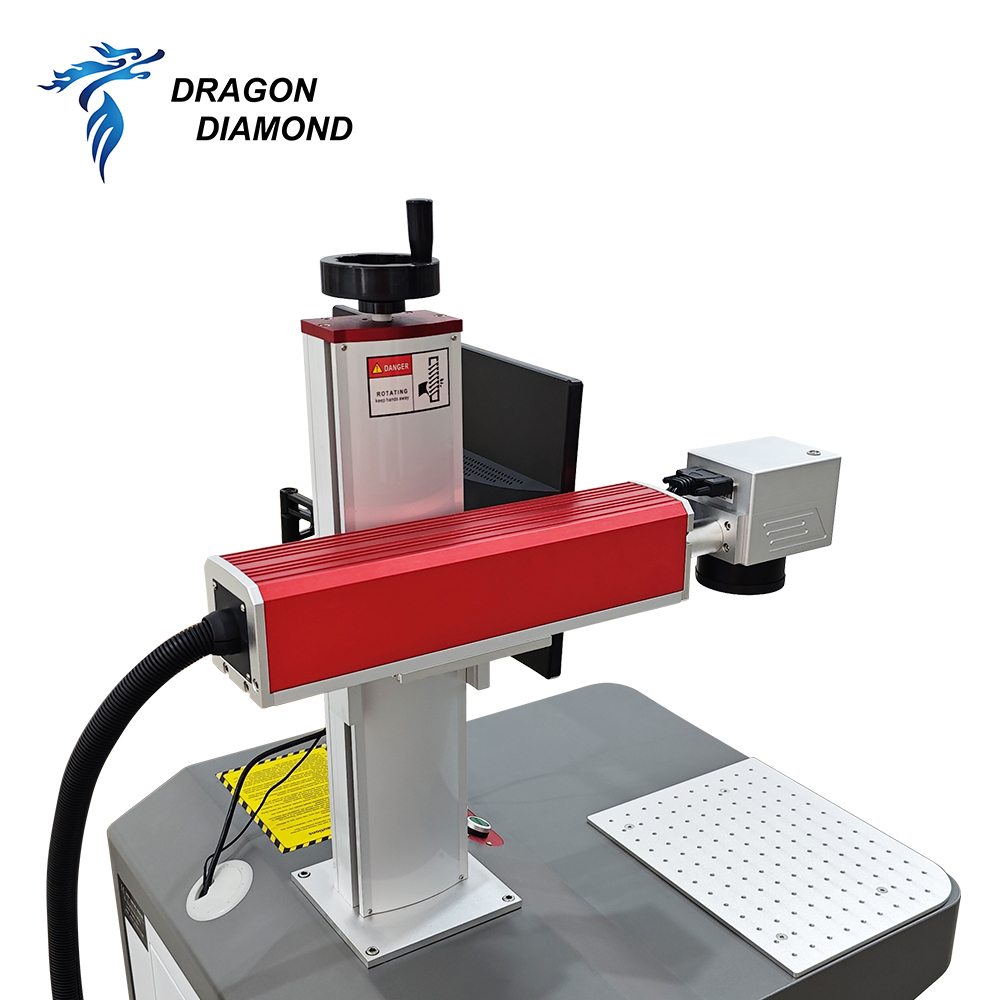

Electric Lifting platform	Yes	Warranty	1 YEAR

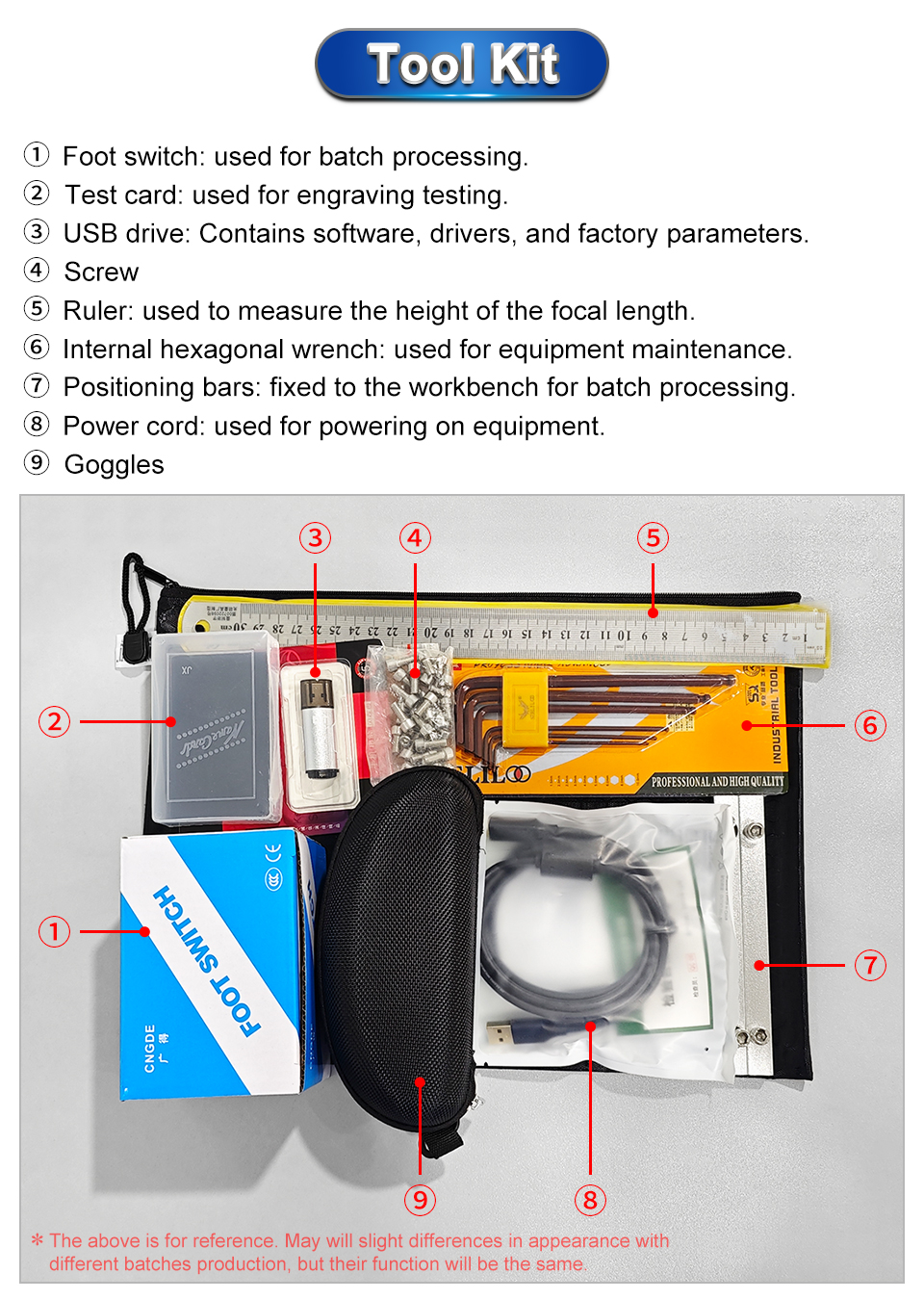

Voltage	110V-220V/50HZ-60HZ	Tool bag	Yes

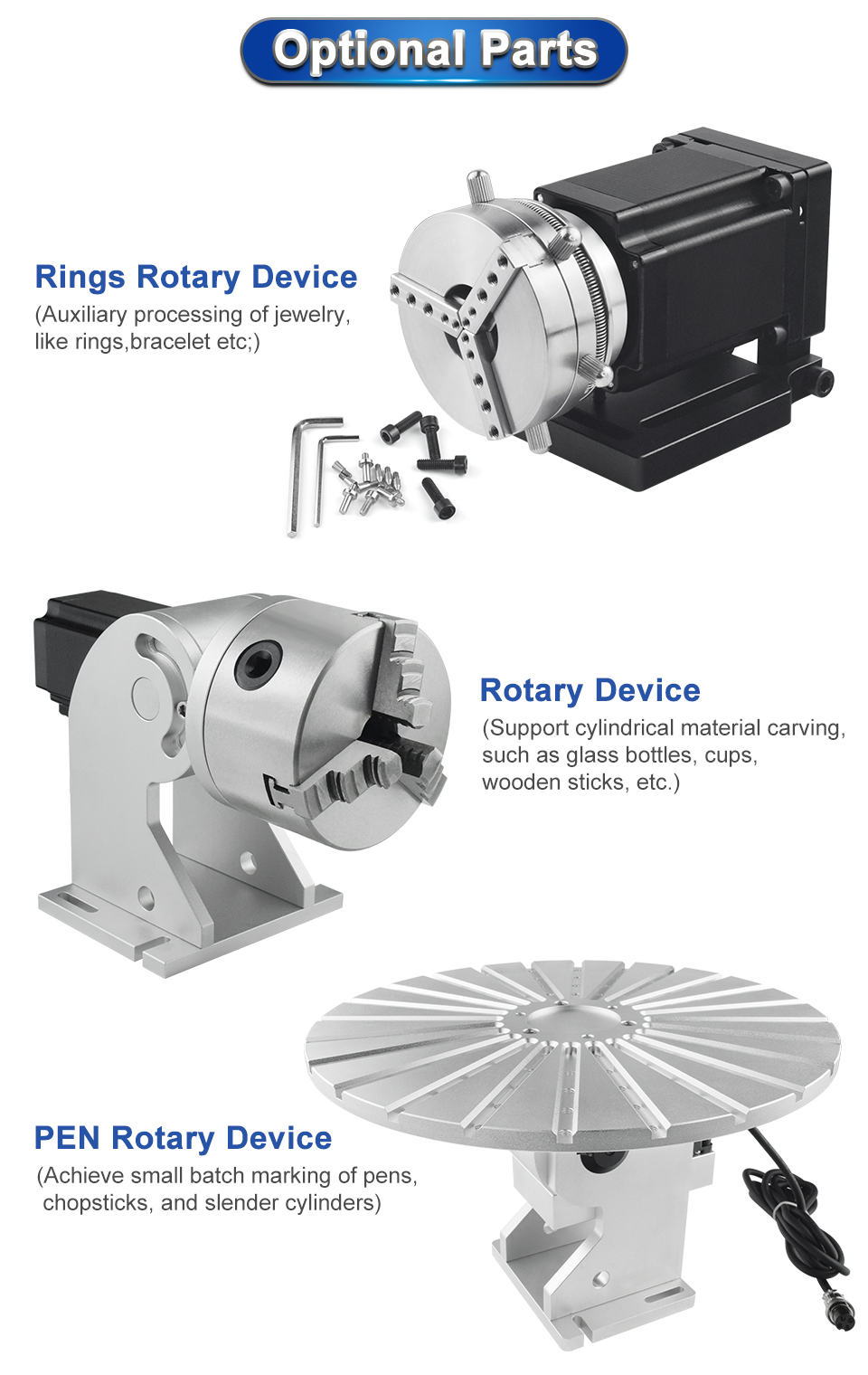

Rotary device	Optional	Computer	Optional

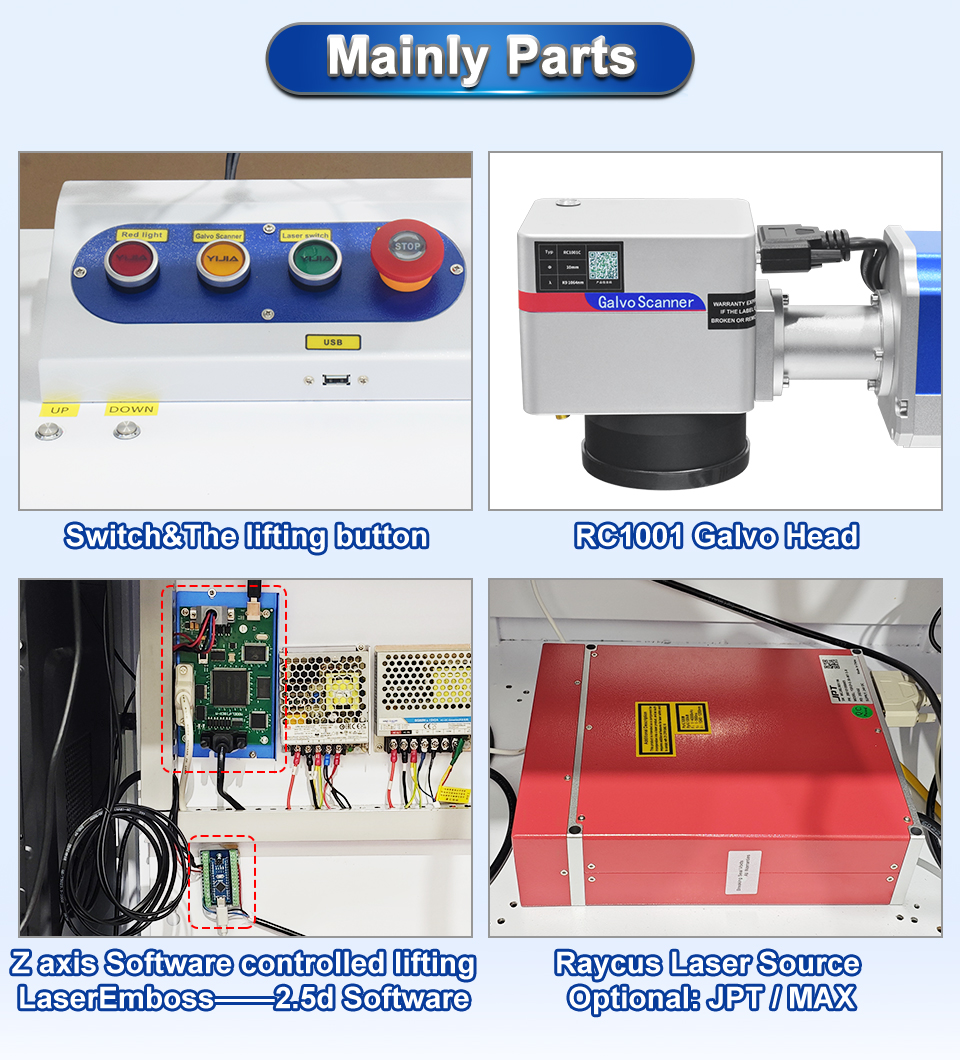

The 2D laser galvo model,we also called it 2.5D fiber laser,because laser head still with a 2D laserhead,but this kind machine with motorized lifting pillar.

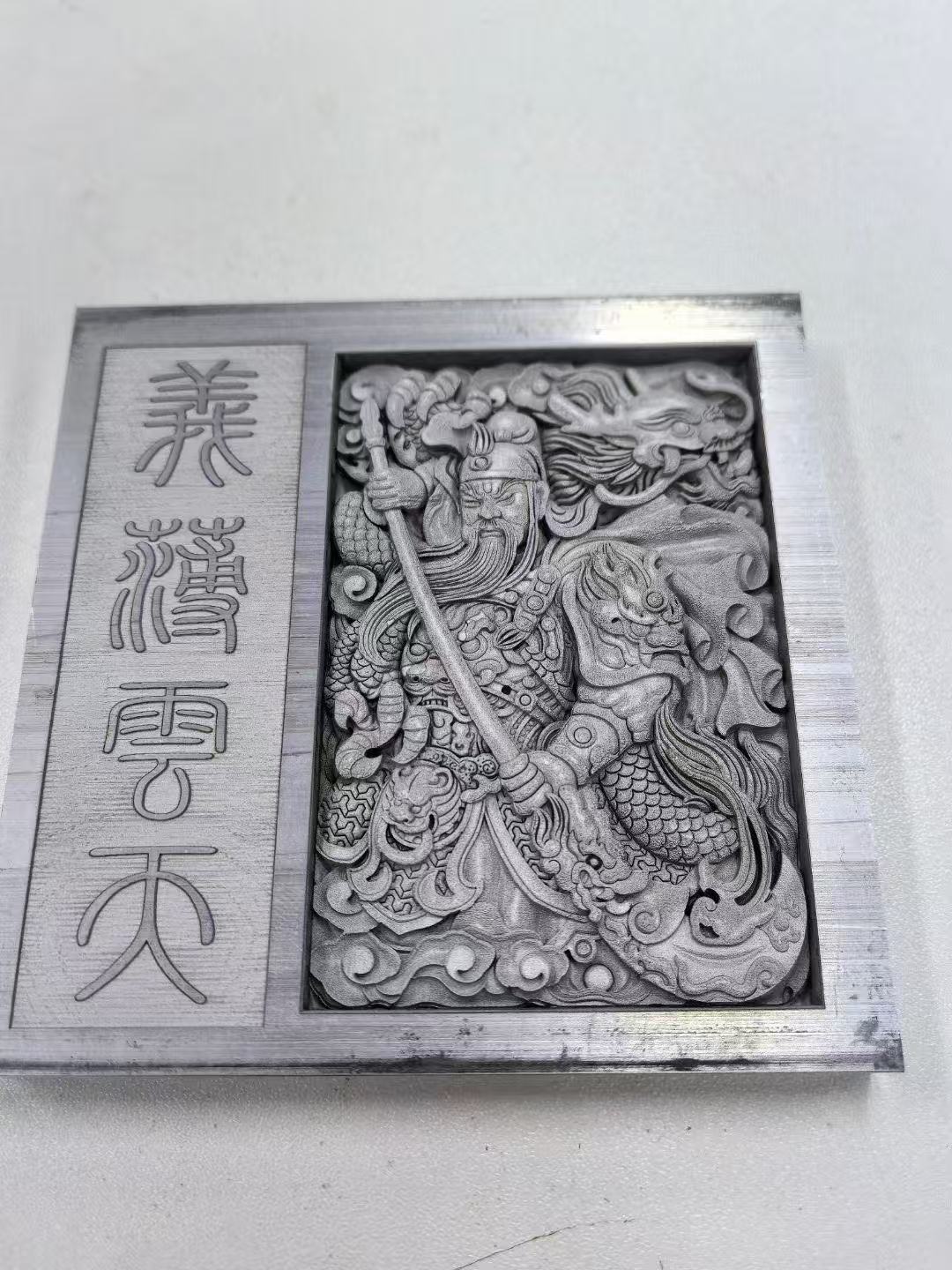

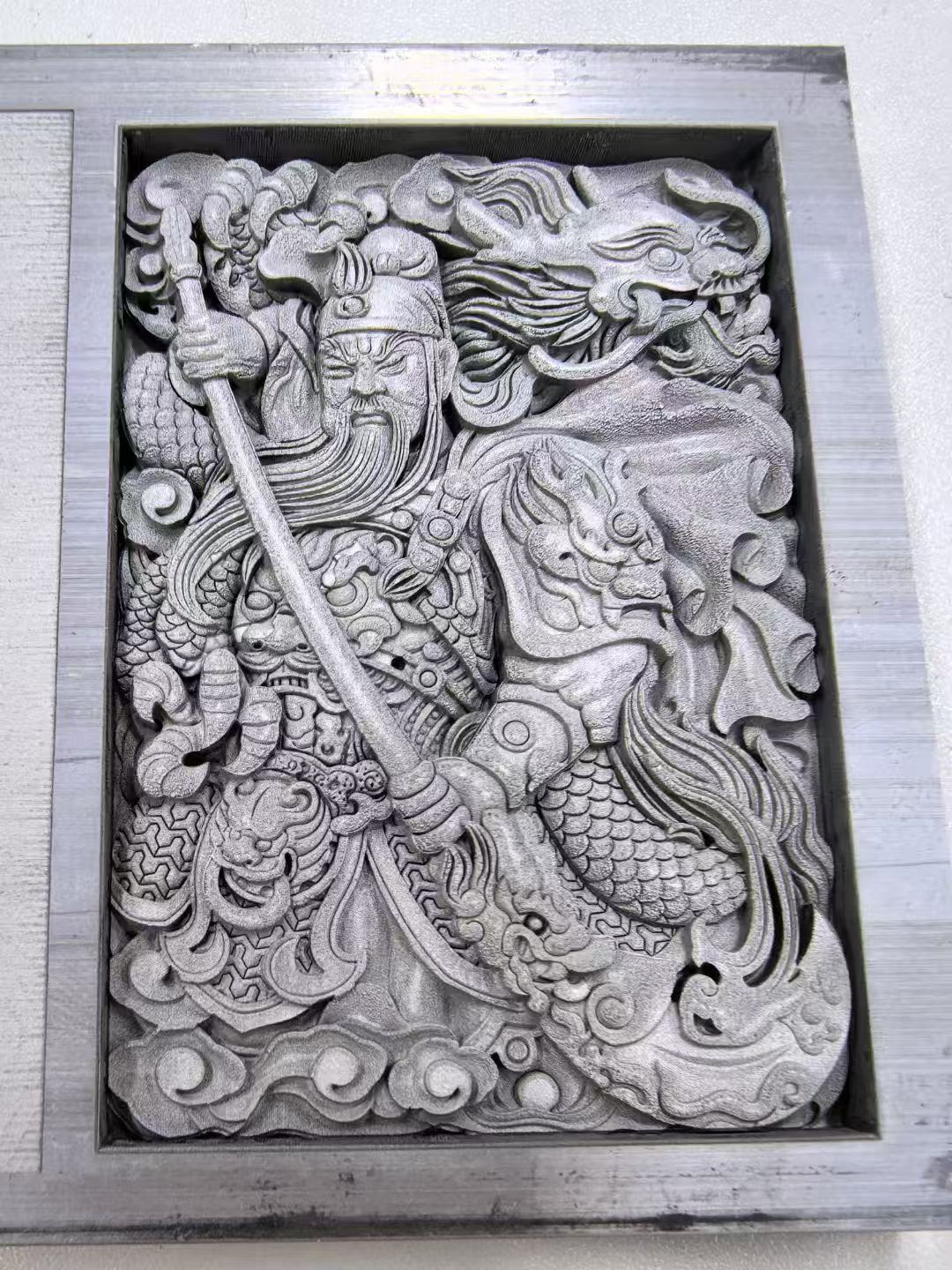

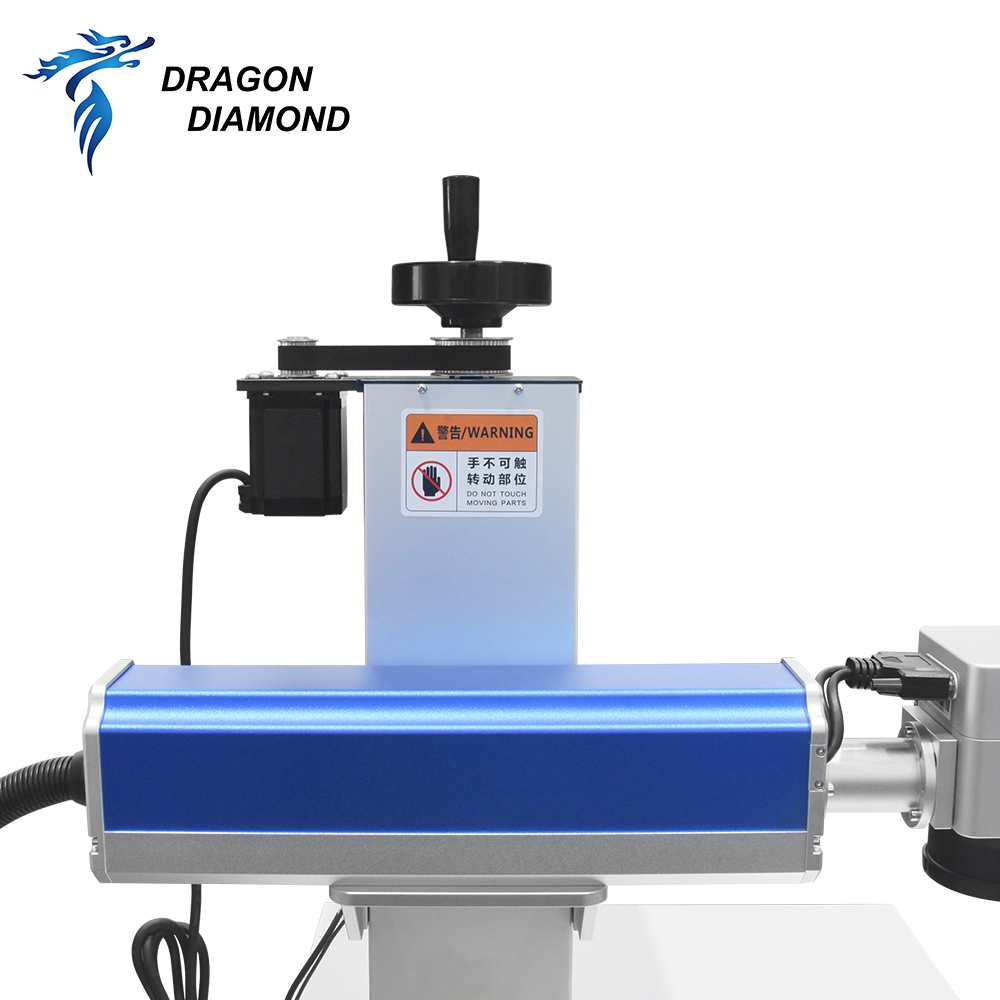

And the 2D galvo head can be controlled by software,software can control laser head move whenmachine working,so this is why it can acheieve Deep relief work.The technical difference: 3D fiber laser with 3D galvo head which have Z axis mirror,which canmove back and forth; The 2.5D fiber laser with 2D galvo head,which have not the Z axis mirror.t used the Motorizedifting pillar stands for the third mirror to move automatically. Its working process is: in the process of processing, each layer is processed, the motorized liftingpillar moves, adjusts the height of the galvanometer, and then emits laser, so as to ensure that thelaser spot is well focused on each layer, and finally achieve the relief effect.
