CNC Wood Engraving Machine

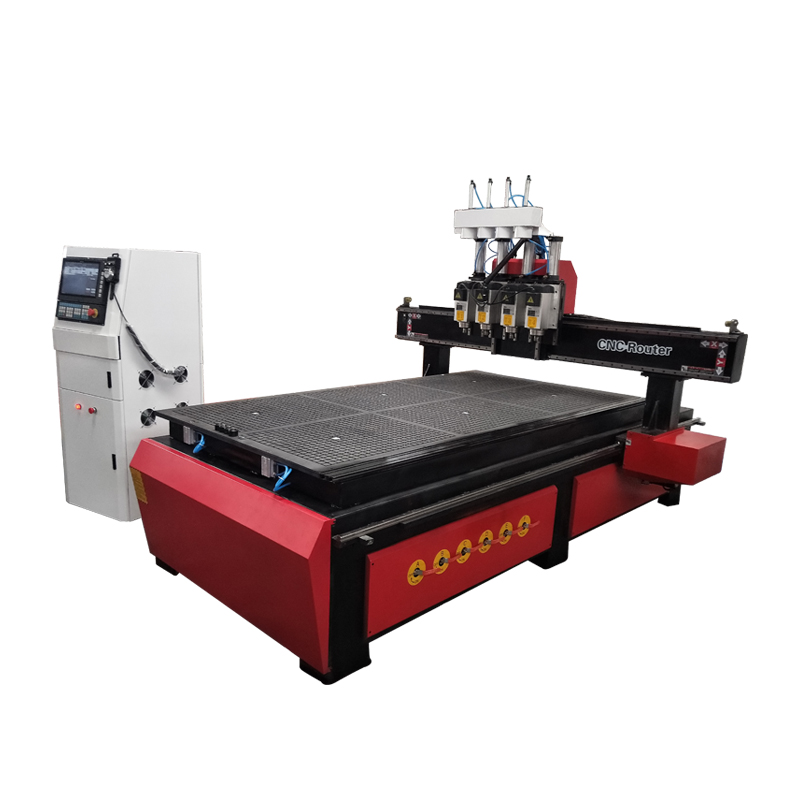

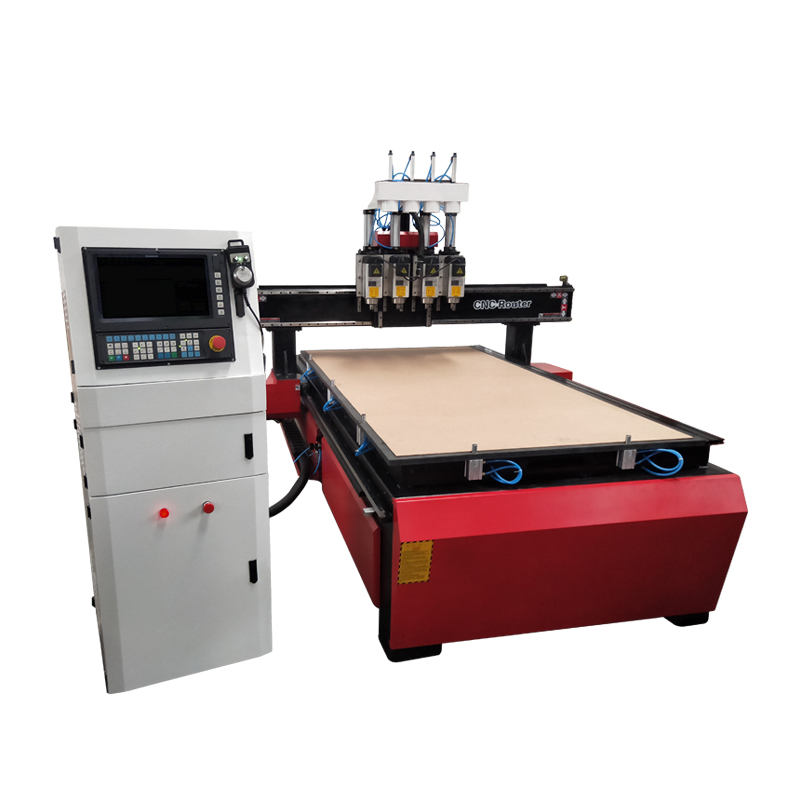

CNC 4 Heads Wood Engraving and Cutting Machine

1300*2500mm 4 Heads New Design High Performance CNC Router.
  • Item NO.:

    Lz-1325-4H
  • Order(MOQ):

    1
  • Market Price:

    $6000-11000/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

CNC 4 Heads Wood Engraving and Cutting MachineCNC 4 Heads Wood Engraving and Cutting Machine


PRODUCT PARAMETER

NO.

Model

Lz-1325-4H

1

Working Area

1300x2500x200mm

2

Packing Size

3680x2330x1880mm

3

Working Table

Vacuum Table

4

Spindle

Middle one 6kw
The 2 on the sides both 4.5kw

5

Cooling System

Water cooling

6

Operatiing system

Shanlong L1000 control syetem

7

Inverter

Fuling

8

Transmission

X,Y axis rack drive,Z axis screw drive

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Servo motor system

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

18000r/min

14

Control Software

Artcam/Type3,other CAD/CAM

15

Max rapid travel rate

22000mm/min

16

Max working speed

15000mm/min

17

Accuracy

±0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ


CNC 4 Heads Wood Engraving and Cutting Machine



PRODUCT FEATURES
1.Durable Structure
Cast iron lathe bed.Aluminum with PVC working table stable running with less vibration.

2.High Performance Air Cooled Spindle
Three axis machine with 4 spindels,which can be worked at the same time or independently.

3.Control System
Intelligent ShanLong control system (optional DSP handle control system off-line),it can continue after break.

4.Strong Gantry Design
The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly.
This quaity engineering and workmanship result in smooth precision cutting.


5.Guide Rail
Taiwan or Germany rail linear bearing, double slippers, bearing heavy, working steadily.

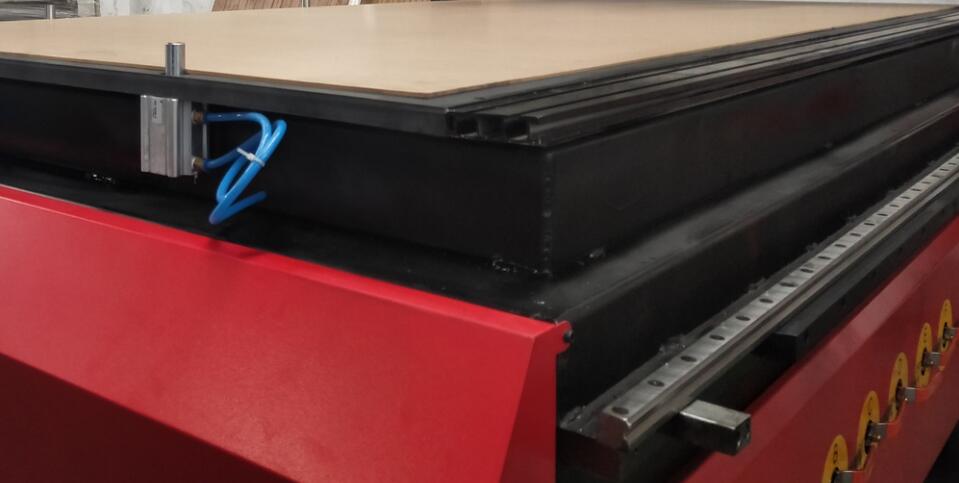

6.Vacuum Table
Vacuum table can absorb the materials,save the plate loading and unloading time.


7.Assist Working Pieces Positioning


8.With Dust Collector and Covers


9.Favorable Compatibility Softwares
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

10.More Helpful Features
With the function of break-point memory ,power failure resuming and automatic home/origin correction function.The working can be resumed after unexpected situations or next day.
Effectively ensure long time working precision.

Working Pause , Speed adjust, Working depth adjust at any time while working.Preview the 2D&3D working result with simulation function.Varible Speed is suitable for various materials and industries.




CNC 4 Heads Wood Engraving and Cutting Machine
