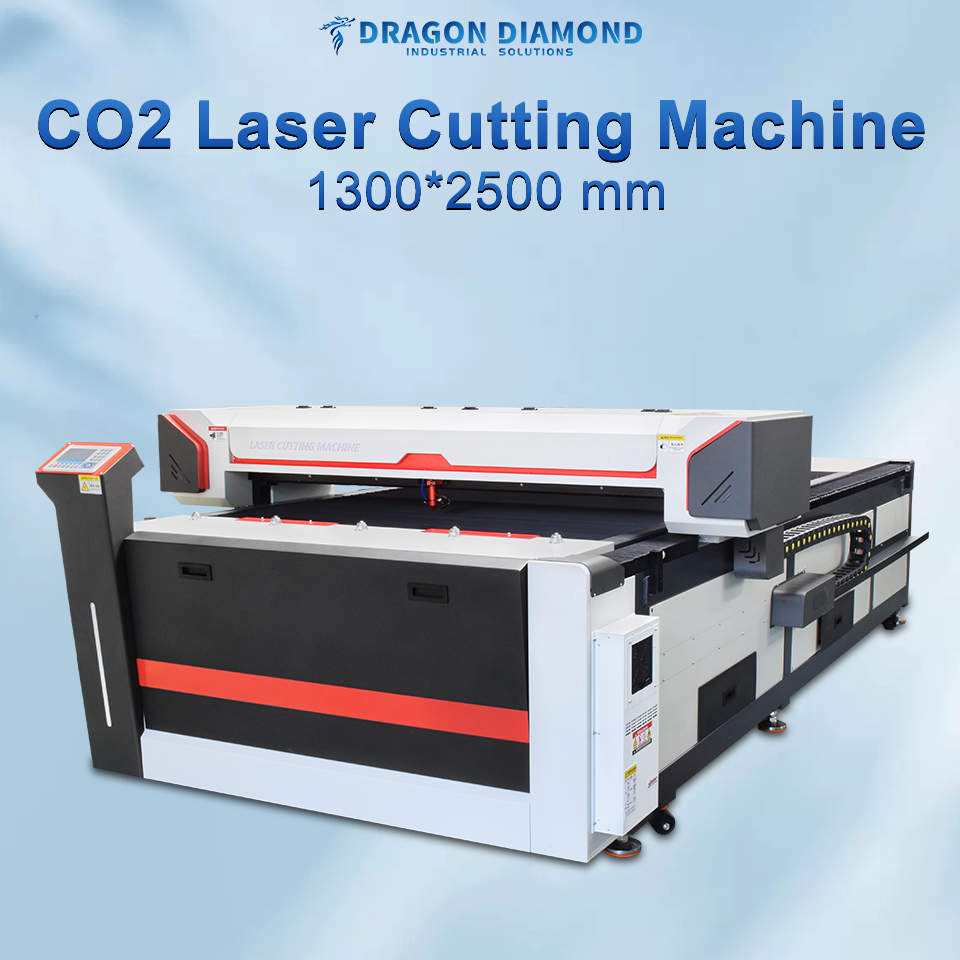

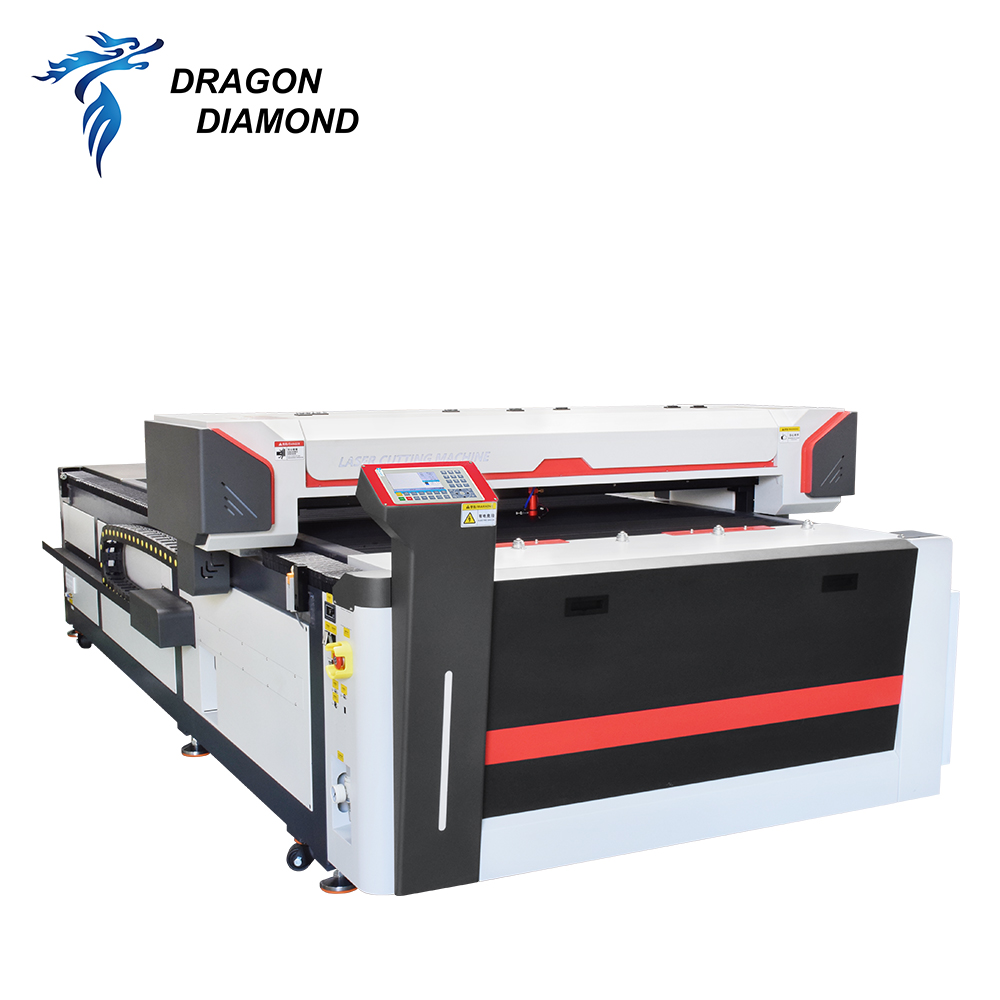

DRAGON DIAMOND CNC
Item NO.:
LZ-1325LProduct Origin:
China
|
NO. |
Model |
LZ-1325L |
|
1 |
Working Area |
1300mm*2500mm (98*51 in) |
|
2 |
Table Type |
Blade Sheet Table |
|
3 |

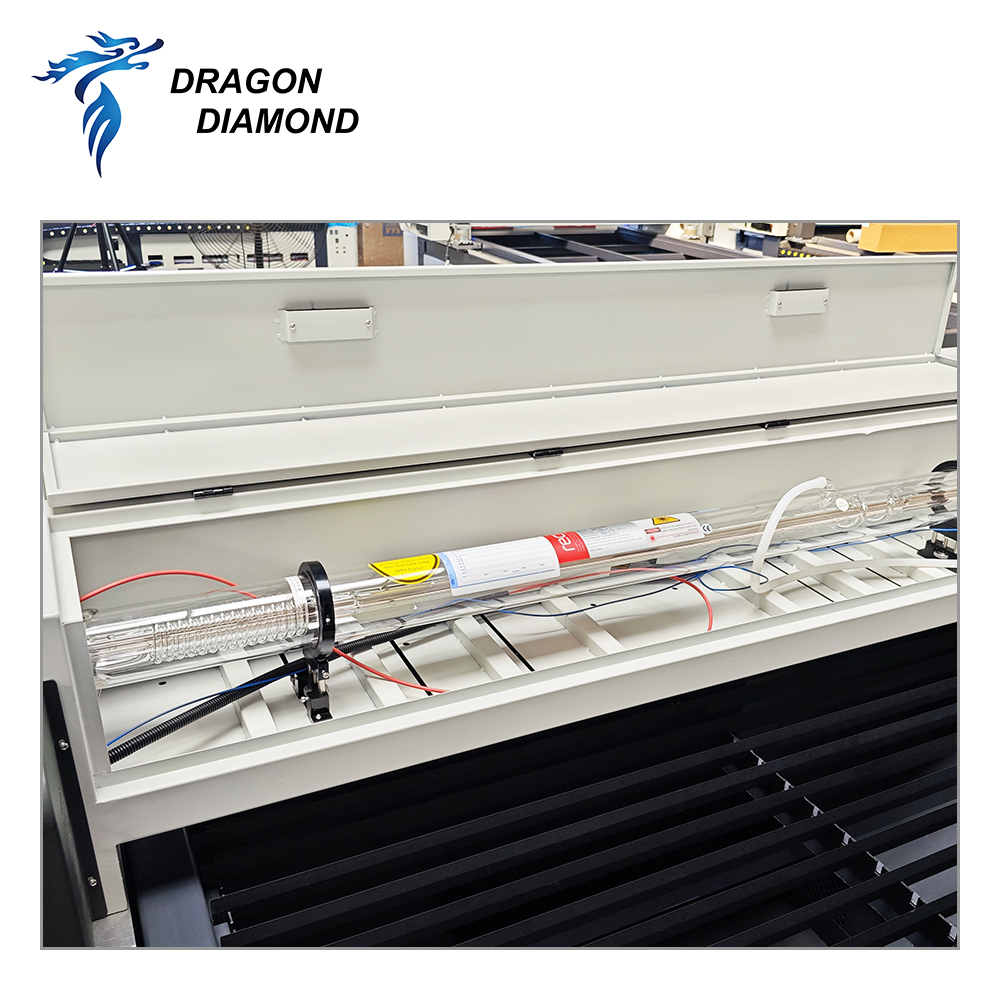

Laser tube type |
CO2 sealed laser tube |
|
4 |
Laser power |
90W-300W |
|
5 |
Focus Lens |
Imported Lens |
|
6 |

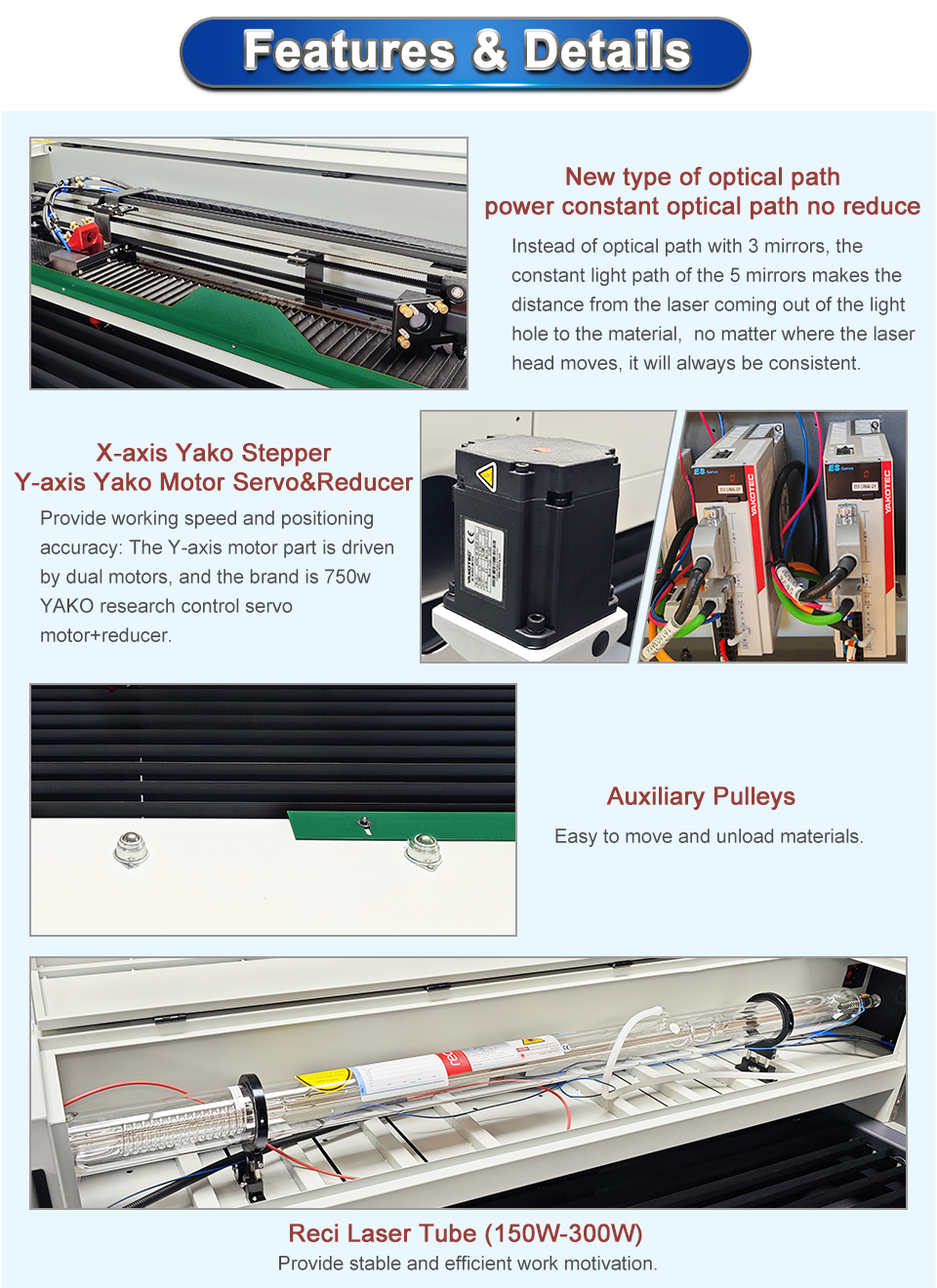

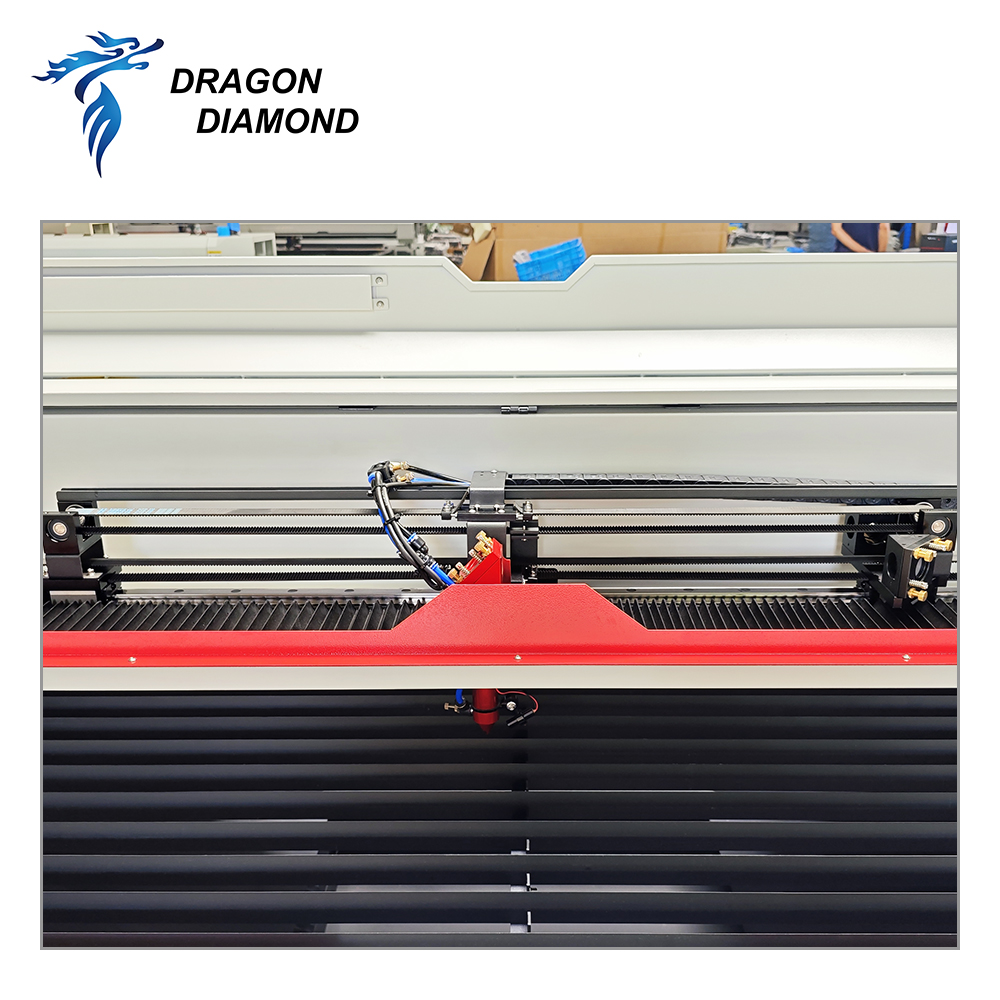

Motor & Driver |
XY axis with stepper Motor
(Optional:X-axis Yako StepperY-axis Yako Motor Servo&Reducer--X Axis Ball screw, constant light path)
|
|
7 |
Position System |
Red Light Pointer |
|
8 |
Controller |

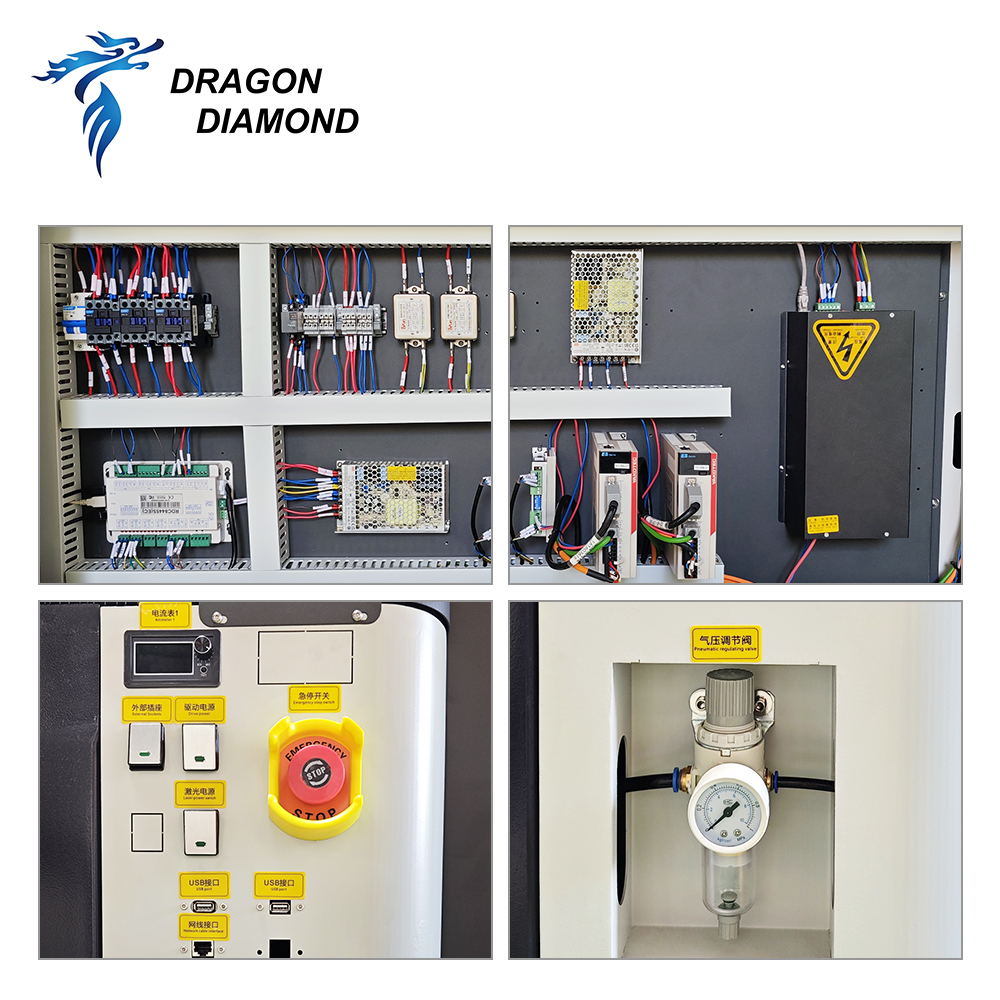

RDC8445, Optional for RDV8445+CCD |
|
9 |

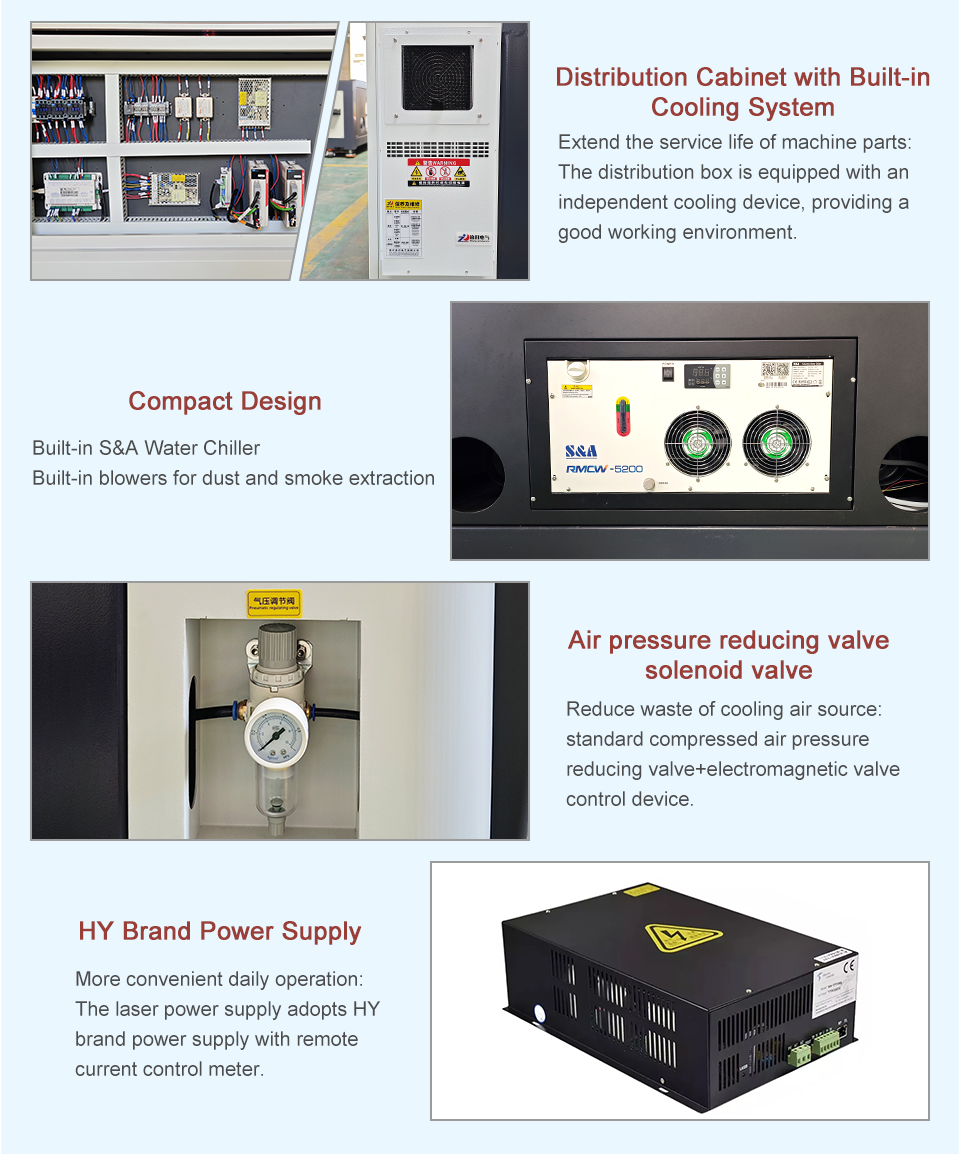

Cooling Function |
Water Chiller CW5200 (Build-In) |
|
10 |
Exhaust system |
Build in Fans |
|
11 |
Software |
RD works |
|
12 |
Power supply |
AC 110/220V 50/60Hz, single phase |
|
13 |
Graphic format supported |
BMP/JPG/DXF/WMF/EMF/PLT |
|
14 |

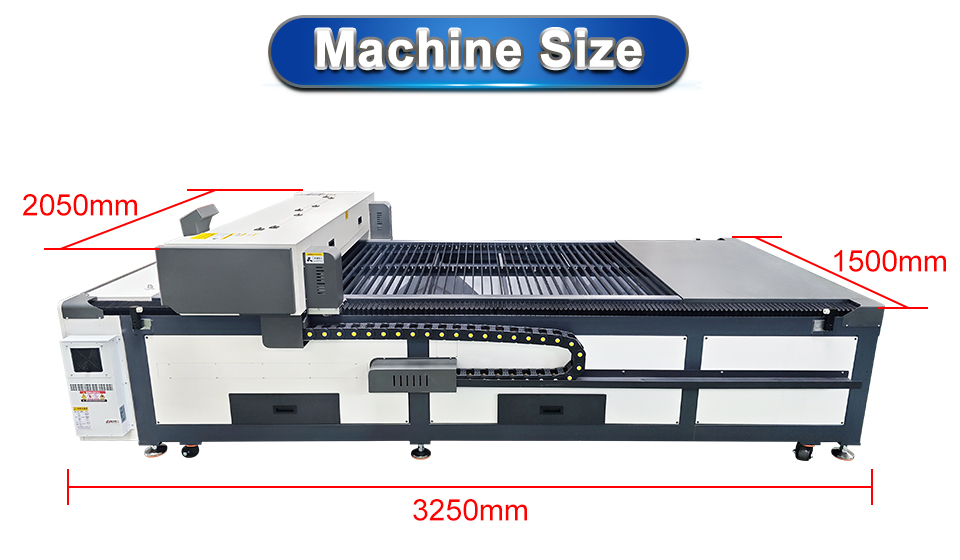

Machine Size |
2050*3250*1300mm |
| 15 |
G.W. |
1350KG |
|
16 |
Package |
Wooden Box 2050*3250*1300mm |
|
17 |
Warranty |
1 year (Laser tube 10 months) |
|
18 |

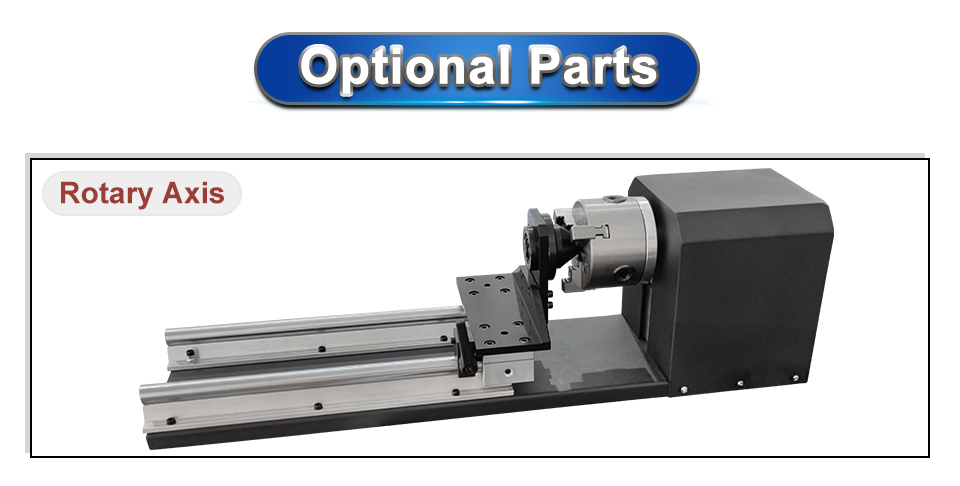

Optional Parts |
UP&DOWN table, Rotation axis, Auto focus |

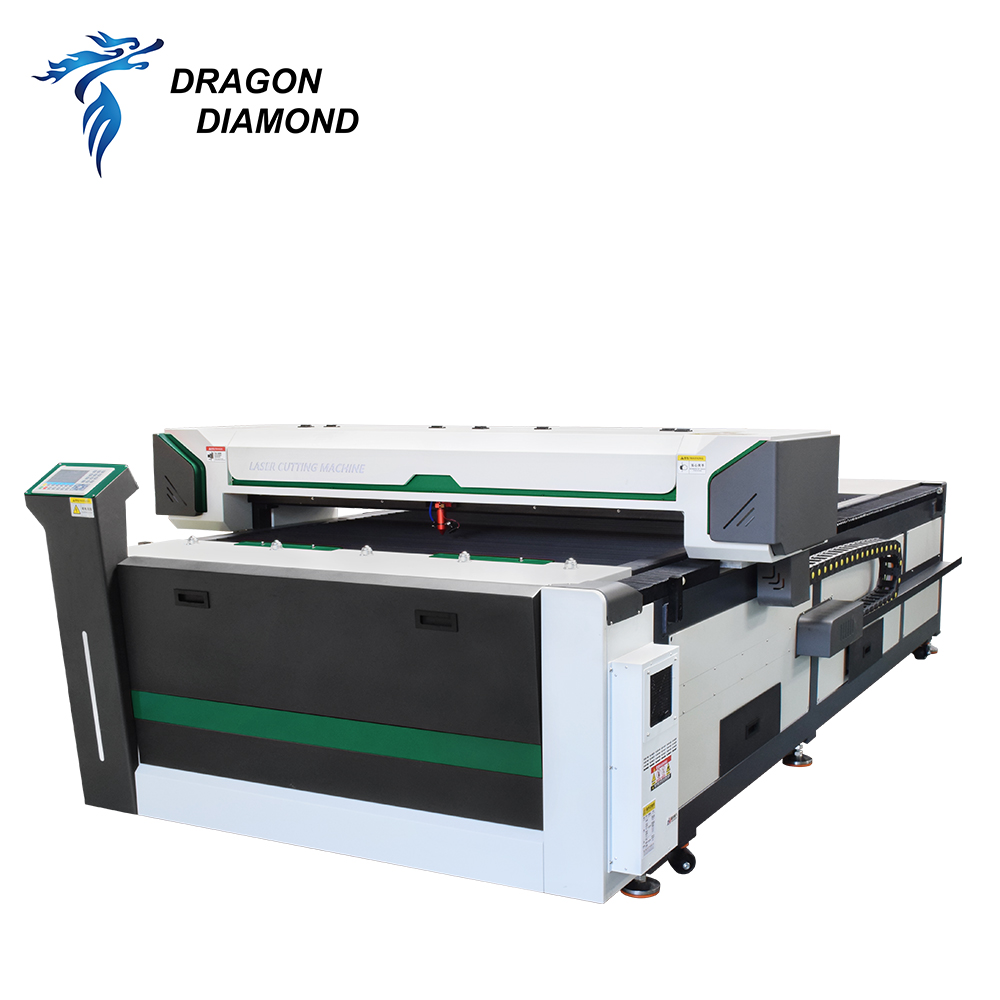

1300mm*2500mmCO2 Laser Cutting Machine 80W 100W 130W 180W 300W
