CNC Wood Engraving Machine

Metal Non Metal Laser Acrylic Cutting Machinery

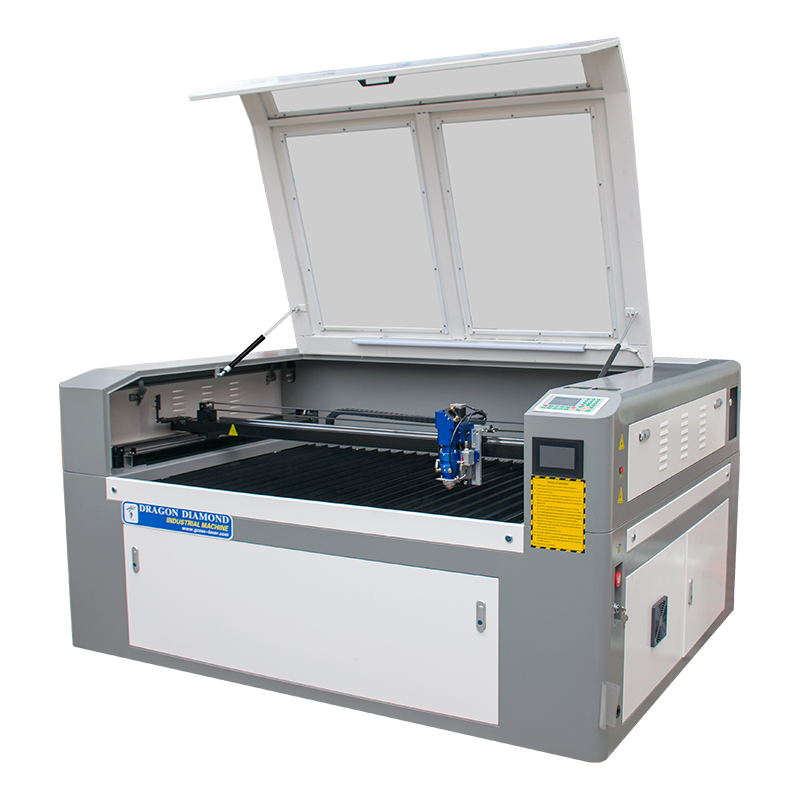

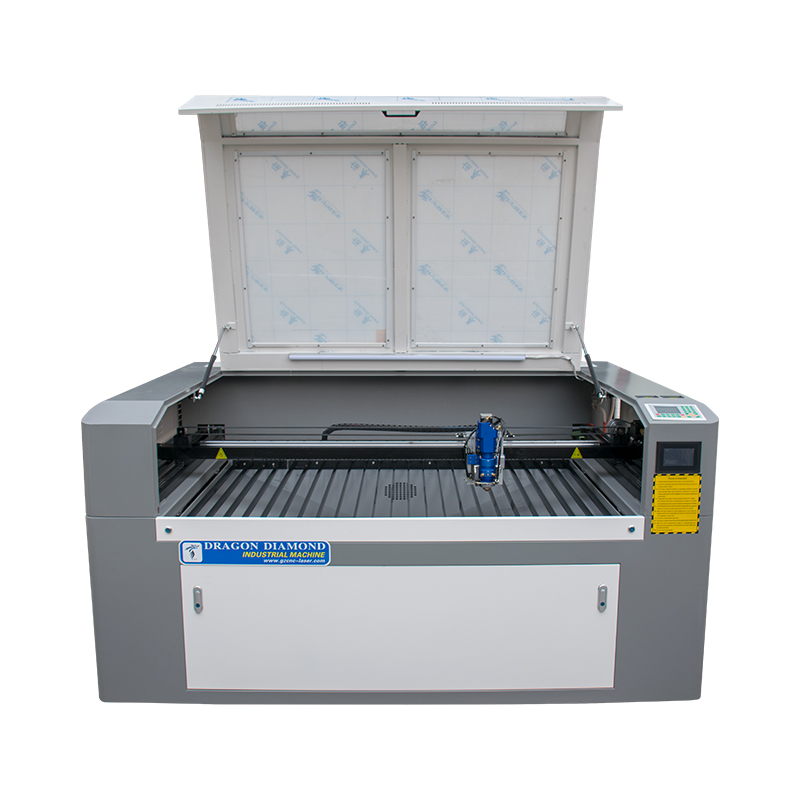

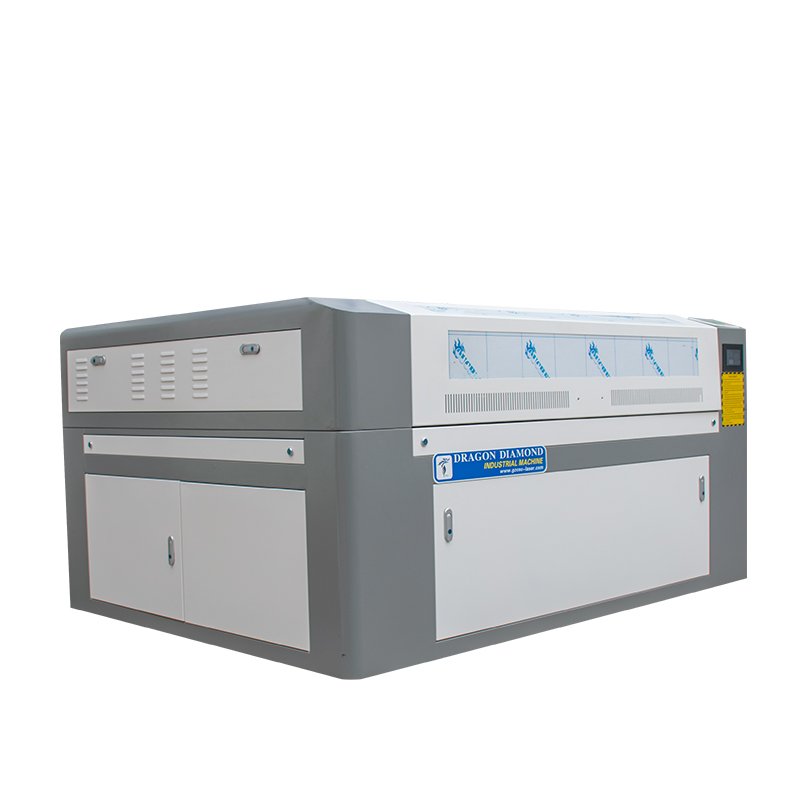

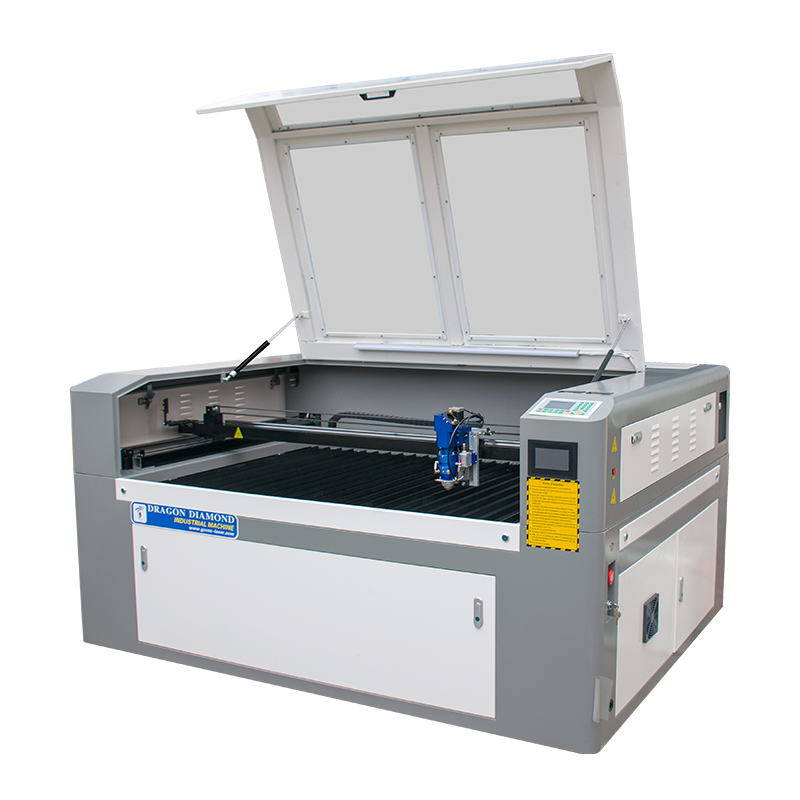

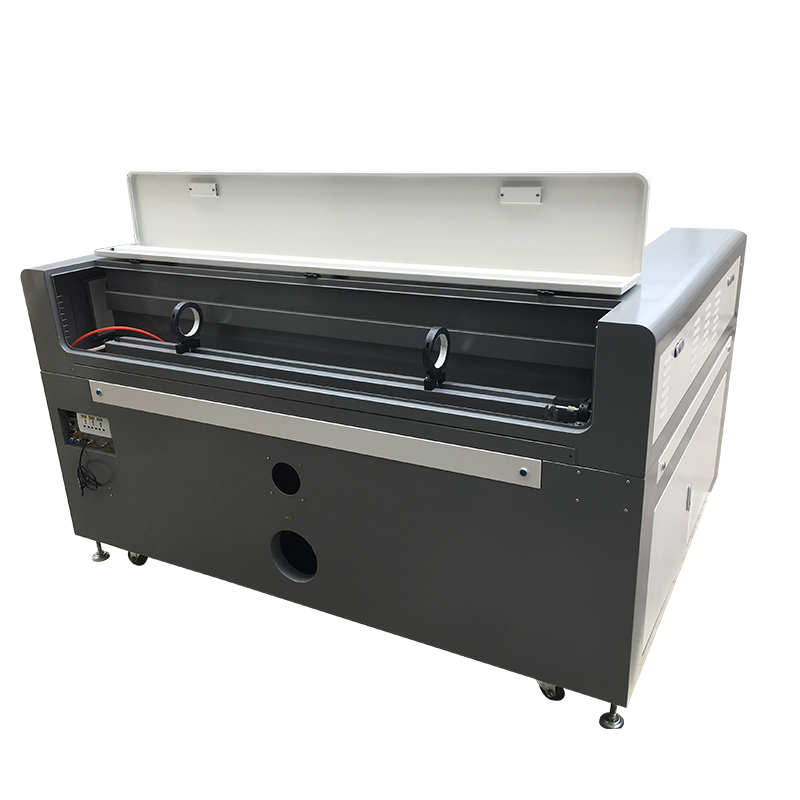

130*90cm Laser Metal and non-metal mixed cutting machine, It can cut stainless steel, carbon steel.
  • Item NO.:

    LZ-1390(Mixed)
  • Order(MOQ):

    1
  • Market Price:

    $6000-8000/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

Metal Non Metal Laser Acrylic Cutting Machinery

Laser Cutting Machine




PRODUCT PARAMETER


NO.

Model

Lz-1390 Mix Laser Cutting

1

Working Area

1300x900mm

2

Packing Size

2000x1650x1450mm

3

Working Table

Blade Sheet Table

4

Laser tube type

CO2 sealed laser tube

5

Cooling System

Water Chiller CW5200

6

Control System

RUIDA6332M

7

Software
Metal Cut

8

Software supported
CorelDraw,Photoshop,AutoCAD,TAJIMA

9

File output mode
2.0 USB interface

10

Laser power
RECI 150W

11

Motor

Stepper motor

12

Resolution
1,000--10,000 dpi

13

Machine Power
<3,000W

14

Minimum Character Size
English:1mm ; Arabic numbers:1mm

15

Engraving speed

0-60000mm/min

16

Cutting speed

0-30000mm/min

17

Reposition Accuracy

0.01mm

18

Graphic format supported

BMP, PLT, DST, DXF, AI

19

Voltage

AC220V/380V,50HZ/60HZ






PRODUCT DESCRIPTION

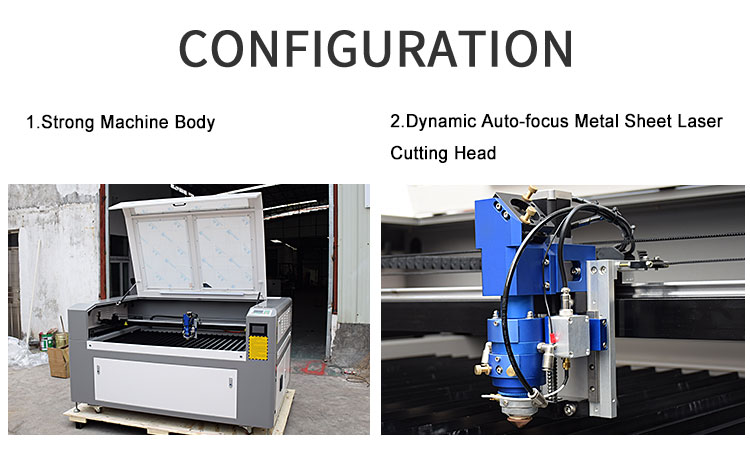

1.Strong Machine Body

Adopt strong machine body, heavy loading,not easy to get distort.


2.Dynamic Auto-focus Metal Sheet Laser Cutting Head

When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.Realize the accuracy of cutting effect.

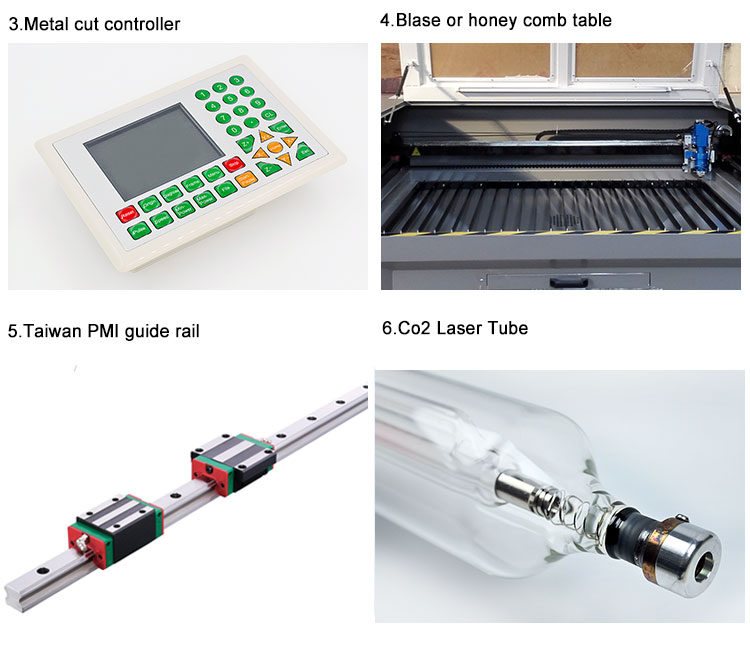

3.Advanced Laser Controller RUIDA 6332M

Supported both metal and non-metal cutting parameters. Support U disk, USB communication.


4.High Precision Control Panel

Meets the need of diversified laser procession.Heavy loading suitable for cutting heavy and hard working pieces.


5.High Precision Linear Guide rail And Professional Optional System

Dust-proof and auto lubricate.High Speed with lower noise Volume. High accuracy and long life span.


6.Co2 Laser Tube

RECI laser tube.Best quality and 10,000 hours long life span.

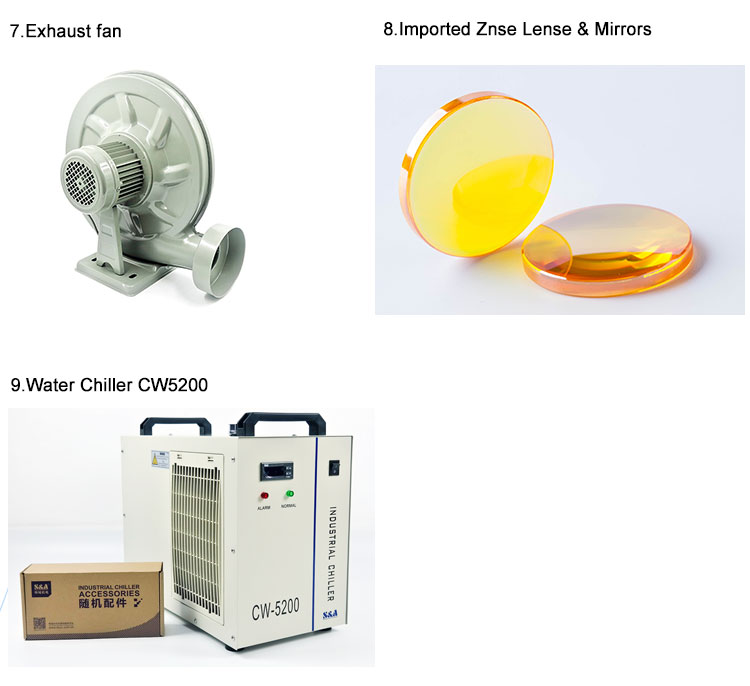

7.Cutting Powder and Smell Exhausting System

Absorbing the cutting powder and dust out of theroom. No dust, No smell, Air proof. Make cutting process environmental.


8.Imported Znse Lense & Mirrors

Equipped with luxury consumables. Imported reflect mirrors and focus lens.Make high efficiency and steady.


9.Water Chiller CW5200

To cooling laser tube and longer the lifetime of laser tube.Supporting upgradation to CW6000.
