CNC Wood Engraving Machine

Woodworking Engraving Cutting Machinery

2000*3000mm Large Working Area CNC Machine For Furniture Industry.


  • Item NO.:

    Lz-2030A
  • Market Price:

    $4700-5700/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

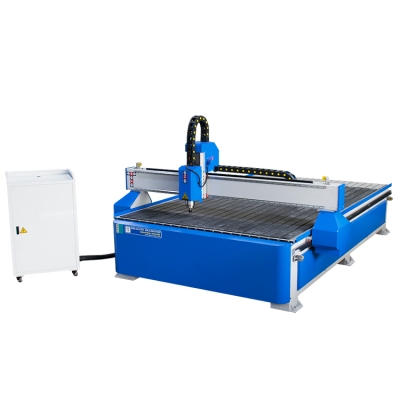

Large Cnc Router Furniture Making Machine Wood Engraving Cutting Machinery

Large Cnc Router


PRODUCT PARAMETER

NO.

Model

Lz-2030A

1

Working area

2000x3000x200mm

2

Packing Size

3680x2830x1880mm

3

Working table

T-Slot Aluminum Table

4

Spindle

3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

transmission

X,Y axis rack drive,Z axis screw drive

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000r/min

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

Working Speed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ


Large Cnc Router Machinery Part


PRODUCT DESCRIPTION

1.Stronger Machine Frame Design

Welded steel T type structure as a whole, six-legged heavy-duty body,large bearing capacity with vibration temper aging treatment ensures no deformation for long time, avoid broken knife, more stable, durable.


2.Guide Rail

Imported Hiwin, Taiwan linear squareguide rail with ball bearing slide block-which ensure high weight capacity,high.precision, smooth and steady running. Adopt iported precision ball screws, tools feeded with more accuracy.


3.XYZ axis Transmission Way

Rack gear transmission for X and Y axis,higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable.


4.Spindle Motor and Inverter

Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torquematched with high-performance frequency inverter.


5.Y axis Transmission Mode

The Y axis transmission mode for stepping two-way drive, more efficient, simplified carpentry and maintenance of the processing of the maintenance work.


6.NC Studio

More functions, more efficient operating system


7.Motor and Driver

China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min.


CNC Router Application Industry
