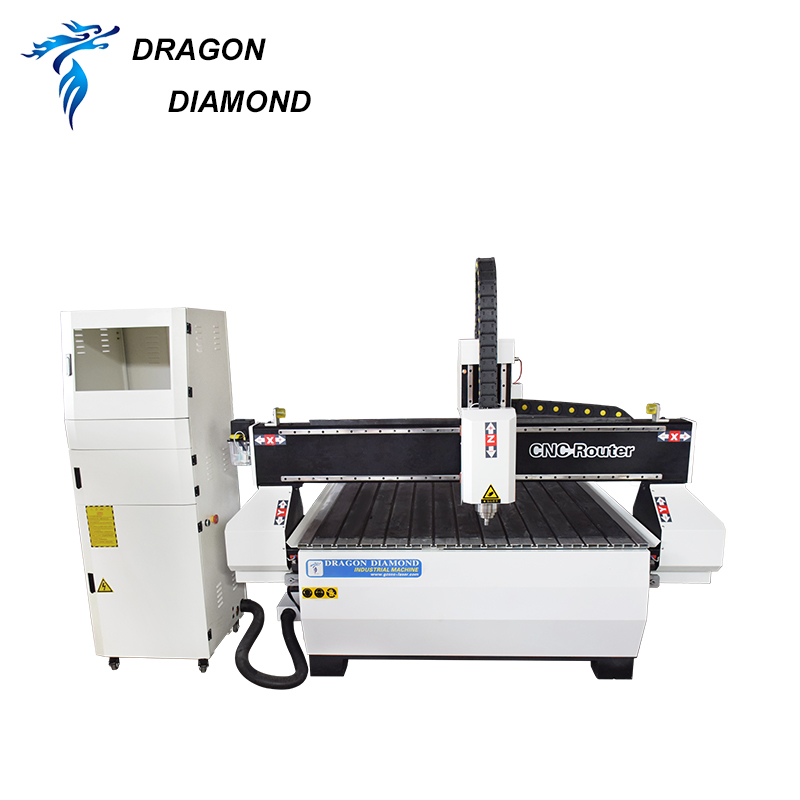

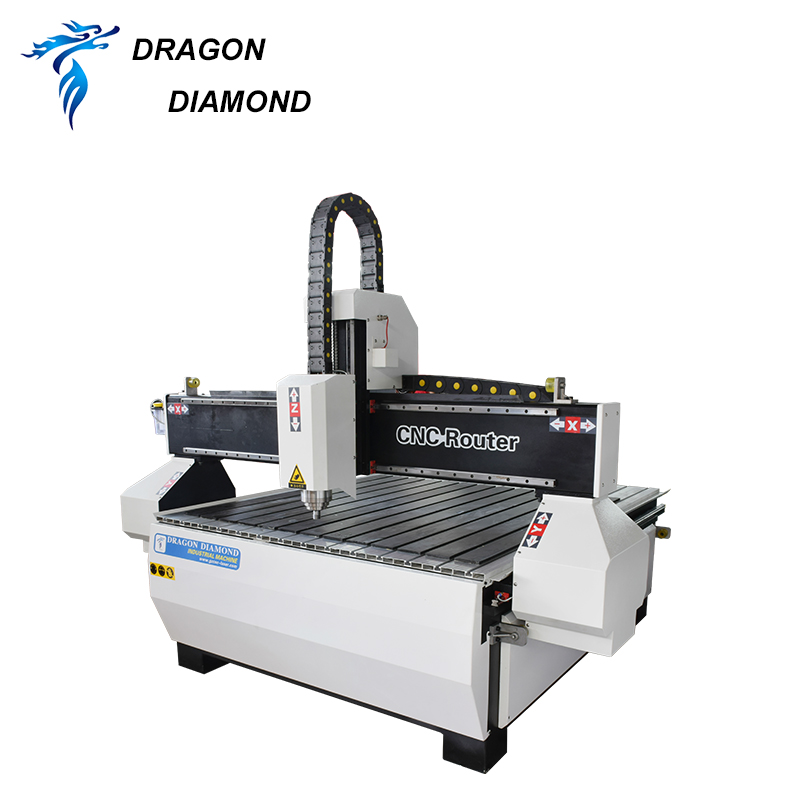

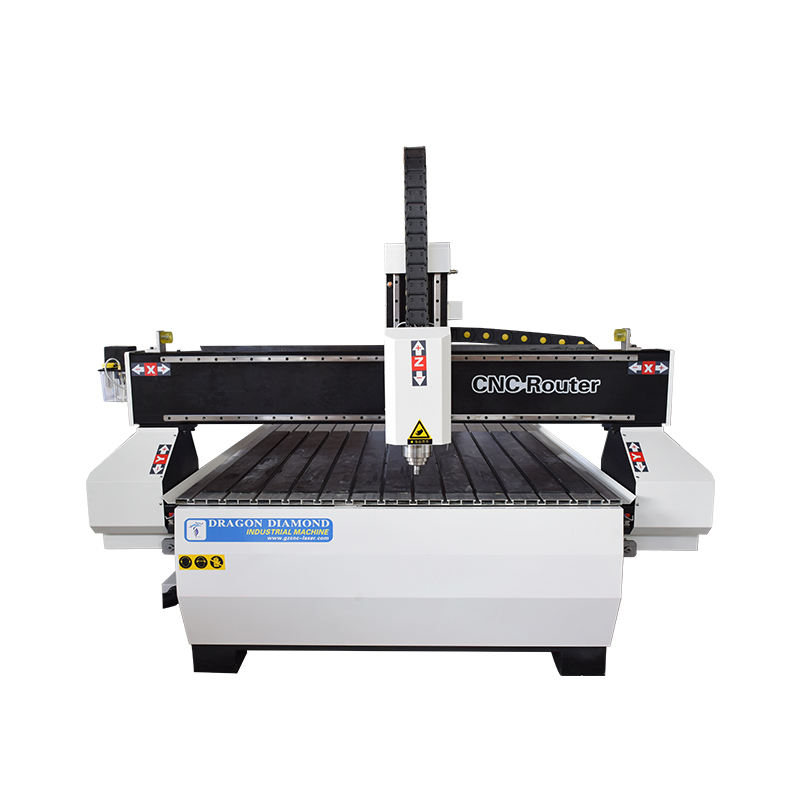

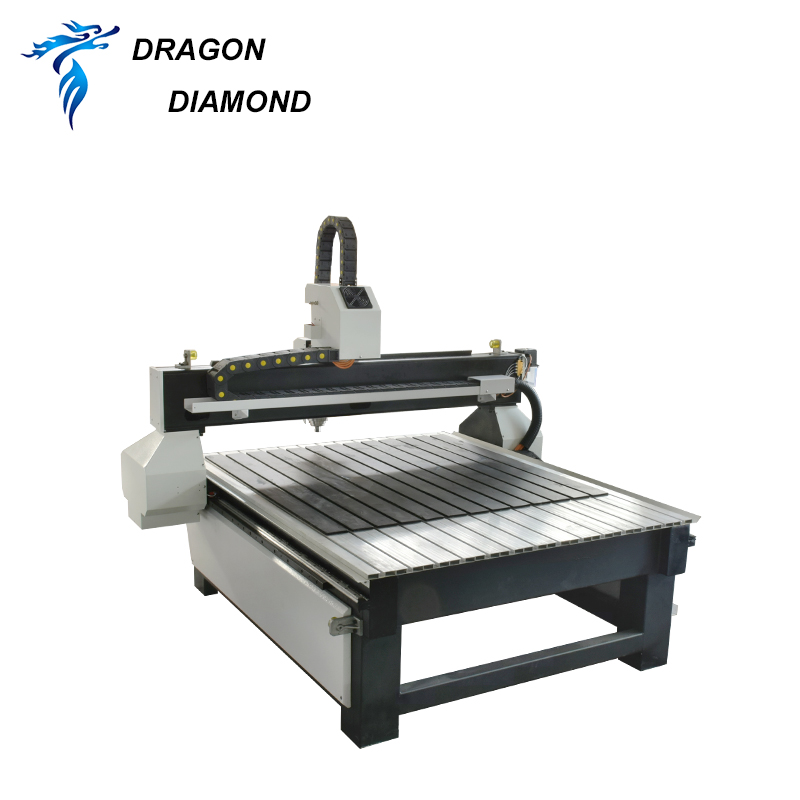

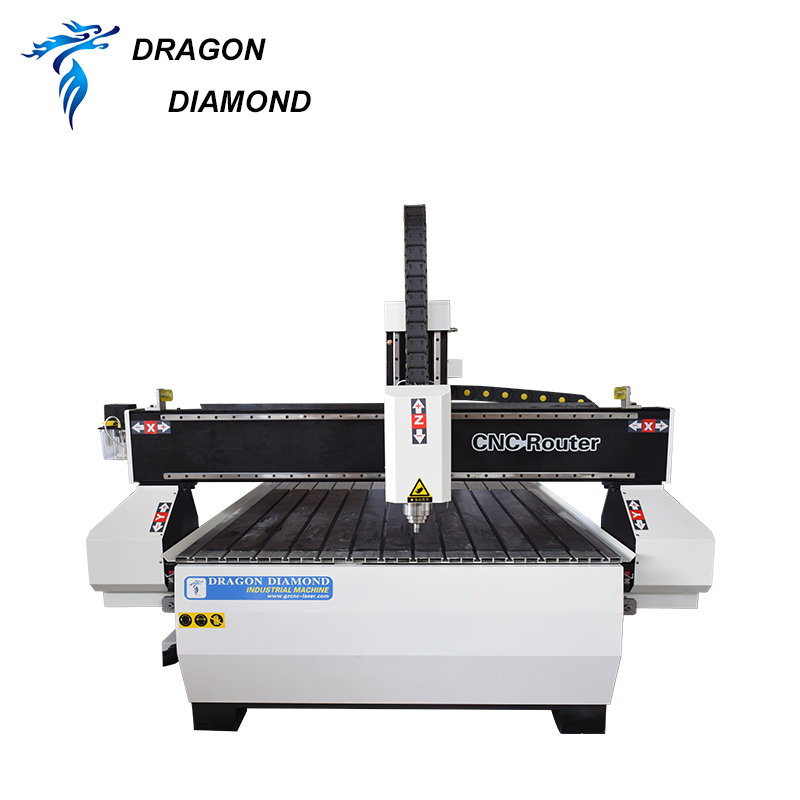

CNC Wood Engraving Machine

CNC Door Wood Engraving Machine with Vacuum Cutting Table

130*130cm Wood Engraving Machine CNC Router With Vacuum Table For SHEET METAL PROCESSING.

  • Item NO.:

    Lz-1313B
  • Market Price:

    $4060-5060/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

CNC Door Wood Engraving Machine with Vacuum Cutting Table

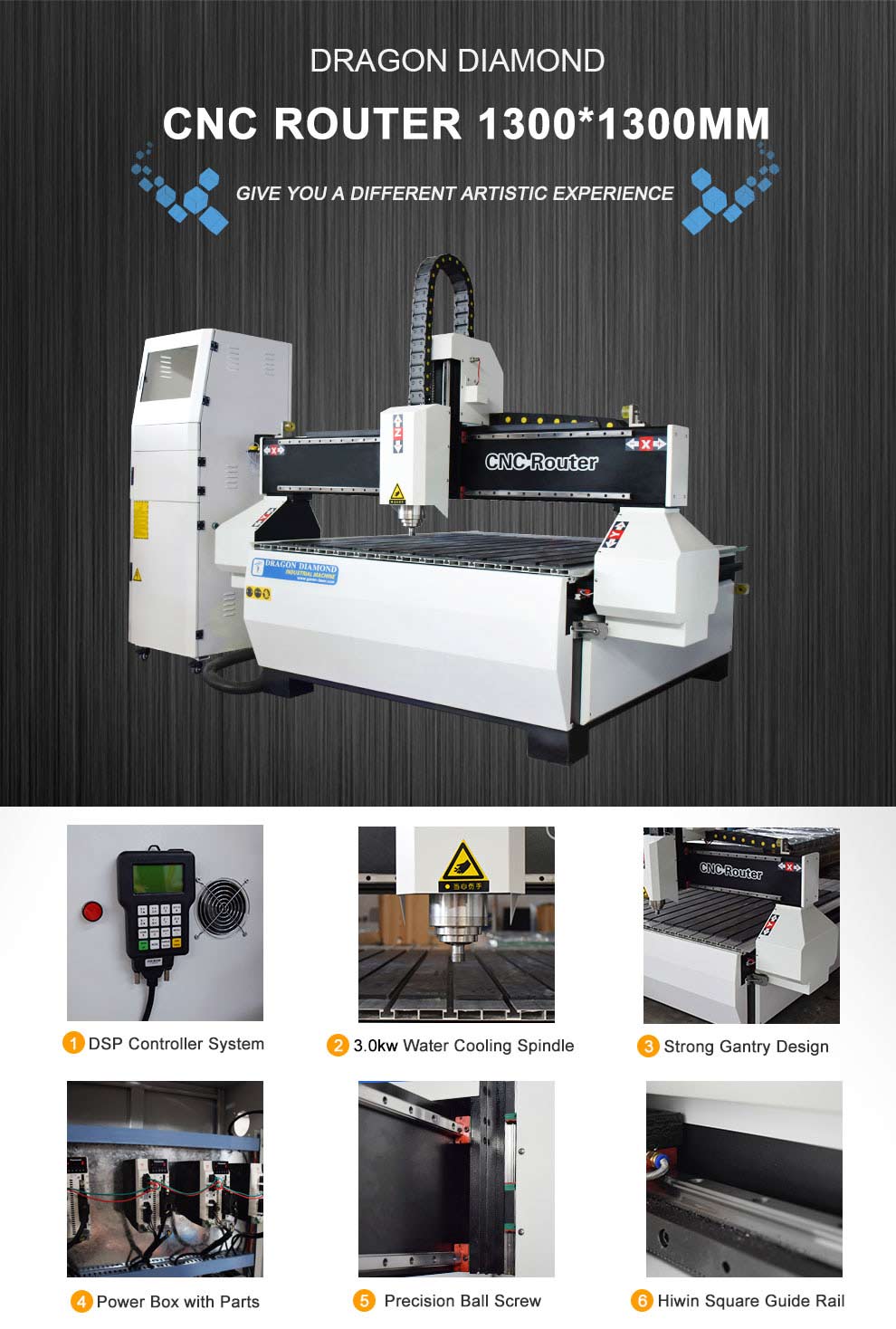

1313 CNC Router For Metal



PRODUCT PARAMETER

NO.

Model

Lz-1313B

1

Working Area

1300x1300x200mm

2

Packing Size

3200x2200x1800mm

3

Working Table

Vacuum Table

4

Spindle

3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

Transmission

X,Y axis rack drive,Z axis screw drive

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

Working Speed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ





CNC Woodworking machineCNC wood engraving machineCNC Machine


PRODUCT DESCRIPTION

1.Single Head with Two Spindles

Double heads with two spindles is optional.Can be finished multiple process.


2.Vacuum table

Vacuum adsorption system with 5.5kw Water cycle vacuum pump,vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.

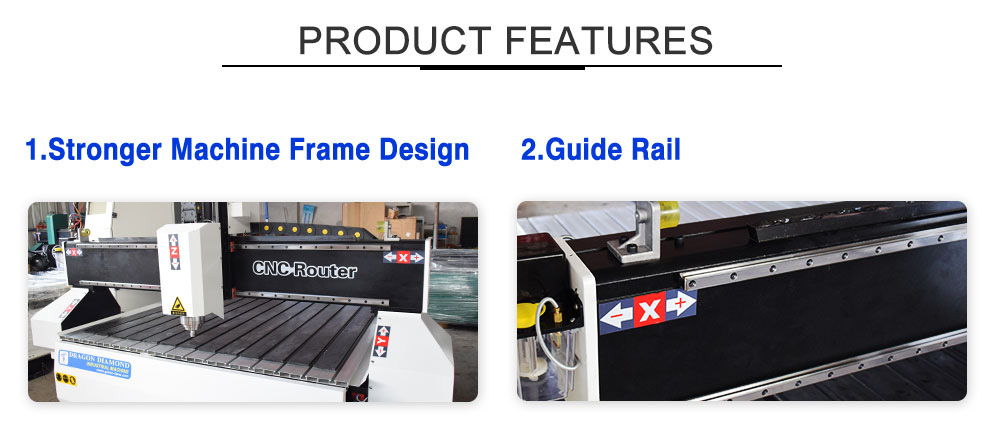

3.Stronger machine frame design

Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for long time, avoid broken knife, more stable,durable.

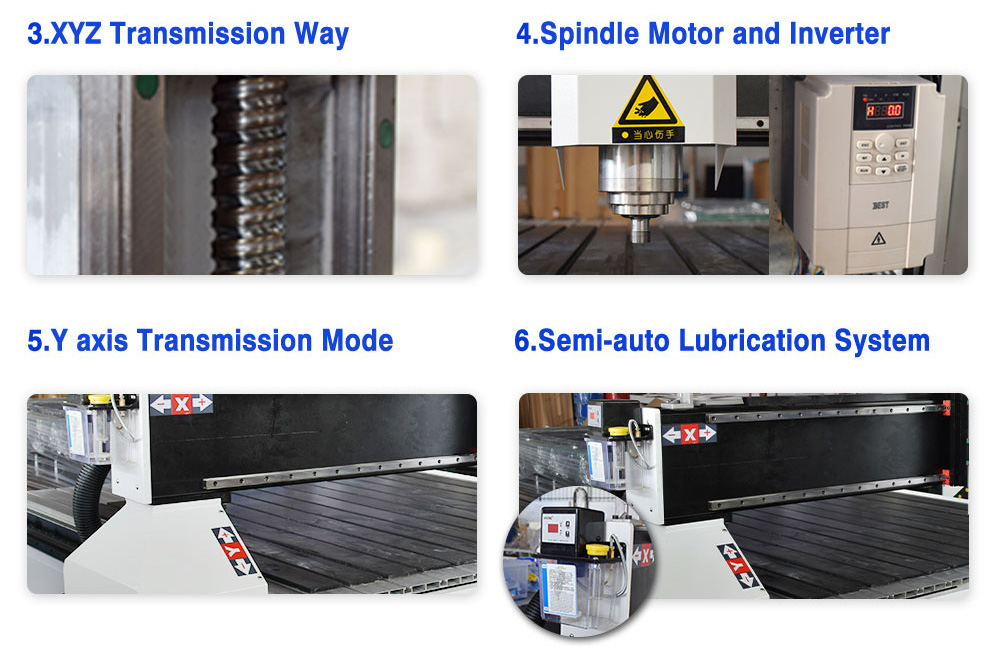

4.Transmission System

Imported Hiwin, Taiwan Linear square guide rail with Racks type transmission for X and Y axis, higher running speed and efficiency ,saving cost z- axis with precision ball screw, high precision and more durable.


5.Gantry

The Y axis transmission mode for stepping two-way drive, more eficient, simplified carpentry and maintenance of the processing of the maintenance work.

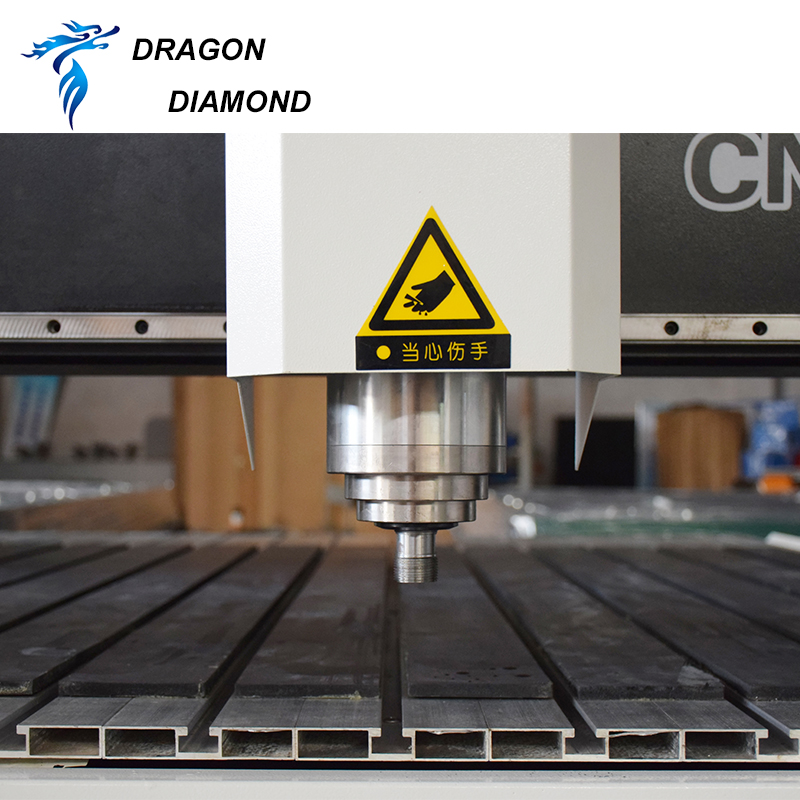

6.Spindle and Inverter

Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque,matched with high-performance frequency inverter.

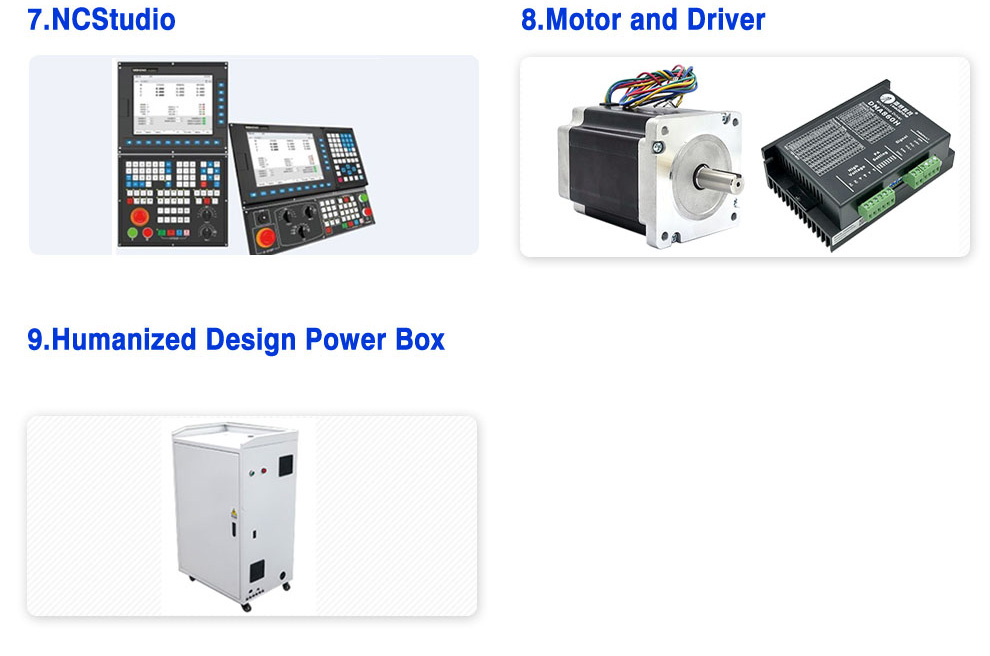

7.Stepper Motor and Driver

China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min.


8.Dust Collector

The dust collection system can collect the saw dust and chips while working to keep a cleaning working environment. It dose good for the human health and equipment.


9.NC Studio Control System and Software Compatibility

Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to improper size.



CNC Machinery sample


APPLICATION INDUSTRY

1.CRAFT INDUSTRY
Wood-animal, Wood crafts, Gift box, Jewelry box, Family furnishings.


2. FURNITURE
Wooden door cabinet office and wood furniture, Table chairs, Composite gates, Dining table


3. SHEET METAL PROCESSING
Insulating parts, Plastic chemical components, EVA (ethylene), MDF


4. ADVERTISING INDUSTRY
Advertising signs, Logo making, Acrylic carving,Crystal word making, Company logo
