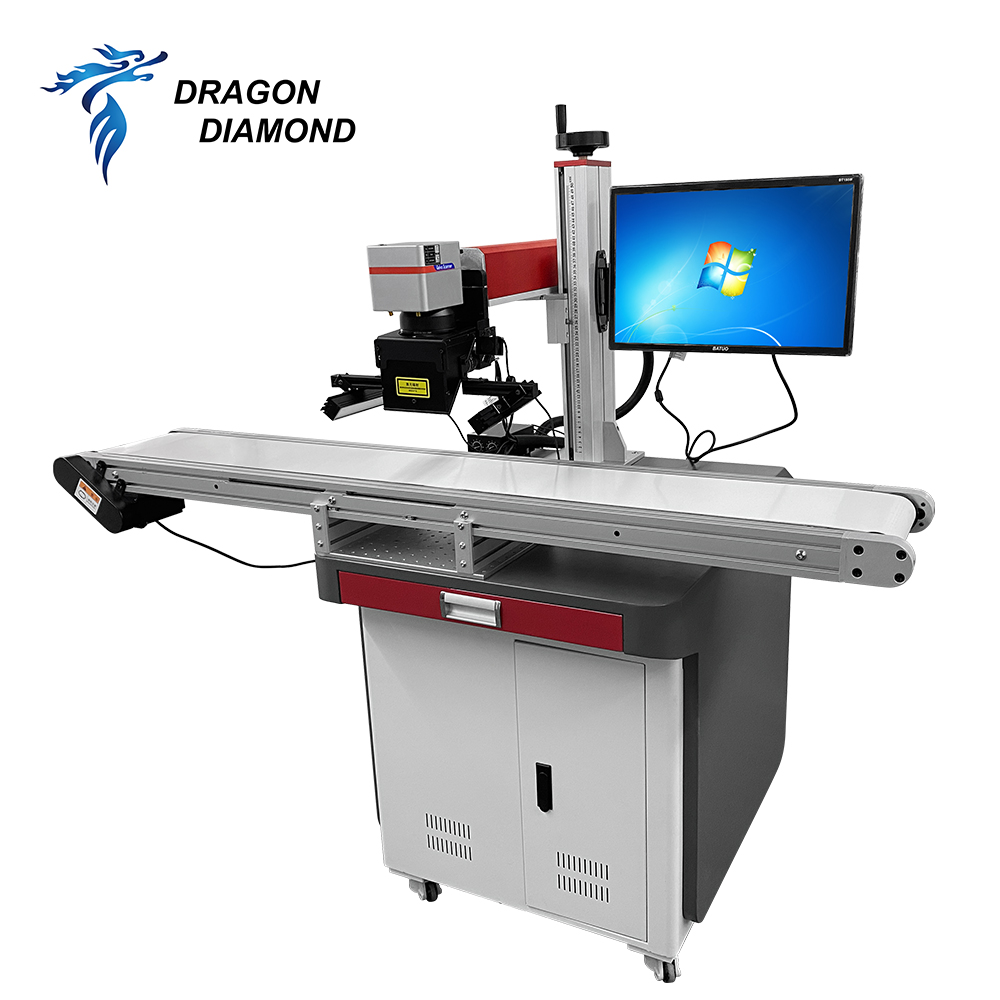

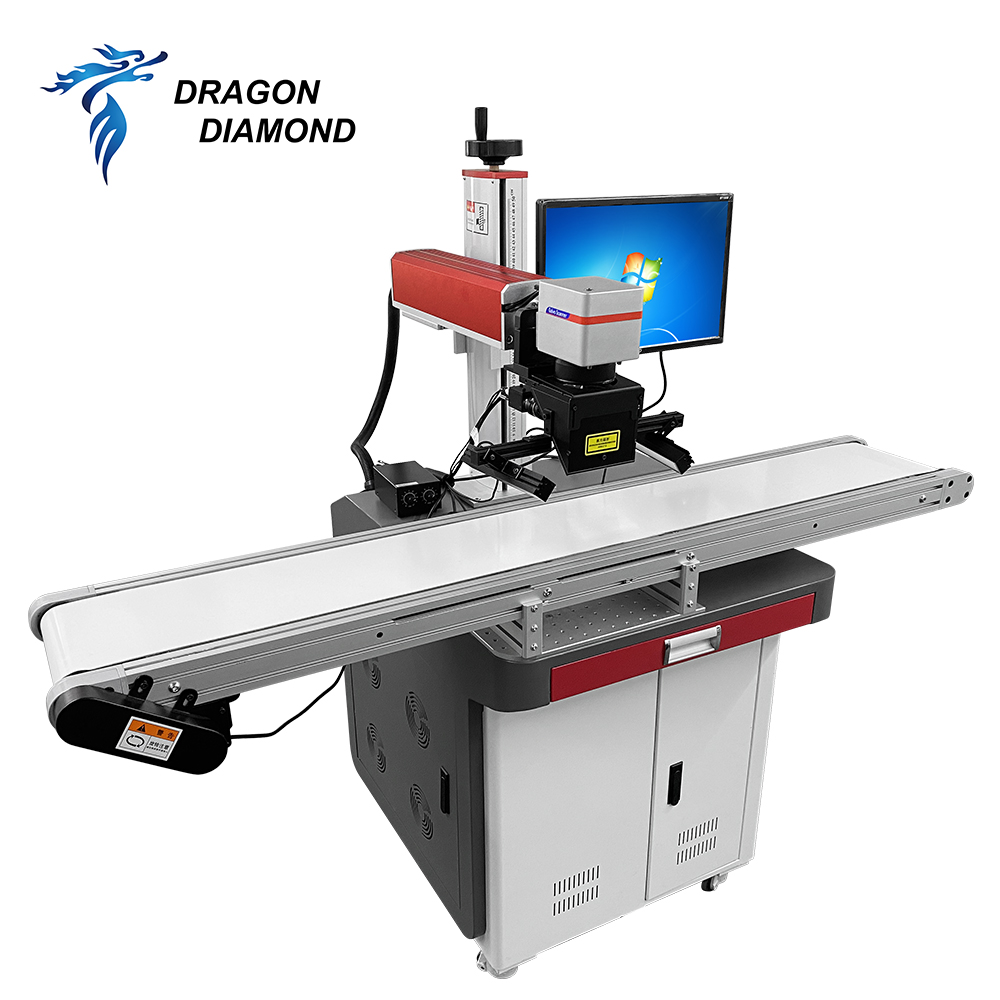

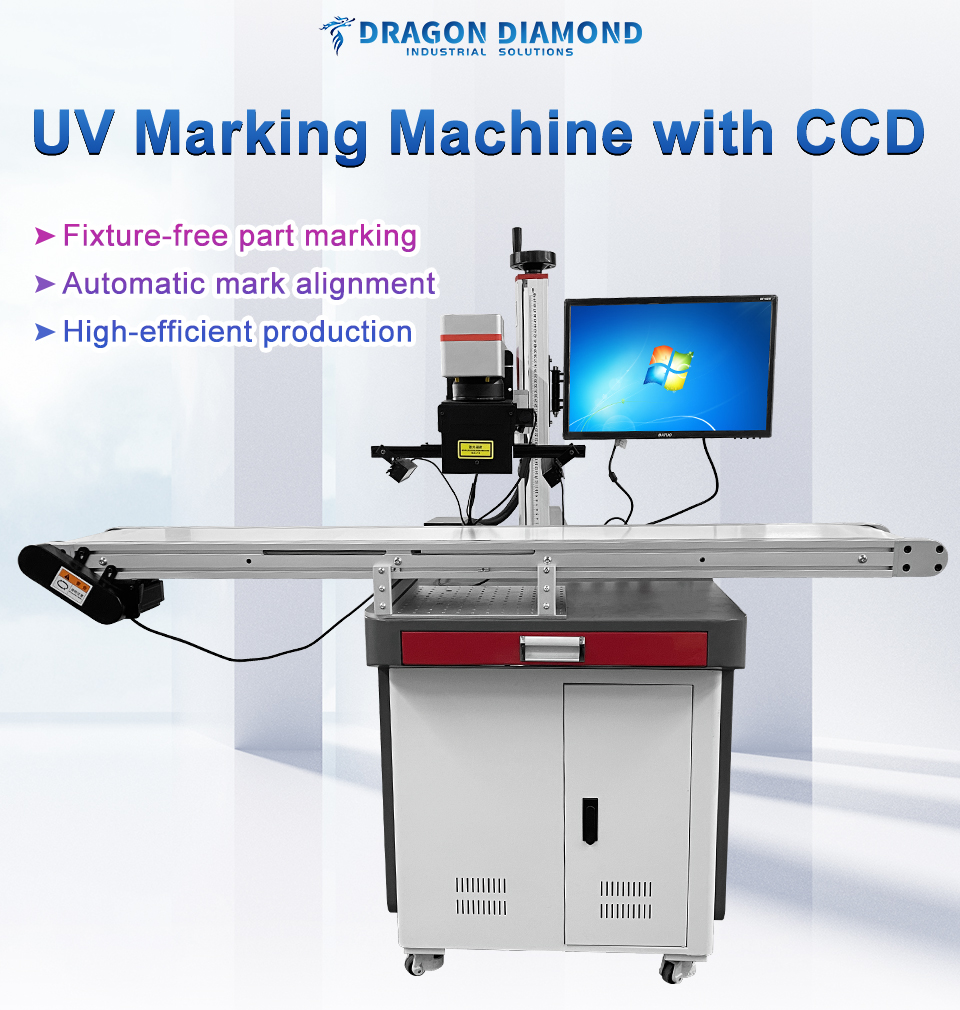

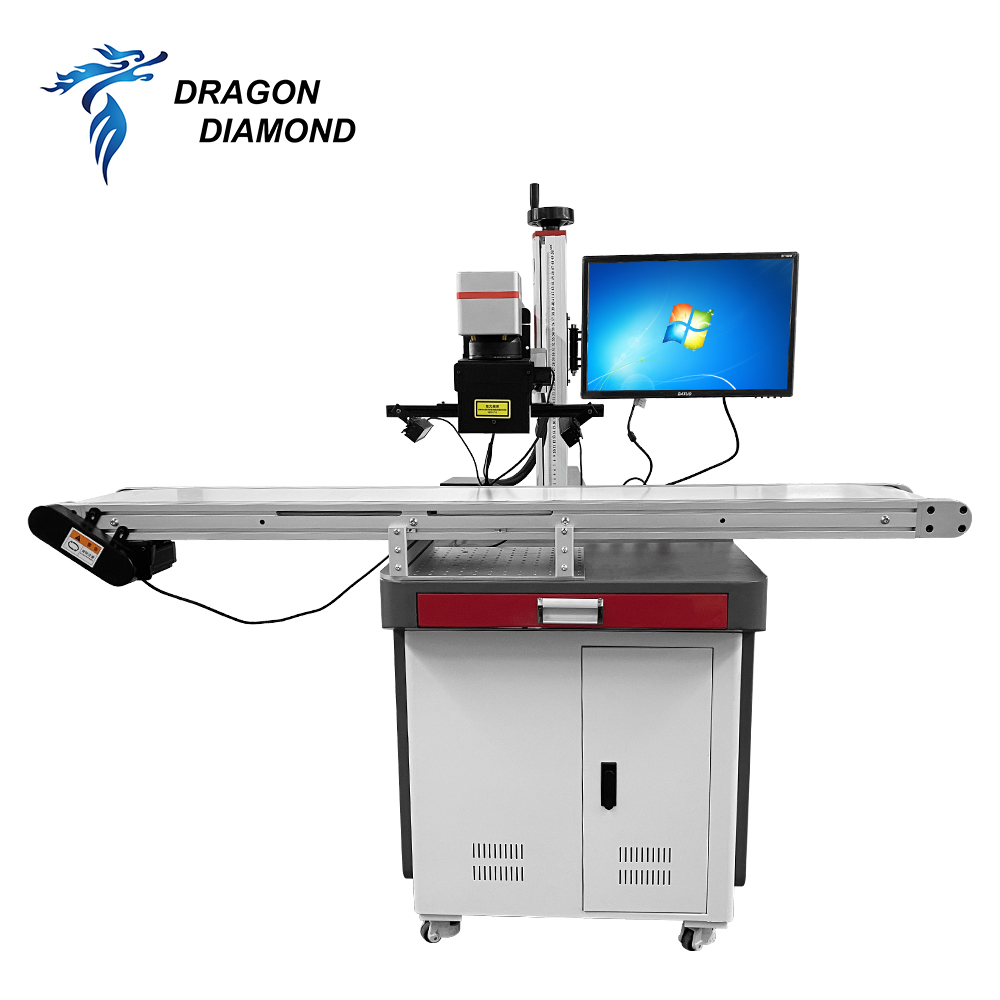

UV Laser Marking Machine ccd
UV Laser Marking Machine ccd UV Laser Marking Machine ccd UV Laser Marking Machine ccd UV Laser Marking Machine ccd UV Laser Marking Machine ccd UV Laser Marking Machine ccd UV Laser Marking Machine ccd

UV Laser Marking Machine with CCD 3w 5w 10w 15w Engraving Cutting Machine


  • Item NO.:

    LZ-3/5/10/15UM +CCD

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Guangzhou
INQUIRE now
  • Product Detail

UV Laser Marking Machine with CCD 3w 5w 10w 15w Engraving Cutting Machine

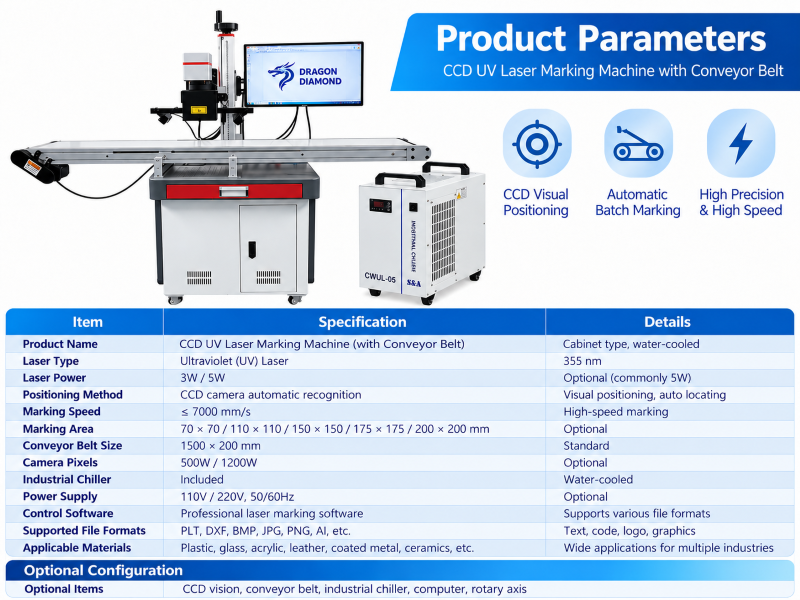

Main technical parameters

Model

Seal-355-3E

Seal-355-5E

Seal-355-10S

Seal-355-15S

Center wavelength

355nm

 Average power

 > 3W@30kHz

 > 5W@40kHz

 > 10W@60kHz

 > 15W@60kHz

 Pulse width

 <18ns@30kHz

 <18ns@40kHz

 < 15ns@60kHz

 < 15ns@60kHz

 Frequency range

 20kHz-150kHz

 40kHz-300kHz

 Beam quality

    M²≤ 1.2

 Spot roundness

    > 90%

 Beam divergence angle

    ≤ 2mrad

 Spot diameter

  0.55±0.15mm

  0.45±0.15mm

 Average power stability

   RMS ≤ 3%@30kHz

RMS ≤ 3%@40kHz

RMS ≤ 3%@80kHz

RMS ≤ 3%@80kHz

 Cooling method

 Water-cooling

 Average power

    < 180W
