CNC Wood Engraving Machine

CNC Stone Metal Carving Machine with Water Sink

130*250cm CNC Router With Water Sink Could Apply For Stone And Metal Processing.
  • Item NO.:

    Lz-1325-Water Sink
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

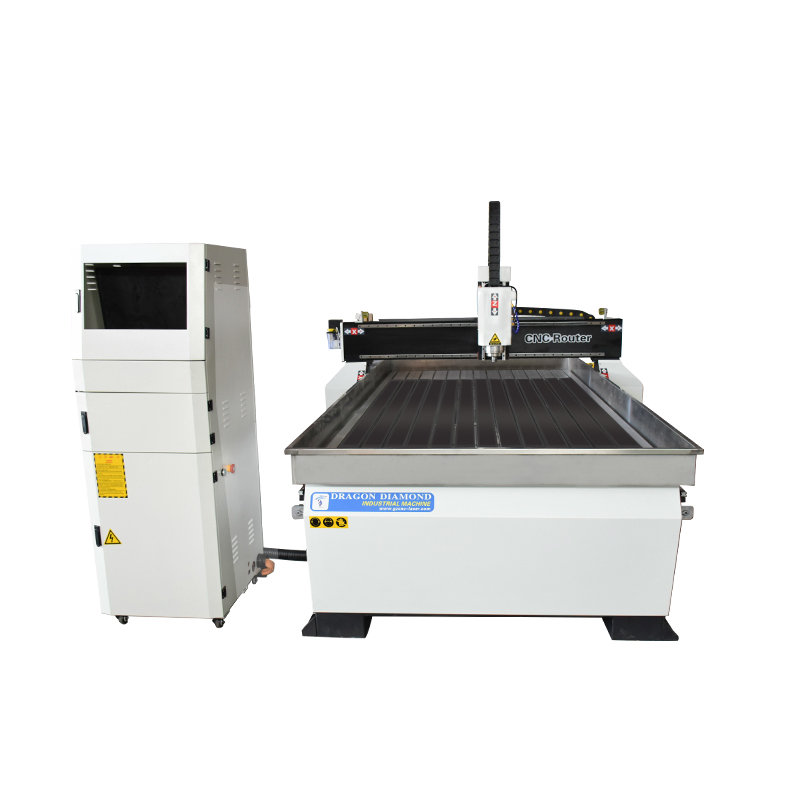

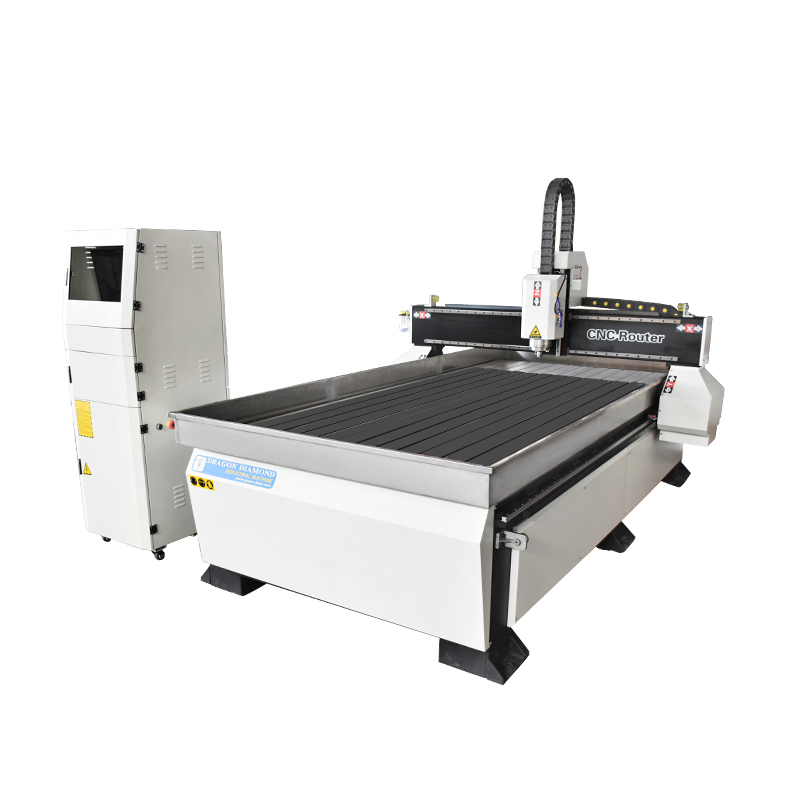

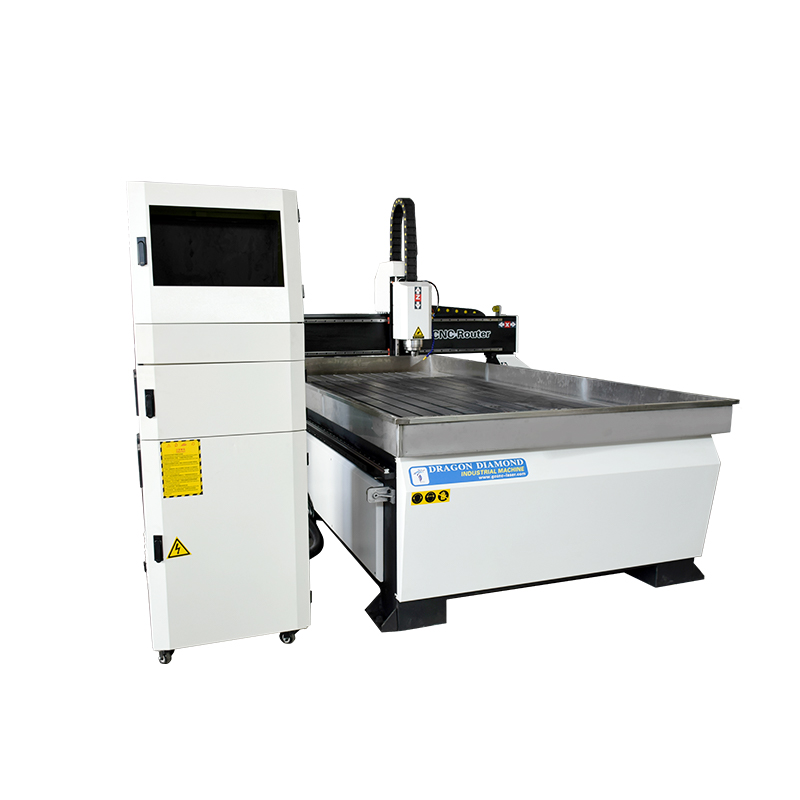

CNC Stone Metal Carving Machine with Water Sink

CNC Stone Carving Machine


PRODUCT PARAMETER


NO.

Model

Lz-1325-Water Sink

1

Working Area

1300x2500x200mm

2

Packing Size

3200x2200x1800mm

3

Working Table

T-Slot Aluminum Table with Water Sink

4

Spindle Power

3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

Transmission Type

X,Y axis rack drive,Z axis screw drive

9

Guide Rail

Taiwan Hiwin Square Rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

WorkinSpeed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ


Stone Stainless Steel CNC Engraving Cutting Machine


PRODUCT FEATURES

1.Stronger Machine Frame Design
Welded steel T type structures as a whole,six-legged heavy-duty boday ,large bearing capacity with vibration Temper aging treatment ensures no deformation for long time,avoid broken knife,more stable,durable.

2.Guide Rail
Imported Hiwin,Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Adopt imported precision ball screws , tools feeded with more accuracy.

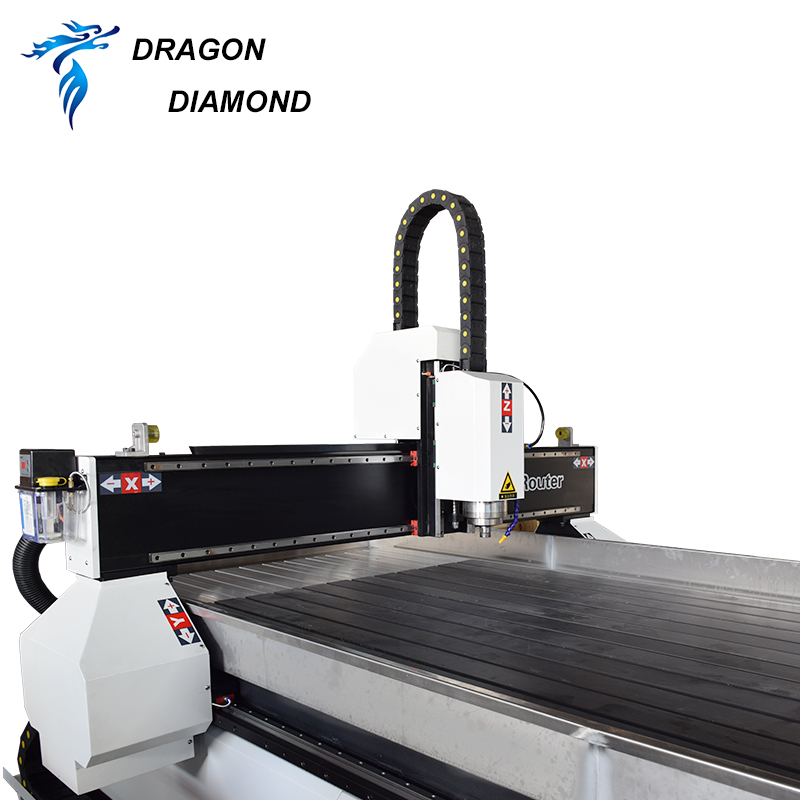

3.XYZ Transmission Way
Rack gear transmission for X and Y axis, higer running speed and efficiency, saving cost.Z axis with precision ball screw, high precision and more durable.

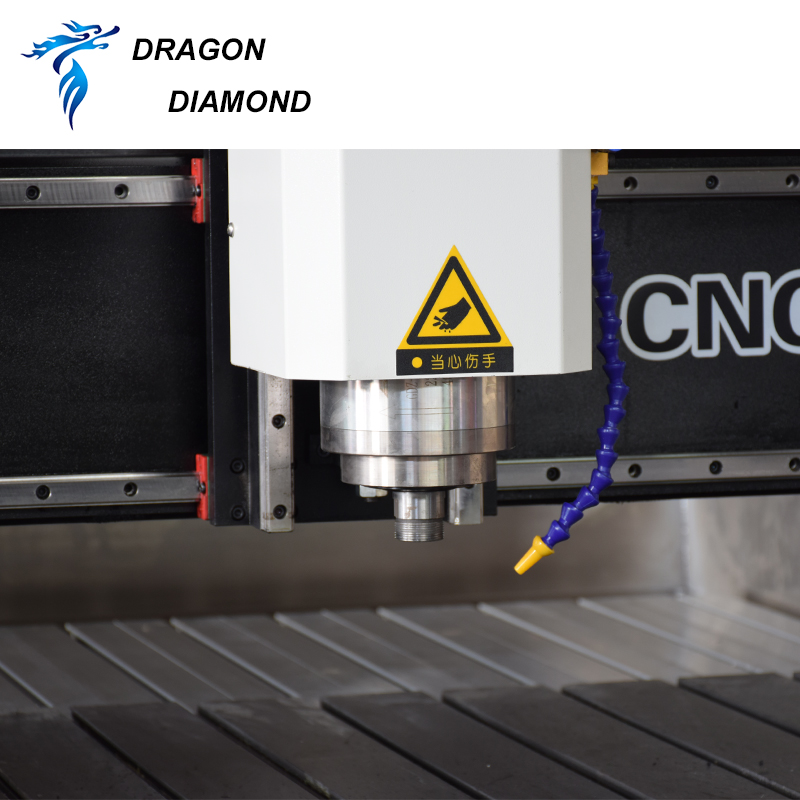

4.Spindle Motor And Inverter
Large power 3kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

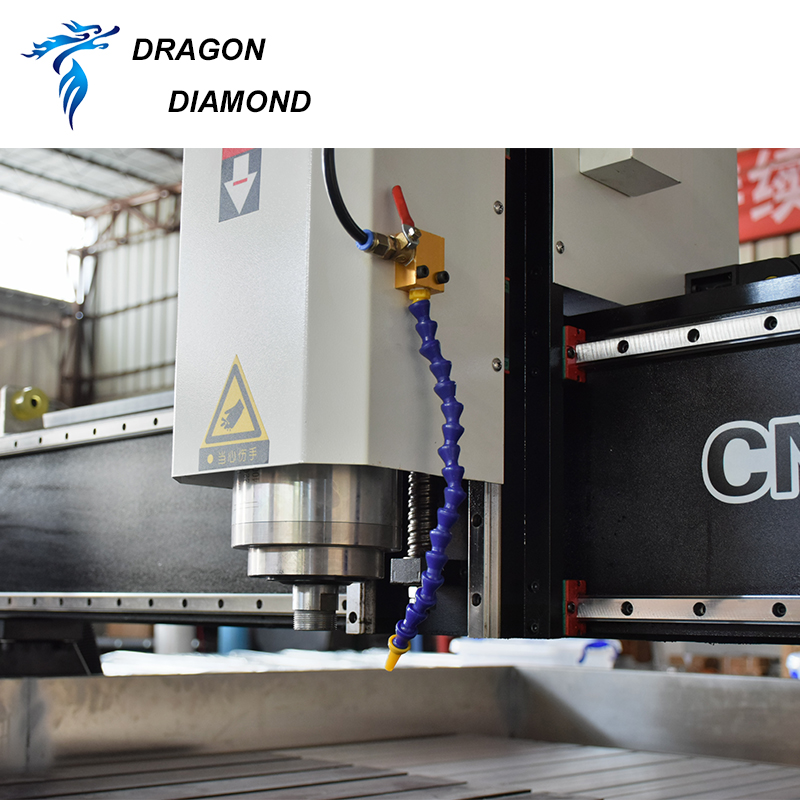

5.Cooling Water Pipe

Cool the surface while the material is being processed,avoiding excessive temperature and deforming the material.


6.Motor And Driver
China famous NEMA34 Stepper Motor/Servo Motors stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000/40000mm per min.

7.Humanized Design Power Box
More humanized design, Dustproof, integrated power box.

8.Stainless Steel Sink
Stainless steel sink + T-slot table better cooling of materials.
