DRAGON DIAMOND CNC
Item NO.:
LZ-1325(Mixed)Order(MOQ):
1Product Origin:
ChinaShipping Port:

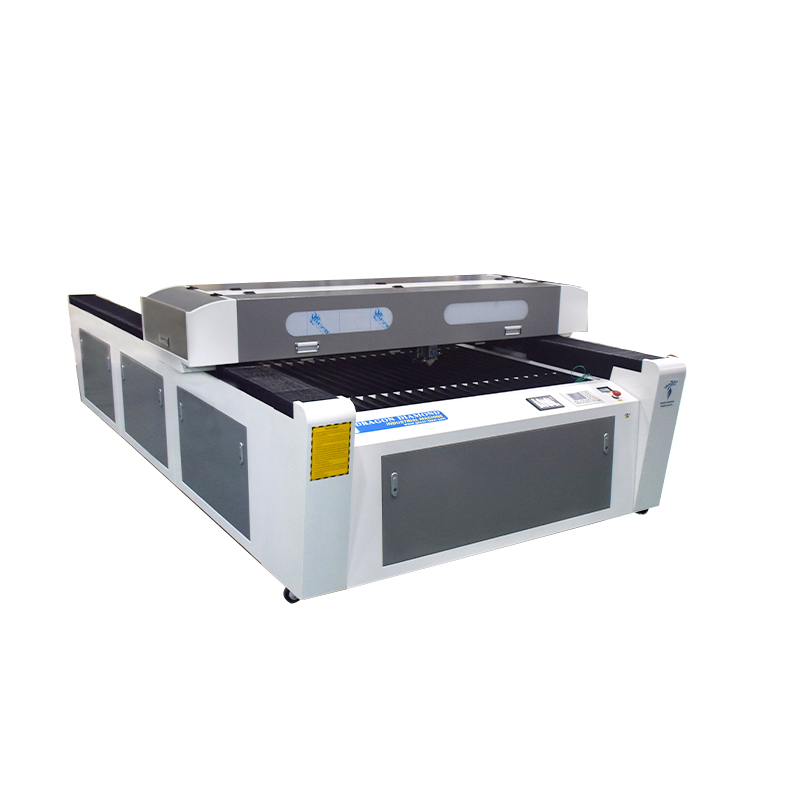

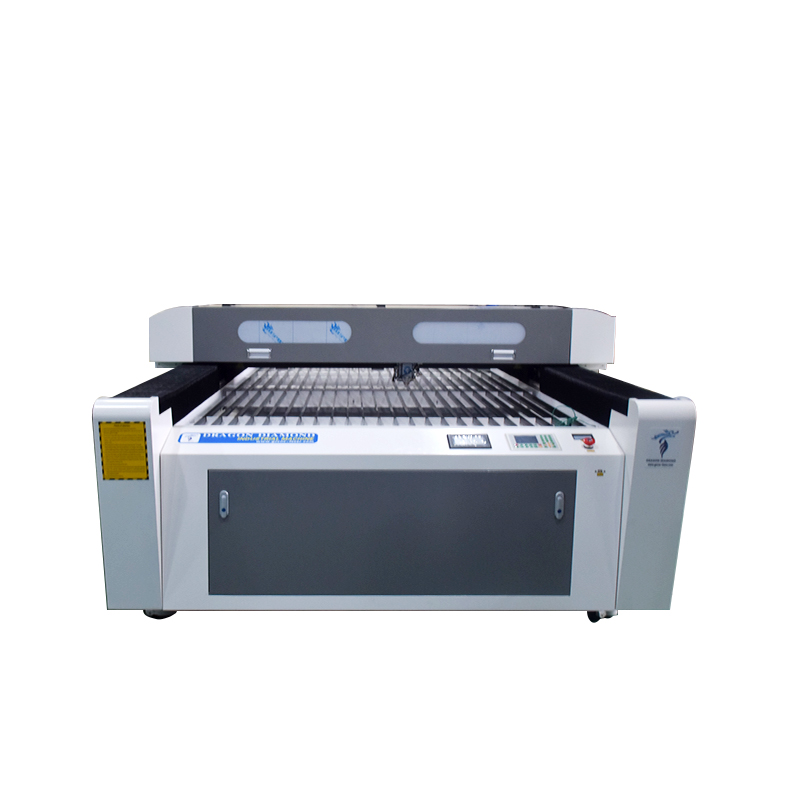

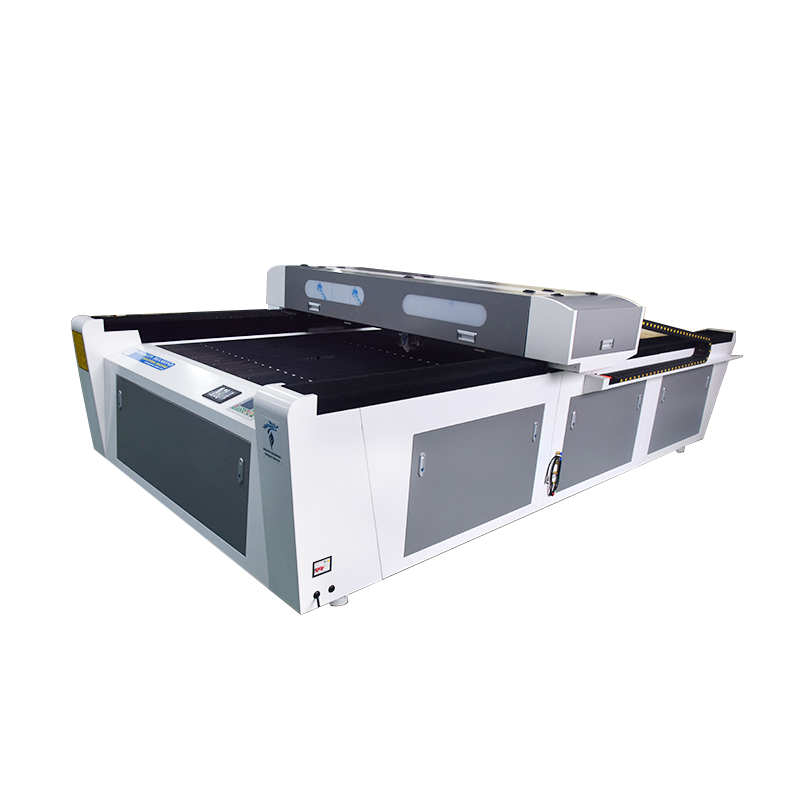

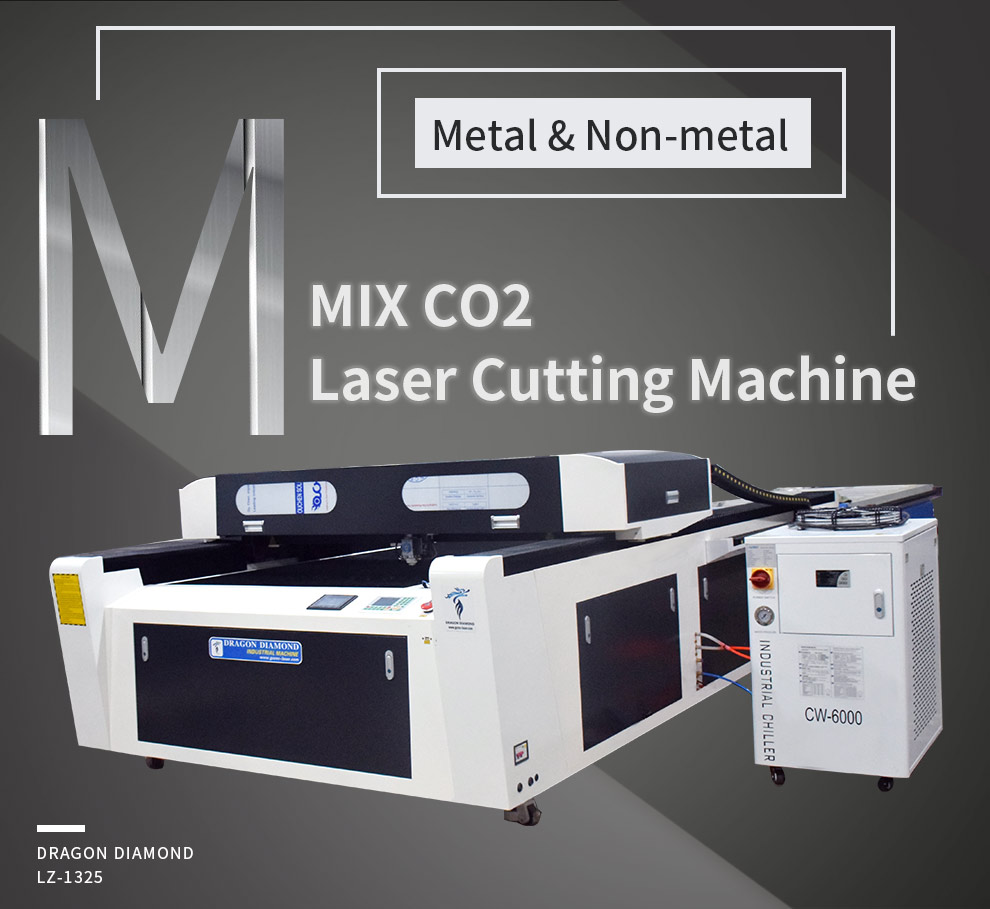

Guangzhou1325 Metal/Non-metal CO2 Hybrid Laser Cutting Machine
PRODUCT PARAMETER
|
NO. |
Model |
LZ-1325Mixed |
|
1 |
Laser power |
Reci W8 150W（optional） |
|
2 |
Working Area |
1300*2500 mm |
|
3 |
Cooling Mode |
CW-5200 |
|
4 |
Laser Wavelength |
1064 nm |
|
5 |
Working area |
1300*2500mm |
|
6 |
Frequency of pulse |
20-100 KHz |
|
7 |
Control system |
RDC6332M |
|
8 |
Motor |
Leadshine stepper motors |
|
9 |
Driver |
Leadshine Stepper Driver |
|
10 |
Engraving Speed |
18000 mm/s |
|
11 |
Marking Lines |
1-10 lines |
|
12 |
Laser module life |
>10000hours |
|
13 |
Minimum Character |
0.15 mm |
|
14 |
Repeatability Accuracy |
±0.001mm |
|
15 |
Resolution Ratio |
0.001mm |
|
16 |
Operation System |
Microsoft Windows XP or Windows 7/8/10 |
|
17 |
Control Software |
RDWORKS Control Software |
|
18 |
Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc. |
|
19 |
Operation Temperature |
5°C-40°C |
|
20 |
Beam diameter |
<30um |
|
21 |

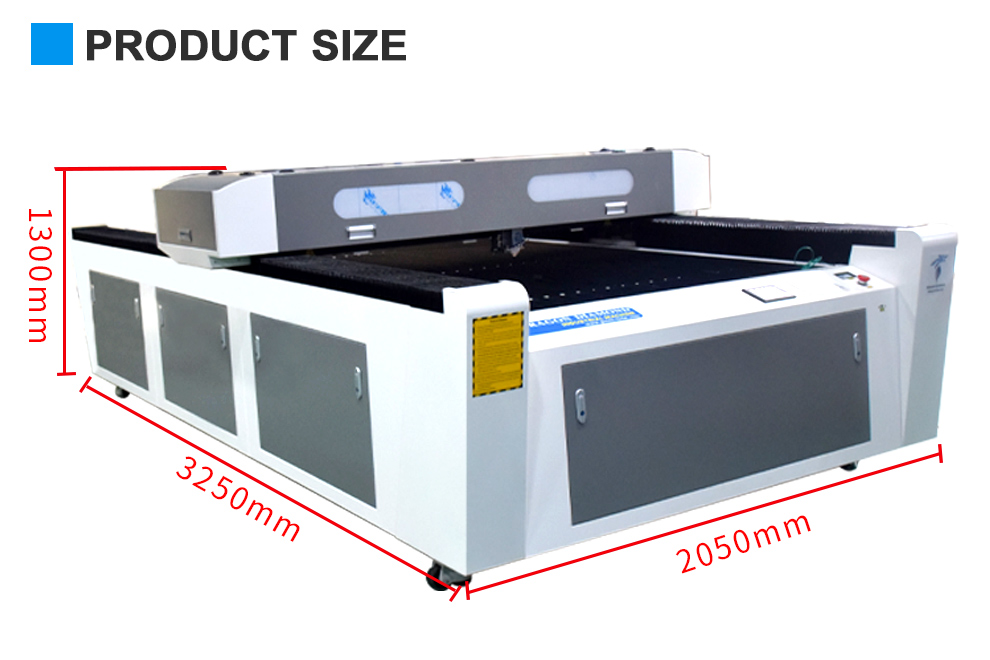

Dimensions(L*W*H) |
2050*3250*1300 mm |
|
22 |
Power supply requirements |
220v, 50Hz or 110v, 60Hz |
|
23 |
Warranty |
1 YEARS |
|
24 |
Free Parts |
Air exhaust fan |
Laser mixed cutting machine Metal and non-metal mixed laser cutting machine adopts steel structure bed, which is more scientific in design and more stable in bed. The machine's hybrid cutting capacity: It can cut stainless steel, carbon steel, acrylic and wood. High cutting accuracy and good stability. Metal and non-metal mixed cutting machine is widely used in advertising production, metal processing, laser die and other industries; suitable for carbon steel, stainless steel, acrylic, MDF and other large-format metal and non-metal plates.
Application of metal nonmetal laser cutting machine
1. Advertising industry:
Thin stainless steel,acrylic engraving and cutting, cutting and engraving of double- color plate and other advertising material
2. Cloth and luggage industry:
Leather, fabric carved hollow
3. Arts and crafts industry:
Paper cutting, wood, bamboo products, leather and other materials’ engraving and cutting
4. Model industry:
Construction model, aviation and maritime models, wooden toys’ cutting.
5. Packaging industry:
Printed rubber plate engraving and cutting, plywood cutting and Laser cutter template cutting.
6.Decoration industry:
Electrical and electronic industry materials engraving and cutting.

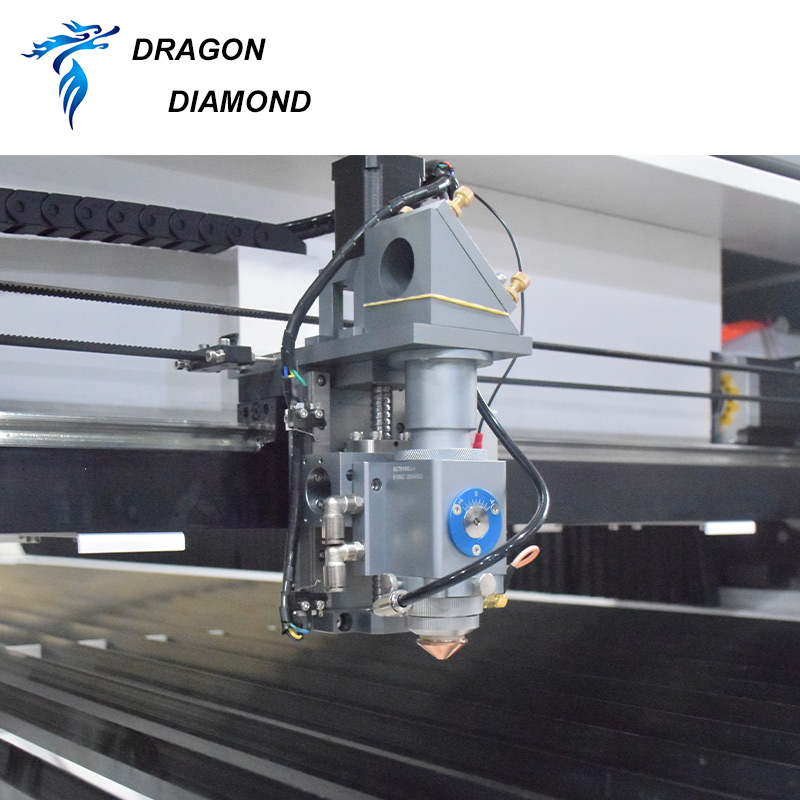

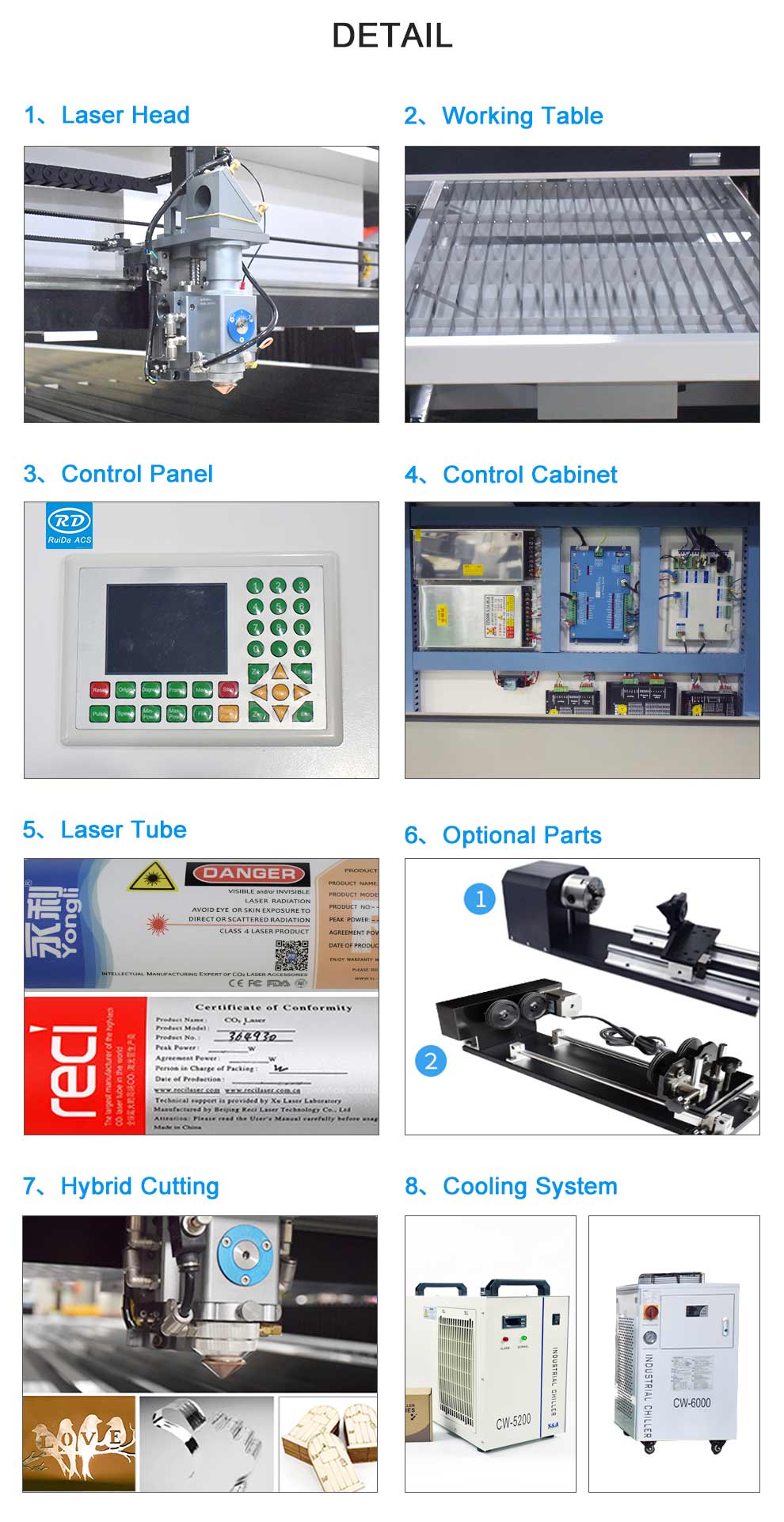

1.Laser Head
Equipped with luxury Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.

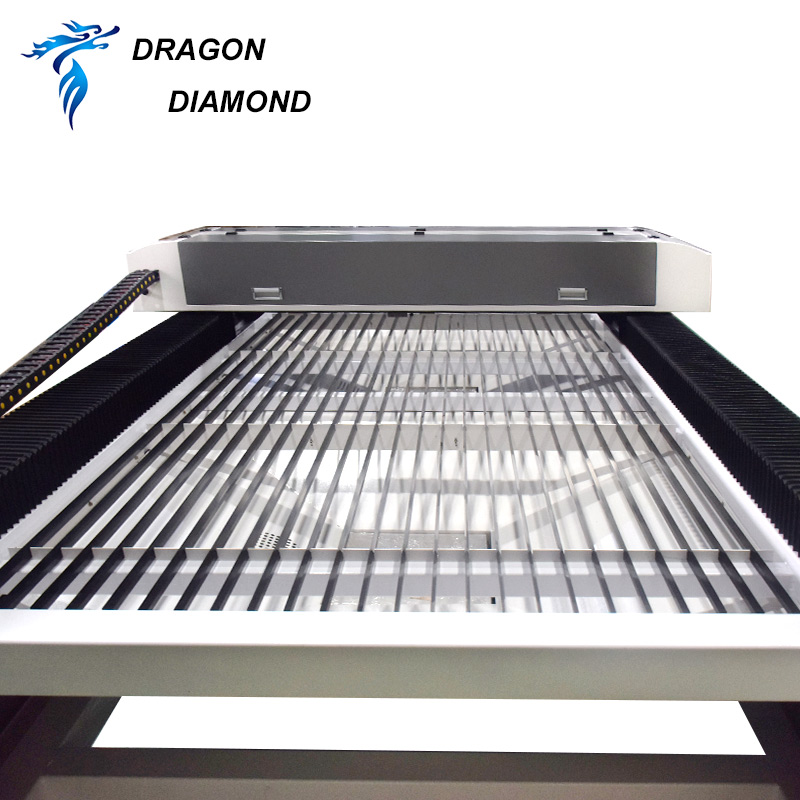

2.Working Table
Professional Blade sheet work table:Suitable for cutting materials
3. Control Panel
Advanced LCD Touch Screen, support offline work , humanized control system, easy to learn, safe and convenient, dust proof design.
4. Control Cabinet
We use import good quality parts, core parts install position.
Metal and Non-metal Laser Cutting Controller ( RDC6332M)
5. Laser Tube
Chinese famous brand Reci laser tube, adopts 150w / 280w / 300w Laser Tube, high power, 10000 hours long life span.
6.Optional Parts
Rotary device for round object cutting.
Can engrave and cut in 360 degree, usually applied in advertising and craft work,for column or cone work piece surface.
7.Hybrid Cutting
The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, etc.
8.Cooling System
The industrial chiller cools and protects the laser tube from high temperatures, thus ensuring a stable laser output and long laser tube service life.
CW-5200 for 150W laser tube, CW-6000 for 280W / 300W laser tube
