CNC Wood Engraving Machine

Portable 20w Mini Fiber Laser marking machine for jewelry metal

20w Mini Fiber Laser marking machine for metal,modular design, separate laser generator and lifter,  Air-cooled inside, small occupation, easy to install.
  • Item NO.:

    Lz-Mini F20W
  • Order(MOQ):

    1
  • Market Price:

    $1750-2300/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

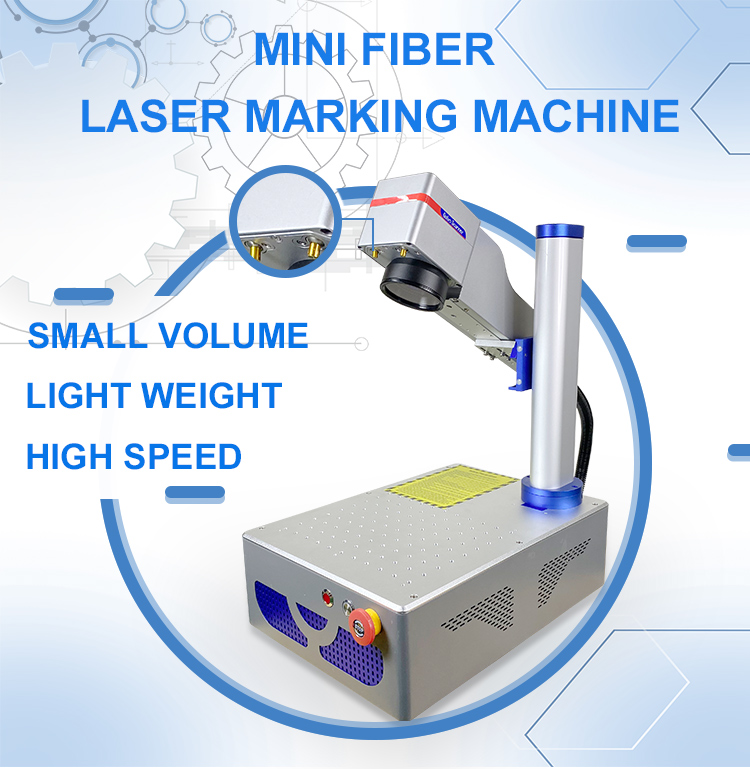

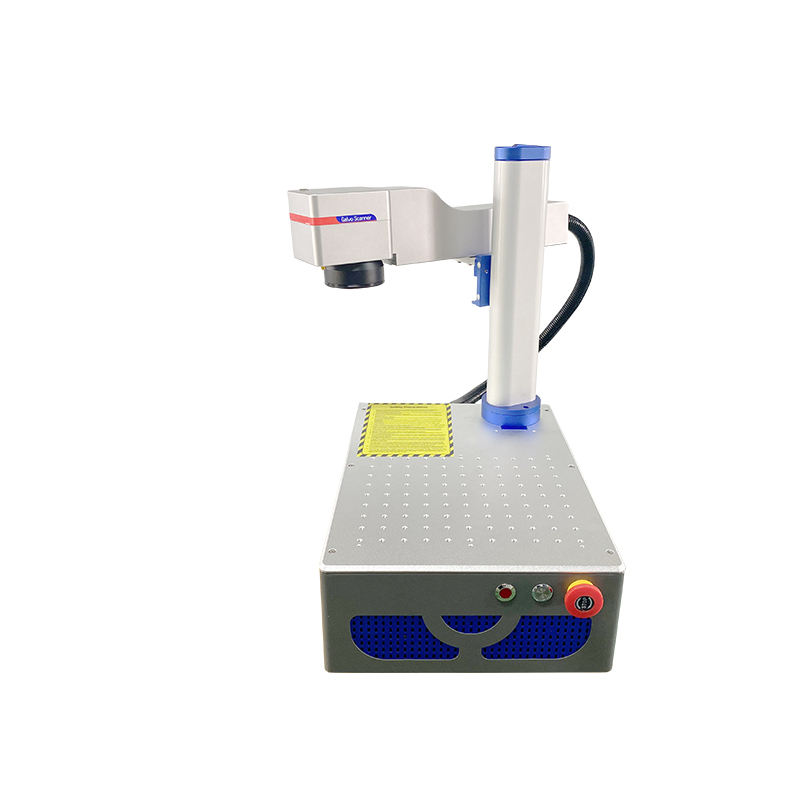

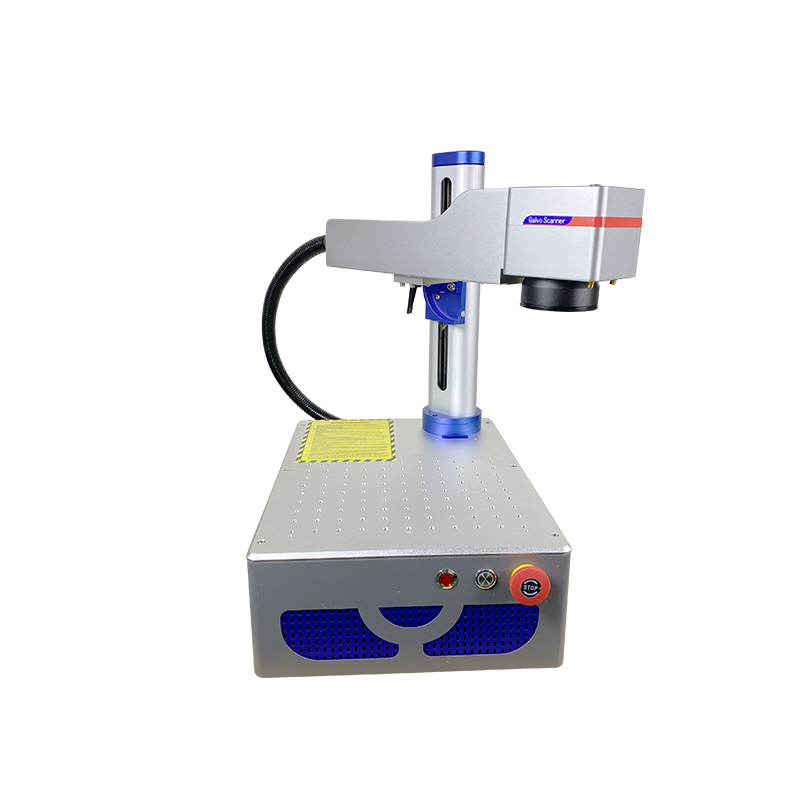

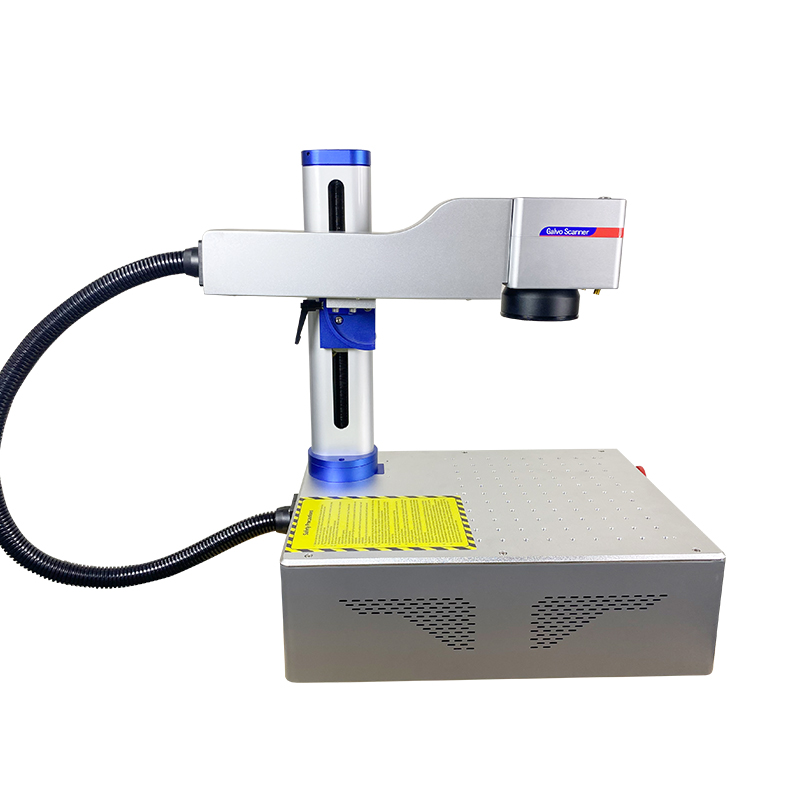

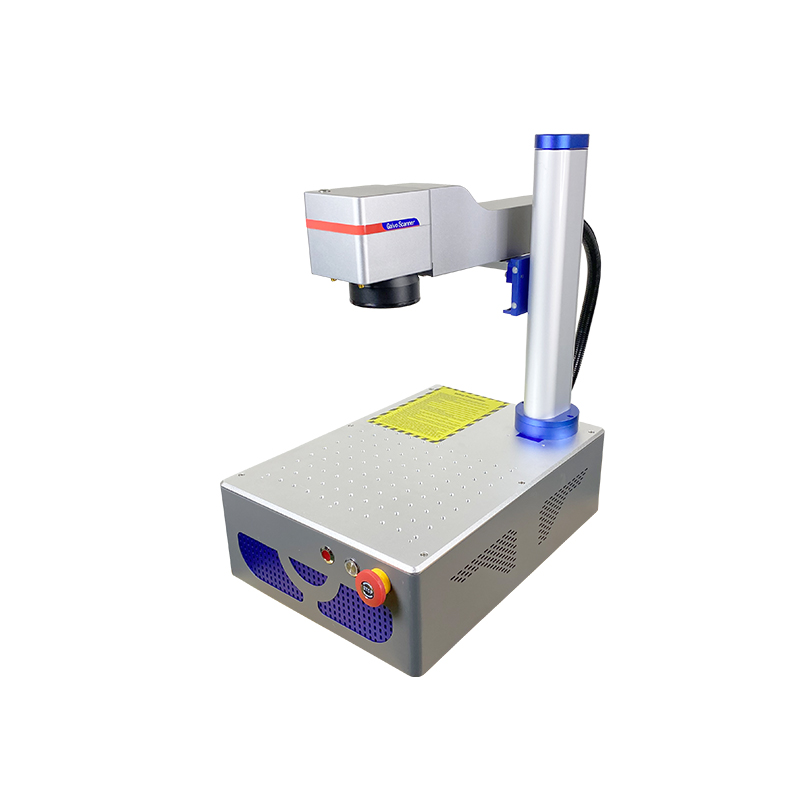

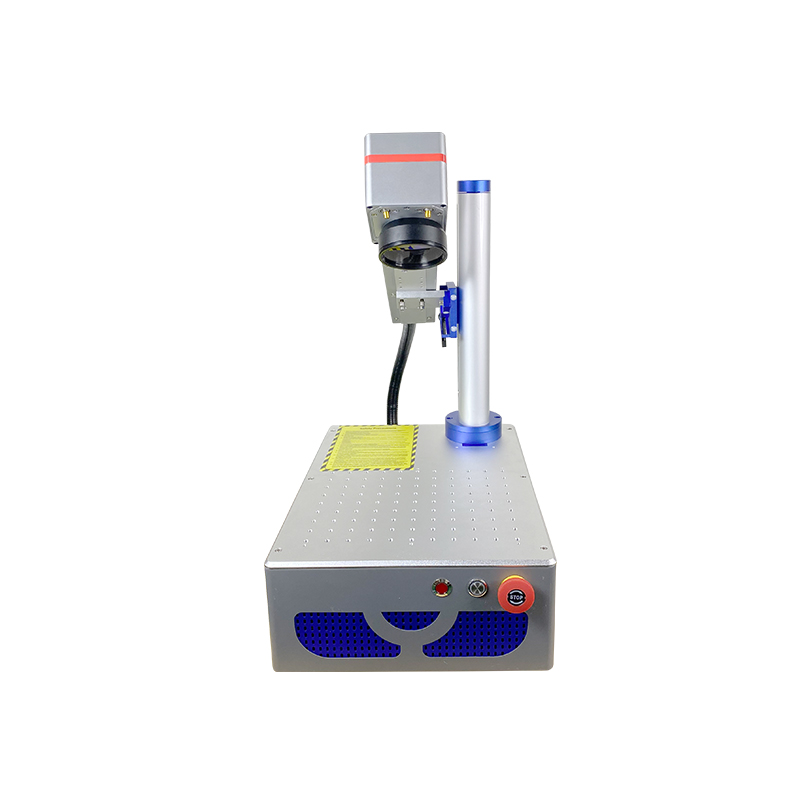

Portable 20w Mini Fiber Laser marking machine for jewelry metal


Portable 20w Mini Fiber Laser marking machine for jewelry metalPortable 20w Mini Fiber Laser marking machine for jewelry metal

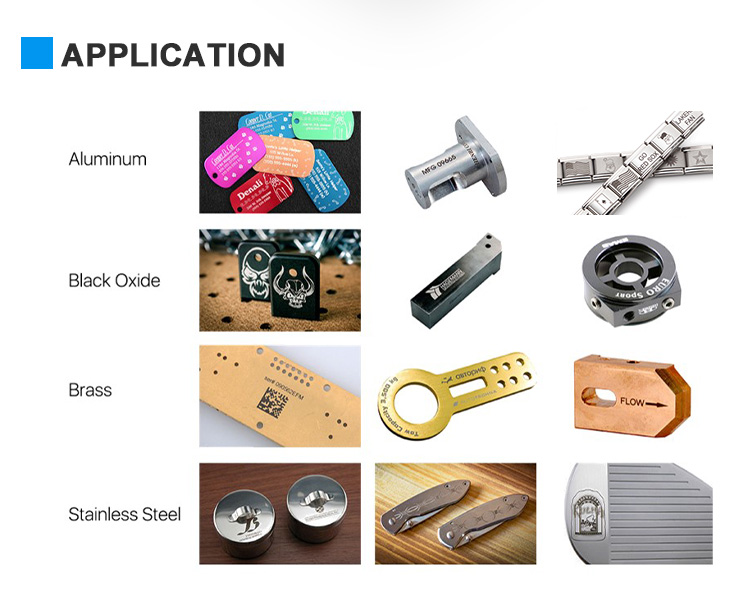

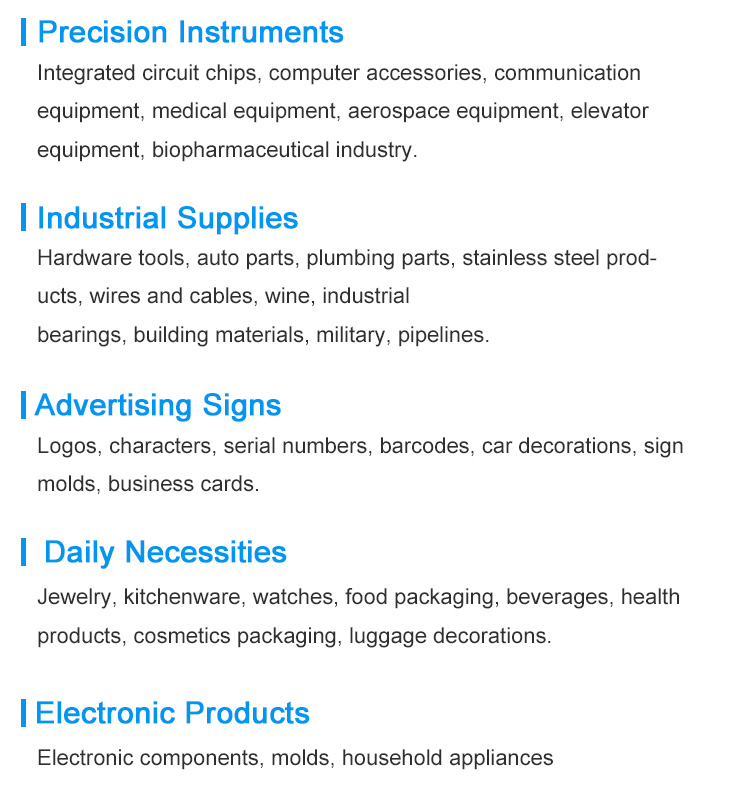

1. Precision instruments:

Integrated circuit chips, computer accessories, communication equipment, medical equipment, aerospace equipment, elevator equipment, biopharmaceutical industry,

2. Industrial supplies:

Hardware tools, auto parts, plumbing parts, stainless steel products, wires and cables, wine, industrial bearings, building materials, military, pipelines.

3. Advertising signs:

Logos, characters, serial numbers, barcodes, car decorations, sign molds, business cards,

4. Daily necessities:

Jewelry, kitchenware, watches, food packaging, beverages, health products, cosmetics packaging, luggage decorations,

5. Electronic products:

Electronic components, molds, household appliances


Model Number

LZ-Mini F20W

Power

Raycus QS 20W

Marking range

110*110mm

Marking depth

≤0.1mm

Repetition frequency

20KHz~100KHz

Laser wavelength

1065mm

Marking speed

≤2000mm/s

Minimum line width

0.01mm

Minimum character

0.15mm

Repeat accuracy

±0.003mm

Power consumption

700W

Cooling system

Air cooling

Focusing system

Red light focusing system

Controller software

EZCAD

Power source

AC110V/220V 50Hz/60Hz

Package Size

670*400*390mm

Package Weight

48KG

Warranty

1 years

Portable 20w Mini Fiber Laser marking machine for jewelry metalPortable 20w Mini Fiber Laser marking machine for jewelry metal

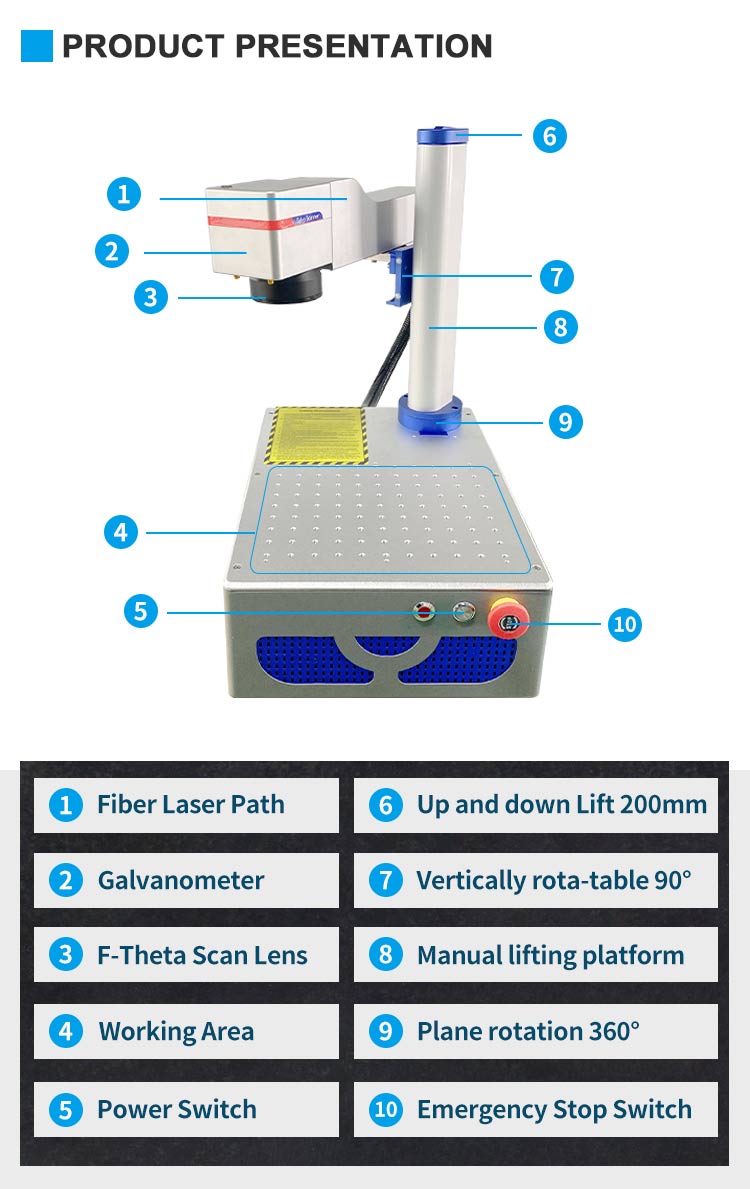

PRODUCT DETAILS

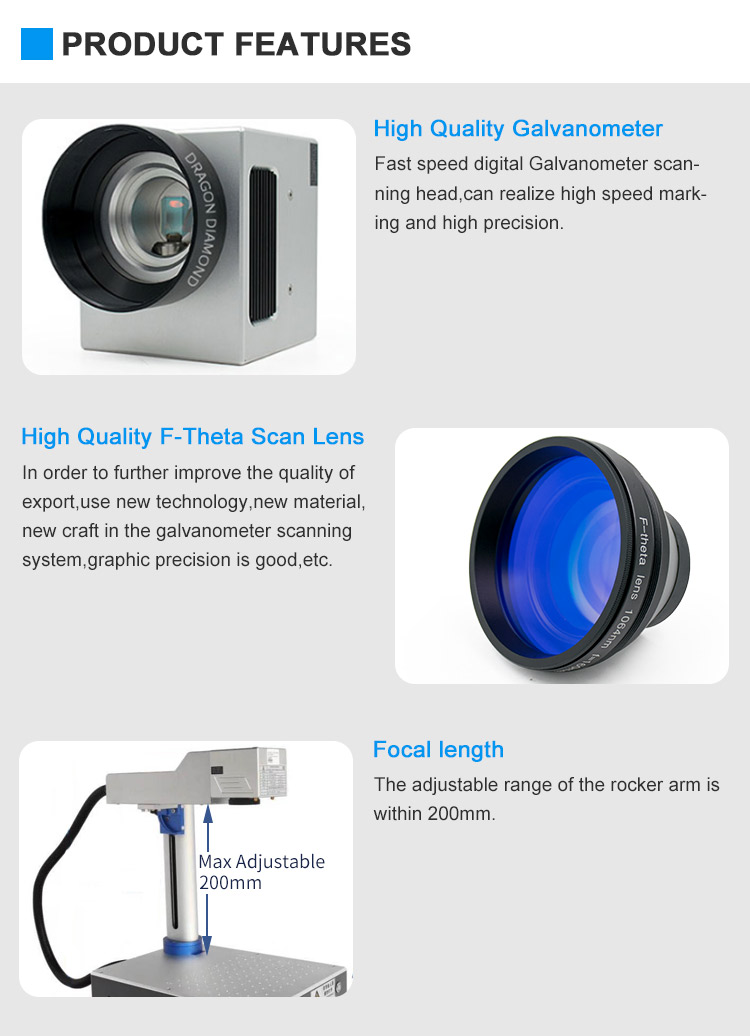

1.High Quality Galvanometer
Fast speed digital Galvanometer scanning head,can realize high speed marking and high precision.


2.High Quality F-Theta Scan Lens

In order to further improve the quality of export,use new technology,new material new craft in the galvanometer scanning system,graphic precision is good,etc.


3.Focal length

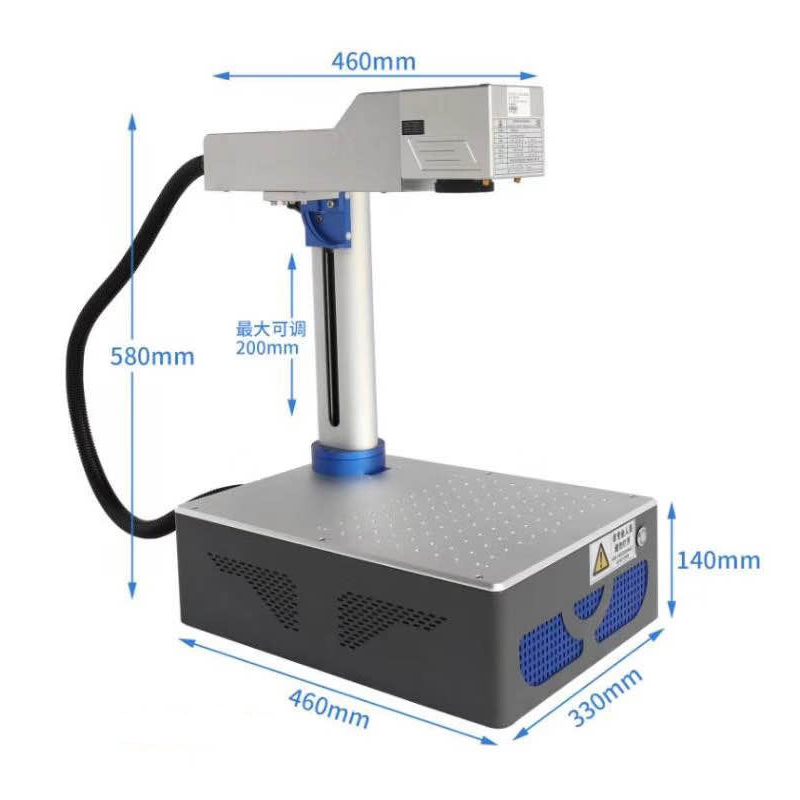

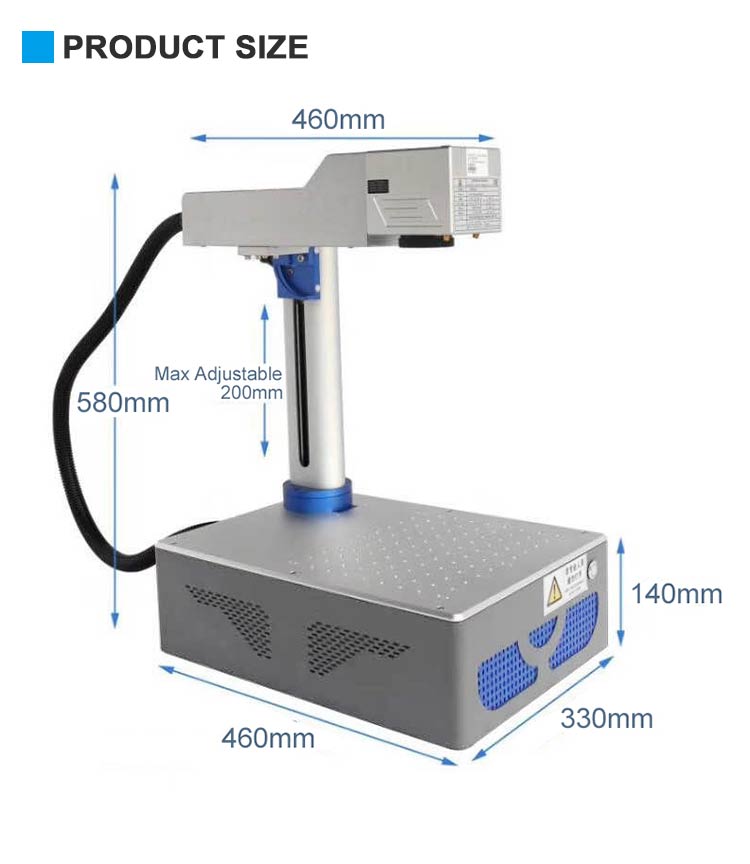

SThe adjustable range of the rocker arm is within 200mm.electing high quality,high energy,stable and convenient.

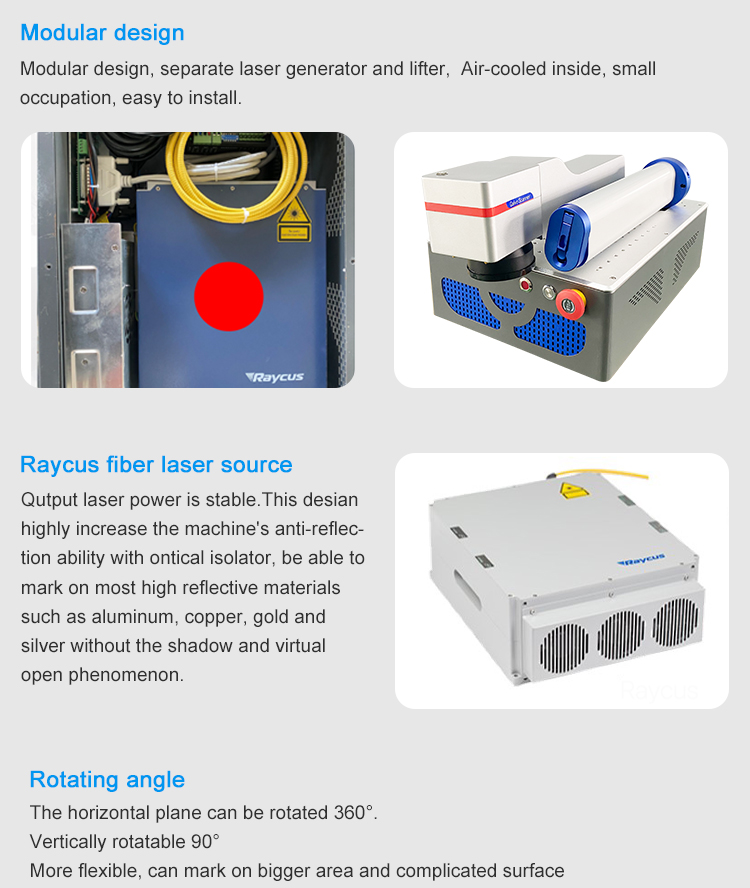

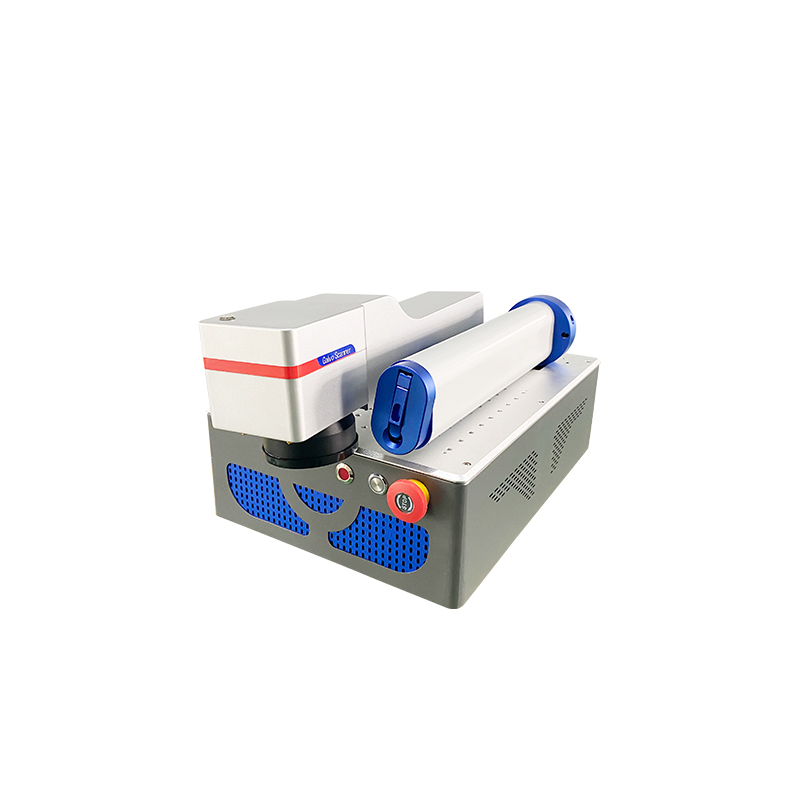

4.Modular Design

Modular design, separate laser generator and lifter,  Air-cooled inside, small occupation, easy to install.



5.Raycus fiber laser source
Qutput laser power is stable.This desian highly increase the machine's anti-reflection ability with ontical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

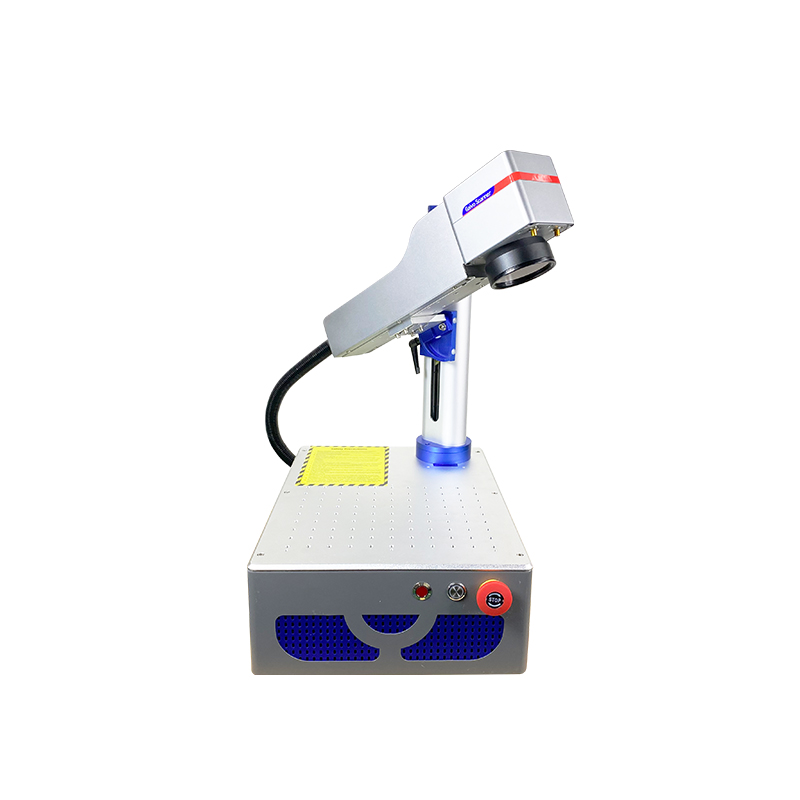

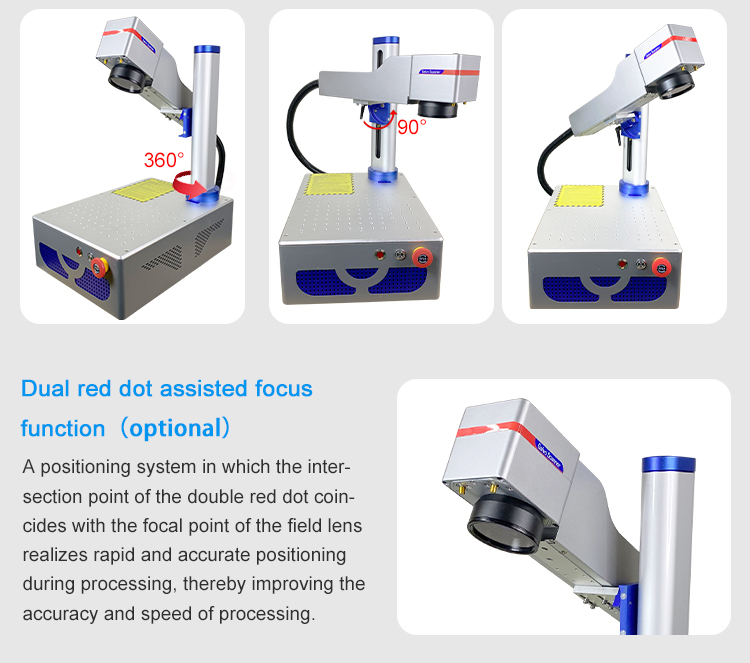

6.Rotating angle

The horizontal plane can be rotated 360°
Vertically rotatable 90°
More flexible, can mark on bigger area and complicated surface.


7.Dual red dot assisted focus function

A positioning system in which the intersection point of the double red dot coincides with the focal point of the field lens realizes rapid and accurate positioning during processing, thereby improving the accuracy and speed of processing.

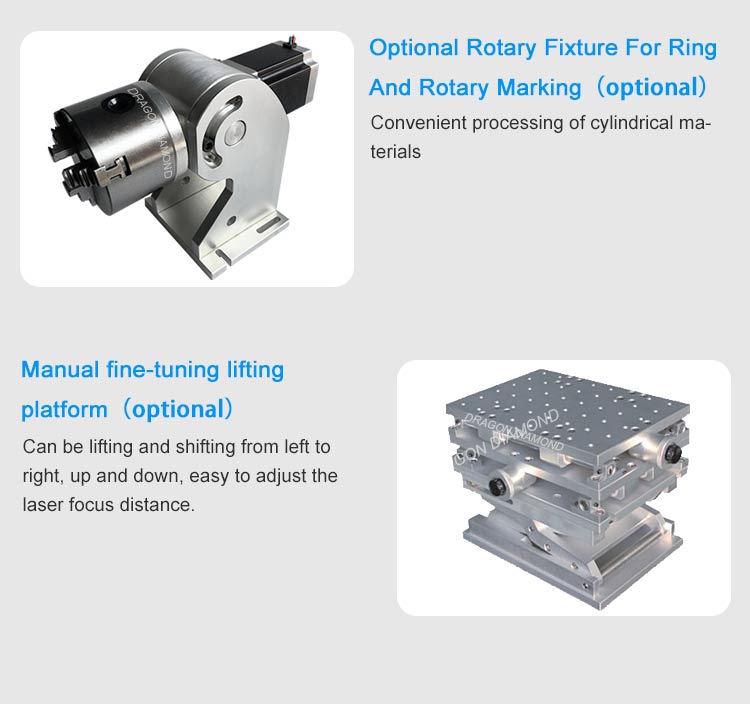

8.Optional Rotary Fixture For Ring And Rotary Marking

Easy to process cylindrical material.


9.Manual fine-tuning lifting platform

Can be lifting and shifting from left to right, up and down, easy to adjust the laser focus distance.



Portable 20w Mini Fiber Laser marking machine for jewelry metal
