Item NO.:
LZ-50FM (desktop)Order(MOQ):
1Product Origin:
ChinaShipping Port:
GuangzhouLead Time:

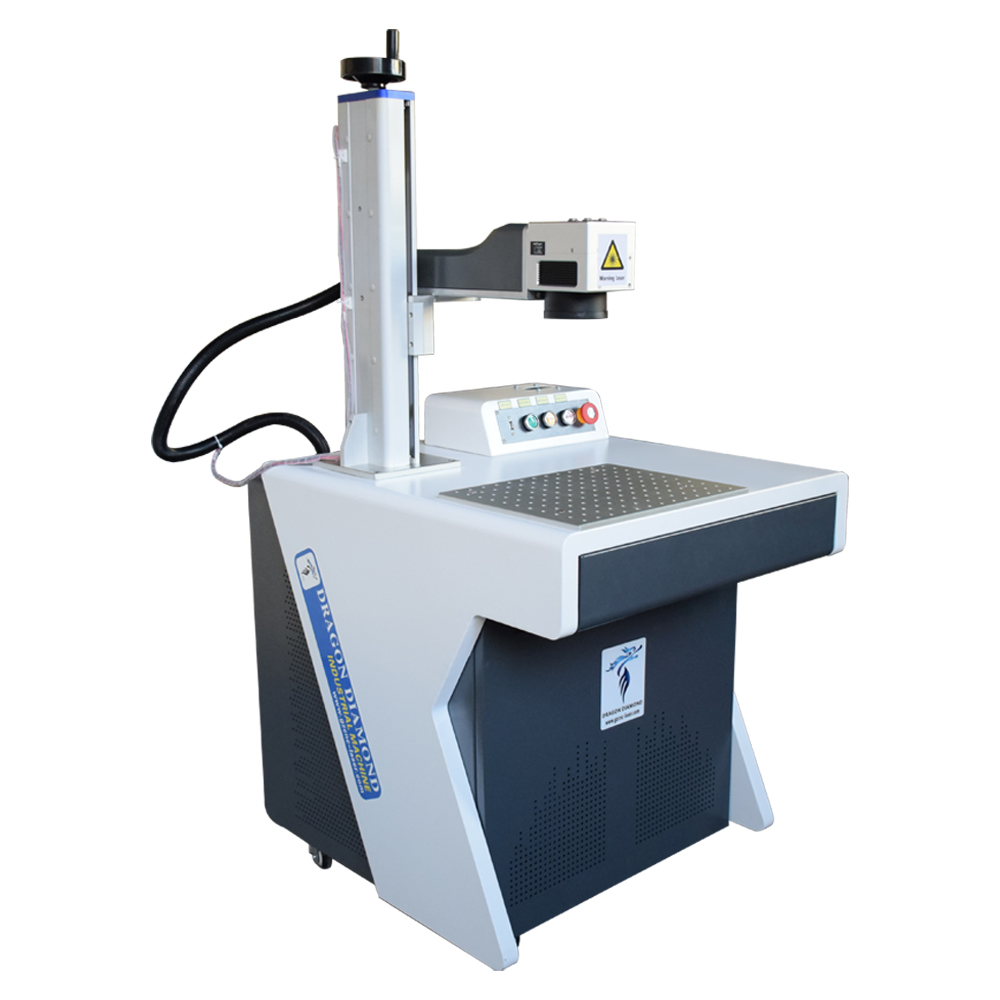

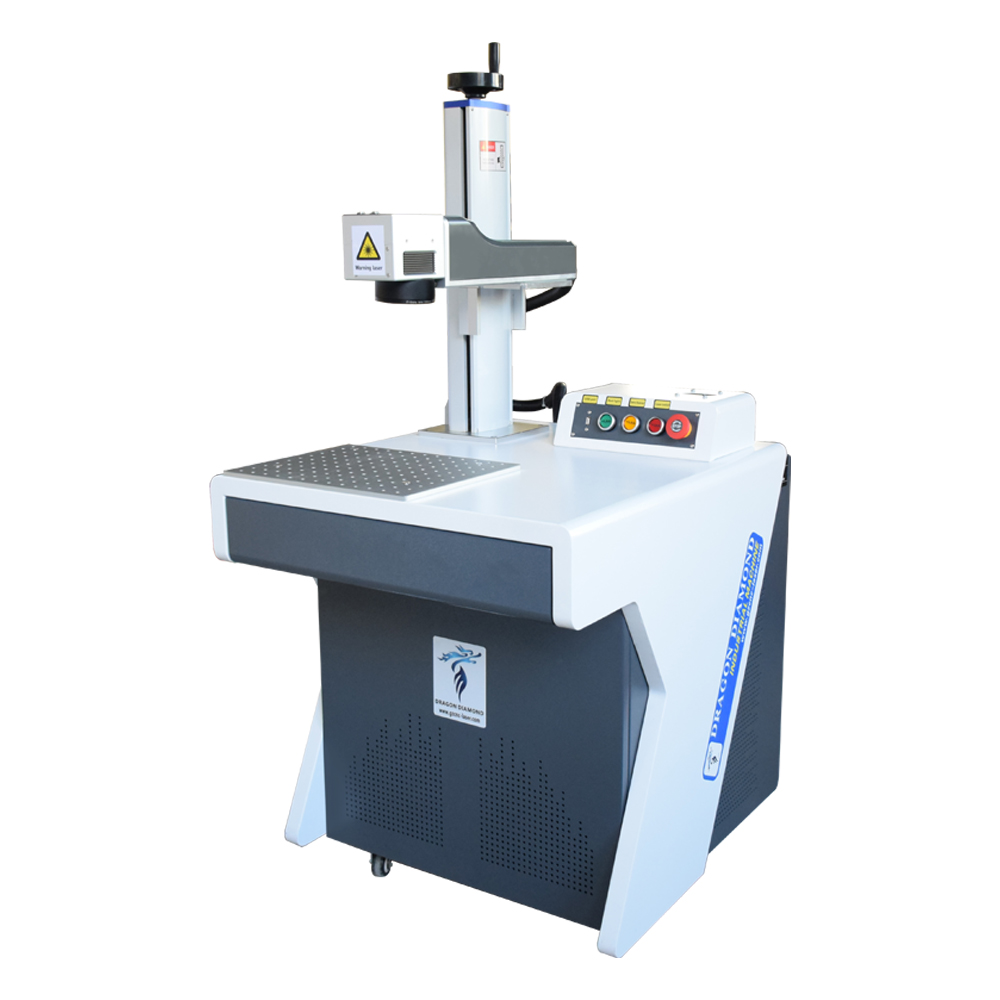

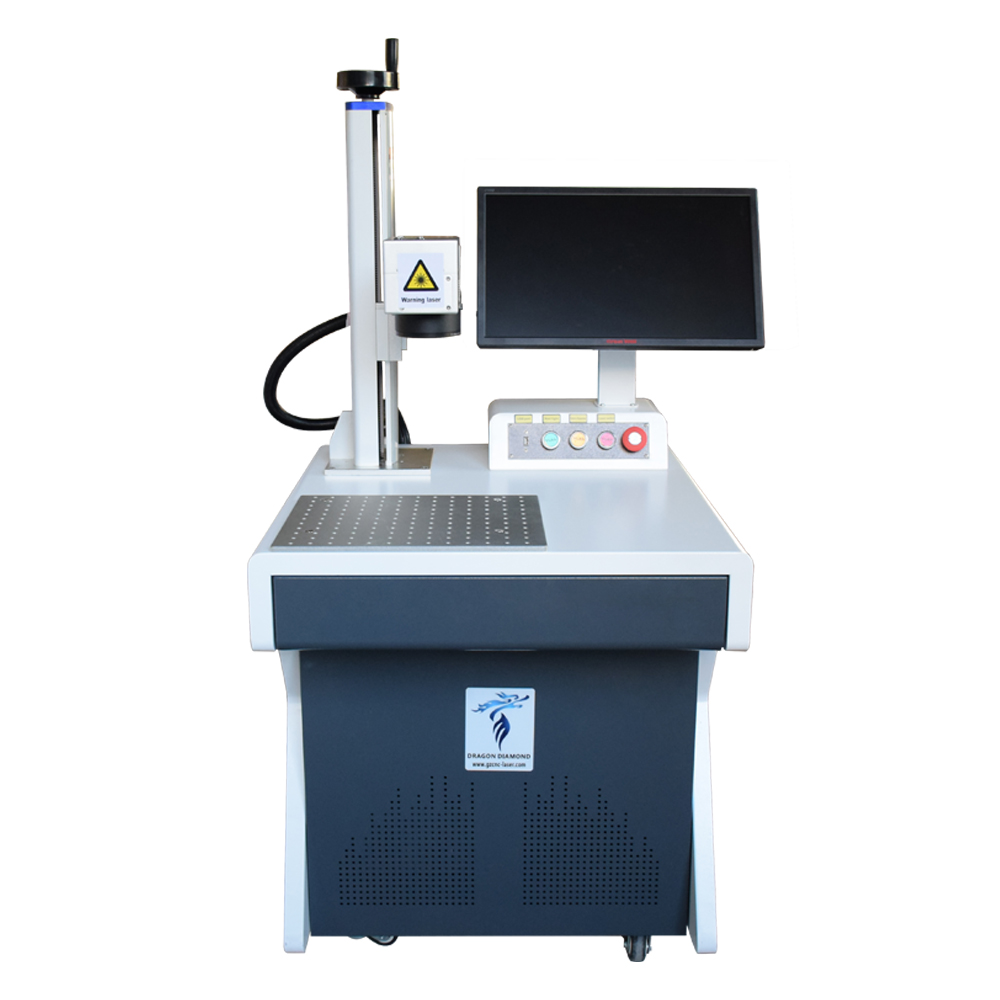

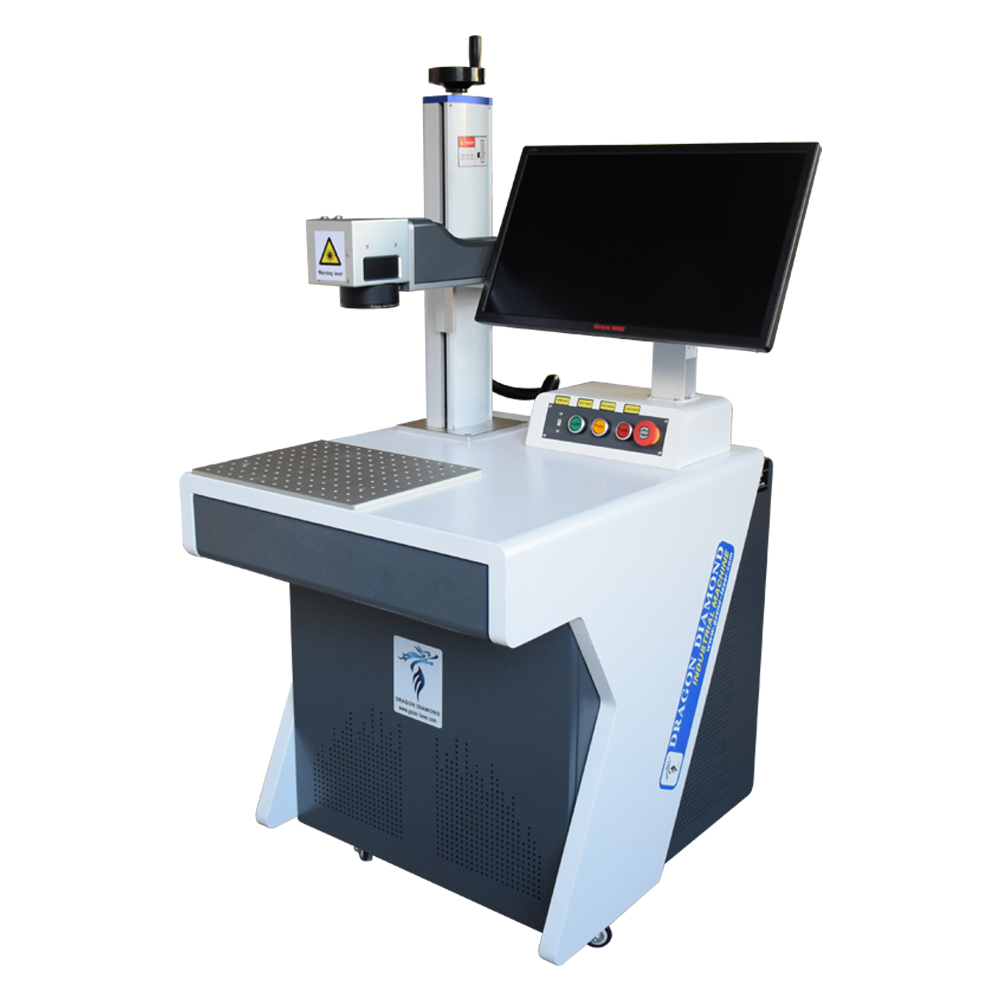

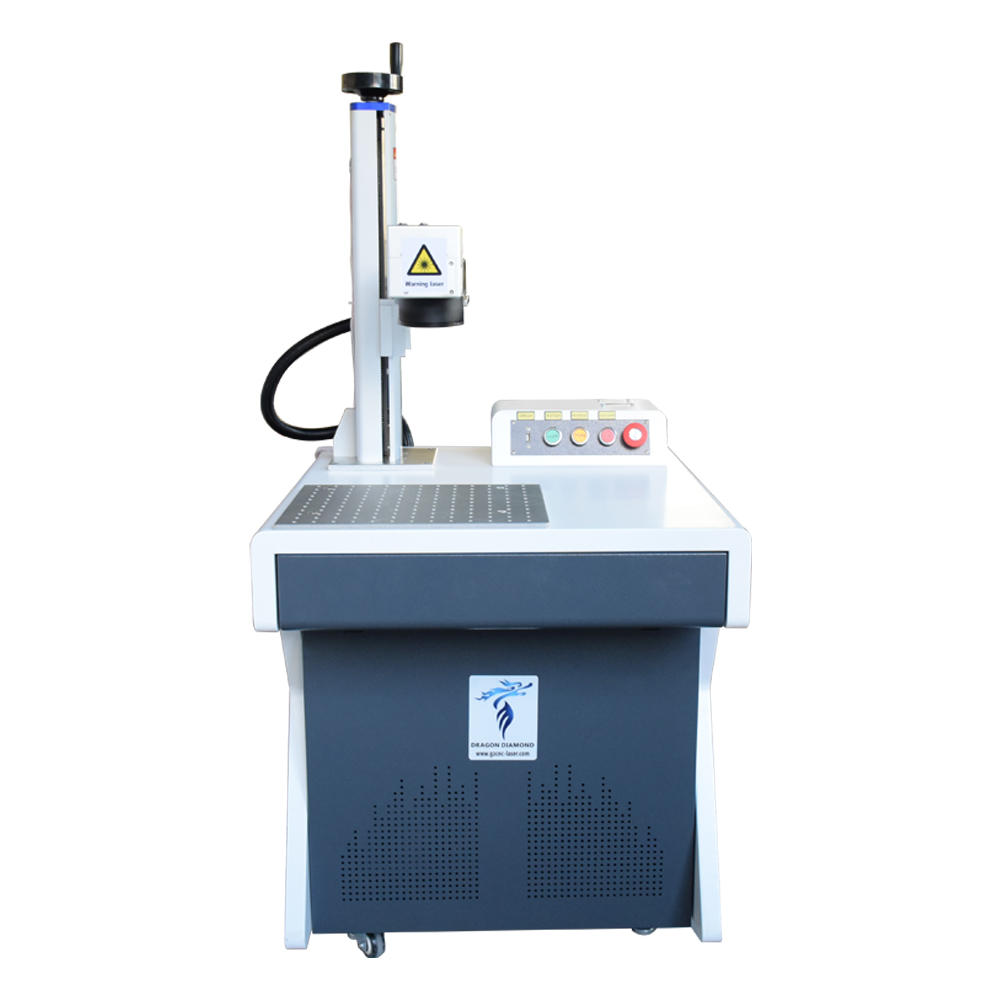

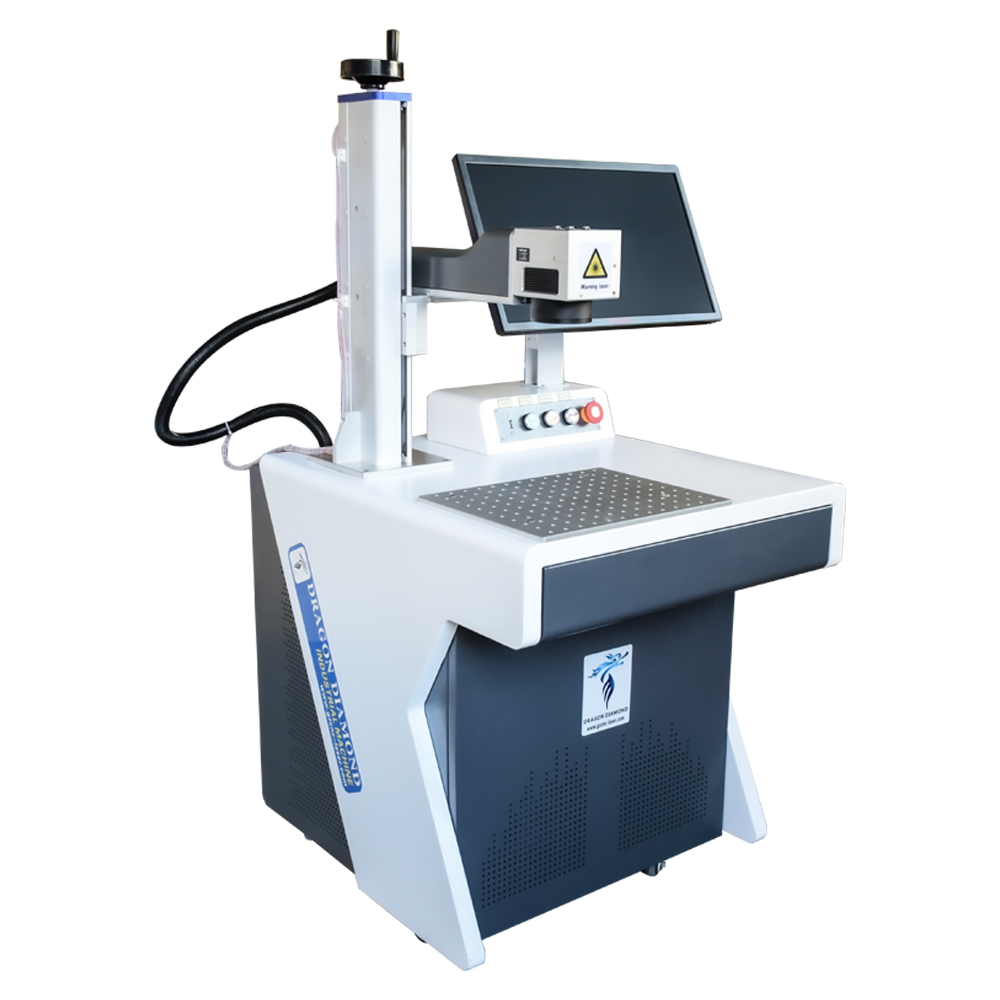

3-10 working daysdesktop fiber laser marking machine new appearance style
Power |
20W / 30W / 50W |
Laser Wavelength |
1050-1070nm |
Repetition Frequency |
20-80KHZ |
Marking Range |
150*150mm / 200*200mm / 300*300mm |
Marking Depth |
≤ 0.4mm |
Marking Speed |
≤10000mm/s |
Minimum Line Width |
0.01mm |
Minimum Character |
0.15mm |
Repeat Accuracy |
±0.002 |
Power Supply |
220V/50Hz |
Power Consumption |
500W |
Dimension |
920*820*1160mm |
Total Weight |
About 100KG |

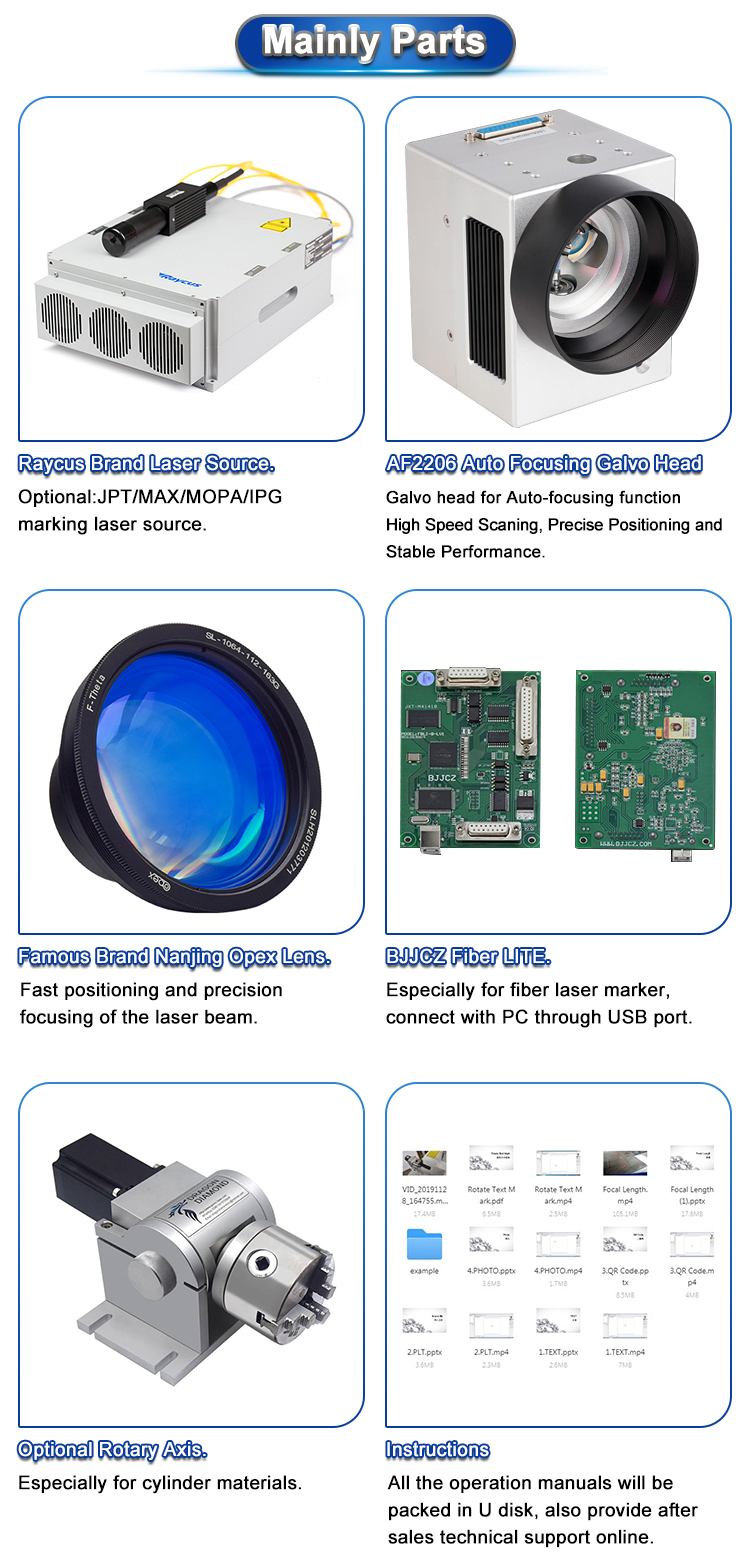

Laser Device |
Raycus Fiber Laser Device |
Cooling System |
Air Cooling |
Controller Software |
EZCAD |
Control Board |
Original BJJCZ Board / BJJCZ LITE Board |
Focus System (Optional) |
Autofocus System |
