CNC Wood Engraving Machine

Jewelry Laser Welding Machine 80W 100W For Gold Jewelry Welder Spot Welding


  • Item NO.:

    LZ-JW100W
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

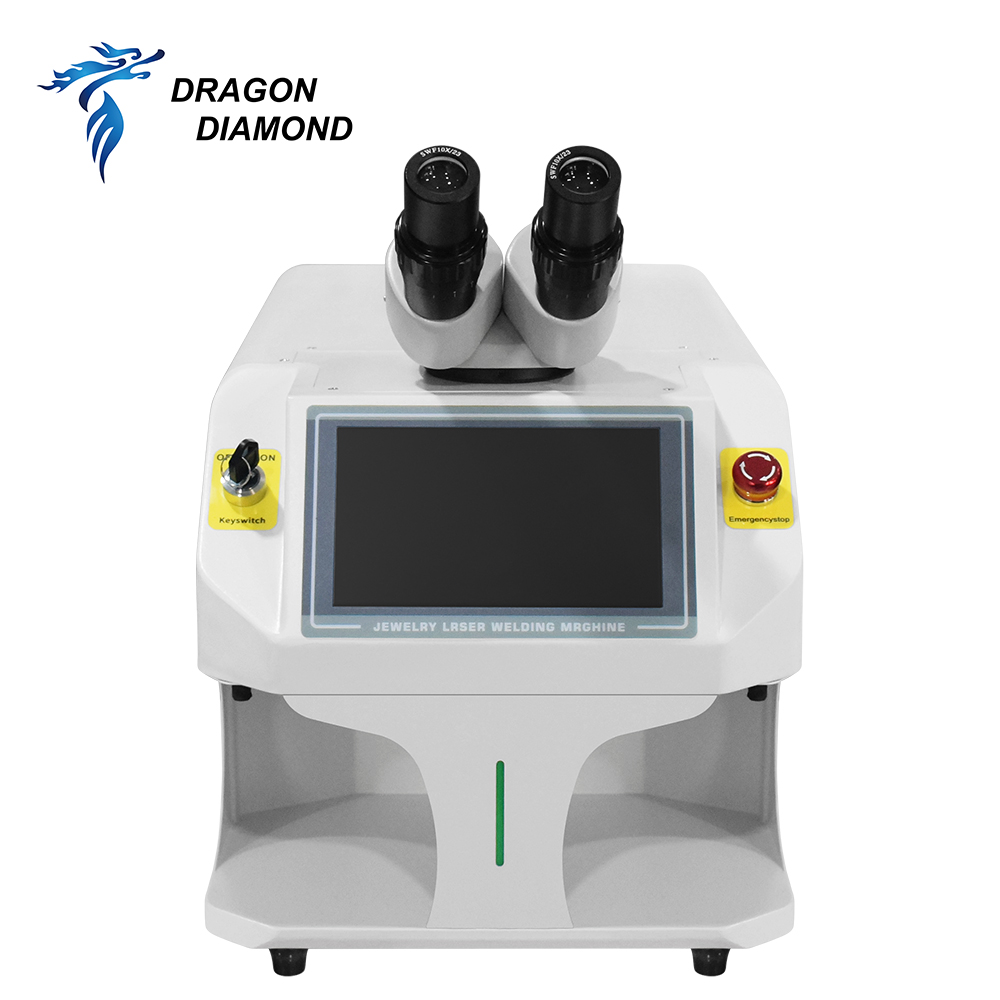

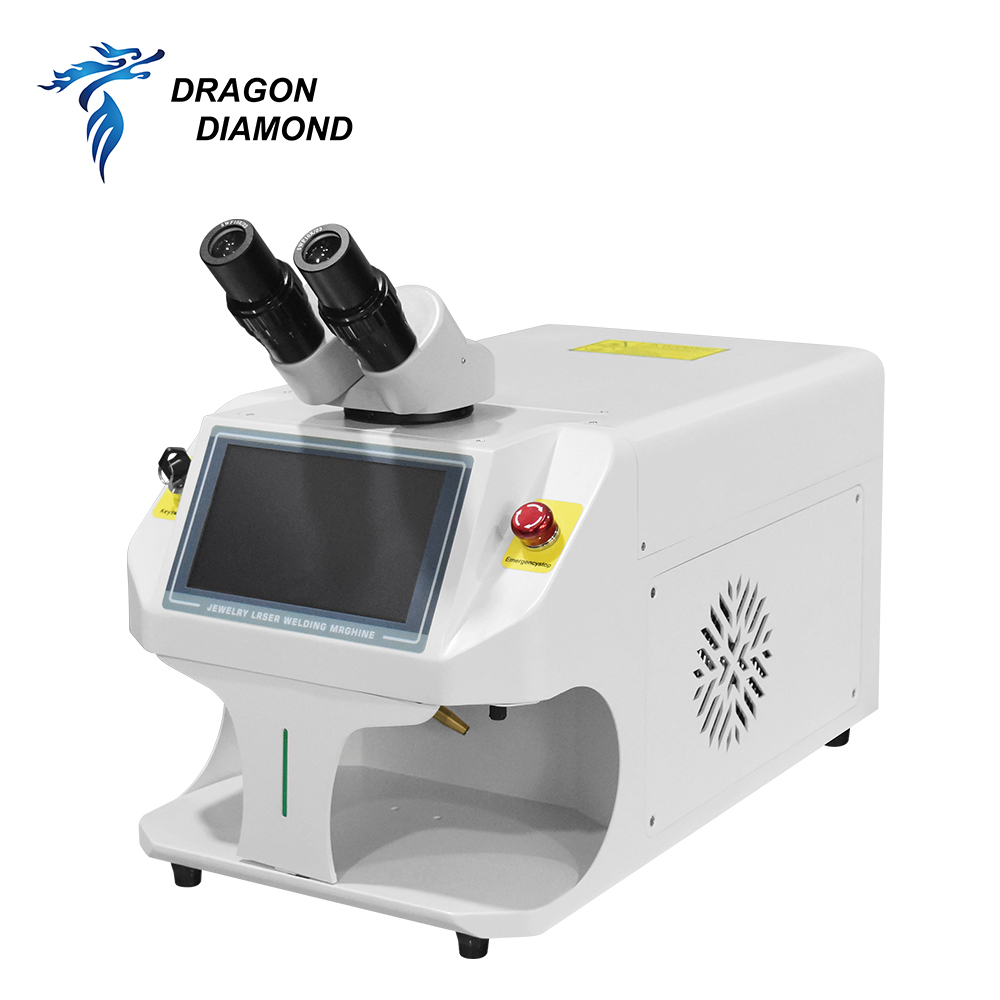

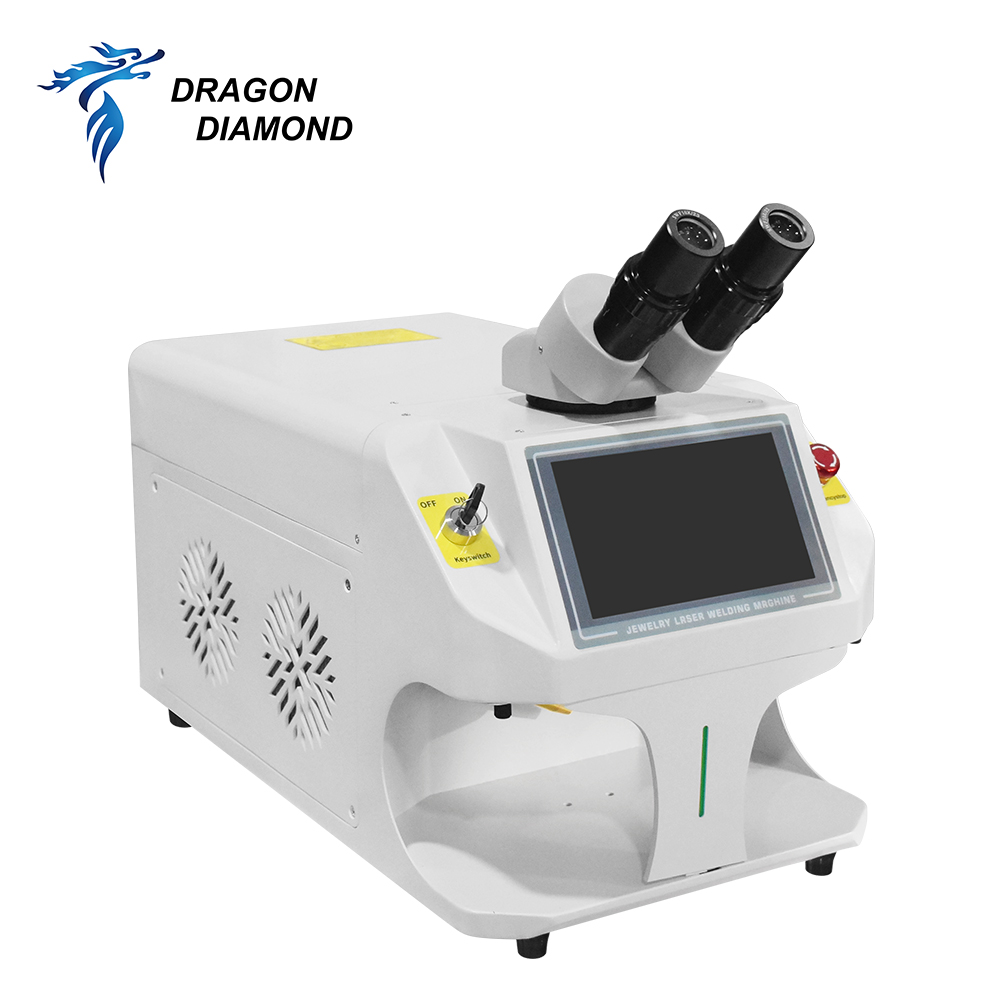

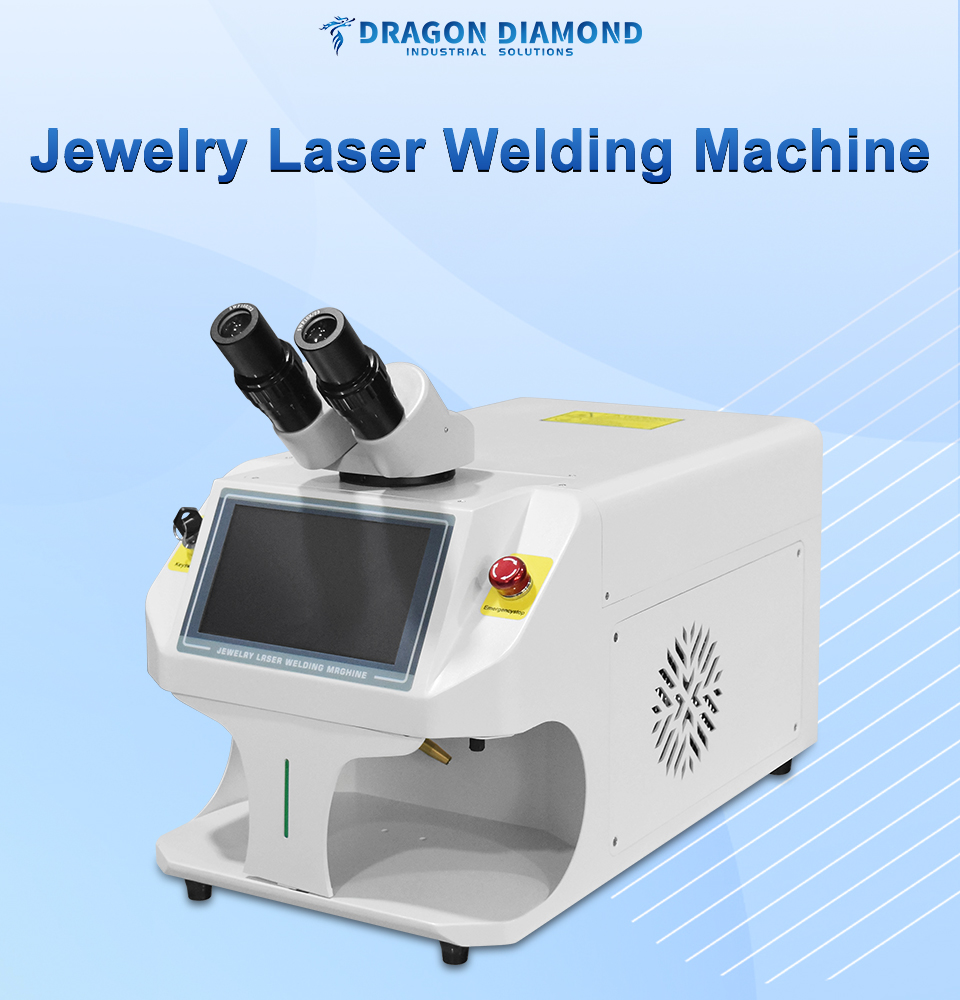

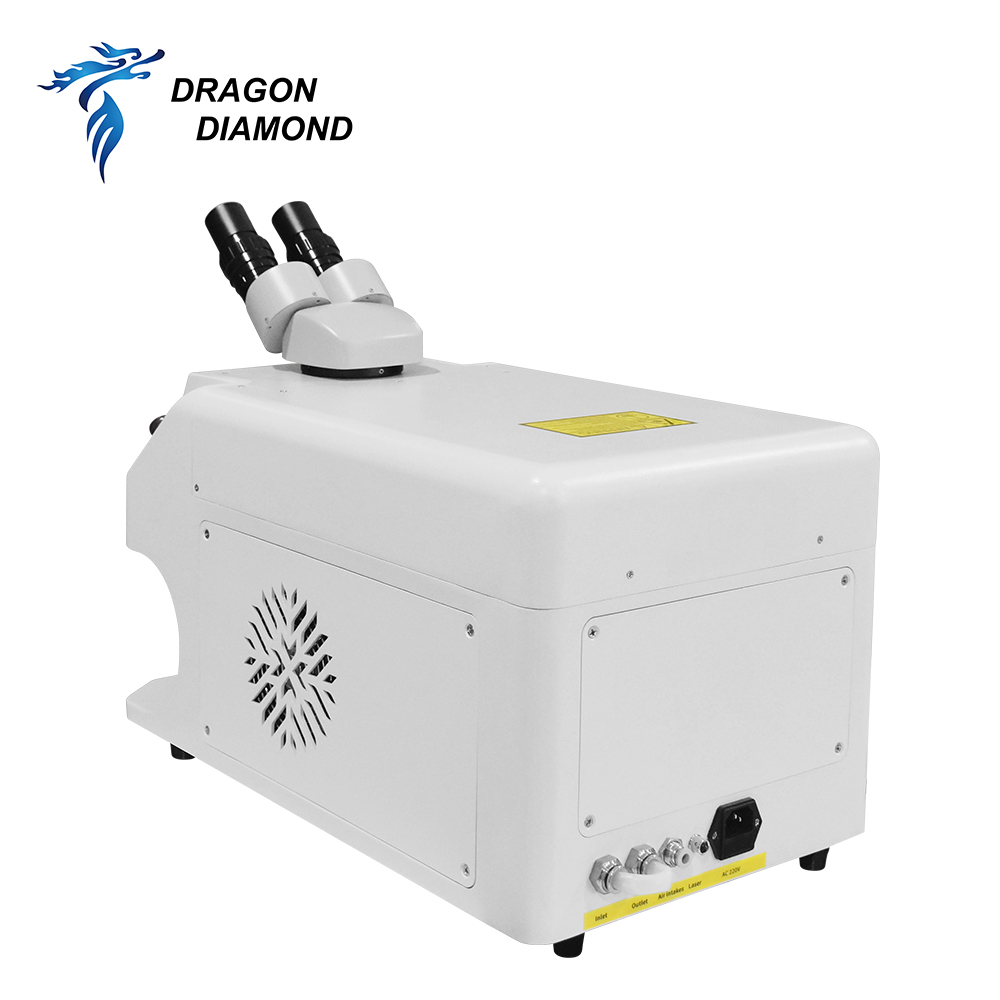

Jewelry Laser Welding Machine 80W 100W For Gold Jewelry Welder Spot Welding



Item

Detail

Screen

High definition display screen 20X

Camera

Welding & check the welding effect

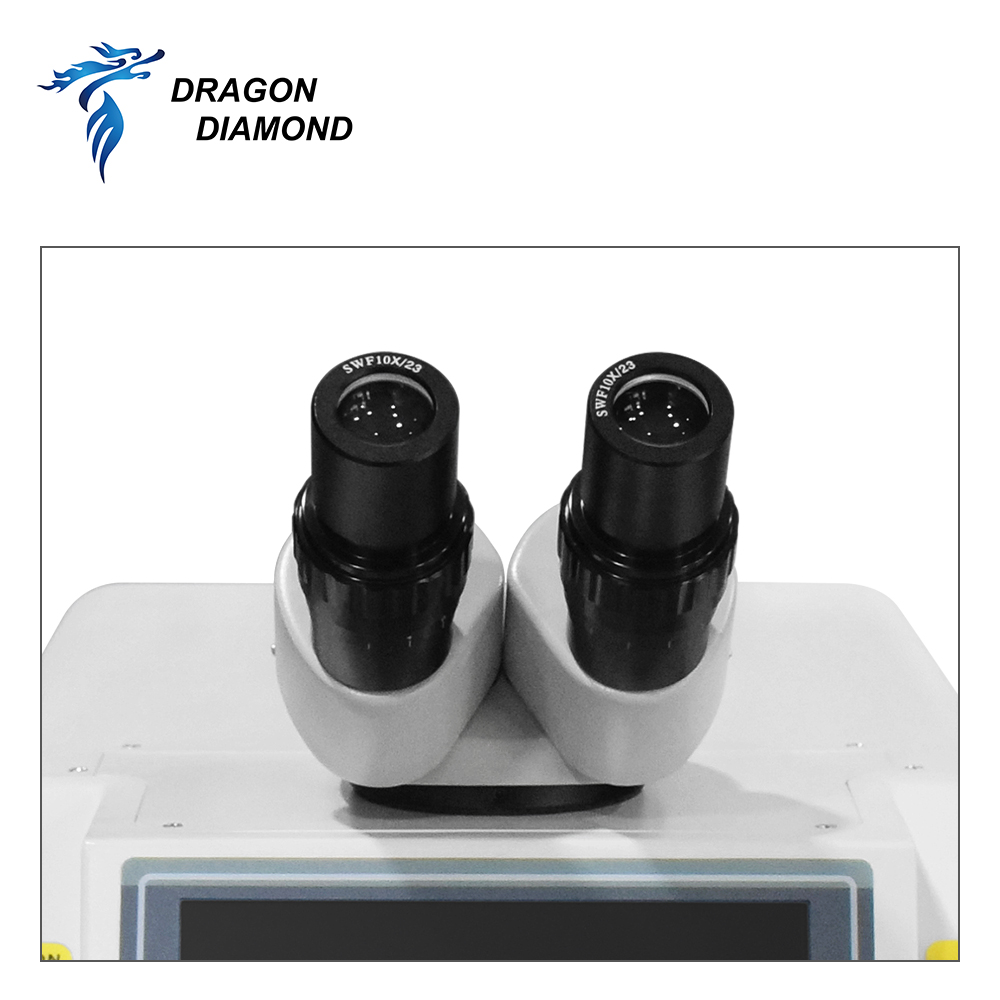

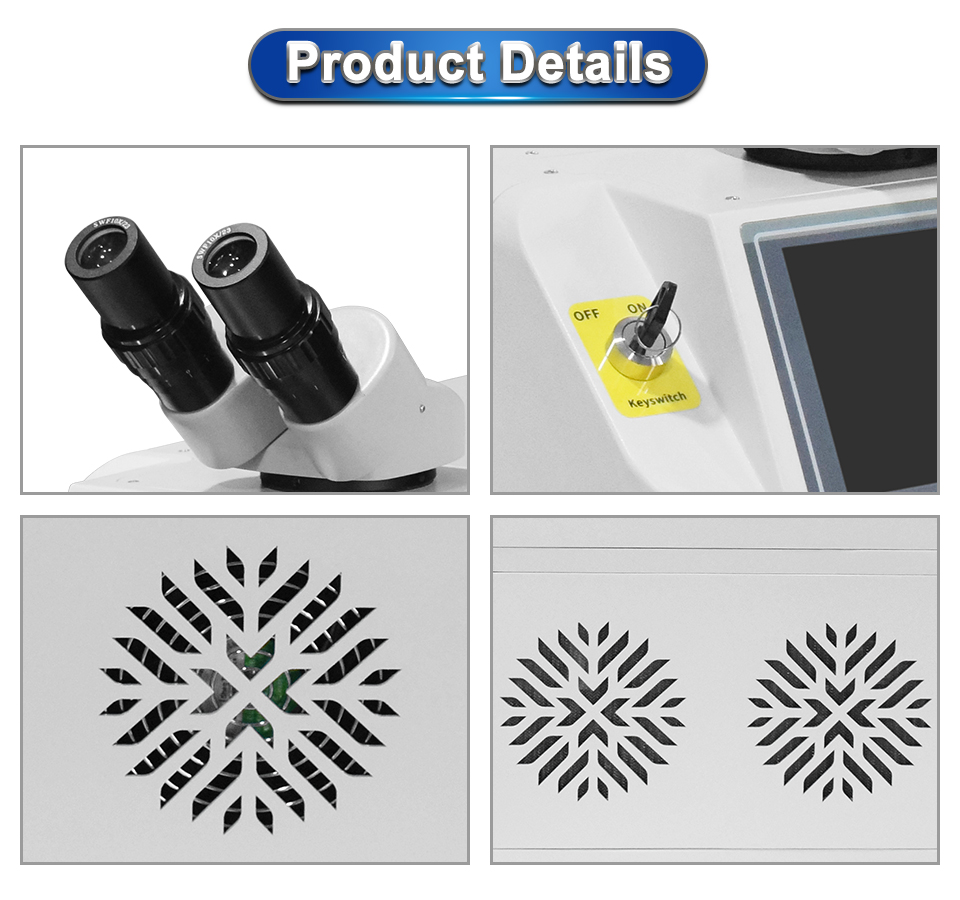

Microscope

10X

Power

80W/100W

Power Regulation Range

1-100%

Frequency

1-30Hz

Wavelength

1064nm

Pulse Width

0.1~ 10ms

Spot Adjustment

0.1-3.0mm (For reference only )

Minimum Spot

0.2mm

Cooling System

Air cooling

Working Environment
Temperature

10-35°C

Electricity Demand

AC220V±10%,50/60Hz

Whole Machine Power

2KW

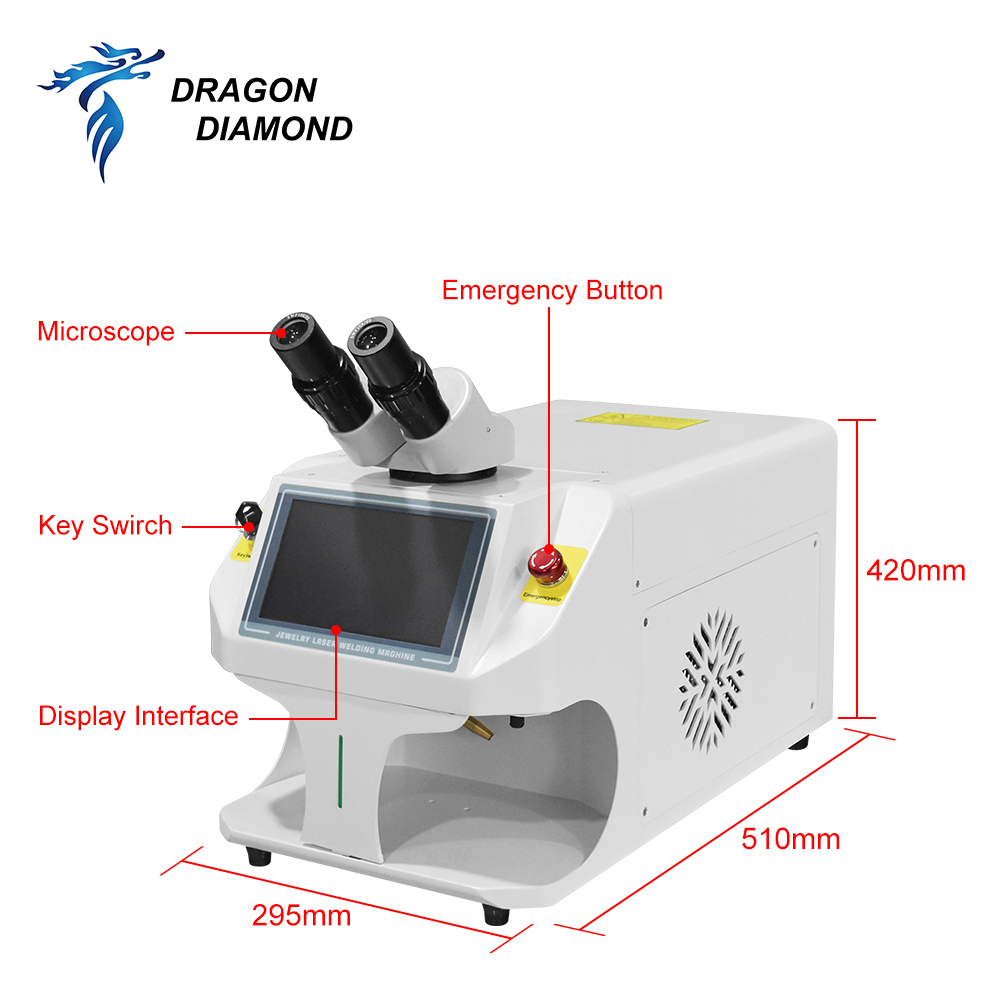

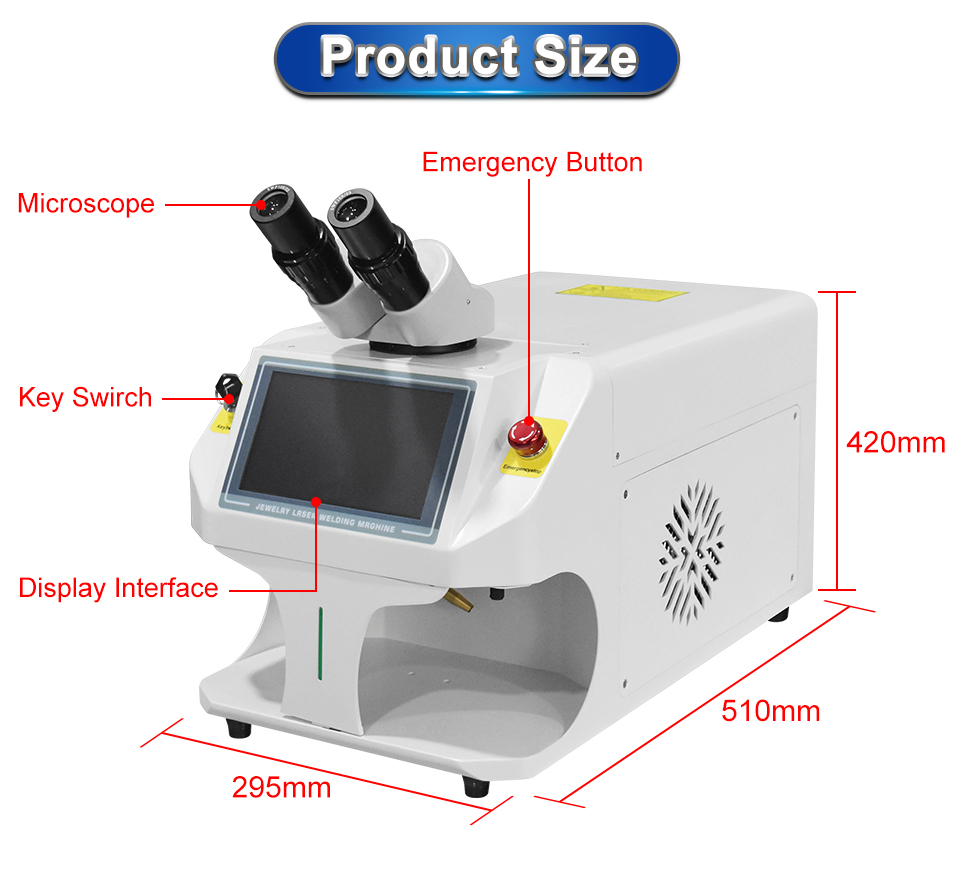

External Dimensions (L*W*H)

510*295*420mm  NW:28KG

Packing Size (L*W*H)

720*380*460mm GW:42KG








Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
