TECHICAL PARAMETERS

Power

20w

30w

50w

Laser Wavelength

1050-1070nm

Repetition Frequency

20-80KHZ

Marking Range

150*150mm

200*200mm

300*300mm

Marking Depth

≤ 0.4mm

Marking Speed

≤10000mm/s

Minimum Linewidth

0.01mm

Minimum Character

0.15mm

Repeat Accuracy

±0.002

Power Supply

220V/50Hz

Power Consumption

500W

Dimension

830*720*1000mm

Total Weight

About 80KG

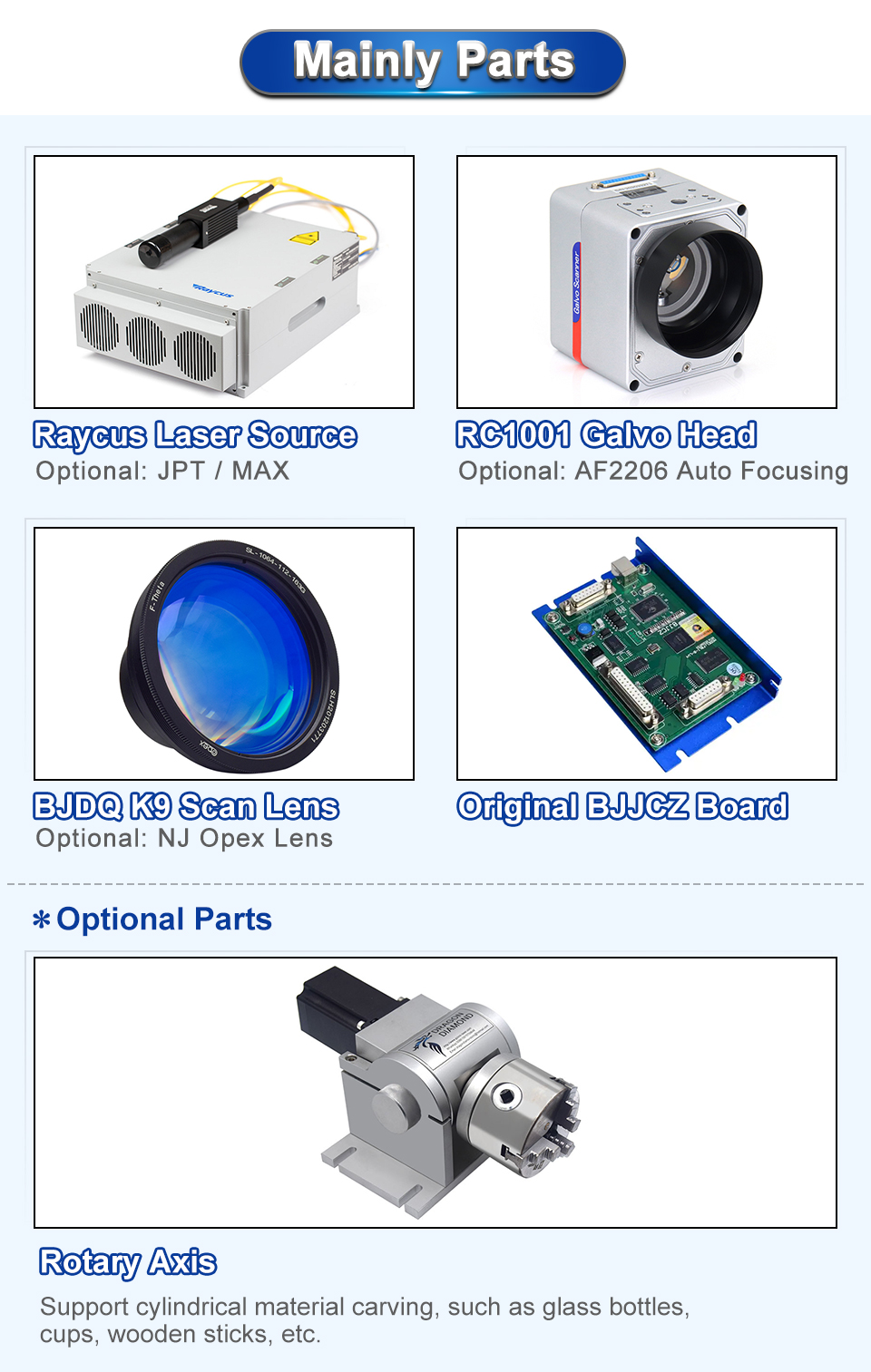

Laser Source

Raycus / Max / JPT

Cooling System

Air Cooling

Controller Software

EZCAD

Control Board

Original BJJCZ Board

Focus System

Autofocus System
