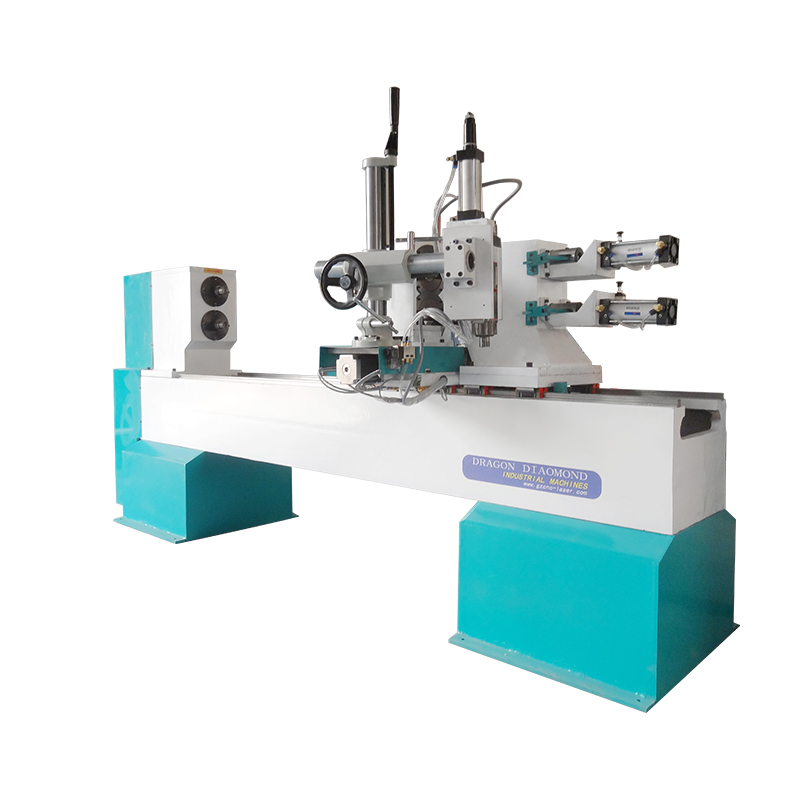

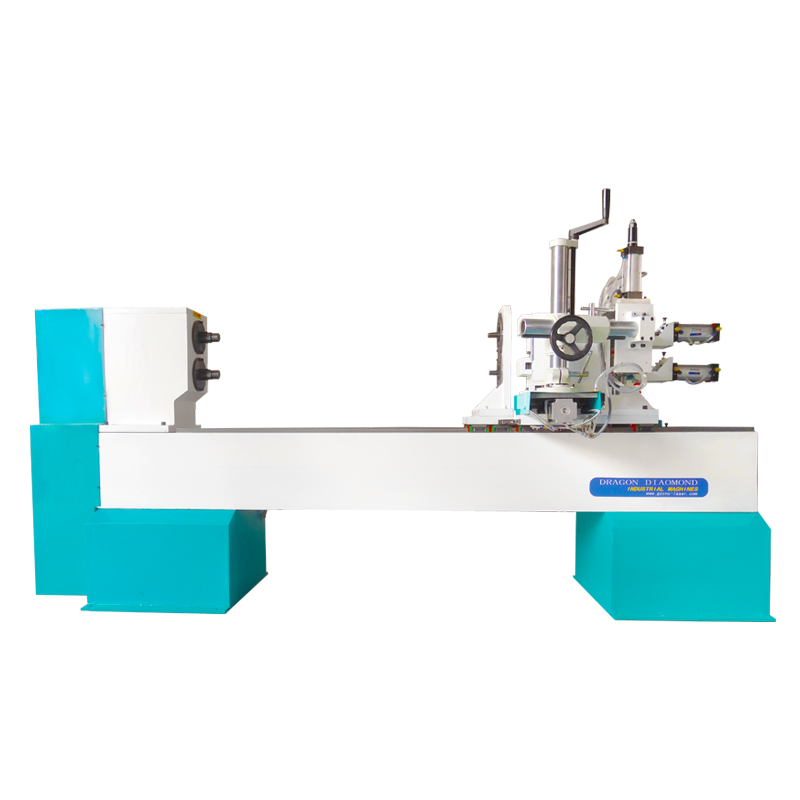

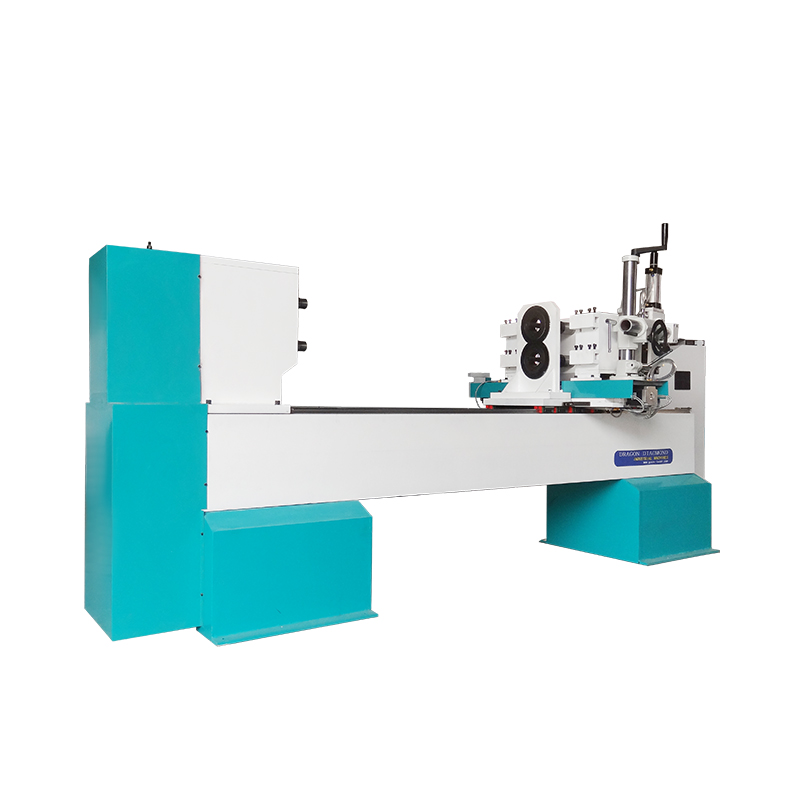

CNC Wood Engraving Machine

CNC Wood Lathe Engraving Machinery Turning Rotary


  • Item NO.:

    LZ-1516
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Color:

    Green+White
  • Shipping Port:

    Guangzhou
  • Product Detail

CNC Wood Lathe Engraving Machinery Turning Rotary

CNC Wood Lathe Engraving Machinery Turning Rotary


PRODUCT PARAMETER

NO.

Model

Lz-1516

1

Axis Type

Double axis, Single blade

2

Max.working dimensins

20mm-300mm
Single-axis use: 20mm-500mm
Dual-axis use: 20mm-160mm

3

Max.length

700mm-2800mm
(can be customized 2m and 2.5m long)

4

Max.spindle

700-2800RPM

5

Air pressure

0.6-0.8Mpa

6

Incoming total power

4.0KW

7

Use power supply

AC220v/380v

8

Use frequency

50HZ


CNC Wood Lathe Engraving Machinery Turning Rotary


PRODUCT DESCRIPTION

1.Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.


2.Prodessional used for wood turning and wooden cylinder engraving,for table legs,stair railing(banisters),etc.wood cnc turning lathe.

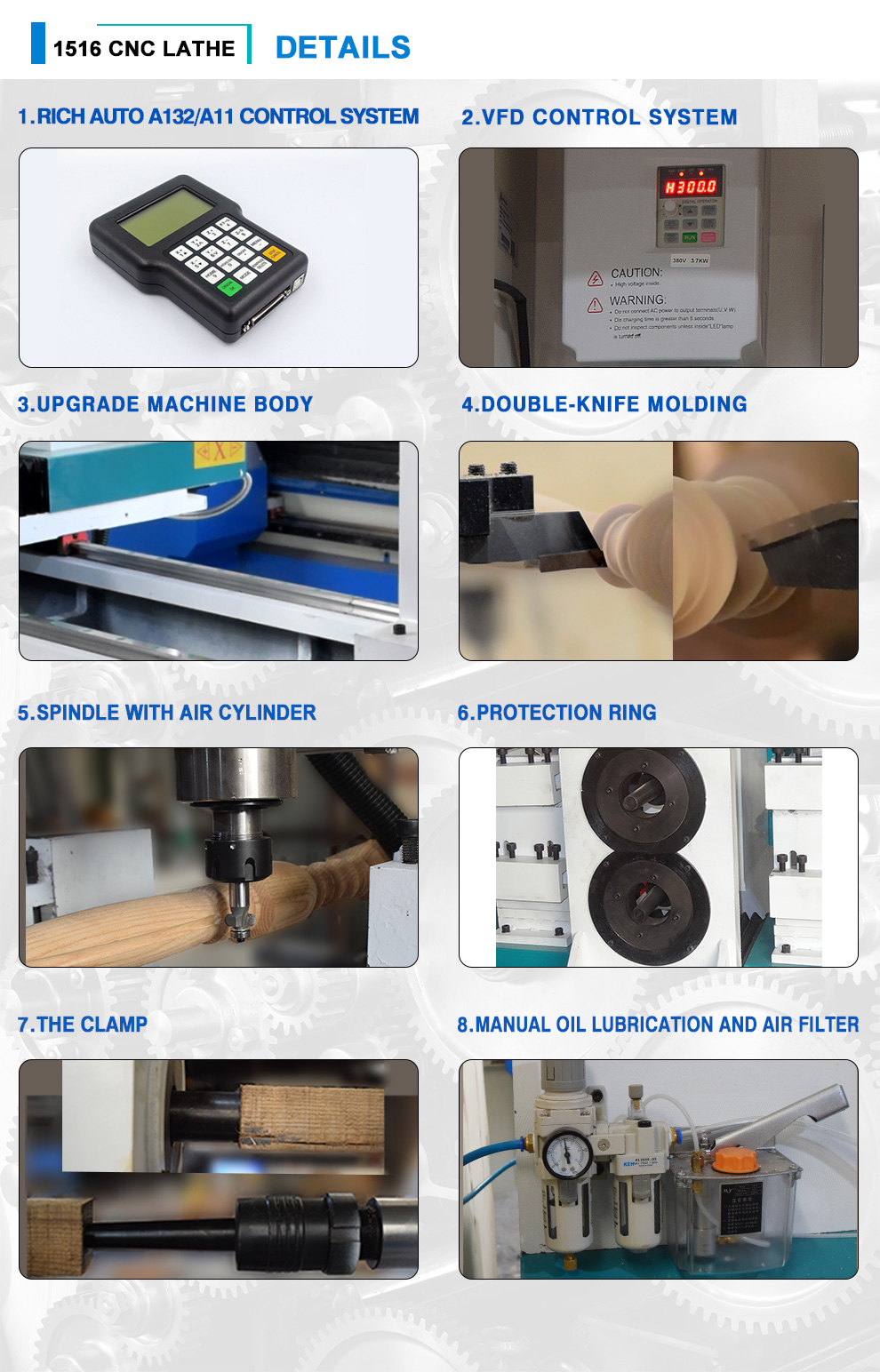

3.Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our engraver can completely work off-line and do not take any computer resources.


4.Adopt Germany ball screw and Tai van PMI helical square guide rail with high transmitting precision and longevity.Big module helical/diagonal rack.


5.Compatible with several CAD/CAM design software,e.g. Type3,Artcam,etc.


6.Rotating speed is adjusted by inverter,and the speed data is shown on controlling cabinet panel.


7.One time tool setting to finish the whole work piece.


CNC Wood Lathe Engraving Machinery Turning Rotary



CNC Wood Lathe Engraving Machinery Turning Rotary
