DRAGON DIAMOND CNC
Item NO.:
LZ-1325LOrder(MOQ):
1Product Origin:
ChinaShipping Port:

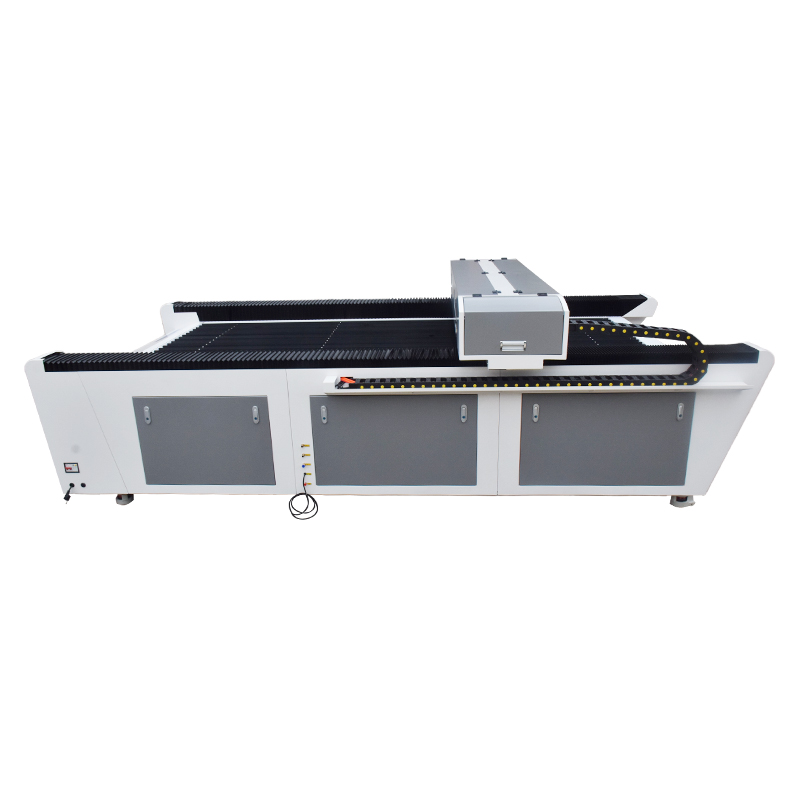

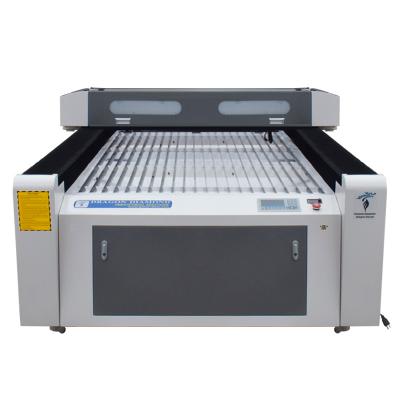

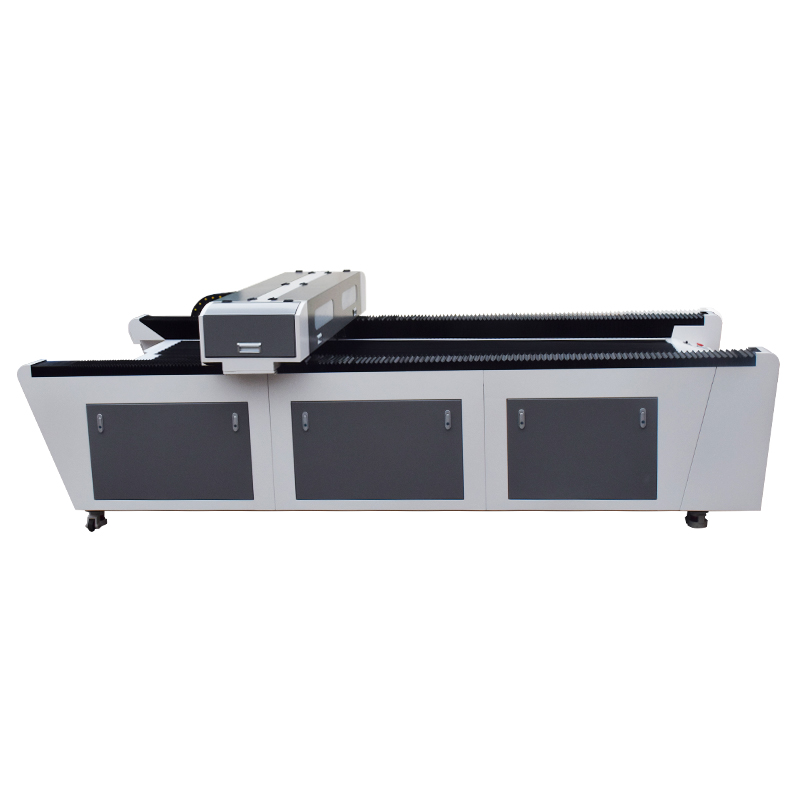

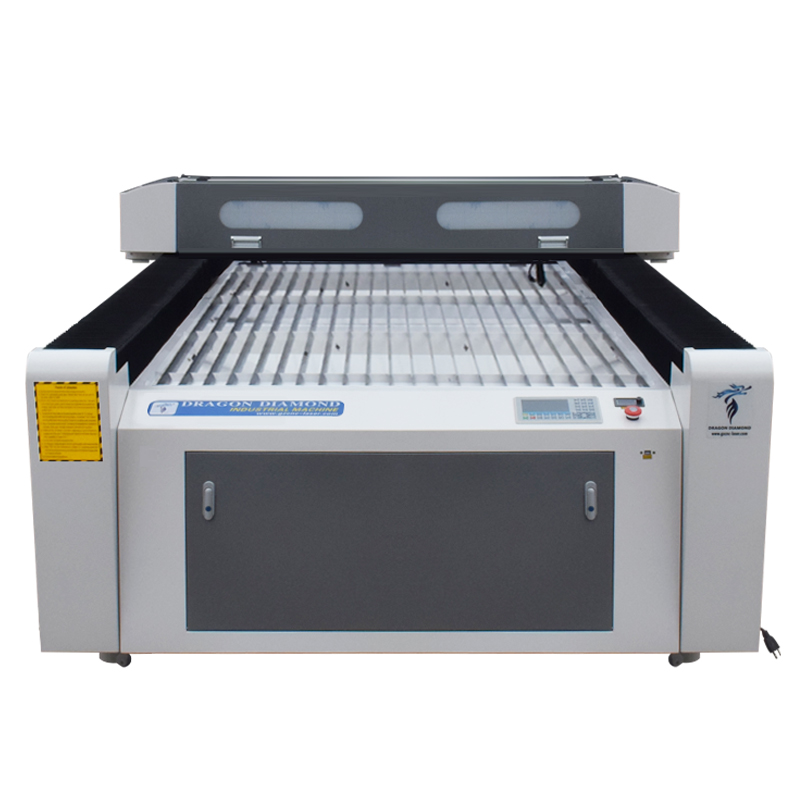

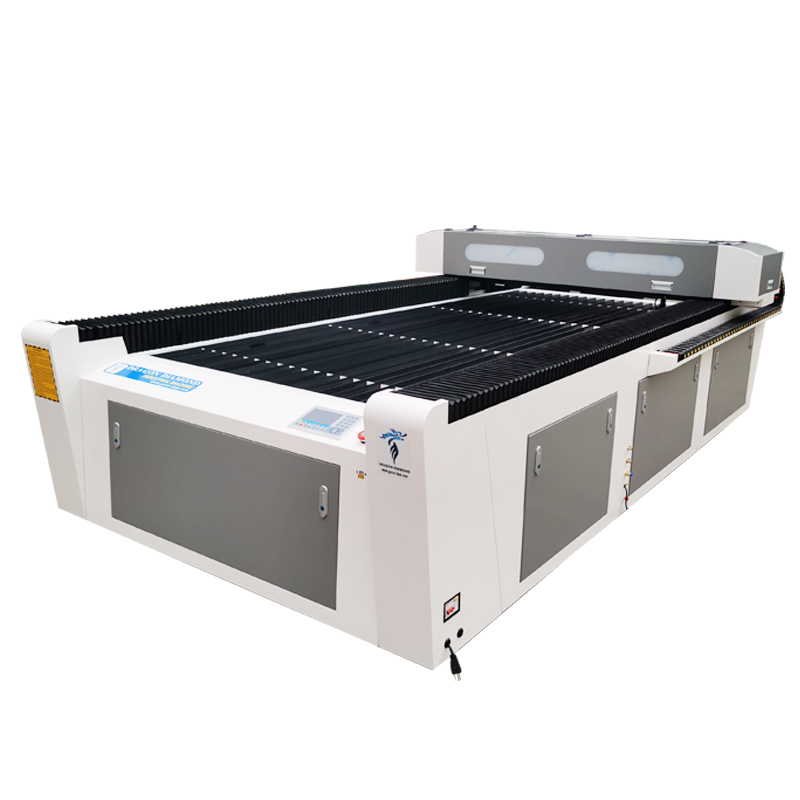

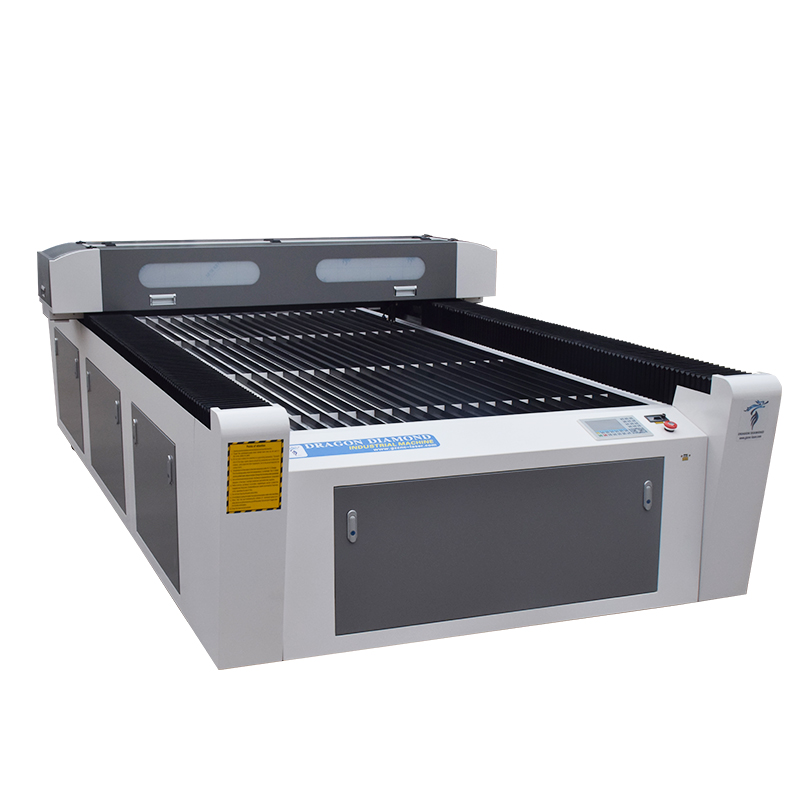

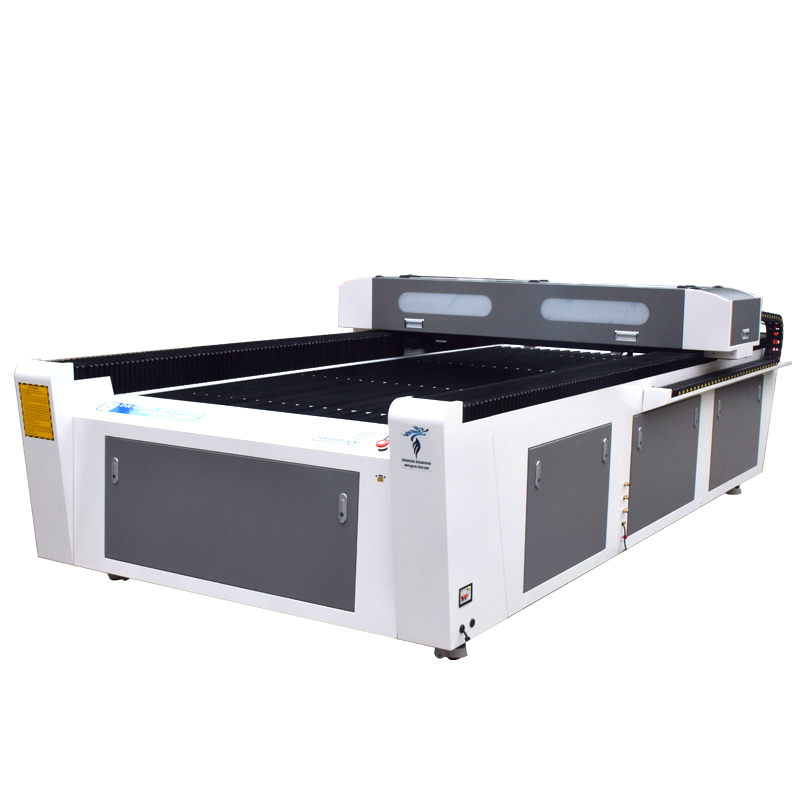

GuangzhouAcrylic wood mdf cardboard plastic rubber PVC foam fabric leather 1325 CO2 Laser cutting machine
NO.
Model
LZ-1325L
1
Working Area
1300mm*2500mm (98*51 in)
2
Table Type
Blade Sheet table
3
Laser tube type
CO2 sealed laser tube
4
Laser power
80W-150W
5
Focus Lens
Imported Lens
6
Motor & Driver
Stepper Motor & Driver
7
Position System
Red Light Pointer
8
Controller
Ruida 6445G
9
Cooling Function
Water Chiller CW3000/CW5000/CW5200
10
Machine power
<3000W
11
Software
RD works
12
Power supply
AC 220V 50/60Hz, single phase
13
Graphic format supported
BMP/JPG/DXF/WMF/EMF/PLT
14
Package size
2150*3250*1500mm
15
G.W.
900KG
16
Package
Wooden Box
17
Warranty
1 year (Laser tube 6 months)
18
Optional Parts
CCD camera, Rotation axis
6090 Laser Cutter 80W 100W Cnc Co2 Laser Engraving Cutting Machine 6090 CDD Camera for Contour Cutting Available 9060 CO2 Laser cutting Machine with CCD Camera Model NO. LZ-6090L+CCD Camera Working Area 900*600mm Table Type Honeycomb Table / Blade Sheet Table Laser Power 60W / 80W / 100W Laser Type CO2 Sealed Laser Tube Small CCD Camera System Contour Cutting Function Resolution 1,000--10,000 DPI Cooling Type Water Chiller CW3000 / CW5000 / CW5200 Focus Lens lmported Znse Control System RUIDA RDV6445G Software RD Work Graphic Format Supported PLT, DXF, BMP, AI, DST Machine size 1520x1250x1150mm Net Weight / Gross Weight 260KGS / 340KGS Packing Size 1600x1350x1300mm Power Supply 220V/50Hz, 110V/60Hz
