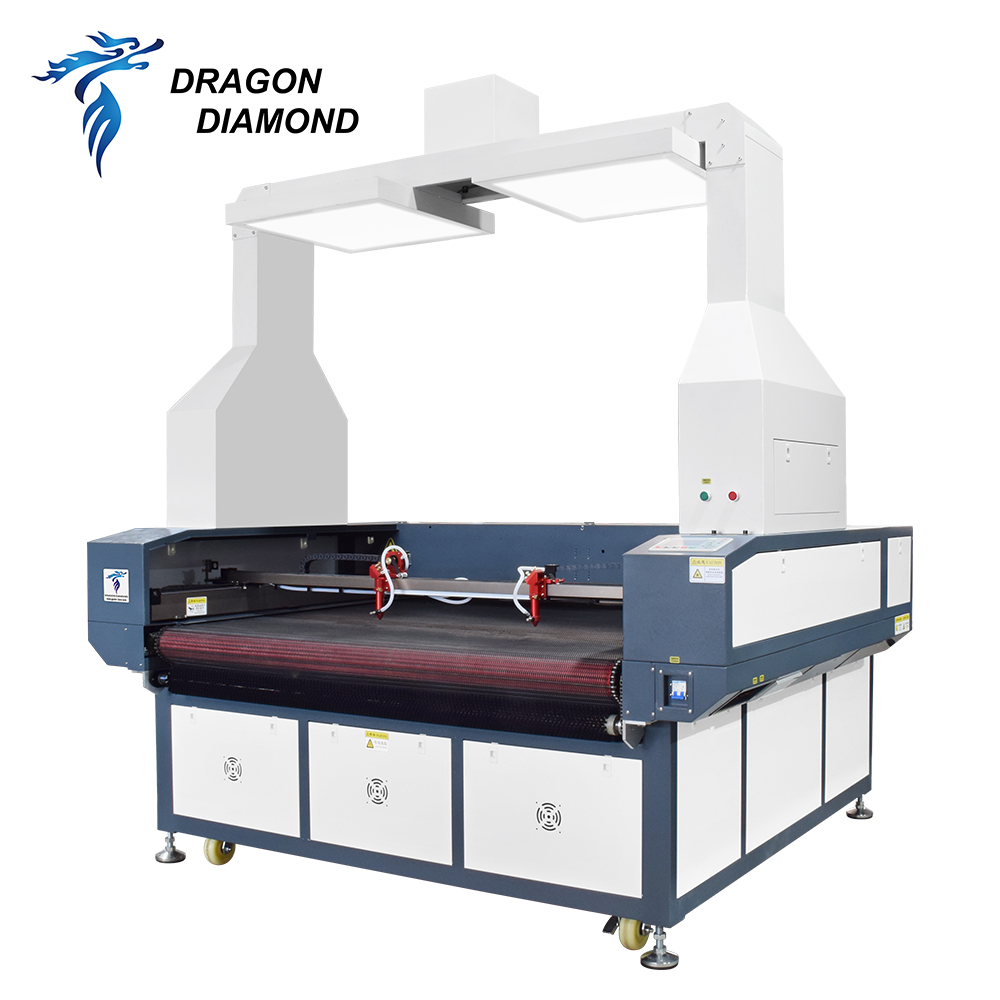

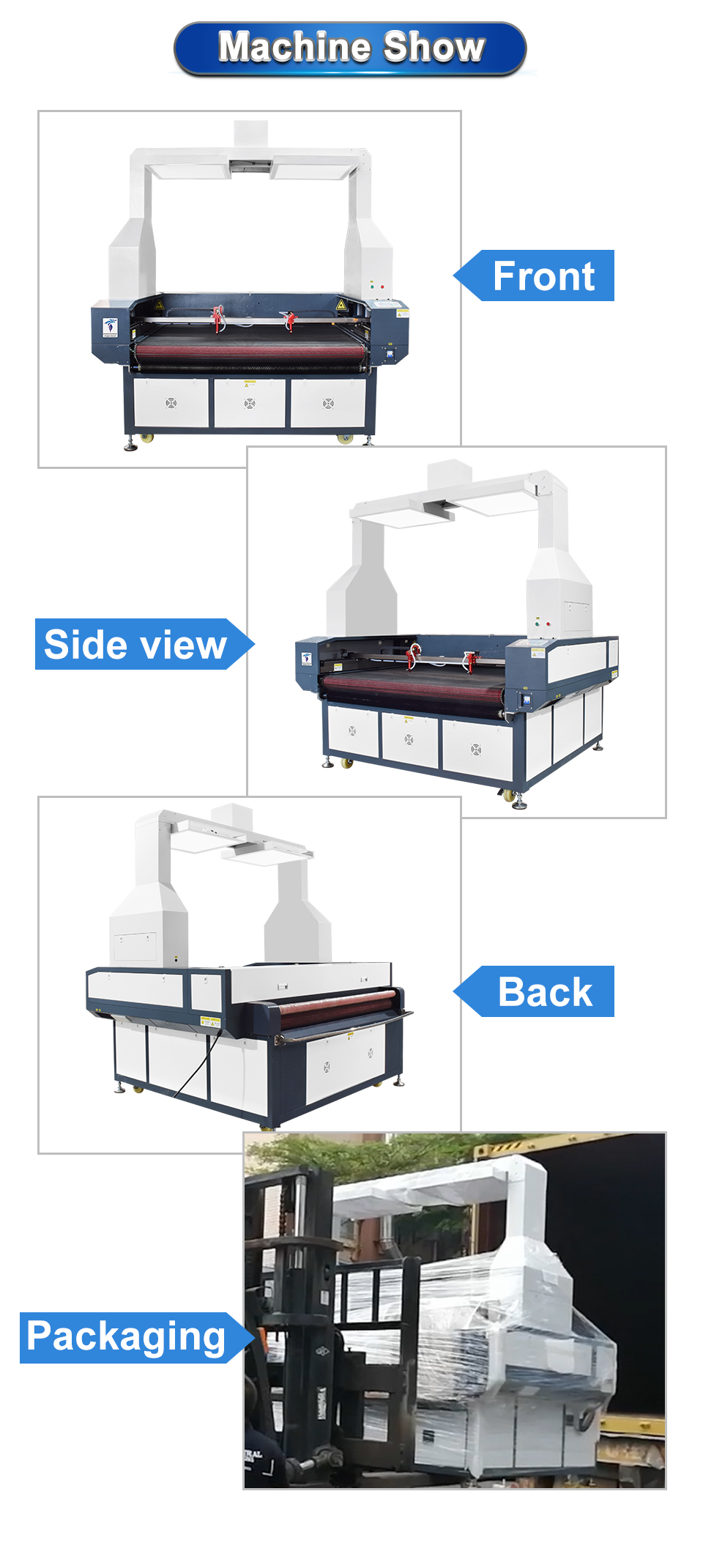

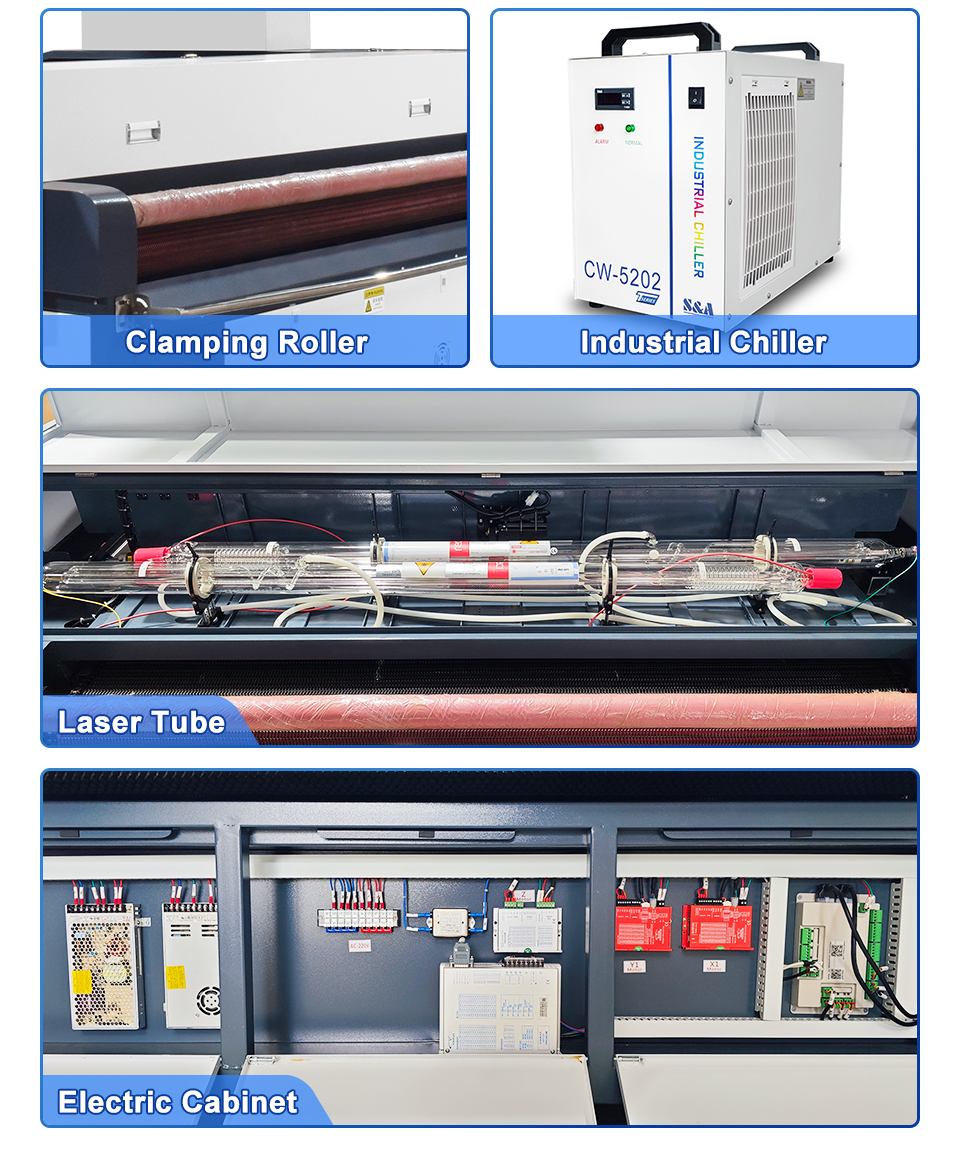

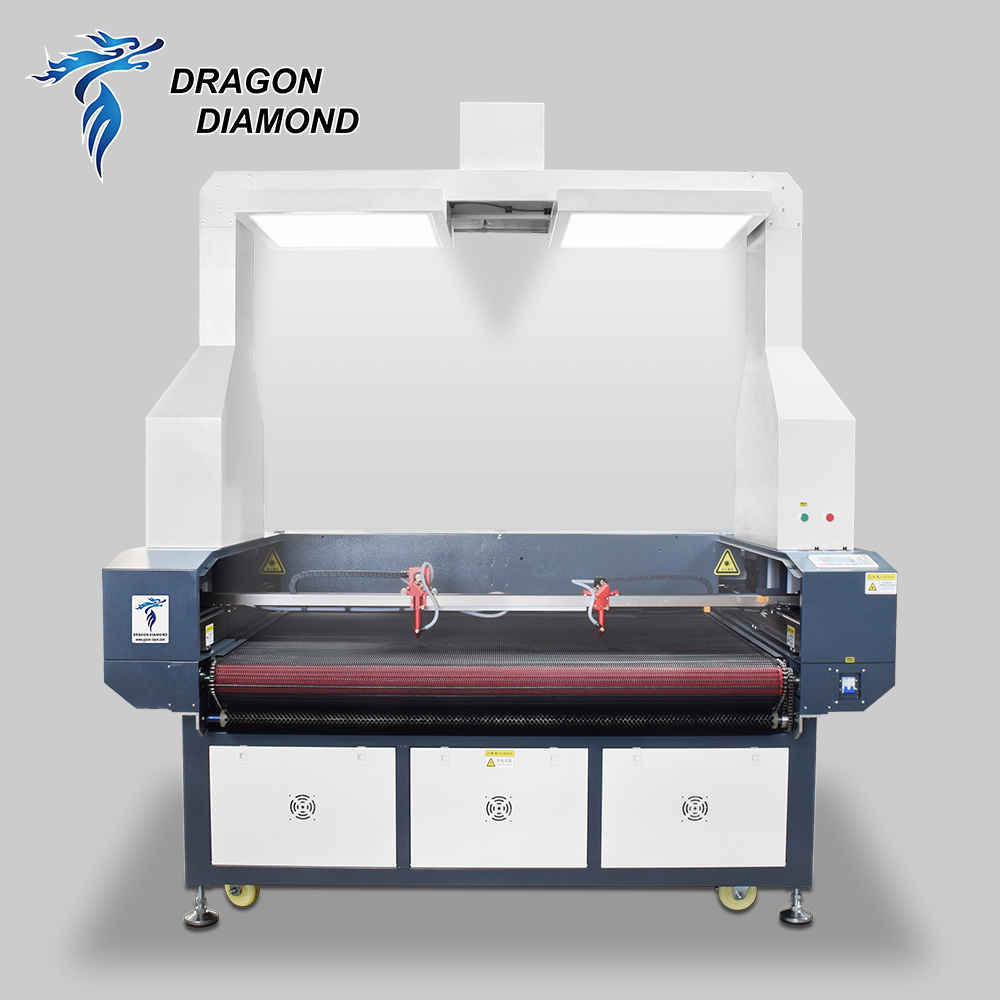

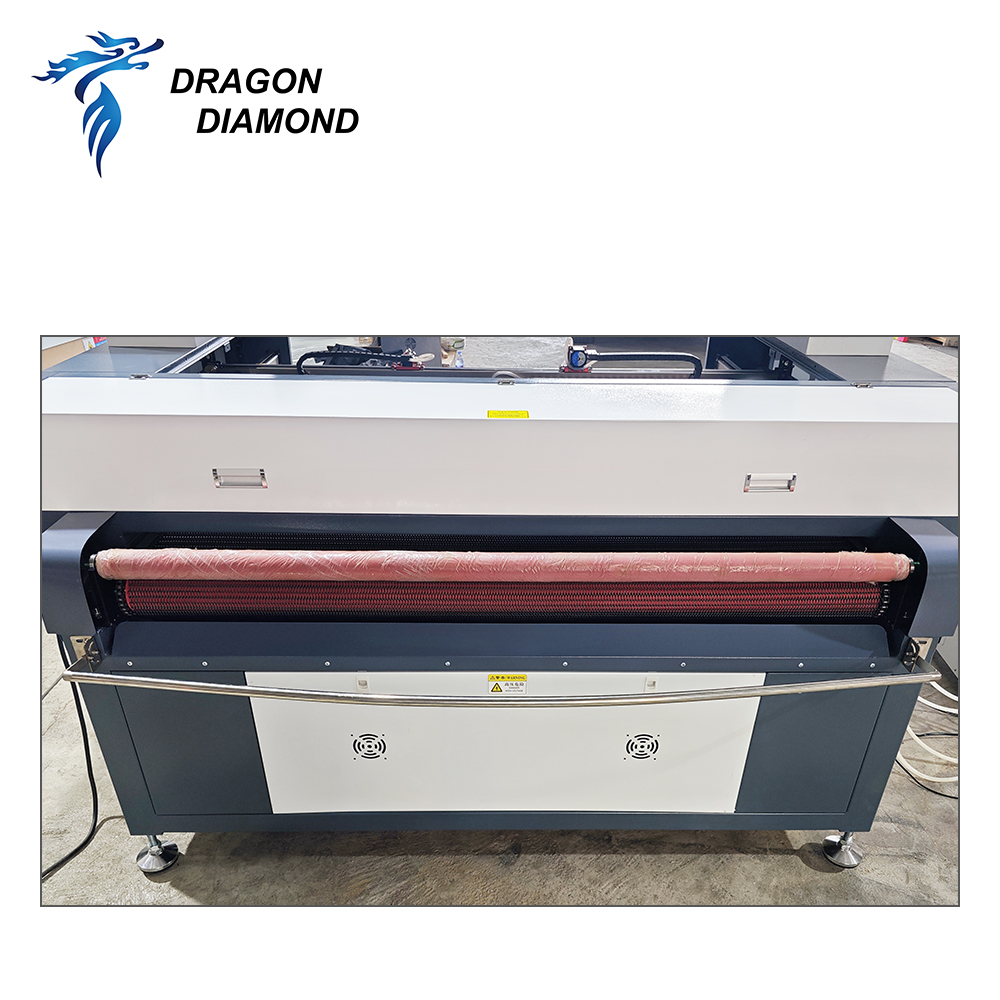

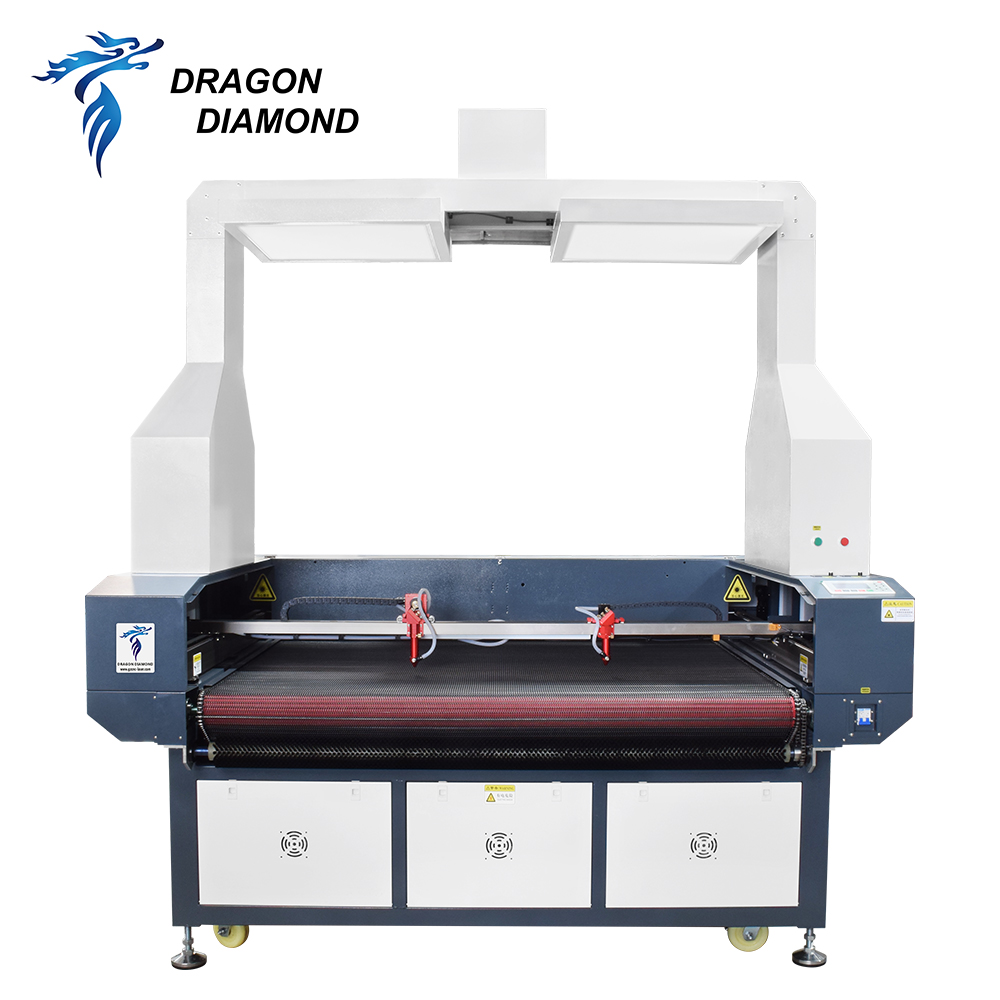

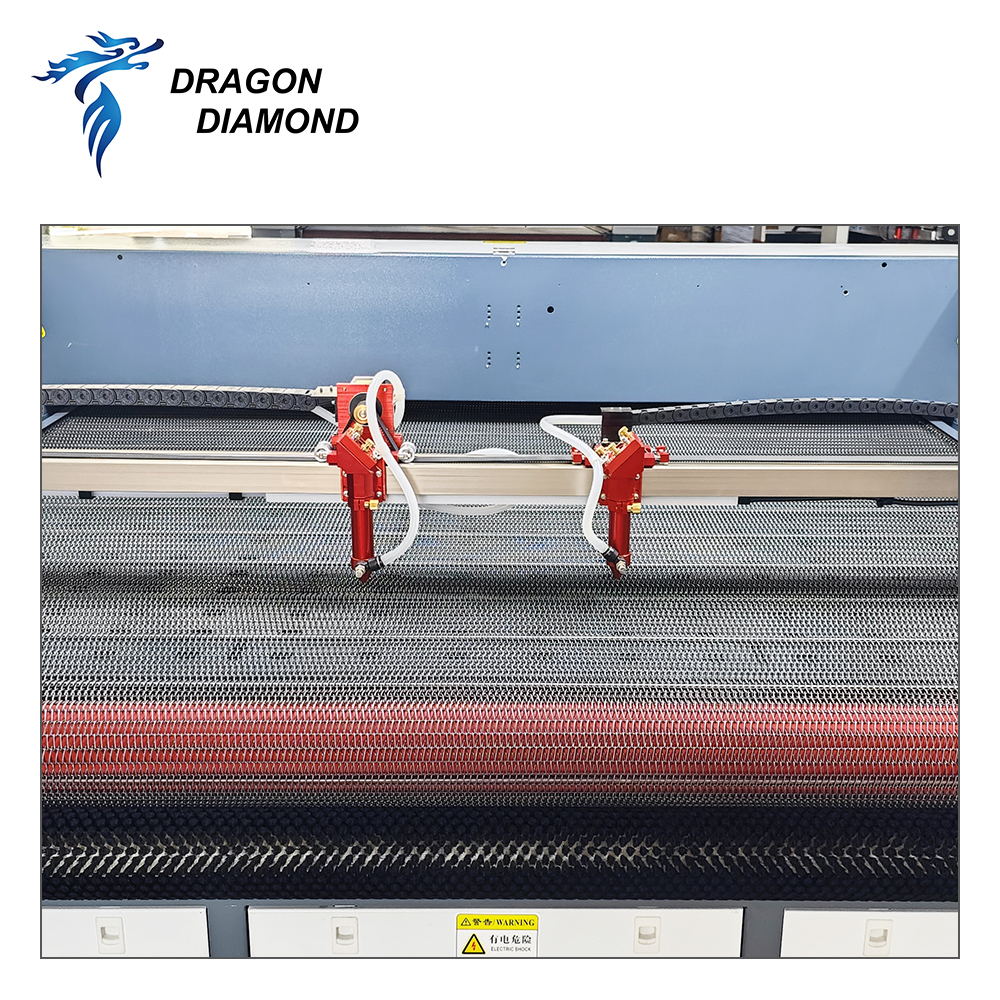

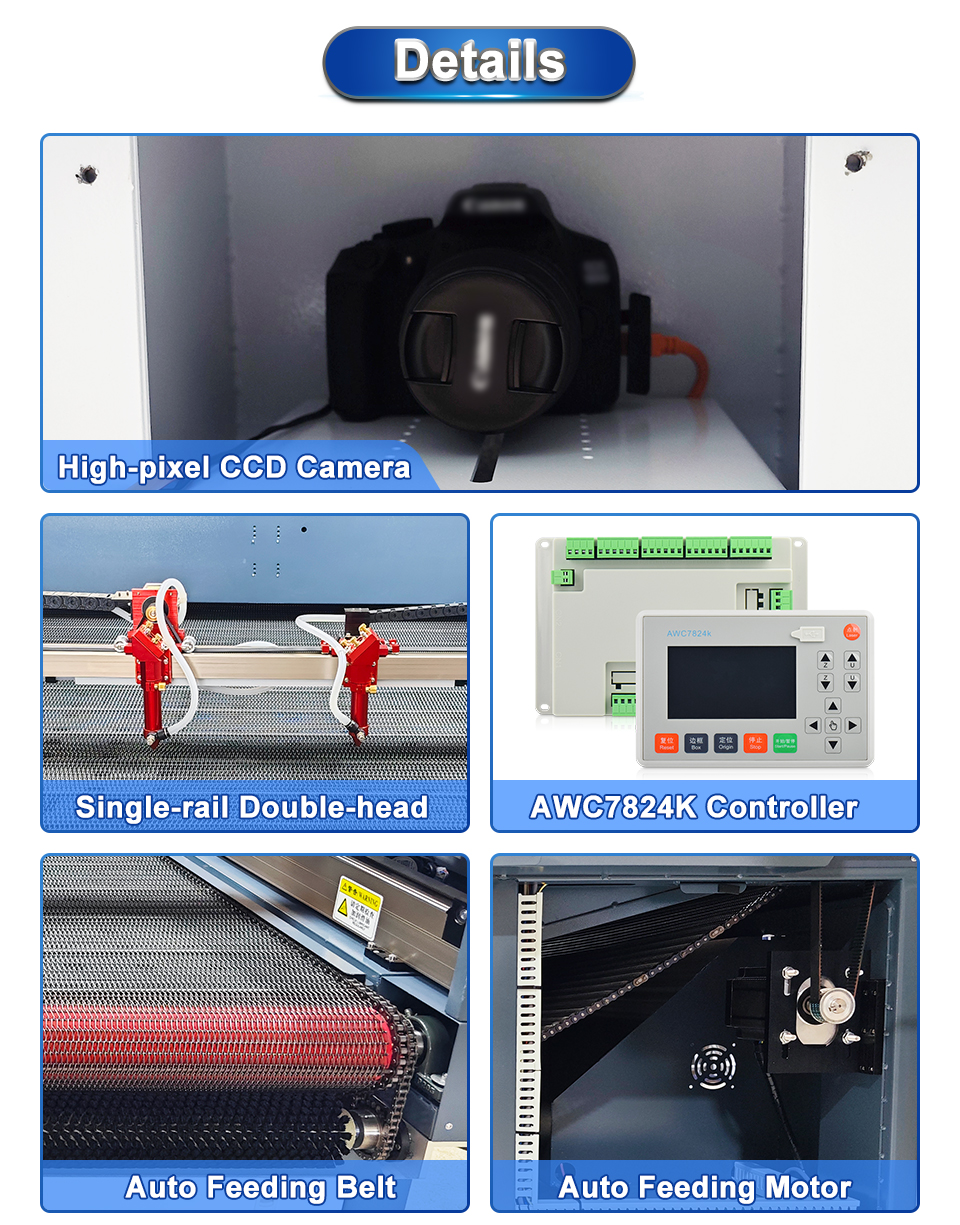

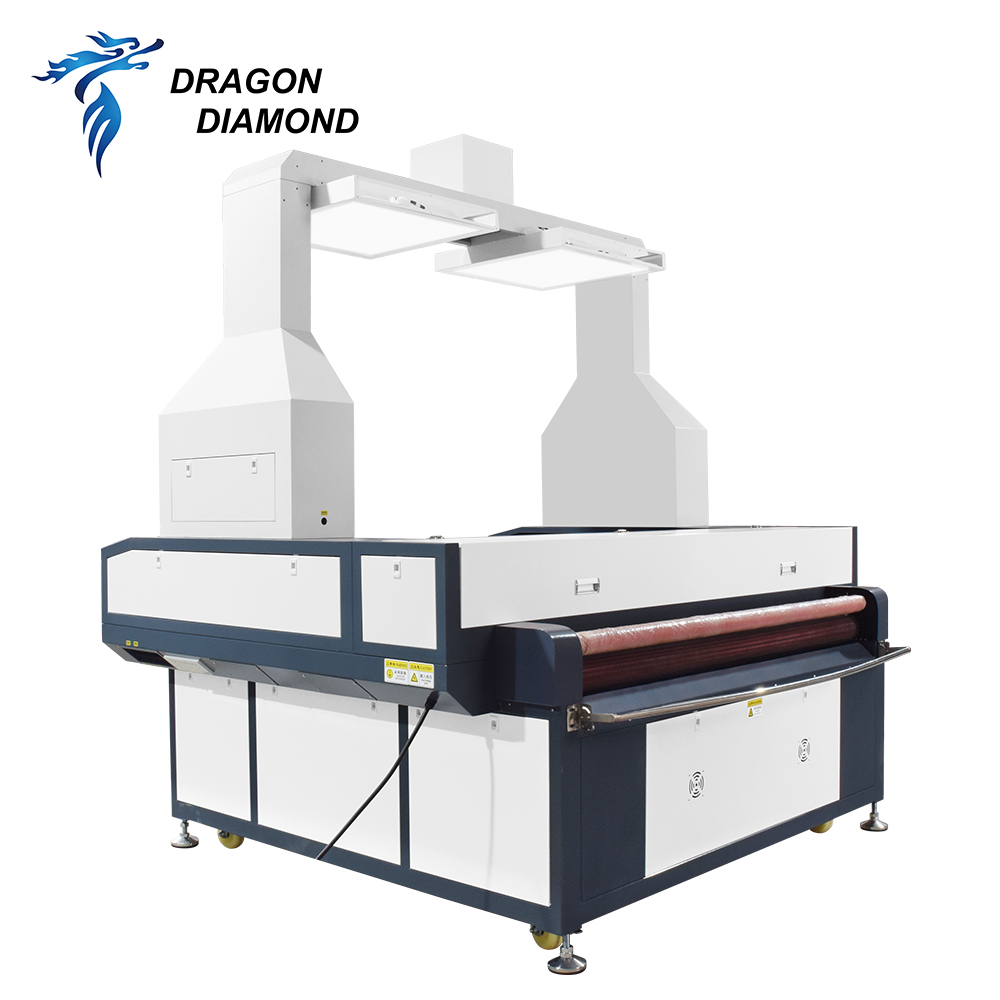

Automatic feeding 1610 double laser heads with CCD camera for Fabric cloth leather laser cutting machine

Laser Fabric Cutting Machine with CCD Camera and Conveyor System Automatic Feeding Garment 1816

1610 Auto Feeding CCD Camera Fabric Laser Cutting Machine Roll to Roll CO2 Laser Cutter Laser Fabric Cutter with Conveyor Feed

CNC Door Wood Engraving Machine with Vacuum Cutting Table

CNC Door Wood Engraving Machine with Vacuum Cutting Table PRODUCT PARAMETER NO. Model Lz-1313B 1 Working Area  1300x1300x200mm               2 Packing Size 3200x2200x1800mm 3 Working Table Vacuum Table 4 Spindle 3KW Water cooling Spindle 5 Cooling System Water cooling 6 Control System NC Studio 7 Inverter Sunfar 8 Transmission X,Y axis rack drive,Z axis screw drive 9 Guide Rail Taiwan Square rail 10 Ball Screw TBI ball screw from Taiwan 11 Drive System Leadshine driving system and stepper motor 12 Body  Welded steel T type structure as a whole 13 Spindle Speed 24000RPM 14 Control Software Artcam/Type3,other CAD/CAM 15 Traveling Speed 10m/min 16 Working Speed 8m/min 17 Reposition Accuracy 0.03mm 18 Command Code G Code*.u00*.mmg*.plt 19 Voltage AC220V/380V,50HZ/60HZ   PRODUCT DESCRIPTION 1.Single Head with Two Spindles Double heads with two spindles is optional.Can be finished multiple process. 2.Vacuum table Vacuum adsorption system with 5.5kw Water cycle vacuum pump,vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time. 3.Stronger machine frame design Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for long time, avoid broken knife, more stable,durable. 4.Transmission System Imported Hiwin, Taiwan Linear square guide rail with Racks type transmission for X and Y axis, higher running speed and efficiency ,saving cost z- axis with precision ball screw, high precision and more durable. 5.Gantry The Y axis transmission mode for stepping two-way drive, more eficient, simplified carpentry and maintenance of the processing of the maintenance work. 6.Spindle and Inverter Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque，matched with high-performance frequency inverter. 7.Stepper Motor and Driver China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min. 8.Dust Collector The dust collection system can collect the saw dust and chips while working to keep a cleaning working environment. It dose good for the human health and equipment. 9.NC Studio Control System and Software Compatibility Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to improper size. APPLICATION INDUSTRY 1.CRAFT INDUSTRY Wood-animal, Wood crafts, Gift box, Jewelry box, Family furnishings. 2. FURNITURE Wooden door cabinet office and wood furniture, Table chairs, Composite gates, Dining table 3. SHEET METAL PROCESSING Insulating parts, Plastic chemical components, EVA (ethylene), MDF 4. ADVERTISING INDUSTRY Advertising signs, Logo making, Acrylic carving,Crystal word making, Company logo

2.5D Laser Marking Machine MAX Raycus JPT Fiber Laser Engraving Machine with Electric Lifting Platform 2.5D Marker

Woodworking Engraving Cutting Machinery

Desktop 20W 30W 50W CO2 RF Laser Marking Machine for Leather Acrylic

Automation Wood Carving Woodworking Machine 1313
