DRAGON DIAMOND CNC

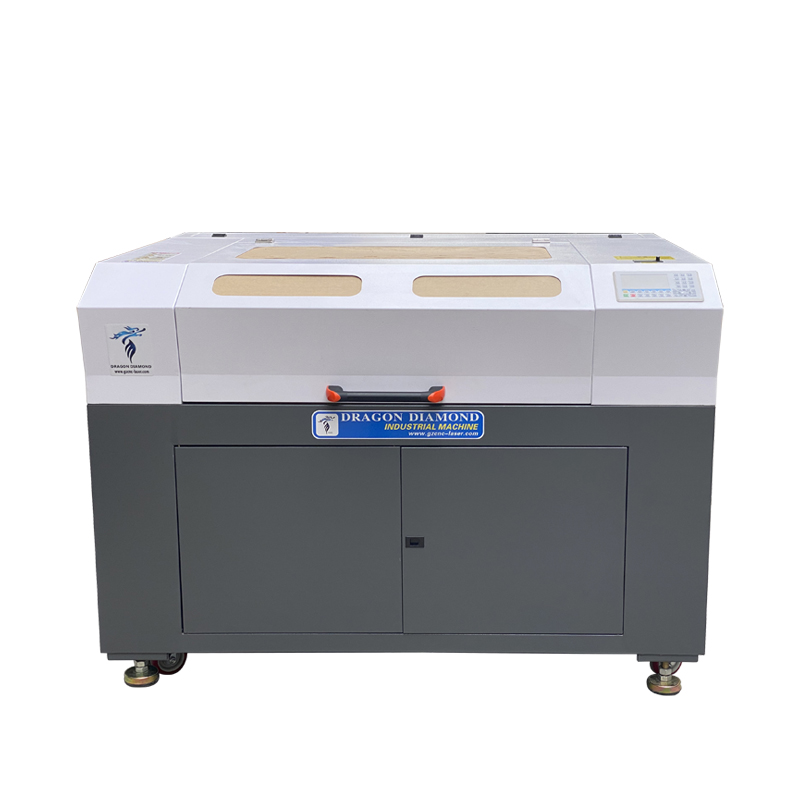

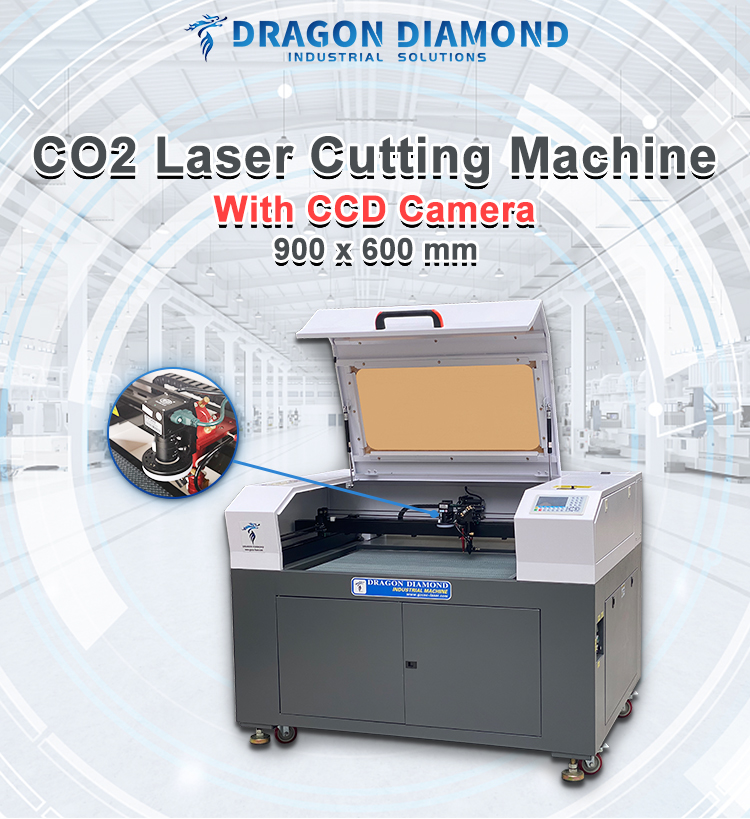

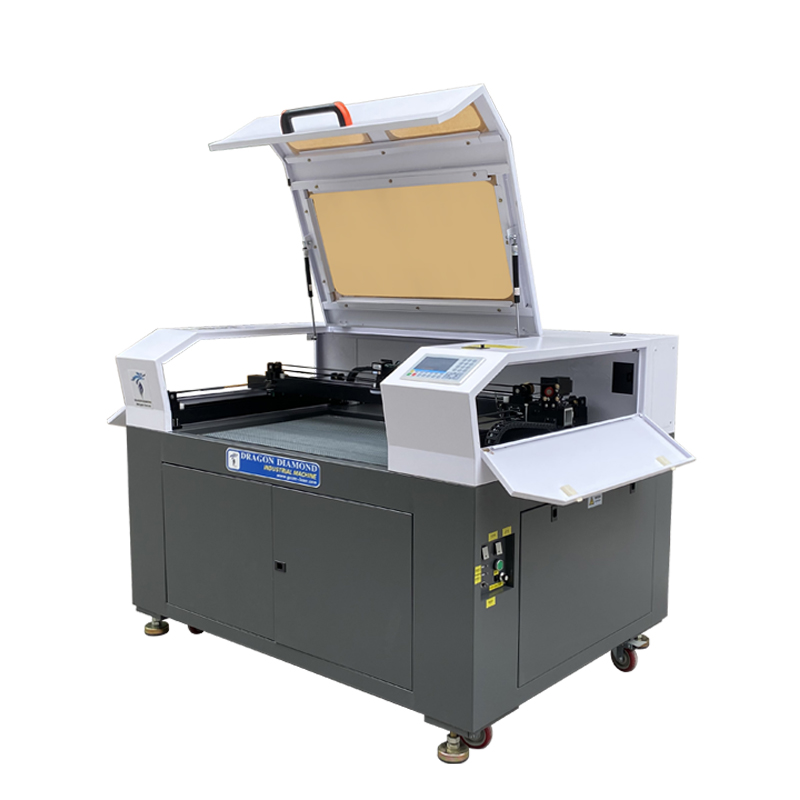

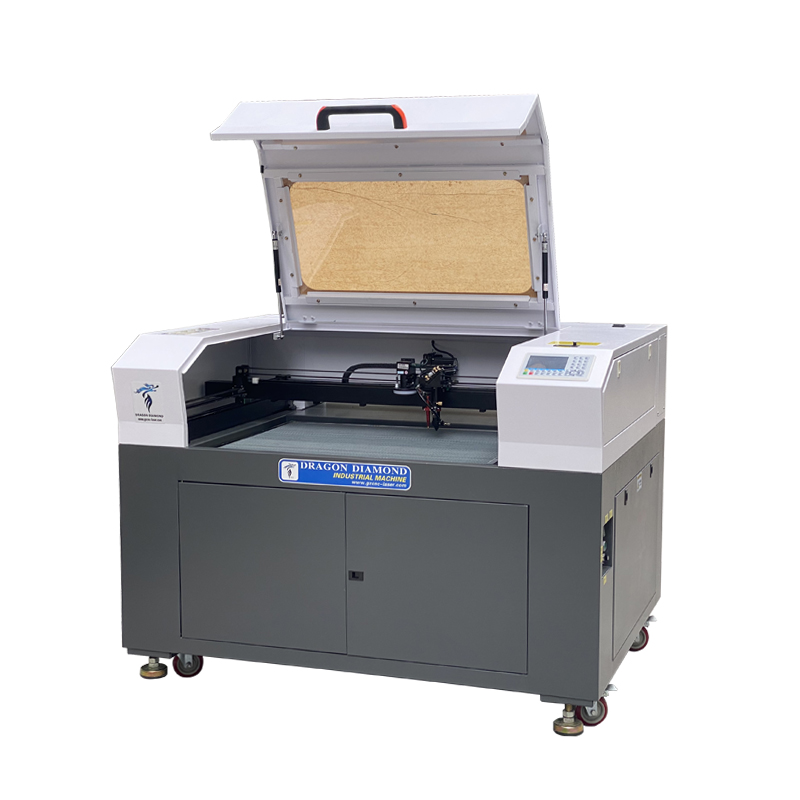

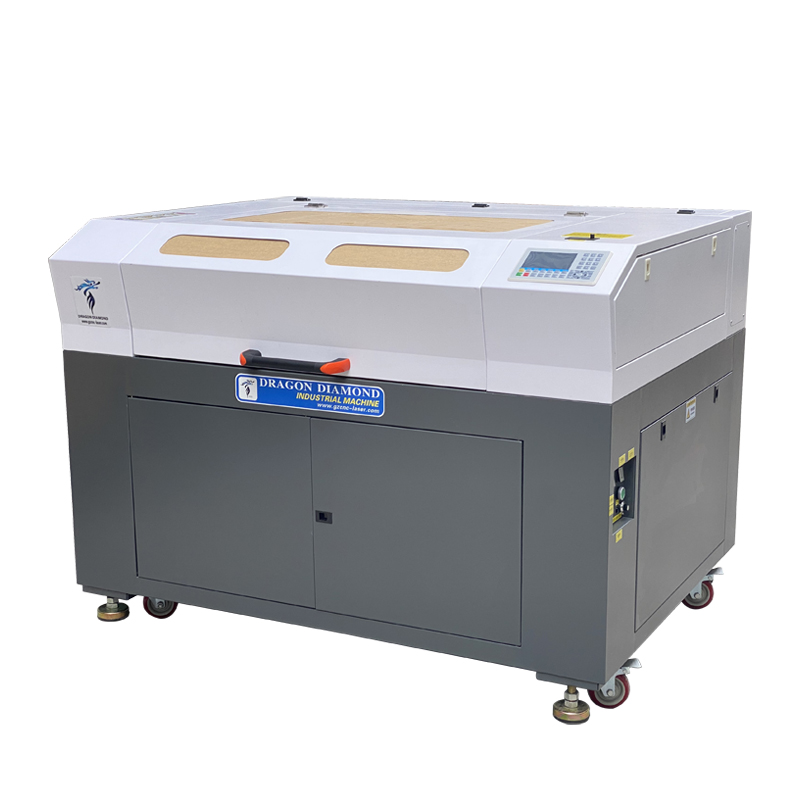

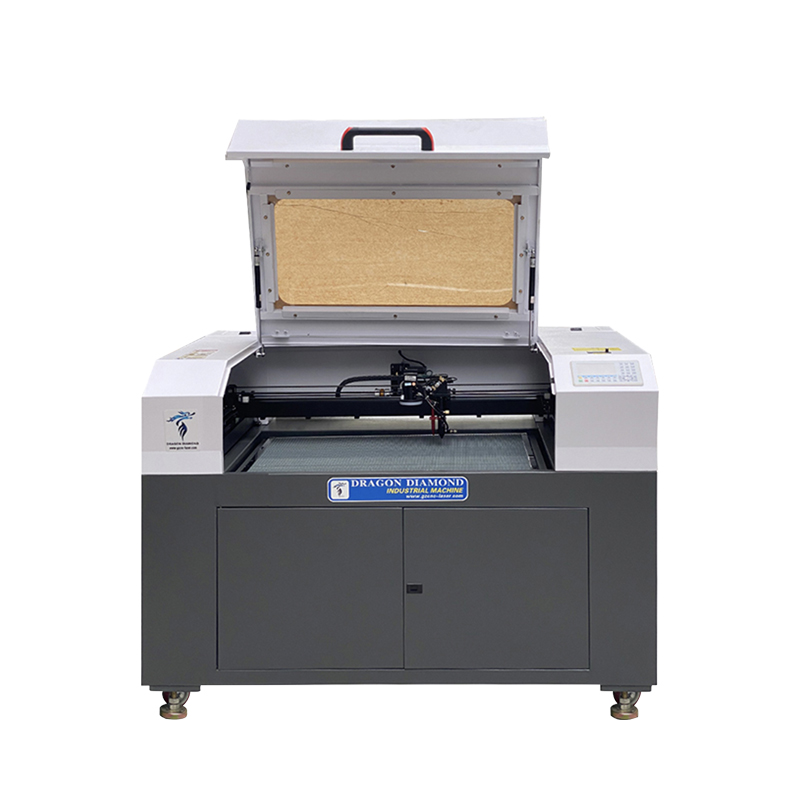

900*600mm CCD Camera CO2 Laser Cutting Engraving Machine Crafts Products
Item NO.:
LZ-9060L(withCCD)Order(MOQ):
1Product Origin:
ChinaShipping Port:
GuangzhouLead Time：
20-25 working daysLaser cutting machine with CCD camera for handicraft pendant
|
Model NO. |
LZ-6090L+CCD Camera |
|
Working Area |
900*600mm |
|
Table Type |
Honeycomb Table / Blade Sheet Table |
|
Laser Power |
60W / 80W / 100W |
|
Laser Type |
CO2 Sealed Laser Tube |
|

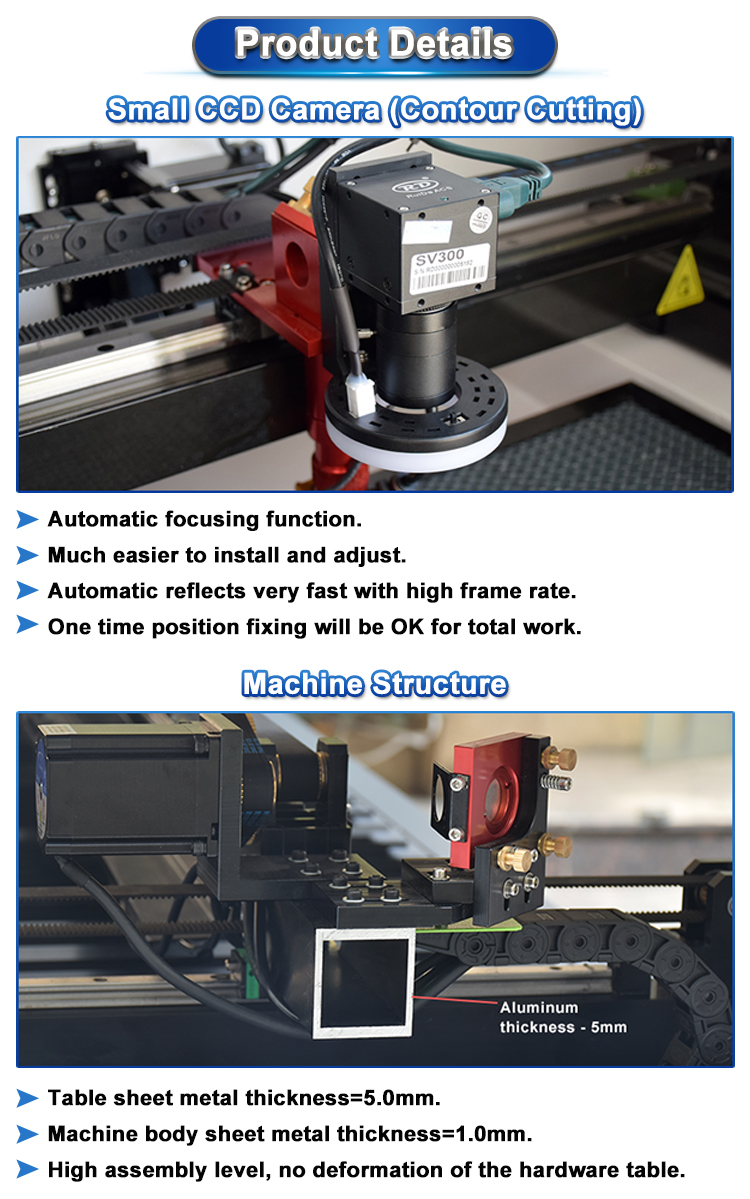

Small CCD Camera System |
Contour Cutting Function |
|
Resolution |
1,000--10,000 DPI |
|
Cooling Type |
Water Chiller CW3000 / CW5000 / CW5200 |
|
Focus Lens |
lmported Znse |
|

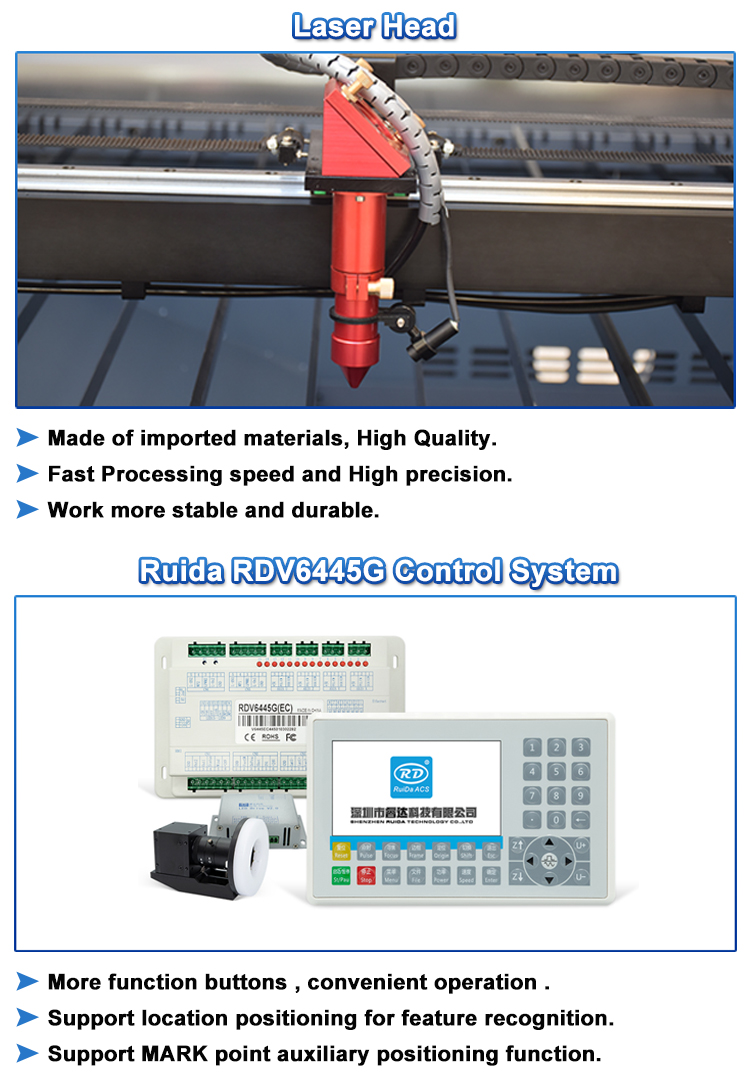

Control System |
RUIDA RDV6445G |
|
Software |
RD Work |
|
Graphic Format Supported |
PLT, DXF, BMP, AI, DST |
|
Machine size |
1520x1250x1150mm |
|
Net Weight / Gross Weight |
260KGS / 340KGS |
|
Packing Size |
1600x1350x1300mm |
|
Power Supply |
220V/50Hz, 110V/60Hz |
