DRAGON DIAMOND CNC
Item NO.:
LZ-1325BOrder(MOQ):
1Product Origin:
ChinaColor:
Black & WhiteShipping Port:

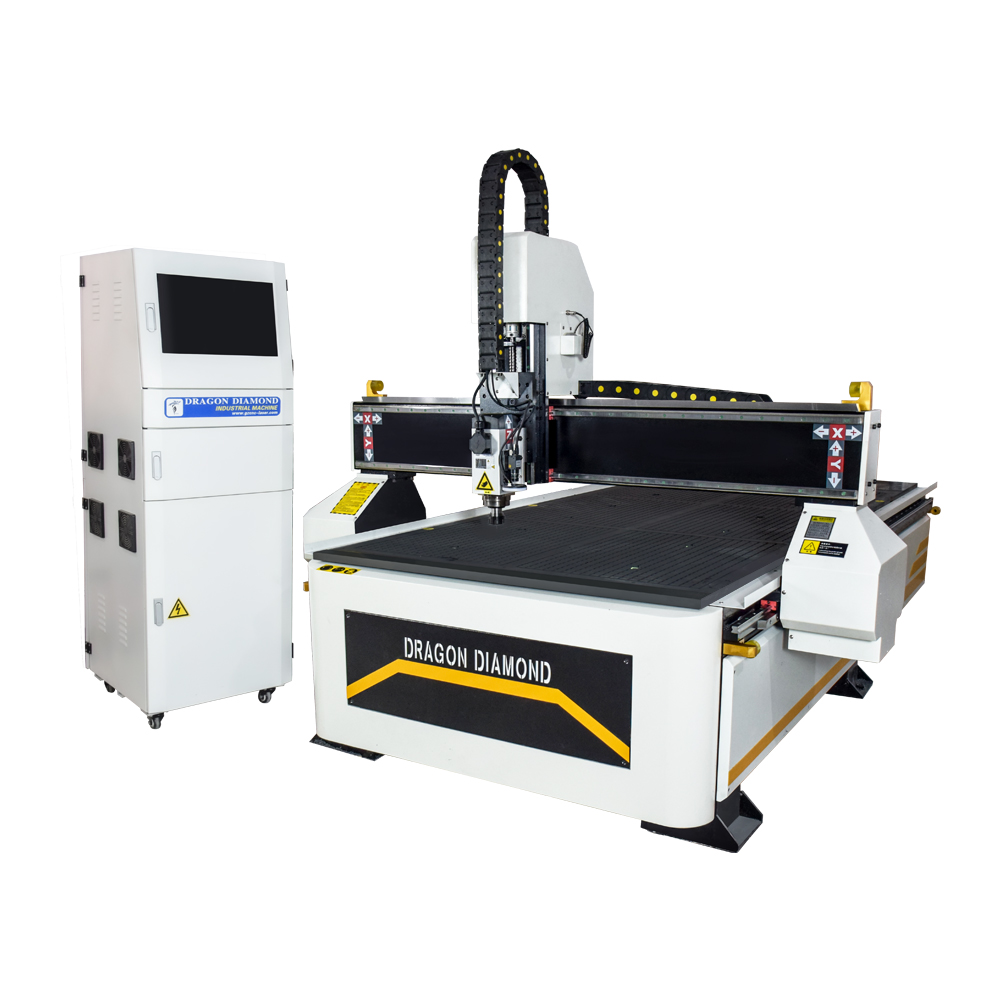

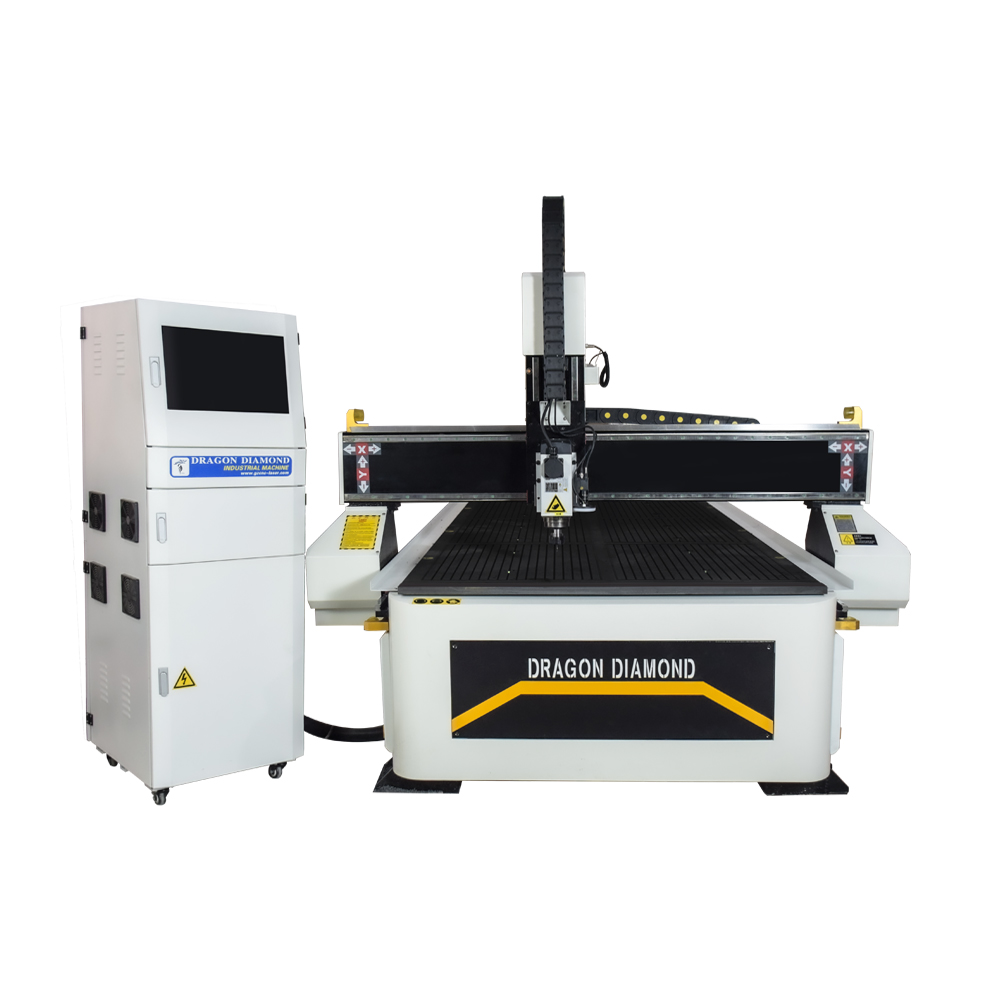

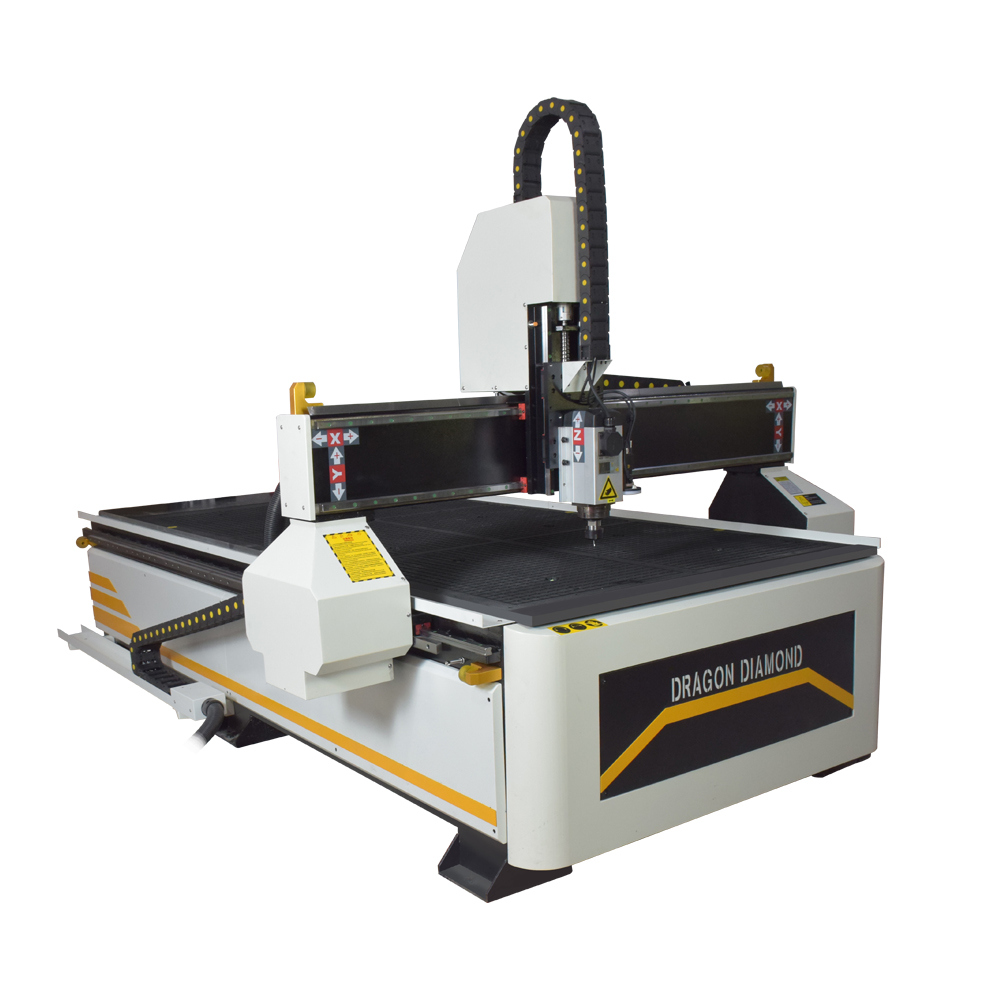

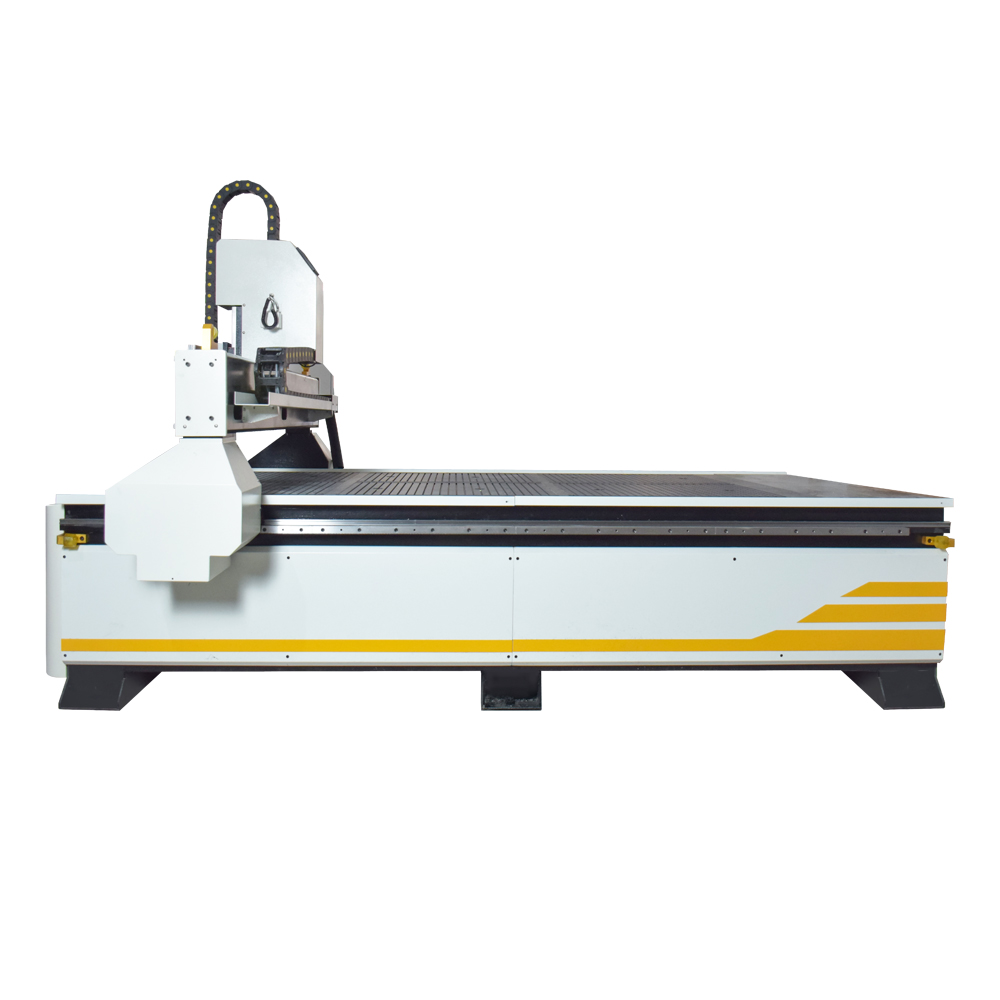

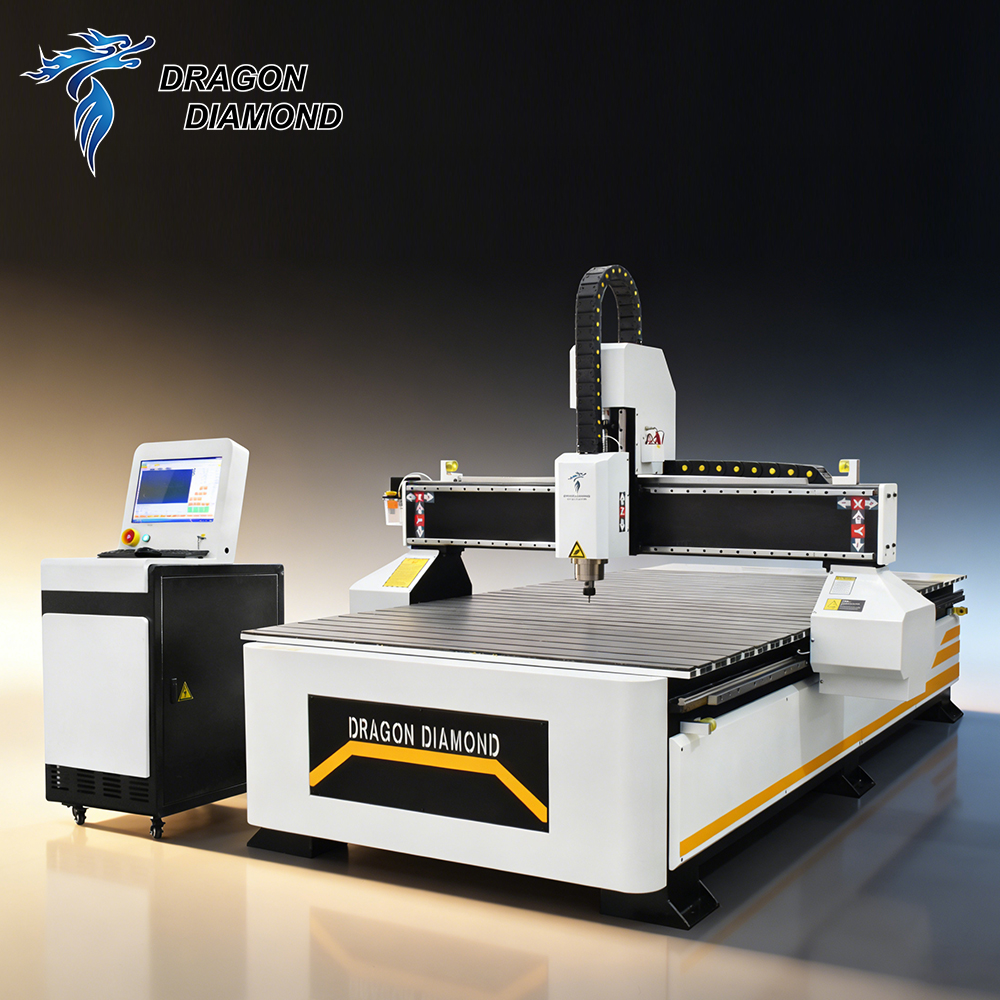

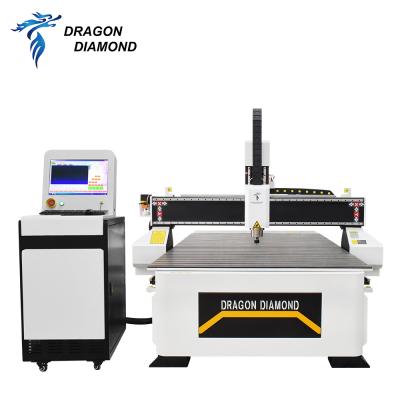

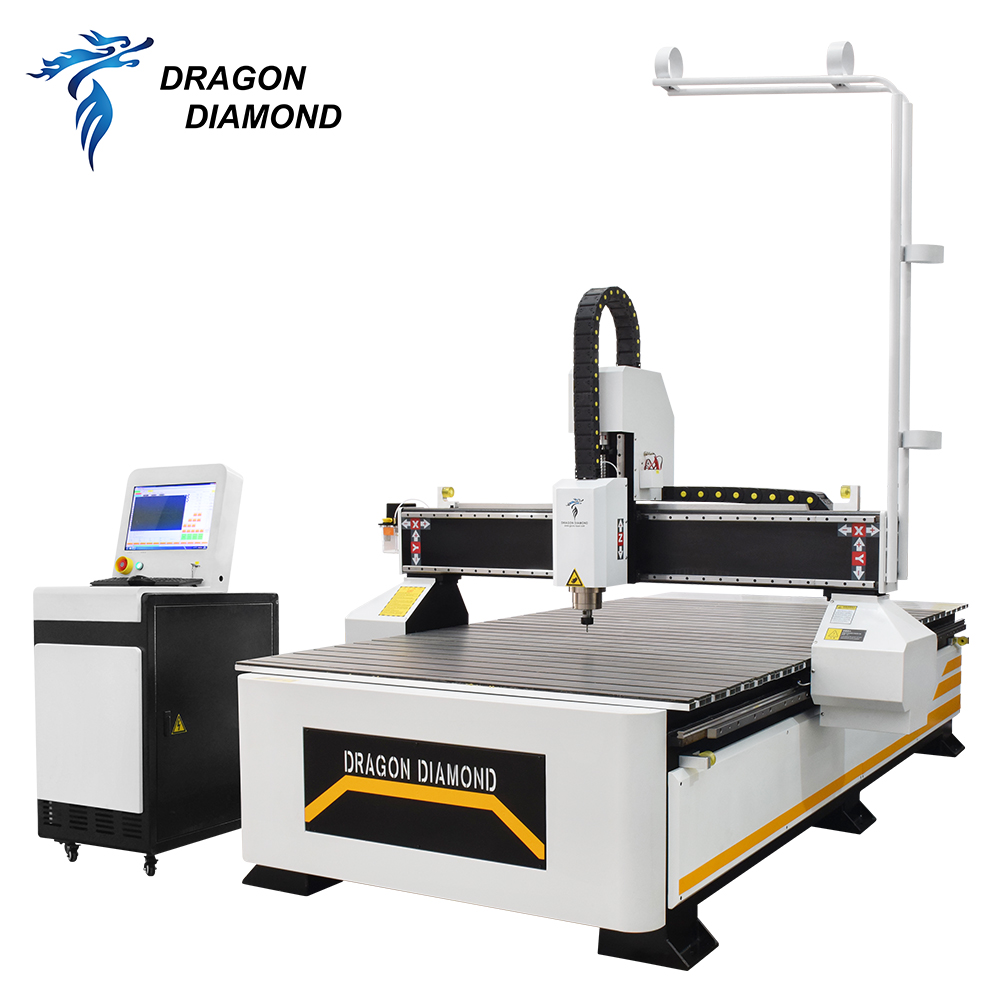

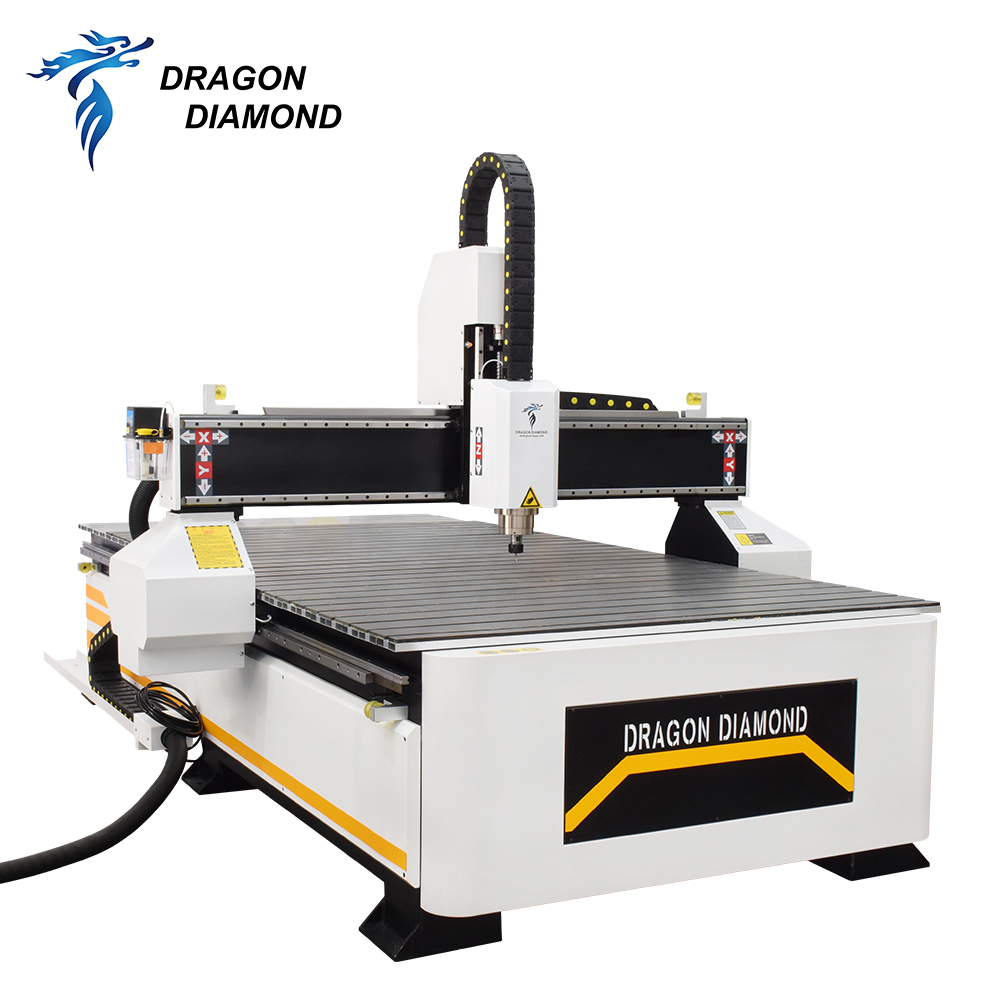

GuangzhouWood Engraving Machine CNC Router with Vacuum Table
|

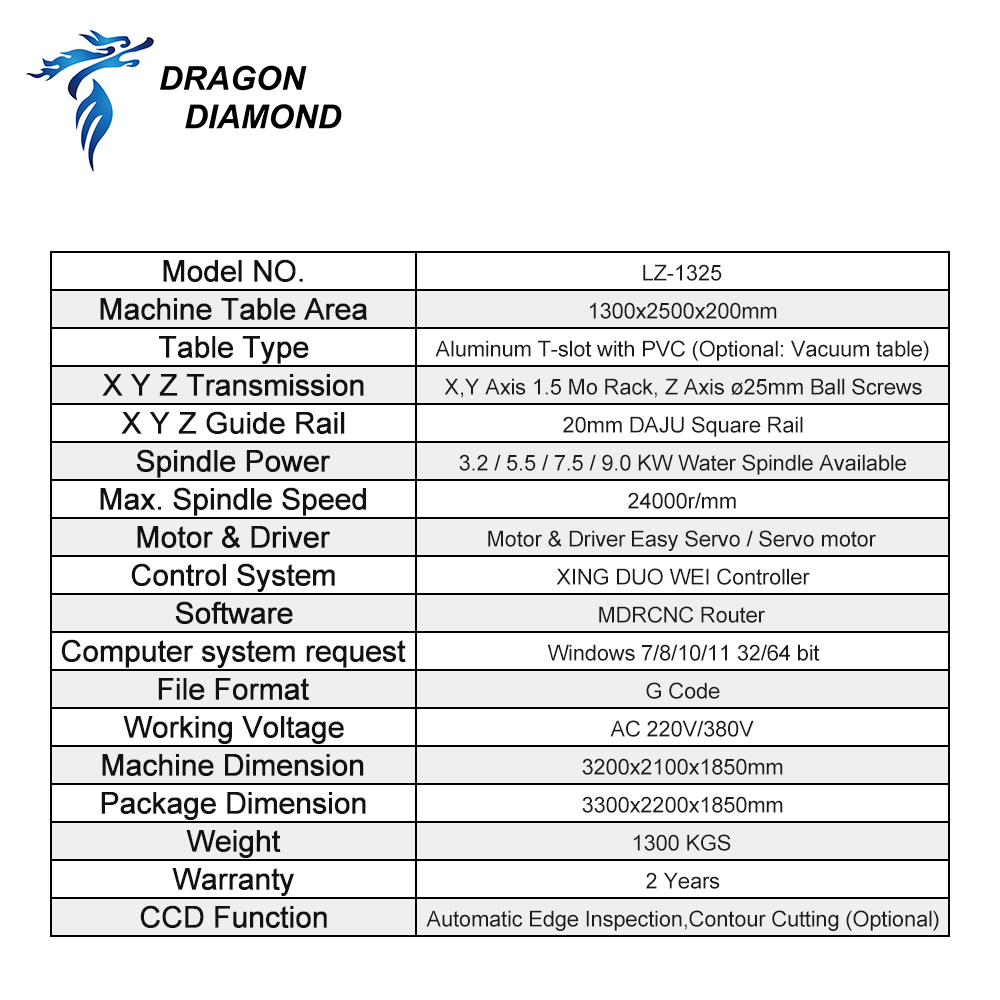

Model NO. |
LZ-1325 |
|
Machine Table Area |
1300x2500x200mm |
|
Table Type |

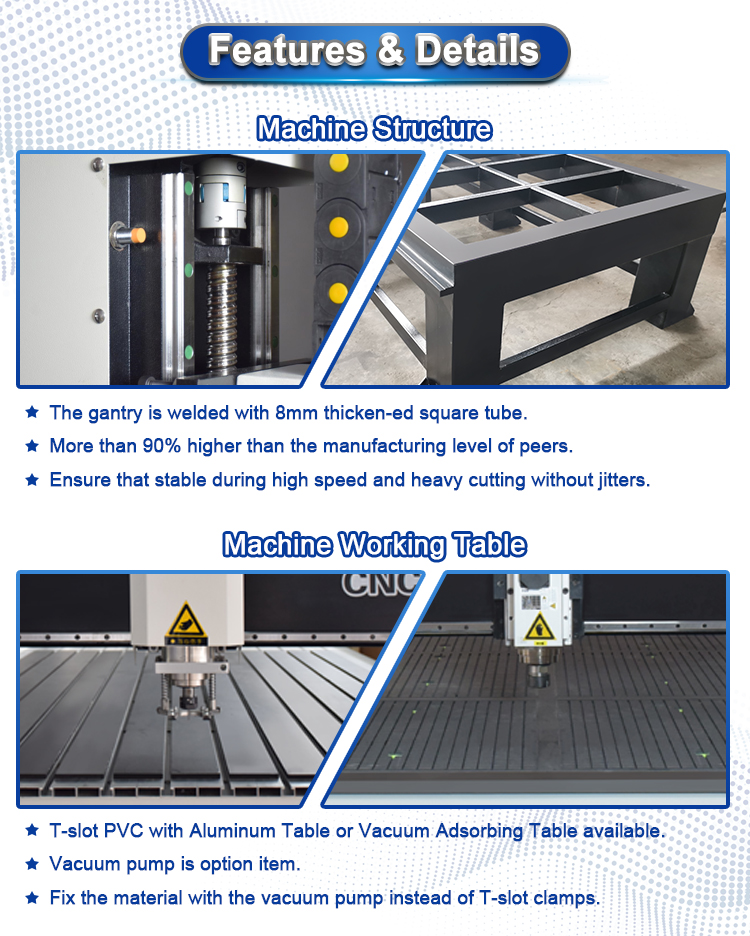

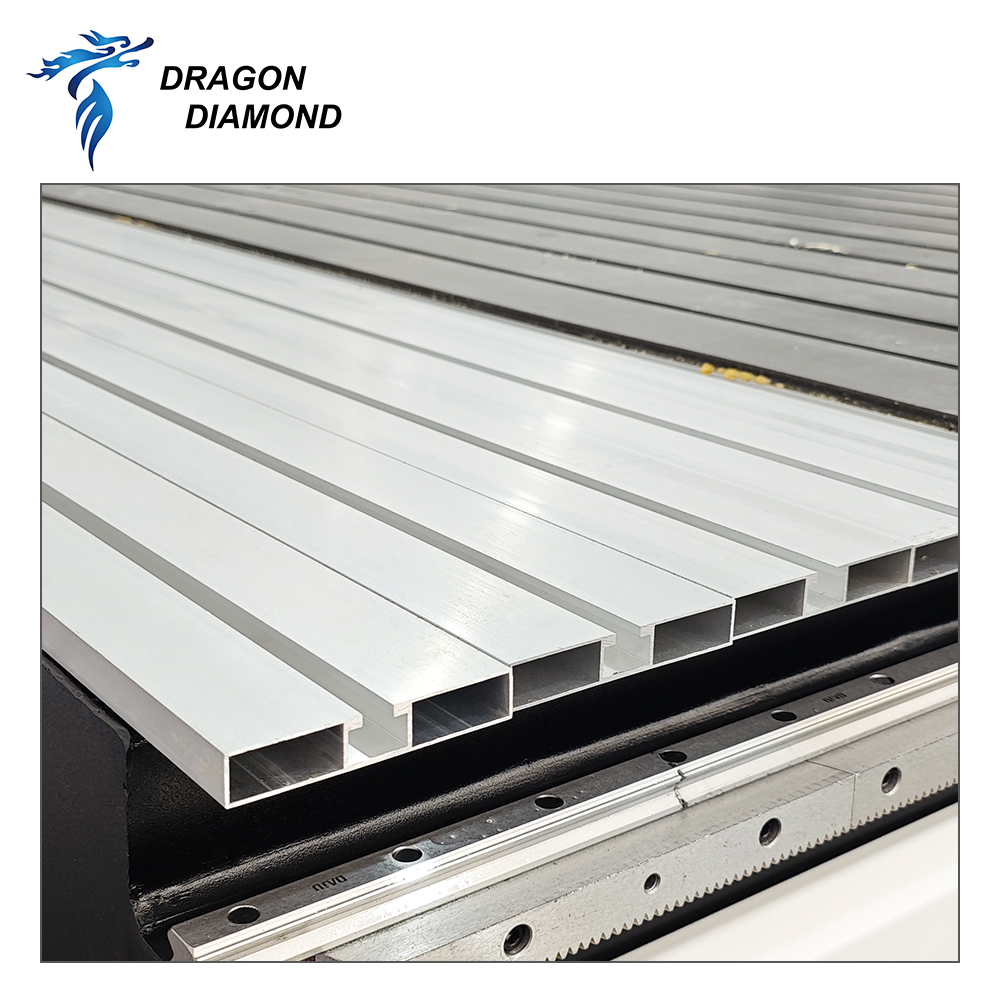

T-slot PVC with Aluminum Table |
|

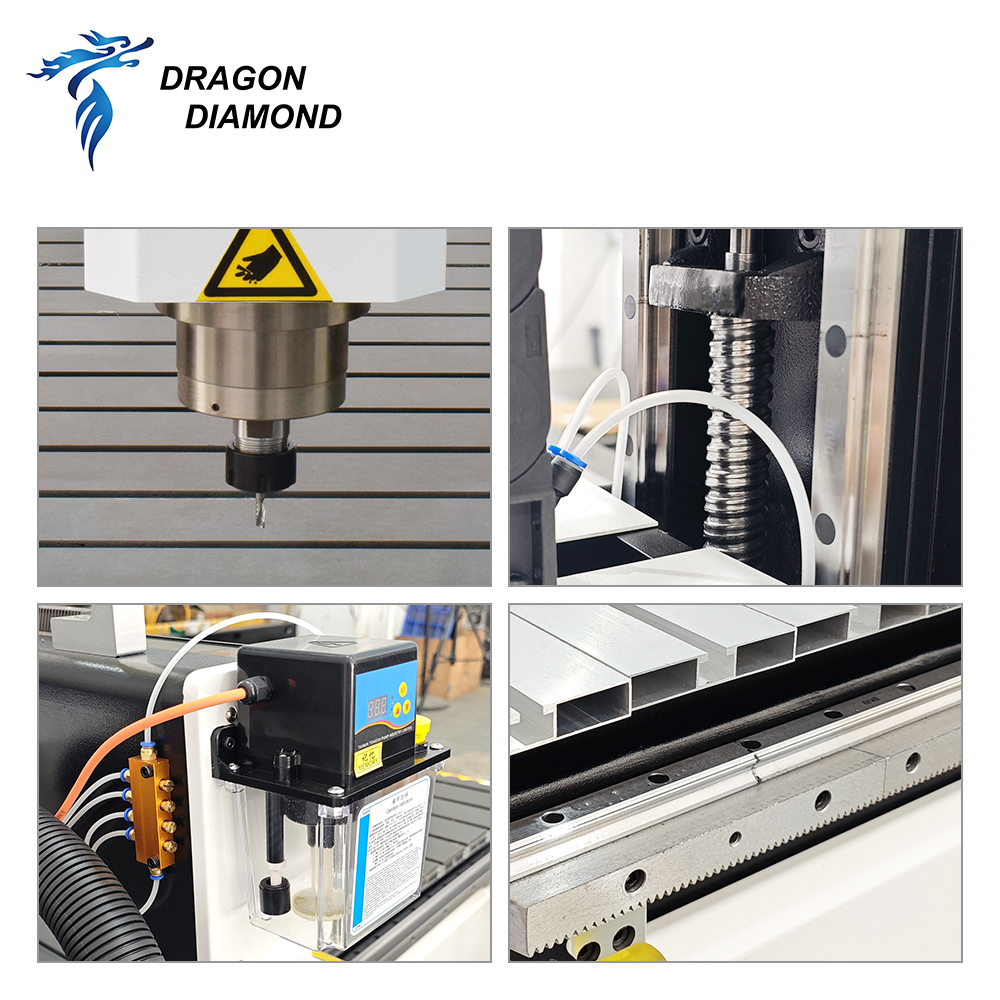

X Y Z Transmission |
X,Y Axis 1.25 Mo Rack,Z Axis φ20mm Ball Screws |
|
X Y Z Guide Rail |
20mm HIWIN Square Rail |
|

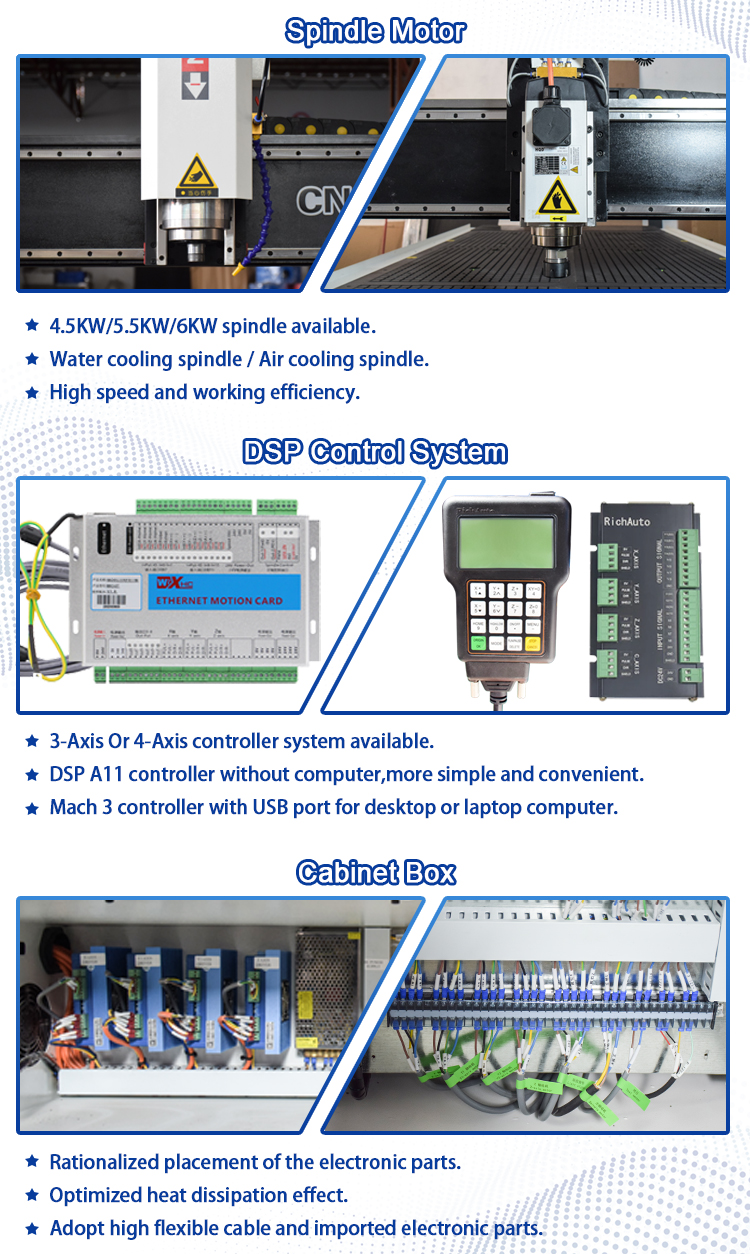

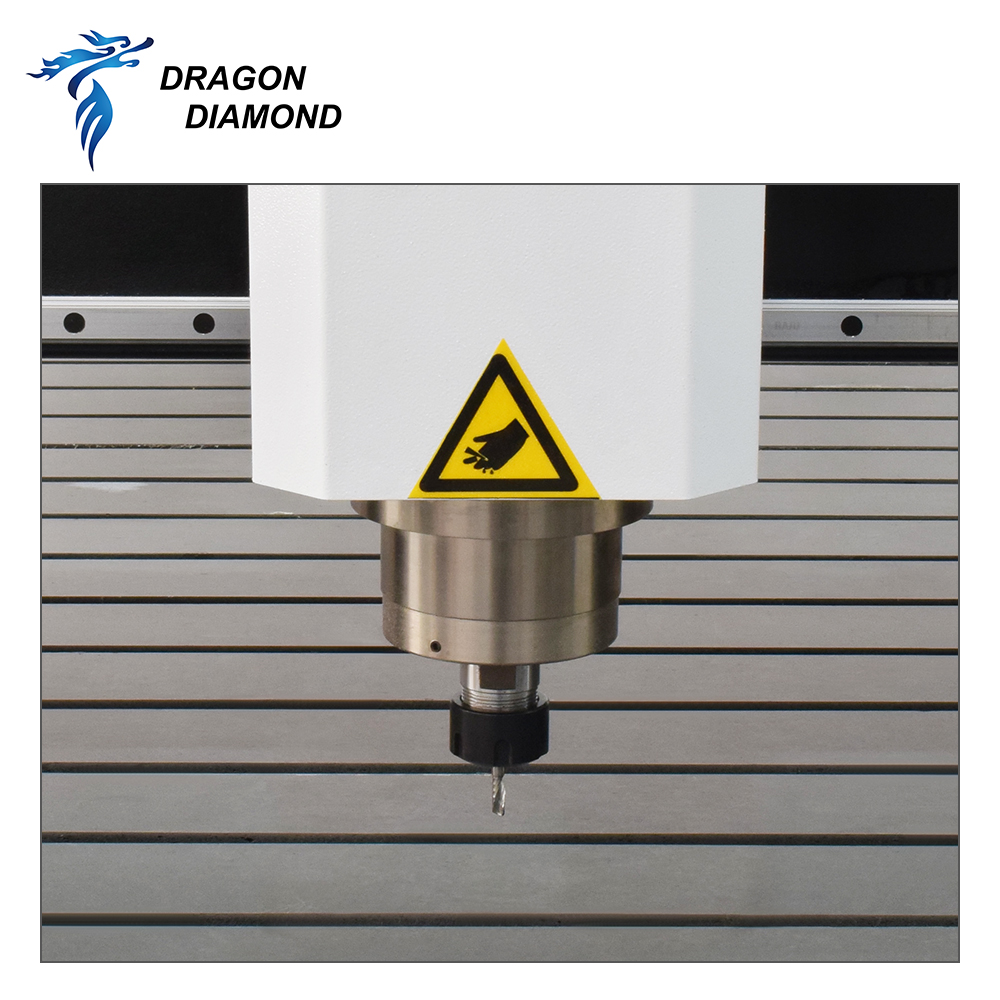

Spindle Power |
3KW/4.5KW/5.5KW/6KW Spindle Available |
|
Max. Spindle Speed |
24000r/mm |
|

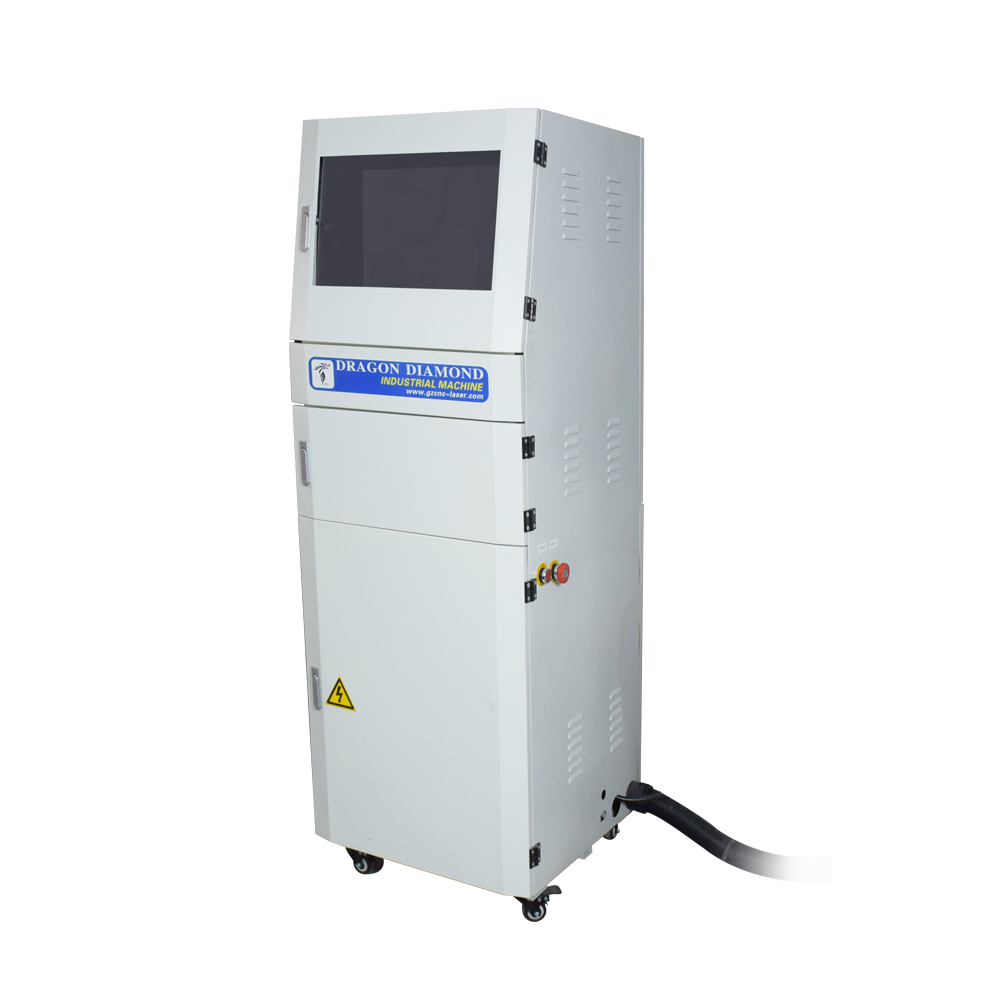

Control System |
NC Studio Control System/DSP A11 Controller |
|
Software |
Artcam |
|
Inverter |
Sunfar |
|
File Format |
G code |
|
Working Voltage |
AC220V or 380V/50Hz |
|
Machine Dimension |
3100x2050x1700mm |
|
Package Dimension |
3350x2250x1850mm |
|
Net Weight/Gross Weight |
800KGS/1100KGS |
|
Warranty |
2 Years |
130*130cm Woodworking CNC Router can process double-colur board, pvc borad, mould forming, board, copper, aluminum, fireproofing board and so on.
1500*3000mm New Design CNC Wood Engraving Machine.
1300*2500mm CNC Engraving Machine Widely used in Advertising, wWoodwork Processing line, Arts and Crafts line, Metalwork line.
130*130cm Wood Engraving Machine CNC Router With Vacuum Table For SHEET METAL PROCESSING.
