DRAGON DIAMOND CNC
Item NO.:
LZ-6060AOrder(MOQ):
1Product Origin:
ChinaShipping Port:

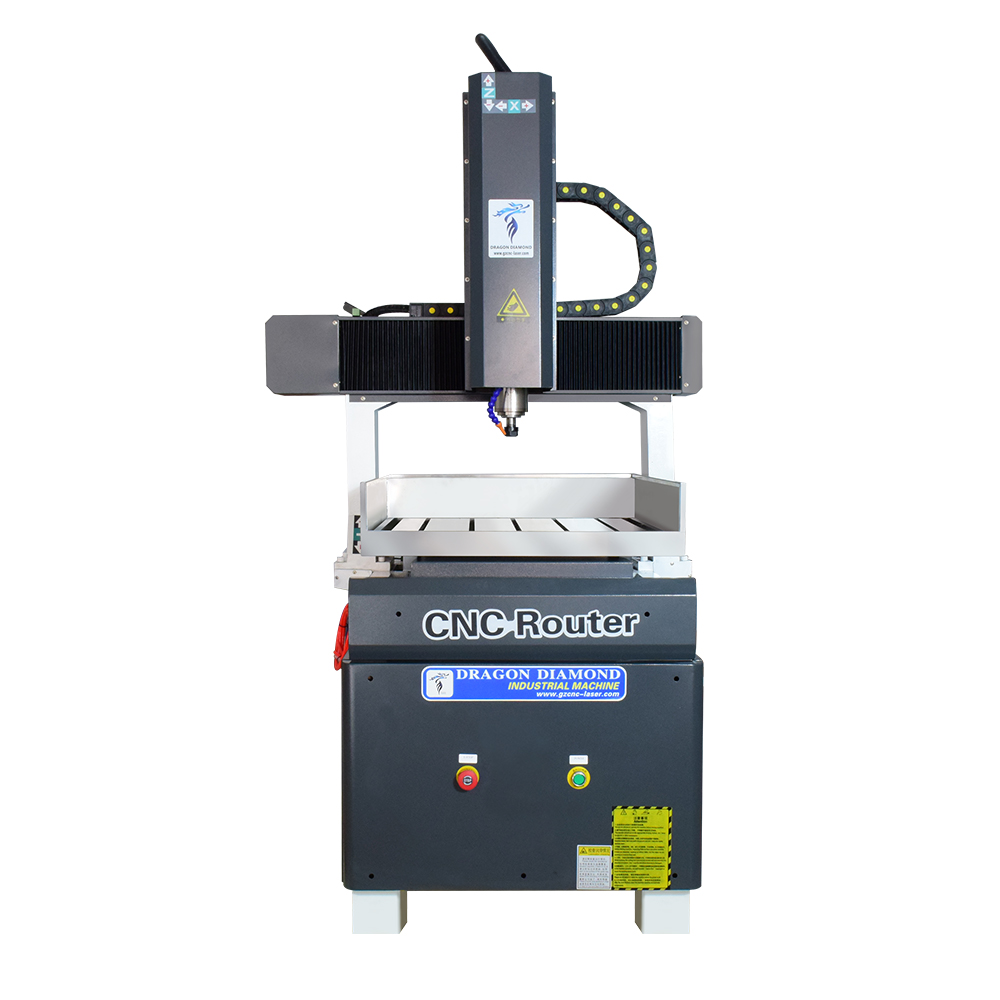

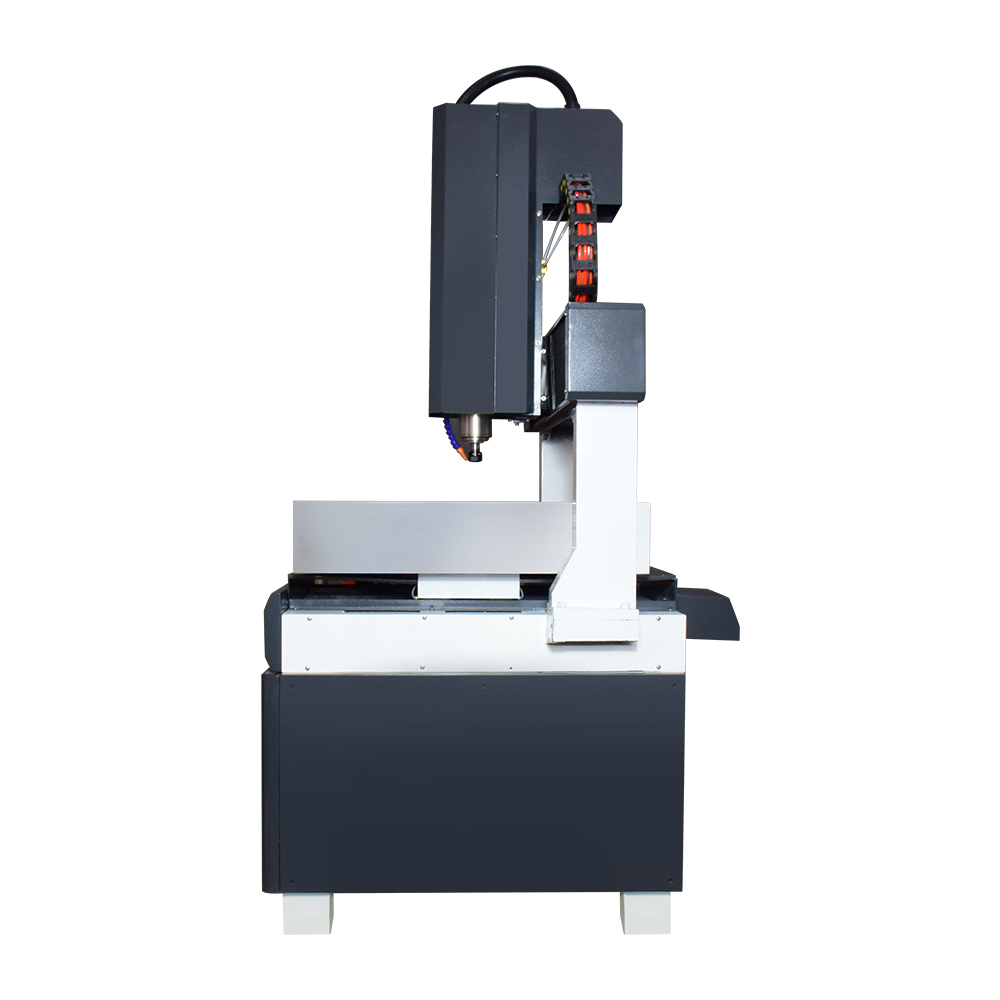

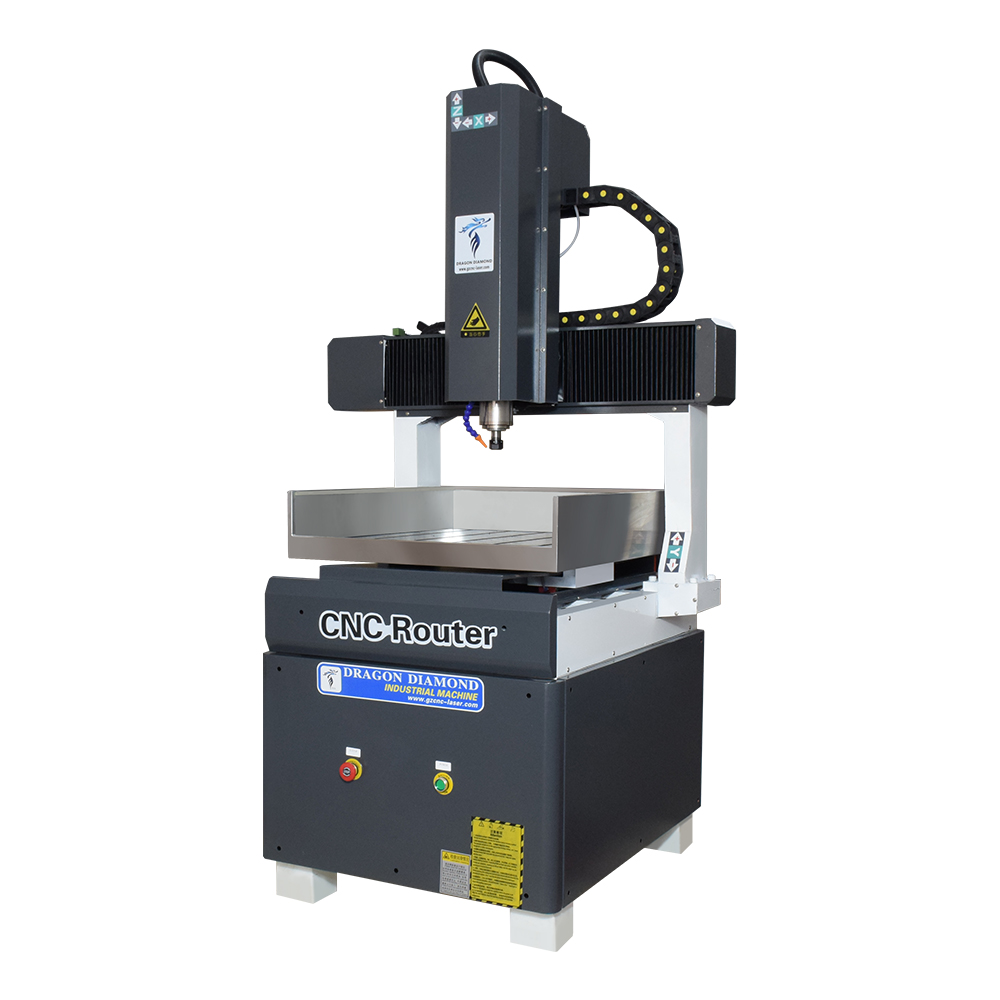

GuangzhouHigh Precision Multi Purpose Water Jet CNC Marble Engraving Cutting Machine
|
Model NO. |

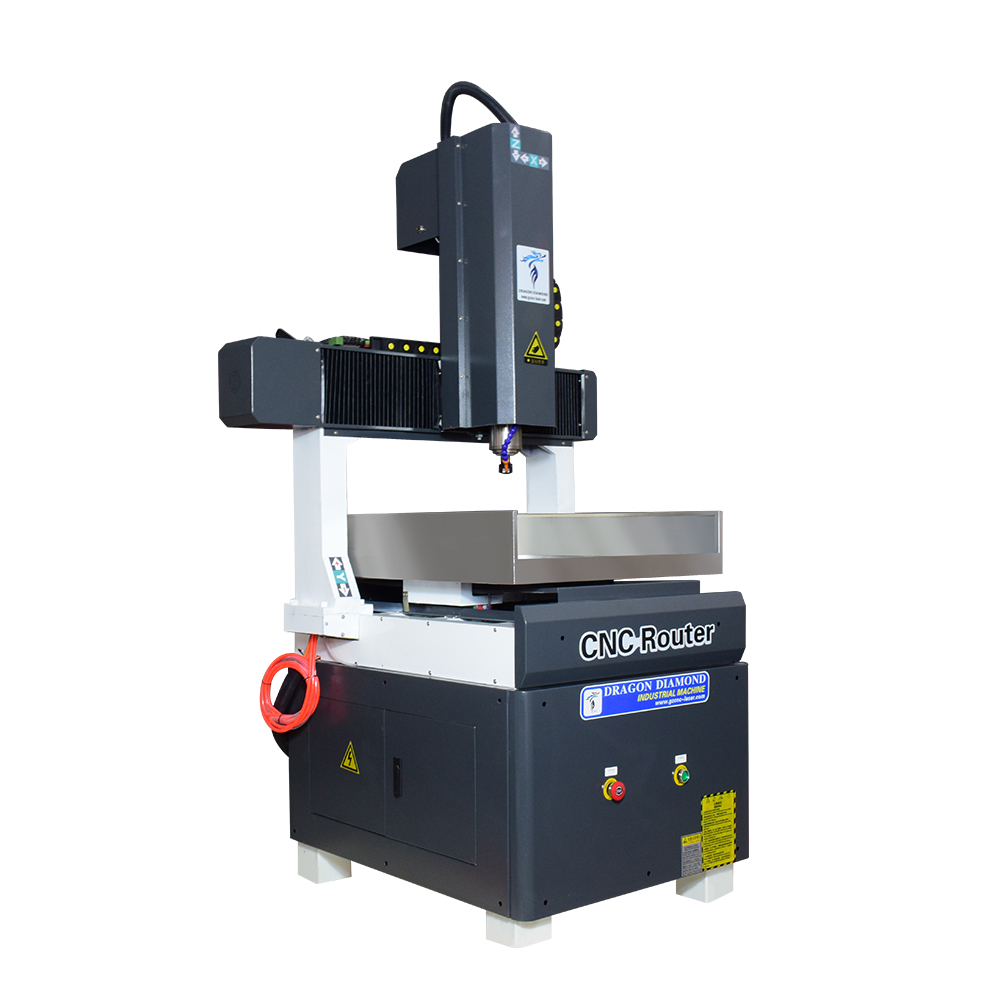

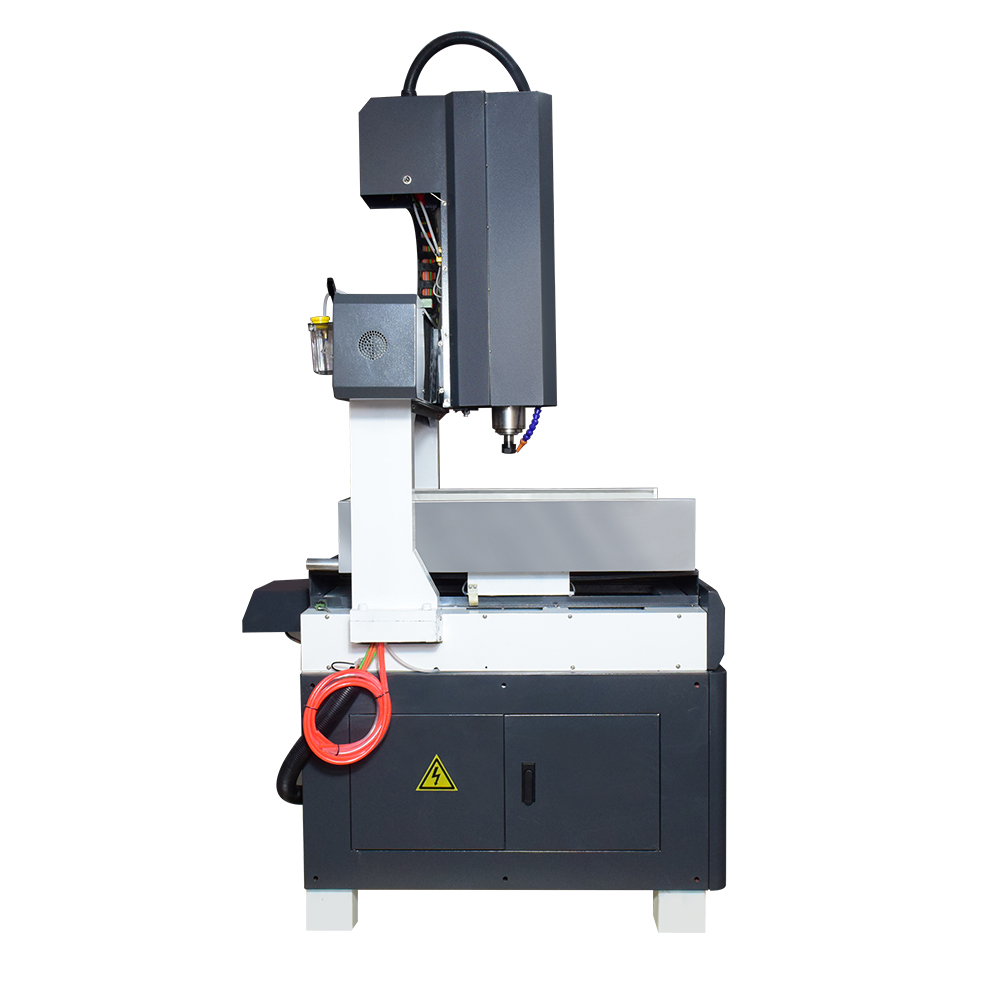

LZ-6090L CNC Router |
|

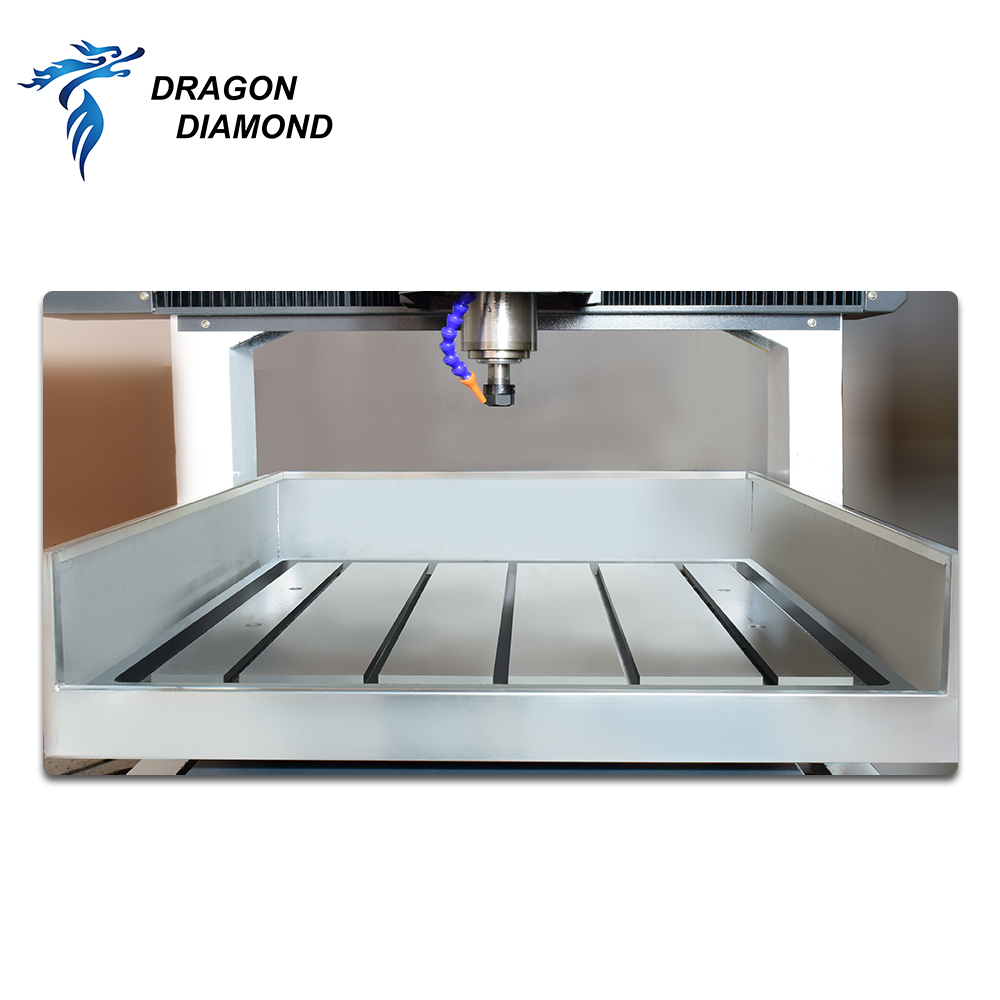

Machine Table Area |
600mm*600mm*150mm |
|
X Y Z Traveling Area |
560mm*560mm*120mm |
|

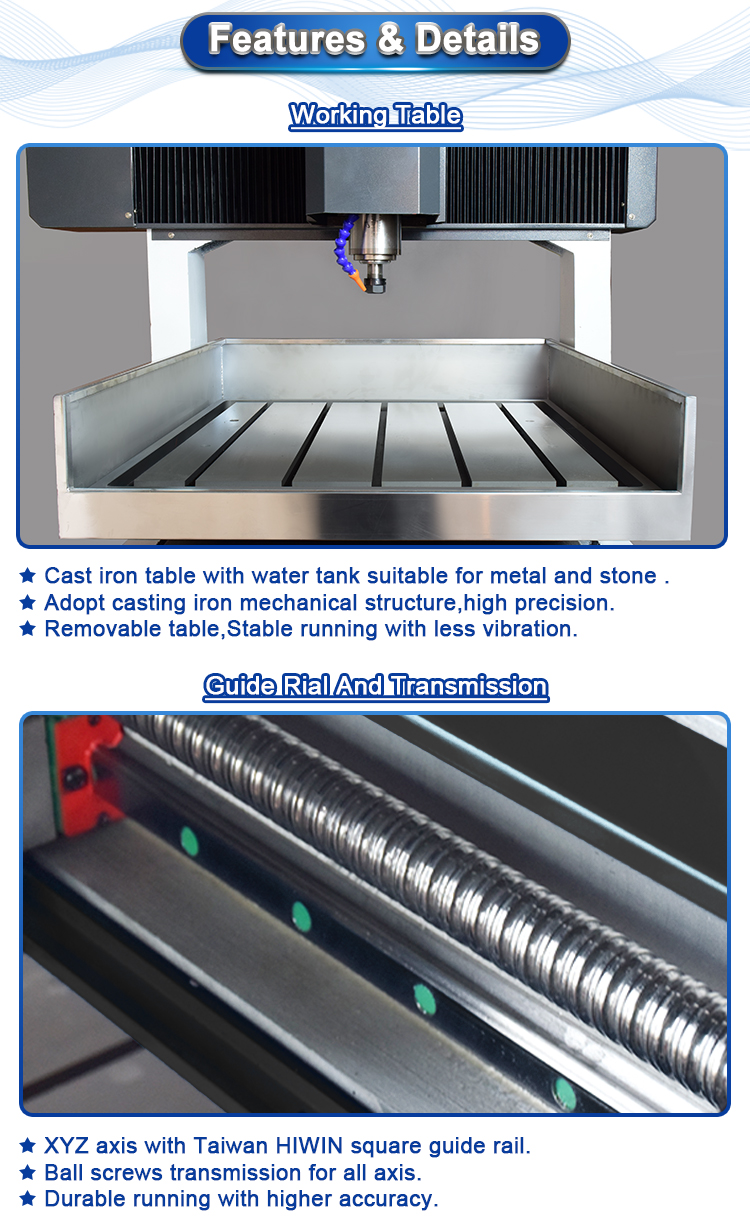

Table Structure |
Wholly lron Cast |
|
X Y Z Transmission |
Germany NEFF Ball Screws |
|
X Y Z Guide Rail |
HIWIN Square Rail |
|

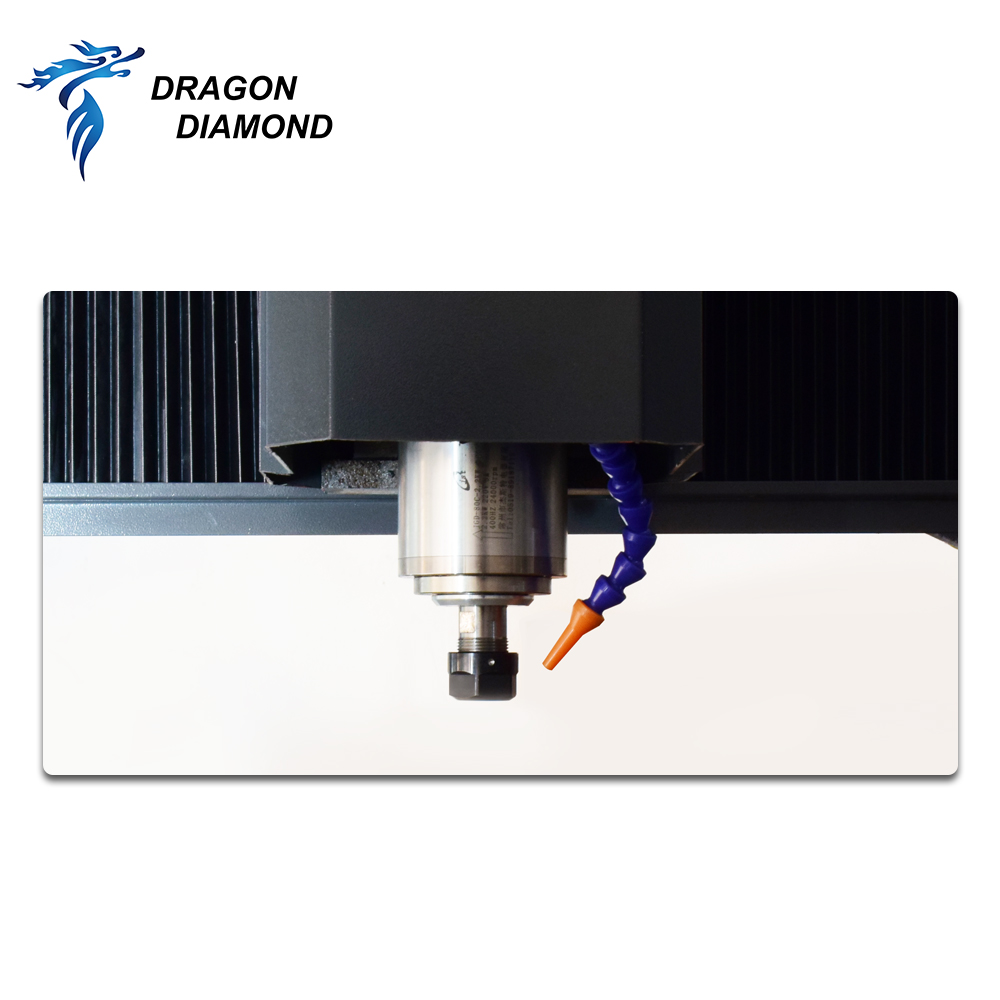

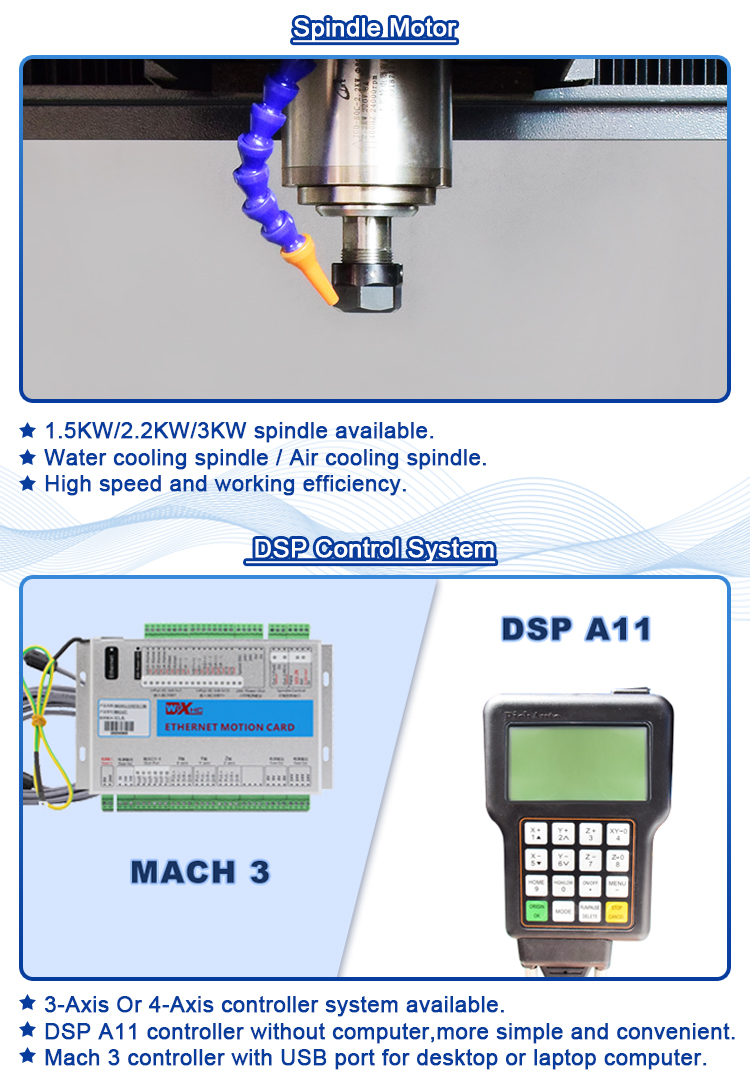

Spindle Power |
1.5KW/2.2KW/3KW |
|
Max. Spindle Speed |
24000r/mm |
|
Max. Traveling Speed |
7200mm/min |
|
Max. Working Speed |
5000mm/min |
|
Driving System |
Stepper Motor |
|
Command Language |
HPGL, G Code |
|
Working Voltage |
AC220V /50Hz |
|
Net Weight / Gross Weight |
290KGS / 350KGS |
|
Package Dimension |
1200mm*1250mm*2000mm |
