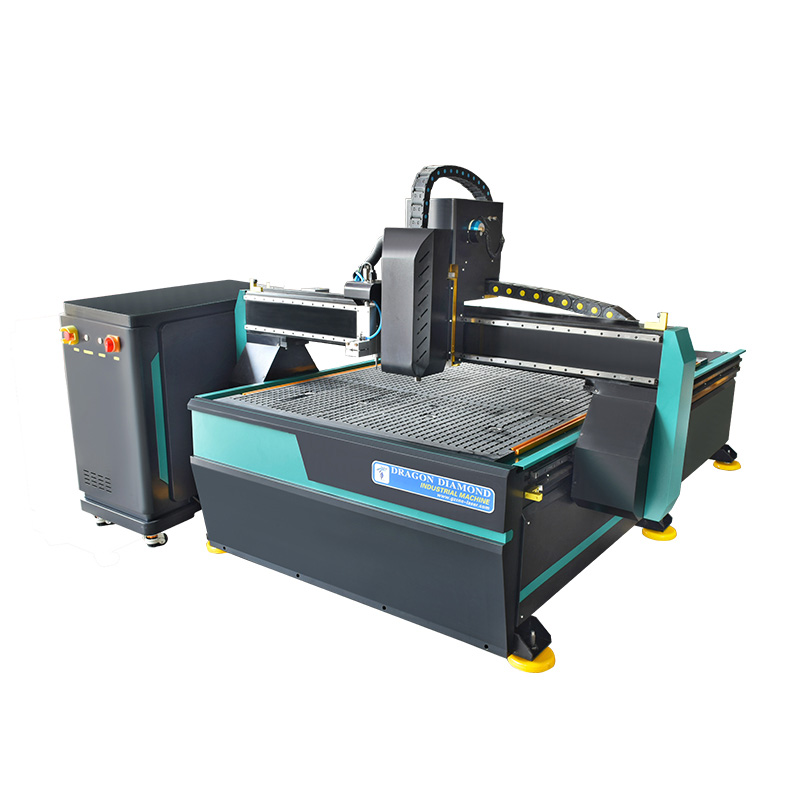

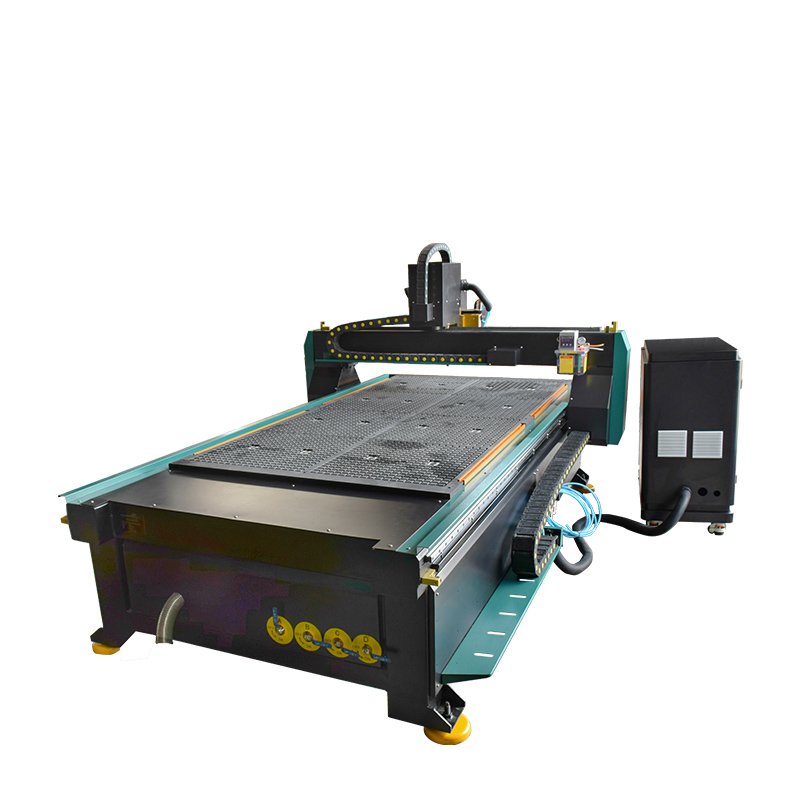

CNC Wood Engraving Machine

CNC Fabric Sponge Cutting Machine with Vibrating Knife

1300*2500mm CNC Oscillation knife Applicable cutting materials:different kinds of soft materials, such as car foot mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, gasket,etc

  • Item NO.:

    Lz-1325v
  • Market Price:

    $10720-20720/Set
  • Product Origin:

    China
  • Shipping Port:

    Guangzhou
  • Product Detail

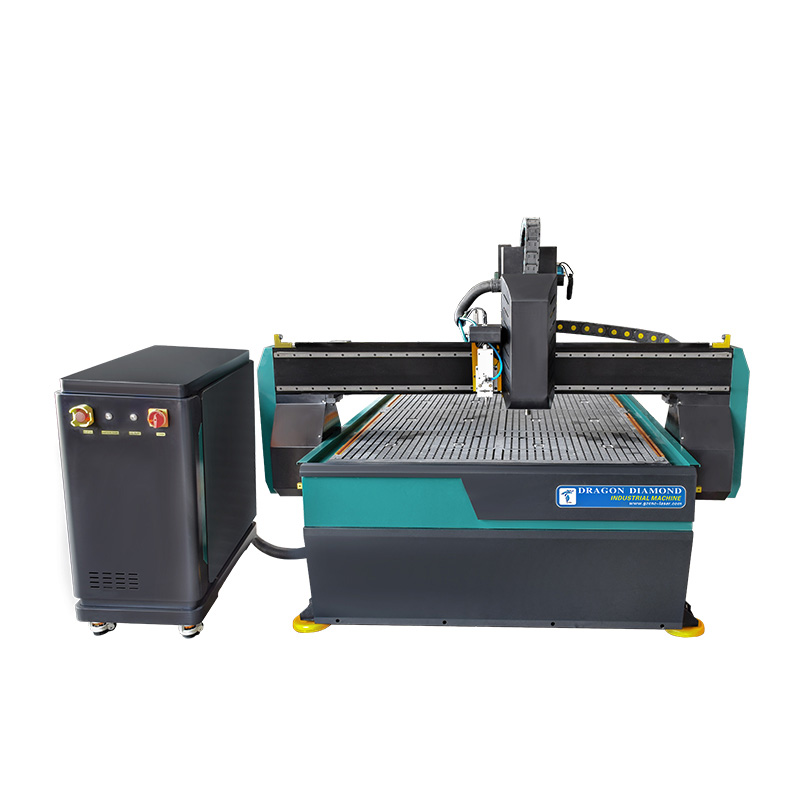

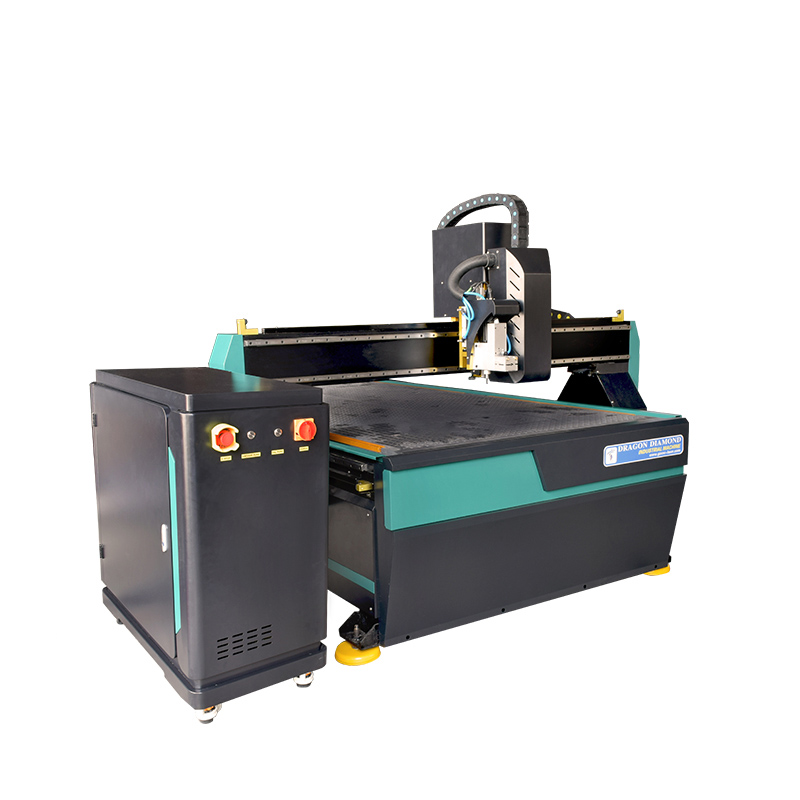

CNC Fabric Sponge Cutting Machine with Vibrating Knife



Vibrating knife cnc machine parameters


NO.

Model

Lz-1325V

1

Working Area

1300x2500x180mm

2

Packing Size

1830x2880x1680mm

3

Linear Guides

Taiwan original PMI linear guide

4

Spindle

3 KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Driving System

JMC hybrid servo

7

Inverter

Sunfar

8

Transmission

XY gear pinion,Z axis ball screws

9

Guide Rail

Round Rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Stepper motor

12

Transmission way

Germany WMH Herion1.5M helical rack

13

Spindle Speed

24000RPM

14

Control System

Special control system for Visual positioning

15

Inverter

Sunfar

16

Reducer

Japan SHIMPO precise reducer

17

Ball Screw

Taiwan original TBI ball screw

18

Vacuum Pump

Water/Air cooling pump 5.5KW

19

Voltage

AC 220V±10%, 50/60Hz, Single Phase,

AC 380V±10%, 50/60Hz, Single Phase



Unique bakelite plate vacuum table and T-slot table can be sucked and clipped, with four zones independent control.


Z axis transmission head plate adopt high precision aviation aluminum alloy T6061/6063.which are all made by high precision machining. centers.


Brand electrical components,Japan Omron limited switch,Dual fail-safe emergency stop switch


Imported linear guide rai/rack/helical ball screw with high accuracy,stable transmission,long life and good stability.


Multi- functional cutting for different industries and matching with visual positioning difform edge-cutting system.


Excellent cnc machining system with stable performance and simple operation, the operation can be completed without professional knowledge through simple training.

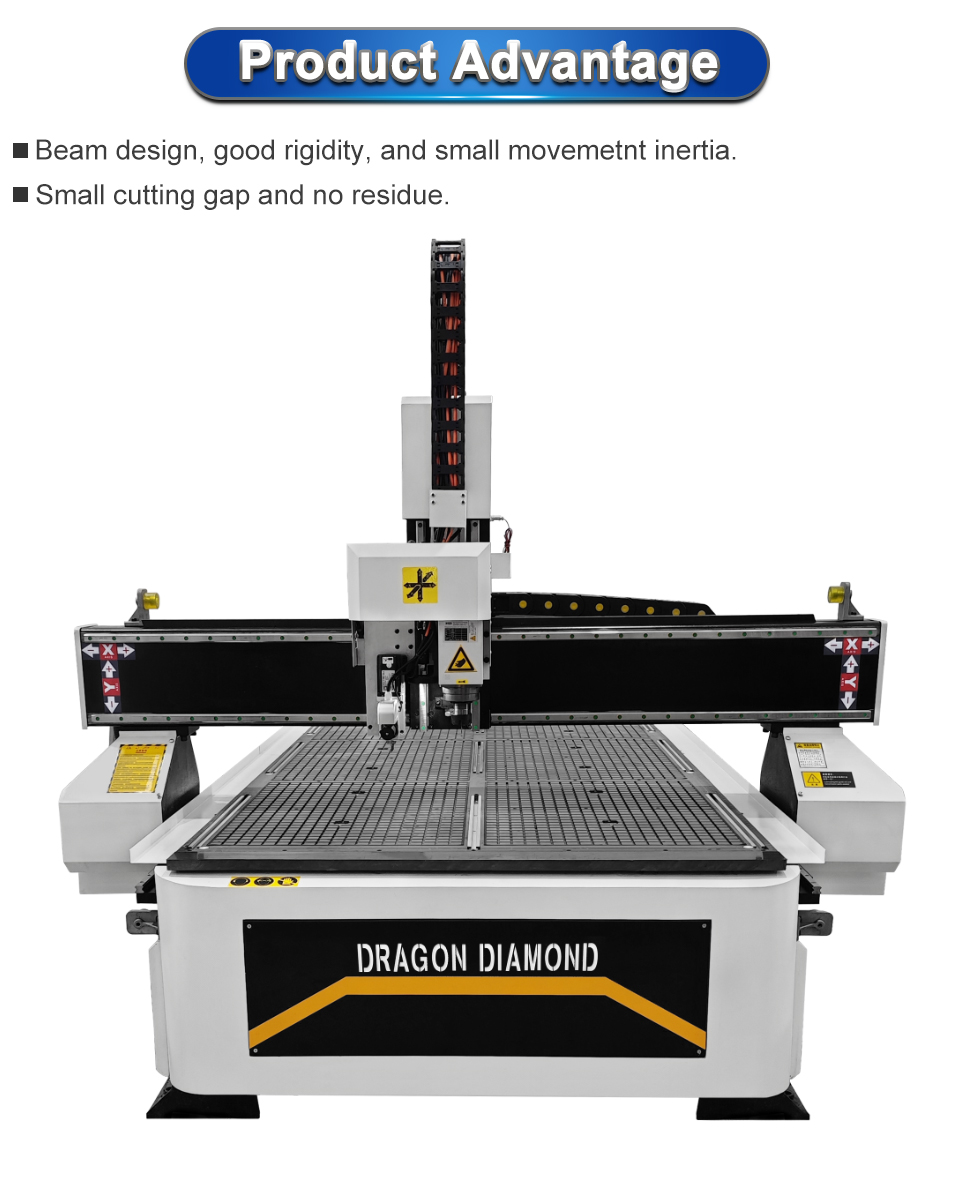

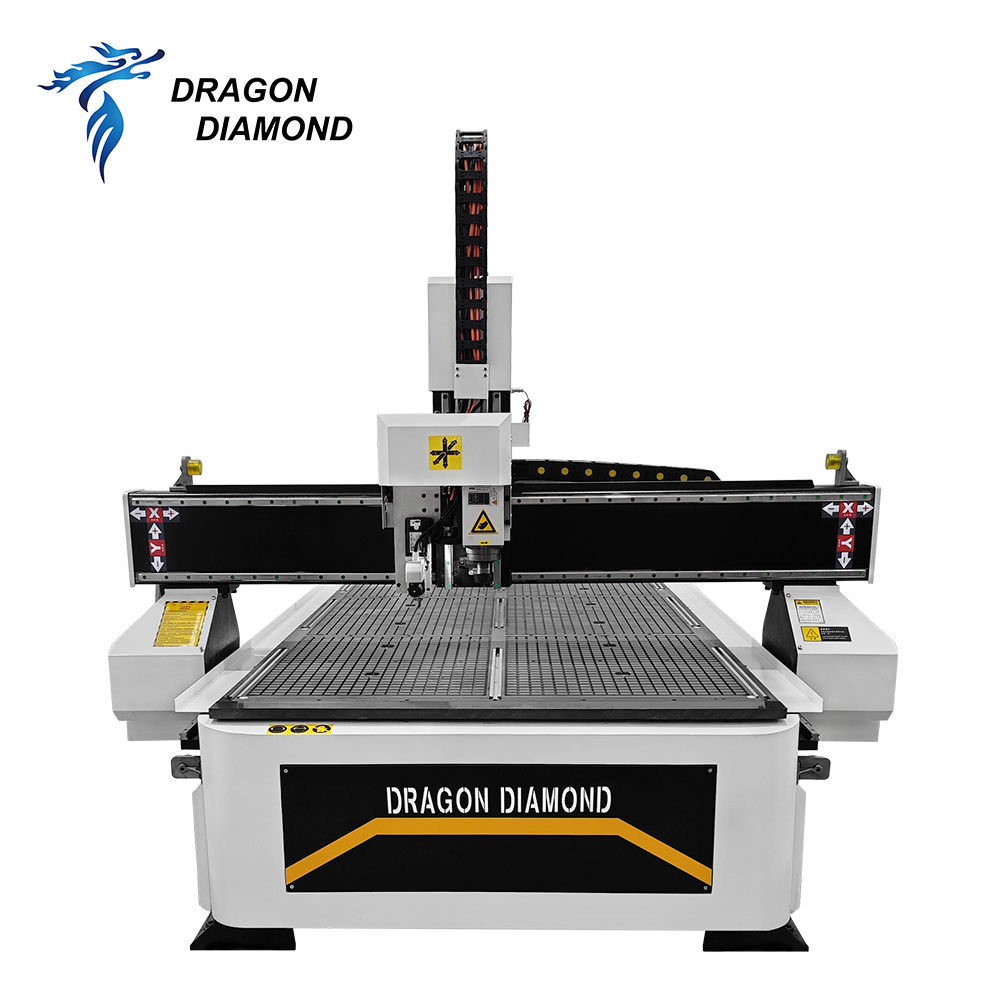

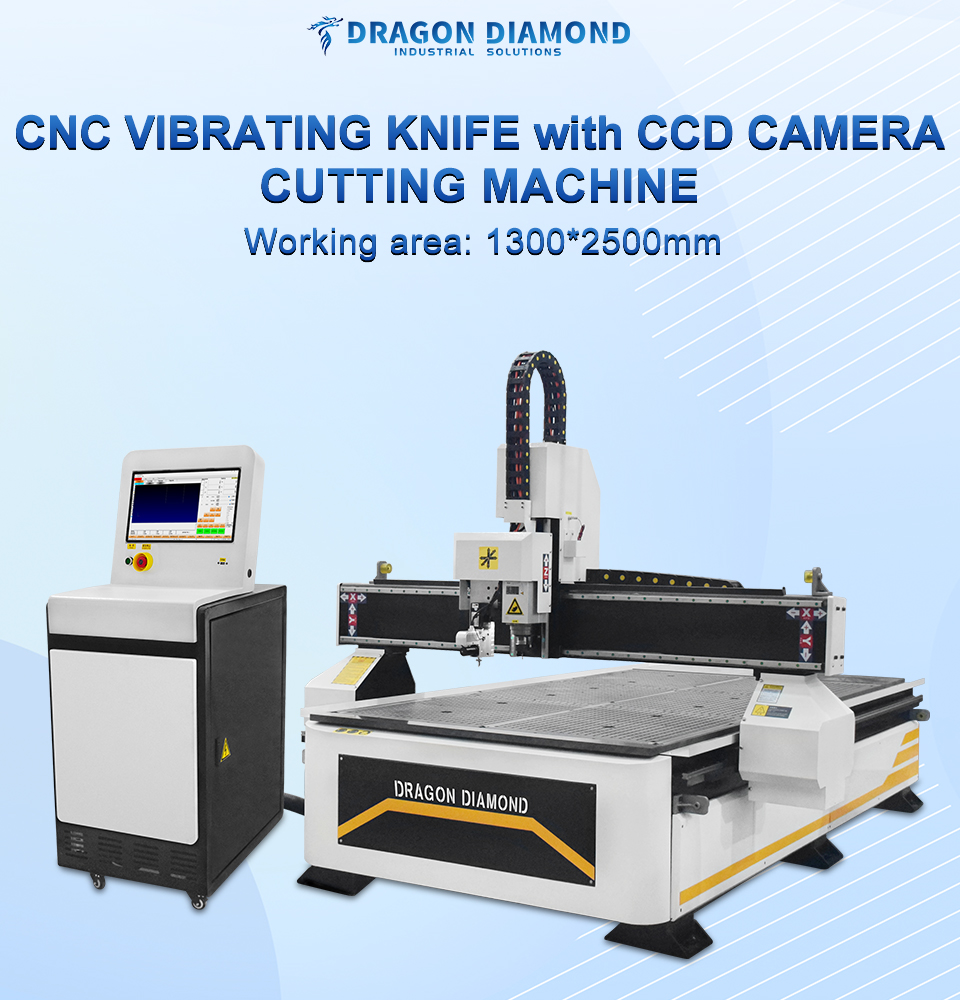

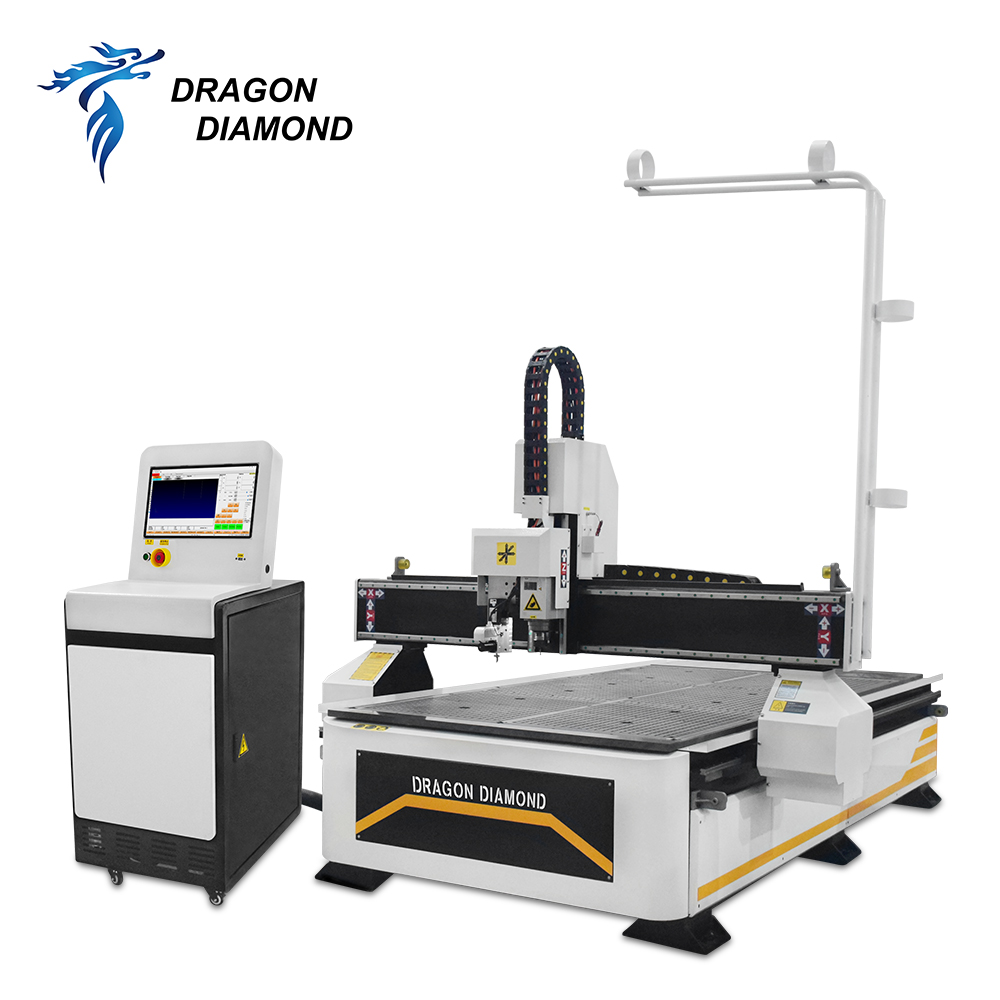

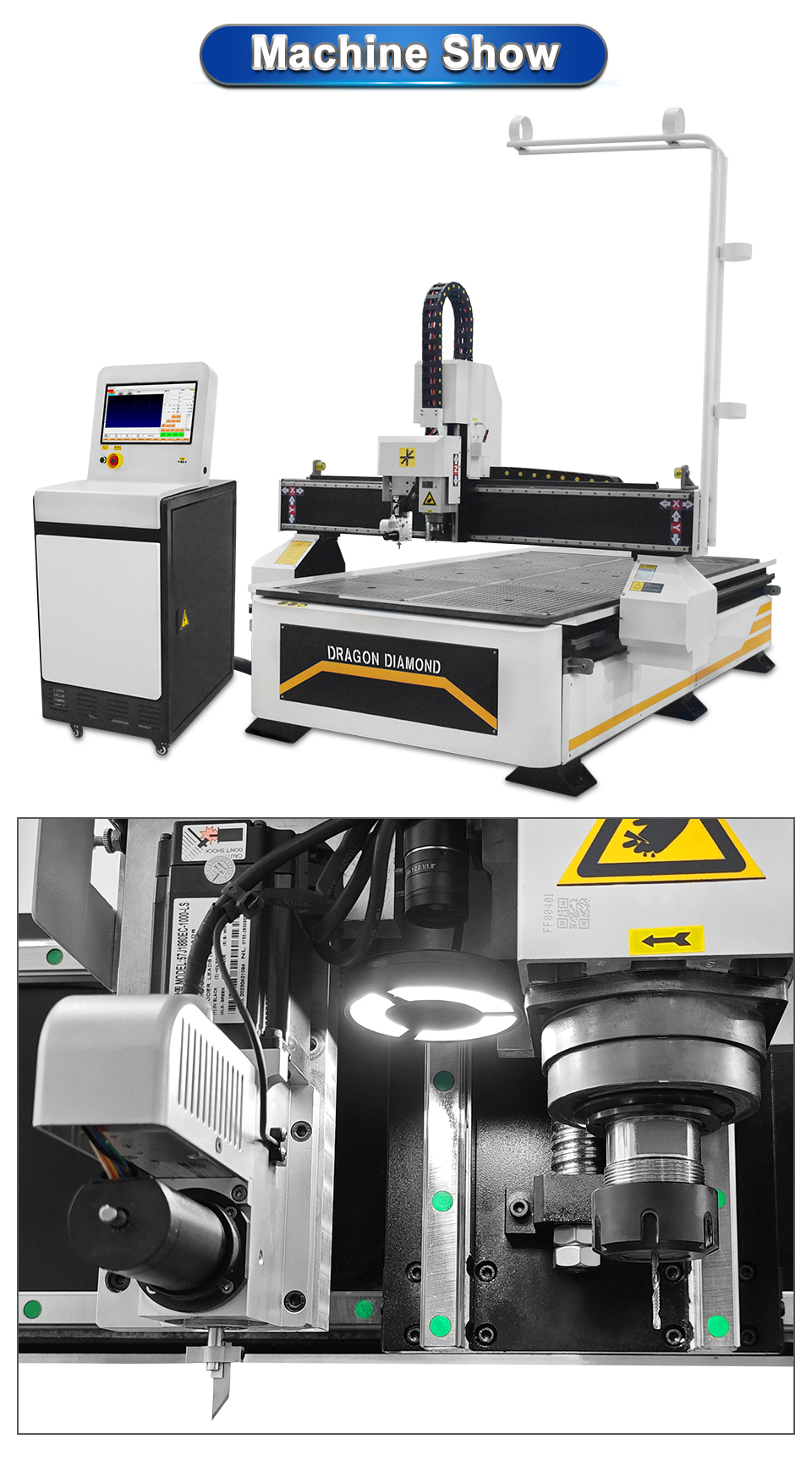

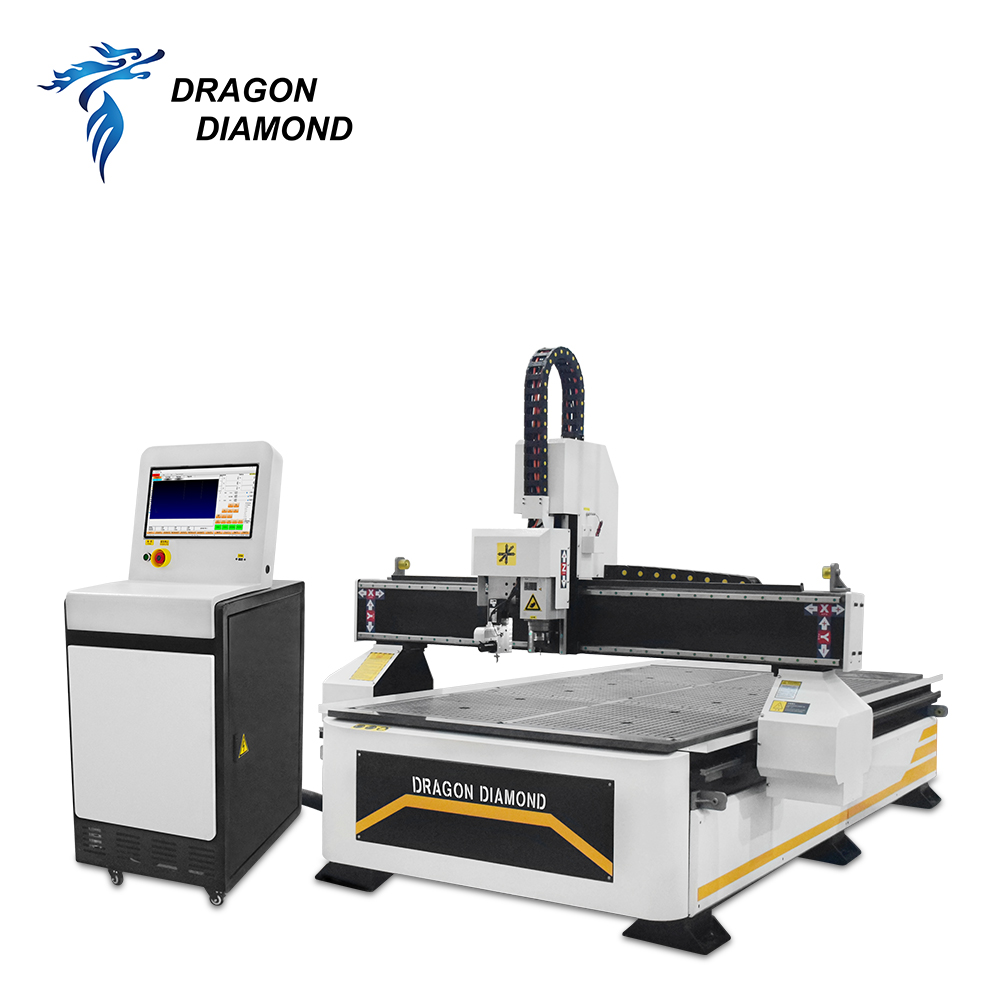

CNC Vibrating Knife Cutting Machine

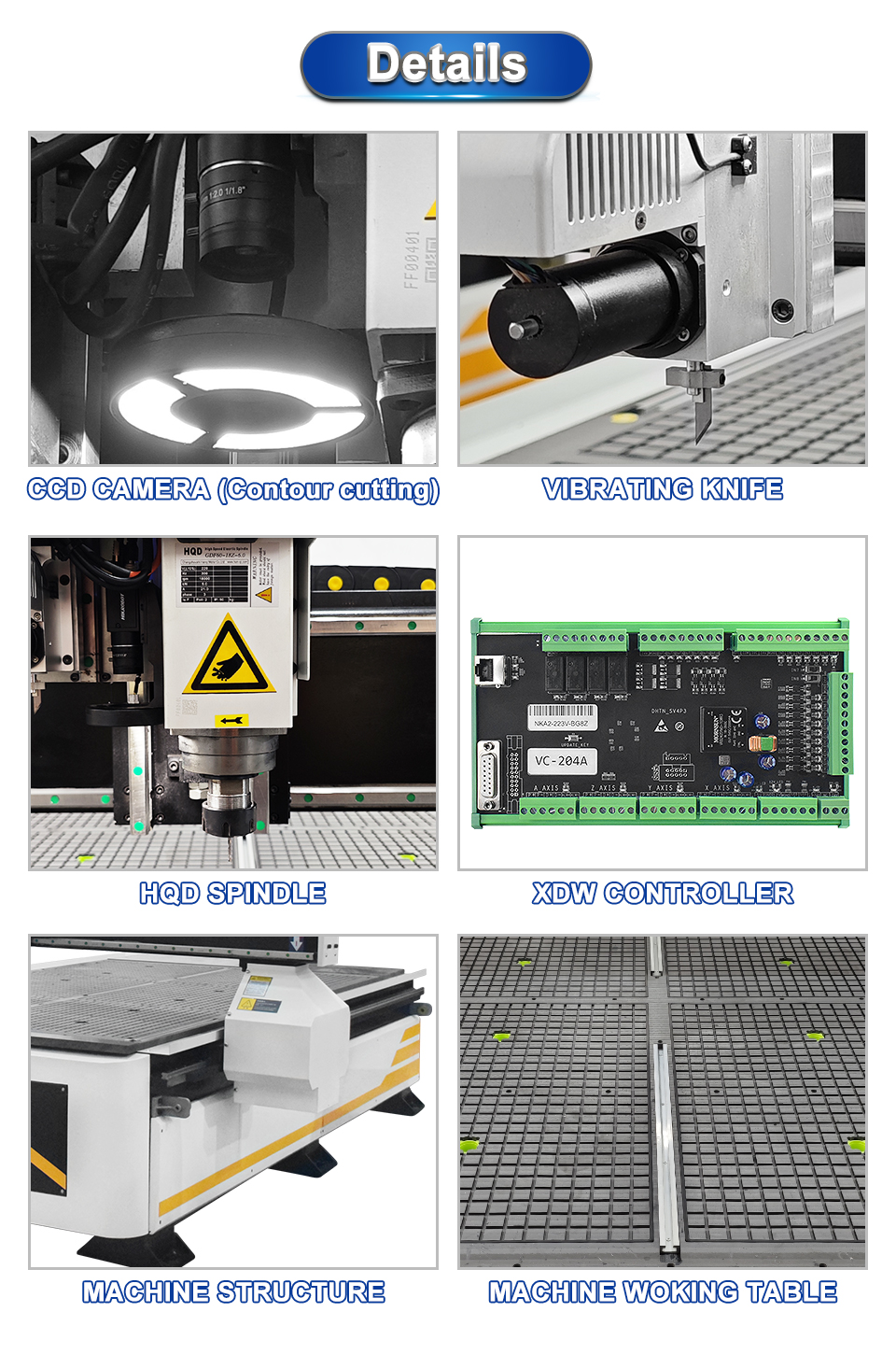

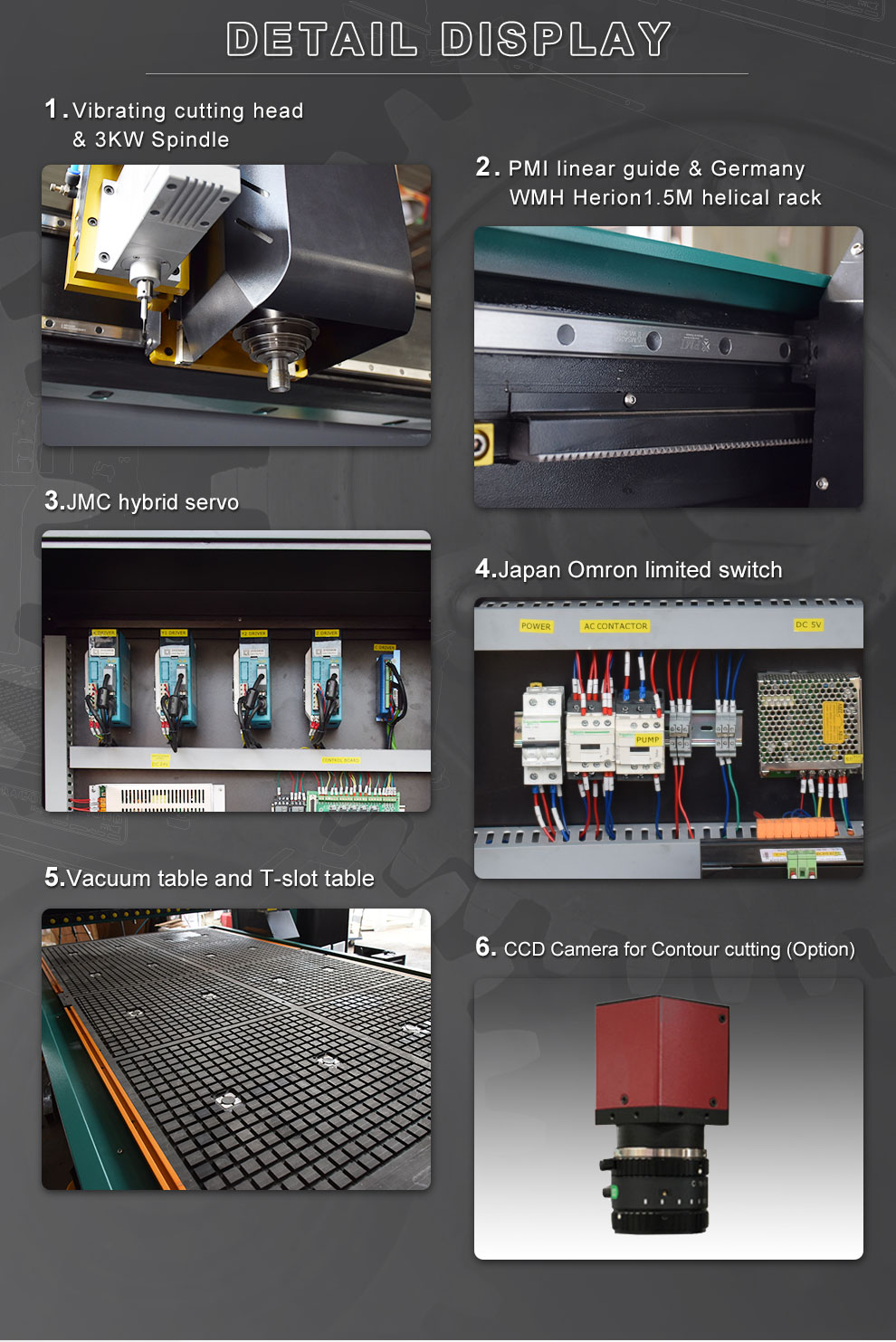

PRODUCT DETAILS

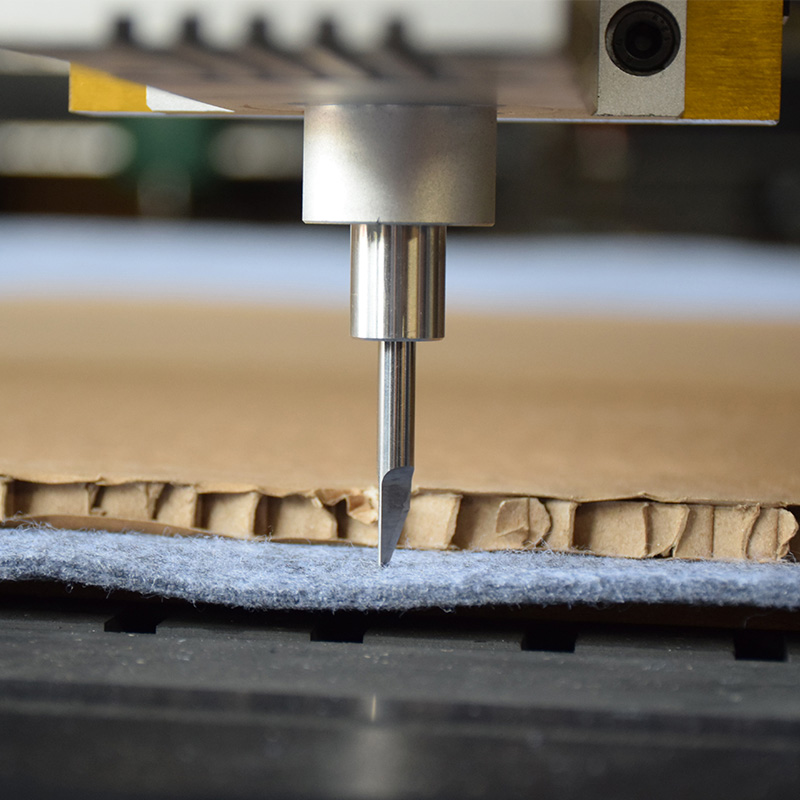

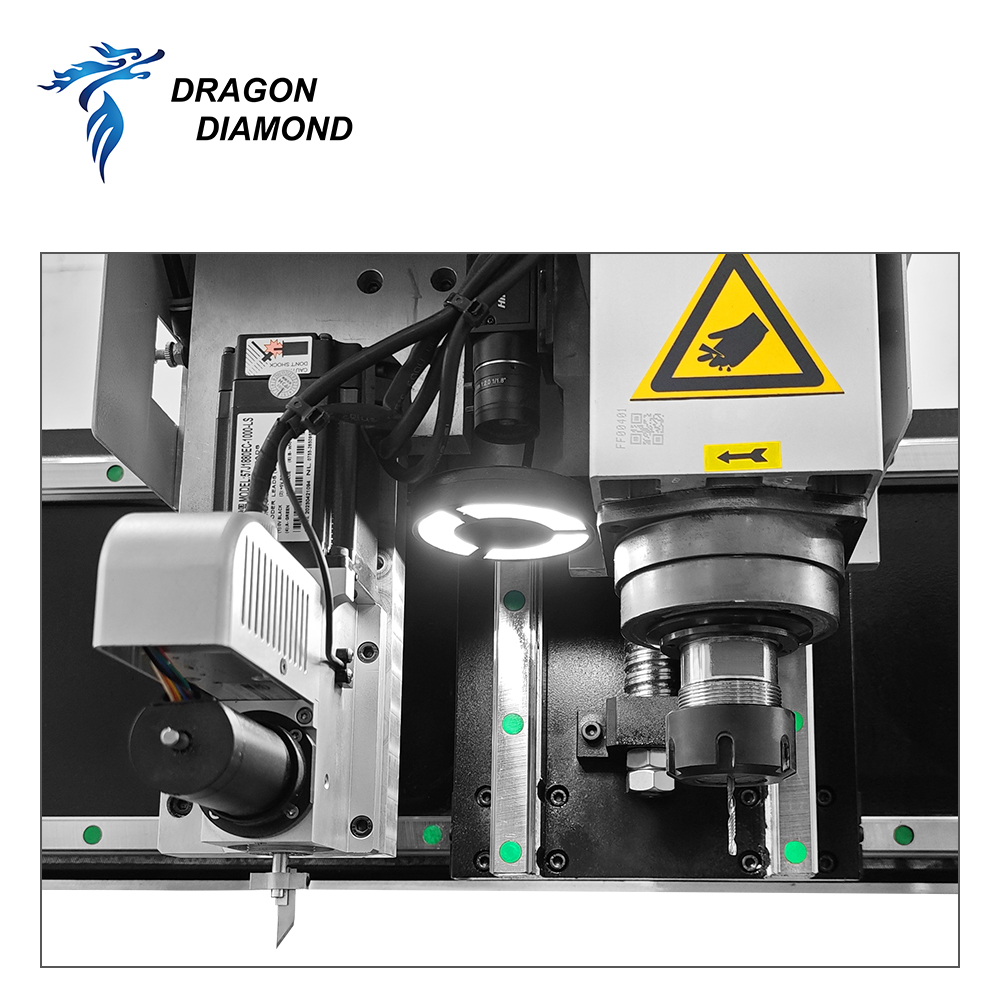

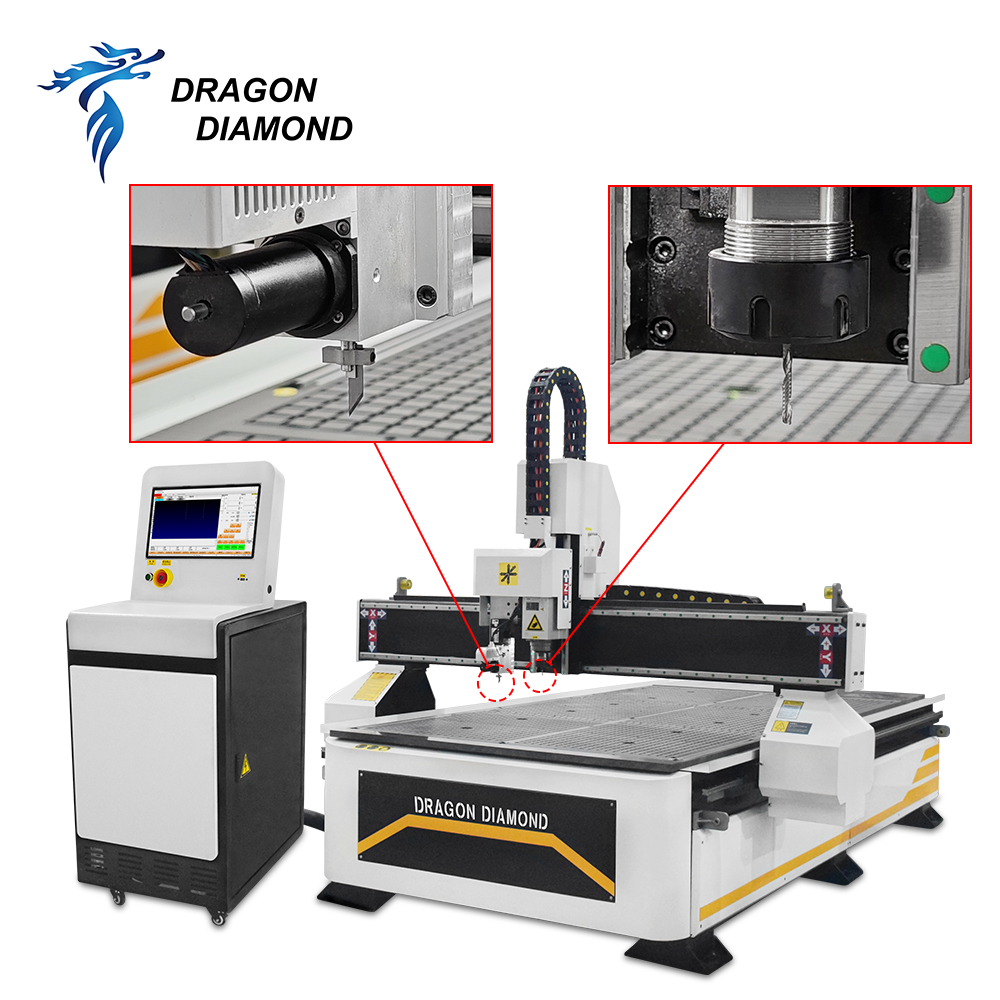

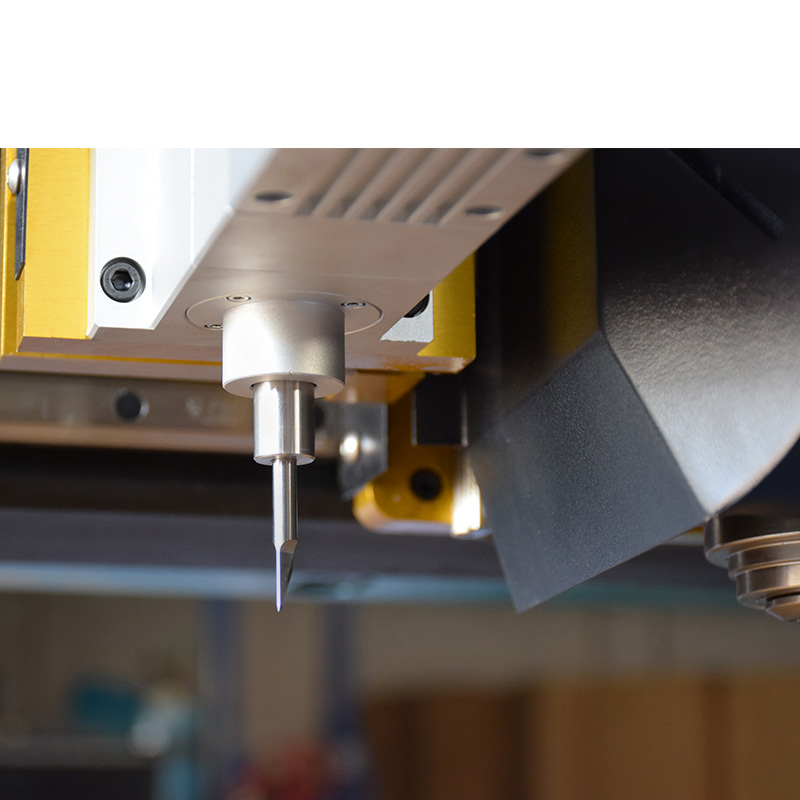

1.Vibrating cutting head & 3KW Spindle


2.PMI linear guide & Germany WMH Herion 1.5M helical rack


3.JMC hybrid servo


4.Japan Omron limited switch

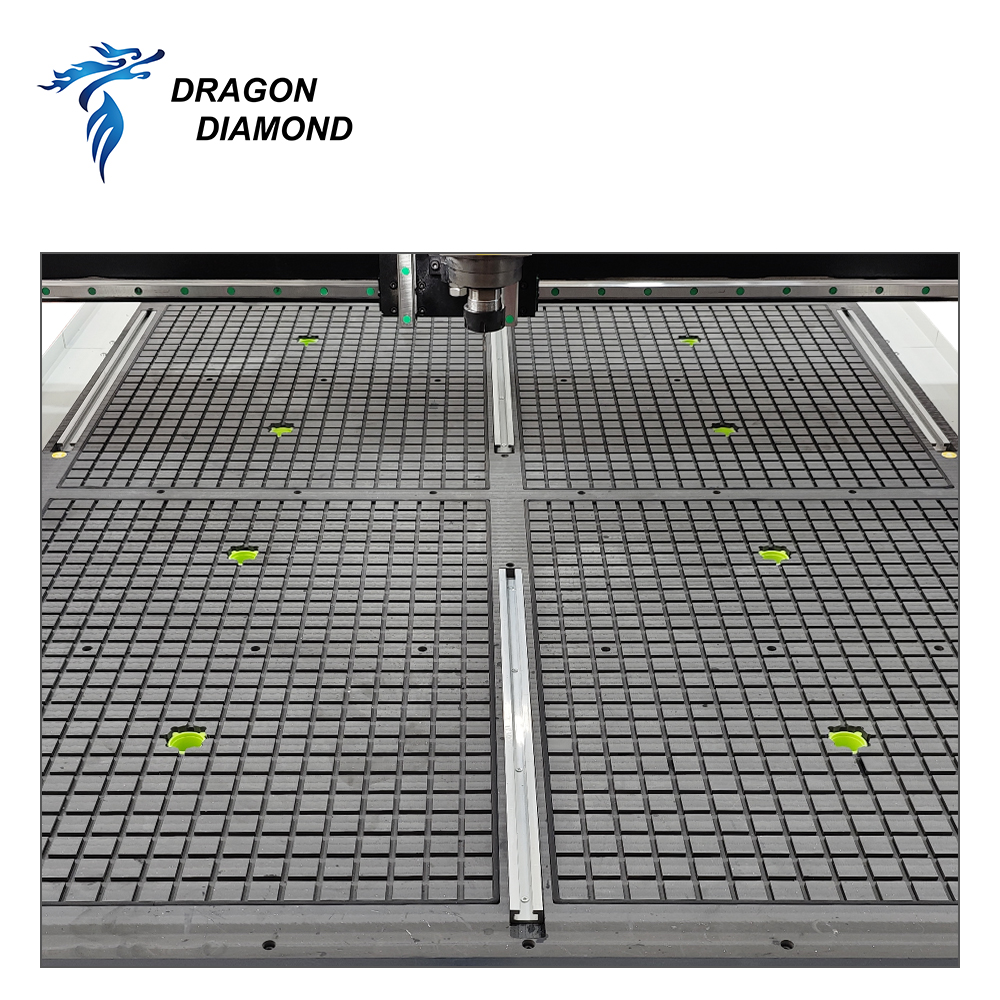

5.Vacuum table and T-slot table


6. CCD Camera for Contour cutting (Option)

Dragon Diamond CNC Router Company

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
CNC Paper Cutting Machine

CNC Vibrating Knife Cutting Machine for Leather Paper

CNC Router with Vibrating knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker,film,foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

CNC Corrugated Paper Cutting Machine

Automatic CNC Sponge Digital Oscillation Cutter Machine

Dragon Diamond company main in offer cnc solution for which needed in development countries more than 8 years. Cnc router, cnc machine with vibrating knife,plasma cutting ,laser cutting ,laser engraving , fiber laser marking ,uv printer and inkjet printing are our main products.

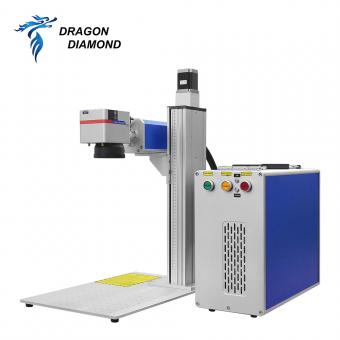

Split Fiber Marking Engraving Laser Machine

Split 20W 50W Fiber Jewellery Metal Marking Machine

Fiber Laser Marking Machine For Metal Material.

Stone Cutting Engraving Machine

Double Heads Stone Metal Engraving Machines

130*250cm stone CNC Router can drilling, cutting, edge grinding, shaping, polishing work for stone and metal.

Laser Cutting Engraving Machine with CCD Camera

6090 Camera Laser Cutting Engraving Machine Crafts Products

60*90cm Laser Machine With CCD Function Automatically Edge Cutting.

Laser Engraving Machine with CCD Camera

1610 CCD Camera CO2 Laser Cutting Engraving Machine Crafts Products

160*100CM Working Area Laser Engraving Machine For Fabric,Lathe,Acrylic,etc.

Acrylic CO2 Engraving Machine

CO2 Laser Engraving Machine For Acrylic Paper Cardboard Fabric

160*100cm Double Head Laser Machine High Working Performance For Cutting and Engraving.

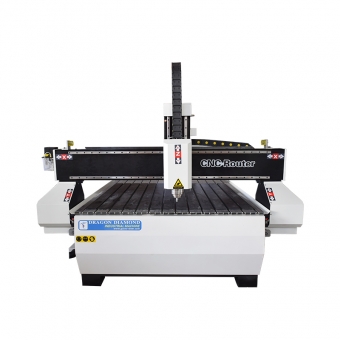

CNC Routers for Woodworking
